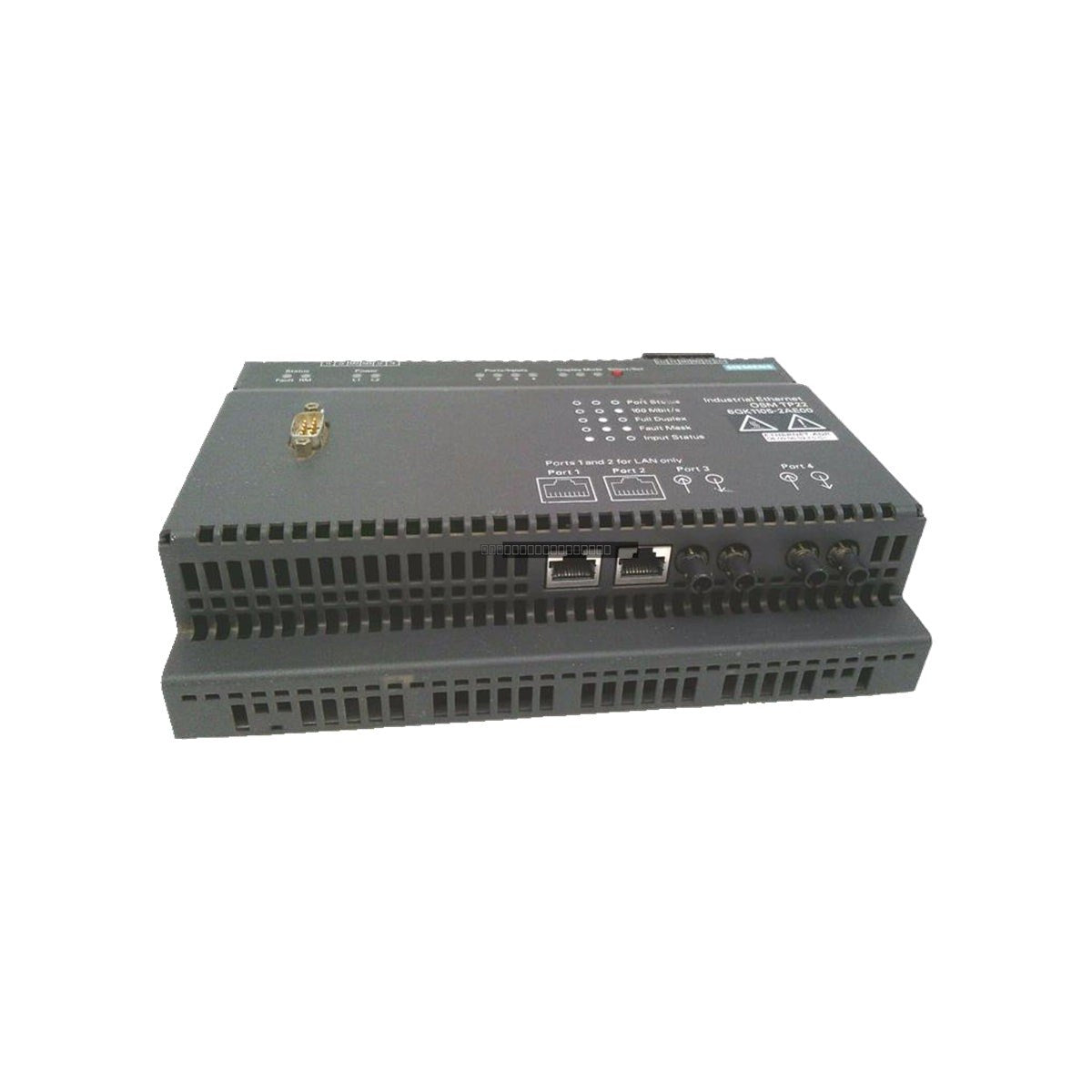

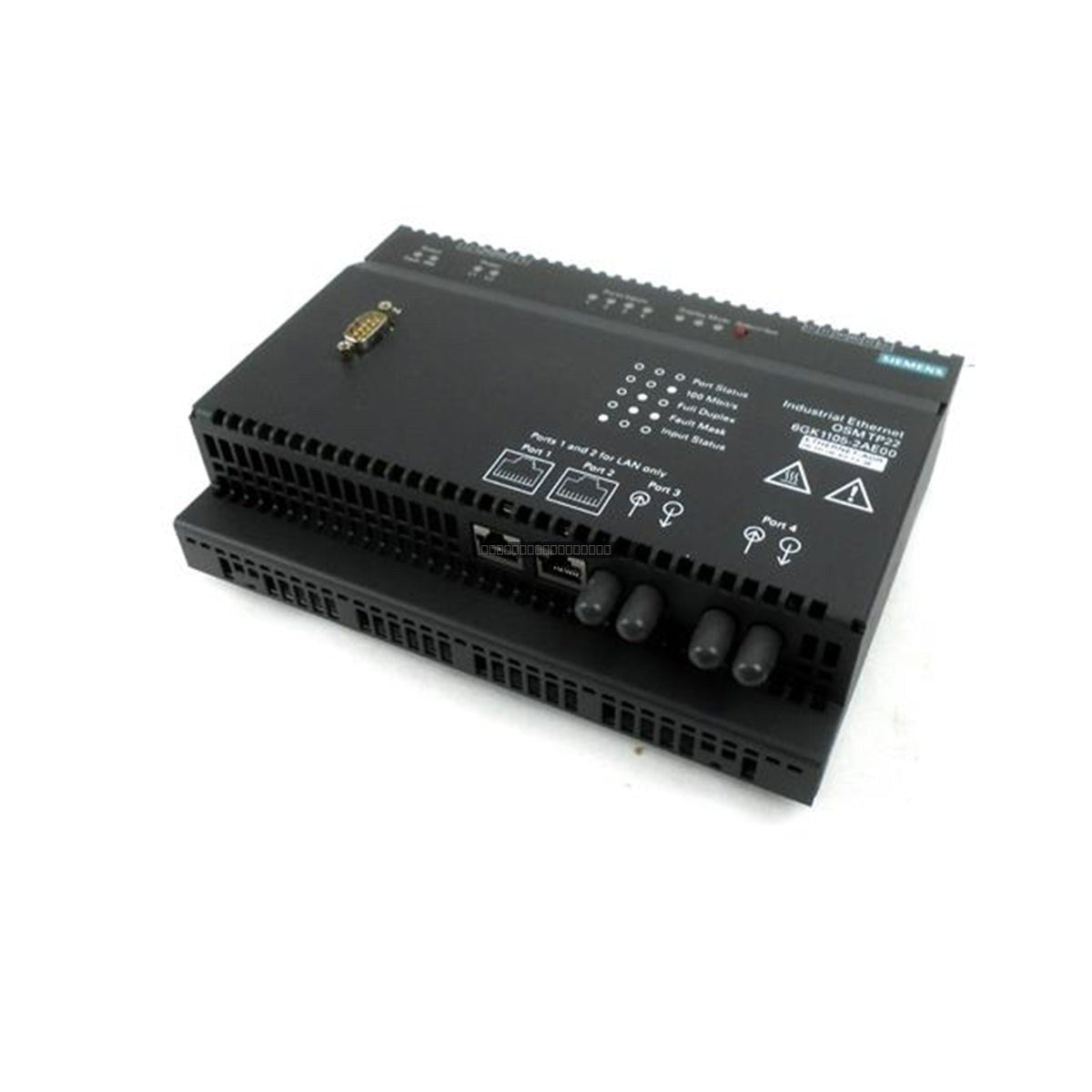

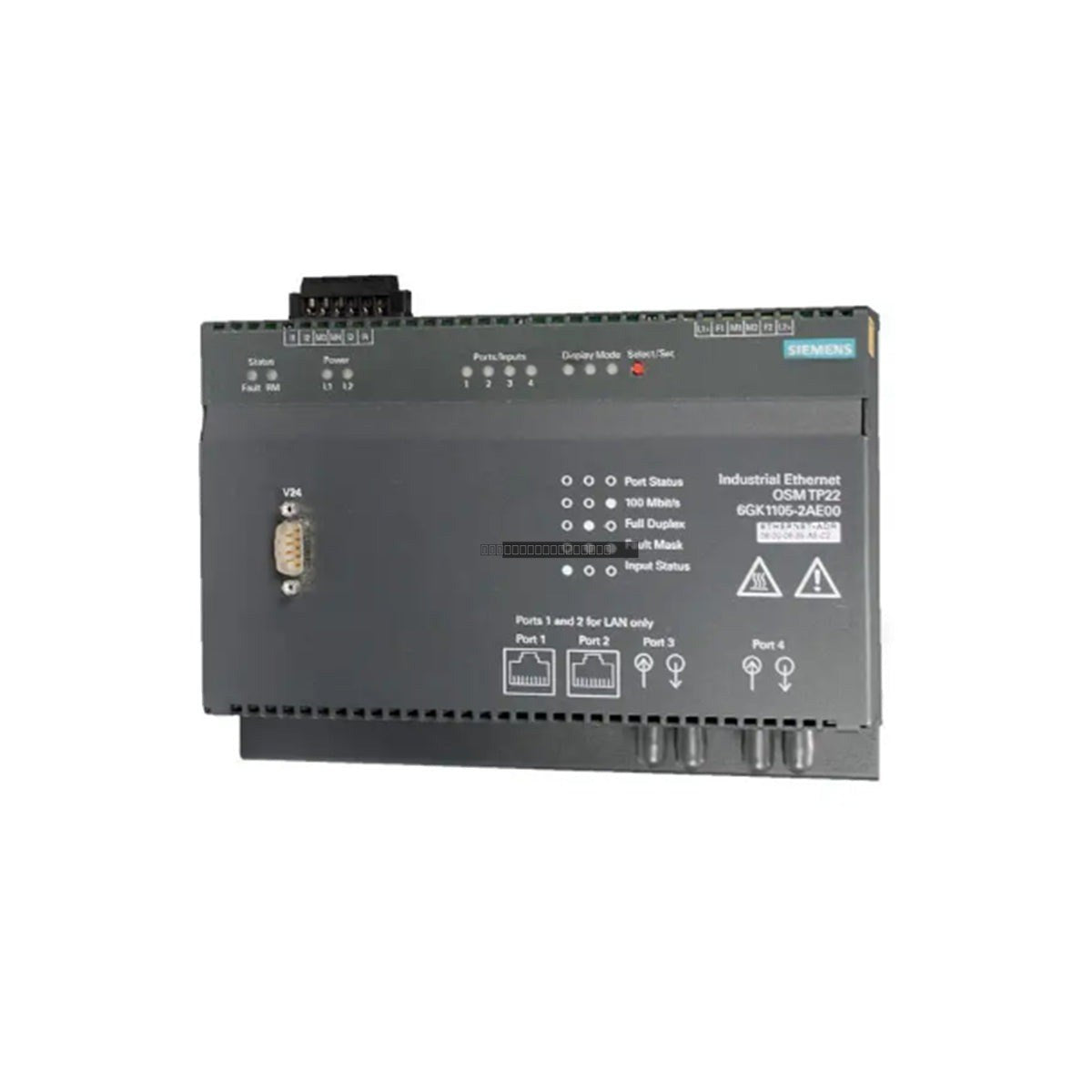

The Siemens SIMATIC NET OSM TP22 (6GK1105-2AE00) is a robust industrial optical switch module designed to provide reliable, high-availability connectivity within Industrial Ethernet networks. This module functions as a critical backbone component, utilizing integrated redundancy management to ensure deterministic data transmission and rapid recovery in the event of network segment failures.
Features
-
Redundancy Management: Built-in Redundancy Manager (RM) capabilities allow for sub-millisecond reconfiguration of ring topologies, preventing downtime during link interruptions.
-
Dual Media Support: Equipped with two 100 Mbit/s fiber optic ports for long-range, EMI-immune backbone communication and two 10/100 Mbit/s RJ45 ports for standard local device connections.
-
Integrated I/O: Features four digital inputs for monitoring field-level binary signals and a signaling contact relay to provide immediate hardware-level fault notification.
-
Power Reliability: Designed with redundant 24 VDC power inputs to ensure continuous operation even if one power source fails.
Applications
The OSM TP22 is widely utilized in demanding industrial environments where network stability is paramount. Common applications include petrochemical processing, power generation control systems, and automated mining operations, where it serves as a central node for maintaining communication integrity across distributed automation equipment.
Technical Specifications
| Model |
6GK1105-2AE00 |
| Brand |
Siemens SIMATIC NET |
| Fiber Optic Ports |
2 x 100 Mbit/s (Multi-mode) |
| RJ45 Ports |
2 x 10/100 Mbit/s |
| Digital Inputs |
4 |
| Signaling Contact |
1 x Relay |
| Input Voltage |
24 VDC (18-32 VDC range) |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 70 deg C |
| Relative Humidity |
95% non-condensing |
Installation Guidelines
- Ensure the module is mounted securely in a clean, dry cabinet with adequate ventilation to maintain operating temperatures below 60 deg C.
- Follow standard ESD (Electrostatic Discharge) procedures when handling the module to prevent internal component damage.
- Ensure all power connections are wired to the dual terminal blocks to utilize the redundant power supply functionality.
- Verify that fiber optic cables are cleaned properly before insertion to maintain signal integrity; avoid sharp bends in the cable path.
- Always power down the system before inserting or removing the module from the rail to prevent electrical arcing or configuration errors.
FAQ
What is the primary function of the redundancy manager in this module? The redundancy manager monitors the network ring topology and, upon detecting a link failure, automatically reconfigures the data path to ensure the network remains operational without significant interruption.
Can this module be used in high-EMI environments? Yes, the fiber optic ports provide complete galvanic isolation, making the module ideal for environments with high electromagnetic interference or significant ground potential differences.
