Description

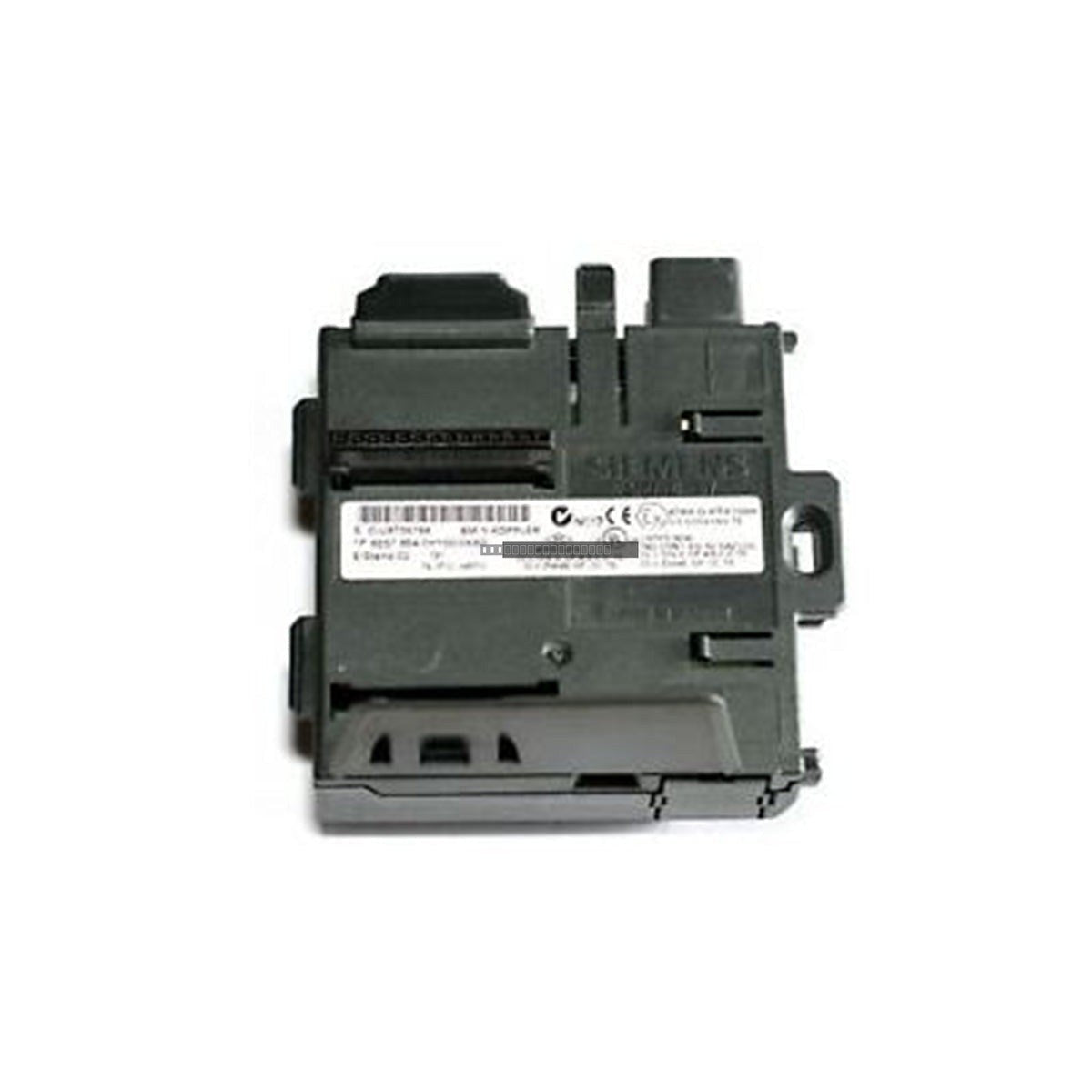

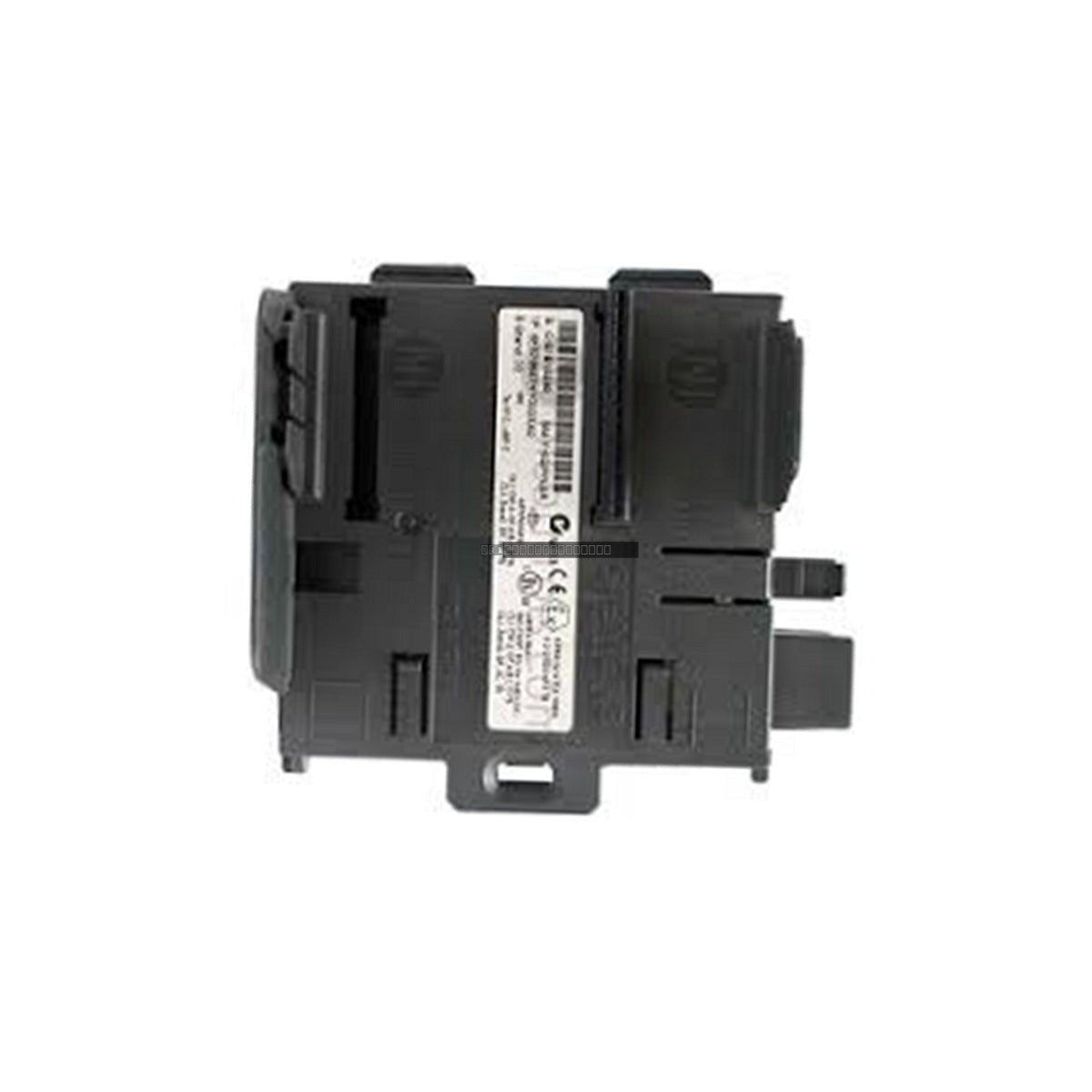

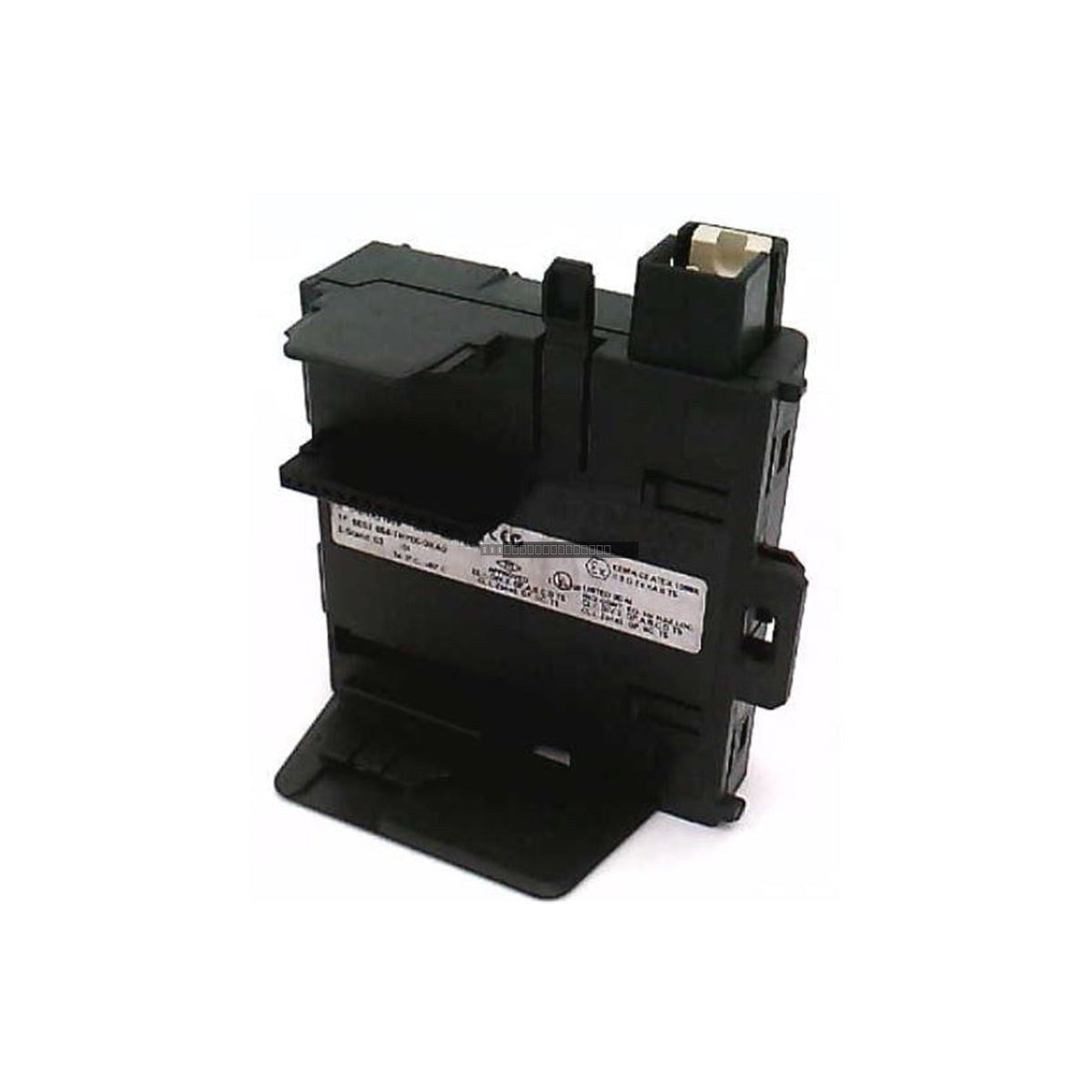

The Siemens 6ES7654-7HY00-0XA0 is a specialized SIMATIC S7 bus module designed to accommodate a Y-Coupler within high-availability automation architectures. This hardware component facilitates the transition from a redundant PROFIBUS DP master system to a single-channel PROFIBUS DP line, enabling the integration of standard slaves into fault-tolerant configurations. Primarily utilized in critical process industries such as oil refining, chemical processing, and power generation, this bus unit ensures the structural and electrical integrity of the redundant bus link. Its implementation is vital for eliminating single points of failure in communication, thereby significantly reducing unscheduled system downtime in complex industrial networks.
Features
- Acts as the mechanical and electrical mounting base for the Y-Coupler module within an ET 200M distributed I/O station.
- Supports hot-swapping capabilities, allowing for the replacement of active components without interrupting backplane bus communication.
- Includes a protective backplane cover to maintain terminal integrity when adjacent slots are unoccupied.
- Designed for high-speed data throughput and robust electromagnetic shielding.
- Passive design ensures long-term reliability with zero power consumption from the signal line.
Applications
This bus module is essential for high-availability systems where redundant PROFIBUS DP master systems are required. It is commonly deployed in ET 200M distributed I/O stations within process automation environments, including chemical plants, power generation facilities, and large-scale manufacturing lines requiring fault-tolerant communication.
Technical Specifications
| Model |
6ES7654-7HY00-0XA0 |
| Brand |
Siemens |
| Series |
SIMATIC S7 / ET 200M |
| Product Type |
Bus Module for Y-Coupler |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 70 deg C |
| Protection Class |
IP20 |
| Mounting |
Standard DIN Rail / S7 Rail |
Installation Guidelines
- Ensure the S7 mounting rail is properly grounded to the cabinet backplane to maintain EMI shielding integrity.
- Power down the ET 200M station before installing or removing the bus module to prevent potential backplane short-circuits.
- Ensure the module is securely latched onto the DIN rail to prevent vibration-induced disconnection.
- Use only compatible Y-Coupler modules designed for the ET 200M series.
- Maintain adequate clearance around the module to allow for proper airflow and heat dissipation within the control cabinet.
FAQ
Is this module compatible with all ET 200M stations?
This module is specifically designed for use with the Y-Coupler in ET 200M distributed I/O configurations requiring redundant PROFIBUS DP master connectivity. Please verify your specific system configuration against the Siemens product documentation.
Does this module require external power?
No, this is a passive bus module that provides the mechanical and electrical interface for the Y-Coupler; it does not consume power itself.
