Product Overview

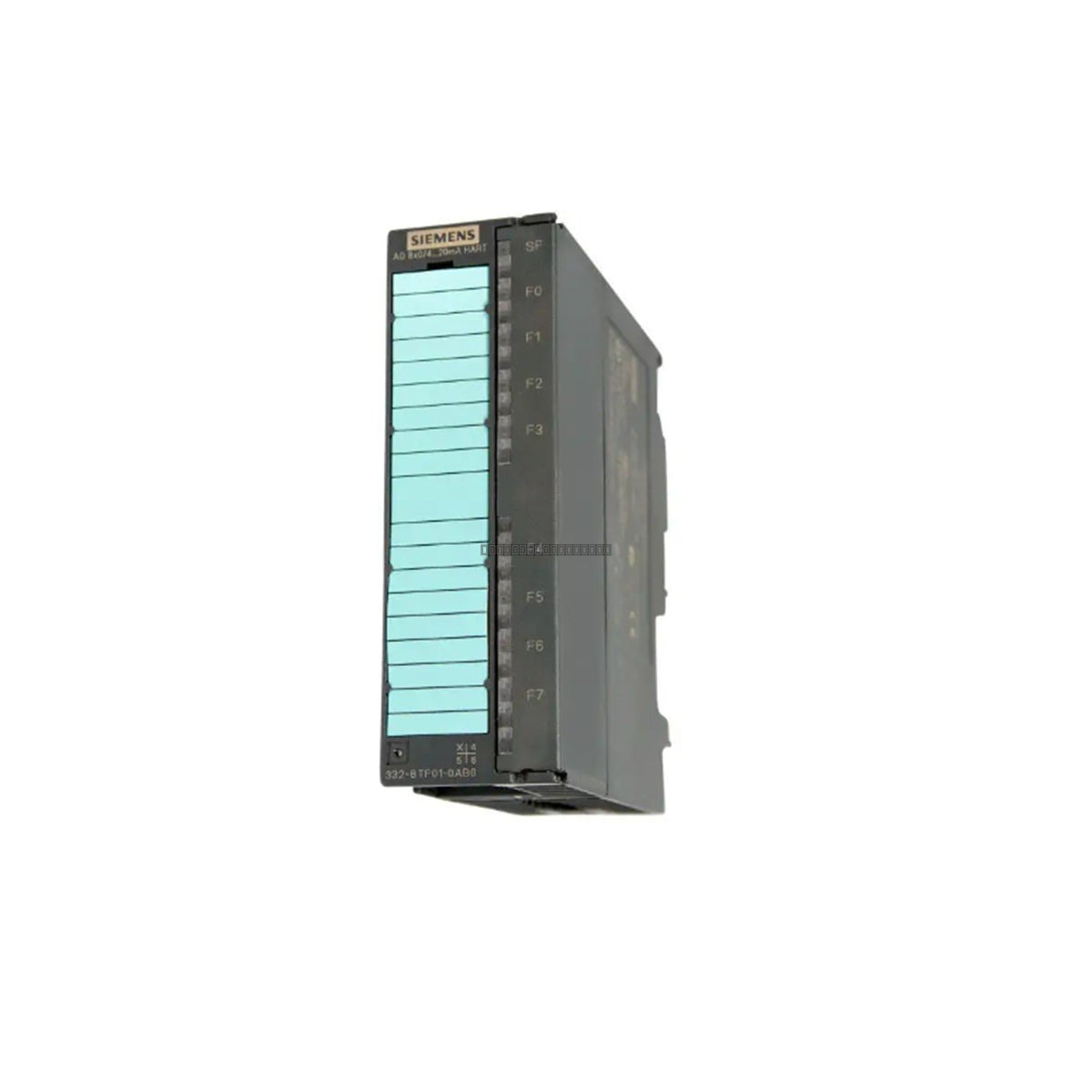

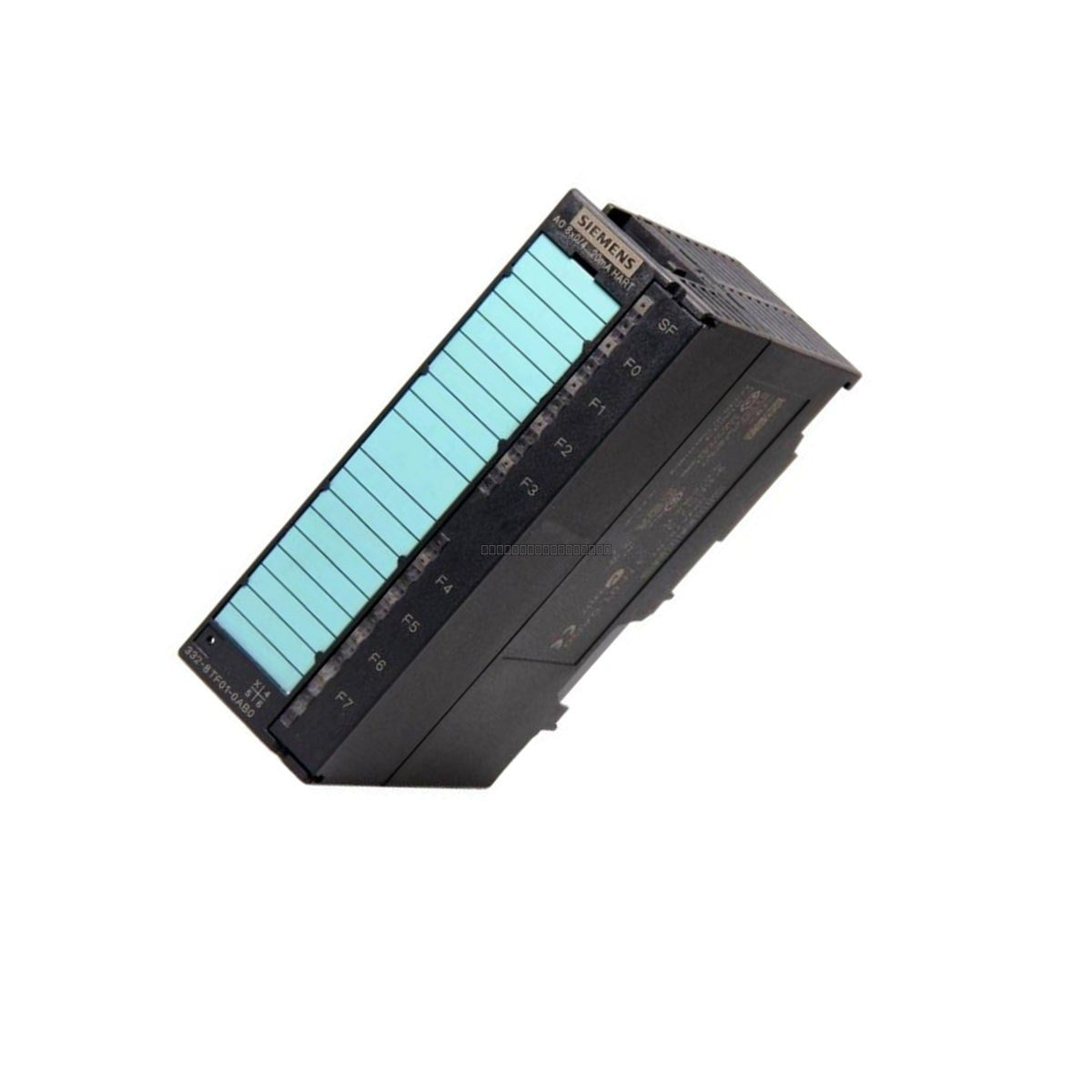

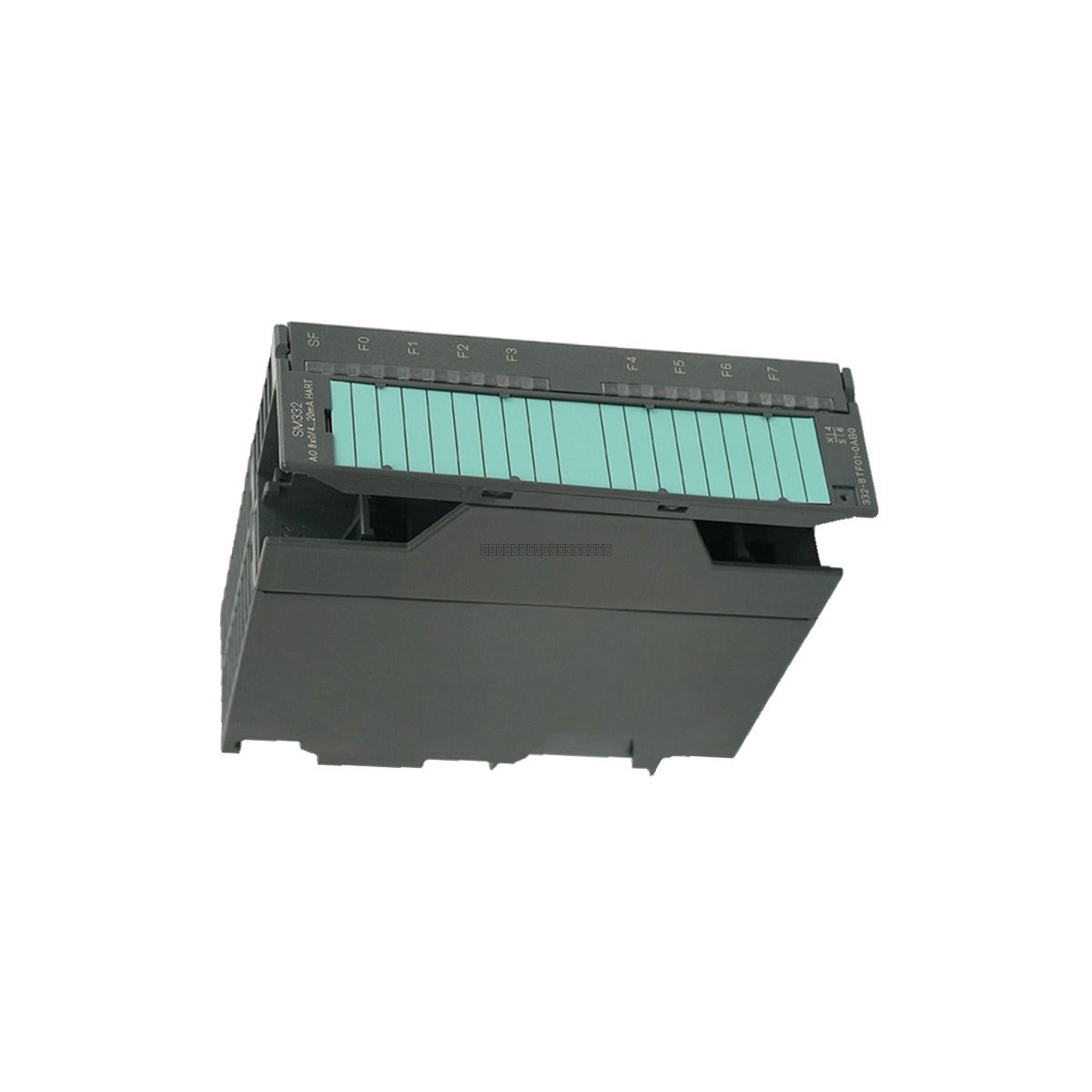

The Siemens 6ES7332-8TF01-0AB0 is a high-performance analog output module from the SIMATIC S7-300 series, specifically engineered for the ET 200M distributed I/O system. This module features 8 isolated analog output channels that support both 0/4 to 20 mA signals and the HART (Highway Addressable Remote Transducer) communication protocol, enabling advanced field device diagnostics and configuration.
Features
- Integrated HART communication for field device management and auxiliary variable reading.
- Eight independent analog output channels with 16-bit resolution.
- Supports firmware updates for connected HART field devices.
- Local diagnostic buffer with timestamping for improved fault analysis and maintenance.
- Redundancy support for high-availability control applications.
- Compatible with ET 200M distributed I/O systems using the IM153-2 interface module.
Applications
- Process automation in chemical and petrochemical facilities requiring precise valve and actuator control.
- Water and wastewater management, including flow control and chemical dosing.
- Pharmaceutical manufacturing where process stability and diagnostic reporting are critical.
- Oil and gas operations benefiting from high-availability redundant configurations.
Technical Specifications
| Model |
6ES7332-8TF01-0AB0 |
| Number of Outputs |
8 |
| Output Current Range |
0/4 to 20 mA |
| Resolution |
16-bit |
| Load Impedance (max) |
750 Ohm |
| Inductive Load (max) |
10 mH |
| Power Supply |
24V DC |
| Power Loss (typ) |
6 W |
| Isolation |
500V DC |
| Cable Length (shielded, max) |
800 m |
| Front Connector |
20-pin |
Installation Guidelines
- Ensure the system is powered down before inserting or removing the module from the rack to prevent electrical damage.
- The module requires a standard 20-pin front connector for field wiring.
- When used in an ET 200M configuration with an active backplane bus, the module supports hot-swapping (replacement during operation).
- Maintain proper shielding for analog signal cables to minimize EMI, with a maximum length of 800 meters.
- In hazardous atmospheres, strictly adhere to local safety regulations regarding live-circuit disconnection.
FAQ
What is the primary function of the 6ES7332-8TF01-0AB0?
This module provides 8 channels of analog output for the S7-300/ET 200M system, allowing for precise control of field devices while supporting HART communication for secondary data and diagnostics.
Is this module compatible with all ET 200M interfaces?
The module is designed for use with the ET 200M system and requires an IM153-2 interface module to function correctly in a distributed setup.
Does this module support redundancy?
Yes, the 6ES7332-8TF01-0AB0 supports redundant configurations, which is ideal for critical processes that require high system availability.
