Description

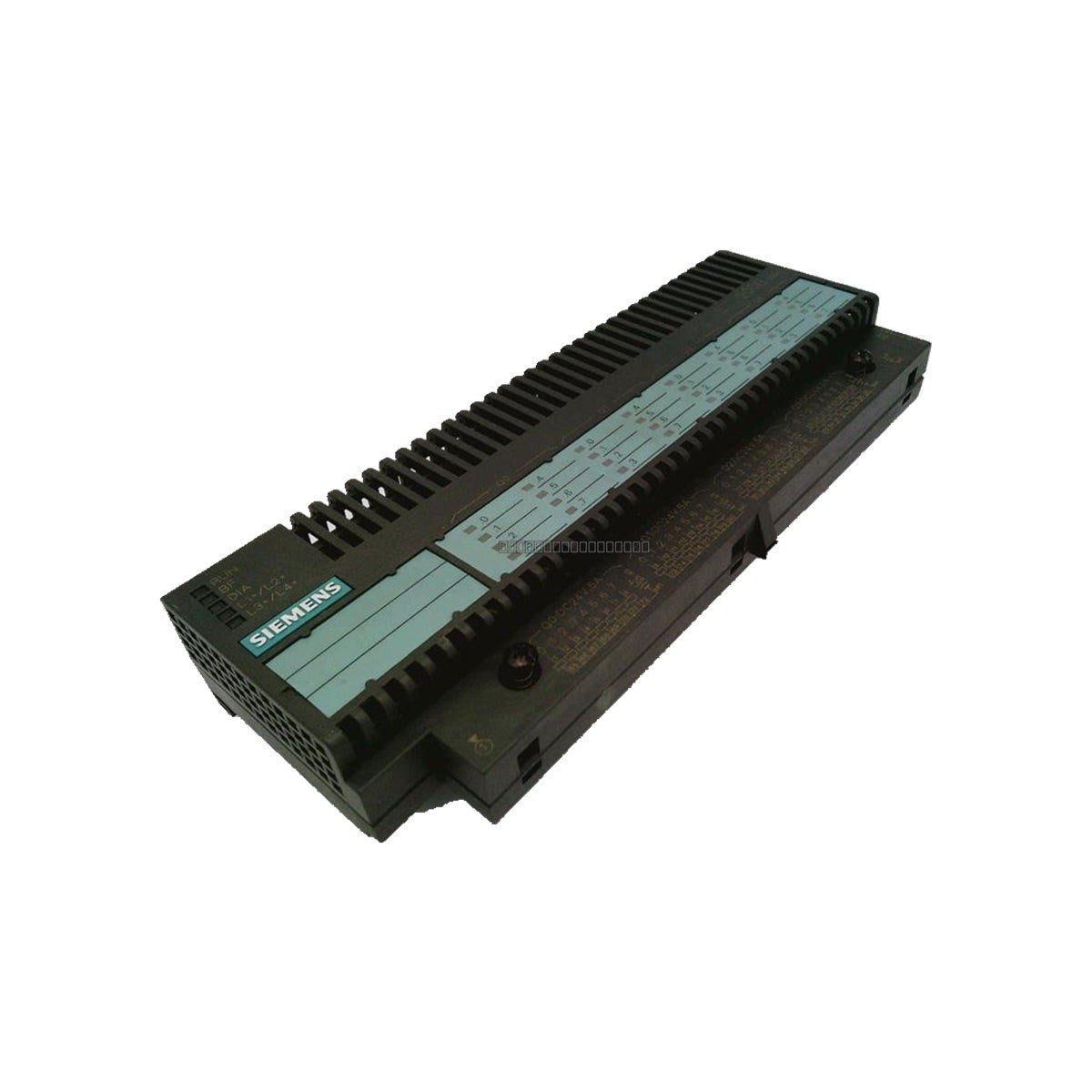

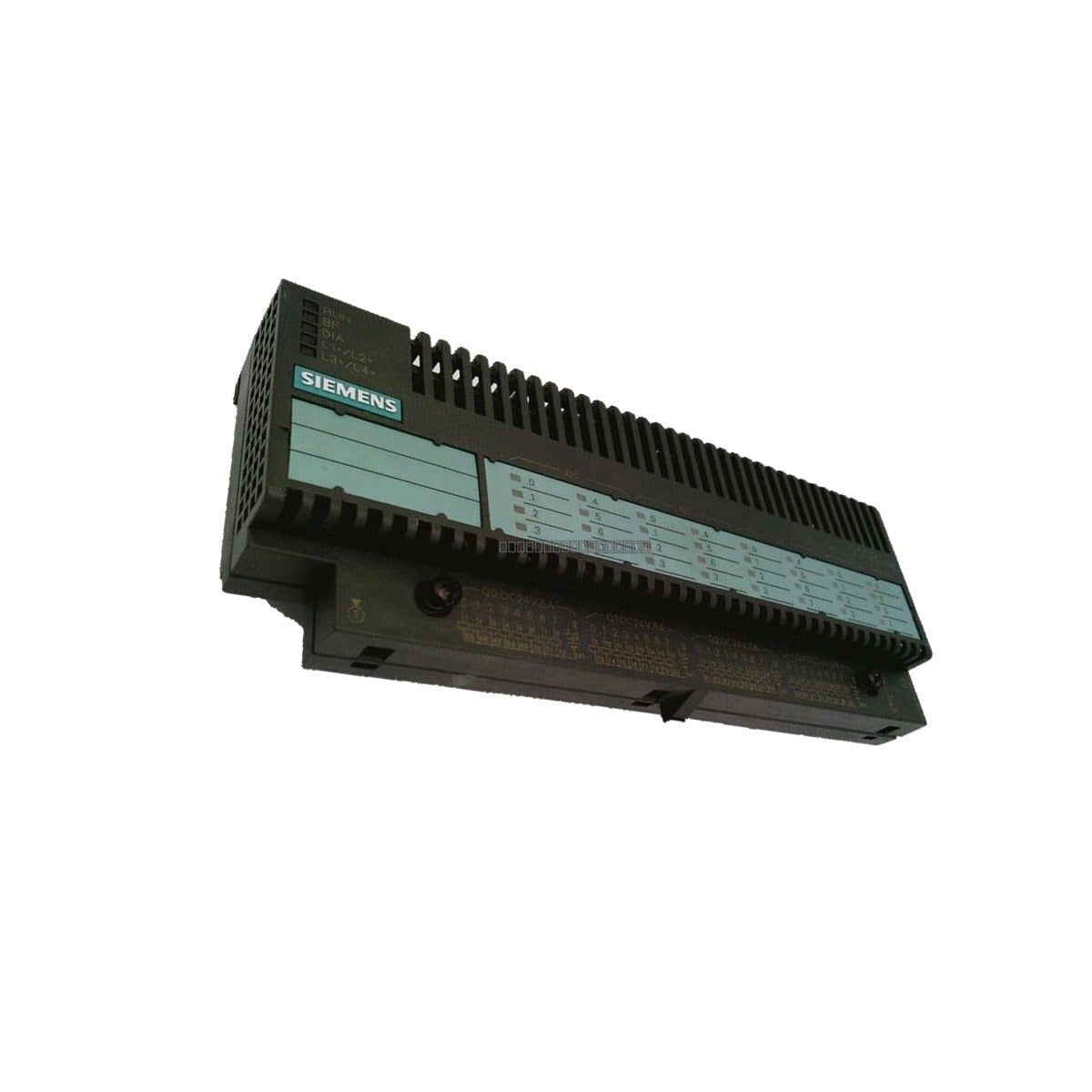

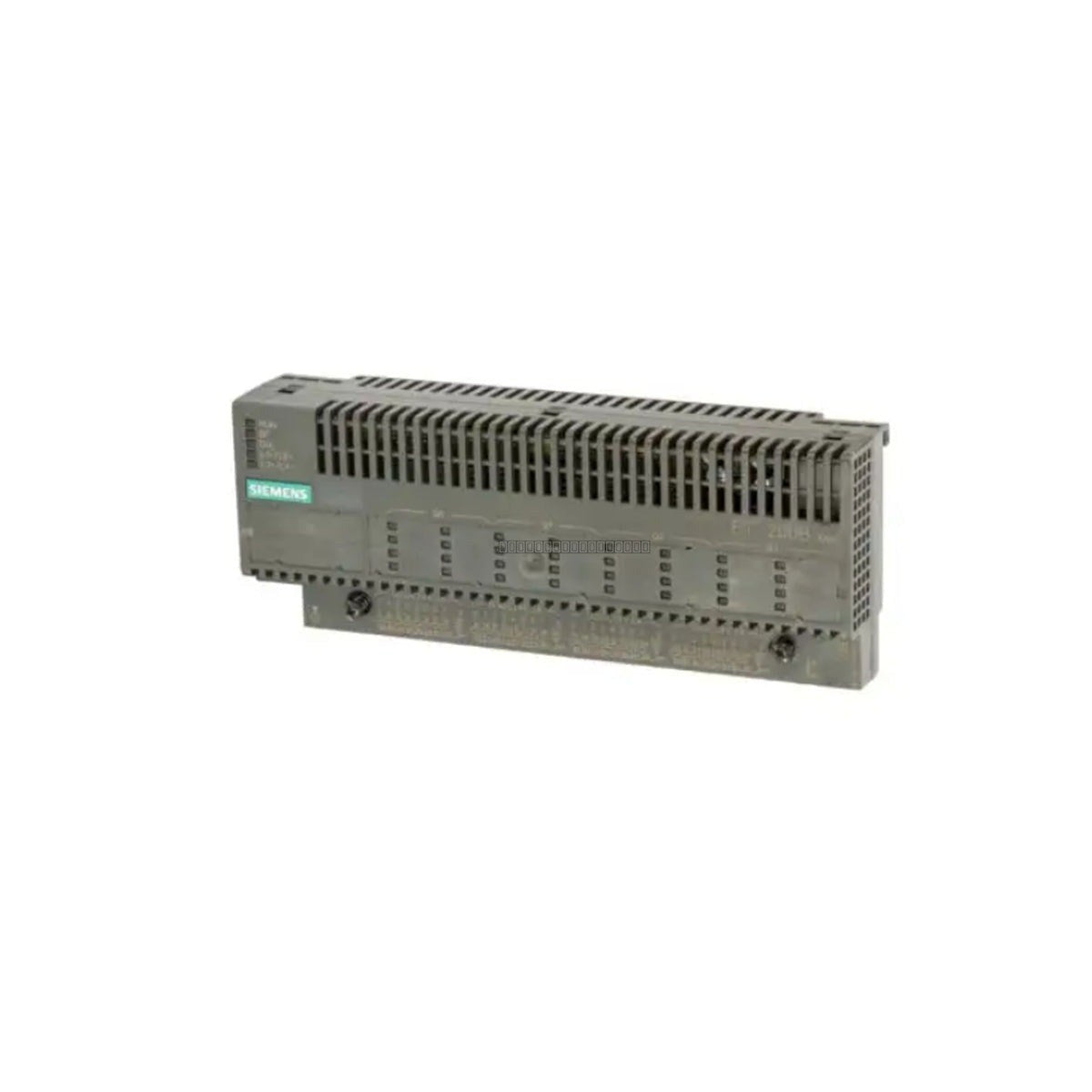

The Siemens 6ES7132-0BL01-0XB0 is a digital output module designed for the SIMATIC DP ET 200B distributed I/O system. This module provides 32 digital output channels, facilitating the control of field devices in industrial automation environments. It operates on a 24V DC supply and is engineered for high-density signal switching in compact, decentralized configurations.

Features

• 32 digital output channels for high-density I/O requirements.
• Designed specifically for the ET 200B distributed I/O station.
• Standard 24V DC operating voltage.
• 0.5A output current capacity per channel.
• Robust construction suitable for industrial control cabinets.

Technical Specifications

Product Model	6ES7132-0BL01-0XB0
Manufacturer	Siemens
Product Type	Digital Output Module
System Compatibility	SIMATIC DP ET 200B
Number of Outputs	32
Operating Voltage	24V DC
Output Current	0.5A per channel
Module Width	235 mm
Lifecycle Status	Discontinued (Effective 01/10/17)

Installation Guidelines

• Ensure the power supply is disconnected before installing or removing the module from the ET 200B station.
• Mount the module in a clean, dry environment within an industrial enclosure to protect against dust and moisture.
• Ensure proper grounding of the ET 200B station to minimize electromagnetic interference (EMI).
• Verify that the wiring for the 32 output channels is correctly terminated to prevent short circuits or load damage.
• Maintain adequate clearance around the module to allow for proper heat dissipation.

FAQ

Is this module still supported by Siemens?

No, the 6ES7132-0BL01-0XB0 has been discontinued by the manufacturer as of October 1, 2017. It is typically sourced through aftermarket channels for maintenance and legacy system support.

What system is this module compatible with?

This module is specifically designed for the Siemens SIMATIC DP ET 200B distributed I/O system.
