وصف
Description

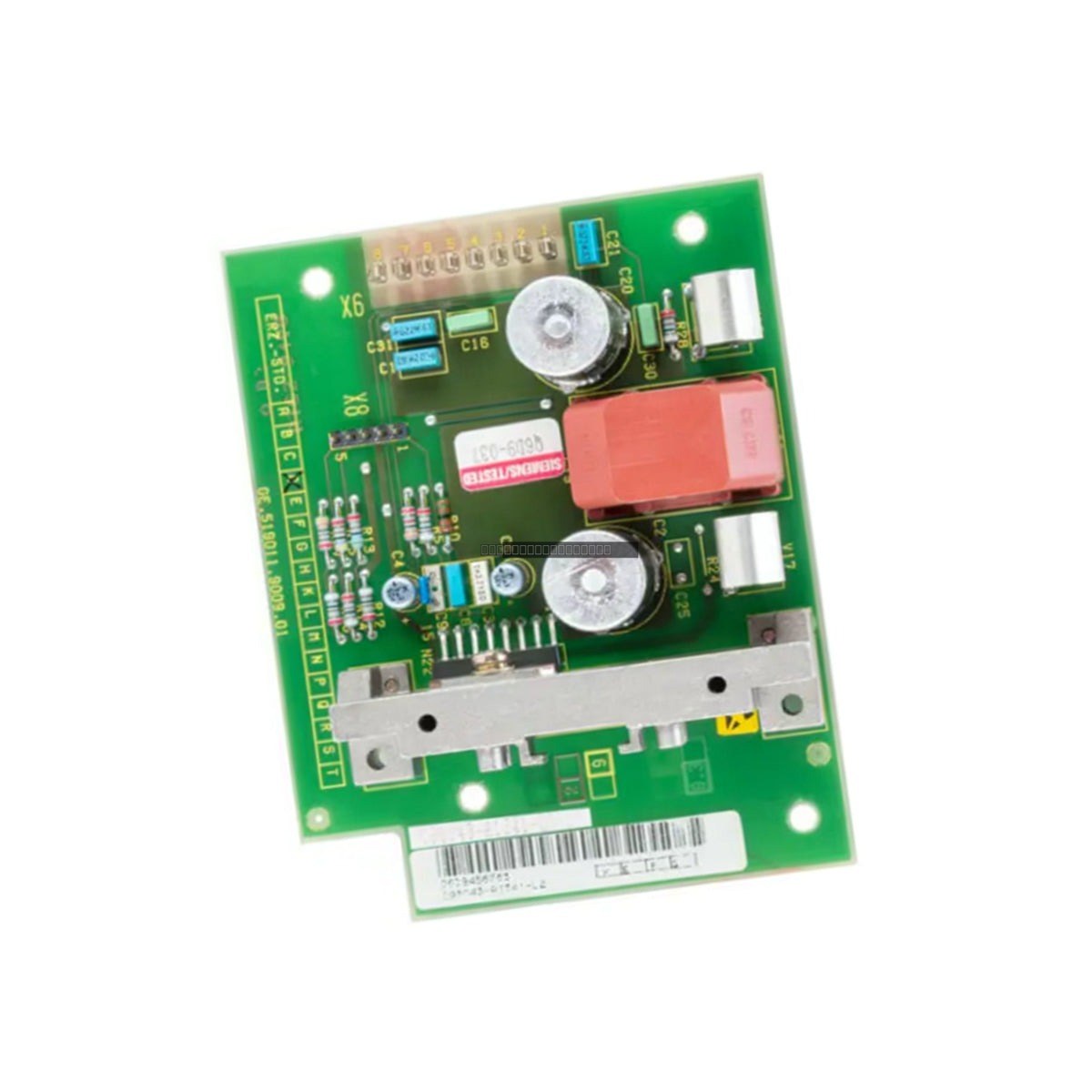

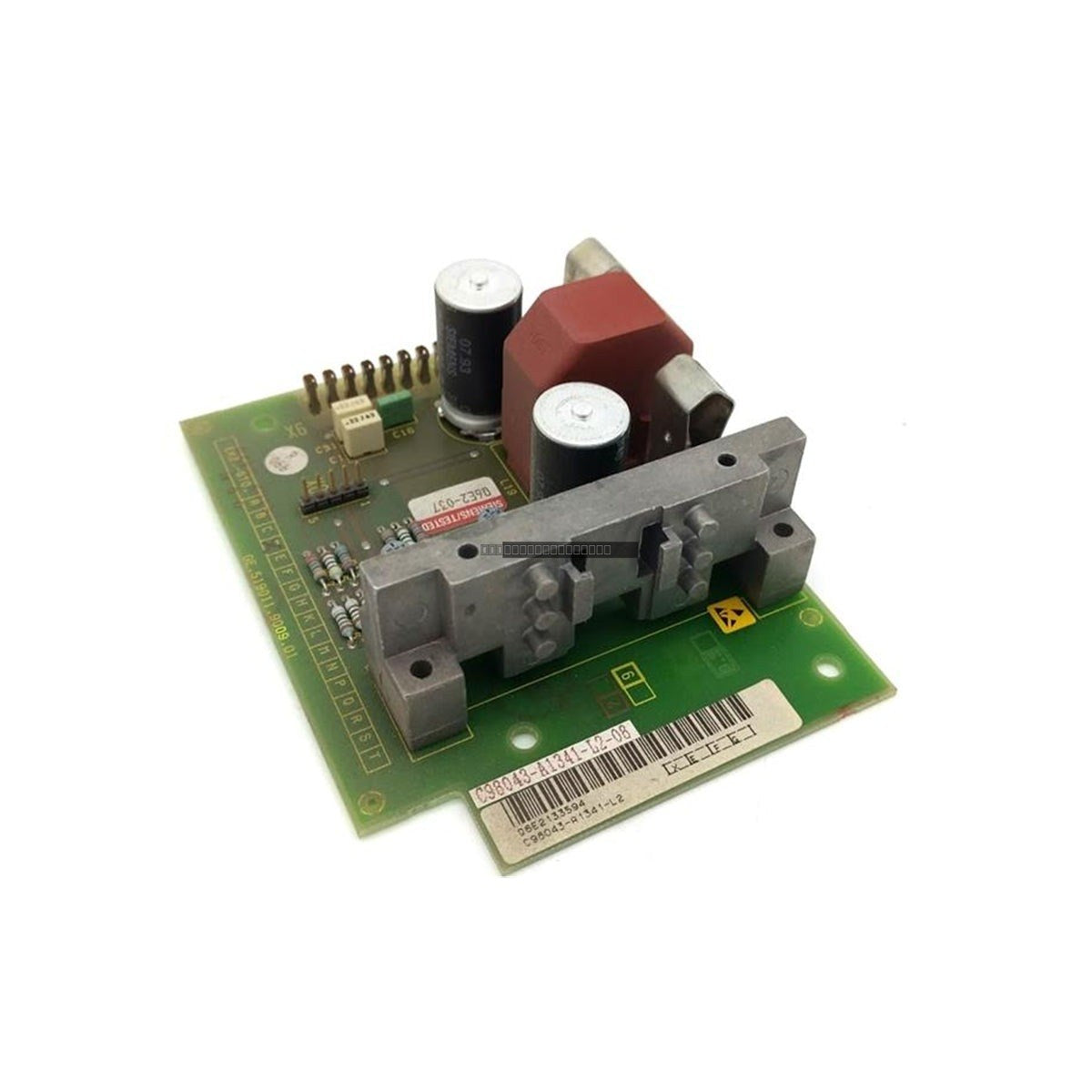

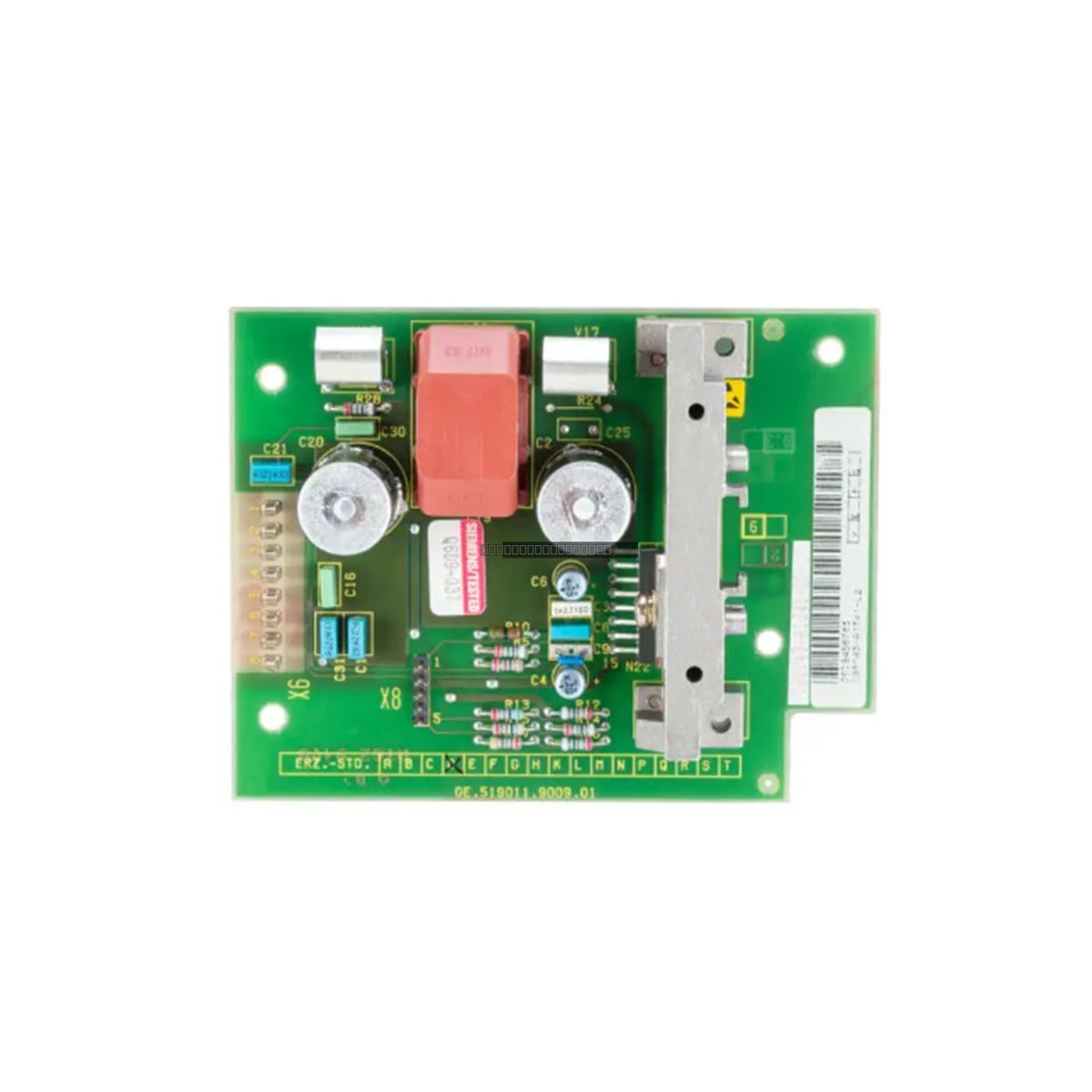

The Siemens 6ES5956-0AA12 is a dedicated power supply board engineered for the Simatic S5 automation series. This module provides essential 15 V DC power to the system backplane, ensuring that connected processing units and I/O modules receive stable, noise-free voltage for reliable operation. As a critical component for legacy control systems, this module is widely utilized in heavy industrial environments, including manufacturing plants and energy facilities, to maintain system uptime and prevent process interruptions caused by power instability.
Features
- Designed specifically for integration within the Simatic S5 chassis architecture.
- Delivers a stabilized 15 V DC output to support backplane communication and logic processing.
- Rugged circuit design utilizing high-quality industrial components to withstand electrical interference.
- Passive thermal management through natural convection, reducing maintenance requirements by avoiding moving parts like cooling fans.
- Compact PCB form factor for efficient installation in standard S5 subracks.
Applications
This power supply module is intended for use in legacy Siemens Simatic S5 control systems. It is commonly found in automated production lines, power distribution management, and chemical processing automation where legacy hardware remains the backbone of the control strategy.
Technical Specifications
| Model |
6ES5956-0AA12 |
| Series |
Simatic S5 |
| Output Voltage |
15 VDC |
| Cooling |
Natural Convection |
| Operating Temperature |
0 to 60 deg C |
Installation Guidelines
- Ensure the main power source is disconnected from the S5 rack before attempting to insert or remove the module.
- Handle the PCB by the edges to prevent electrostatic discharge (ESD) damage to sensitive components.
- Verify that the module is fully seated in the designated backplane slot to ensure proper contact with the power rails.
- Ensure adequate clearance around the module to facilitate natural convection cooling and prevent localized overheating.
- Confirm that the rack environment is free from excessive dust, moisture, and corrosive gases to maintain long-term reliability.
FAQ
Is this module compatible with all Simatic S5 systems?
The 6ES5956-0AA12 is designed for specific S5 configurations. Always verify your existing part number and system manual to ensure compatibility with your particular rack and backplane setup.
Does this module require external cooling fans?
No, this unit is designed for passive cooling through natural convection. Ensure the cabinet ventilation is adequate to maintain the operating temperature within the specified 0 to 60 deg C range.
