Description

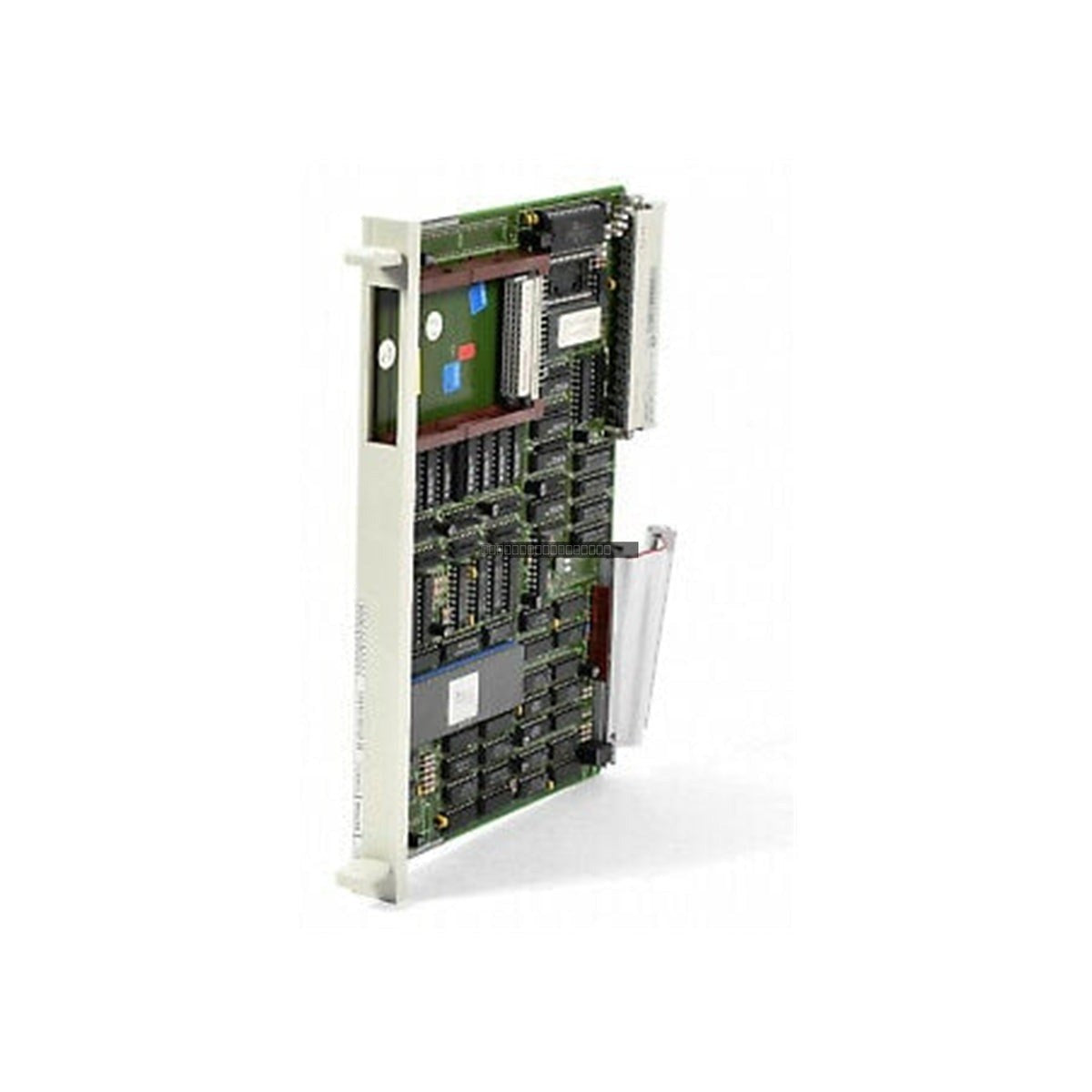

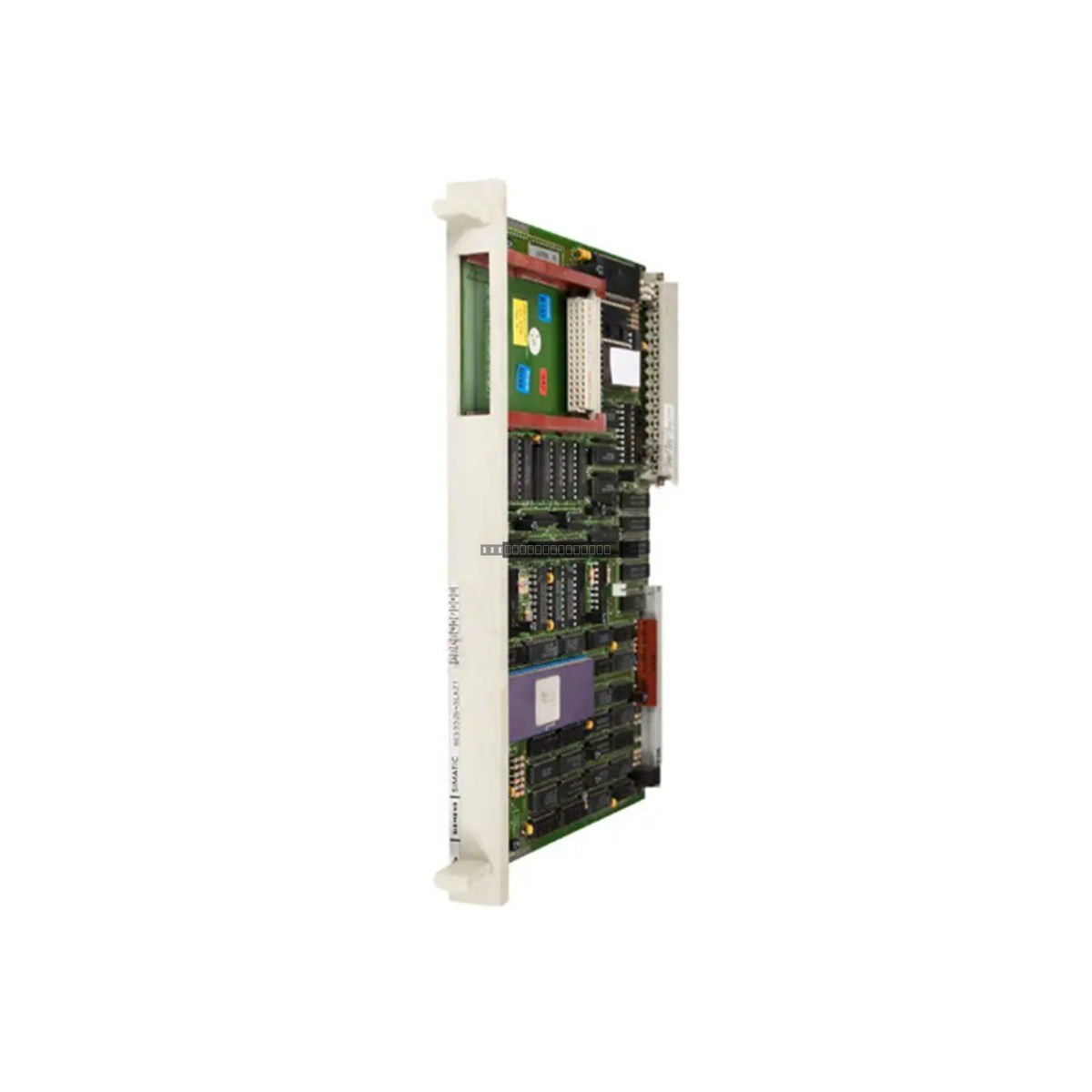

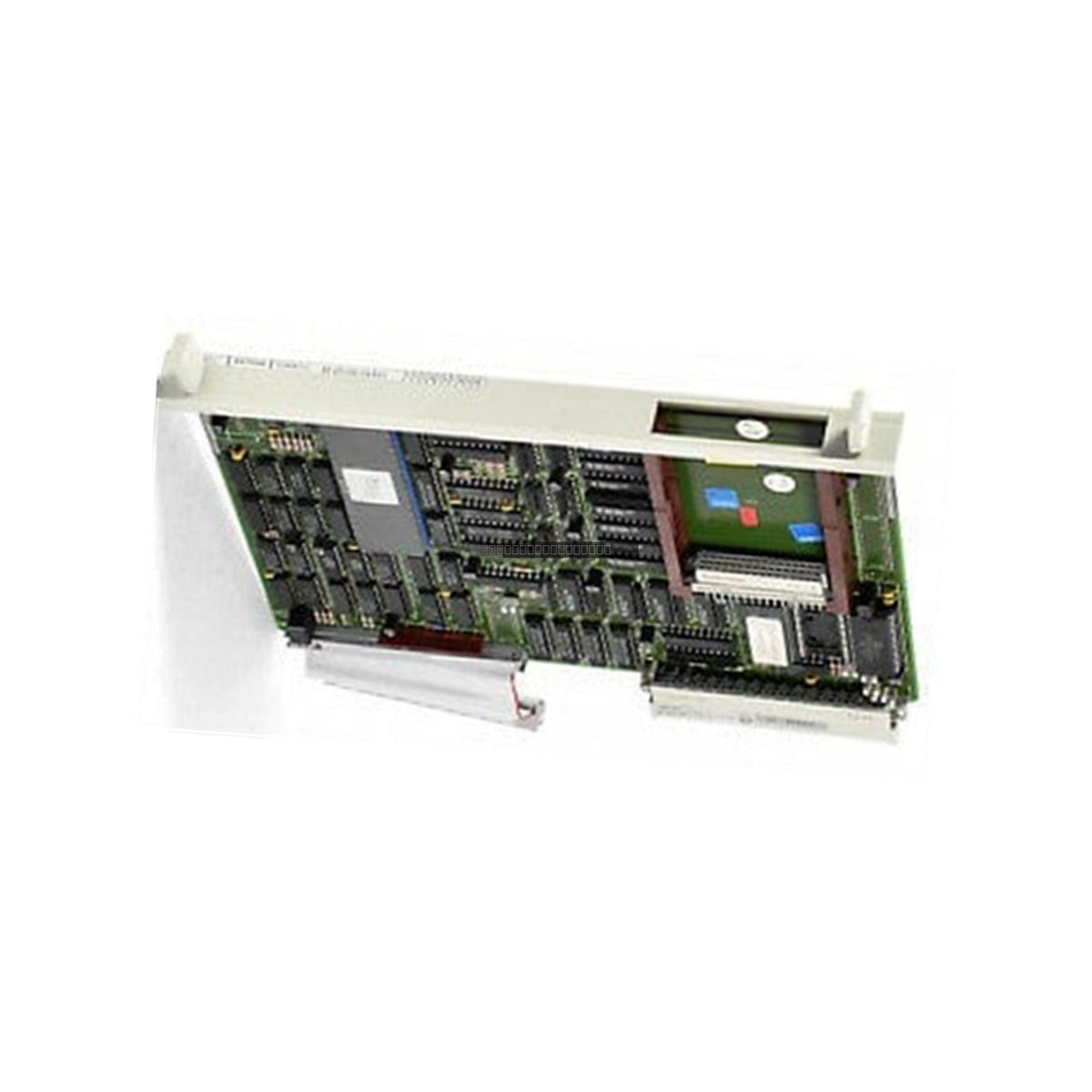

The Siemens 6ES5526-3LA21 is an original CP 526 communications expansion module engineered for integration within Simatic S5 programmable logic controller systems. This board is specifically designed to manage advanced data processing, screen visualization tasks, and peripheral communication, serving as a critical hardware component for legacy automation infrastructure. By offloading complex communication protocols from the main CPU, it ensures the stability and efficiency of established control architectures in industrial environments such as power generation, chemical processing, and metal manufacturing.
Features
- Dedicated onboard microprocessor for autonomous communication management.
- Optimized for integration with Simatic S5 backplane architectures.
- Supports serial connectivity for operator interfaces and peripheral devices.
- Reduces CPU overhead by handling data transmission and text string management locally.
- Designed for high-reliability operation in long-term industrial deployments.
Applications
This module is primarily utilized in mature S5-based control systems where reliable HMI connectivity and peripheral data exchange are required. It is an essential spare for maintaining legacy production lines, preventing unplanned downtime, and extending the operational lifespan of existing S5 PLC installations.
Technical Specifications
| Model |
6ES5526-3LA21 |
| Brand |
Siemens |
| Series |
Simatic S5 |
| Module Type |
CP 526 Expansion Board |
| Power Supply |
5 VDC (via backplane) |
| Current Draw |
1.2 A (typical) |
| Operating Temp |
0 to 55 deg C |
| Storage Temp |
-40 to 70 deg C |
| Humidity |
95% (non-condensing) |
Installation Guidelines
- Ensure the PLC rack power is fully disconnected before inserting or removing the CP 526 module.
- Handle the board by the edges to prevent electrostatic discharge (ESD) damage to sensitive internal components.
- Verify that the module is correctly seated in the designated S5 backplane slot to ensure proper bus contact.
- Maintain adequate ventilation around the PLC chassis to keep ambient temperatures within the specified 0 to 55 deg C range.
- Use appropriate shielded cabling for serial connections to minimize electromagnetic interference (EMI) in high-noise industrial environments.
FAQ
Is the 6ES5526-3LA21 compatible with all S5 systems?
The CP 526 is designed for specific Simatic S5 configurations. Please verify your existing rack backplane and CPU compatibility before installation to ensure the module is supported by your current hardware revision.
Does this module require external power?
No, the 6ES5526-3LA21 draws its required 5 VDC power directly from the S5 backplane bus.
