Description

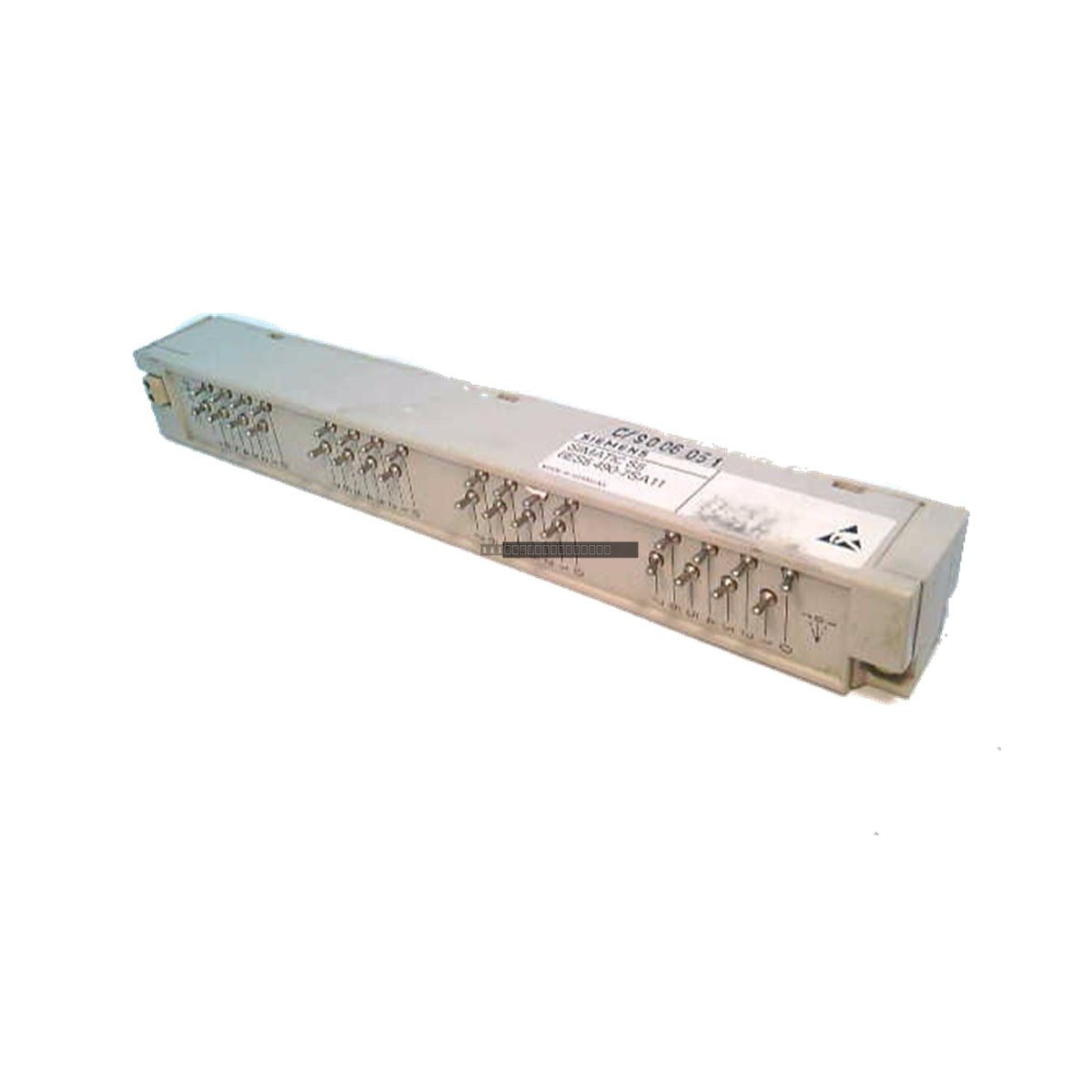

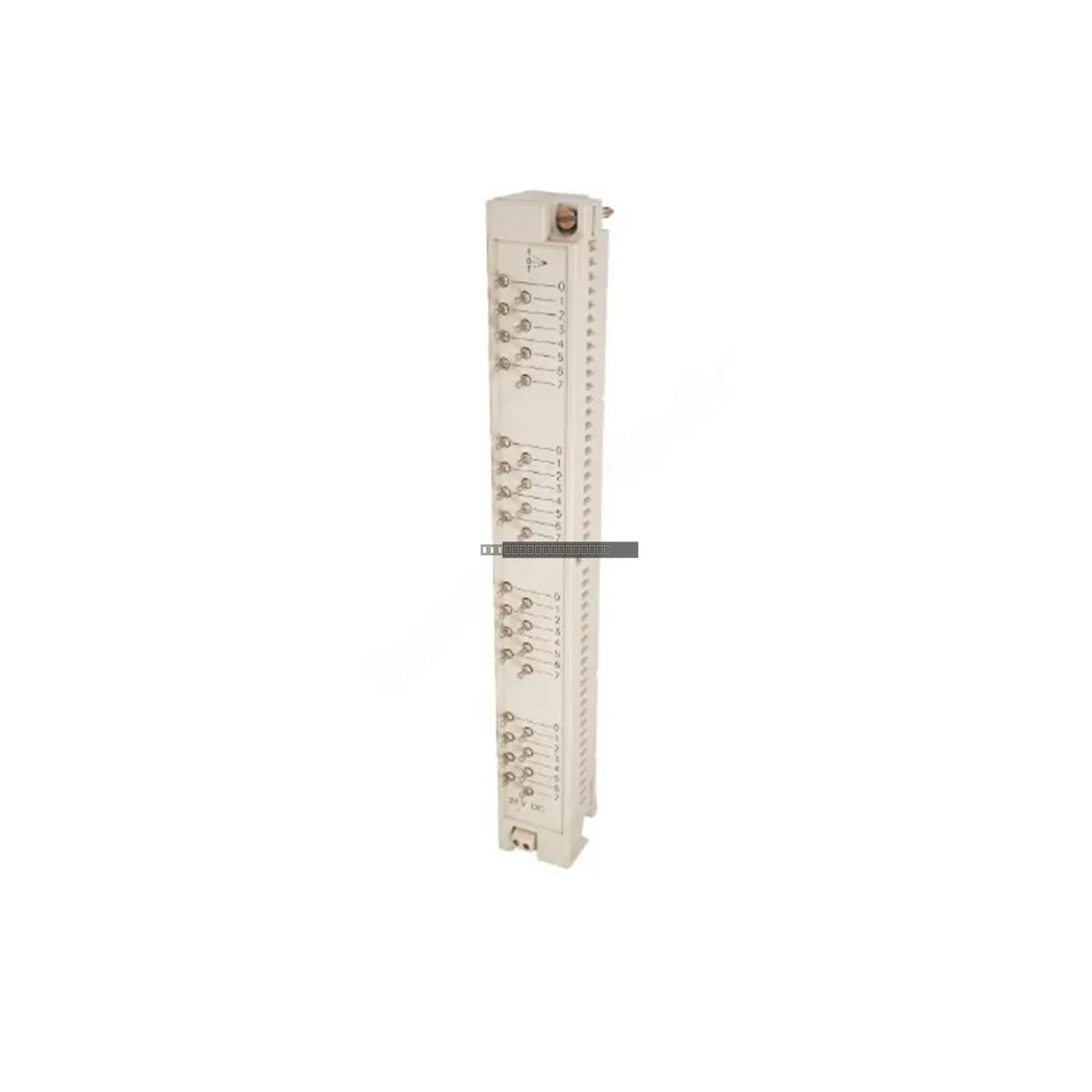

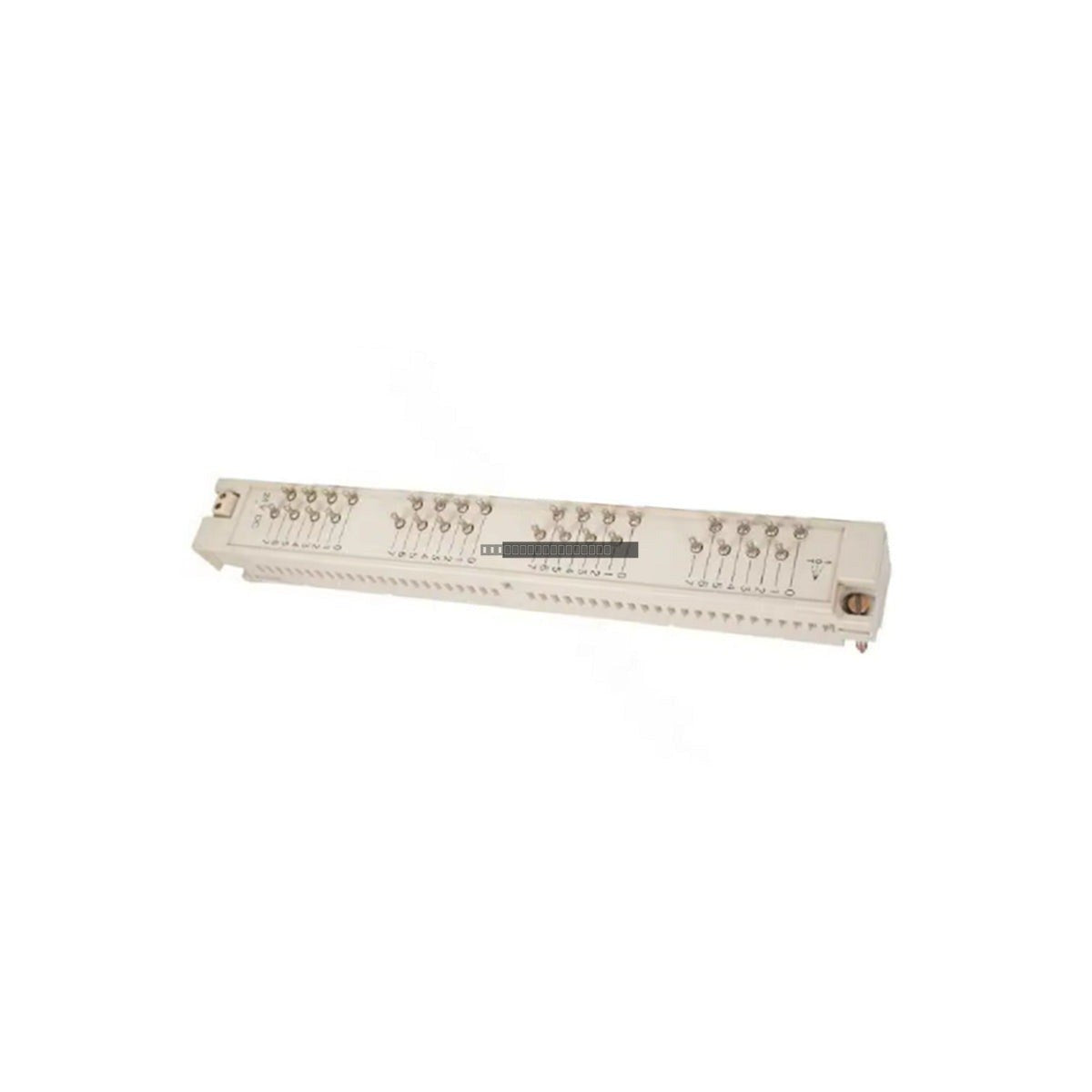

The Siemens 6ES5490-7SA11 is a robust simulation connector designed for the SIMATIC S5 automation system. This diagnostic tool is engineered to facilitate efficient testing, logic verification, and pre-commissioning of digital input modules. By providing 32 manual toggle switches, it allows maintenance engineers and technicians to simulate binary input signals directly at the module level, bypassing the need for external field wiring or complex software forcing during the troubleshooting process.
Features
- Integrated 32-channel manual toggle switch array for discrete binary signal simulation.
- Direct interface compatibility with SIMATIC S5-115U, S5-115H, and S5-115F digital input modules.
- Enables rapid verification of control logic and input channel health.
- Reduces commissioning time by allowing immediate isolation of field sensor issues.
- Stable mechanical contact design to prevent signal bouncing during manual testing.
- Designed for reliable operation in demanding industrial environments.
Applications
This simulation connector is primarily utilized in industrial control environments where SIMATIC S5 systems are deployed, including power generation, chemical processing, and oil and gas refineries. It is an essential tool for field service engineers performing routine maintenance, loop checks, and system upgrades.
Technical Specifications
| Model |
6ES5490-7SA11 |
| Brand |
Siemens SIMATIC S5 |
| Simulation Capacity |
32 Discrete Binary Channels |
| Rated Operating Voltage |
24 VDC |
| Compatible Hardware |
SIMATIC S5-115U / H / F Digital Input Modules |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 70 deg C |
Installation Guidelines
- Ensure the PLC system is in a safe state before attaching or removing the simulation connector.
- Align the connector carefully with the front interface of the target digital input module to prevent pin damage.
- Ensure the module is fully seated to maintain reliable electrical contact across all 32 channels.
- Avoid applying excessive force to the toggle switches to maintain long-term operational integrity.
- Handle with standard ESD precautions to protect internal module circuitry.
FAQ
Is this connector compatible with S5-135U or S5-155U systems?
The 6ES5490-7SA11 is specifically designed for the S5-115U/H/F series. Please check your specific module's technical documentation for compatibility with other S5 series hardware.
Does this tool require external power?
No, the unit operates using the 24 VDC supply provided by the host digital input module's backplane or field supply rail.
