Description

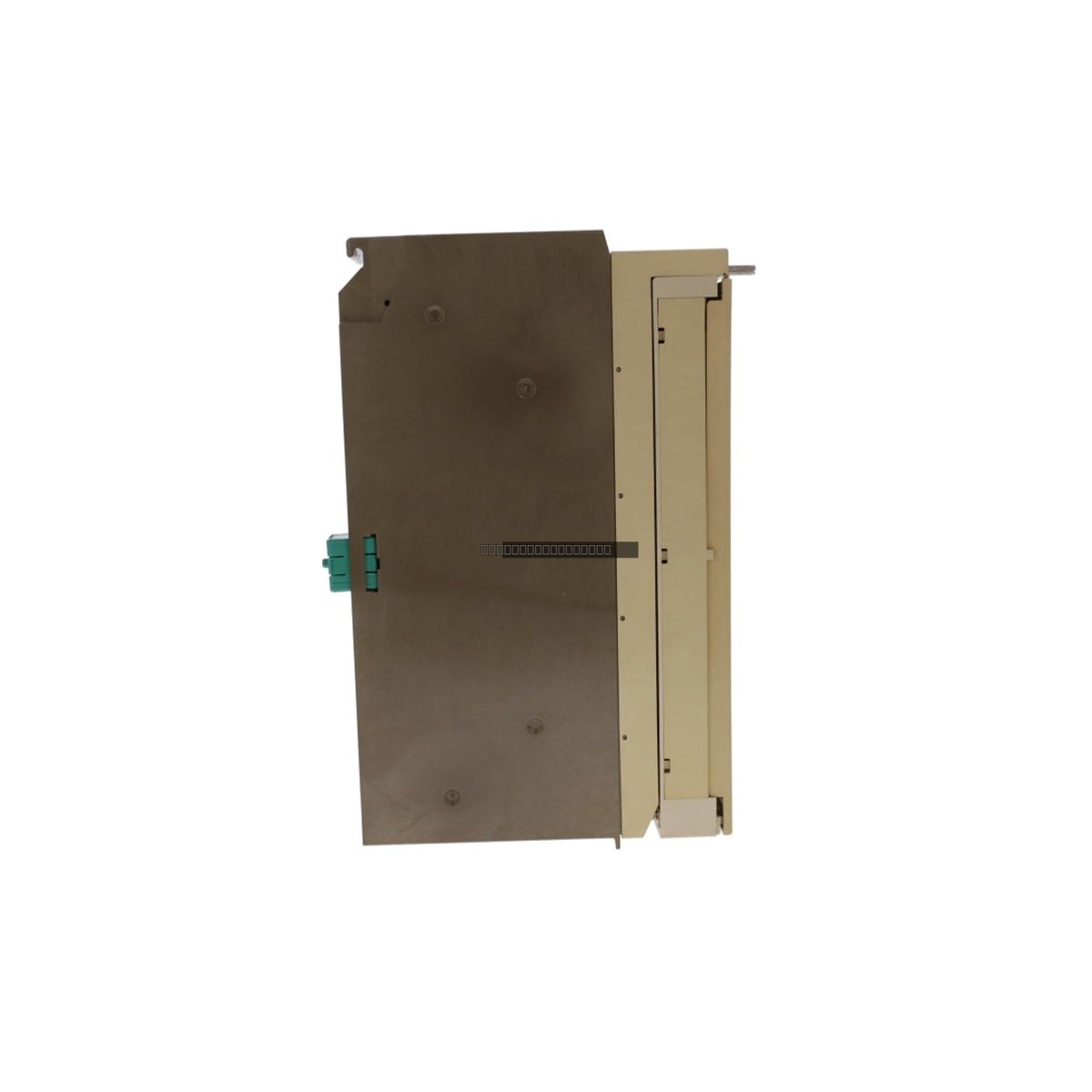

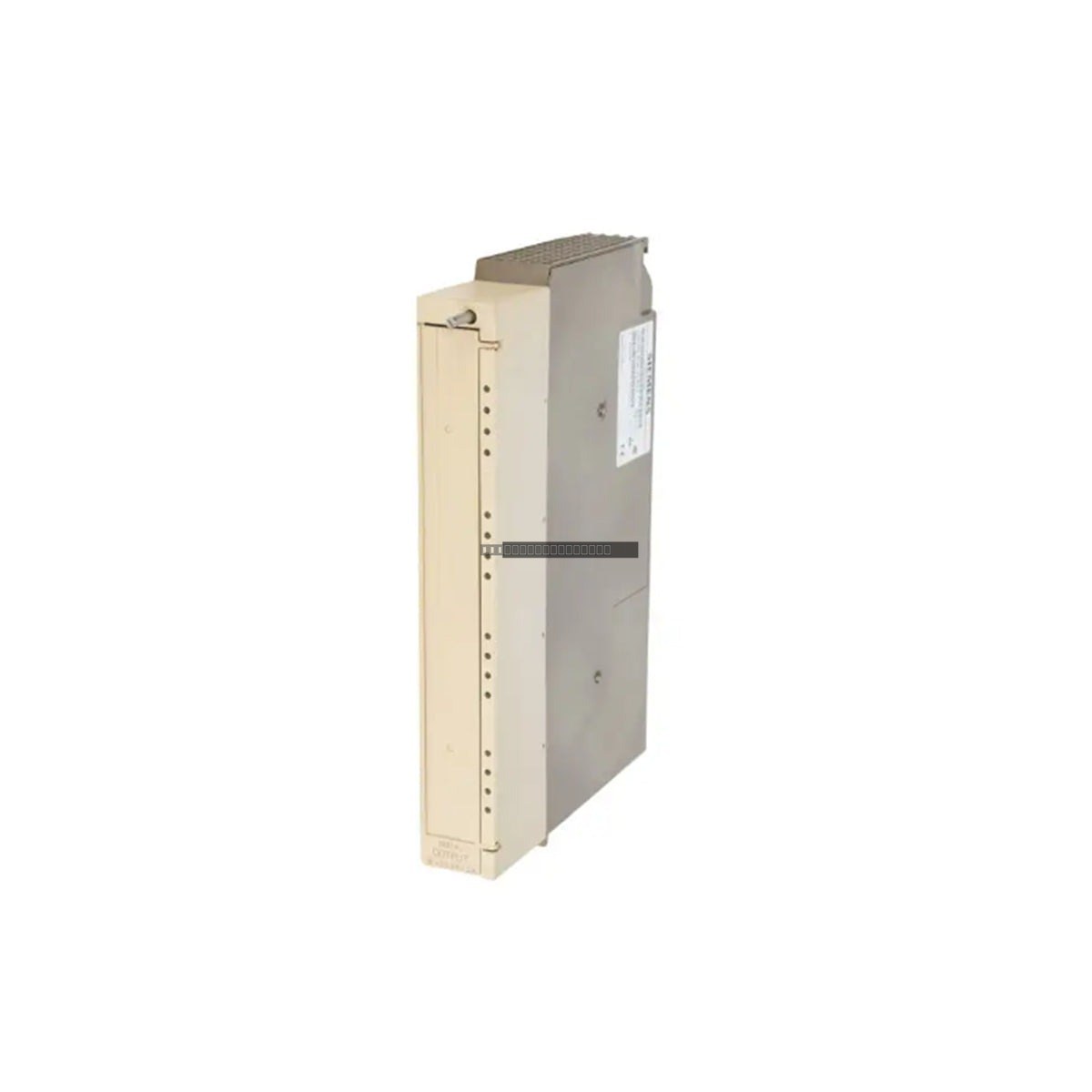

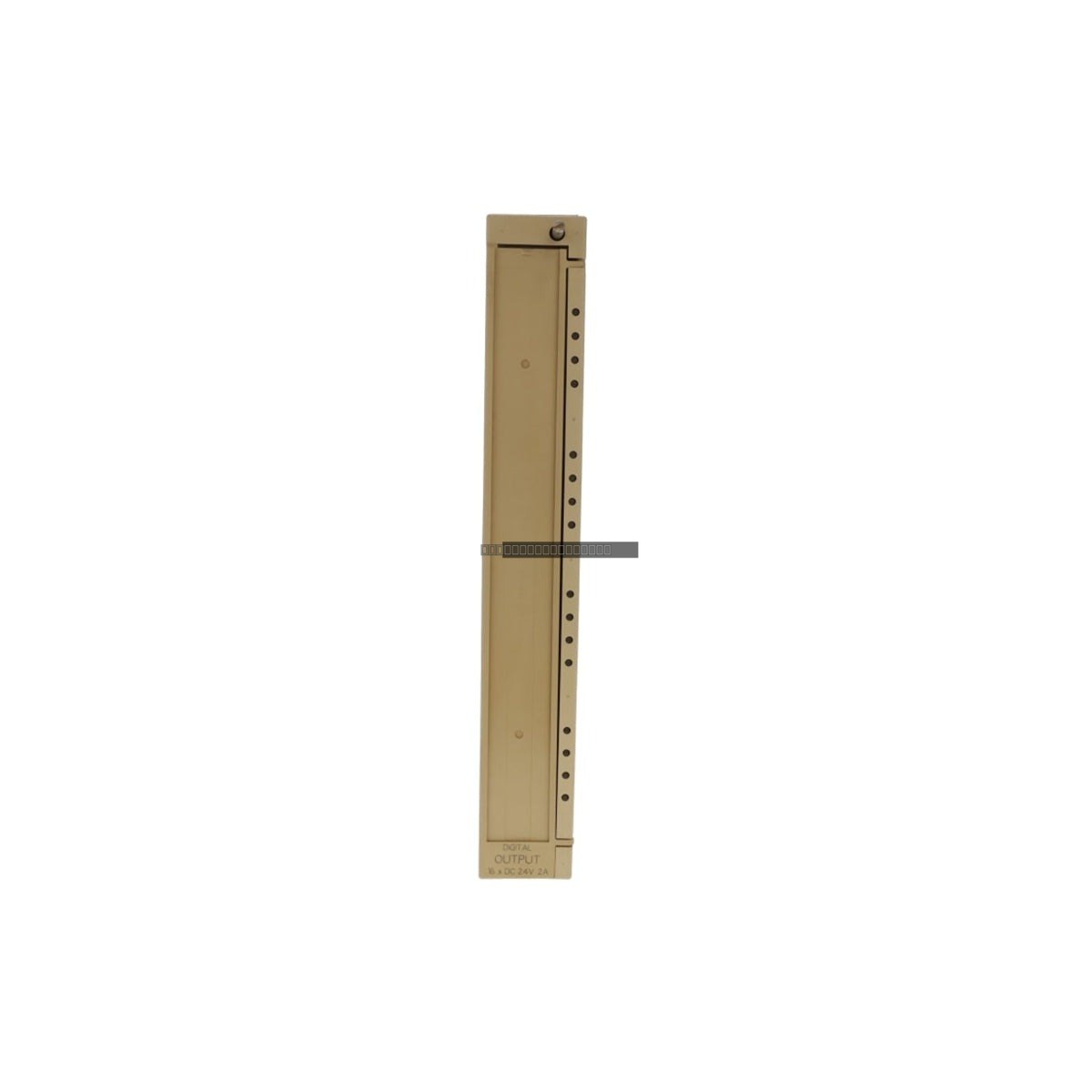

The Siemens 6ES5 454-7LA12 is a high-density digital output module engineered for the Simatic S5-115U and S5-115F programmable logic controller systems. This module provides 16 discrete output channels designed to interface with 24 VDC field devices, including solenoid valves, contactors, and industrial indicators. By utilizing robust optocoupler isolation, the module ensures reliable operation by protecting the controller backplane from electrical noise and field-side transients, making it suitable for demanding industrial automation environments.
Features
- 16 discrete output channels operating at 24 VDC.
- High current handling capacity of 2.0 A per channel.
- Integrated optocoupler isolation (500 VDC) between field and logic circuits.
- Front-panel LED status indicators for real-time channel diagnostics.
- Designed for integration with the Simatic S5-115 series rack architecture.
- Solid-state switching elements optimized for inductive load suppression.
Applications
This module is widely deployed in heavy-duty automation systems, including automotive assembly lines, power generation control, petroleum refining, and mining conveyor management where reliable, high-speed switching of field actuators is required.
Technical Specifications
| Model |
6ES5 454-7LA12 |
| Series |
Simatic S5-115 |
| Number of Channels |
16 |
| Rated Voltage |
24 VDC |
| Current per Channel |
2.0 A |
| Isolation |
500 VDC (Optocoupler) |
| Power Consumption |
3.5 W (Internal) |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 70 deg C |
| Humidity |
5 to 95% non-condensing |
Installation Guidelines
- Ensure the PLC rack power is disconnected before inserting or removing the module to prevent electrical damage.
- Verify that the module is correctly seated in the S5 backplane slot and that the locking mechanism is engaged.
- Use shielded cabling for field connections to minimize EMI interference in high-noise environments.
- Ensure that the 24 VDC power supply is properly grounded and within the specified voltage range.
- Maintain adequate ventilation around the S5 rack to ensure the ambient temperature remains within the 0 to 60 deg C operating range.
FAQ
Does this module support AC loads?
No, the 6ES5 454-7LA12 is specifically designed for 24 VDC applications. Attempting to connect AC loads may result in permanent damage to the module.
What is the purpose of the front-panel indicators?
The LEDs provide visual confirmation of the logical state of each output channel, allowing maintenance personnel to quickly verify signal status during troubleshooting.
