Description

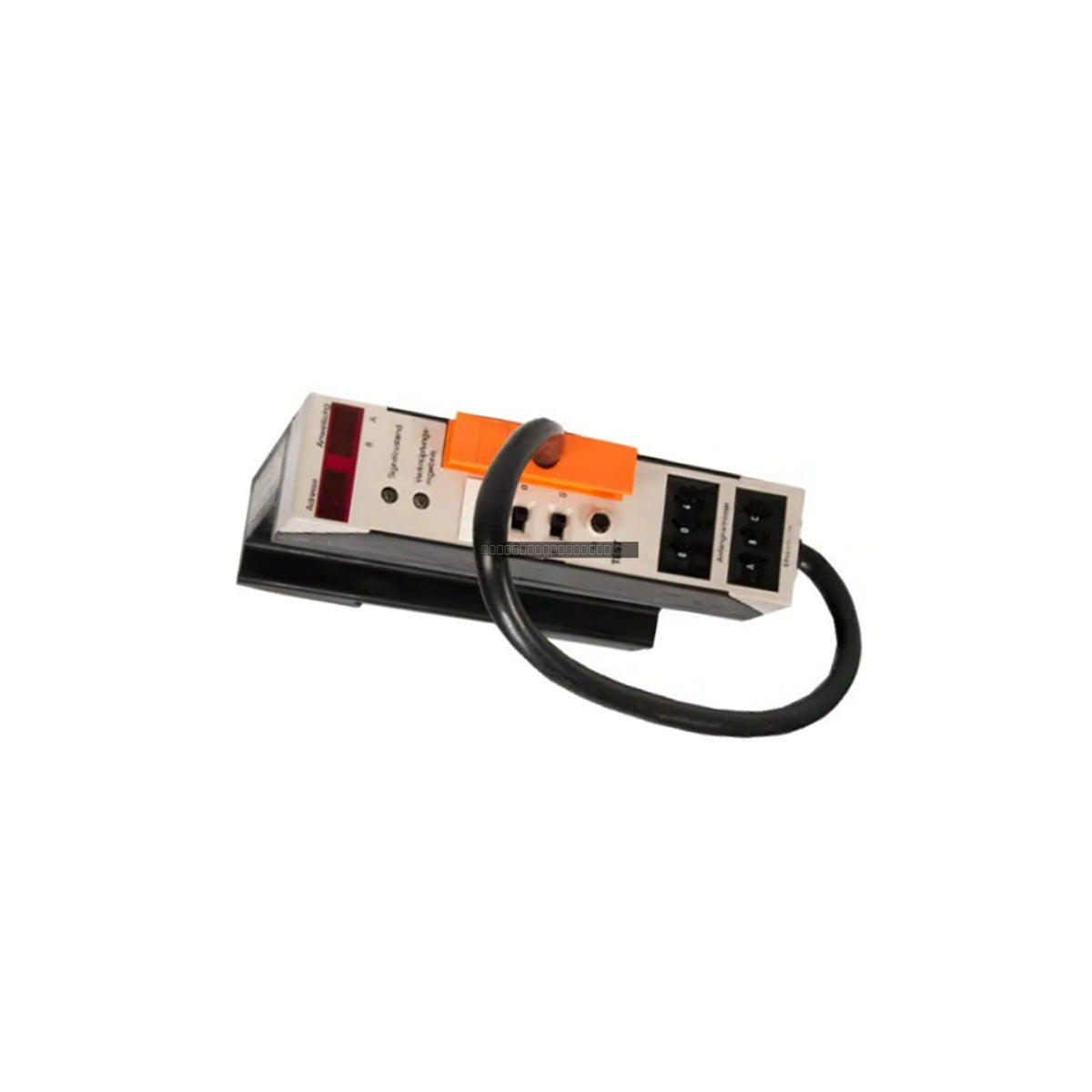

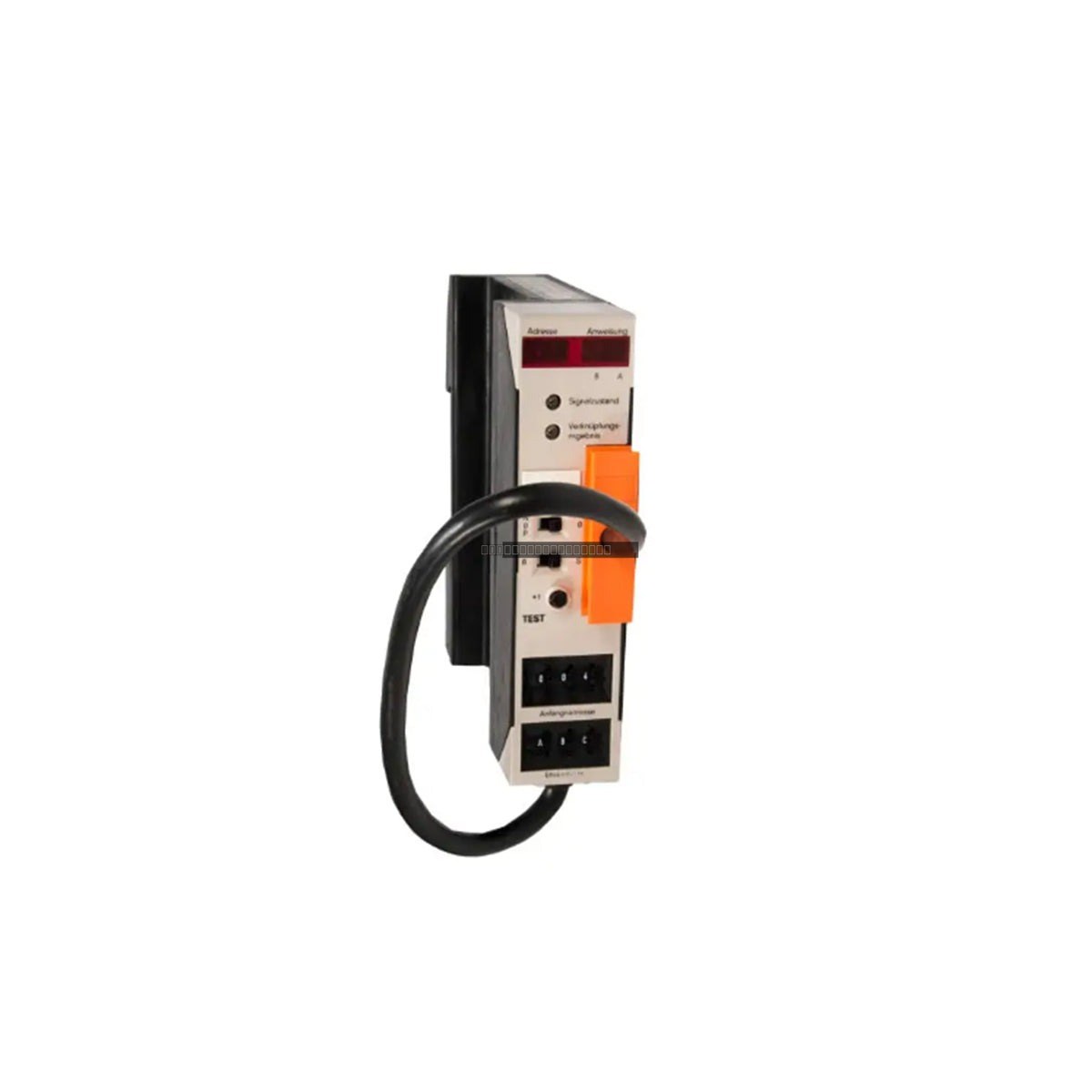

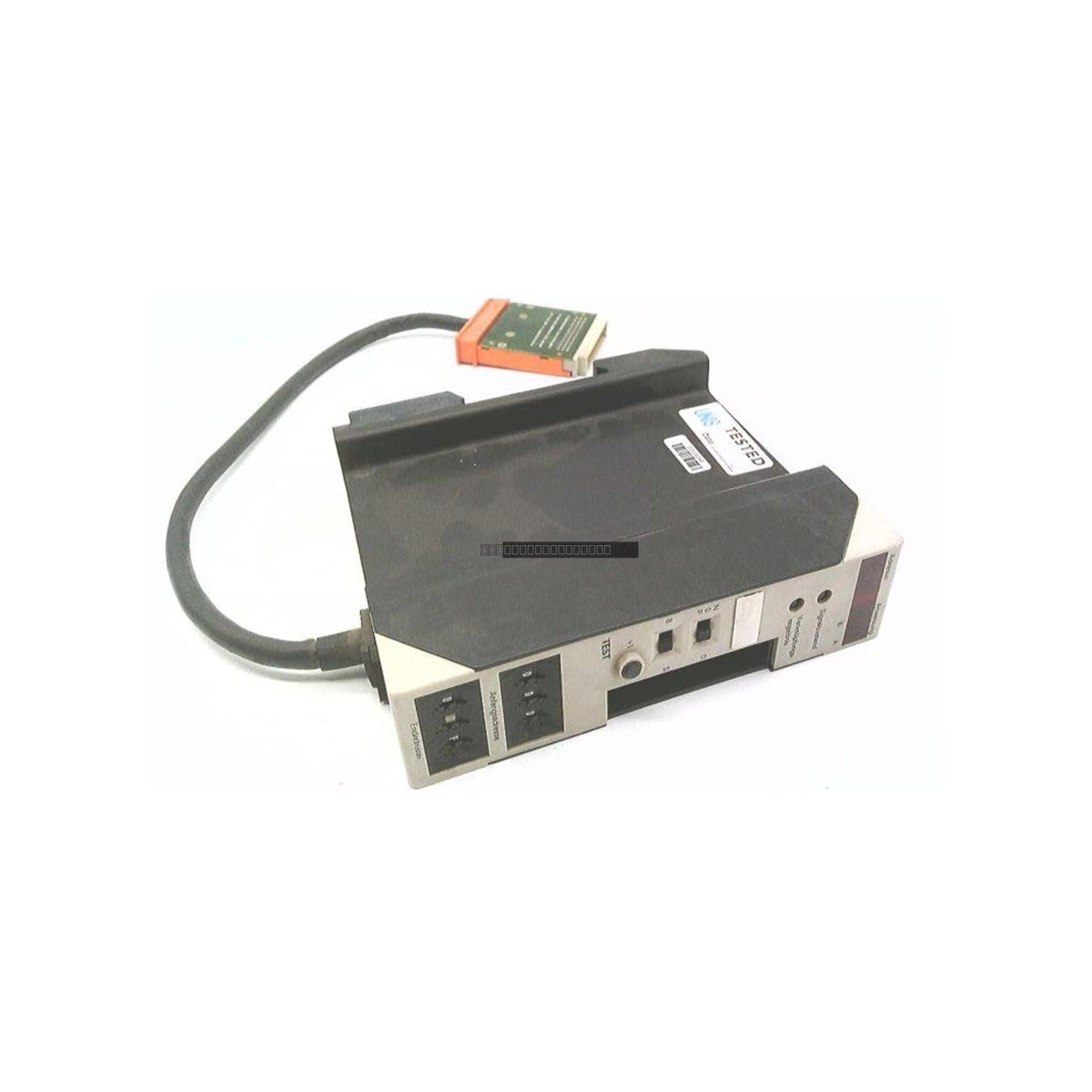

The Siemens 6ES5 330-7AB11 is a hardware-based diagnostic test module designed for the legacy Simatic S5-110 series programmable logic controller systems. This unit provides real-time visual status monitoring of rack internal buses, signal conditioning lines, and central processing unit states. By capturing logic transitions and fault conditions directly from the backplane, it enables field technicians to isolate timing anomalies, power fluctuations, and communication breaks efficiently.
Features
- Direct backplane monitoring for Simatic S5-110 series racks.
- Integrated multi-segment LED indicators for immediate visual fault mapping.
- Passive data listening architecture prevents capacitive loading on system buses.
- High-speed optocoupler isolation protects internal diagnostic circuits from electrical surges.
- Plug-and-play operation; requires no software configuration or specialized drivers.
- Ruggedized faceplate design resistant to industrial vibrations.
Applications
This module is typically deployed in legacy industrial environments where continuous operation is critical, such as petrochemical refining, thermal power generation, and deep-shaft mining infrastructure. It is an essential tool for reducing mean time to repair (MTTR) and preventing unnecessary component replacement during system troubleshooting.
Technical Specifications
| Model |
6ES5 330-7AB11 |
| System Compatibility |
Simatic S5-110 Series |
| Display Interface |
Multi-Segment LED Status Indicators |
| Power Consumption |
1.5 W typical (sourced via backplane) |
| Operating Temperature |
0 to 55 deg C |
| Storage Temperature |
-40 to 70 deg C |
| Relative Humidity |
95 percent non-condensing |
Installation Guidelines
- Ensure the PLC rack power is disconnected before inserting or removing the module.
- Verify the module is correctly seated in the designated S5 chassis slot to ensure proper backplane contact.
- Handle the module using standard ESD (Electrostatic Discharge) precautions to protect internal circuitry.
- Ensure the installation environment remains within the specified temperature and humidity ranges to prevent premature component failure.
- Keep the module clear of high-EMI (Electromagnetic Interference) sources to ensure accurate LED status reporting.
FAQ
Does this module require software configuration?
No, the 6ES5 330-7AB11 operates as a passive listener and does not require software setup, programming, or diagnostic drivers.
Is this module compatible with other S5 series racks?
This module is specifically engineered for the Simatic S5-110 series bus architecture. Please verify your specific rack model before installation.
How is the module powered?
The module draws its operating power directly from the S5 backplane, requiring no external power supply wiring.
