Description

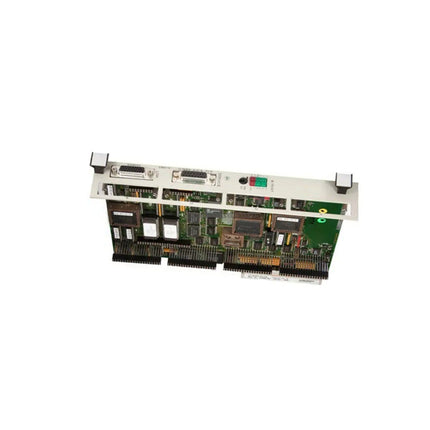

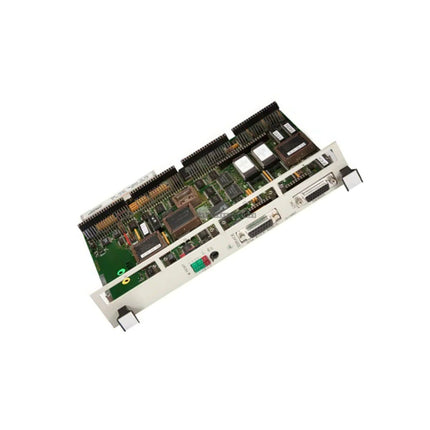

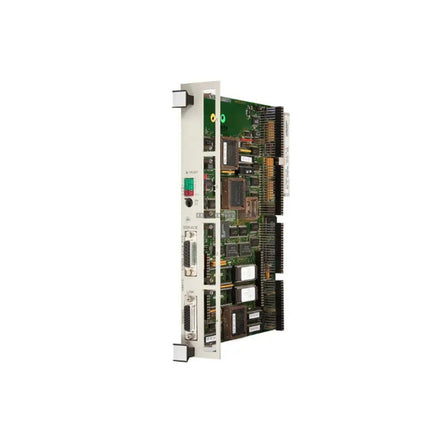

The Siemens Simatic S5 6ES5252-4BA11 (IP252B) is an intelligent processor module designed for high-performance closed-loop control and positioning tasks within the Simatic S5 controller platform. By offloading time-critical mathematical processing and regulation algorithms from the main CPU, this module ensures deterministic execution and rapid response times. It is widely utilized in demanding industrial applications, including thermal power plants, oil refining, and automated mining operations, where localized control loop stability is essential for minimizing downtime.
Features
-
Autonomous Logic Execution: Features dedicated on-board processing and memory to compute PID loops, velocity profiles, and positioning matrices independently of the main PLC scan cycle.
-
High-Speed Bus Interface: Facilitates high-speed parallel data mapping over the standard S5 backplane for efficient transfer of processed values to the host controller.
-
Robust Industrial Design: Engineered to withstand thermal drift and electromagnetic interference, ensuring reliable operation in harsh environments.
-
System Optimization: Reduces CPU load by handling complex calculations locally, preventing bus congestion and maintaining tight process synchronization.
Applications
This module is designed for precision industrial control environments, specifically for:
- Closed-loop regulation and process control.
- High-speed positioning and motion control tasks.
- Time-critical mathematical modeling and algorithm execution.
- Complex automation in power generation and heavy industrial manufacturing.
Technical Specifications
| Model |
6ES5252-4BA11 |
| Alternate Designation |
IP252B, G26004-A3118-P110 |
| Brand |
Siemens Simatic S5 |
| Product Family |
Simatic S5 Intelligent Processors |
| Operating Temperature |
0 to 55 deg C |
| Storage Temperature |
-40 to 70 deg C |
| Power Consumption |
4.5 W (typical) |
Installation Guidelines
- Ensure the PLC rack power is disconnected before inserting or removing the module to prevent electrical damage.
- Verify the module is correctly seated in the designated S5 backplane slot and secured with the integrated locking mechanism.
- Maintain adequate ventilation around the rack to ensure the module operates within its specified temperature range (0-55 deg C).
- Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
- Ensure all signal cables are properly shielded and routed away from high-voltage or high-EMI sources to maintain signal integrity.
FAQ
What is the primary function of the 6ES5252-4BA11?
The 6ES5252-4BA11 (IP252B) acts as an intelligent co-processor that executes complex control algorithms and PID loops independently, reducing the processing burden on the main Siemens S5 CPU.
Is this module compatible with all S5 racks?
This module is designed for the standard Simatic S5 backplane architecture. Please verify your specific rack configuration and power supply capacity before installation.
