Description

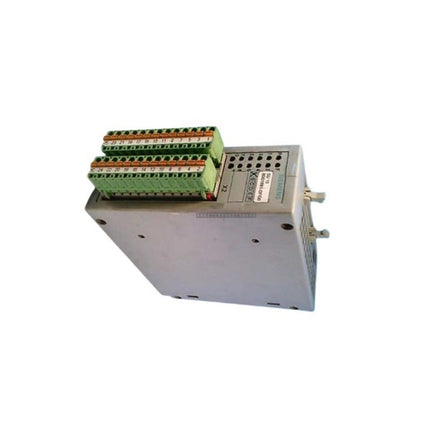

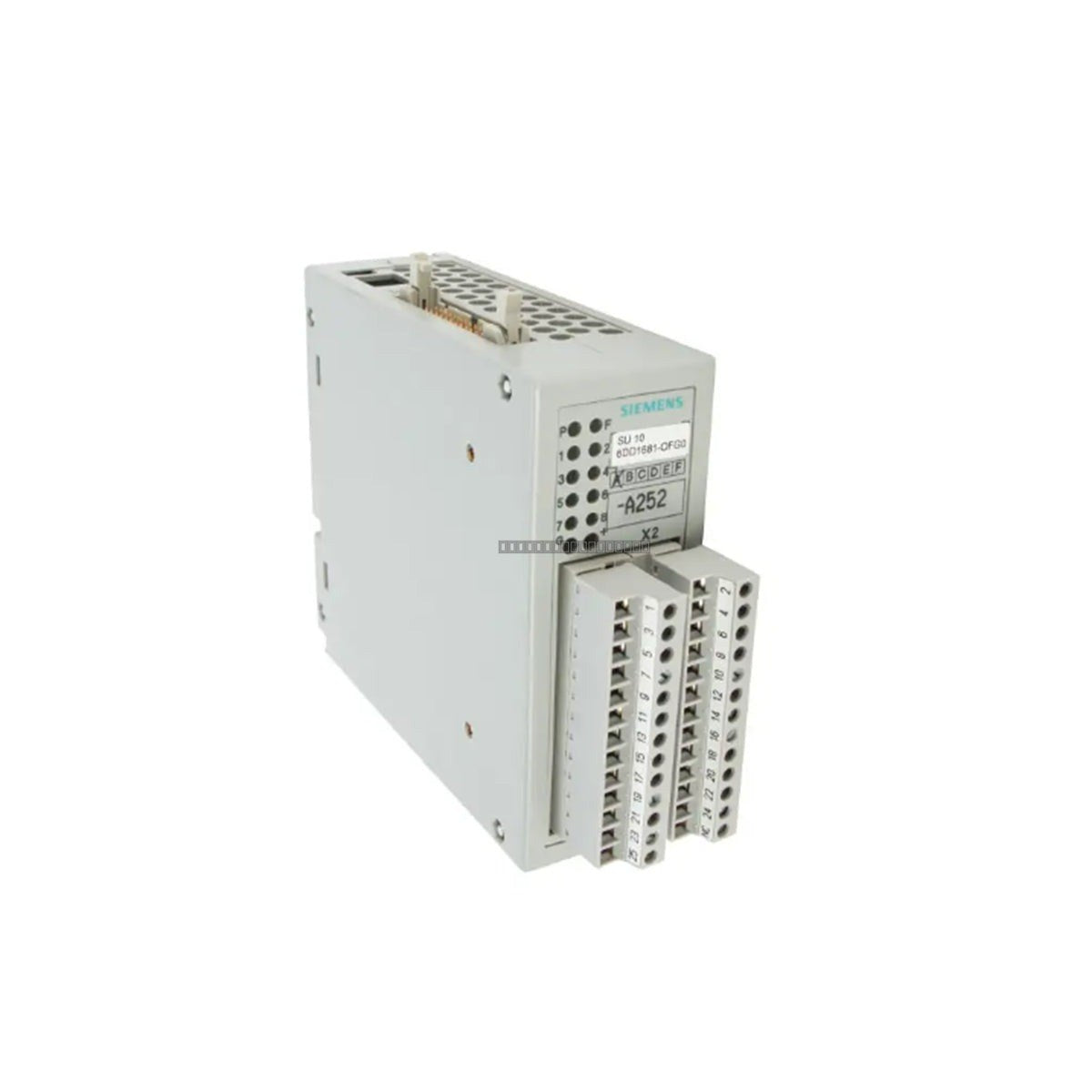

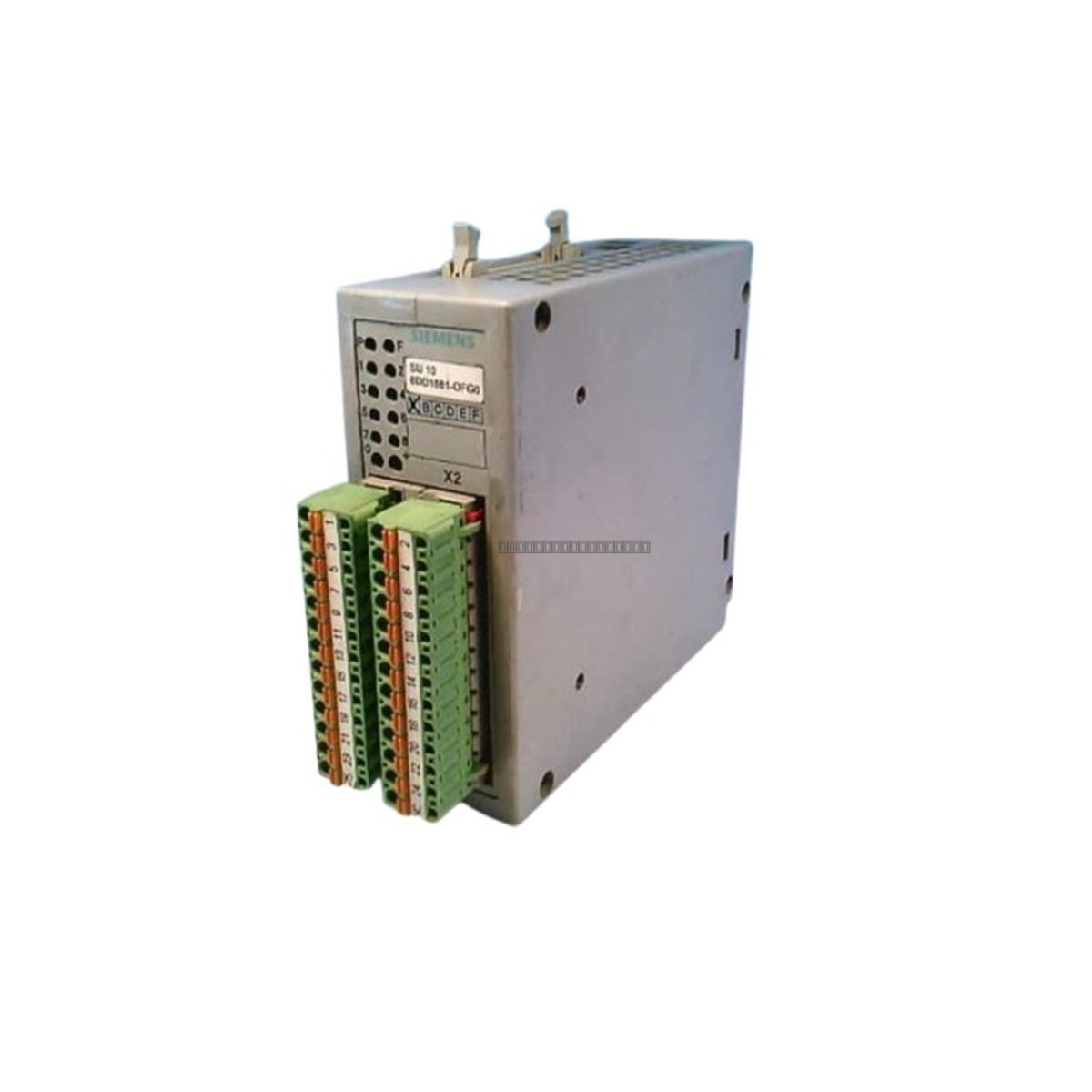

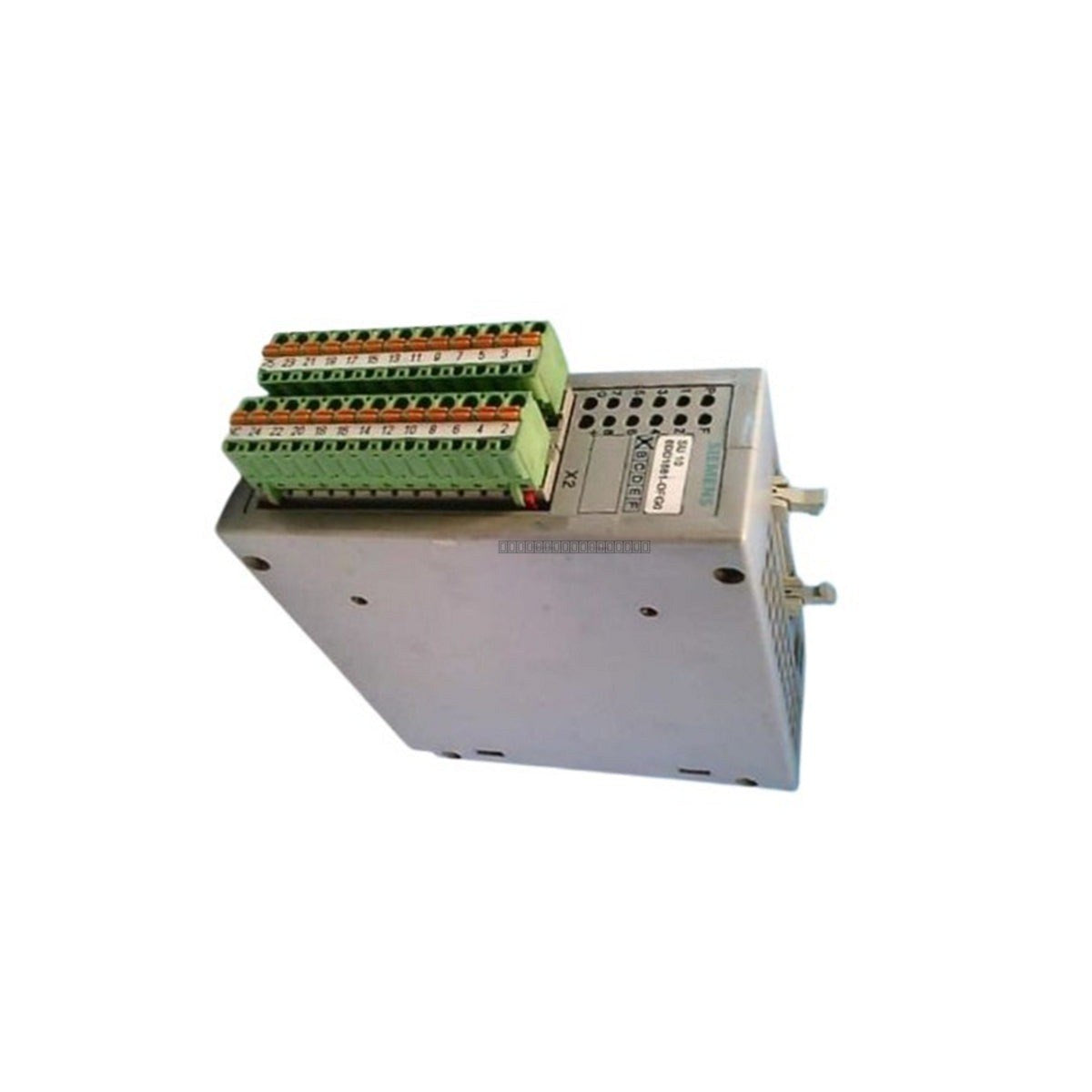

The Siemens 6DD1681-0FG0 is a specialized terminal block designed for use within the SIMADYN D automation system. This component serves as a critical interface for the SU10 converter, providing reliable signal and power connectivity for industrial control applications. It features a 26-pole configuration with screw-plug-in terminals, ensuring secure and maintainable wiring connections in demanding environments.
Features
- Designed specifically for SIMADYN D and SU10 converter applications.
- 26-pole terminal configuration for high-density signal routing.
- Screw-plug-in terminal design facilitates efficient installation and maintenance.
- Robust construction suitable for industrial control cabinet integration.
Applications
This terminal block is primarily utilized in SIMADYN D drive and control systems. It is commonly found in industrial automation setups where precise signal termination is required for converter modules, such as in heavy machinery, power generation control, or complex process automation systems.
Technical Specifications
| Product Model |
6DD1681-0FG0 |
| System Compatibility |
SIMADYN D / SU10 |
| Connection Type |
26-Pole Screw-Plug-in Terminals |
| Tariff Code |
8537101190 |
| Weight |
0.65 kg |
Installation Guidelines
- Ensure the control system power is disconnected before installing or removing the terminal block to prevent electrical shorts.
- Verify that the 26-pole connector is fully seated and the screw terminals are tightened to the appropriate torque to maintain signal integrity.
- Route signal cables away from high-voltage power lines to minimize electromagnetic interference (EMI).
- Ensure the installation environment is free from excessive vibration and moisture to maintain long-term connection reliability.
- Handle with standard ESD precautions when working near sensitive electronic control modules.
FAQ
What is the primary function of the 6DD1681-0FG0?
The 6DD1681-0FG0 is a terminal block interface for the Siemens SIMADYN D system, specifically designed to provide a 26-pole connection point for the SU10 converter.
Is this terminal block compatible with other Siemens systems?
This component is specifically engineered for the SIMADYN D series. It is recommended to verify system compatibility with your specific converter module before installation.
