Description

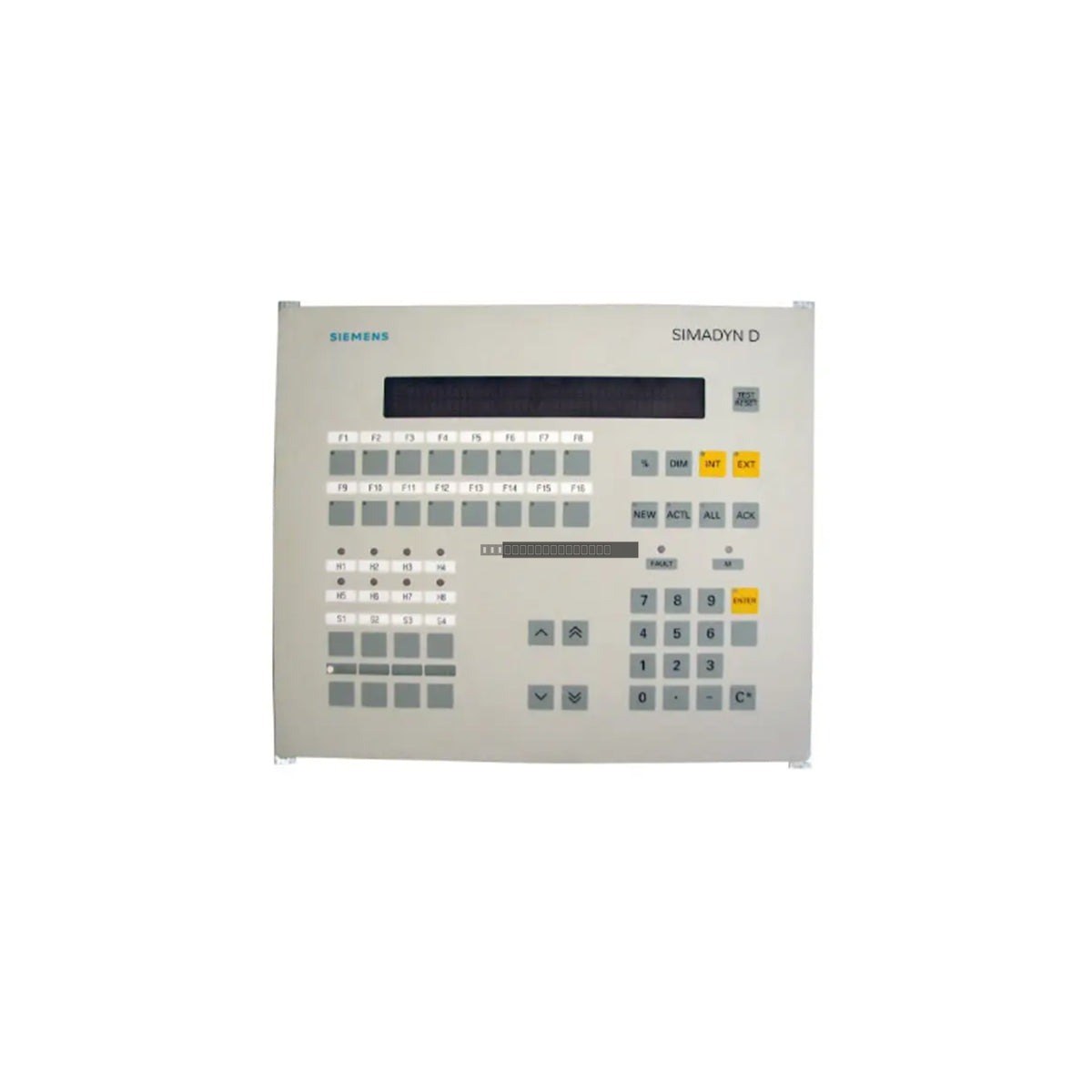

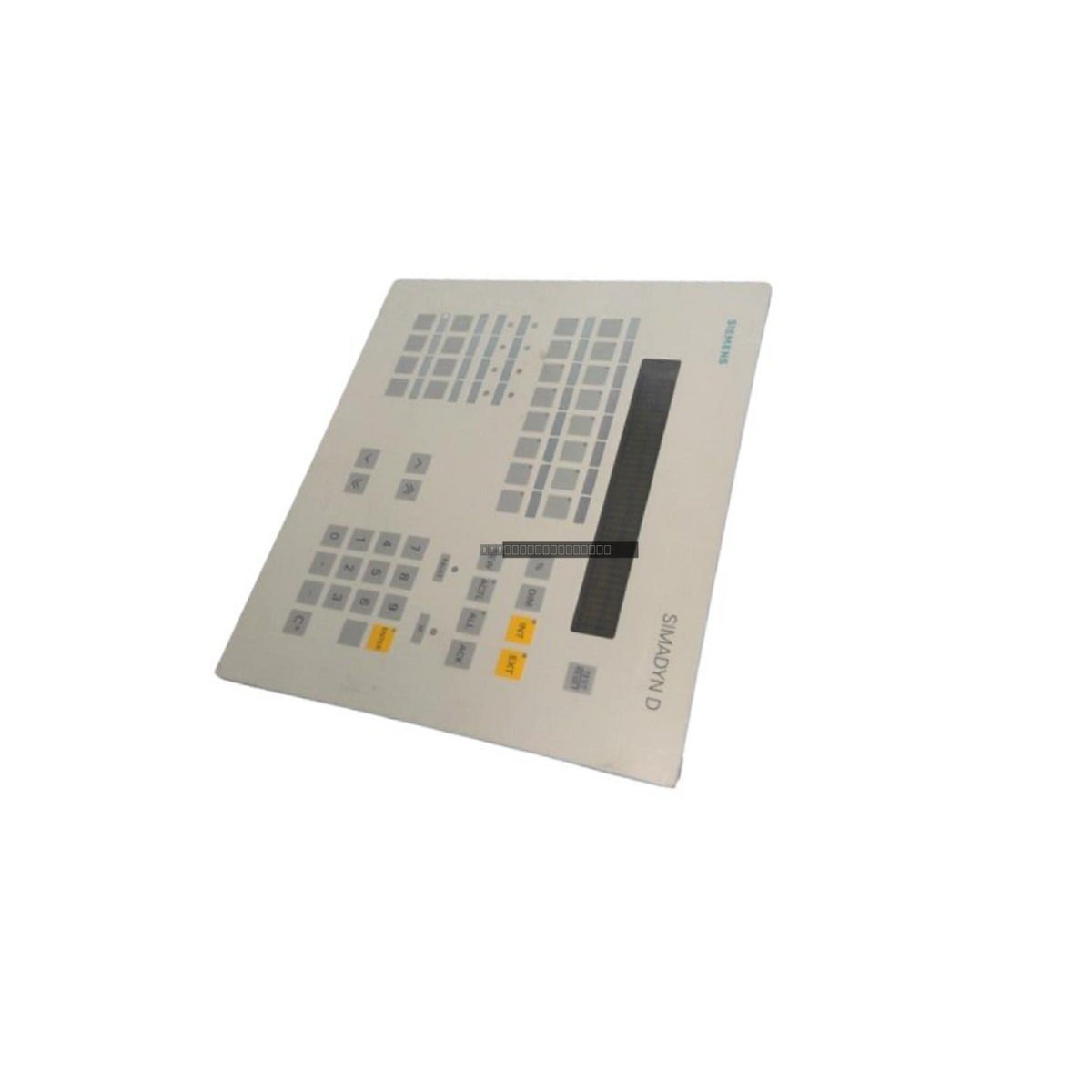

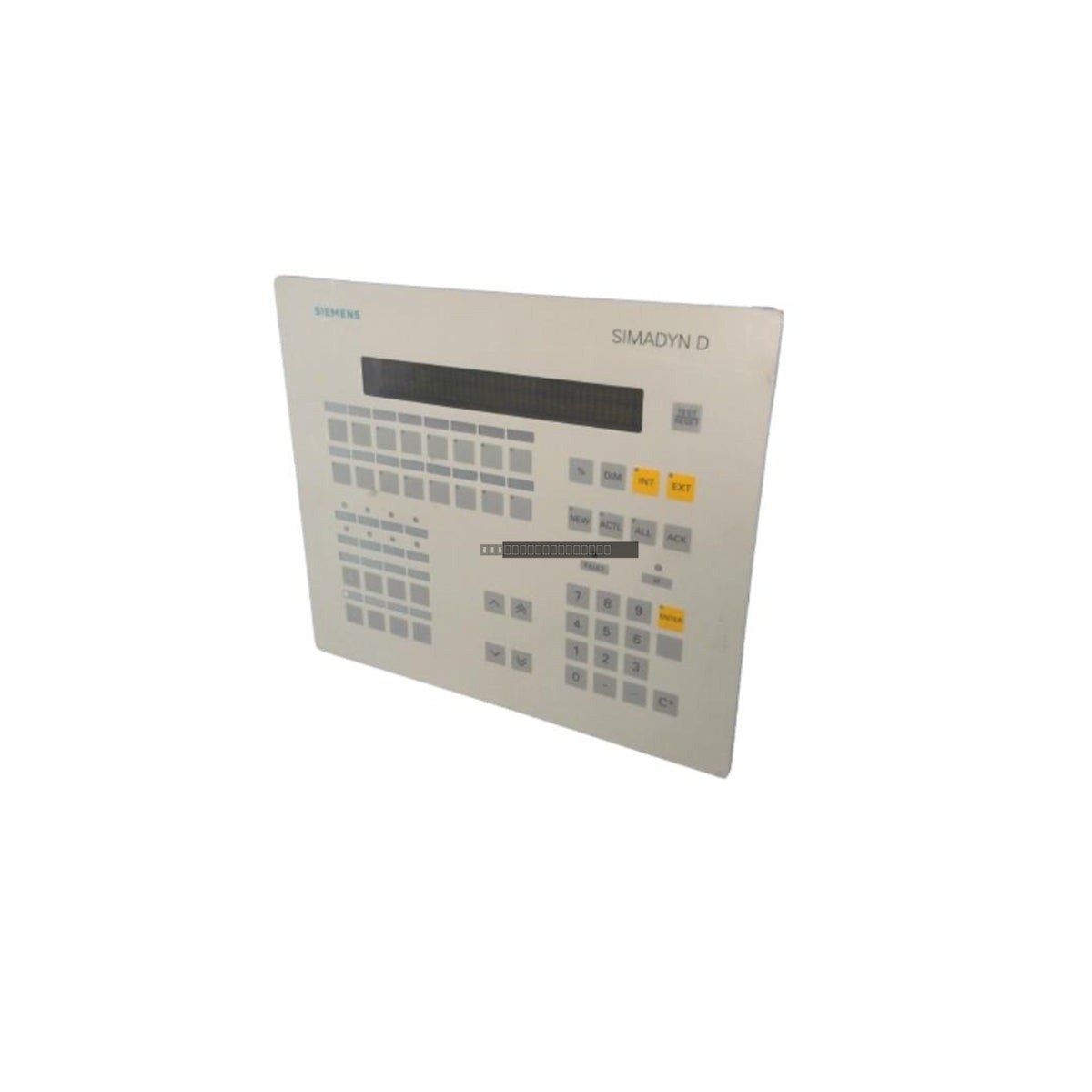

The Siemens 6DD1670-0AF0, also identified as the CSH11, is a specialized communications module designed for the Simadyn D automation system. This module facilitates data exchange and operator interfacing within complex industrial control environments. Please note that this component has been discontinued by the manufacturer, making it a critical spare part for maintaining legacy Simadyn D installations.
Features
- Designed specifically for the Siemens Simadyn D control platform.
- Functions as a communications and operator interface module.
- Robust construction suitable for industrial rack-mounted environments.
- Direct replacement for CSH11 designated hardware.
Applications
This module is primarily utilized in heavy industrial sectors where the Simadyn D system is deployed, including power generation, steel manufacturing, and large-scale drive control systems. It serves as an essential interface component for monitoring and managing process data.
Technical Specifications
| Manufacturer |
Siemens |
| Model Number |
6DD1670-0AF0 |
| Spare Model / Type |
CSH11 |
| Product Category |
Communications Module / Operator Interface |
| Status |
Discontinued |
Installation Guidelines
- Ensure the control system is powered down before attempting to install or remove the module to prevent electrical damage.
- Handle the module using proper ESD (Electrostatic Discharge) precautions to protect sensitive internal circuitry.
- Verify that the module is fully seated in the rack backplane to ensure reliable communication.
- Ensure the environment is free from excessive vibration and within the specified temperature range for the Simadyn D series.
- Check all cable connections for secure seating and ensure that shielded cables are properly grounded to minimize EMI interference.
FAQ
Is the 6DD1670-0AF0 still in production?
No, this module has been discontinued by Siemens. It is currently available primarily through surplus and secondary market channels for maintenance of existing systems.
What is the primary function of the CSH11 module?
The CSH11 acts as a communications and operator interface module within the Simadyn D architecture, allowing for data management and system interaction.
