Description

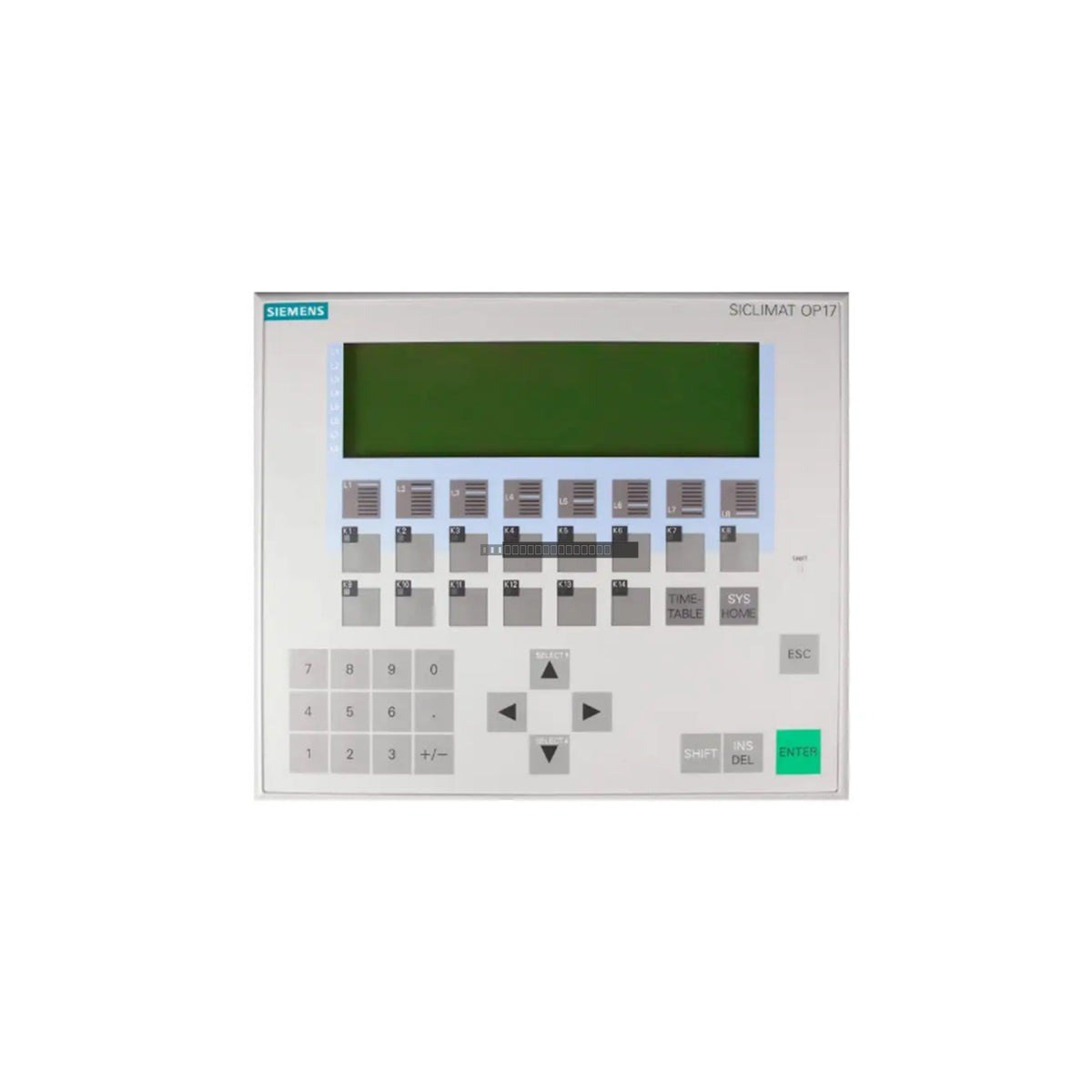

The Siemens 6AV3617-5BB00-0AE0 is a dedicated operator interface terminal designed for the Siclimat building automation and process control ecosystem. This unit serves as a robust human-machine interface (HMI), enabling plant operators to monitor real-time system variables, acknowledge alarms, and modify setpoints directly from the field. Engineered for demanding industrial environments, the OP17 ensures reliable interaction with automation controllers in applications ranging from district heating infrastructure to specialized climate-controlled manufacturing facilities.
Features
- Integrated LC display with backlight for clear visibility in various ambient lighting conditions.
- Durable, chemical-resistant membrane keyboard layout optimized for high-frequency tactile input.
- High-integrity serial communication interfaces (RS232/RS422/TTY) for stable connectivity with host PLCs.
- IP65-rated front panel, providing protection against dust and low-pressure water jets in harsh industrial settings.
- Real-time diagnostic feedback and parameter management to minimize operational drift and process downtime.
Technical Specifications
| Model |
6AV3 617-5BB00-0AE0 |
| Brand |
Siemens |
| Series |
Siclimat |
| Device Type |
Operator Panel (HMI) |
| Display |
Backlit LC Display |
| Input Method |
Tactile Membrane Keys |
| Supply Voltage |
24 VDC |
| Operating Temperature |
0 to 50 deg C |
| Storage Temperature |
-20 to 60 deg C |
| Protection Rating |
IP65 (Front) |
Installation Guidelines
- Ensure the mounting surface is flat and rigid to maintain the integrity of the IP65 front panel seal.
- Verify that the supply voltage is a stable 24 VDC before connecting power to the terminal.
- Use shielded communication cabling for serial connections to minimize electromagnetic interference (EMI) from nearby high-voltage lines or frequency converters.
- Always power down the control cabinet before wiring or disconnecting the HMI to prevent electrical surges or damage to the internal communication ports.
- Avoid installing the unit in areas subject to excessive vibration or extreme direct sunlight, which may affect display longevity and tactile responsiveness.
FAQ
What is the primary application for the 6AV3617-5BB00-0AE0?
This panel is specifically designed for the Siemens Siclimat series, commonly used in building management and climate control systems where reliable, local operator interaction is required.
Is this unit suitable for outdoor installation?
The front panel is rated IP65, providing protection against dust and moisture, but it is intended for indoor industrial control cabinet mounting. It should not be exposed to direct outdoor weather conditions.
