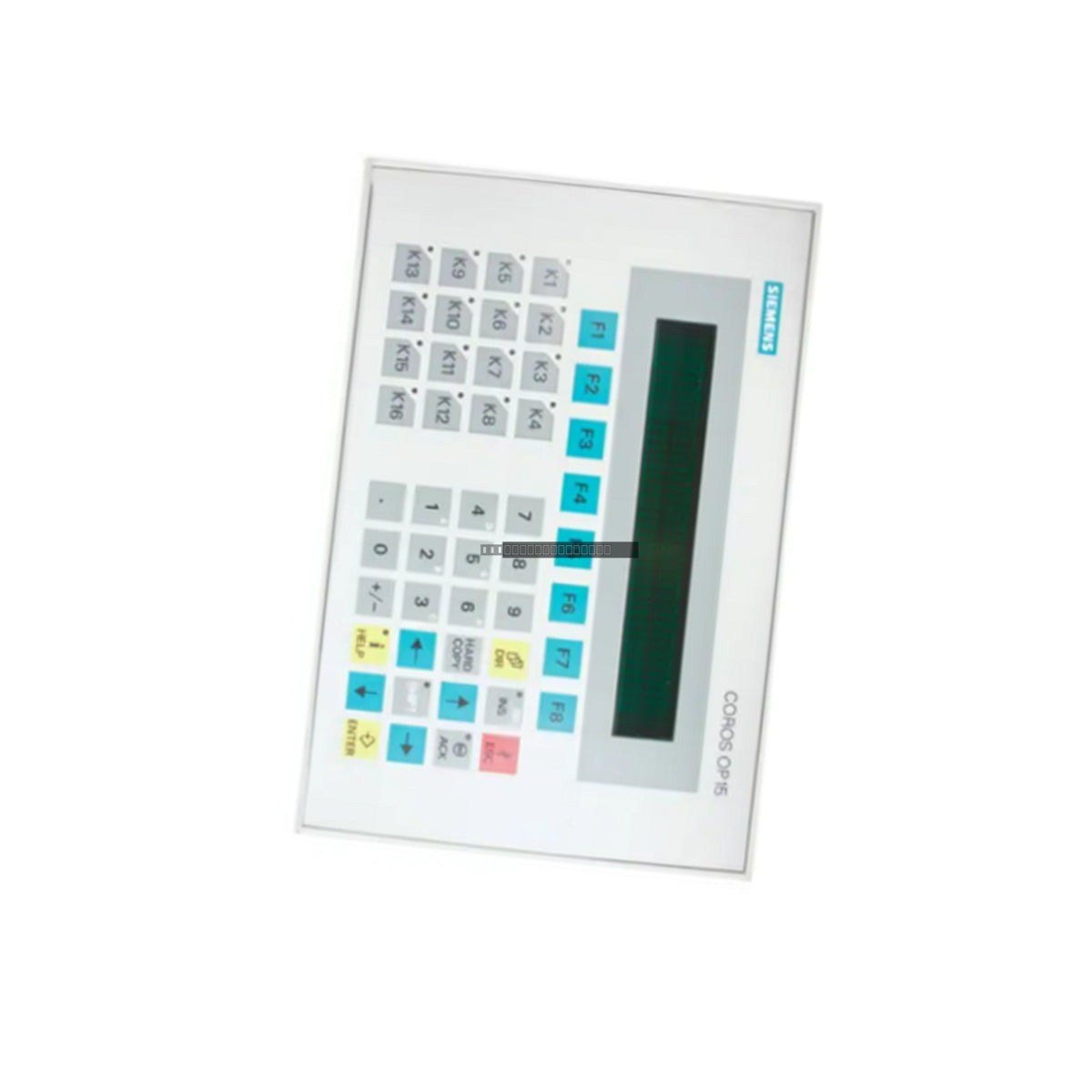

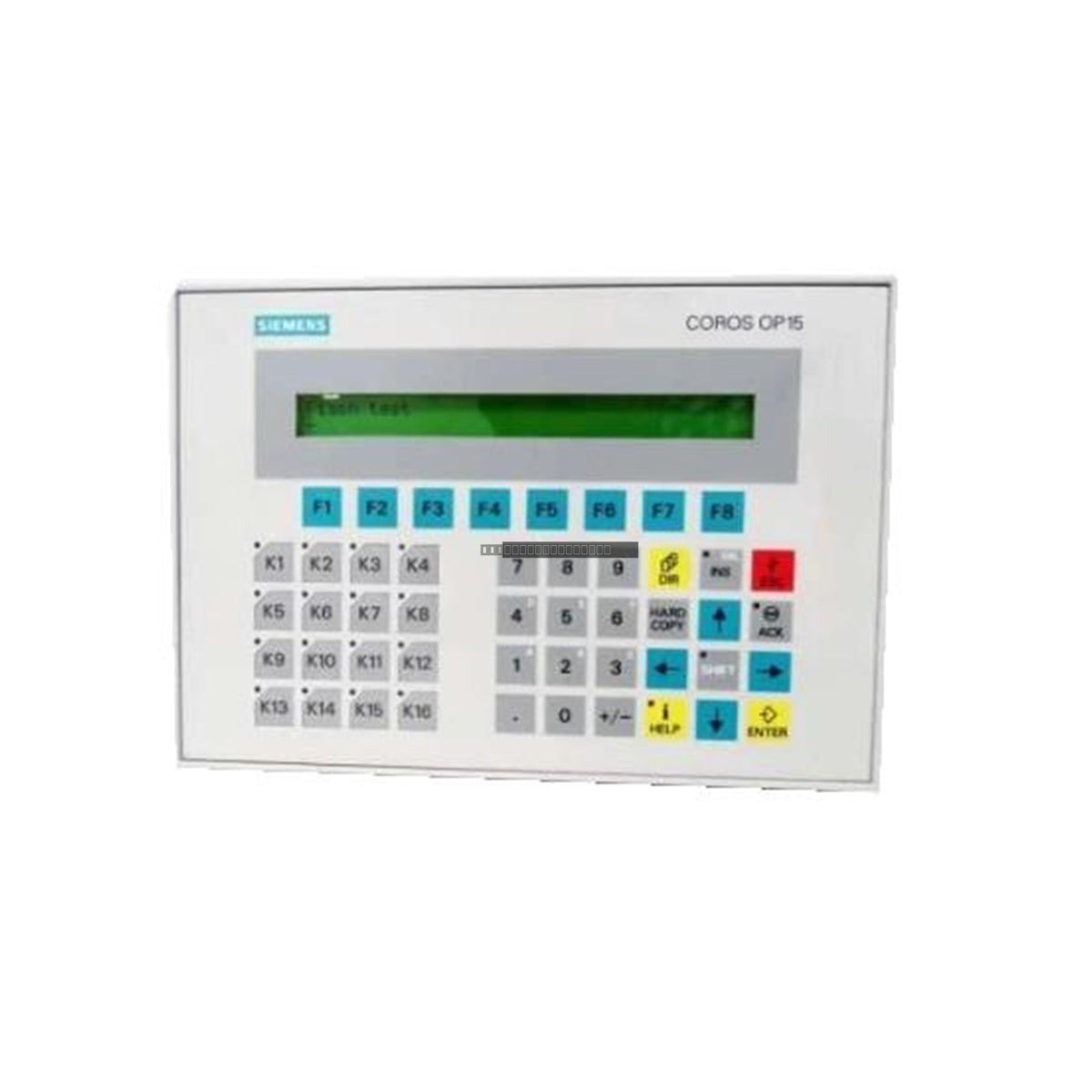

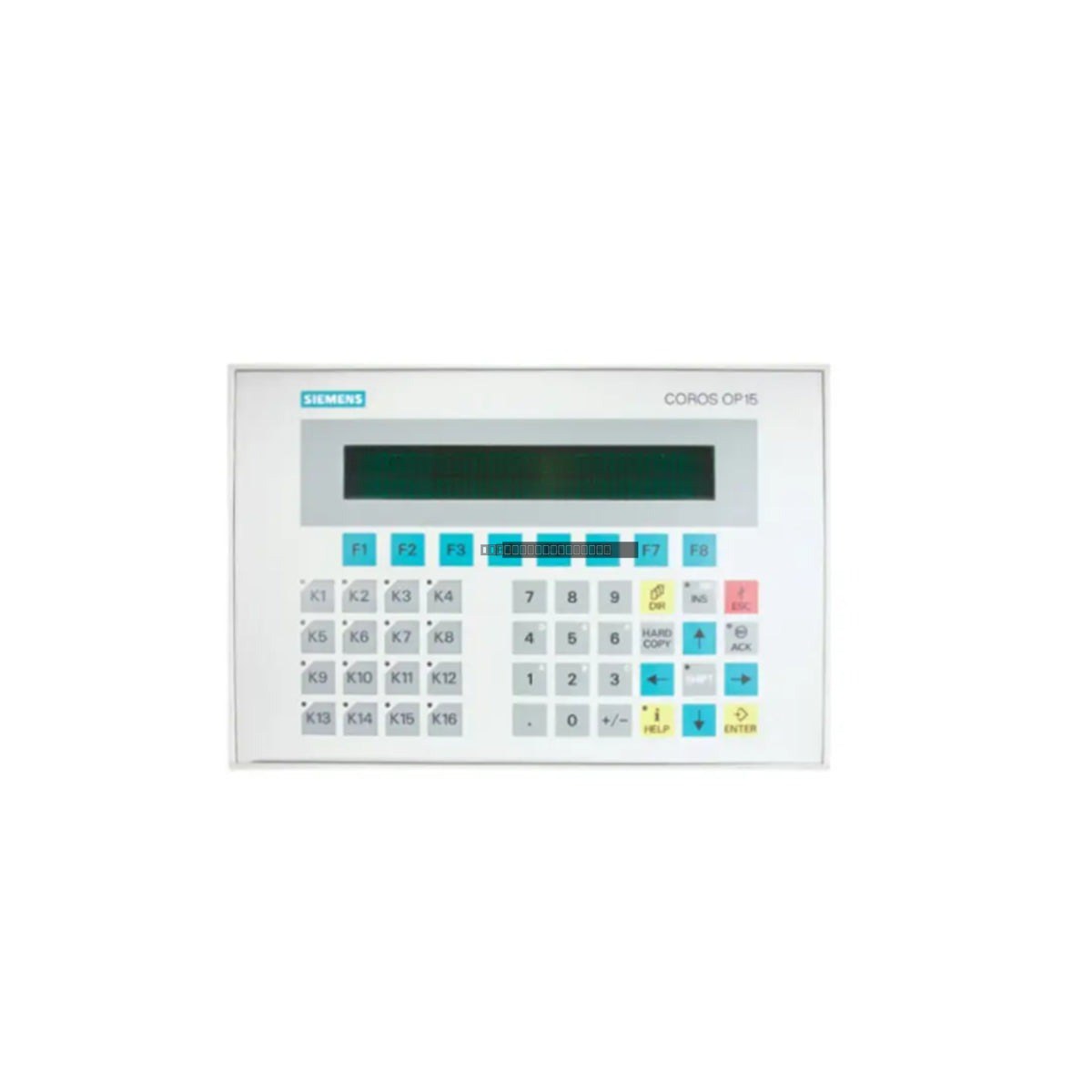

The Siemens 6AV3515-1EB30-1AA0 is a robust operator interface terminal from the Simatic HMI OP15 series, engineered for reliable machine-level interaction and diagnostic monitoring in industrial automation systems. This unit provides a clear, high-contrast 2-line liquid crystal display, with each line supporting 40 characters for effective operator feedback. It serves as a critical local control point, allowing personnel to monitor process variables, acknowledge system alarms, and adjust operational parameters directly on the shop floor.
Features
- Equipped with 256 KB of integrated user memory for efficient storage of screen configurations and message logs.
- Features a durable, chemical-resistant membrane keypad designed for tactile feedback and longevity in harsh environments.
- Supports versatile communication connectivity through two switchable TTY/V.24 (RS232) serial ports and one dedicated RS422/RS485 interface.
- Optimized for seamless integration with legacy Simatic S5 and S7 PLC architectures.
- Compact, panel-mount design suitable for integration into control cabinets and operator consoles.
Applications
This operator panel is commonly deployed in diverse industrial sectors, including chemical processing facilities, power generation plants, and material handling systems. It is particularly effective in environments requiring direct, reliable interface access for machine diagnostics and process management without the need for complex graphical software.
Technical Specifications
| Model |
6AV3515-1EB30-1AA0 |
| Series |
Simatic HMI / Coros OP15 |
| Display |
2 lines x 40 characters |
| Memory |
256 KB |
| Interfaces |
2 x TTY/V.24, 1 x RS422/485 |
| Supply Voltage |
24 VDC |
| Power Consumption |
9.5 W |
| Operating Temperature |
0 to 50 deg C |
| Storage Temperature |
-20 to 60 deg C |
Installation Guidelines
- Ensure the panel is mounted in a clean, dry environment within an enclosure that provides adequate ventilation.
- Verify that the supply voltage is stable at 24 VDC before applying power to the unit.
- Use shielded communication cables for serial connections to minimize electromagnetic interference (EMI) in high-noise industrial zones.
- Always disconnect power before performing any wiring changes or maintenance on the interface unit.
- Handle the membrane keypad with care to prevent punctures or chemical exposure that could degrade the protective seal.
FAQ
Is this unit compatible with modern S7-1500 controllers? This unit is primarily designed for legacy Simatic S5 and S7 environments. Please consult your system documentation to verify if the specific protocol requirements match your PLC configuration.
Does the unit require external software for programming? Yes, the OP15 series requires the appropriate Siemens configuration software to load screens and project data into the internal memory.
