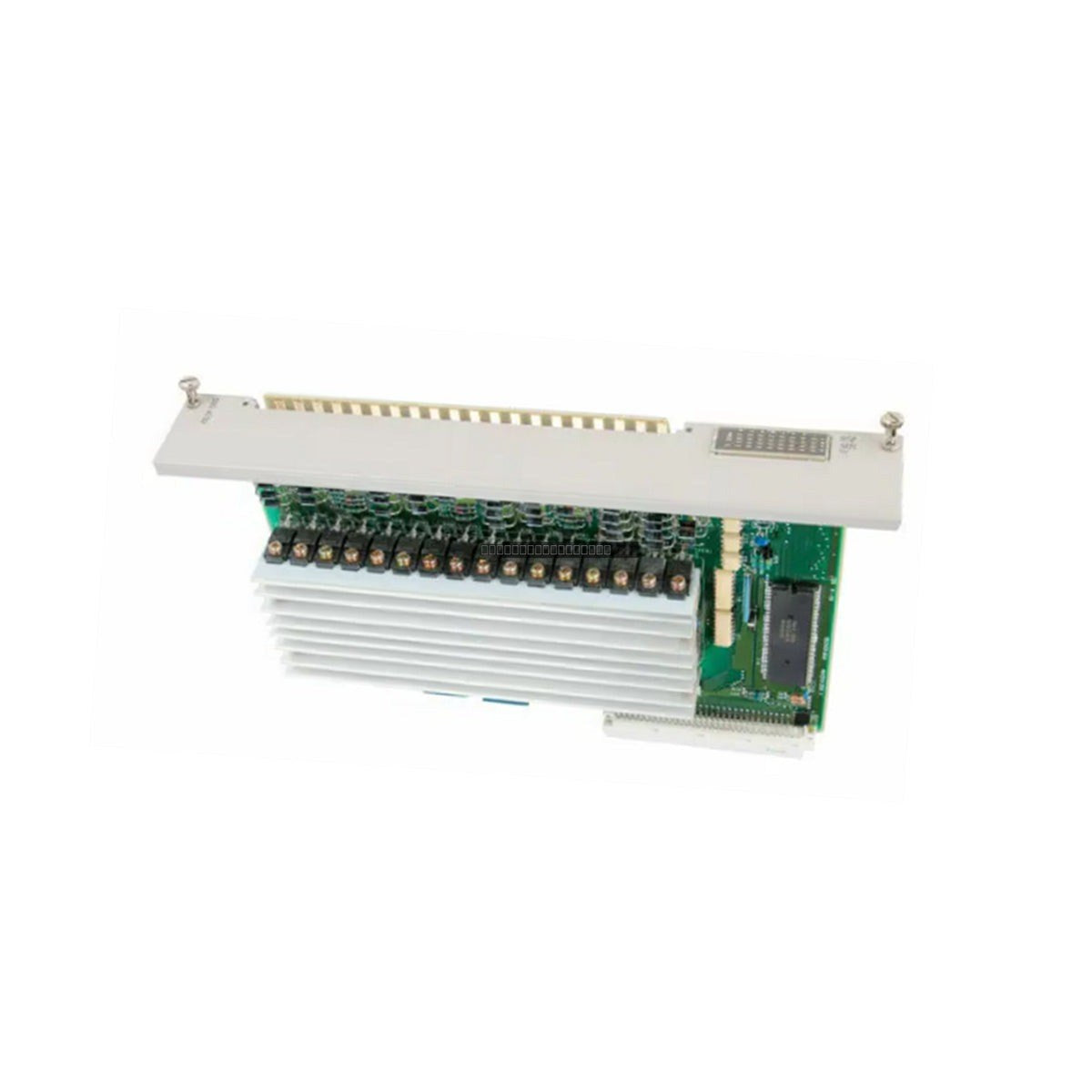

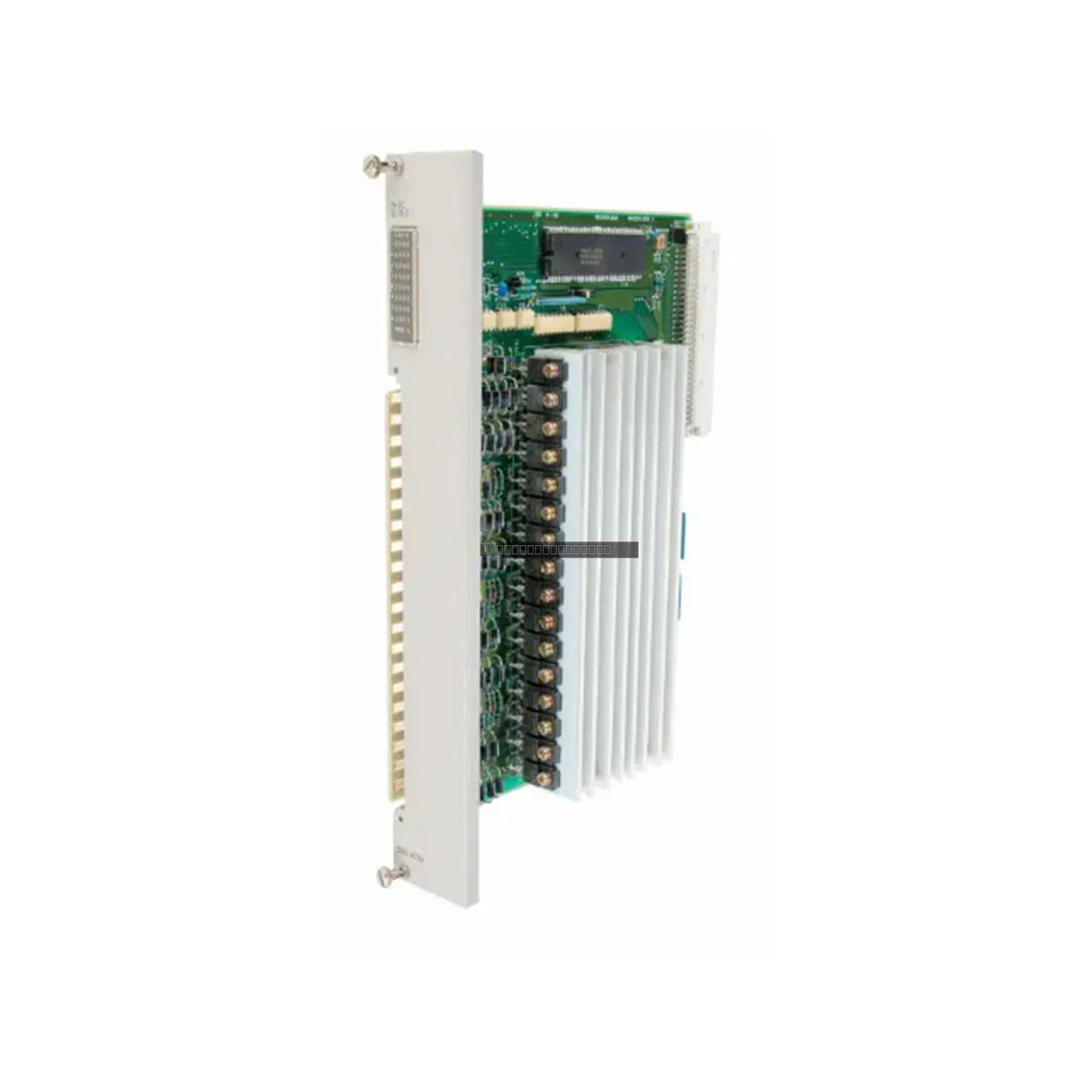

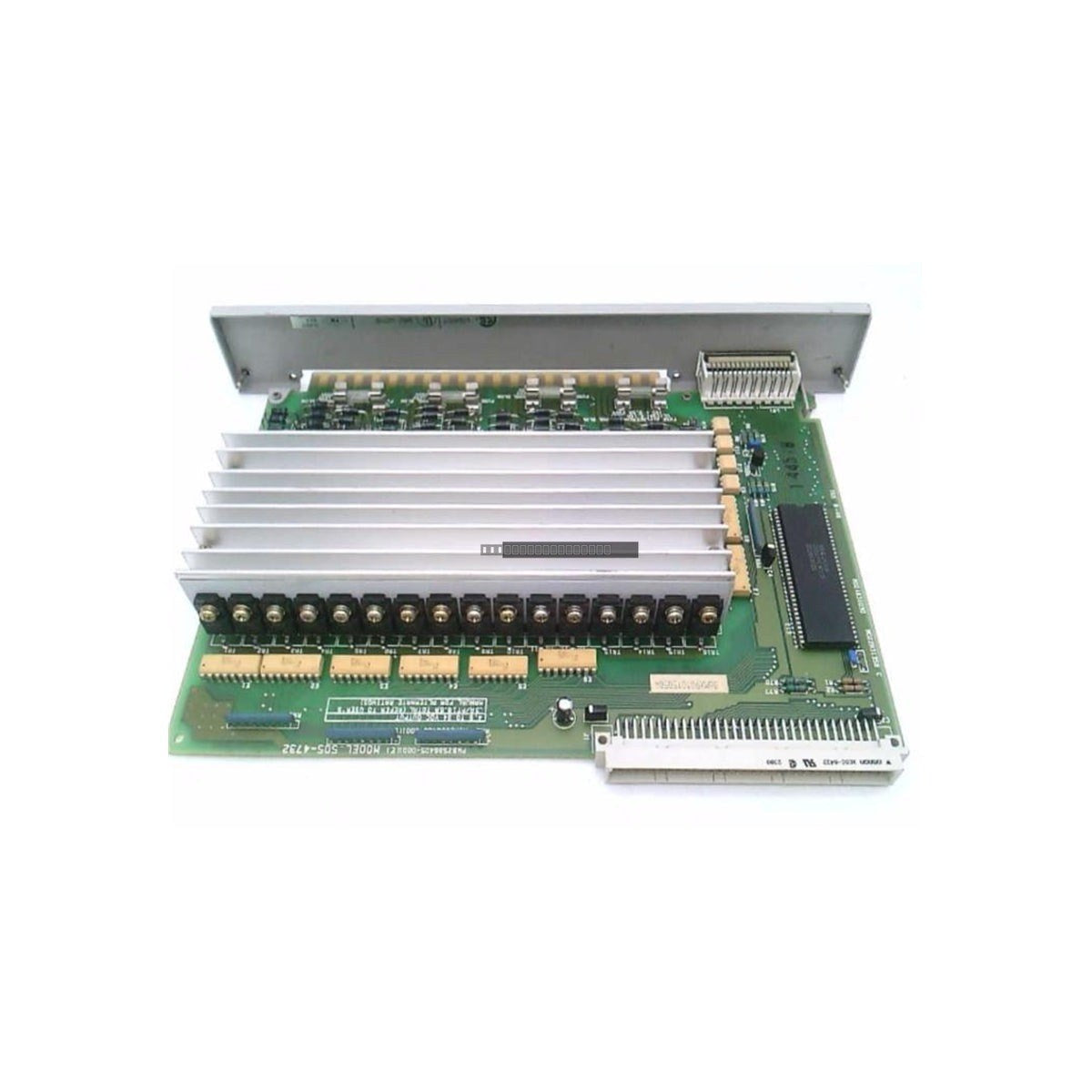

The Siemens 505-4732 is a high-density digital output module designed for use within the TI 505 programmable logic controller series. This module provides 32 discrete output channels, facilitating reliable control of field devices in industrial automation environments. It is engineered to operate within a voltage range of 4.5 to 34 VDC, making it suitable for a variety of low-to-medium voltage switching applications.
Features
- 32-point digital output capacity for high-density I/O configurations.
- Wide operating voltage range of 4.5 to 34 VDC.
- Designed for seamless integration with Siemens TI 505 series backplanes.
- Robust construction suitable for demanding industrial control environments.
Applications
This module is typically utilized in manufacturing, process control, and assembly line automation where multiple digital signals must be managed from a single controller slot. It is commonly found in legacy TI 505 systems that require reliable signal switching for relays, solenoid valves, and indicator lamps.
Technical Specifications
| Model Number |
505-4732 |
| Module Type |
Digital Output |
| Channel Count |
32 Points |
| Voltage Range |
4.5 - 34 VDC |
| Manufacturer |
Siemens |
| Tariff Code |
8538903000 |
Installation Guidelines
- Ensure the PLC power is completely disconnected before inserting or removing the module from the rack to prevent electrical damage.
- Verify that the module is fully seated in the backplane slot and that the retaining screws are tightened to ensure a secure connection.
- Use appropriate shielded cabling for output signals to minimize electromagnetic interference (EMI) in high-noise industrial areas.
- Observe proper polarity during wiring to prevent damage to the output transistors.
- Maintain adequate ventilation around the PLC rack to ensure the module operates within its specified temperature range.
FAQ
Is the 505-4732 still in production? No, this module has been discontinued by the manufacturer. We provide high-quality surplus units for maintenance and system support.
What is the primary function of this module? This is a digital output module used to drive external field devices based on logic commands from the TI 505 controller.
