Description

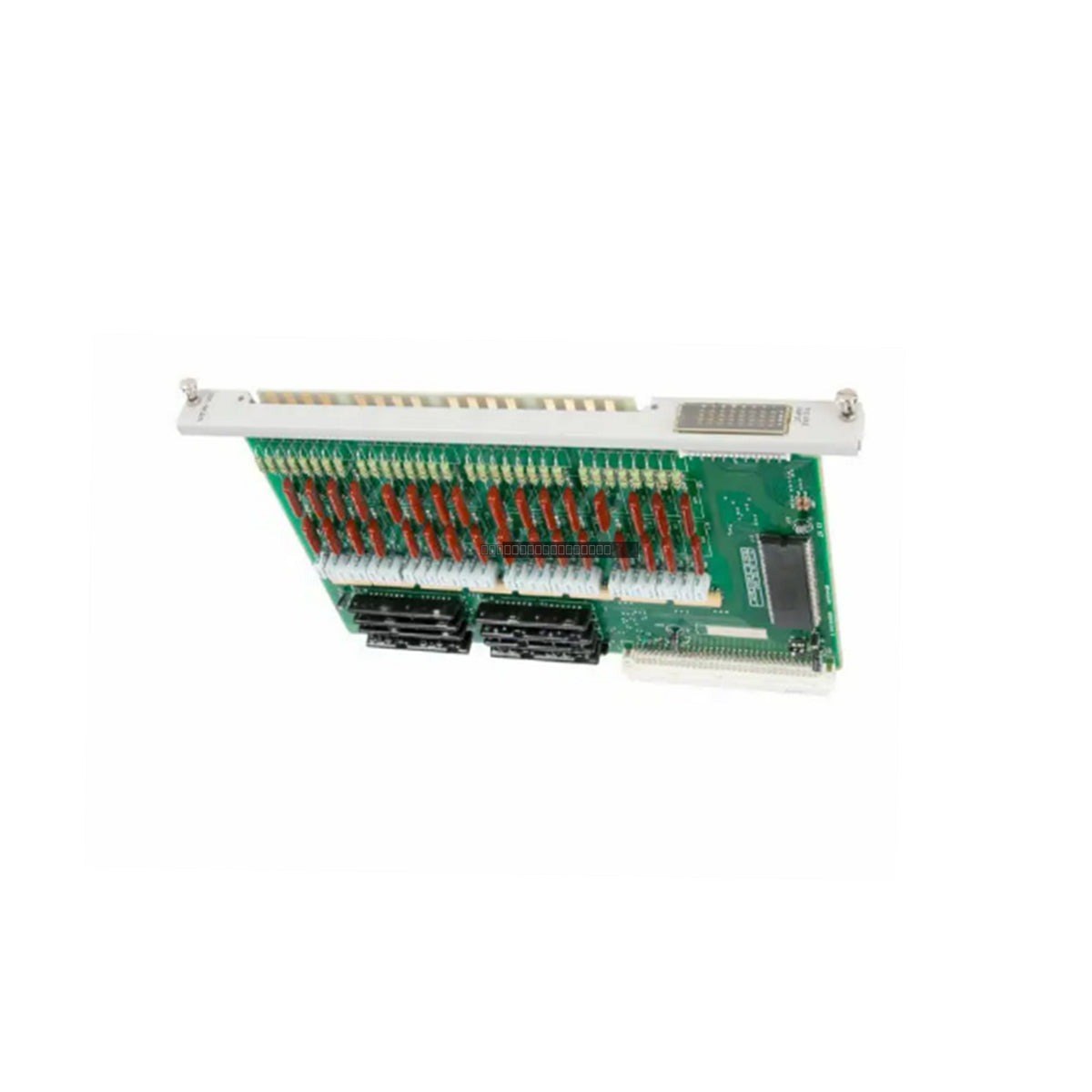

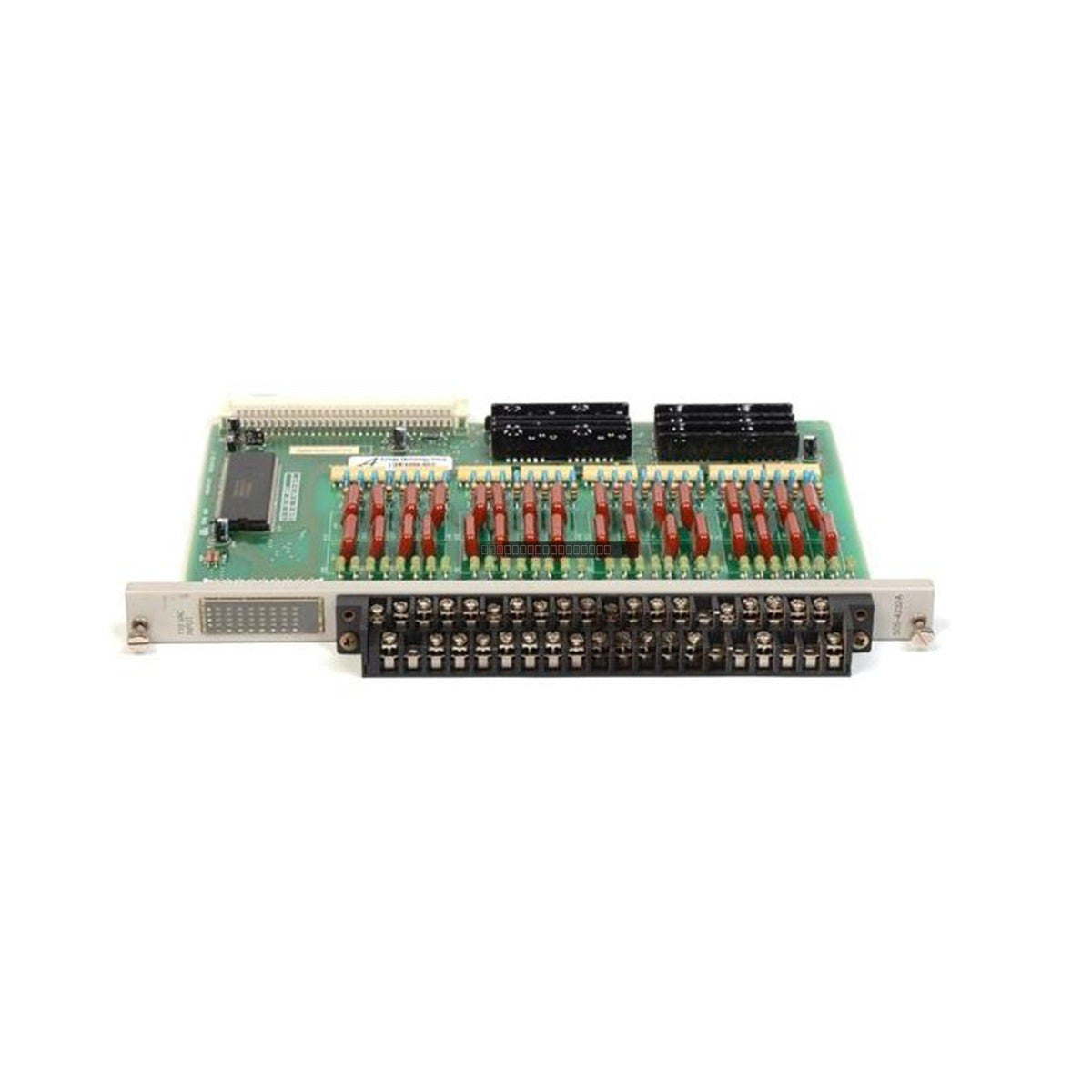

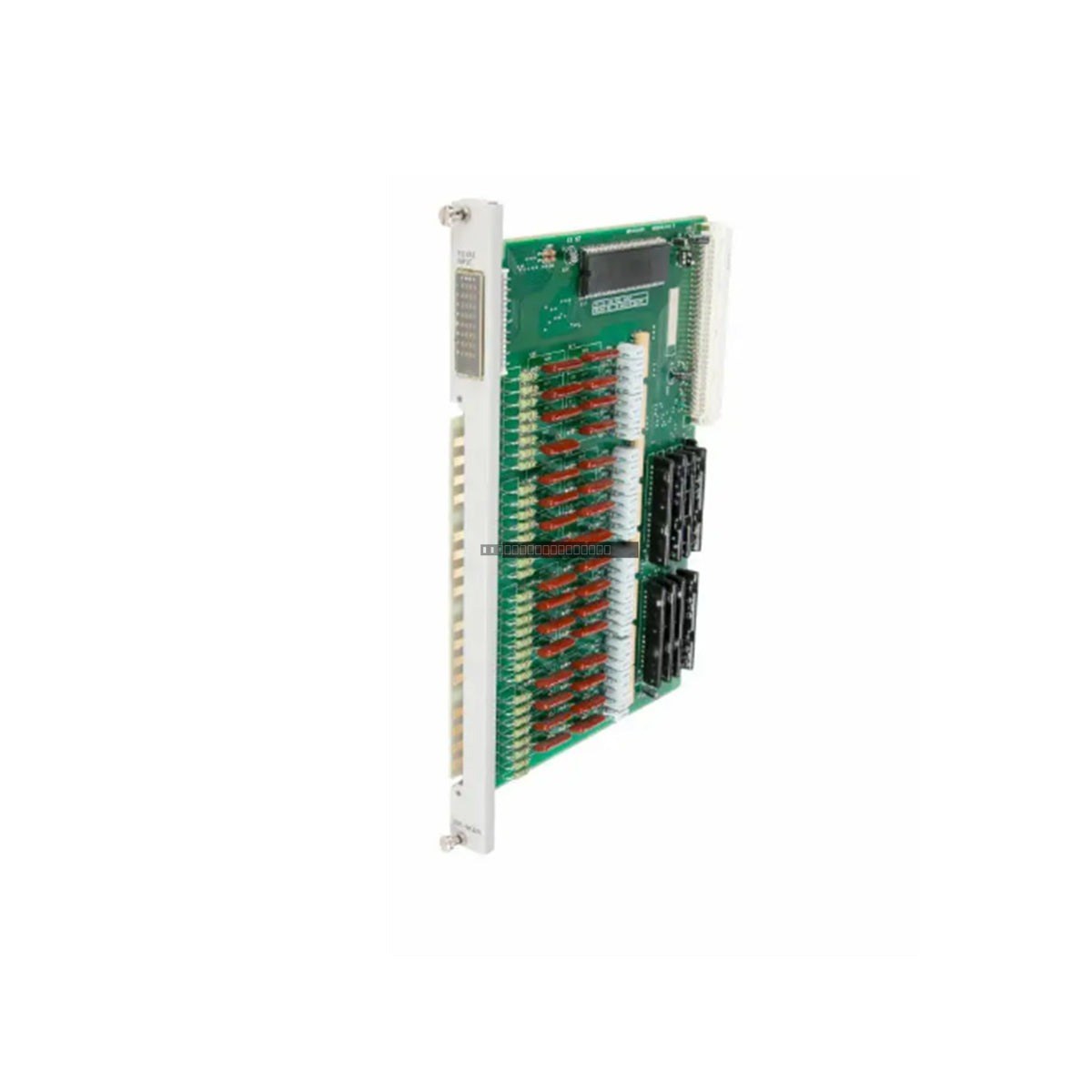

The Siemens 505-4232A is a 32-point digital input module designed for the TI 505 series programmable logic controller (PLC) systems. This module is engineered to interface field-level digital signals with the controller, providing reliable monitoring of AC input states. Please note that this product has been discontinued by the manufacturer, making it a critical spare part for maintaining legacy automation infrastructure.

Features

• 32-point digital input capacity for high-density signal monitoring.
• Operating voltage range of 79-132 VAC.
• Designed for seamless integration with Siemens TI 505 series backplanes.
• Robust industrial design suitable for standard control cabinet environments.

Technical Specifications

Model Number	505-4232A
Manufacturer	Siemens
Module Type	Digital Input Module
Input Points	32
Voltage Rating	79-132 VAC
Alternate Part Numbers	2586265-0001, PPX:505-4232A

Installation Guidelines

• Ensure the PLC system power is disconnected before installing or removing the module from the rack.
• Handle the module by the edges to prevent electrostatic discharge (ESD) damage to the internal circuitry.
• Verify that the backplane slot is clean and free of debris before seating the module.
• Ensure all field wiring is properly secured to the terminal blocks and that wire gauges are appropriate for the connector type.
• Maintain adequate spacing in the control cabinet to allow for proper airflow and cooling of the module.

FAQ

Is the Siemens 505-4232A still in production?

No, this module has been discontinued by the manufacturer. We provide this unit as a reliable spare part for legacy system support.

What is the voltage range for this input module?

The 505-4232A is designed to operate within a voltage range of 79-132 VAC.
