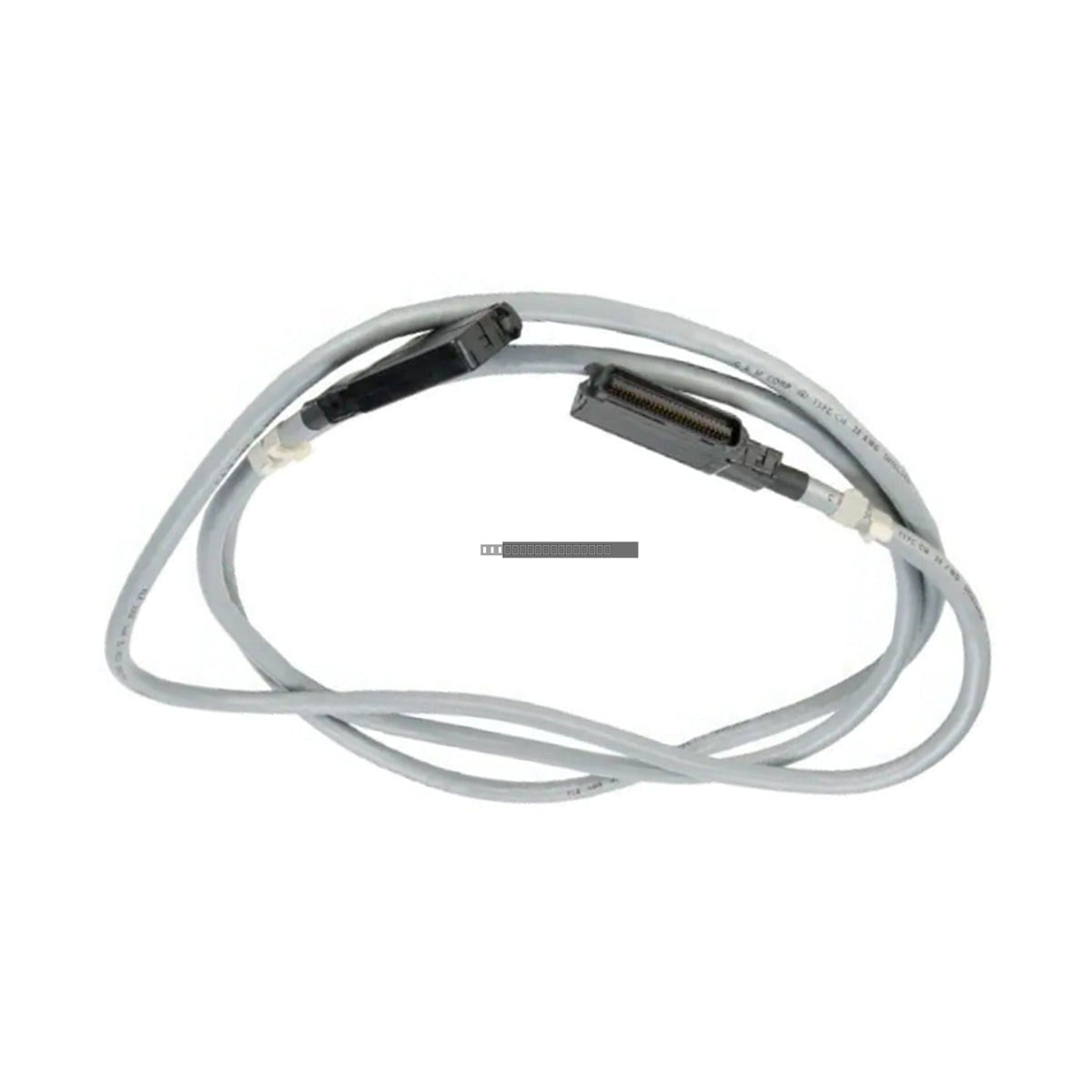

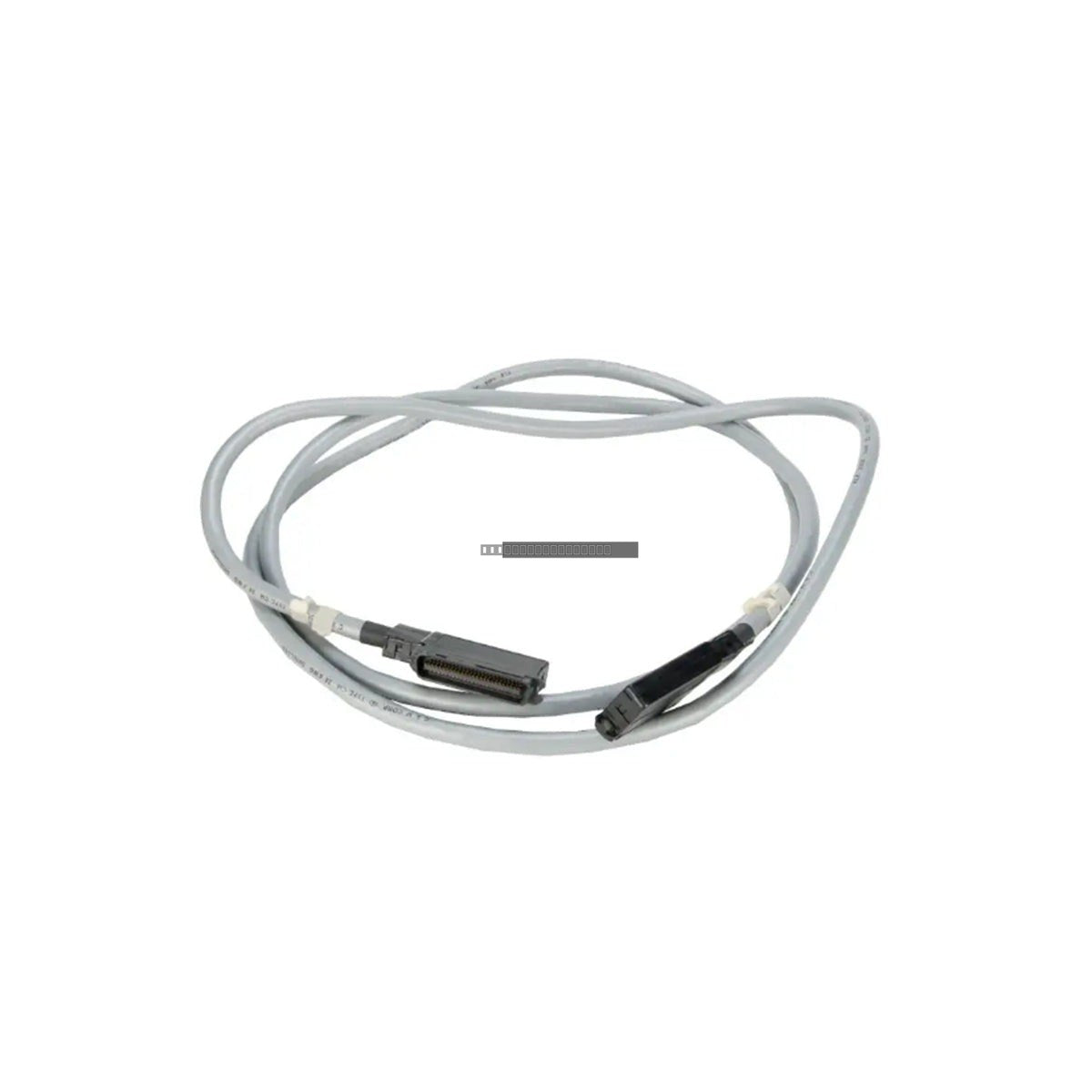

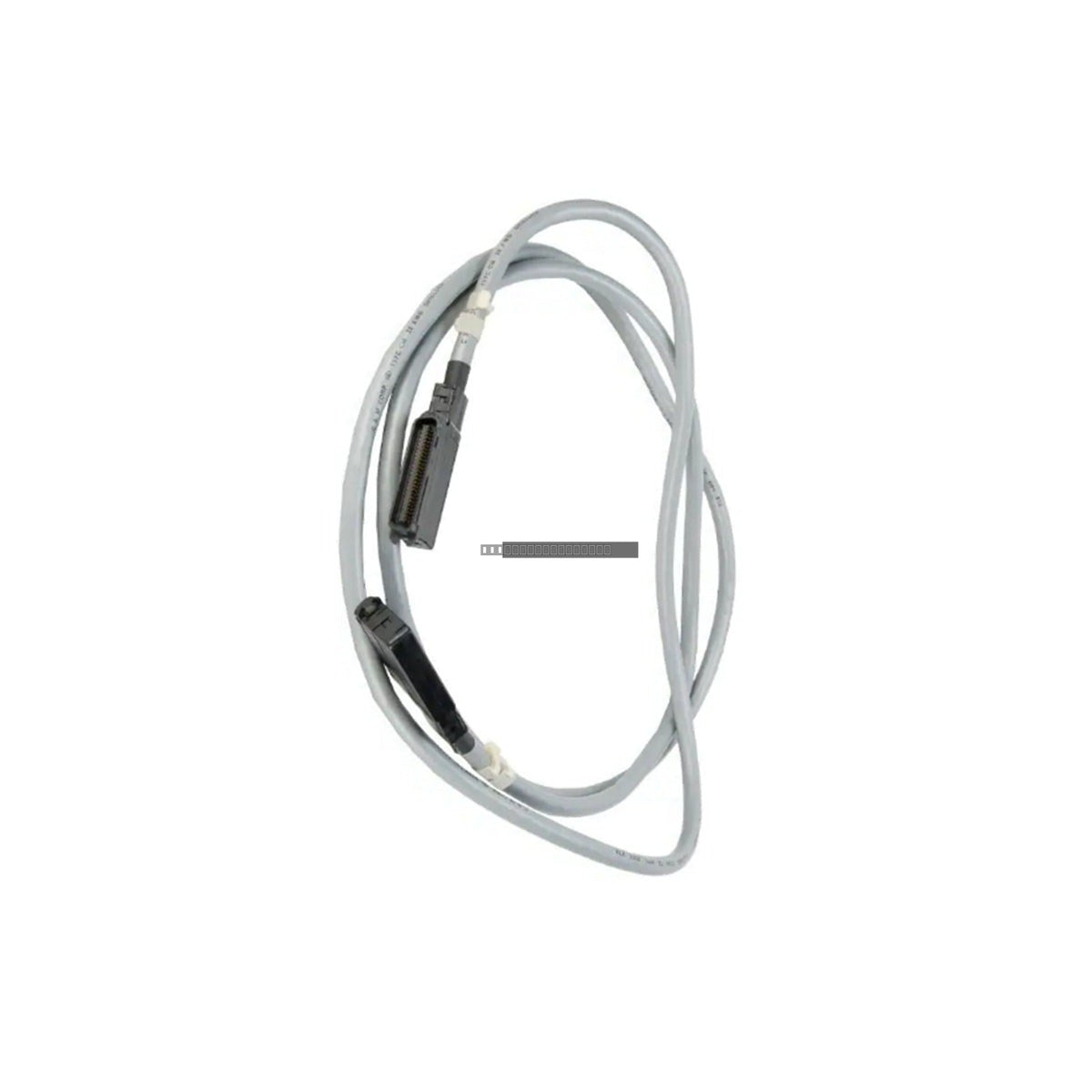

The Invensys Triconex 4000029-010 is a specialized 9-foot (2.74 m) cable assembly designed for integration within Triconex Safety Instrumented Systems (SIS). This cable serves as a vital interconnect, providing reliable signal transmission between controllers, I/O modules, and termination panels. Engineered for high-availability environments, it supports the rigorous requirements of Triple Modular Redundancy (TMR) architectures, ensuring that safety-critical communication remains stable and protected against signal degradation.
Features
-
System Compatibility: Specifically engineered for Invensys Triconex SIS rack-to-panel and controller-to-I/O configurations.
-
Industrial Construction: Features high-density connectors with integrated strain relief and a flame-retardant outer jacket.
-
Signal Integrity: Utilizes precision-twisted, shielded conductors to minimize electromagnetic interference (EMI) and maintain consistent signal impedance.
-
TMR Support: Designed to uphold the integrity of redundant communication pathways characteristic of Triconex safety systems.
Applications
This cable assembly is intended for use in mission-critical industrial sectors where safety system reliability is paramount. Typical applications include chemical processing plants, nuclear power generation facilities, offshore oil and gas platforms, and other hazardous industrial environments requiring standardized safety cabinet interconnects.
Technical Specifications
| Model |
4000029-010 |
| Brand |
Invensys (Triconex) |
| Cable Length |
9 ft (2.74 m) |
| Connector Type |
Proprietary High-Density Triconex |
| Shielding |
Multi-core Industrial Shielding |
| Operating Temperature |
-20 to 70 deg C |
| Storage Temperature |
-40 to 85 deg C |
Installation Guidelines
- Ensure all power is removed from the controller and I/O modules before connecting or disconnecting the cable assembly.
- Route cables away from high-voltage power lines and sources of high-frequency electromagnetic interference to maintain signal quality.
- Verify that the connector strain relief is properly seated to prevent mechanical stress on the interface pins.
- Ensure the cable bend radius is maintained according to standard industrial cabling practices to prevent internal conductor damage.
- Check that all connectors are fully engaged and locked to ensure secure, vibration-resistant communication.
FAQ
Is this cable compatible with all Triconex systems?
The 4000029-010 is designed for specific Triconex SIS applications. Please verify your system documentation or existing cable part numbers to ensure compatibility with your specific controller and I/O module configuration.
What is the primary purpose of the shielding on this cable?
The industrial-grade shielding is critical for protecting sensitive analog and digital signals from EMI and crosstalk, which is essential for maintaining the safety integrity level (SIL) of the TMR system.
