Description

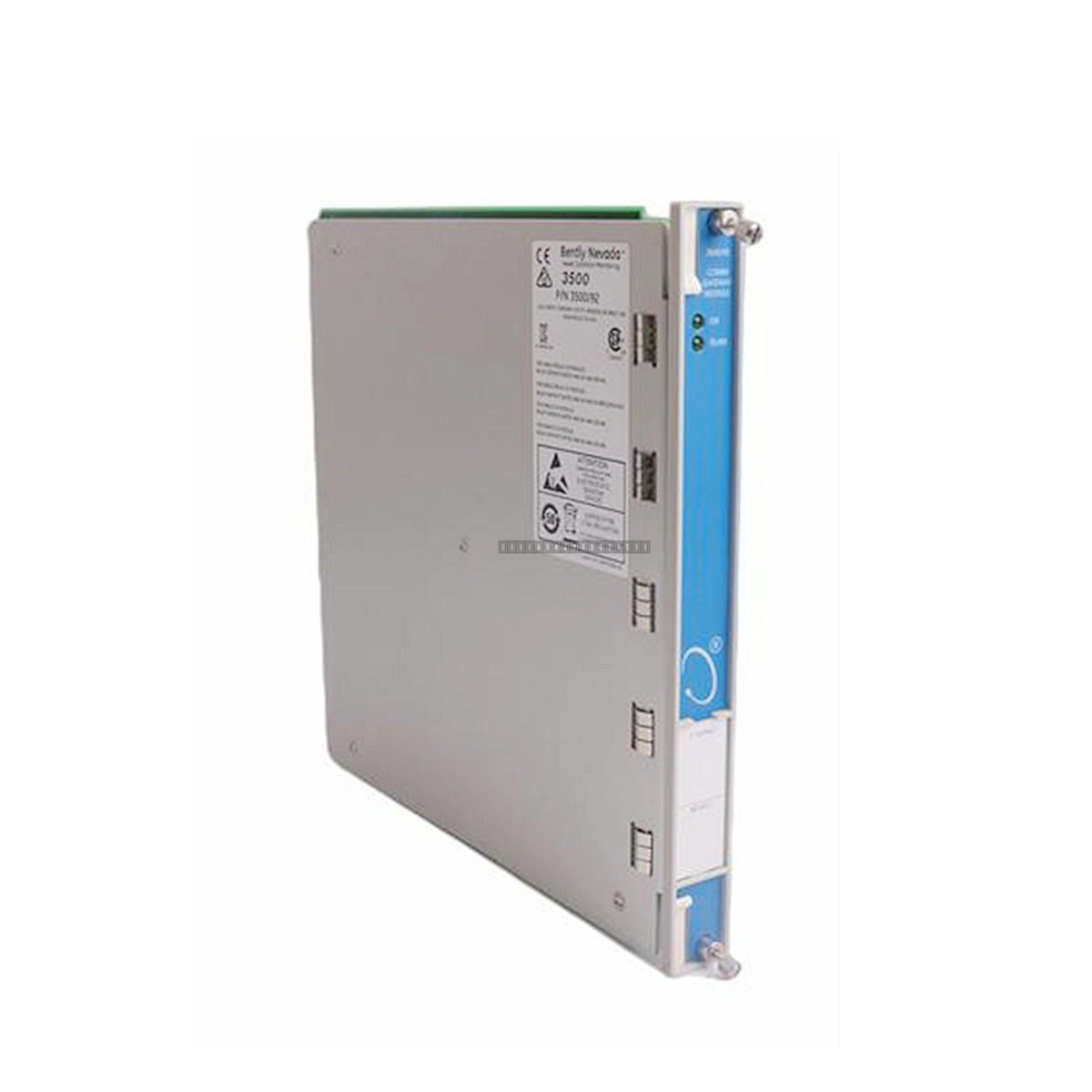

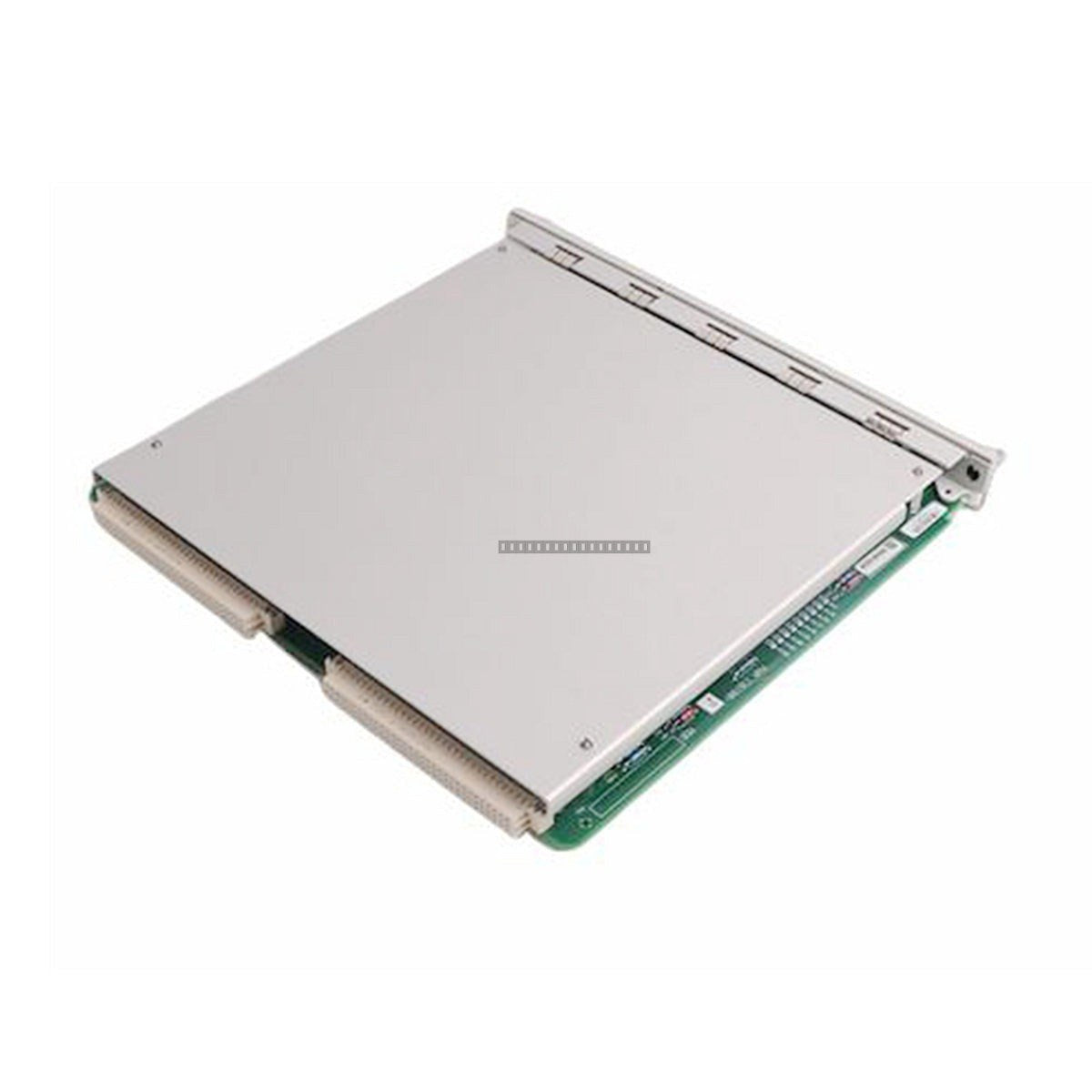

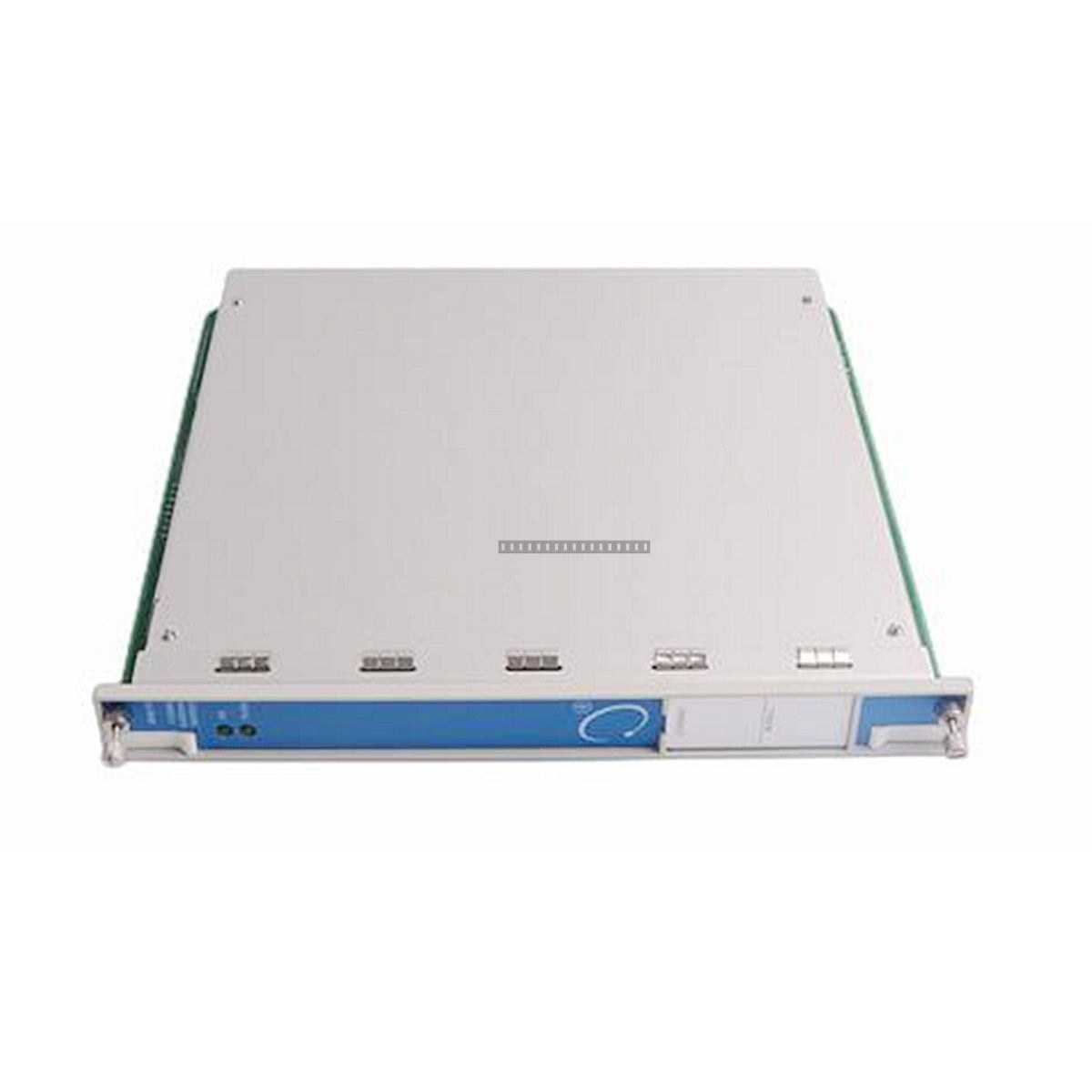

The Bently Nevada 3500/94 Display Router is a specialized interface module designed for the 3500 Machinery Protection System. It acts as a critical communication link between the 3500 rack and the 3500 VGA Display unit. By routing data from the rack to the display, this module enables operators to view real-time machinery monitoring data, alarm statuses, and system configurations directly on a connected monitor.

Features

• Facilitates high-speed communication between the 3500 rack and external VGA display units.
• Supports remote mounting capabilities up to 8 meters (25 feet) from the rack.
• Low power consumption profile with a maximum rating of 4.6 Watts.
• Designed for integration into standard 3500 series rack configurations.
• Robust environmental operating range suitable for industrial control room conditions.

Technical Specifications

Product Model	3500/94
Spare Part Number	145988-01
Power Consumption	4.6 Watts (Max)
Operating Temperature	-30 degC to +65 degC (-22 degF to +150 degF)
Storage Temperature	-40 degC to +85 degC (-40 degF to +185 degF)
Relative Humidity	95%, non-condensing

Installation Guidelines

• Ensure the 3500 rack is powered down before inserting or removing the 3500/94 module to prevent damage to the backplane connectors.
• The module should be installed in a designated slot within the 3500 rack; ensure it is fully seated and the front panel screws are tightened to maintain proper grounding.
• Use appropriate shielded cabling for the VGA interface to minimize electromagnetic interference (EMI) in industrial environments.
• Maintain proper ventilation within the cabinet to ensure the module stays within its specified operating temperature range.
• Handle with care using ESD-safe practices to prevent damage to sensitive electronic components.

FAQ

Is the 3500/94 module still in production?

No, the Bently Nevada 3500/94 Display Router has been discontinued by the manufacturer. We provide high-quality surplus or refurbished units to support legacy system maintenance.

What is the maximum distance for the display connection?

The 3500/94 module supports a cable distance of up to 8 meters (25 feet) between the rack and the display unit.
