Description

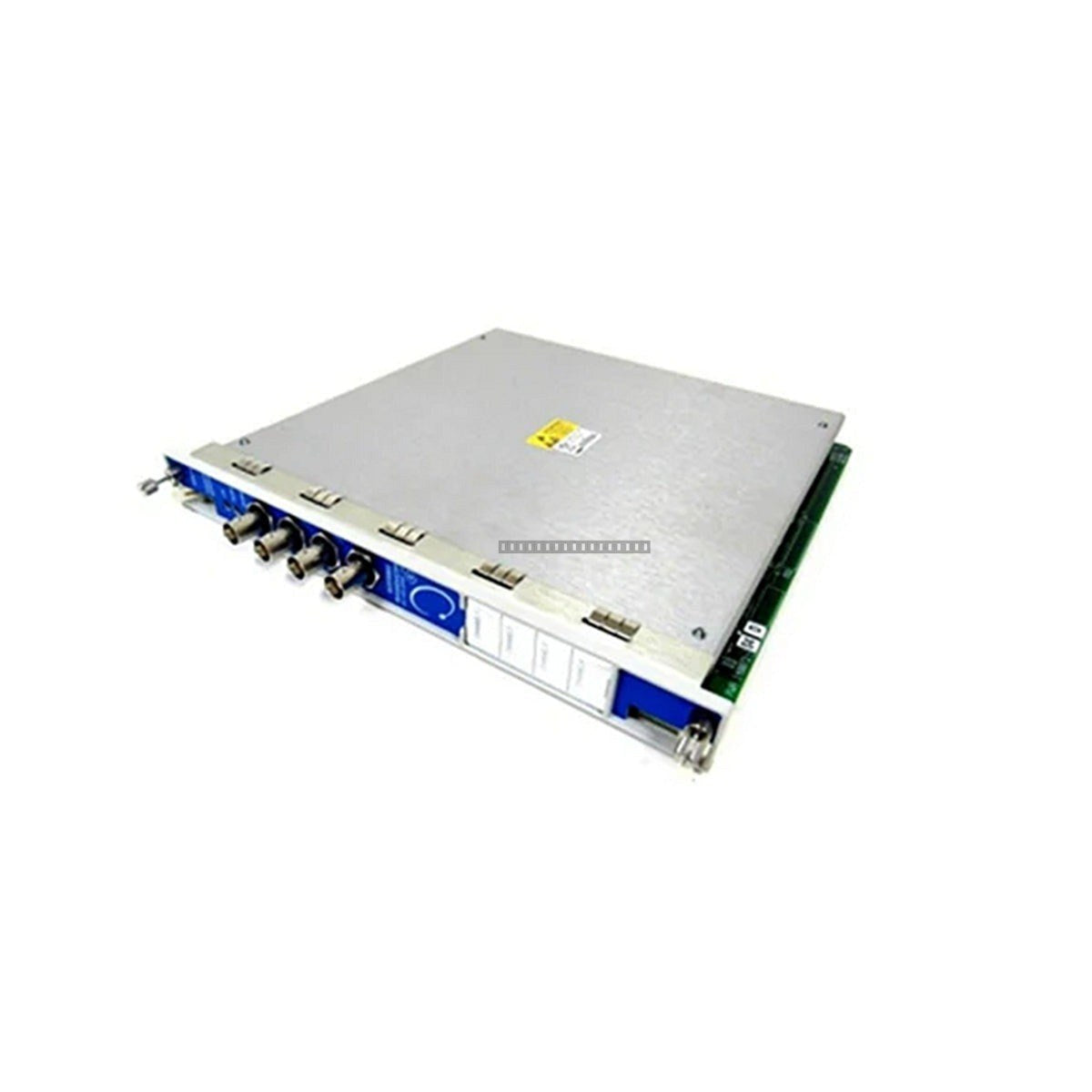

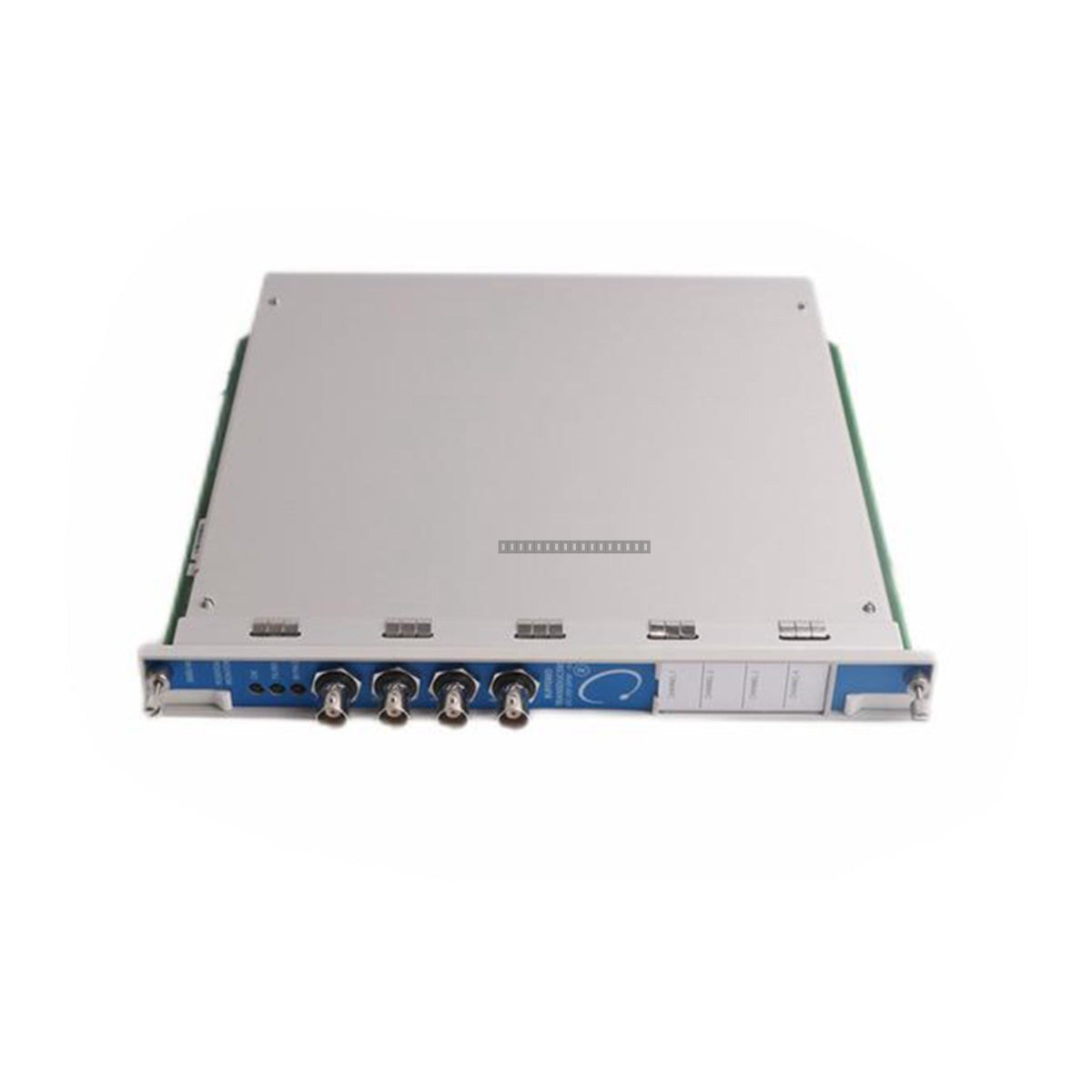

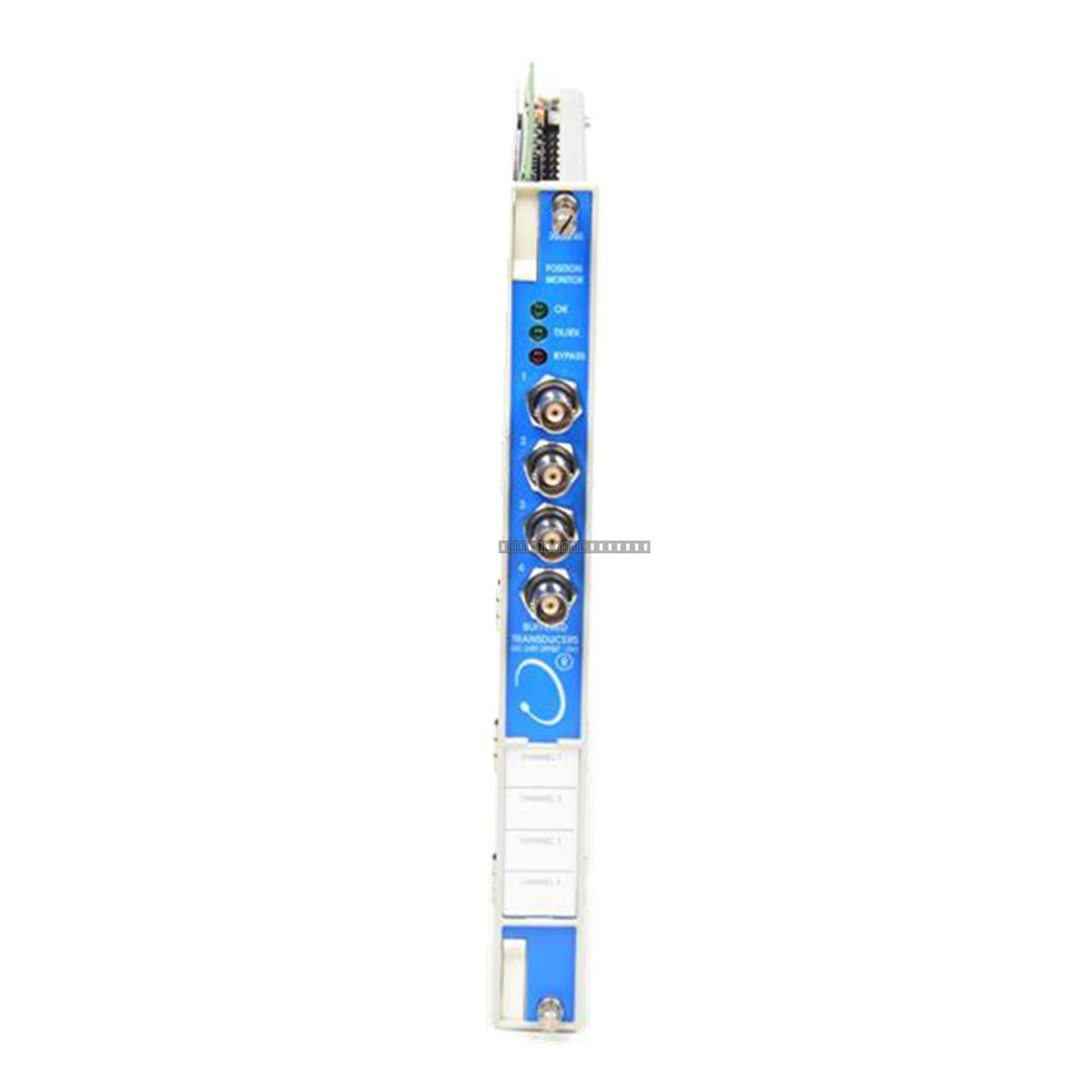

The Bently Nevada 3500/45 140072-04 Position Monitor is a four-channel module designed for continuous monitoring of shaft position and axial displacement in critical rotating machinery. As a core component of the Bently Nevada 3500 rack system, this module interfaces with proximity probes and Proximitor sensors to provide precise, real-time position data. It is essential for protecting rotating equipment against excessive axial movement, providing programmable alarm and trip functions to prevent mechanical failure.

Features

• Four independent monitoring channels for comprehensive shaft position and thrust measurement.
• Compatible with standard Bently Nevada proximity probe and Proximitor sensor systems.
• Programmable Alert and Danger setpoints for customized machinery protection.
• Integrated rack-based design for seamless communication with 3500 relay and communication modules.
• Continuous self-diagnostics to ensure system integrity and sensor health.

Applications

• Steam and gas turbines.
• Centrifugal and axial compressors.
• Large pumps and motors.
• Critical rotating assets requiring axial displacement monitoring.

Technical Specifications

Product Number	140072-04
Channels	4
Power Consumption	7 W typical
Operating Temperature	-30 degC to +65 degC
Storage Temperature	-40 degC to +85 degC
Relative Humidity	95% non-condensing

Installation Guidelines

• Ensure the 3500 rack is properly grounded according to Bently Nevada installation manuals.
• Always power down the rack before inserting or removing the module to prevent electrical damage or system faults.
• Use shielded cabling for all proximity probe inputs to minimize EMI/RFI interference.
• Verify that the module is fully seated in the rack slot and the front panel screws are tightened to ensure proper backplane connection.
• Maintain adequate ventilation around the 3500 rack to ensure operation within the specified temperature range.

Compliance and Certifications

• Safety: EN 61010-1, LV Directive 2014/35/EU
• EMC: EN 61000-6-2 (Immunity), EN 61000-6-4 (Emissions)
• Hazardous Area: CSA/NRTL/C Class I, Zone 2
• Environmental: RoHS Directive 2011/65/EU compliant

FAQ

What is the primary function of the 3500/45 module?

The 3500/45 is designed to monitor axial displacement (thrust position) of a shaft relative to the machine casing, providing critical protection against mechanical contact or excessive wear.

Is this module compatible with existing 3500 rack systems?

Yes, the 140072-04 is designed for integration into any standard Bently Nevada 3500 rack system, provided the rack is configured with the appropriate I/O modules and power supplies.
