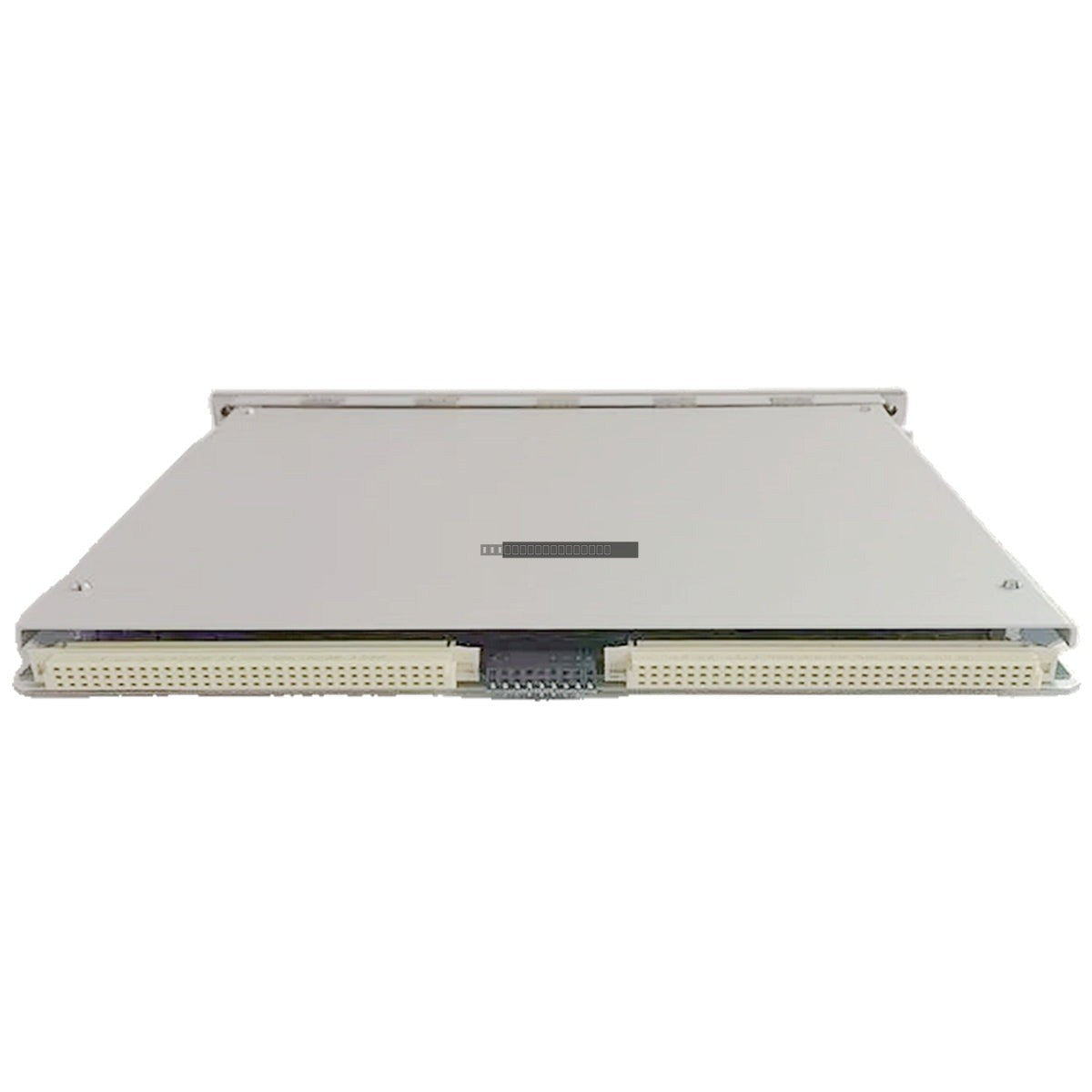

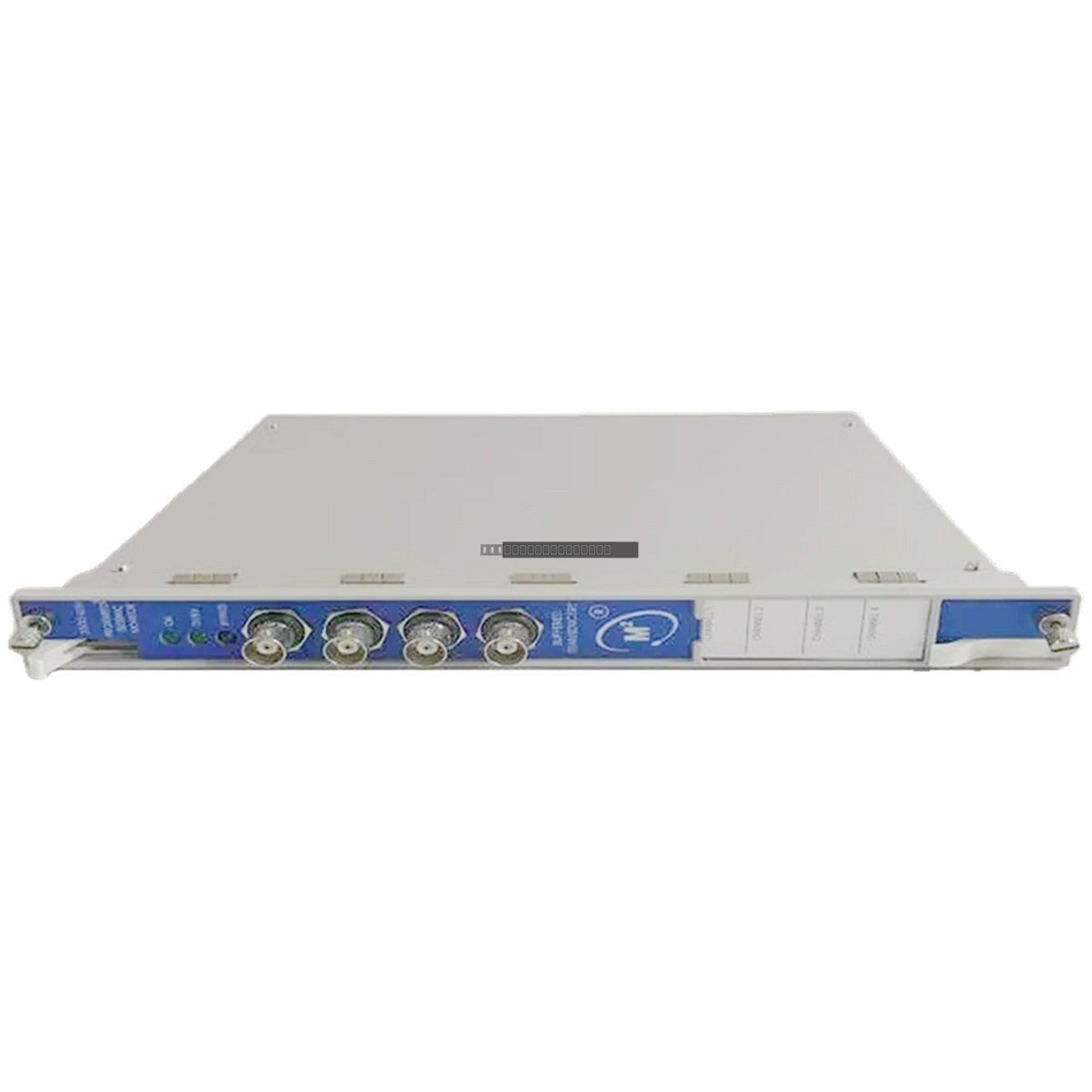

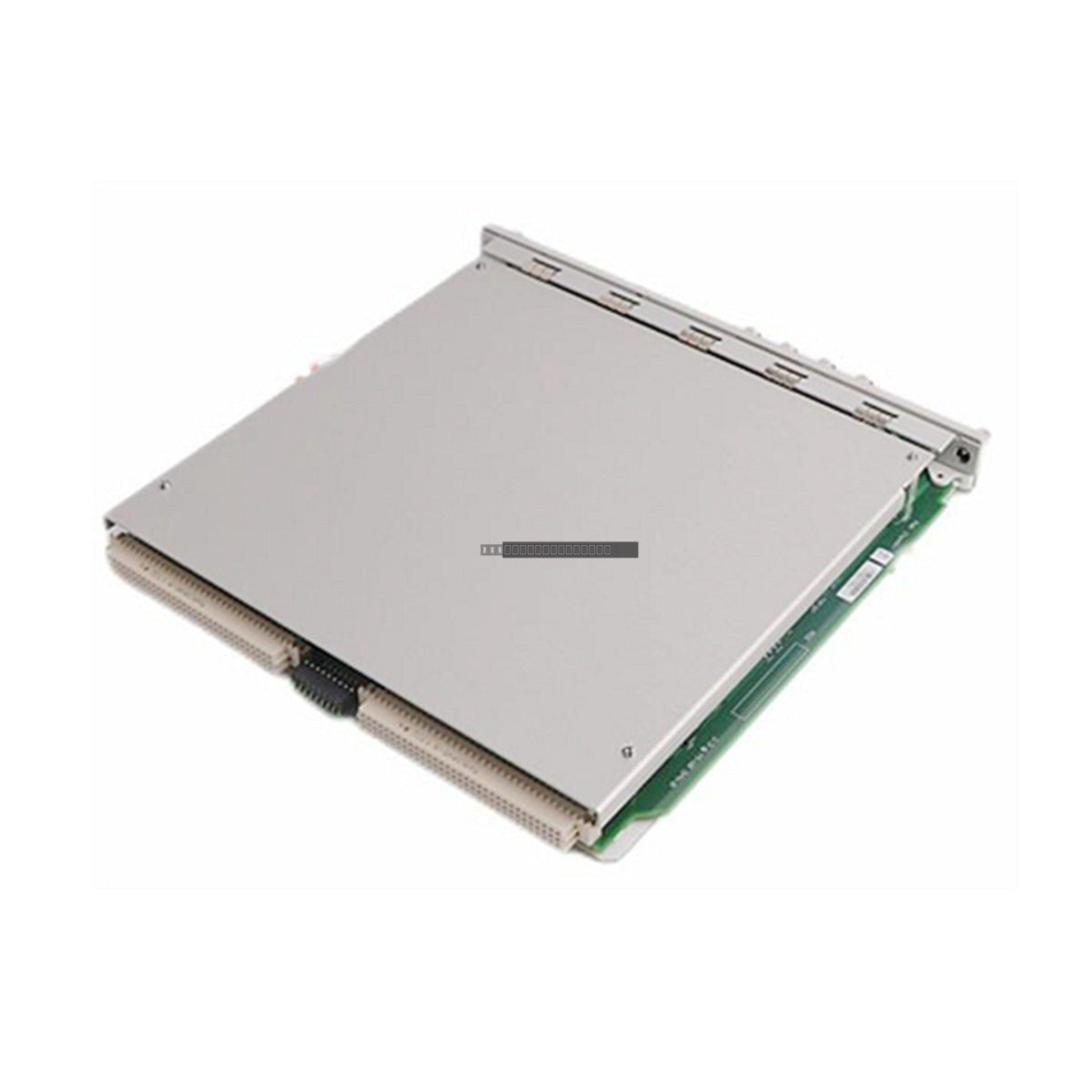

The Bently Nevada 3500/42M Proximitor Seismic Monitor is a high-performance, four-channel module designed for the 3500 Series machinery protection system. This module provides continuous, reliable monitoring of vibration and position parameters, ensuring critical turbomachinery assets are protected against mechanical failure. It accepts inputs from a variety of transducers, including proximity probes, velocity sensors, and accelerometers, making it a versatile tool for complex industrial monitoring requirements.
Features
- Four-channel monitoring capability for radial vibration, thrust position, and seismic signals.
- Fully compatible with 3500 Series rack systems for seamless integration.
- Programmable Alert and Danger setpoints to facilitate precise machinery protection.
- Integrated 4-20 mA recorder outputs for direct communication with external DCS or PLC control systems.
- Buffered transducer outputs provided via front-panel BNC connectors for diagnostic analysis.
- Comprehensive LED status indicators for OK, TX/RX, and Bypass operational states.
- Designed to comply with API 670 standards for machinery protection systems.
Applications
The 3500/42M is primarily utilized in critical rotating machinery environments, including steam and gas turbines, centrifugal compressors, pumps, and large motors. It supports advanced diagnostic functions such as Rolling Element Bearing Analysis (REBAM), shaft absolute vibration, and circular acceptance region (CAR) monitoring.
Technical Specifications
| Model |
3500/42M |
| Channels |
4 |
| Operating Temperature |
-30 degC to +65 degC |
| Power Consumption |
7.7 W (typical) |
| Outputs |
4-20 mA, Relay (Alert/Danger), Buffered BNC |
| Compliance |
API 670, CE, CSA/NRTL/C, Zone 2 |
Installation Guidelines
- Ensure the 3500 rack power is disconnected before installing or removing the module.
- Handle the module using proper ESD (Electrostatic Discharge) protection practices to prevent damage to internal circuitry.
- Verify that the module is fully seated in the rack slot and that the front-panel screws are tightened to ensure a secure ground connection.
- Use shielded cabling for all transducer inputs to minimize electromagnetic interference (EMI) and signal noise.
- Ensure adequate ventilation around the 3500 rack to maintain operating temperatures within the specified -30 degC to +65 degC range.
FAQ
What types of transducers are compatible with the 3500/42M?
The module supports proximity probes, velocity transducers, and accelerometers, allowing it to monitor a wide range of vibration and position parameters.
Can this module communicate with a PLC?
Yes, the 3500/42M provides 4-20 mA proportional recorder outputs that can be integrated directly into a PLC or DCS for external monitoring and control.
Does this module meet industry standards?
Yes, the 3500/42M is designed to meet API 670 standards for machinery protection and holds various certifications including CE and CSA/NRTL/C for hazardous area applications.
