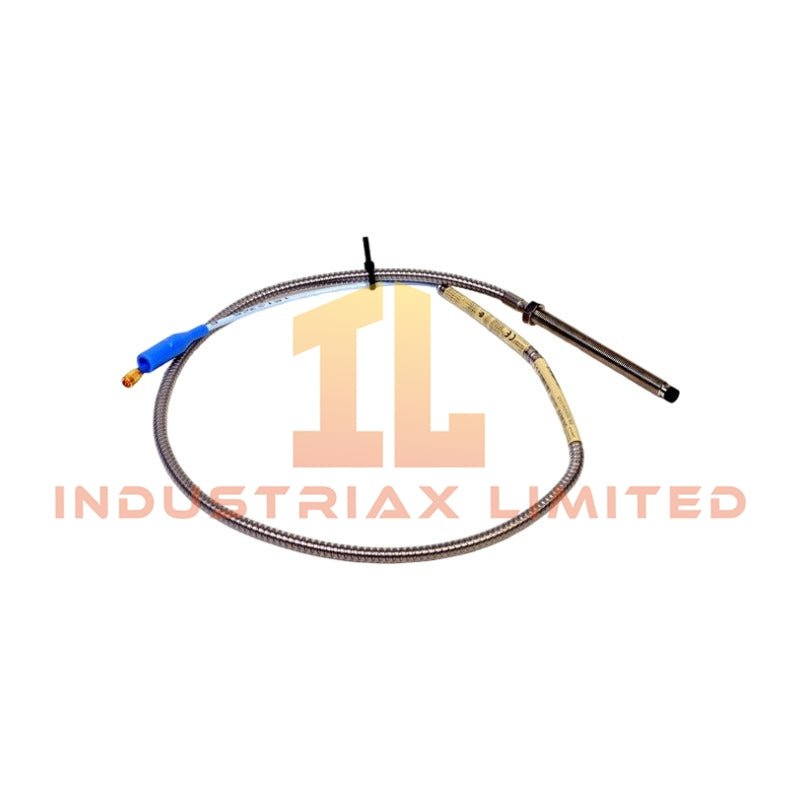

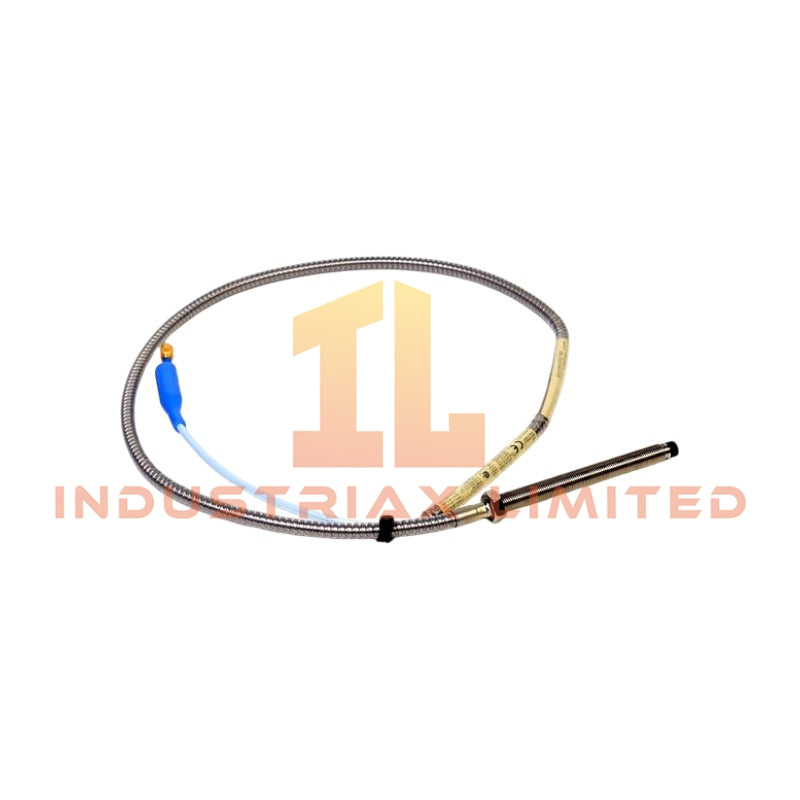

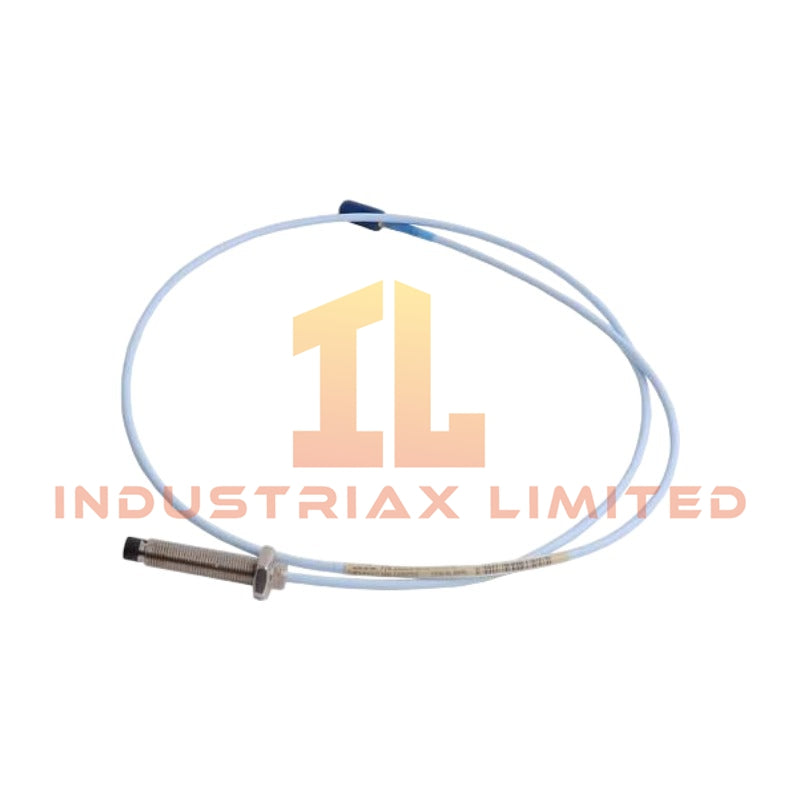

Bently Nevada 330102-00-40-10-01-05 3300 XL 8 mm Proximity Probe

Configured for shaft displacement measurement in the Bently Nevada 3300 XL Proximity Transducer System, the Bently Nevada 330102-00-40-10-01-05 (330102 3300 XL 8 mm Proximity Probe) provides direct eddy-current sensing output for machinery vibration and position monitoring circuits.

Hardware Specifications

Parameter	Specification
Model	330102-00-40-10-01-05
Brand	Bently Nevada
Product Type	3300 XL 8 mm Proximity Probe
Origin	USA
Weight	0.15 kg
Dimensions	Estimated shipping size: 1.5 x 1.3 x 117 cm
Operating Temp	Not specified in provided data
Power Consumption	Passive eddy-current probe, powered by compatible proximity transducer system
Probe Thread	3/8-24 UNF thread
Probe Construction	Armored probe design
Unthreaded Length	0.0 in
Overall Case Length	4.0 in
Total Length	1.0 meter (3.3 feet)
Cable Type	Standard cable with miniature coaxial ClickLoc connector and connector protector
Agency Approvals	CSA, ATEX, IECEx
Tariff Code	8537101190
Shipment Location	Xiamen, China

Eddy-Current Probe Scaling and Gap Voltage Validation

The 330102-00-40-10-01-05 uses Bently Nevada 3300 XL eddy-current measurement technology to convert shaft surface movement into electrical displacement signals. The probe operates with compatible proximity sensor electronics that maintain calibrated probe scaling for accurate vibration and position measurement.

Furthermore, the system uses gap voltage validation methods during installation. Technicians typically verify probe gap voltage conditions against the -10 VDC target range to confirm correct mechanical positioning between the probe tip and the rotating target surface.

The armored construction reduces mechanical damage risks during field installation. In addition, the miniature coaxial ClickLoc connector maintains signal integrity between the probe and extension cable assembly.

Frequently Asked Questions

Q: What measurement principle does the 330102-00-40-10-01-05 use?
A: The probe uses eddy-current sensing technology to measure shaft displacement without physical contact with the rotating target.

Q: What connector configuration does this probe include?
A: This model includes a miniature coaxial ClickLoc connector with a connector protector and standard cable configuration.

Q: Can this probe operate as a standalone measurement device?
A: No. The probe requires a compatible Bently Nevada proximity transducer interface to provide power excitation and process the displacement signal.

Field Installation Guidelines

• Install the probe using the specified 3/8-24 UNF threaded mounting interface and verify mechanical alignment before operation.
• Confirm the probe tip faces the target surface with correct clearance according to the associated Bently Nevada transducer system installation procedure.
• Check gap voltage during commissioning to verify proper probe positioning and signal response.
• Route the coaxial cable away from high-current power conductors to minimize electrical interference.
• Maintain connector cleanliness and ensure the ClickLoc connector is fully secured before system startup.
• Connect cable shielding according to the machinery monitoring system grounding requirements.
