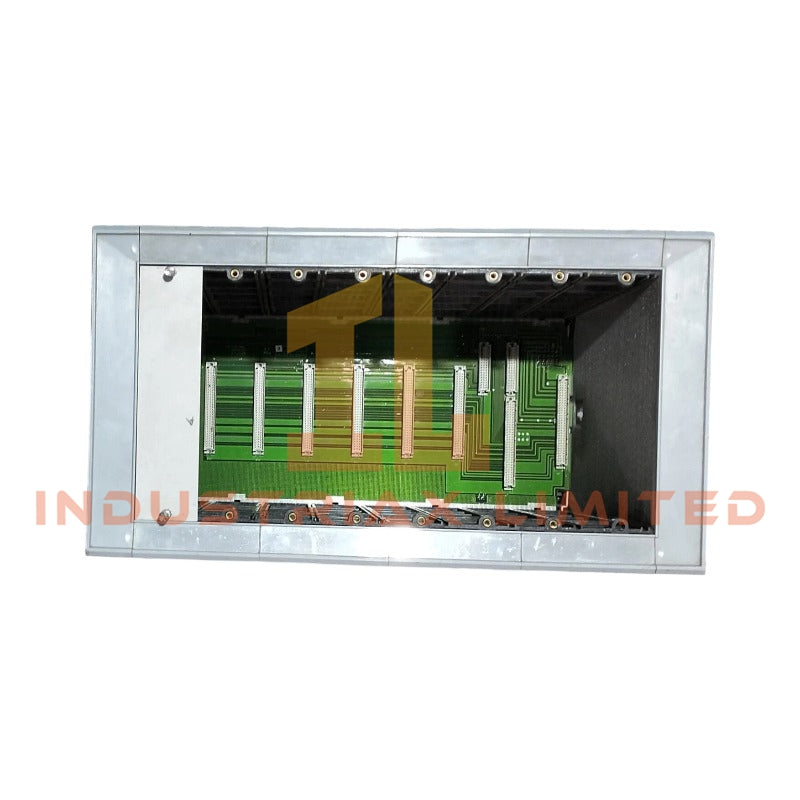

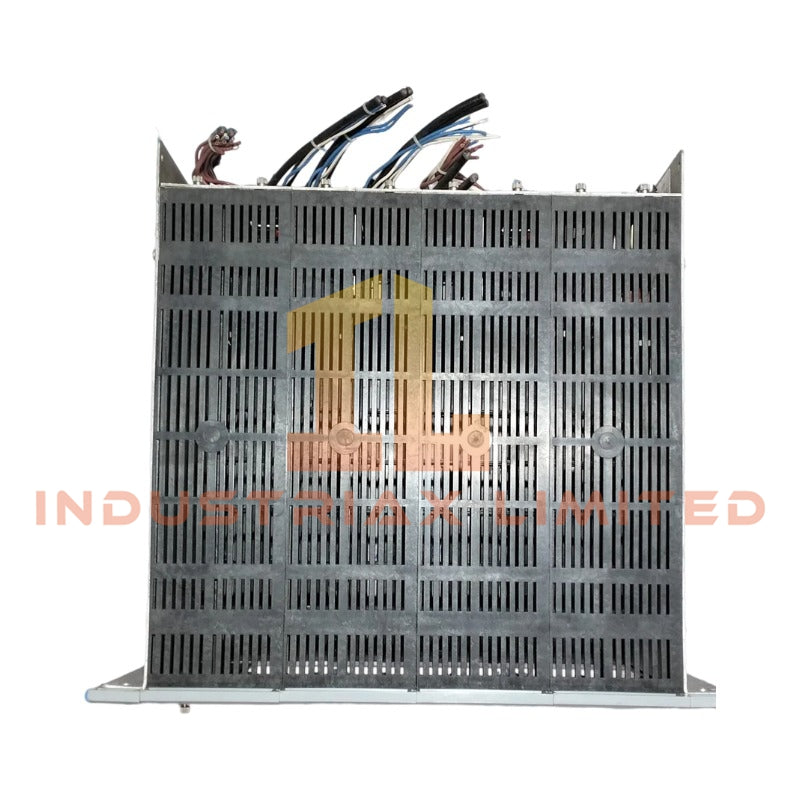

Bently Nevada 3300/05-23-00-00 3300 System Rack
Configured for physical slot hosting, backplane power distribution, and module interconnection within the Bently Nevada 3300 machinery protection platform, the Bently Nevada 3300/05-23-00-00 (3300/05 System Rack) provides direct mechanical and electrical execution for 3300 series monitoring modules across the 3300 Series System Rack architecture.
Suffix Breakdown & Model Matrix
-
3300/05: Base System Rack platform
-
-23: 19 inch rack mount configuration with 14 module slots and internal termination
-
-00: Standard panel wiring implementation
-
-00: Standard agency/approval configuration
Hardware Specifications
| Parameter |
Specification |
| Model Brand |
Bently Nevada 3300/05-23-00-00 |
| Origin |
USA (Bently Nevada platform manufacturing) |
| Weight |
approx. 8.2 kg (rack only, without modules) |
| Dimensions |
19 inch rack format, approx. 7U height (exact enclosure dependent on cabinet integration) |
| Operating Temp |
0 degC to +65 degC |
| Power Consumption |
Dependent on installed modules and 3300 system power supply loading |
| Backplane Voltage |
+5 VDC, +15 VDC, -15 VDC, -24 VDC distributed via system power module |
| Slot Capacity |
14 monitoring module slots plus system/power positions |
| Termination Type |
Internal termination via rear backplane connection |
Eddy Current Probe Scaling and Signal Conditioning Backplane Behavior
The 3300/05 rack backplane supports direct integration of eddy-current proximity probe signal chains used in Bently Nevada 3300 vibration channels. Probe input conditioning modules rely on stable backplane reference rails to maintain gap voltage validation targets (typically centered around negative DC bias regions such as -10 VDC operating windows at probe interface conditioning stages).
Cross-channel interference is mitigated through physical slot isolation and backplane trace separation, reducing crosstalk in multi-channel rotor vibration measurement configurations. Signal scaling consistency is maintained across installed proximity probe channels to preserve rotor dynamics trending accuracy and phase coherence between adjacent monitoring cards.
Frequently Asked Questions
Q: Can 3300/05-23-00-00 support hot-swap module replacement?
A: Module insertion is mechanically supported at rack level, but electrical hot-swap behavior depends on installed power supply and system configuration. Backplane voltage stability must be maintained during module exchange.
Q: What is the backplane current limitation per slot?
A: Current loading is distributed via the system power supply rails. Each slot draw is defined by installed module consumption and overall rack power budget rather than fixed per-slot current limitation.
Q: Does internal termination affect signal integrity?
A: Internal termination reduces external wiring length, minimizing noise pickup and maintaining impedance consistency for vibration and position transducer channels.
Field Installation Guidelines
-
Install rack into a grounded 19 inch equipment cabinet structure
-
Maintain continuous protective earth bonding between rack chassis and cabinet frame
-
Route proximity probe and transducer wiring using shielded twisted pair conductors
-
Terminate cable shields at designated single-point ground reference to avoid ground loop currents
-
Observe minimum bend radius for signal wiring entering rear termination area
-
Maintain separation between low-level sensor wiring and power conductors within cabinet routing paths
-
Verify backplane connector seating alignment before applying system power
