Bently Nevada 3300/05 System Rack

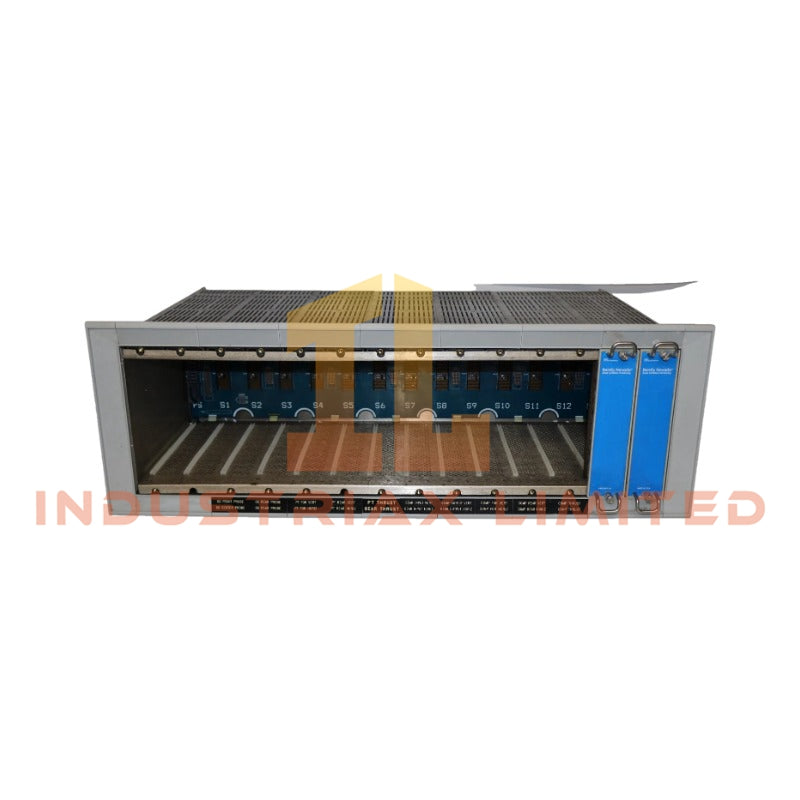

The Bently Nevada 3300/05 also cataloged as the 3300/05 System Rack operates as a dedicated hardware component for mechanical module mounting, backplane power distribution, and signal routing within the 3300 Machinery Protection System architecture.
Suffix Breakdown & Model Matrix
No validated suffix segmentation is defined in the provided technical scope for the 3300/05 base rack model. Configuration is determined by rack size option codes (A21 to A37 series) and slot density selection.
Hardware Specifications
| Parameter |
Specification |
| ModelBrand |
Bently Nevada 3300/05 |
| Dimensions |
Depth 424 mm (16.7 in); Width varies by configuration (279.4 mm to 787.4 mm) |
| OperatingTemp |
0 degC to +65 degC |
| PowerConsumption |
Not specified |
| Core Architecture |

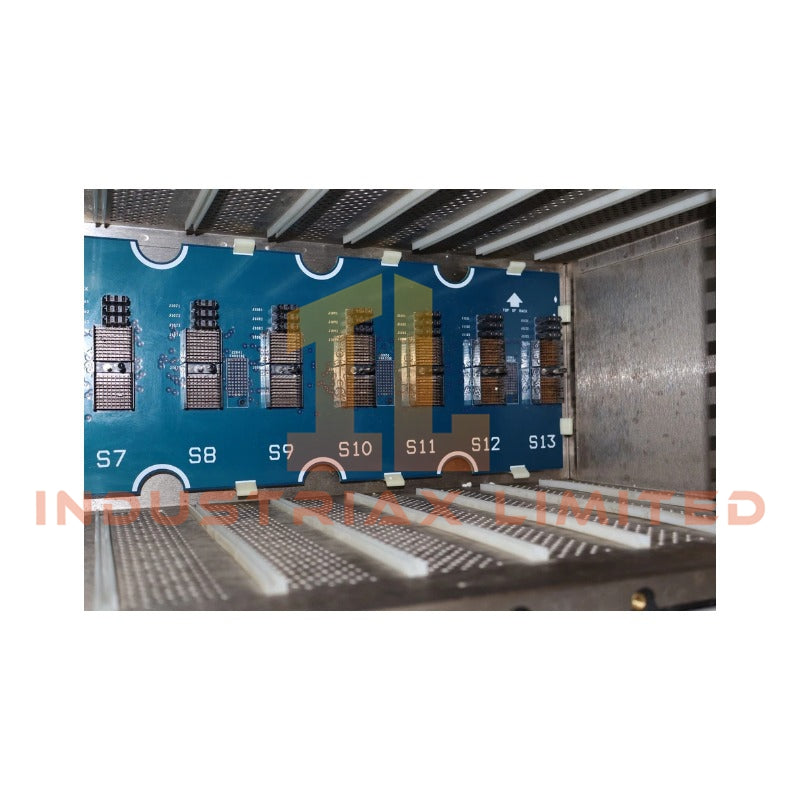

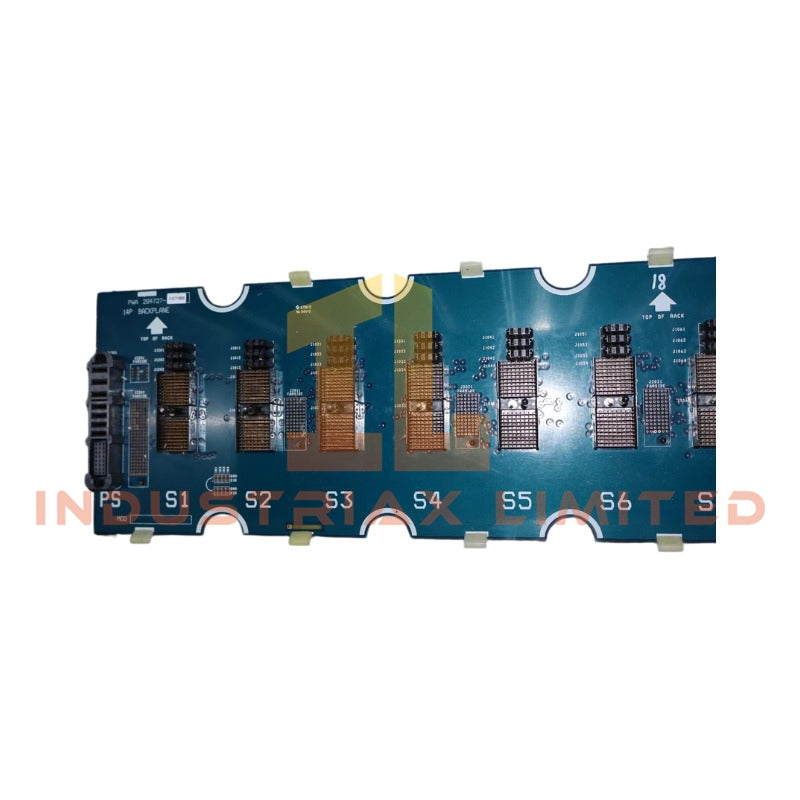

Integrated printed circuit backplane |
| Slot Capacity |
4 to 14 monitor positions depending on rack variant |
| Power Distribution |
Backplane distributed supply from rack power module |
| Signal Routing |
Rear signal input and relay interface per channel |
Cross-Talk Suppression and Backplane Signal Integrity Management
The 3300/05 rack backplane architecture implements physical separation of monitor channels through defined slot-to-slot routing paths and shielded internal bus structures. Signal integrity is maintained by minimizing inter-channel coupling between vibration monitoring modules, tachometer inputs, and position measurement cards. Rear termination modules provide isolated field wiring interfaces to reduce induced noise propagation across adjacent measurement channels. The design supports stable operation of proximity probe systems under high channel density configurations where mechanical vibration signatures may overlap in frequency domain.
Frequently Asked Questions
Q: Can monitoring modules be hot-swapped while the rack is energized?
A: Hot-swap capability depends on system configuration and installed module type. Mechanical insertion is supported only under controlled maintenance procedures with power isolation recommended for most monitoring cards.
Q: How does the backplane distribute power across multiple modules?
A: Power is routed through an integrated PCB backplane that distributes supply rails from the rack power module to each installed monitoring position with shared bus structure.
Q: Are rear signal modules electrically isolated from front monitoring cards?
A: Rear signal termination modules interface through dedicated backplane connectors, providing channel-defined routing but not full galvanic isolation unless specified by module design.
Field Installation Guidelines
Ensure the rack is mounted on a grounded metallic enclosure or approved panel structure with continuous protective earth bonding. Maintain minimum clearance for airflow across power supply and monitor card sections. All field wiring to rear signal modules shall use shielded twisted pair conductors with single-point shield termination at the designated grounding terminal. Avoid routing high-voltage cables parallel to proximity probe input wiring to prevent electromagnetic coupling. Slot assignments should follow system configuration mapping to ensure correct backplane addressing and alarm bus alignment.
