Description

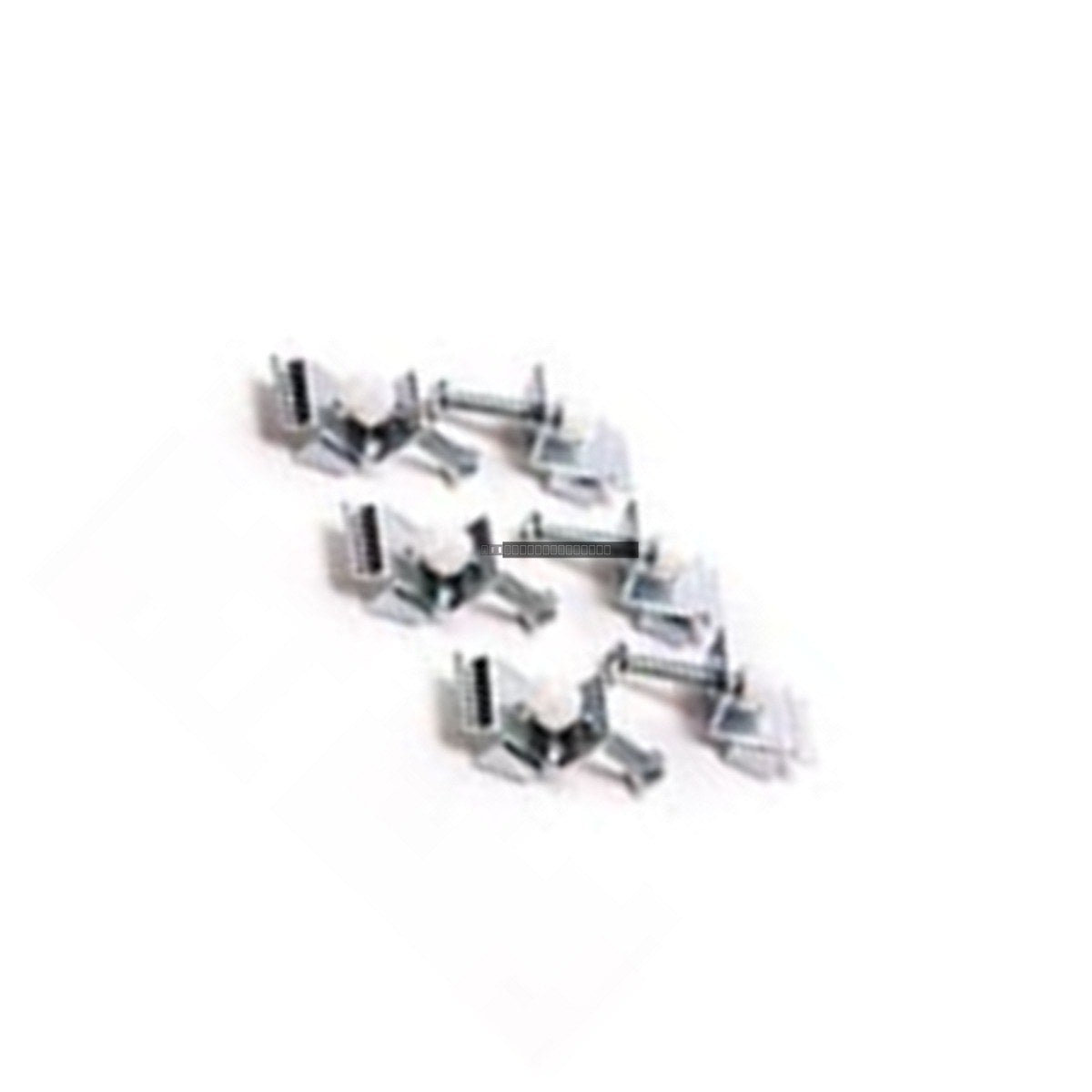

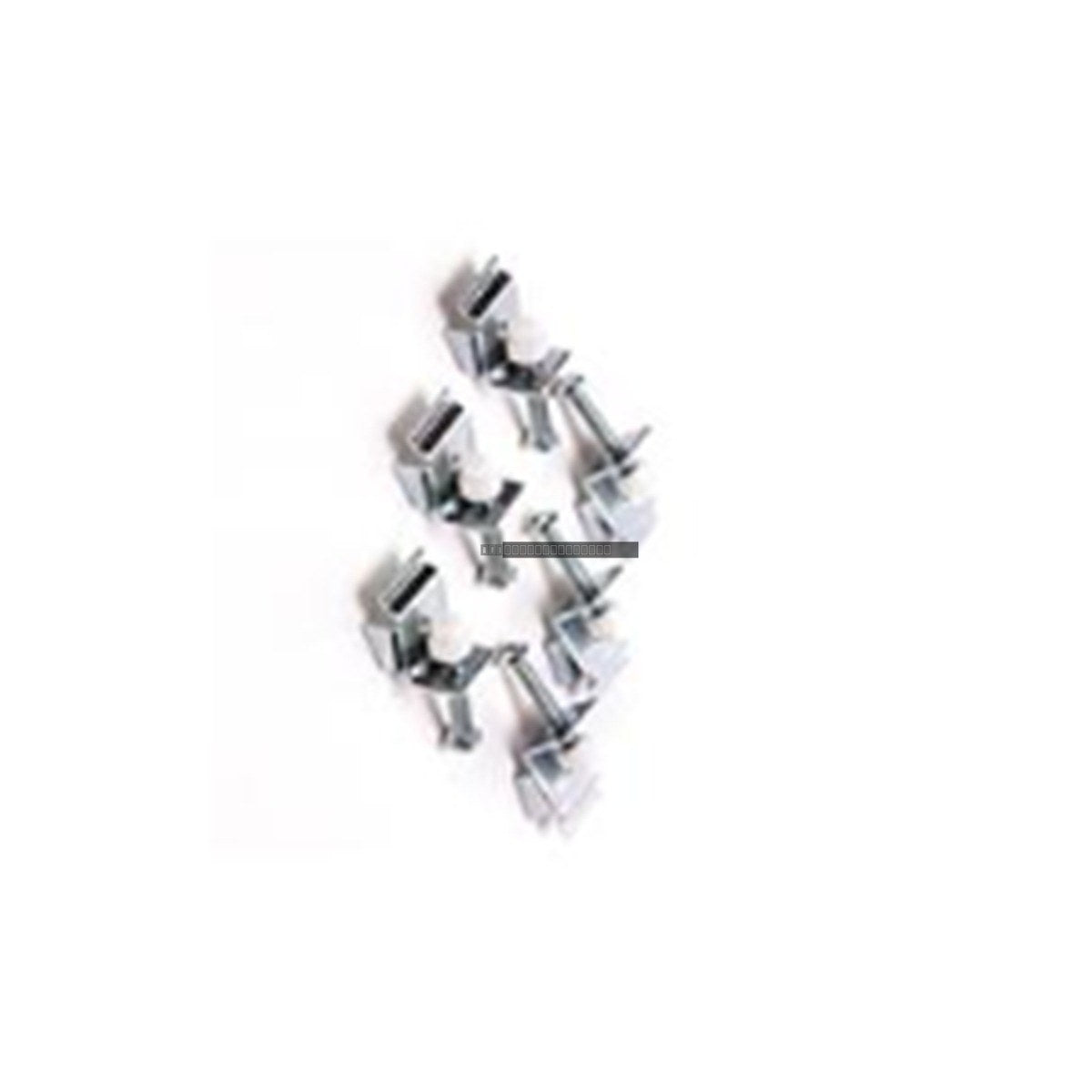

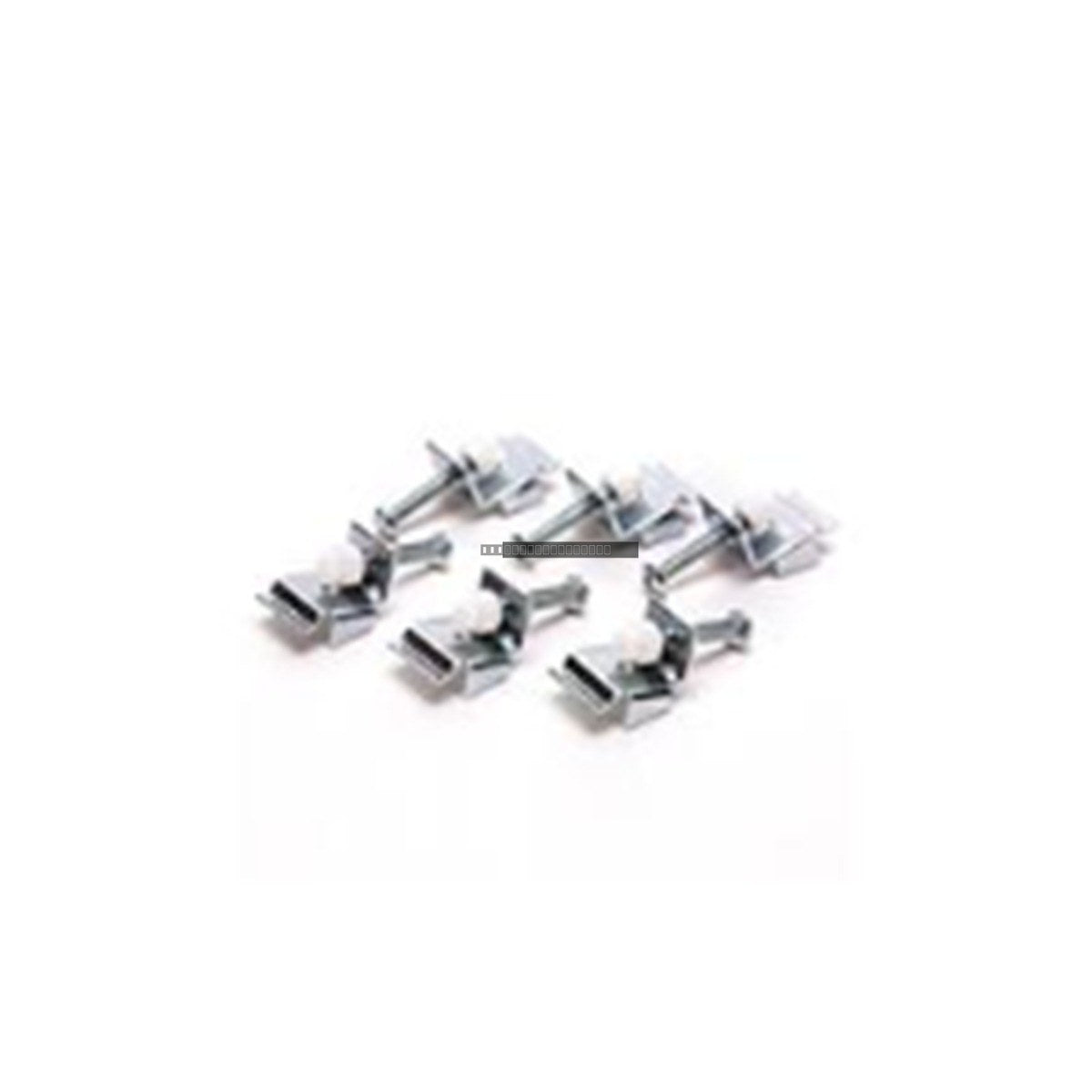

The 2711-NP2 is a set of mounting clips manufactured by Allen-Bradley, specifically engineered to facilitate the secure installation of touchscreen and keypad operator interfaces. Supplied in a pack of six, these metal clips are designed to provide rigid mechanical mounting for industrial automation hardware, ensuring that devices remain firmly attached to panels even in environments subject to continuous industrial vibration.
Features
- Designed for secure attachment of Bulletin 2711 operator interfaces.
- Constructed from durable metal for long-term structural integrity.
- Ensures even distribution of clamping force across the terminal bezel.
- Resistant to mechanical stress during panel cutout tightening.
- Pack quantity: 6 clips per set.
Applications
These mounting clips are used extensively in manufacturing and processing facilities to secure HMI, MMI, and OIT hardware. They are essential for maintaining system integrity in control panels and operator consoles where terminal stability is critical.
Technical Specifications
| Model |
2711-NP2 |
| Brand |
Allen-Bradley |
| Product Line |
Bulletin 2711 |
| Material |
Metal |
| Pack Quantity |
6 clips |
| Operating Temperature |
0 to 60 degC |
| Operating Humidity |
Up to 80 percent non-condensing |
| Max Installation Altitude |
1000 meters |
Installation Guidelines
- Ensure the panel cutout is prepared to the manufacturer's specified dimensions before inserting the terminal.
- Insert the mounting clips into the designated slots on the terminal housing.
- Tighten the screws on the clips evenly to ensure a uniform seal and prevent bezel deformation.
- Do not overtighten, as this may damage the clip threads or the terminal enclosure.
- Verify that the terminal is seated flush against the panel surface to maintain environmental ratings.
FAQ
What is the primary purpose of the 2711-NP2?
The 2711-NP2 is a mounting hardware kit used to secure Allen-Bradley Bulletin 2711 operator terminals into panel cutouts, preventing movement and ensuring a stable interface for operators.
Are these clips compatible with all Allen-Bradley terminals?
The 2711-NP2 is designed for the Bulletin 2711 series. Please verify your specific terminal model's documentation to confirm compatibility with this mounting hardware.
