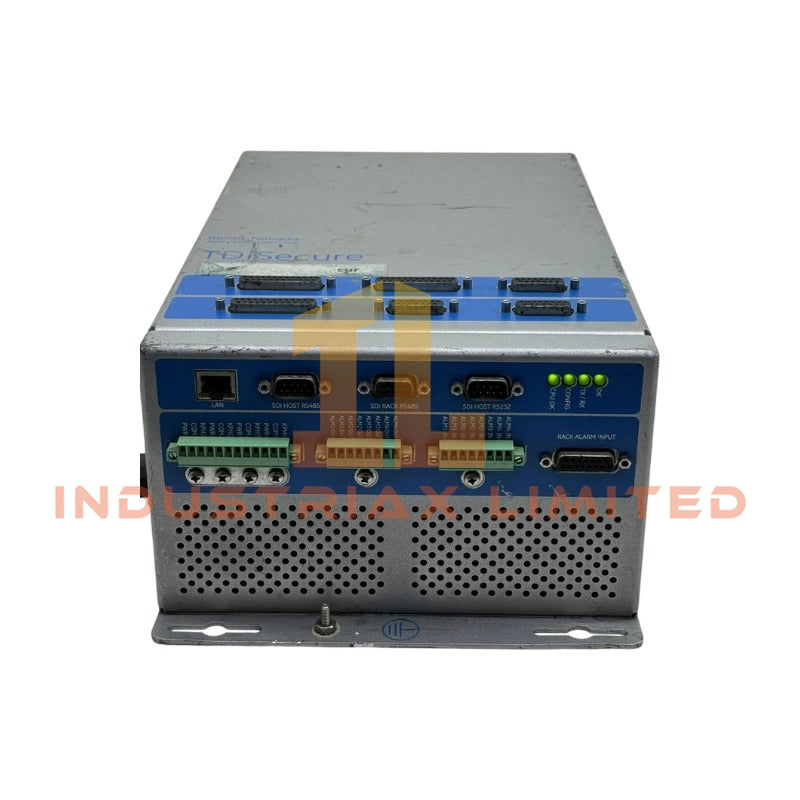

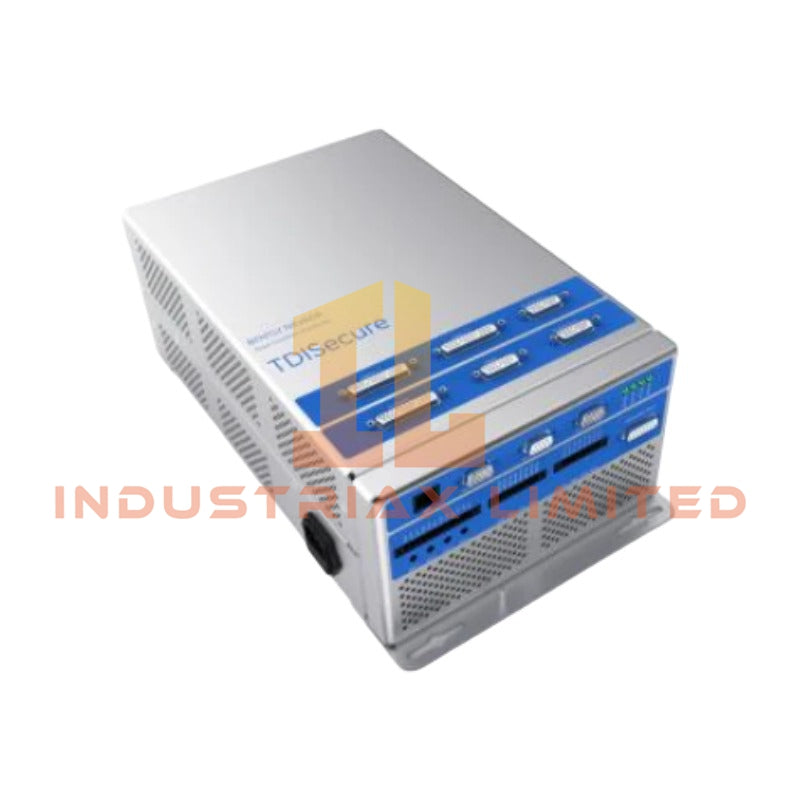

Bently Nevada 2155/40-02 TDISecure Communication Processor

The Bently Nevada 2155/40-02, also cataloged as the 2155/40 TDISecure Communication Processor, operates as a dedicated hardware component for parallel machinery data acquisition and communication within the Bently Nevada System 1 monitoring network.

Hardware Specifications

Parameter	Specification
Model	Bently Nevada 2155/40-02
Brand	Bently Nevada
Origin	USA
Product Type	TDISecure Communication Processor
Weight	Approx. 3.9 kg
Dimensions	384 mm x 216 mm x 136 mm
Operating Temp	-30 deg C to +65 deg C
Power Consumption	35 W maximum
Power Input	20 to 36 VDC
Dynamic Analog Inputs	24 differential channels
Dynamic Input Frequency Range	DC to 30 kHz
Dynamic Input Signal Range	-25 V to +25 V, 25 V peak-to-peak maximum
Dynamic Input Impedance	143 kOhm
Dynamic Input Accuracy	+/- 1% Full Scale
Process Inputs	24 channels, divided into 2 groups of 12
Process Signal Types	4-20 mA, 0-5 V, 1-5 V, 0-10 V, 2-10 V
Process Input Impedance	250 Ohm current mode / 400 kOhm voltage mode
Process Input Scan Rate	400 ms for all 24 channels
Process Input Accuracy	+/- 0.32% FS at 25 deg C for 10 V FS; +/- 0.64% FS at 25 deg C for 4-20 mA
Discrete Inputs	24 channels, Positive or Negative logic configurable
Keyphasor Inputs	4 channels, up to 20 kHz speed input
Communication Interfaces	Dual Ethernet RJ45 ports, Modbus serial communication
Software Integration	System 1 Asset Management Software, Data Manager 2000
Storage Temperature	-40 deg C to +85 deg C
Relative Humidity	Maximum 95%, non-condensing
Operating Altitude	Up to 2,000 m
Installation Category	Category II
Pollution Degree	2
Mounting Method	Rack or panel installation

Eddy-Current Signal Processing and Rotor Dynamics Monitoring

The Bently Nevada 2155/40-02 processes machinery condition signals from vibration, position, and speed measurement channels through parallel sampling architecture. Therefore, the module captures transient machine behavior during startup, shutdown, and changing load conditions.

The processor supports Bently Nevada machinery monitoring functions, including eddy-current probe scaling, gap voltage validation, and rotor dynamics analysis. It manages proximity probe signal conversion by maintaining accurate probe voltage relationships and supports typical Bently Nevada gap measurement practices with -10 VDC target gap voltage validation.

Furthermore, the module applies signal processing methods to reduce measurement interference. The hardware architecture supports cross-talk suppression between dynamic input channels, allowing multiple machinery signals to be collected within the same monitoring system.

Frequently Asked Questions

Q: Does the Bently Nevada 2155/40-02 support direct connection to proximity probe signals?
A: Yes. The module provides 24 differential dynamic analog inputs that accept machinery monitoring signals within the specified DC to 30 kHz frequency range.

Q: What communication interfaces are available on the 2155/40-02?
A: The processor provides dual Ethernet RJ45 ports and Modbus serial communication for integration with System 1 Asset Management Software and related monitoring networks.

Q: Can the 2155/40-02 replace older TDXnet processors?
A: The module provides legacy-compatible functionality for TDXnet processor replacement applications when system configuration requirements match the installed monitoring architecture.

Field Installation Guidelines

Install the Bently Nevada 2155/40-02 in a rack or panel enclosure that maintains the specified operating environment. Verify that the 20 to 36 VDC power source meets the module input requirements before energizing the unit.

Use shielded instrumentation cables for dynamic signal wiring. Connect cable shields according to the plant grounding practice to minimize electromagnetic interference. Separate low-level vibration signal cables from high-current power conductors and switching circuits.

For Keyphasor and proximity probe connections, verify cable polarity, signal routing, and termination requirements before commissioning. Confirm eddy-current probe calibration, gap voltage range, and channel configuration through the monitoring software before placing machinery into service.

Maintain proper Ethernet cable routing and avoid parallel installation with high-voltage conductors. Verify communication addressing and Modbus configuration before integrating the processor into the System 1 monitoring network.
