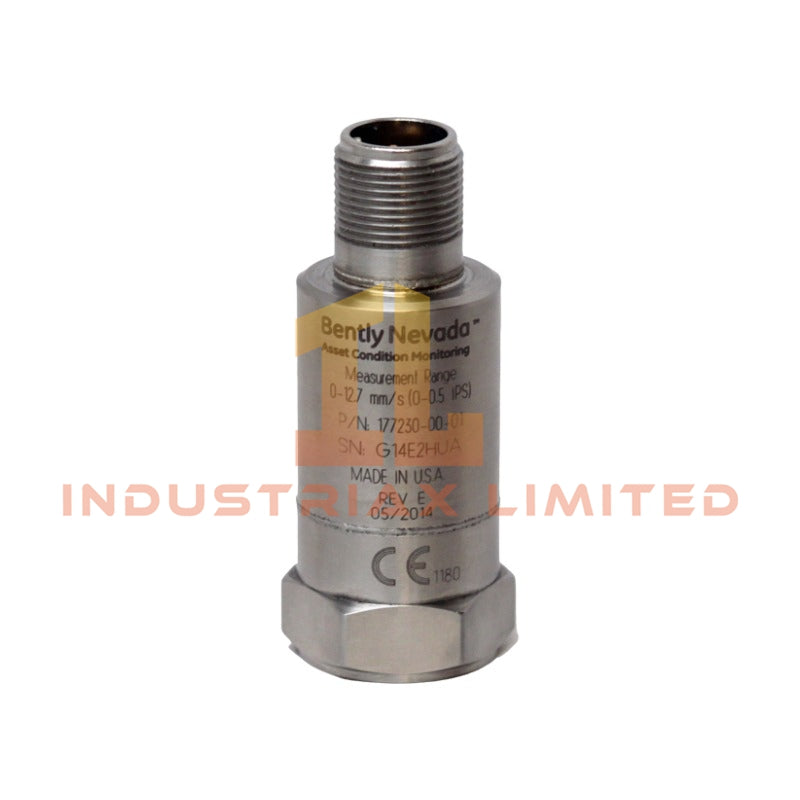

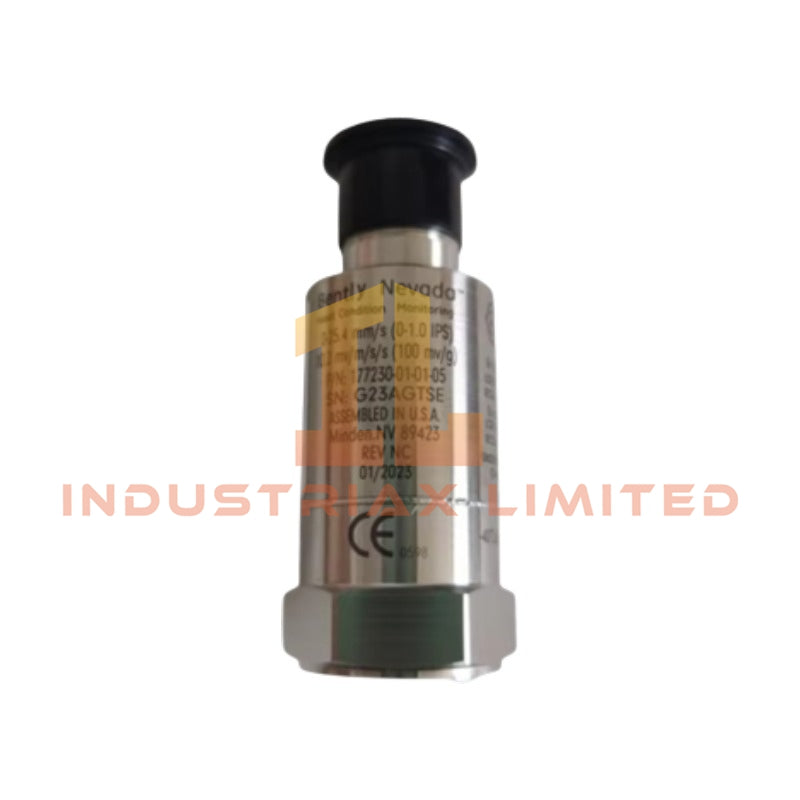

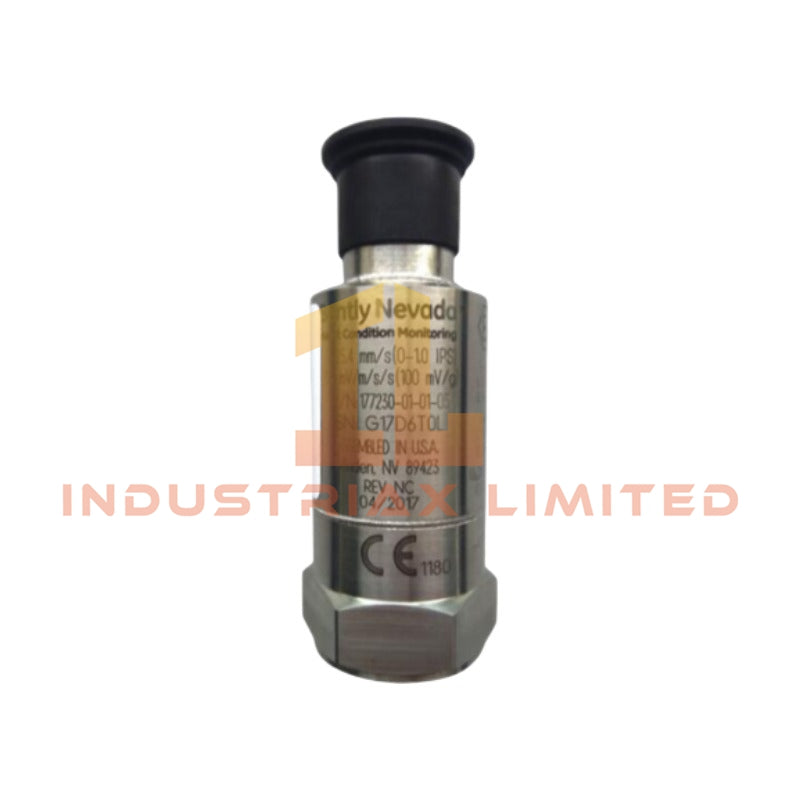

Bently Nevada 177230-00-01-05 Seismic Transmitter

The Bently Nevada 177230-00-01-05 serves as the primary 177230 Seismic Transmitter utilized to execute absolute casing vibration velocity measurements across machinery protection and monitoring platforms.

Hardware Specifications

Parameter	Specification
Model	177230-00-01-05
Brand	Bently Nevada
Origin	USA
Weight	0.1 kg
Dimensions	7.4 x 3 x 2.5 cm
Operating Temperature	-40 degC to +85 degC
Power Consumption	Loop-powered (4-20 mA)
Measurement Range	0 - 12.7 mm/s (0 - 0.5 in/s)
Frequency Response	10 Hz to 1 kHz (600 to 60 kcps)
Sensitivity	10.2 mV/m/s2 (100 mV/g) +- 20%
Full Scale Range	147 m/s2 (15 g) peak
Tariff Code	8537101190
Approvals	Multiple Approvals

Machinery Monitoring and TSI Characteristics

The 177230 series integrates an internal piezoelectric accelerometer and electronic signal processing circuits to output a 4-20 mA current loop signal proportional to velocity. To prevent signal distortion during multi-sensor installations on a single machine train, the internal processing engine leverages advanced cross-talk suppression. This mitigates electromagnetic interference and localized structural cross-talk from adjacent rotating elements, preserving exact frequency data required for structural resonance and rotor dynamics evaluation.

Frequently Asked Questions

Q: Does this device support hot-swapping under live loop power?

A: Yes, the hardware can be disconnected and reconnected under loop power without causing damage to the internal electronics, provided the external instrumentation system is current-limited.

Q: How is the 4-20 mA loop verified during field commissioning?

A: Loop integrity and baseline operational status are validated by monitoring the quiescent current loop output, which balances at 4 mA under zero-vibration conditions. Deviations below 3.6 mA indicate loop degradation or hardware failure.

Field Installation Guidelines

• Mounting Torque and Surface: The mounting surface must be machined flat and perpendicular to the axis of measurement. Torque the sensor to standard specification to prevent high-frequency signal attenuation across the mechanical interface.
• Shielding and Grounding: Connect the cable shield exclusively to the instrumentation system common ground at the receiver side. Keep the shield isolated and floating at the transmitter housing to prevent ground loop currents.
• Cable Routing: Maintain physical separation between the transmitter signal cabling and high-voltage AC distribution lines or variable frequency drive output cables to minimize electromagnetic coupling.
