Description

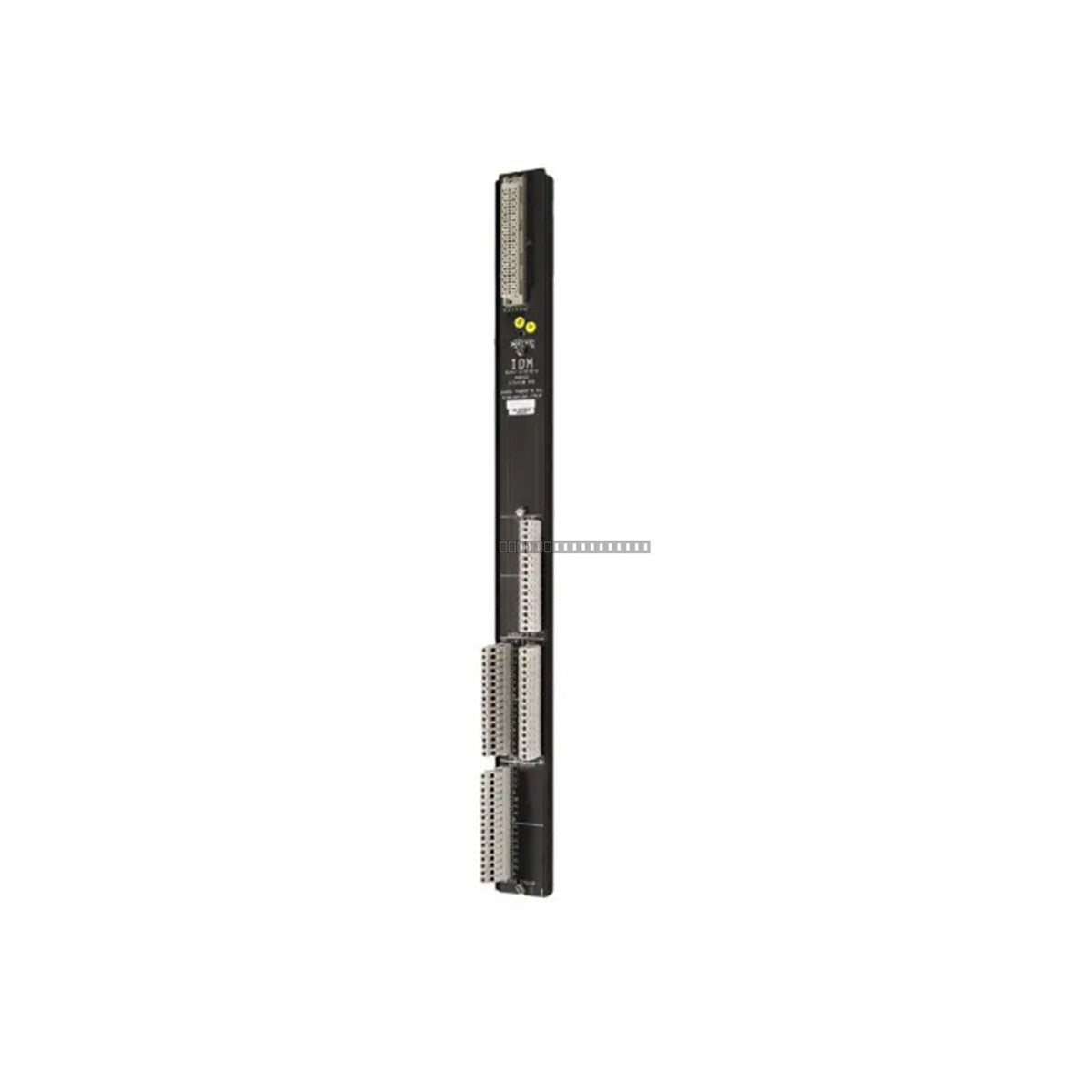

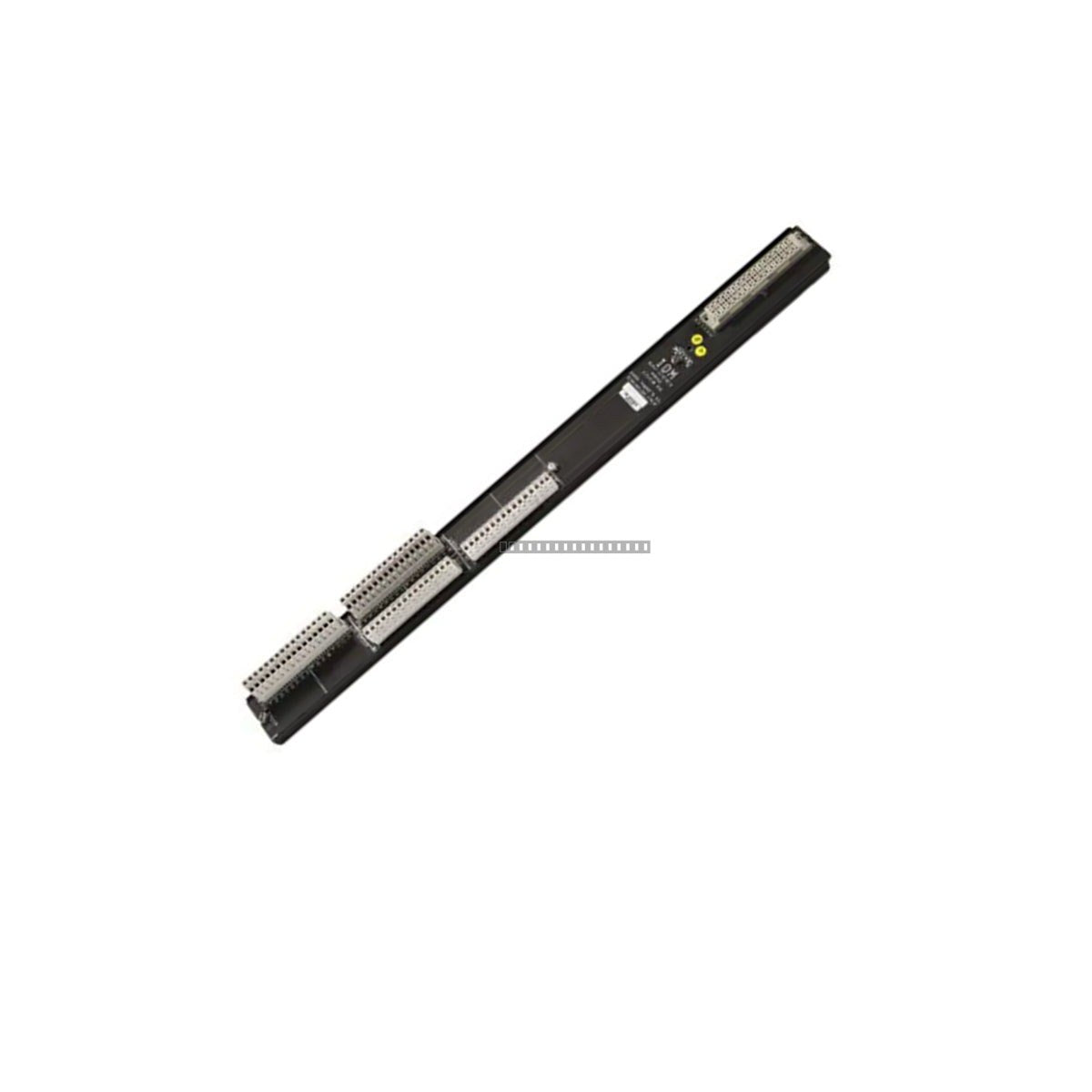

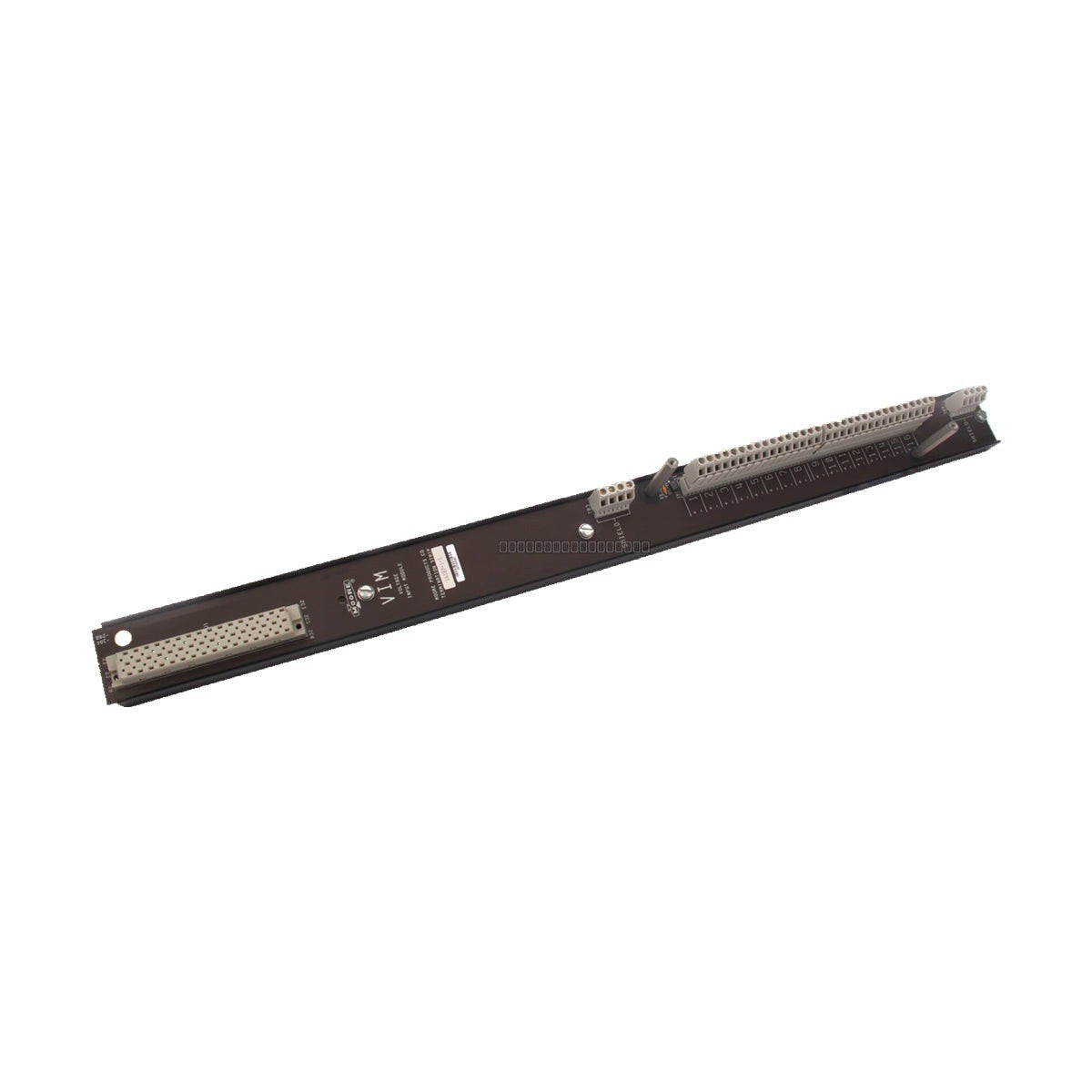

The Siemens 16187-1-1 is a specialized Voltage Input Termination (VIM) strip designed for the Siemens APACS+ Distributed Control System (DCS). This module acts as the physical and electrical interface between field-level voltage instrumentation and the system's processing controllers. It is widely utilized in high-reliability industrial environments, including hydrocarbon processing, chemical manufacturing, and utility power plants, to ensure signal integrity for critical process variables. By providing a ruggedized termination point, the 16187-1-1 facilitates efficient diagnostic testing and simplifies routine maintenance.
Features
- Designed specifically for the Siemens Moore APACS+ DCS architecture.
- Provides high-density wiring termination for voltage input signals.
- Passive interface design to minimize signal attenuation and contact resistance.
- Rugged construction to withstand thermal and vibrational stresses in industrial control cabinets.
- Facilitates rapid connection and disconnection of field wiring without disrupting the primary DCS backplane.
Applications
This module is intended for use in APACS+ control cabinets where precise voltage signal management is required. It is suitable for process control applications involving analog voltage inputs, signal isolation, and high-density I/O management in industrial automation systems.
Technical Specifications
| Model |
16187-1-1 |
| Brand |
Siemens |
| Product Series |
APACS+ DCS |
| Module Type |
Voltage Input Termination (VIM) |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Relative Humidity |
5% to 95% non-condensing |
| Input Type |
Voltage Signal Termination |
Installation Guidelines
- Ensure the system power is disconnected before installing or removing the VIM strip to prevent electrical shorts or damage to the I/O bus.
- Mount the module securely on the designated industrial rail within the APACS+ cabinet.
- Use proper ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
- Ensure all field wiring is properly labeled and securely seated in the terminal blocks to maintain consistent contact resistance.
- Route signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to prevent signal degradation.
- Verify that the ambient temperature and humidity levels within the cabinet remain within the specified operating ranges.
FAQ
What is the primary function of the 16187-1-1?
The 16187-1-1 serves as a Voltage Input Termination (VIM) strip for the Siemens APACS+ system, providing a secure and organized interface for field voltage signals to connect to the DCS I/O bus.
Is this module compatible with other Siemens systems?
This module is specifically engineered for the Siemens Moore APACS+ DCS series. Please verify your system hardware compatibility before installation.
