Description

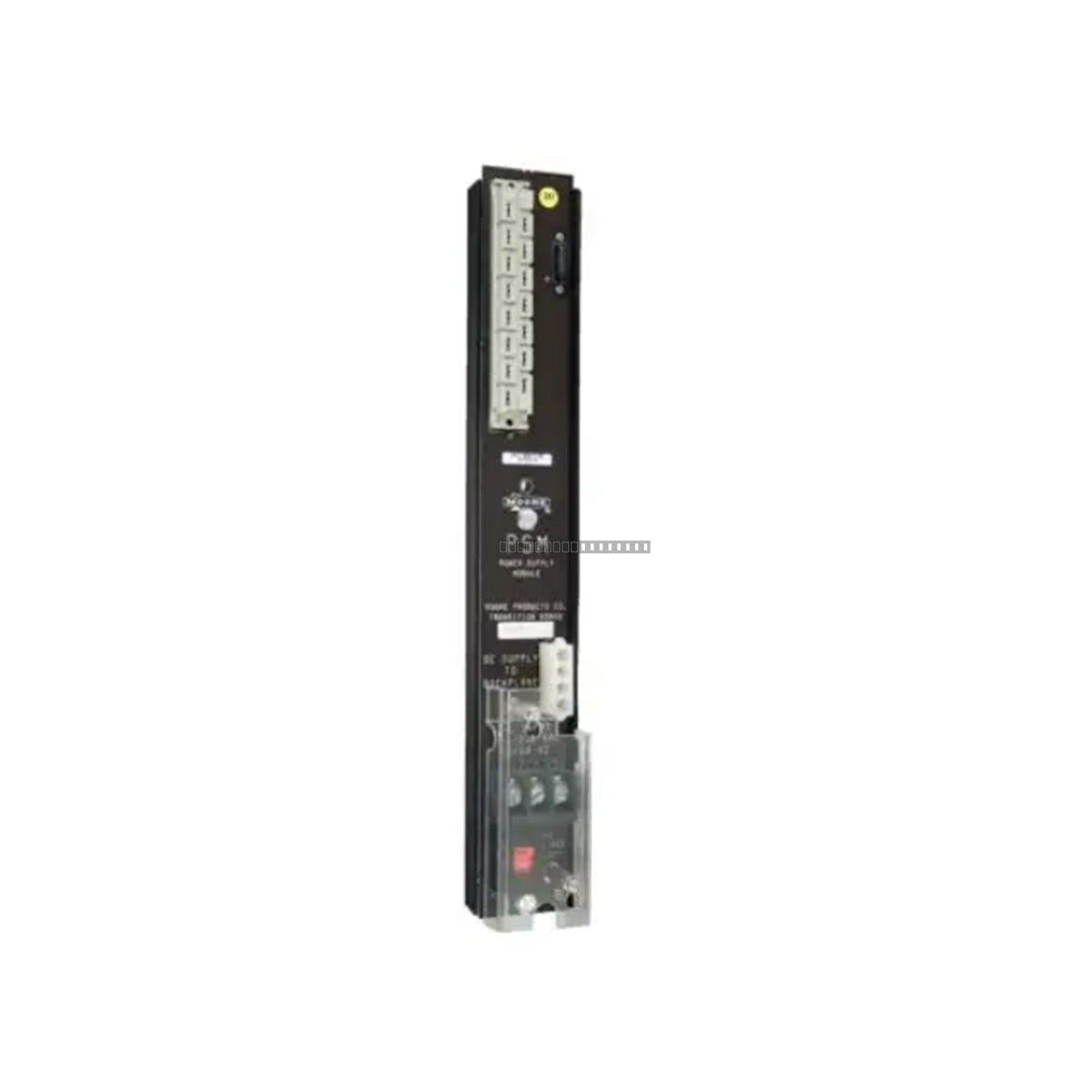

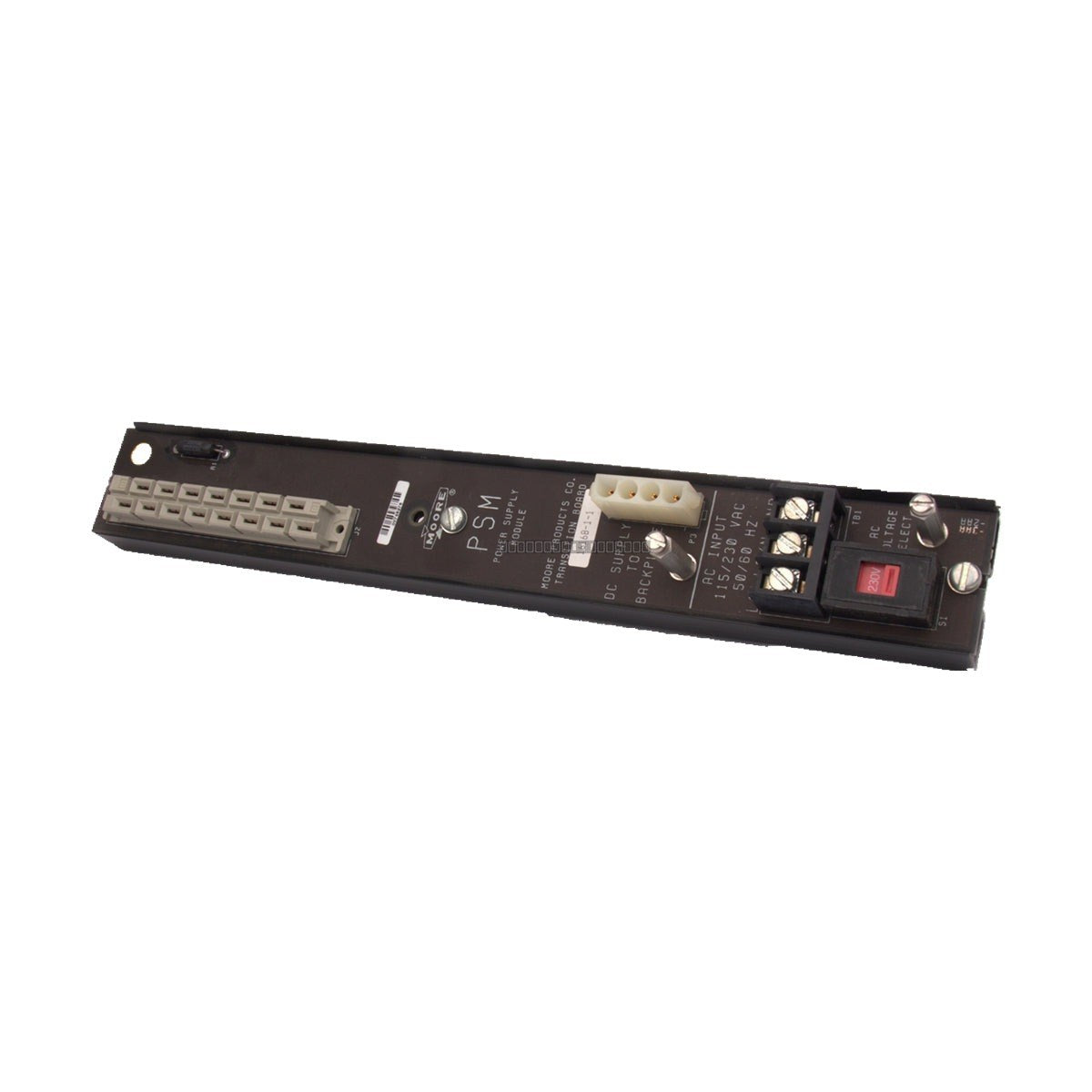

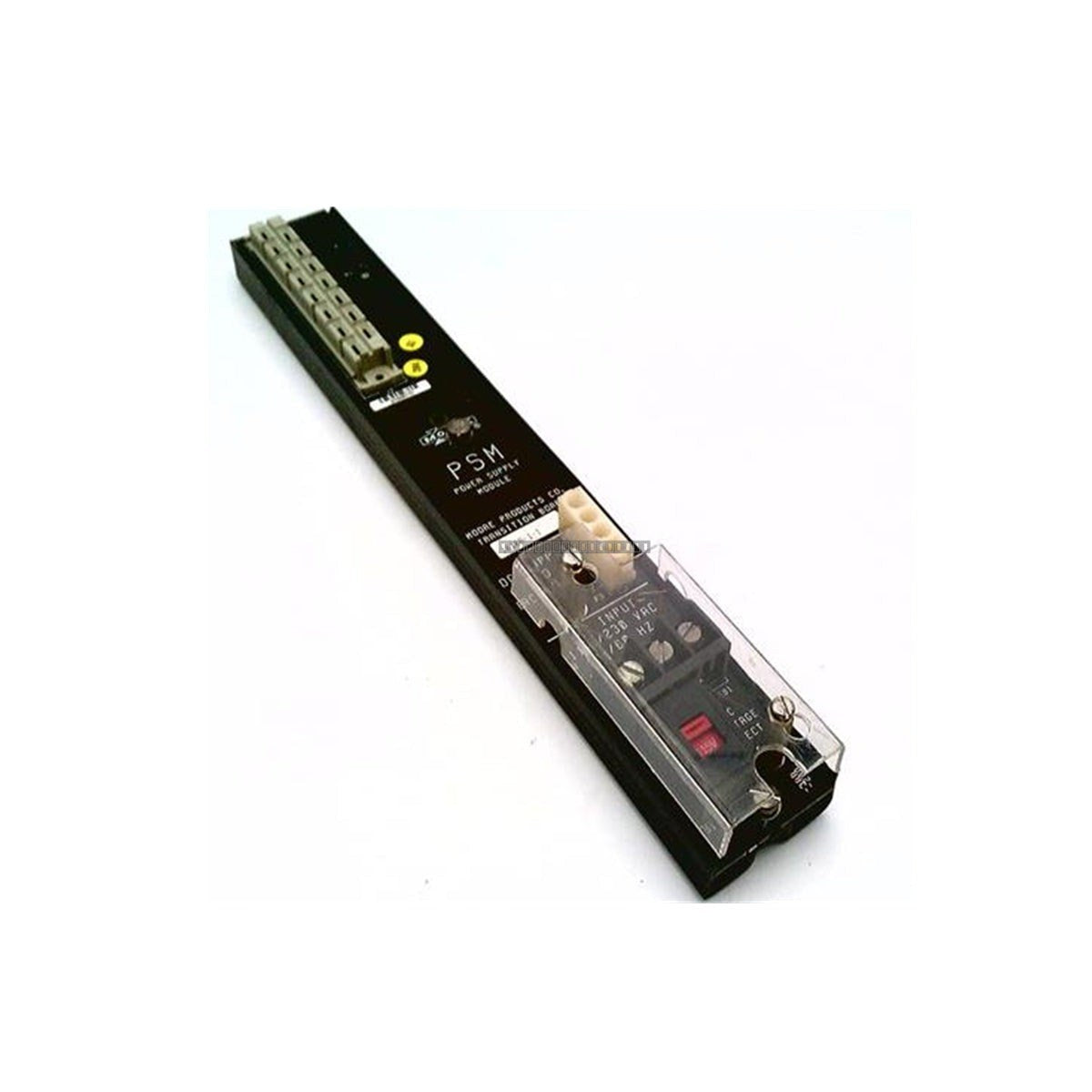

The 16168-1-1 (1616811) is a specialized Power Supply Module (PSM) Transmission Board designed for the Moore APACS (Advanced Process Automation Control System) ecosystem, currently supported by Siemens. This board acts as a critical interface for power signal distribution between the PSM and the backplane of the DCS rack. It ensures reliable voltage delivery to controller modules and supports the redundant power configurations essential for high-availability industrial processes, including oil refineries, power generation, and chemical processing.
Features
- Facilitates stable power distribution and signal transmission within APACS+ control racks.
- Supports redundant power supply configurations for seamless failover.
- High-density PCB layout designed for industrial current load requirements.
- Industrial-grade connectors minimize contact resistance and thermal buildup.
- Enables real-time monitoring of power supply module health via diagnostic signal pathways.
Applications
This transmission board is primarily used in legacy DCS maintenance and system migration projects. It is essential for maintaining the integrity of power distribution in APACS and APACS+ control racks, preventing logic failures and system crashes caused by voltage instability in critical control environments.
Technical Specifications
| Model |
16168-1-1 |
| Brand |
Siemens / Moore APACS |
| Module Type |
PSM Transmission Board |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Relative Humidity |
5 percent to 95 percent non-condensing |
| System Compatibility |
APACS / APACS+ DCS Racks |
Installation Guidelines
- Ensure the system power is completely disconnected before attempting to install or remove the transmission board.
- Handle the module using ESD-safe practices to prevent damage to sensitive electronic components.
- Inspect connectors for debris or oxidation before seating the board to ensure low-resistance contact.
- Verify secure mounting within the rack chassis to prevent vibration-induced signal intermittent faults.
- Ensure adequate ventilation within the cabinet to maintain operating temperatures within the specified 0 to 60 deg C range.
FAQ
What is the primary function of the 16168-1-1 board?
The 16168-1-1 acts as a transmission bridge between the Power Supply Module and the DCS rack backplane, ensuring stable power delivery and enabling diagnostic monitoring of the power supply health.
Is this board compatible with all APACS systems?
This board is designed for the Moore APACS and APACS+ DCS rack configurations. Please verify your specific rack chassis model to ensure compatibility before installation.
How should I maintain this board in an operational cabinet?
Regular maintenance should include inspecting the electrical contacts for signs of thermal stress or corrosion and ensuring that all mounting hardware is tight to maintain proper electrical grounding and signal integrity.
