Description

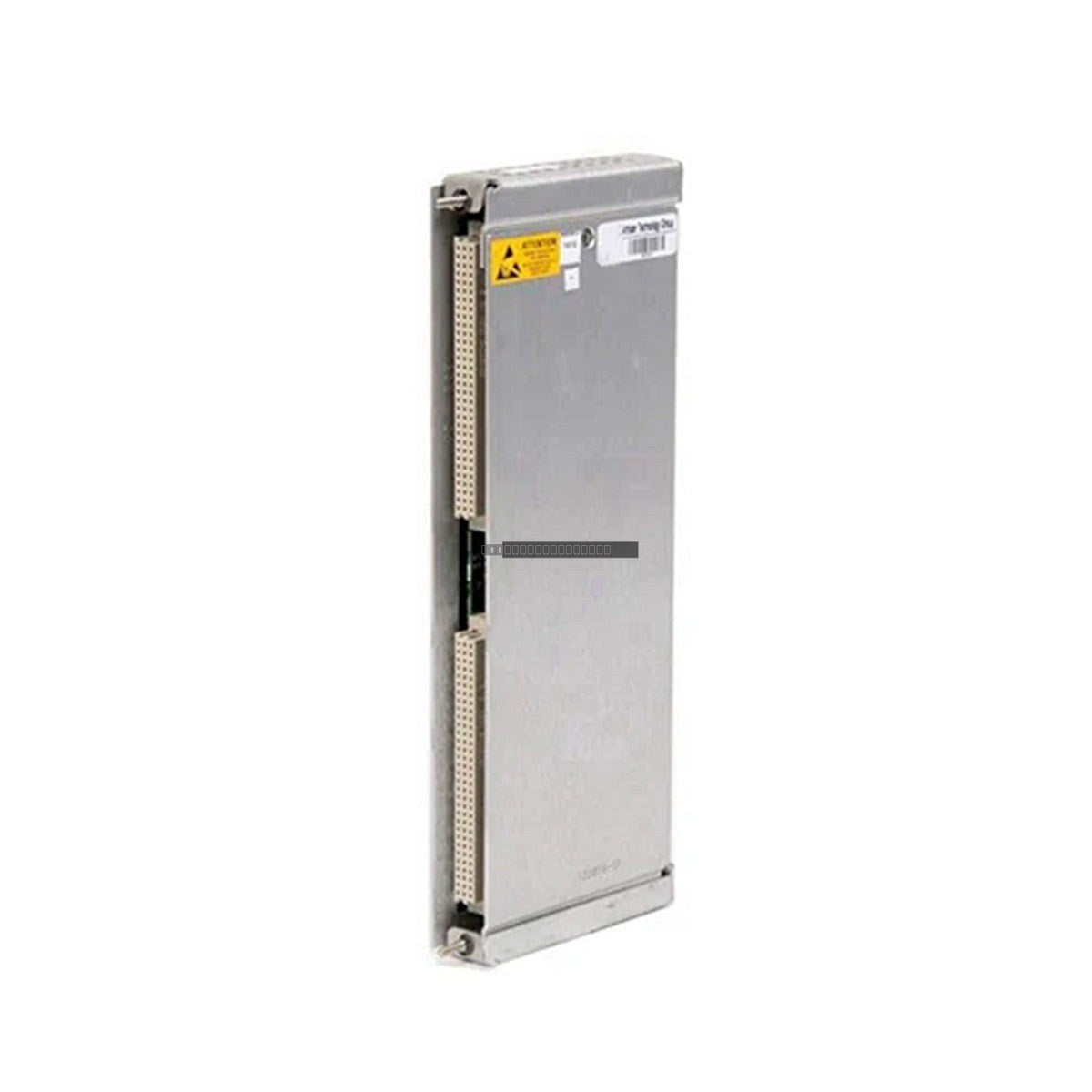

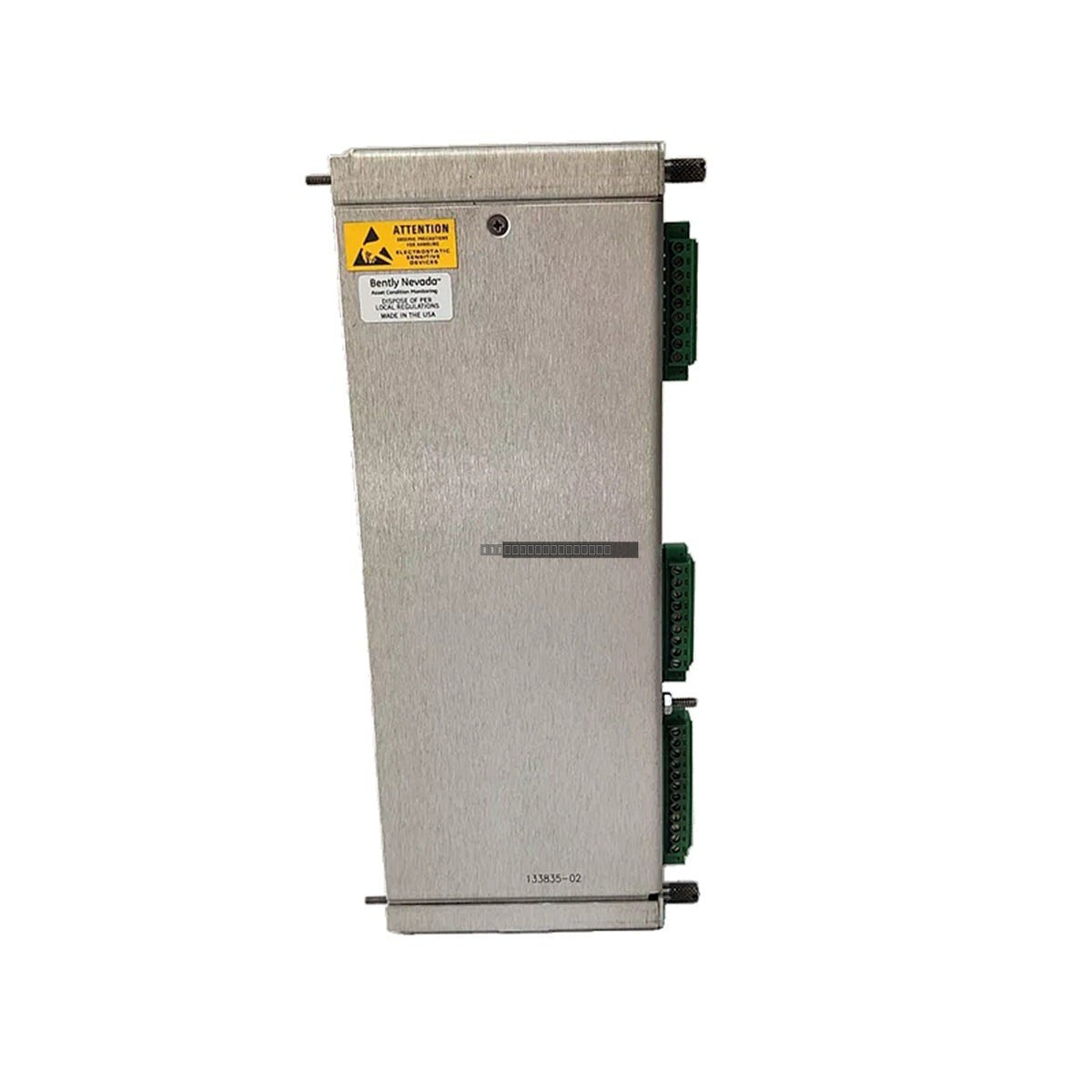

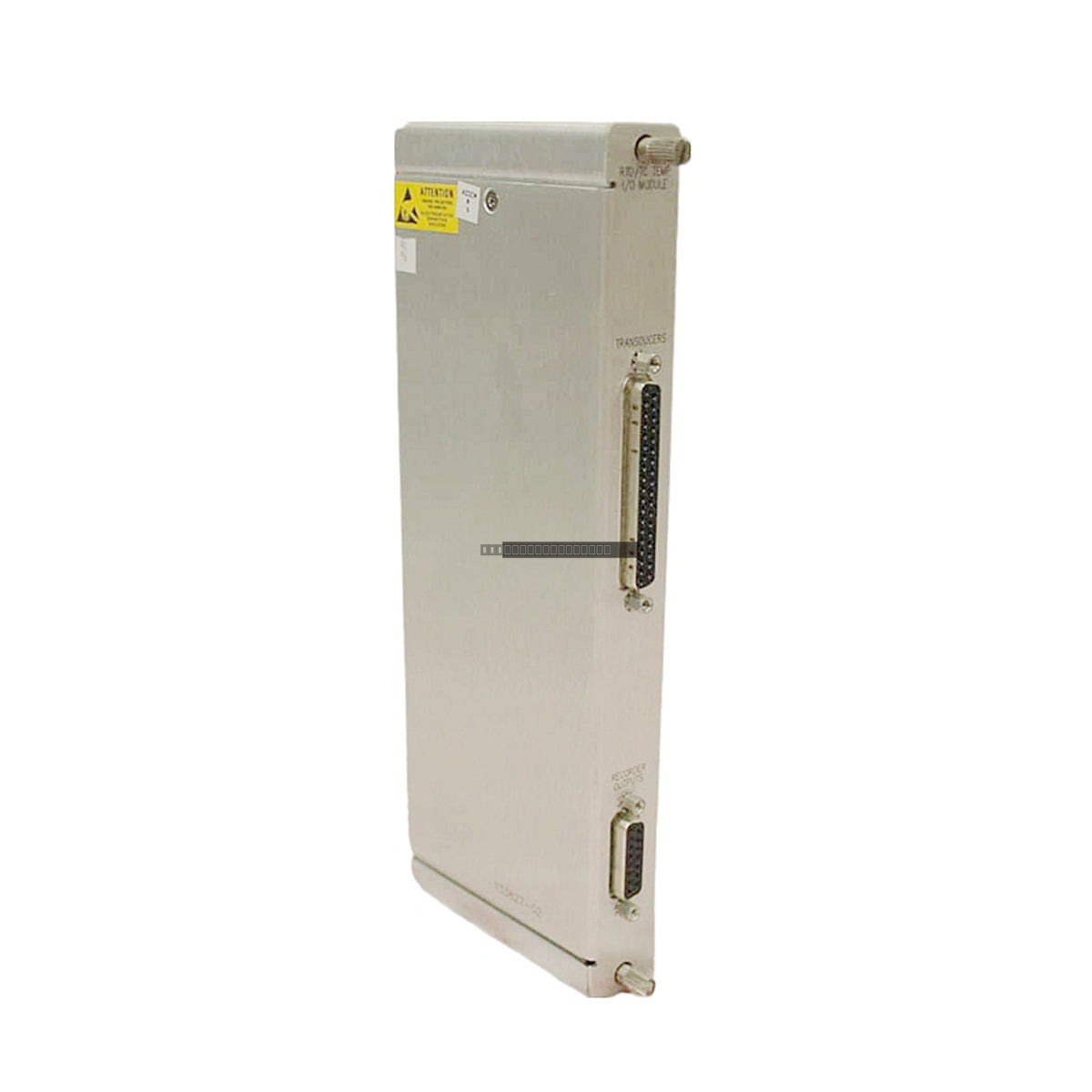

The Bently Nevada 133843-01 is a Thermocouple (TC) Isolated I/O Module designed for use with the 3500/60 Temperature Monitor system. This module provides critical temperature monitoring capabilities for rotating machinery, such as turbines and compressors, by processing thermocouple inputs from bearings, stators, and other machine components. The 133843-01 is specifically engineered for systems utilizing external termination blocks, which facilitates easier field wiring and maintenance by separating the signal termination points from the rack backplane.
Features
-
Isolated Inputs: Each thermocouple channel is electrically isolated to minimize ground loops and signal interference, ensuring high measurement integrity.
-
External Termination Design: Supports external termination blocks to streamline installation and simplify cable management within the control cabinet.
-
System Integration: Fully compatible with the Bently Nevada 3500 rack-based monitoring system, supporting standard alarm and danger setpoint configurations.
-
Reliability: Designed for continuous operation in demanding industrial environments, providing essential data for machinery protection and condition monitoring.
Applications
This module is intended for use in critical asset protection systems, including:
- Temperature monitoring of hydrodynamic bearings.
- Stator winding temperature tracking in large motors and generators.
- Process temperature monitoring for industrial compressors and turbines.
Technical Specifications
| Model |
133843-01 |
| Series |
3500/60 |
| Input Type |
Thermocouple (TC) |
| Isolation |
Isolated channels |
| Operating Temperature |
-30 to +65 degC |
| Storage Temperature |
-40 to +85 degC |
| Humidity |
95%, non-condensing |
Installation Guidelines
-
ESD Precautions: Always use a grounded wrist strap when handling the module to prevent electrostatic discharge damage to internal circuitry.
-
Rack Seating: Ensure the module is fully seated in the 3500 rack slot and that the front panel screws are tightened to maintain proper grounding and EMI shielding.
-
Wiring: Use shielded thermocouple extension wire to maintain signal integrity. Ensure external termination blocks are wired according to the specific 3500/60 system documentation.
-
Power: The 3500 system is designed for hot-swapping; however, always verify system configuration before inserting or removing modules in an active rack.
FAQ
Is this module compatible with all 3500 racks?
The 133843-01 is designed for the 3500/60 Temperature Monitor system. It must be used in conjunction with the appropriate 3500/60 monitor module and requires an external termination block for signal connection.
Does this module require external power?
No, the module receives its operating power directly from the 3500 rack backplane once installed.
