Description

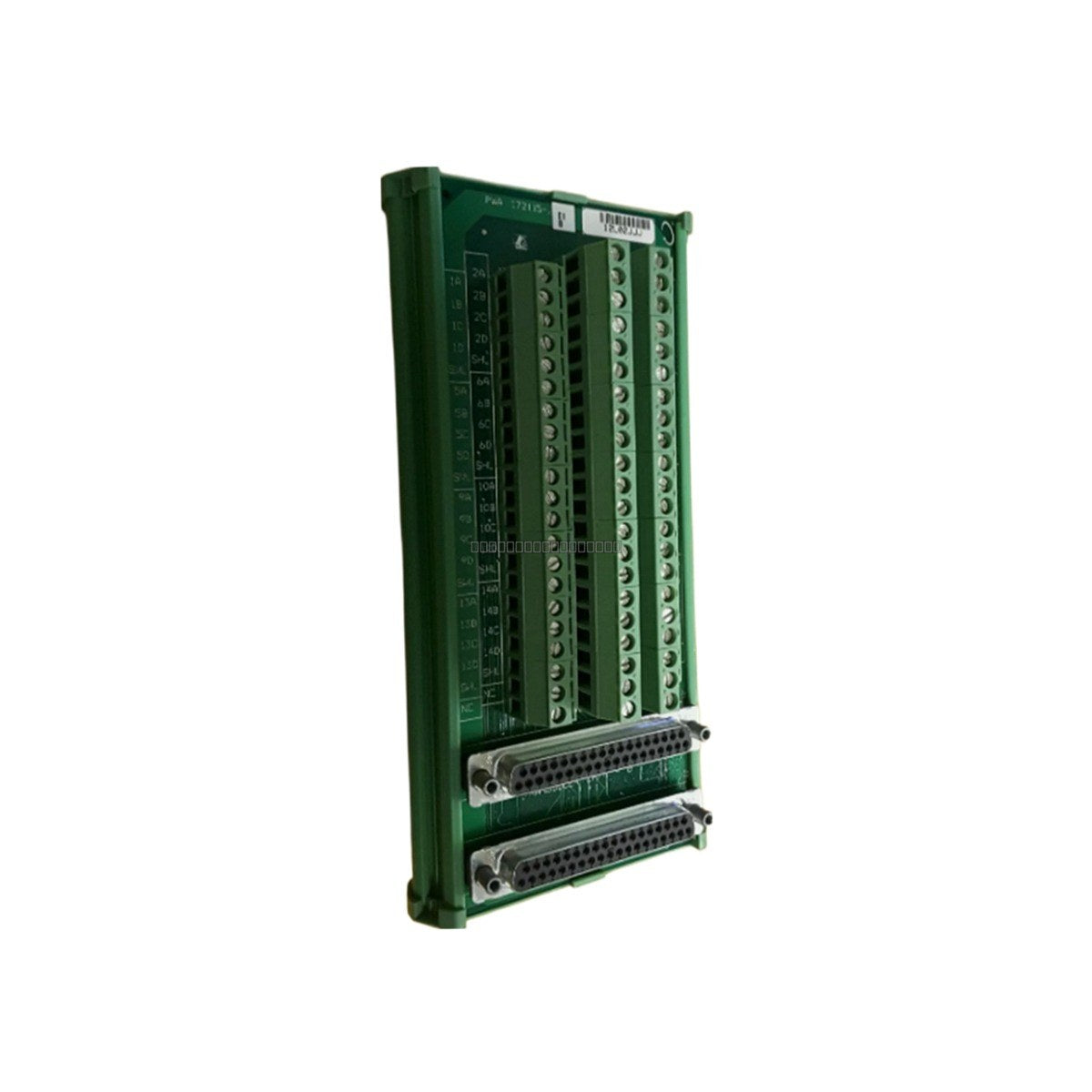

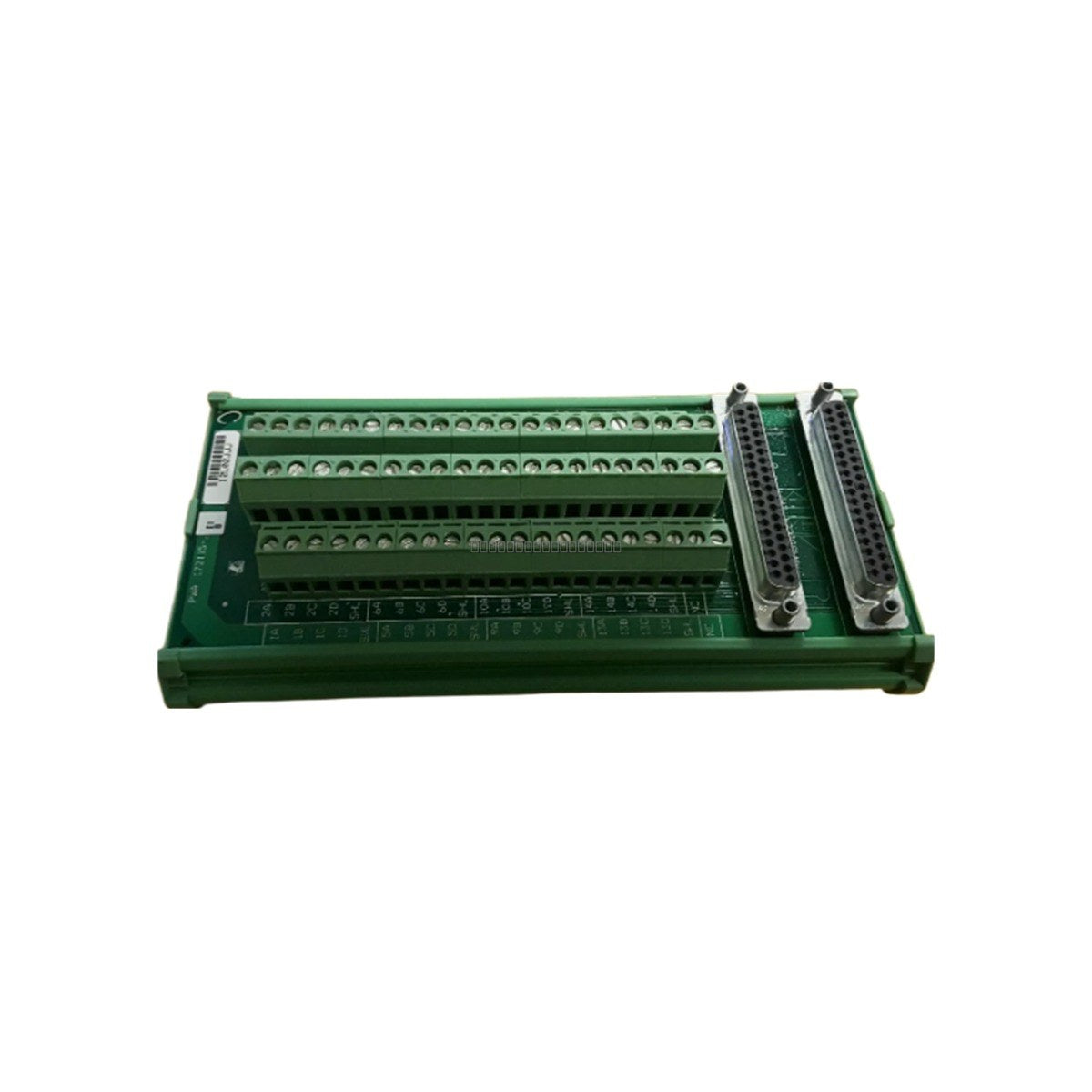

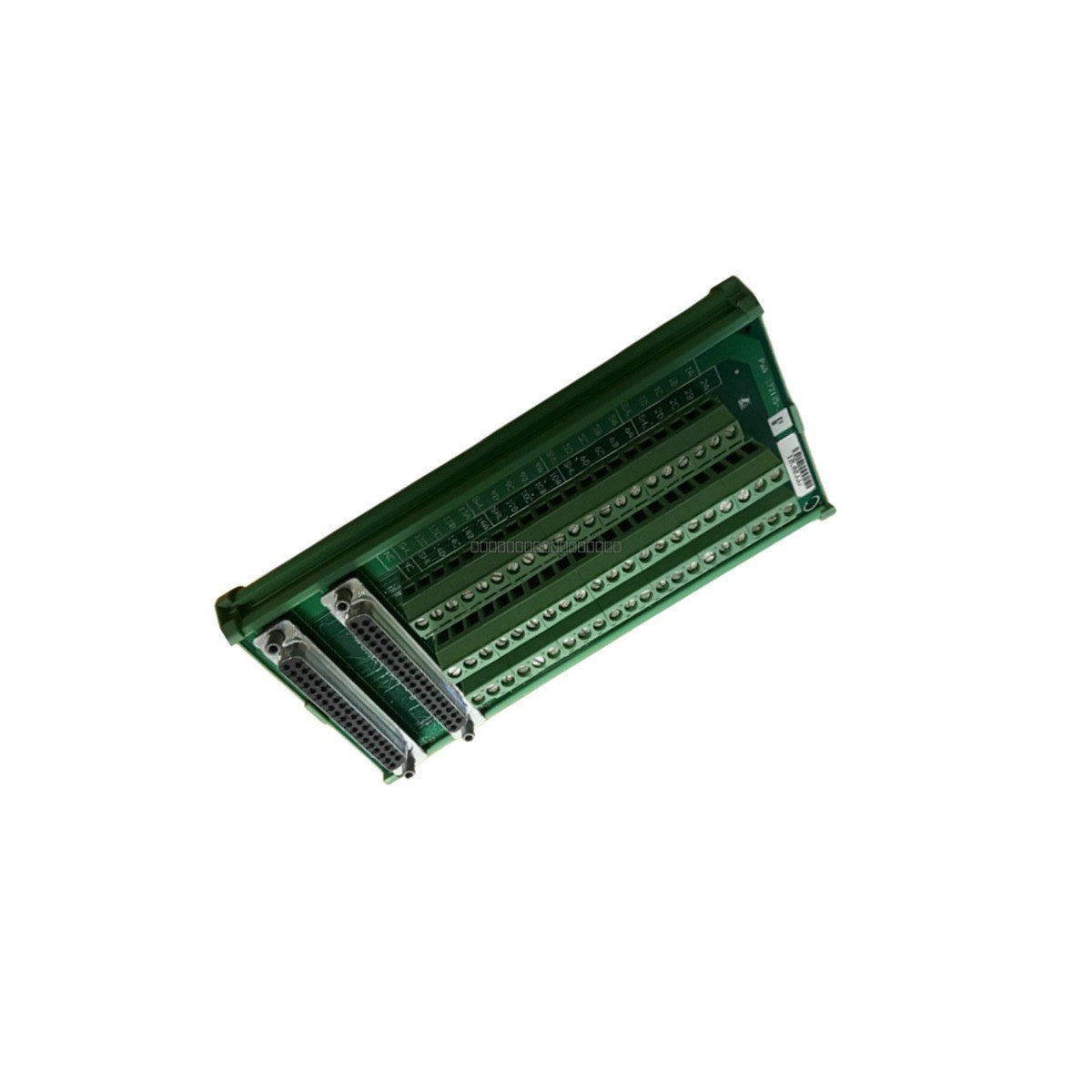

The Bently Nevada 172115-01 is an External Termination Block (ETB) specifically engineered for integration with the 3500/65 16-Channel Temperature Monitor. In critical machinery protection systems, this ETB serves as the primary physical interface between field-mounted sensors—such as RTDs and isolated tip thermocouples—and the 3500 rack backplane. By relocating the termination point outside of the rack, the 172115-01 facilitates cleaner cable management and simplifies installation in high-density monitoring applications.
Features
- 16-Channel high-density interface for temperature monitoring.
- Designed for RTD and isolated tip thermocouple input signals.
- Provides a secure, organized termination point for field wiring.
- Utilizes Euro-style terminal blocks for reliable signal connection.
- Compatible with 3500/65 Temperature Monitor I/O modules requiring external terminations.
Applications
- Oil & Gas: Centrifugal compressors, pumps, and expanders.
- Power Generation: Steam and gas turbines, generators, and transformers.
- Chemical & Manufacturing: Centrifugal separators, extruders, and heavy-duty reactor pumps.
- Industrial Processing: Monitoring of speed and torque-critical rotating equipment.
Technical Specifications
| Product Model |
172115-01 |
| Product Family |
3500 Series |
| Common Mode Voltage |
250V |
| Power Consumption |
<1W |
| Operating Temperature |
-40 degC to +85 degC (-40 degF to +185 degF) |
| Storage Temperature |
-40 degC to +85 degC (-40 degF to +185 degF) |
| Humidity |
Up to 95% non-condensing |
Installation Guidelines
- Ensure the 3500 rack is powered down before installing or removing any I/O modules or associated termination blocks.
- Land field-mounted RTD or isolated tip thermocouple wires directly into the Euro-style connectors on the 172115-01 block.
- For 3-wire RTDs, connect wires to the designated terminals (A, B, and common).
- Note that 4-wire RTD configurations may require specific I/O module modifications (refer to 179952-01 documentation).
- Maintain proper shielding practices for all field wiring to minimize EMI/RFI interference in the monitoring loop.
- Ensure the block is mounted in a location that allows for adequate ventilation and access for maintenance.
FAQ
What is the 172115-01?
The Bently Nevada 172115-01 is an External Termination Block (ETB) designed for the 3500/65 16-Channel Temperature Monitor, specifically for RTD and Isolated Tip Thermocouple (TC) inputs.
What is the primary function of this block?
It acts as the physical interface between field sensor wiring and the 3500/65 module, supporting 3-wire/4-wire RTDs and isolated thermocouples while organizing high-density wiring outside the rack.
What type of connectors are used?
The unit features Euro-style terminal block connectors for secure field wire termination.
Is it compatible with all 3500/65 monitors?
It is specifically designed for use with the 3500/65 RTD/Isolated Tip TC I/O module that utilizes external terminations.
