The Foxboro FCM100Et is a specialized communication module engineered for the I/A Series distributed control system. It serves as the primary Ethernet-to-Fieldbus gateway, facilitating high-speed data transmission between the 100 Mbps Ethernet control network and the local Field Bus Module (FBM) subsystem. This module is essential for maintaining deterministic, real-time communication in demanding process automation environments, including chemical, petrochemical, and power generation facilities.Features
Provides reliable 100 Mbps Ethernet connectivity to the I/A Series control network.
Supports redundant network configurations, ensuring high availability and seamless failover.
Integrated processor handles protocol conversion and data buffering to offload the main control system.
Supports both copper (100Base-TX) and fiber optic (100Base-FX) media interfaces.
Comprehensive onboard diagnostics with front-panel LED indicators for monitoring link status and hardware health.
Designed for high-speed synchronization and time distribution across the FBM cluster.
ApplicationsThe FCM100Et is deployed in mission-critical industrial control architectures where system uptime and deterministic data exchange are mandatory. It is commonly utilized in large-scale I/A Series installations to bridge control processors with distributed I/O, supporting robust communication backbones in complex process control loops.Technical Specifications
Model
FCM100Et (P0926GS / P0926GU)
Communication Speed
100 Mbps (Ethernet) / 2 Mbps (Fieldbus)
Interface Type
100Base-TX or 100Base-FX
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 70 deg C
Power Consumption
3.5 Watts (Max)
Input Voltage
24 VDC
Humidity
5 to 95% (Non-condensing)
Installation Guidelines
Ensure the control system is powered down before installing or removing the module from the baseplate.
Observe standard ESD (Electrostatic Discharge) precautions when handling the electronic assembly.
For fiber optic configurations, ensure proper cleaning of connectors to prevent signal attenuation.
Verify that Ethernet cabling meets the required standards for 100 Mbps operation and is routed away from high-EMI noise sources.
Ensure the module is fully seated in the backplane connector to guarantee proper power distribution and communication bus contact.
FAQWhat is the primary function of the FCM100Et?The FCM100Et acts as a bridge between the Ethernet-based control network and the local fieldbus, allowing the control processor to communicate with FBM I/O modules.Does this module support redundancy?Yes, the FCM100Et is designed to support redundant network topologies, which allows for automatic failover in the event of a network link or cable failure.What is the maximum cable distance?The module supports up to 100 meters for copper (100Base-TX) connections and up to 2 kilometers for fiber optic (100Base-FX) connections.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

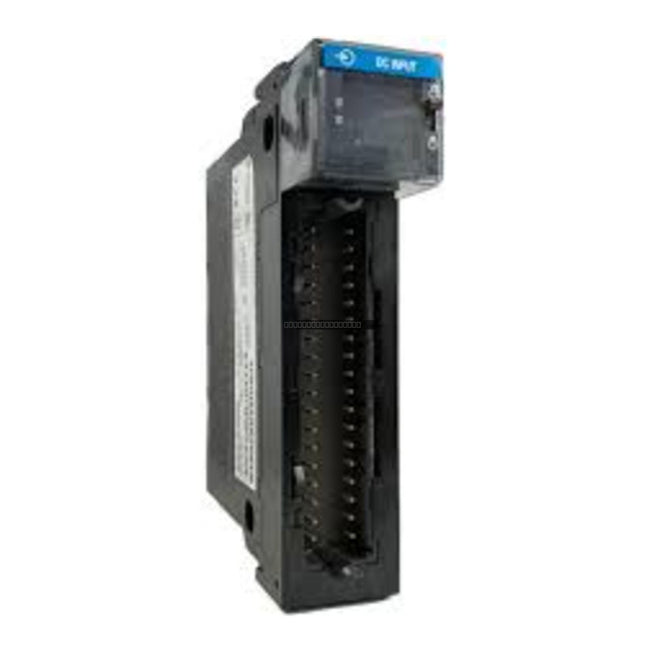

The Allen-Bradley 1756-IB32/B is a high-density digital DC input module from the ControlLogix series, specifically a Series B hardware revision. Engineered for demanding industrial environments, this module provides 32 sinking-type inputs, allowing for the connection of a wide array of field devices including proximity sensors, limit switches, and pushbuttons within a single-slot footprint. It facilitates efficient communication between field instrumentation and the ControlLogix PAC backplane, ensuring reliable data acquisition for complex automation sequences.Features
High-Density Architecture: Manages 32 discrete 24V DC inputs in a single chassis slot to optimize space.
Sinking Input Configuration: Requires field devices to source positive voltage to the module terminal for input activation.
Group Isolation: Channels are organized into two electrically isolated groups of 16, enhancing system fault tolerance.
Optimized Signal Conditioning: Integrated optocouplers provide electrical isolation between field wiring and internal controller circuitry.
Flexible Compatibility: Designed for use with standard 1756-TBCH or 1756-TBS6H removable terminal blocks.
ApplicationsThis module is widely utilized in large-scale manufacturing, process control, and material handling systems where high-density digital I/O is required. Typical deployments include monitoring status signals from machine safety interlocks, conveyor sensors, and various discrete field-side input devices integrated into a ControlLogix rack.Technical Specifications
Model
1756-IB32/B
Input Points
32 (2 groups of 16)
Voltage Category
12/24V DC Sink
Operating Range
10 to 31.2V DC
On-State Current
4.8 mA to 5.5 mA
Backplane Power
120 mA @ 5.1V DC / 2 mA @ 24V DC
Power Dissipation
6.2 Watts (max)
Operating Temperature
0 to 60 degC
Weight
0.23 kg
Installation Guidelines
Power Status: Always disconnect chassis power before installing or removing the module to prevent electrical arcing or damage to backplane pins.
Terminal Blocks: Ensure the compatible 1756-TBCH or 1756-TBSH terminal block is fully seated and secured with the locking latch.
Wiring: Use shielded cabling for field inputs to minimize EMI; route signal wires separately from high-voltage power lines.
Grounding: Ensure the ControlLogix chassis is properly bonded to a low-impedance earth ground to maintain signal integrity.
Electronic Keying: Utilize the Studio 5000 / RSLogix 5000 software to configure electronic keying, ensuring the module matches the project definition for safety and operational consistency.
FAQIs this module compatible with Series A systems?The 1756-IB32/B is a Series B revision. While it is generally backward compatible with ControlLogix backplanes, always verify your specific project configuration in Studio 5000 to ensure the electronic keying settings match the hardware revision.What terminal blocks are required for this module?This module requires a 36-pin removable terminal block (RTB). Compatible models include the 1756-TBCH (cage clamp) or 1756-TBS6H/1756-TBSH (spring clamp).
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

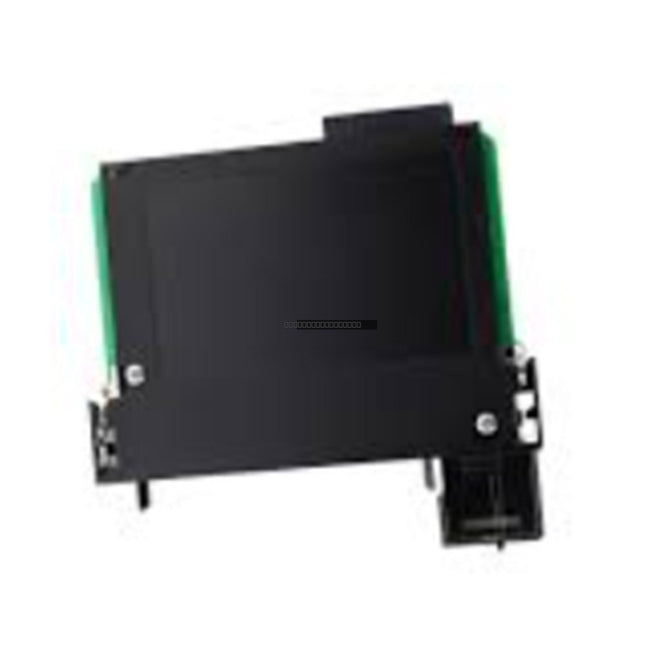

The Allen-Bradley 1756-DMA31 is a specialized ControlLogix module designed to facilitate high-speed communication between a ControlLogix controller and supported drive systems. This SynchLink Drive Interface Module serves as a critical bridge for motion control synchronization, ensuring reliable data exchange in demanding industrial automation environments.Features
Single-axis drive interface capabilities for precise motion control.
Integrated SynchLink technology for high-speed synchronization across the control architecture.
Supports a SynchLink data rate of 5 Mbps.
Drive communication data rate of up to 10 Mbps.
Optimized for use with 650 nm wavelength fiber optic connections.
Standard ControlLogix form factor for seamless integration into existing chassis systems.
Technical Specifications
Product Model
1756-DMA31
Manufacturer
Allen-Bradley
Current Draw
1.35 A at 5 VDC
SynchLink Data Rate
5 Mbps
Drive Comm. Data Rate
10 Mbps
Optimal Wavelength
650 nm
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the 1756-DMA31 module to prevent electrical damage.
Verify that the module is fully seated in the chassis slot and that the locking mechanism is engaged.
Use appropriate fiber optic cabling rated for 650 nm operation to maintain signal integrity.
Route communication cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to ensure stable data transmission.
Maintain proper ventilation in the control cabinet to keep the module within its specified operating temperature range.
FAQWhat is the primary function of the 1756-DMA31?This module acts as a SynchLink interface, allowing for synchronized motion control and high-speed data communication between the ControlLogix controller and compatible drive hardware.What power requirements does this module have?The 1756-DMA31 consumes 1.35 A of current at a 5 VDC power supply level, which is drawn directly from the ControlLogix backplane.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

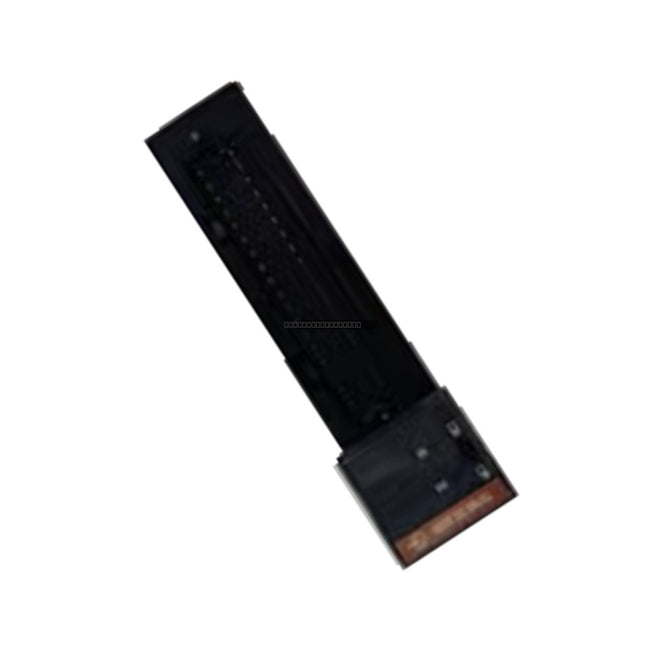

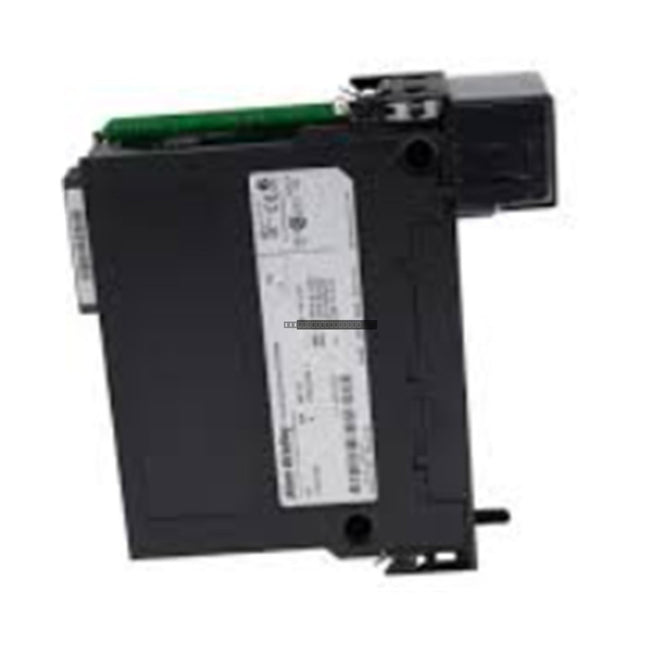

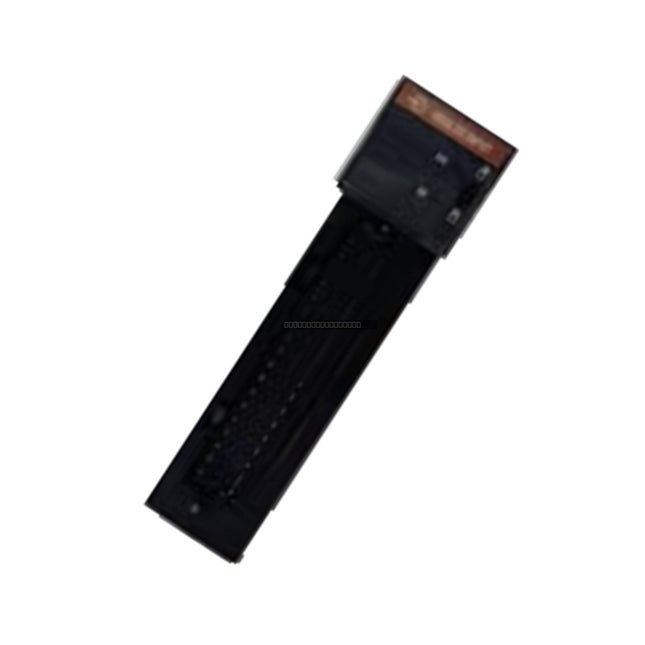

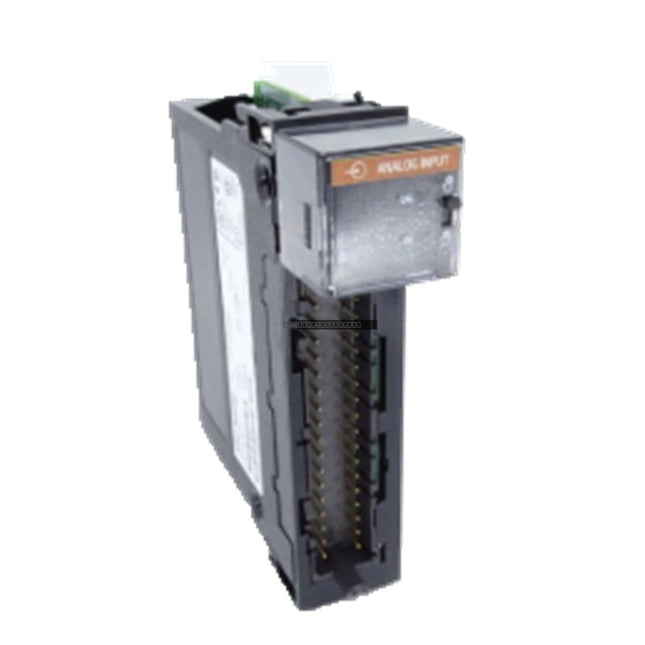

DescriptionThe Allen-Bradley 1756-IF8I is a high-performance analog input module designed for the ControlLogix platform. This module provides eight isolated input channels, allowing for flexible monitoring of various field devices. It supports both voltage and current signal modes, which can be configured per channel to suit diverse industrial measurement requirements. The module utilizes a Sigma-Delta conversion method to ensure precise and reliable data acquisition in demanding automation environments.Features
Eight isolated analog input channels for enhanced noise immunity and signal integrity.
Configurable input modes supporting both voltage (-10 to 10V, 0 to 10V, 0 to 5V) and current (0 to 20 mA) ranges.
High-resolution analog-to-digital conversion ranging from 16 to 21 bits.
Integrated power management with a backplane current draw of 200 mA at 5.1V.
Designed for seamless integration within the ControlLogix chassis system.
Technical Specifications
Model Number
1756-IF8I
Manufacturer
Allen-Bradley
Series
ControlLogix
Input Channels
8 Isolated
Conversion Method
Sigma-Delta
Voltage Ranges
-10 to 10V, 0 to 10V, 0 to 5V
Current Ranges
0 to 20 mA
Resolution
16-21 bits
Backplane Current (5.1V)
200 mA
Current Draw (24V)
150 mA or 400 mA
Enclosure Type
Open
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the 1756-IF8I module to prevent electrical damage.
The module should be installed in an open-type enclosure suitable for the specific application environment.
Use shielded twisted-pair cabling for all analog input signals to minimize electromagnetic interference (EMI).
Ensure proper grounding of the cable shields at the signal source or the module end, depending on system design requirements.
Verify that the module is fully seated in the chassis slot and that the locking mechanism is engaged.
FAQWhat are the primary input modes for the 1756-IF8I?This module supports multiple voltage ranges including -10 to 10V, 0 to 10V, and 0 to 5V, as well as a 0 to 20 mA current input mode. These can be configured independently for each of the eight channels.Is this module isolated?Yes, the 1756-IF8I features eight isolated channels, which helps protect the module and the controller from ground loops and common-mode noise.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The General Electric IC670MDL740 is a high-performance 16-point discrete output module, specifically engineered for the Field Control I/O system. This module provides reliable positive logic (sourcing) output control for a variety of industrial automation tasks, operating within a voltage range of 10-30 VDC. It is designed to integrate seamlessly into distributed control architectures, offering efficient signal management for low-current output devices.Features
16-point positive logic (sourcing) discrete output channels.
Nominal operating voltage of 24 VDC with an input range of 10-30 VDC.
Maximum load capacity of 0.5 Amps per channel, with a 4 Amp total module limit.
Integrated status LED indicators for each output channel to simplify diagnostics.
Common fuse protection for the output group, featuring a dedicated blown-fuse indicator.
Compact, DIN-rail mountable design for space-constrained control cabinets.
Standardized terminal base for simplified wiring and maintenance.
Applications
Actuator & Valve Control: Ideal for driving DC solenoids and pneumatic valve manifolds in assembly and fluid handling systems.
Operator Interface: Powers pilot lamps, status indicators, and industrial alarms on control panels.
Relay Switching: Capable of driving interposing relays for higher-power AC or DC load control.
Machine Automation: Suitable for integration into packaging, textile, and conveyor sorting systems.
Wastewater Infrastructure: Distributed architecture supports remote pump and sensor control in large-scale facilities.
Technical Specifications
Model
IC670MDL740
Output Type
Discrete (Positive Logic/Sourcing)
Number of Points
16
Voltage Range
10-30 VDC
Current per Point
0.5 A (Max)
Current per Module
4 A (Max)
Response Time
200 microseconds (0.5 A resistive load)
Internal Power Draw
111 mA (from BIU)
Isolation
1500 VAC (1 min) / 250 VAC (continuous)
Wiring Capacity
AWG #14-22 (single); AWG #18 (dual)
Installation Guidelines
Ensure the Bus Interface Unit (BIU) is powered down before installing or removing the module to prevent electrical damage.
Mount the module securely onto the designated DIN-rail, ensuring proper alignment with the terminal base.
Use appropriate wire gauges (AWG #14-22) and ensure terminals are tightened to manufacturer specifications to maintain contact integrity.
Maintain proper clearance around the module to facilitate adequate ventilation and cooling.
Keep signal wiring separated from high-voltage or high-EMI sources to minimize noise and interference.
FAQWhat is the primary function of the IC670MDL740?This module acts as a 16-point sourcing output interface for the GE Field Control system, allowing the PLC to control external DC loads such as solenoids, relays, and indicators.Can this module be used for higher current requirements?No, the IC670MDL740 is limited to 0.5A per point. For higher current applications, consider the IC670MDL742 (1.0A per point) or the IC670MDL730 (2.0A per point).How is the module protected?The output group is protected by a 5 Amp, 250V (5x20mm) slow-acting fuse, which includes a visual status indicator on the module faceplate.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Product OverviewThe Emerson Ovation 1C31232G03 is a high-performance differential digital input module designed for critical monitoring and control applications within distributed control systems. This module is built to handle differential input signals, providing the necessary signal conditioning and isolation required for stable operation in complex industrial settings, such as power generation facilities and heavy industrial process plants. By maintaining high signal integrity, it helps minimize system noise interference and supports reliable data acquisition.Features
Differential signaling architecture for enhanced common-mode noise rejection.
Integrated channel-level status monitoring via front-panel LED indicators.
Designed for high-density I/O rack integration within Ovation systems.
Robust physical construction suitable for vibration-prone industrial environments.
Supports 125 VAC/VDC differential input voltage ranges.
ApplicationsThis module is typically deployed in large-scale automation frameworks where precise digital input state detection is required. It is commonly used for monitoring field switch states, relay contacts, and other digital signaling devices where isolation and noise immunity are essential for system-wide stability.Technical Specifications
Model
1C31232G03
Brand
Emerson Ovation
Input Voltage
125 VAC/VDC (Differential)
Indicators
Individual Channel LEDs
Operating Temperature
-20 deg C to 70 deg C
Installation Guidelines
Ensure the Ovation rack power is disconnected before inserting or removing the module to prevent electrical damage.
Verify that the terminal block is securely fastened to ensure consistent signal contact.
Maintain proper grounding practices within the cabinet to optimize noise rejection and electromagnetic compatibility.
Ensure adequate ventilation in the enclosure to keep ambient temperatures within the specified -20 deg C to 70 deg C range.
Handle with care and employ standard ESD protection measures during installation and maintenance.
FAQWhat is the primary function of the 1C31232G03 module?This module acts as a digital input interface that accepts differential signals, providing isolation and status feedback for digital field devices within an Ovation DCS.Does this module require special tools for status checking?No, the module features front-panel LEDs that provide real-time status indication for each channel, allowing for immediate visual diagnostics by maintenance personnel.
Product DescriptionThe Emerson Ovation 2840A18G02 is a specialized relay output module designed for integration into Ovation distributed control systems. This card serves as a high-reliability interface, bridging the gap between low-voltage control logic and field-level actuators. By providing discrete switching capabilities, it is frequently employed in power generation, heavy industrial processing, and petrochemical automation to manage solenoids, contactors, and signaling devices while maintaining system-wide signal integrity.Features
High-density relay architecture for reliable discrete signal switching.
Provides robust galvanic isolation to protect backplane logic from field-side transients and noise.
Engineered for high-durability performance in demanding industrial environments.
Compact board design optimized for efficient rack-mount installation within standard Ovation control cabinets.
Supports rapid response times for critical control interlocks and automation sequences.
ApplicationsThis module is ideal for applications requiring physical contact status for field hardware, including:
Control of solenoid valves and heavy-duty contactors.
Safety interlock systems in power plants.
Discrete signal distribution for process automation hardware.
Indicator circuit management for control room monitoring.
Technical Specifications
Model
2840A18G02
Brand
Emerson Ovation
Operating Temperature
-20 deg C to 70 deg C
Power Consumption
3 W (typical)
Interface Type
Discrete relay contact outputs
Mounting
Standard rack-mount card slot
Installation Guidelines
Ensure the control rack is powered down before inserting or removing the 2840A18G02 card to prevent electrical arcing or circuit damage.
Handle the module by the edges; avoid touching the PCB components to prevent ESD damage.
Verify that all field wiring is properly secured to the terminal blocks and that cabling is routed away from high-EMI sources such as power lines.
Ensure the module is fully seated in the backplane connector to maintain reliable electrical contact.
Maintain adequate ventilation within the control cabinet to stay within the specified operating temperature range.
FAQWhat system is the 2840A18G02 compatible with?This module is designed specifically for the Emerson Ovation distributed control system (DCS) platform.Does this card provide isolation?Yes, the card incorporates galvanic isolation to protect the controller logic from field-induced electrical transients and common-mode noise.What is the primary function of this module?It functions as a relay output interface, allowing the controller to drive external field devices such as solenoids or contactors using discrete switching logic.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Schneider Electric 170ADO35000 is a discrete solid-state digital output module designed for the Modicon Quantum automation platform. This module provides 32 output points, operating at a nominal 24 VDC, and is engineered for high-density switching applications within industrial control systems. Although discontinued by the manufacturer in 2020, it remains a critical component for legacy system maintenance and expansion.Features
32-point discrete output configuration for high-density I/O requirements.
Solid-state output design for reliable, high-speed switching.
Standard 24 VDC operating voltage compatibility.
Designed for seamless integration into the Modicon Quantum backplane architecture.
Technical Specifications
Product Model
170ADO35000
Module Type
Digital Output (Discrete)
Point Count
32 Points
Voltage Rating
24 VDC
Manufacturer
Schneider Electric
Status
Discontinued (2020)
Installation Guidelines
Ensure all power to the Quantum rack is disconnected before attempting to install or remove the module.
Handle the module using proper ESD precautions to prevent damage to internal circuitry.
Verify that the module is fully seated in the rack slot and the locking mechanism is engaged to ensure a solid electrical connection.
Confirm proper wiring polarity for the 24 VDC supply to avoid damage to the output channels.
Maintain adequate clearance around the module to allow for proper thermal dissipation during operation.
FAQIs the 170ADO35000 compatible with current Quantum systems?Yes, the 170ADO35000 is intended for use with the Modicon Quantum platform. While the unit was discontinued in 2020, it is fully functional for replacing existing modules in legacy installations.What is the primary function of this module?This is a digital output module used to interface the PLC controller with external field devices, such as relays, contactors, or indicators, using 32 discrete 24 VDC output channels.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

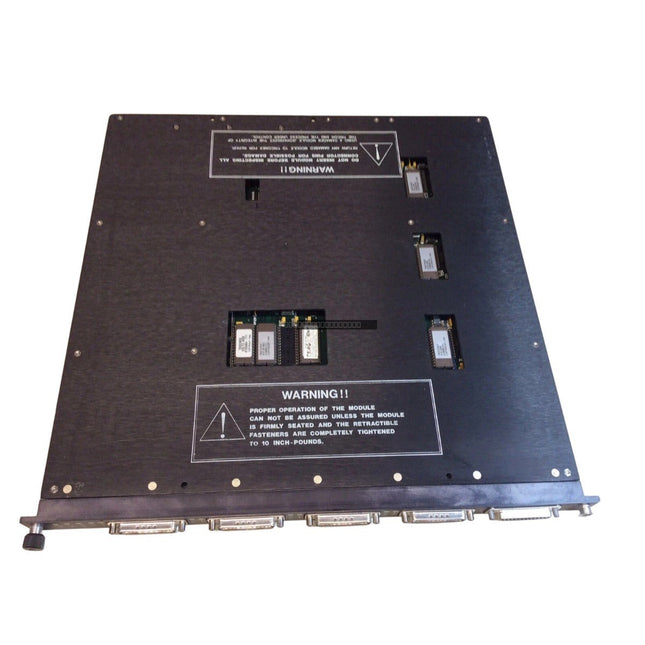

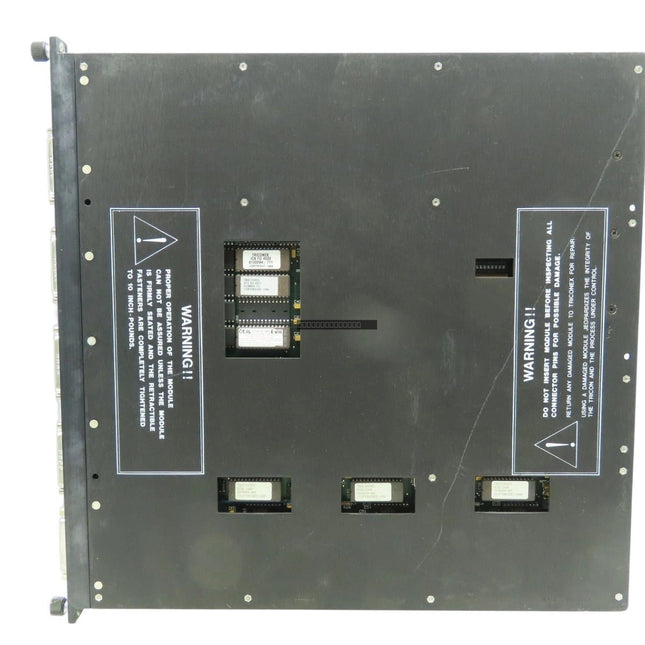

DescriptionThe Triconex ICM4101 is a specialized digital input module engineered for integration within safety-instrumented systems (SIS). Designed to bridge the gap between field-mounted discrete sensors and the main safety controller, this module ensures high-integrity signal acquisition in demanding industrial environments. It is widely utilized in sectors such as power generation, petrochemical processing, and heavy industrial automation where reliable state detection is critical for emergency shutdown and safety-interlock logic.Features
Robust solid-state architecture for high-speed discrete input monitoring.
Galvanic isolation between field-side signals and backplane logic to prevent surge propagation.
Optimized for deterministic signal processing in safety-critical loops.
High-reliability design to minimize false trips and undetected signal faults.
Modular design compatible with standard Triconex chassis environments.
ApplicationsThe ICM4101 module is primarily deployed in safety-critical applications requiring high-availability monitoring. Common use cases include:
Emergency Shutdown Systems (ESD).
Critical process alarm monitoring.
Discrete sensor interface for safety logic solvers.
High-integrity status feedback for valves, switches, and relays.
Technical Specifications
Model
ICM4101
Manufacturer
Triconex
Input Type
Digital (Discrete)
Power Consumption
6 W
Operating Temperature
0 to 60 degC
Isolation
Galvanic Isolation
Enclosure Type
Industrial Modular
Installation Guidelines
Ensure the system power is disconnected before installing or removing the module from the chassis.
Handle the module using ESD-safe procedures to prevent damage to sensitive internal circuitry.
Verify that all field wiring is properly terminated and shielded to minimize electromagnetic interference (EMI).
Maintain adequate ventilation within the cabinet to ensure the module operates within its specified temperature range.
Confirm proper seating of the module in the backplane to ensure reliable communication with the processor.
FAQWhat is the primary function of the ICM4101?The ICM4101 is a digital input module designed to monitor discrete field signals and transmit their status to the Triconex safety controller for safety-related decision-making.Does this module support galvanic isolation?Yes, the module is designed with galvanic isolation to protect the internal backplane logic from potential electrical faults occurring on the field side.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

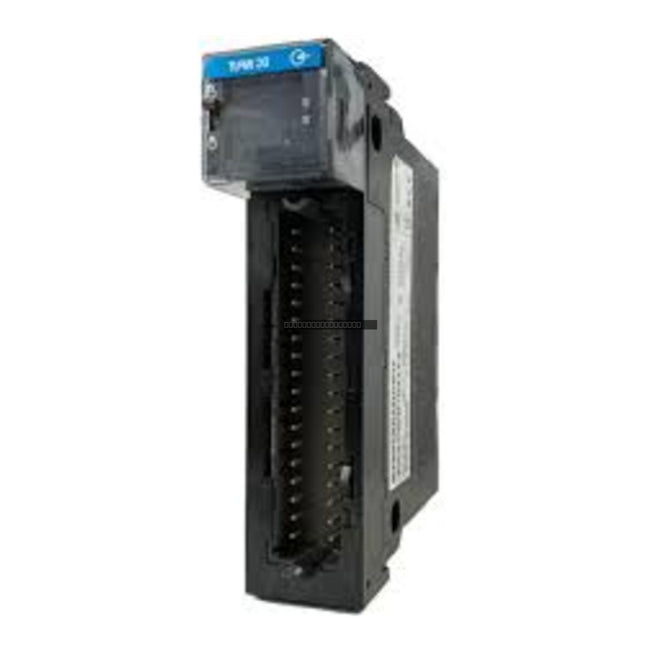

DescriptionThe Allen-Bradley 1756-IB16 is a high-performance digital input module designed for the ControlLogix platform. This module provides 16 input points, supporting a voltage range of 12V to 24V DC. Engineered for industrial reliability, it features sink input operation and electronic keying to ensure correct module insertion and configuration within the chassis.Features
16 isolated digital input channels for versatile signal monitoring.
Operating voltage range of 10V to 31.2V DC to accommodate varying power supply fluctuations.
Electronic keying support to prevent incorrect module installation in the ControlLogix backplane.
Compact design optimized for high-density I/O configurations in industrial control cabinets.
Low power dissipation of 5.1 W at 60 degC for efficient thermal management.
ApplicationsThis module is widely used in factory automation, process control systems, and machinery management where reliable 12/24V DC signal acquisition is required. It is compatible with standard ControlLogix chassis and integrates seamlessly into complex automation architectures requiring high-speed digital input processing.Technical Specifications
Model Number
1756-IB16
Input Type
12/24V DC Sink
Operating Voltage
10-31.2V DC
Input Points
16
Power Dissipation
5.1 W @ 60 degC
Current Draw
10 mA @ 31.2V DC / 2 mA @ 10V DC
Manufacturer
Allen-Bradley
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the 1756-IB16 module.
Verify that the slot is configured correctly for the module type before applying power.
Use appropriate shielded cabling for input signals to minimize electromagnetic interference (EMI) in high-noise environments.
Maintain adequate ventilation within the cabinet to ensure the module operates within its specified temperature range.
Follow local electrical codes and standard grounding procedures for all I/O wiring.
FAQIs the 1756-IB16 compatible with all ControlLogix chassis?Yes, this module is designed for use in any standard ControlLogix chassis, provided the slot is correctly configured and the power supply can support the module's current draw.What does the electronic keying feature do?Electronic keying allows the system to verify that the physical module matches the software configuration, preventing operational errors caused by installing the wrong module type in a specific slot.
The Allen-Bradley 1756-IF8 is a high-performance analog input module designed for the ControlLogix automation platform. It provides eight input channels capable of processing both voltage and current signals, facilitating the integration of diverse field devices such as pressure transducers, flow meters, and temperature transmitters into your control architecture.Features
Eight-channel input configuration supporting single-ended, differential, and high-speed differential modes.
Flexible signal range support including +/-10V, 0-10V, 0-5V, and 0-20mA (including 4-20mA).
High-resolution 16-bit data conversion using Sigma-Delta technology for precise process monitoring.
Integrated digital filtering to mitigate signal noise and improve measurement stability.
Efficient power consumption with low backplane current draw.
Applications
Dosing and metering systems requiring accurate flow feedback.
Filtration monitoring using differential pressure sensors.
Industrial hydraulic and pneumatic stamping press force control.
Injection molding process control for temperature and pressure monitoring.
Water treatment and environmental monitoring skids for pH and turbidity tracking.
Technical Specifications
Manufacturer
Allen-Bradley
Model
1756-IF8
Module Type
Analog Input
Input Channels
8 (Single-ended) / 4 (Differential)
Conversion Method
Sigma-Delta
Backplane Current (5V)
150 mA
Backplane Current (24V)
40 mA
Power Dissipation (Voltage Mode)
1.73 W
Power Dissipation (Current Mode)
2.33 W
Installation Guidelines
Enclosure Requirements: This is open-type equipment and must be installed within a suitable NEMA or IEC-rated enclosure to prevent accidental contact with live electrical components.
RIUP Caution: While the module supports Removal and Insertion Under Power (RIUP), ensure field-side power is disconnected before removing the Removable Terminal Block (RTB) to prevent electrical arcing.
Grounding: Ensure the chassis is properly grounded in accordance with local electrical codes to minimize EMI and ensure signal integrity.
Handling: Use standard ESD-safe handling procedures when installing or removing the module from the ControlLogix rack.
FAQWhat is the primary function of the 1756-IF8?The 1756-IF8 acts as an interface between field analog sensors and the ControlLogix processor, converting continuous voltage or current signals into digital data for control logic.Is this module isolated?The 1756-IF8 is a non-isolated module. If your application requires channel-to-channel isolation, please consider the 1756-IF8I model.How are the input channels configured?The module supports 8 single-ended inputs or 4 differential inputs depending on your wiring and configuration settings in the Studio 5000 software.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Siemens 6AV3515-1EB30-1AA0 is a robust operator interface terminal from the Simatic HMI OP15 series, engineered for reliable machine-level interaction and diagnostic monitoring in industrial automation systems. This unit provides a clear, high-contrast 2-line liquid crystal display, with each line supporting 40 characters for effective operator feedback. It serves as a critical local control point, allowing personnel to monitor process variables, acknowledge system alarms, and adjust operational parameters directly on the shop floor.Features
Equipped with 256 KB of integrated user memory for efficient storage of screen configurations and message logs.
Features a durable, chemical-resistant membrane keypad designed for tactile feedback and longevity in harsh environments.
Supports versatile communication connectivity through two switchable TTY/V.24 (RS232) serial ports and one dedicated RS422/RS485 interface.
Optimized for seamless integration with legacy Simatic S5 and S7 PLC architectures.
Compact, panel-mount design suitable for integration into control cabinets and operator consoles.
ApplicationsThis operator panel is commonly deployed in diverse industrial sectors, including chemical processing facilities, power generation plants, and material handling systems. It is particularly effective in environments requiring direct, reliable interface access for machine diagnostics and process management without the need for complex graphical software.Technical Specifications
Model
6AV3515-1EB30-1AA0
Series
Simatic HMI / Coros OP15
Display
2 lines x 40 characters
Memory
256 KB
Interfaces
2 x TTY/V.24, 1 x RS422/485
Supply Voltage
24 VDC
Power Consumption
9.5 W
Operating Temperature
0 to 50 deg C
Storage Temperature
-20 to 60 deg C
Installation Guidelines
Ensure the panel is mounted in a clean, dry environment within an enclosure that provides adequate ventilation.
Verify that the supply voltage is stable at 24 VDC before applying power to the unit.
Use shielded communication cables for serial connections to minimize electromagnetic interference (EMI) in high-noise industrial zones.
Always disconnect power before performing any wiring changes or maintenance on the interface unit.
Handle the membrane keypad with care to prevent punctures or chemical exposure that could degrade the protective seal.
FAQIs this unit compatible with modern S7-1500 controllers? This unit is primarily designed for legacy Simatic S5 and S7 environments. Please consult your system documentation to verify if the specific protocol requirements match your PLC configuration.Does the unit require external software for programming? Yes, the OP15 series requires the appropriate Siemens configuration software to load screens and project data into the internal memory.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

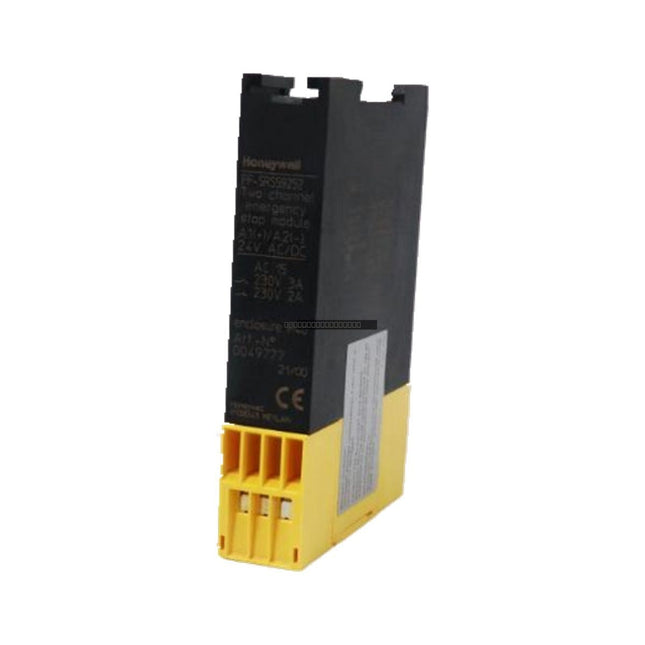

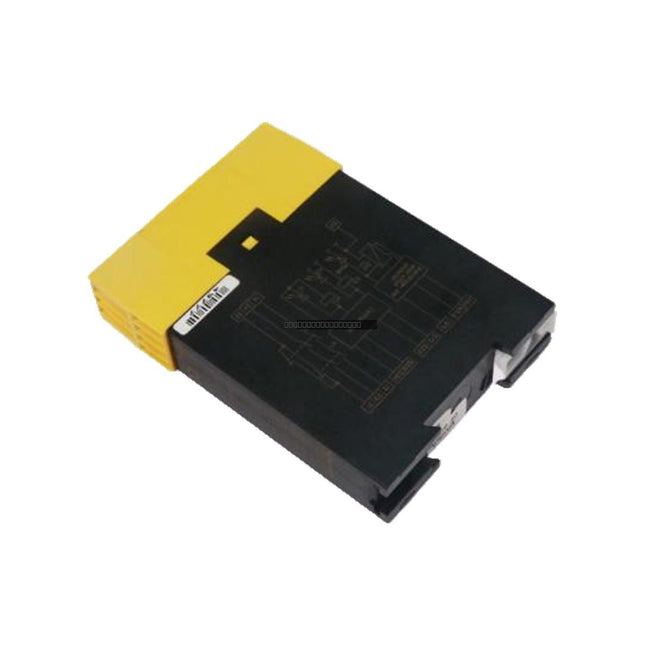

DescriptionThe Honeywell FF-SRS59252 is a specialized dual-channel safety module engineered for emergency stop and interlock applications within industrial automation systems. This unit provides critical monitoring of safety circuits, ensuring reliable performance in demanding environments such as power generation, oil and gas, and manufacturing facilities. By evaluating redundant input channels, the module facilitates deterministic safety responses, helping to maintain operational integrity and minimize unplanned downtime in safety-rated shutdown loops.Features
Dual-channel input architecture for enhanced safety monitoring and fault detection.
Force-guided contact design to ensure fail-safe operation during emergency activation.
Compact, space-efficient housing suitable for standard control cabinet integration.
Designed for DIN rail mounting to simplify installation in new or existing safety panels.
Continuous cross-circuit supervision to detect discrepancies between safety channels.
ApplicationsThis module is intended for use in safety-critical interlock systems, including emergency stop circuits for machinery, safety gates, and various process automation shutdown sequences. Its robust design is suitable for integration into both hardwired safety circuits and PLC-based protection systems.Technical Specifications
Model
FF-SRS59252
Brand
Honeywell
Supply Voltage
24 VAC
Monitoring Architecture
Dual-channel redundancy
Mounting
DIN rail
Operating Temperature
0 to 60 deg C
Installation Guidelines
Ensure the control cabinet is powered down before installing or removing the module.
Mount the device securely on a standard DIN rail, ensuring adequate clearance for thermal dissipation.
Verify that wiring connections are tight and conform to industrial safety standards for low-voltage control circuits.
Maintain proper separation from high-EMI sources to prevent signal interference in safety loops.
Confirm that all input channels are correctly configured for dual-channel, redundant operation according to site safety documentation.
FAQWhat is the primary function of the FF-SRS59252?The module serves as a safety relay designed to monitor dual-channel emergency stop inputs and trigger a safe state if a fault or activation is detected.Does this module require specific mounting hardware?No, it is designed for standard DIN rail mounting, allowing for efficient integration into most industrial control enclosures.What is the operating voltage for this unit?The FF-SRS59252 is designed to operate on a 24 VAC control supply.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Emerson Ovation 5X00304G01 is a specialized Migration Personality Module engineered to bridge legacy QPBX system architectures with modern Ovation Distributed Control Systems (DCS). This component serves as a critical interface for industrial facilities undergoing digital transformation, allowing for the preservation of existing field-side logic while upgrading the core control layer to current standards.Features
Facilitates seamless integration of legacy QPBX field equipment into the Ovation DCS environment.
Acts as a dedicated communication bridge for signal translation and protocol handling.
Reduces system commissioning time and minimizes operational downtime during plant modernization.
Optimized for stable data exchange and high reliability in demanding control room environments.
Robust internal circuitry designed for thermal stability and long-term hardware longevity.
ApplicationsThis module is specifically intended for use in power generation plants and heavy industrial processing facilities that require a phased approach to DCS migration. It is ideal for sites looking to modernize control cabinets without replacing entire field-side I/O infrastructures.Technical Specifications
Model
5X00304G01
Brand
Emerson Ovation
Compatibility
QPBX legacy systems to Ovation DCS
Mounting
Standard I/O rack slot
Operating Temperature
0 deg C to 60 deg C
Typical Power Consumption
5 W
Installation Guidelines
Ensure the Ovation rack slot is de-energized before inserting or removing the module to prevent electrical damage.
Verify that the module is properly seated within the designated I/O rack slot to ensure reliable backplane communication.
Maintain adequate ventilation within the control cabinet to keep ambient temperatures within the specified 0 to 60 deg C range.
Handle with standard ESD (Electrostatic Discharge) precautions to protect the sensitive internal electronic components.
Check all system wiring for secure connections before applying power to the migrated control loop.
FAQWhat is the primary purpose of the 5X00304G01 module?This module is designed to act as a personality layer that translates legacy QPBX signaling into data formats compatible with the Emerson Ovation DCS.Is this module compatible with non-Ovation systems?No, this module is specifically engineered for the Emerson Ovation DCS environment and is intended for migrating existing QPBX legacy hardware.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Siemens 6ES5512-5BC12 is a dedicated AS512 drive interface module designed for integration within the legacy Simatic S5 programmable logic controller environment. This board facilitates essential communication between the central processing unit and industrial drive systems, ensuring precise regulation of speed, torque, and positioning loops. By offloading high-speed drive communication and signal conditioning tasks from the main PLC, this module reduces bus latency and enhances overall system stability. It is frequently employed in demanding industrial applications such as metal processing lines, material handling systems, and large-scale power generation cooling infrastructure.Features
Designed for seamless integration with the Simatic S5 backplane architecture.
Provides autonomous management of drive communication protocols to ensure real-time synchronization.
Features integrated optical isolation on I/O channels to protect the CPU from electrical noise and voltage transients.
Supports precise processing of encoder feedback and generation of accurate speed reference signals.
Rugged construction suitable for long-term deployment in heavy-duty industrial environments.
ApplicationsThis module is typically utilized in systems requiring high-speed synchronization of multiple drive axes. Common use cases include:
Automated mining hoists and conveyor control.
Metal rolling mills and precision positioning equipment.
Power generation plant auxiliary cooling and pumping systems.
Legacy automation retrofits requiring drive-to-PLC connectivity.
Technical Specifications
Model
6ES5512-5BC12
Brand
Siemens
Series
Simatic S5 / AS512
Module Type
Drive Interface Basic Board
Operating Voltage
24 VDC
Internal Current Draw
0.85 A (via backplane)
Operating Temperature
0 to 55 deg C
Storage Temperature
-40 to 70 deg C
Relative Humidity
95% non-condensing
Installation Guidelines
Ensure the PLC rack power is completely disconnected before inserting or removing the module to prevent electrical damage or bus errors.
Handle the module by the edges; avoid touching sensitive electronic components on the PCB to prevent ESD damage.
Verify that the module is firmly seated into the backplane connector to ensure reliable communication.
Route signal cables away from high-voltage power lines and high-EMI sources to maintain signal integrity.
Maintain proper ventilation in the control cabinet to ensure the ambient temperature remains within the specified 0 to 55 deg C range.
FAQIs this module compatible with modern S7 systems? No, the 6ES5512-5BC12 is specifically engineered for the Simatic S5 series architecture and is not directly compatible with S7 or TIA Portal-based systems without specific gateway hardware.What is the primary function of the AS512 interface? The AS512 interface acts as a bridge to manage drive-specific communication, allowing the S5 PLC to execute complex motion control routines while maintaining real-time synchronization across connected drives.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

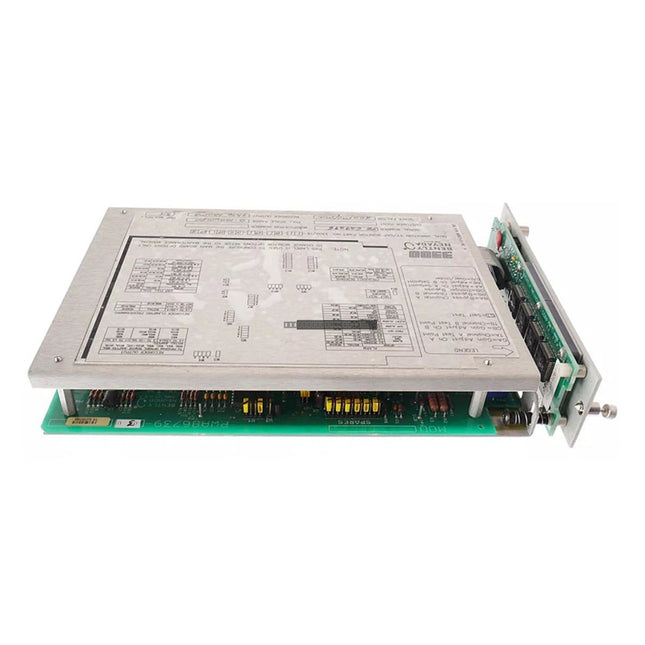

The Bently Nevada 3300/26 Dual Accelerometer RMS Monitor is a specialized vibration monitoring module designed to provide reliable signal processing for accelerometer-based measurements. This unit converts raw accelerometer inputs into proportional 4-20 mA outputs, facilitating seamless integration with existing DCS, PLC, or SCADA systems for machinery protection and condition monitoring.Features
Dual-channel input capability for simultaneous accelerometer monitoring.
Standard 4-20 mA output for integration with process control instrumentation.
Robust signal processing for RMS vibration measurement.
Engineered for industrial environments with high reliability and durability.
Technical Specifications
Model
3300/26-XX-XX-XX-00-00-01-00
Sensitivity
100 mV/g (10 mV per m/s2)
Output Impedance
100 Ohm
Frequency Range (No Filter)
2.7 Hz to 90 kHz (-3 dB nominal)
Frequency Range (w/ Integration)
10 Hz to 90 kHz
Operating Temperature
0 degC to +65 degC (+32 degF to +150 degF)
Storage Temperature
-40 degC to +85 degC (-40 degF to +185 degF)
Relative Humidity
Up to 95%, non-condensing
Installation Guidelines
Ensure power is disconnected before installing or removing the module from the rack.
Use shielded cabling for all signal inputs to minimize electromagnetic interference (EMI).
Maintain proper grounding practices to ensure signal integrity and protection against surges.
Ensure the installation environment meets the specified temperature and humidity ranges to prevent premature component failure.
Verify that all terminal connections are secure and properly seated within the 3300 rack system.
FAQWhat is the primary function of the 3300/26 module?The 3300/26 is designed to monitor accelerometer inputs and provide an RMS vibration output in the form of a 4-20 mA signal for industrial monitoring applications.Is this module compatible with other 3300 series components?Yes, this monitor is designed for use within the Bently Nevada 3300 series rack system architecture.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

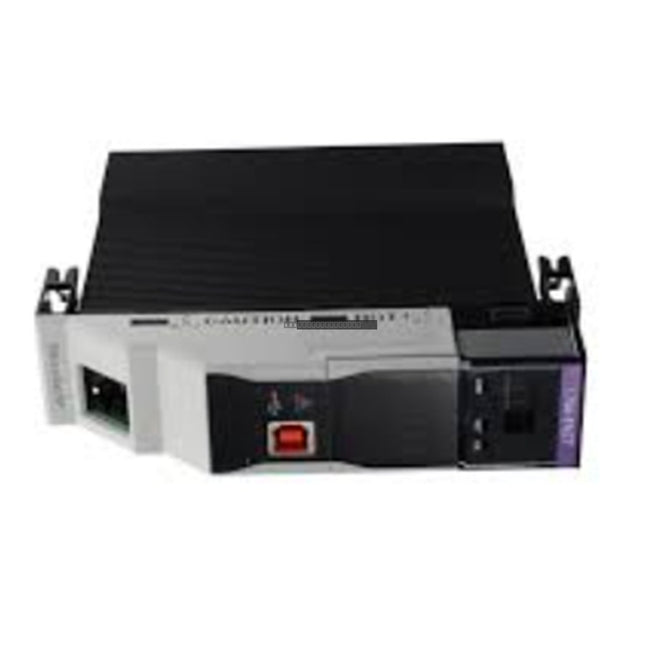

The Allen-Bradley 1756-EN3TR is a high-performance communication interface module designed for the ControlLogix platform. This EtherNet/IP bridge module features an integrated dual-port switch, allowing for seamless connectivity and support for Device Level Ring (DLR) topologies. It is engineered to facilitate efficient data exchange across industrial networks while supporting demanding applications, including advanced motion control systems with up to 128 axes.Features
Integrated dual-port switch for linear or ring network topologies.
Supports EtherNet/IP communication protocols for robust industrial data transfer.
High-capacity motion control support, capable of handling up to 128 axes.
Designed for seamless integration into standard ControlLogix chassis environments.
USB configuration port with a 12 Mbps data transfer rate for local maintenance and diagnostics.
ApplicationsThis module is widely utilized in complex automation systems requiring high-speed communication between controllers and distributed I/O. It is particularly well-suited for motion control applications, large-scale process automation, and integrated manufacturing environments where high-bandwidth, reliable Ethernet connectivity is essential.Technical Specifications
Product Model
1756-EN3TR
Communication Port
EtherNet/IP (Copper)
Backplane Current (5V)
1.0 A
Backplane Current (24V)
3 mA
Power Consumption
5.1 W
Insulation Voltage
30 V (Continuous)
USB Rate
12 Mbps
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the 1756-EN3TR module to prevent electrical damage.
Properly seat the module into the designated slot and secure it using the top and bottom latching mechanisms.
Use shielded Ethernet cabling for all network connections to minimize electromagnetic interference (EMI) in industrial environments.
Maintain adequate spacing within the cabinet to allow for proper airflow and cooling, as the module consumes 5.1 Watts during operation.
Verify that the network topology is correctly configured for either linear or DLR mode prior to commissioning.
FAQQ: Does the 1756-EN3TR support Device Level Ring (DLR)?A: Yes, this module features an embedded switch that supports DLR, allowing for fault-tolerant network rings.Q: Is this module compatible with all ControlLogix chassis?A: The 1756-EN3TR is designed for use with standard 1756 ControlLogix chassis. Ensure your firmware version is compatible with your specific controller requirements.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

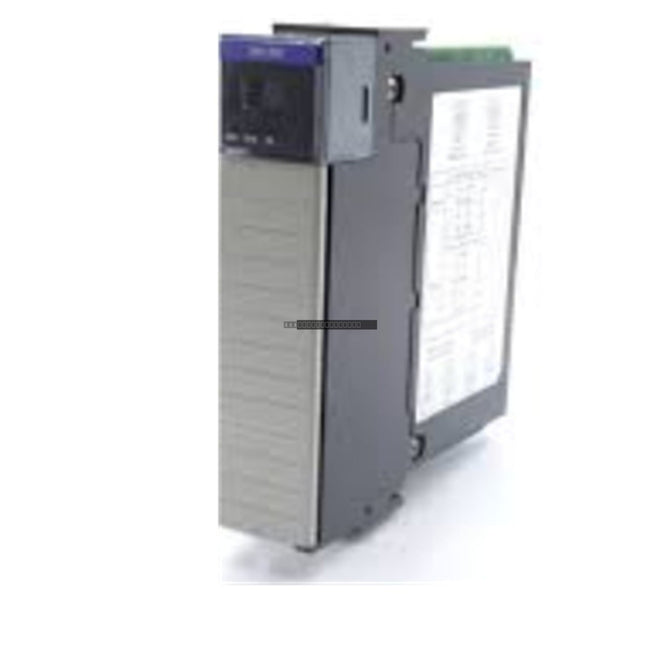

The Allen-Bradley 1756-EN2TRXT is a ruggedized EtherNet/IP communication bridge module within the ControlLogix-XT series, specifically developed for deployment in harsh industrial conditions. This module incorporates dual-port embedded switch technology to support advanced network topologies, including Device Level Ring (DLR), linear, and star configurations, while maintaining high-speed communication in demanding environments.Features
Ruggedized Design: Engineered with specialized protective coatings to withstand corrosive gases, high humidity, salt spray, and extreme temperature fluctuations.
Dual-Port Embedded Switch: Facilitates seamless integration into DLR networks, providing rapid recovery times in the event of a media fault.
Extended Environmental Range: Rated for reliable operation between -25 and 70 degC.
High-Performance Connectivity: Supports up to 256 CIP connections and 128 TCP/IP connections for robust data exchange.
Local Configuration: Includes a dedicated USB 1.1 port for efficient local diagnostics and module programming.
Technical Specifications
Model
1756-EN2TRXT
Brand
Allen-Bradley / Rockwell Automation
Product Series
ControlLogix-XT
Communication Rate
10/100 Mbps (Auto-negotiating)
Operating Temperature
-25 to 70 degC
CIP Connections
256
TCP/IP Connections
128
Backplane Power
1.0 A at 5.1 VDC
Slot Width
1 Slot
Installation Guidelines
Ensure the ControlLogix-XT chassis is properly grounded before installing the module.
Always power down the chassis backplane before inserting or removing the 1756-EN2TRXT to prevent electrical arcing or damage to the backplane pins.
Use shielded twisted-pair cabling for all Ethernet connections to minimize EMI interference in high-noise environments.
Maintain adequate clearance around the module to ensure proper airflow and heat dissipation, especially when operating at the upper limits of the temperature range.
Handle the module with care to avoid damaging the conformal coating that provides environmental protection.
FAQIs this module compatible with standard ControlLogix chassis? Yes, the 1756-EN2TRXT is physically compatible with any standard ControlLogix chassis, though it is intended for use in ControlLogix-XT environments to take full advantage of its ruggedized features.Does this module require an external switch for DLR? No, the integrated dual-port switch allows the module to function as part of a Device Level Ring (DLR) without the need for an external managed industrial switch.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

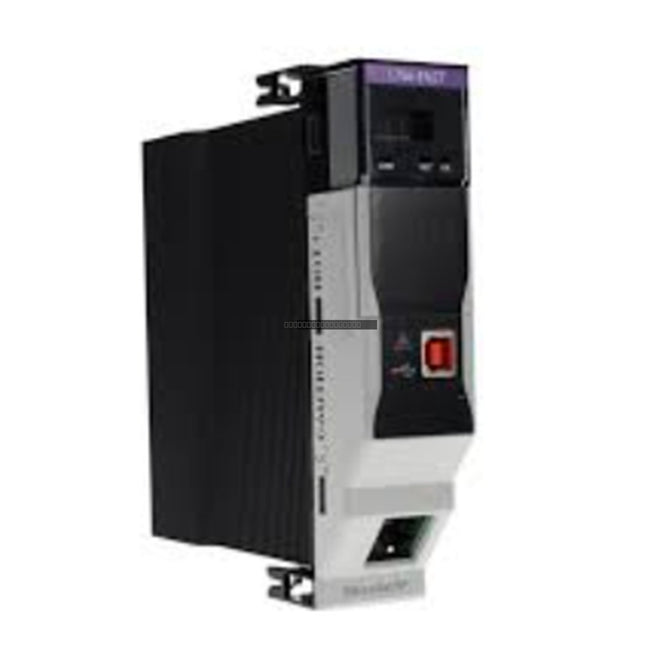

DescriptionThe Allen-Bradley 1756-EN2TSC is a high-performance communication module designed for the ControlLogix platform. This module functions as an EtherNet/IP bridge, providing secure connectivity through integrated VPN capabilities. It is engineered to facilitate robust communication within industrial automation environments, supporting high-speed data exchange and reliable network integration for complex control systems.Features
Single-port EtherNet/IP interface for streamlined network connectivity.
Integrated VPN support for secure remote communication and data protection.
High-performance processing designed for demanding ControlLogix applications.
Supports up to 128 TCP/IP connections, enabling extensive device integration.
Operates at 10/100 Mbps data rates to suit standard industrial Ethernet requirements.
ApplicationsThis module is typically deployed in manufacturing and process control environments where secure, high-bandwidth communication between the ControlLogix controller and remote devices or supervisory systems is required. It is suitable for applications involving distributed I/O, remote diagnostics, and secure plant-floor network management.Technical Specifications
Model Number
1756-EN2TSC
Product Type
EtherNet/IP Communication Bridge
Communication Port
Single Port
Network Speed
10/100 Mbps
TCP/IP Connections
Up to 128
VPN Capability
Integrated Secure Communication
Weight
0.24 kg
Installation Guidelines
Ensure the ControlLogix chassis is powered down before installing or removing the 1756-EN2TSC module to prevent electrical damage.
Slide the module into the designated slot in the chassis, ensuring it is properly aligned with the backplane connector.
Secure the module using the top and bottom locking latches to maintain a solid connection and proper grounding.
Use shielded Ethernet cabling for all connections to minimize electromagnetic interference (EMI) in industrial environments.
Maintain proper ventilation in the control cabinet to ensure the module operates within its specified temperature range.
Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect sensitive internal components.
FAQWhat is the primary function of the 1756-EN2TSC?The 1756-EN2TSC is a ControlLogix communication module that provides EtherNet/IP connectivity with added VPN security features for secure remote access and data transfer.How many TCP/IP connections can this module handle?This module supports up to 128 concurrent TCP/IP connections, allowing for significant scalability in network communication.Does this module require a specific chassis?Yes, it is designed for use within the Allen-Bradley ControlLogix chassis system.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

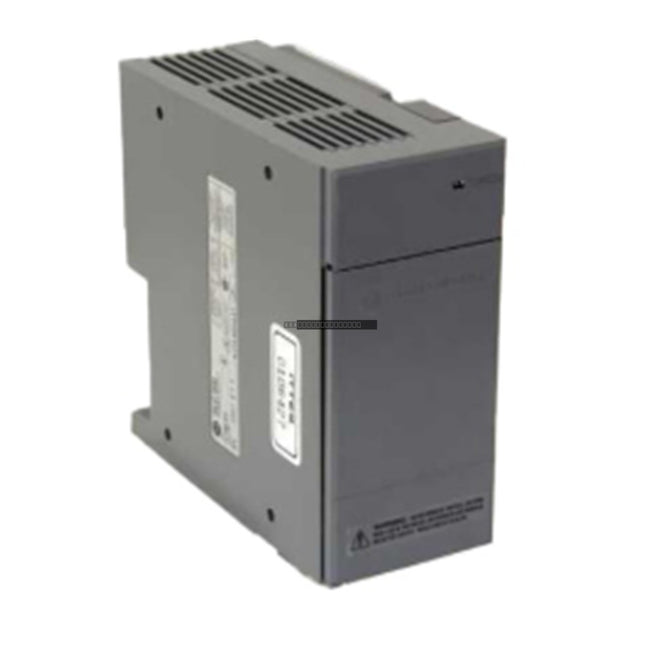

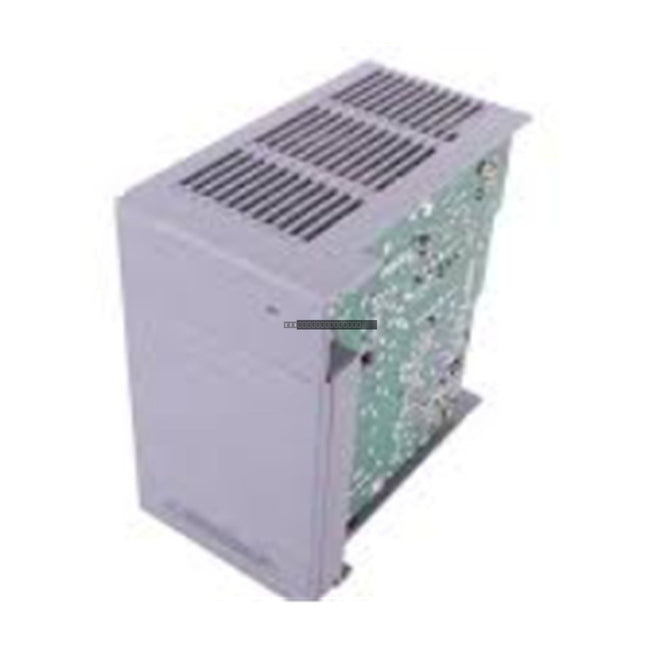

DescriptionThe Allen-Bradley 1746-QV is a dedicated motion control module engineered for the SLC 500 automation platform. This module specializes in open-loop velocity control, providing a reliable method for managing the speed and positioning of hydraulic or pneumatic actuators. By integrating feedback from a Linear Displacement Transducer (LDT) and processing motion instructions directly from the SLC processor, the 1746-QV enables smooth, profiled motion in systems that do not necessitate complex closed-loop servo synchronization.Features
Single-axis motion control capability for SLC 500 systems.
Supports integration with Linear Displacement Transducers (LDT) for precise position feedback.
Programmable motion profiles allowing for up to seven distinct voltage levels to manage acceleration and deceleration.
Analog output range of -10V to +10V DC for versatile actuator drive control.
Optimized for reducing mechanical stress and pressure spikes in hydraulic applications.
Fast update time of 2 ms for responsive motion execution.
ApplicationsThe 1746-QV is particularly well-suited for industrial machinery requiring controlled, non-CNC motion, including hydraulic presses, industrial welders, and die casting equipment. Its ability to profile motion cycles helps in achieving consistent cycle times and extending the lifespan of mechanical components.Technical Specifications
Brand
Allen-Bradley
Product Series
SLC 500
Module Type
Open-Loop Velocity Control
Axes Controlled
1
Analog Output Range
-10 to +10V DC
Update Time
2 ms
Backplane Current (5V DC)
215 mA
Operating Temperature
0 to 60 degC (32 to 140 degF)
Storage Temperature
-40 to 85 degC (-40 to 185 degF)
Humidity
5% to 95% (non-condensing)
Installation Guidelines
Ensure the SLC 500 chassis power is disconnected before installing or removing the 1746-QV module.
Handle the module using proper ESD (electrostatic discharge) precautions to prevent damage to internal circuitry.
Verify that the LDT feedback cable is properly shielded and routed away from high-voltage AC lines to minimize electromagnetic interference (EMI).
Ensure the module is fully seated in the SLC 500 backplane slot and secured with the integrated locking tabs.
Maintain adequate spacing within the enclosure to allow for proper ventilation and heat dissipation.
FAQWhat is the primary function of the 1746-QV?It is designed for open-loop velocity control of hydraulic or pneumatic actuators, allowing users to define acceleration and deceleration profiles via the SLC 500 processor.Does this module support closed-loop control?No, the 1746-QV is specifically designed for open-loop velocity applications where full servo-loop synchronization is not required.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Siemens 6ES5373-0AA41 is a non-volatile CMOS EPROM (C-EPROM) memory submodule designed for use with legacy SIMATIC S5 programmable logic controllers. This module provides 32 Kbytes of reliable storage for user programs, system configurations, and logic sequences. It acts as a critical component for maintaining operational continuity in older automation systems, allowing for rapid program restoration after power cycles or system resets without the need for external battery support.Features
Non-volatile storage technology ensures data integrity without requiring constant backplane power.
32 Kbytes memory capacity suitable for complex S5 control logic.
Ruggedized housing designed for secure insertion into S5 CPU memory slots.
Gold-plated edge connectors for high-reliability signal transmission and resistance to oxidation.
Compact, plug-in design facilitates quick field replacement and maintenance.
ApplicationsThis memory submodule is widely utilized in legacy industrial environments where SIMATIC S5 controllers remain in service. Common applications include material handling, power generation infrastructure, and heavy manufacturing processes where system uptime and rapid recovery from power loss are critical.Technical Specifications
Model
6ES5373-0AA41
Brand
Siemens
Series
SIMATIC S5
Memory Type
CMOS EPROM
Capacity
32 Kbytes
Operating Temperature
0 to 60 deg C
Power Consumption
0.5 W
Installation Guidelines
Ensure the CPU power is completely disconnected before inserting or removing the memory submodule to prevent electrical damage.
Handle the module by the edges to avoid electrostatic discharge (ESD) damage to the integrated circuits.
Align the submodule carefully with the CPU memory slot to avoid bending the edge connector pins.
Ensure the module is fully seated to maintain consistent contact with the backplane communication rails.
Verify that the slot is free of debris or dust before installation to ensure optimal data line integrity.
FAQDoes this module require a battery for data retention?No, the 6ES5373-0AA41 uses C-EPROM technology, which is non-volatile and retains data without the need for a backup battery.Is this module compatible with all SIMATIC S5 CPUs?This module is designed for specific S5 CPU models that support the 32 Kbyte C-EPROM format. Please verify your CPU's memory slot specifications and compatibility before installation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Product DescriptionThe Allen-Bradley 1756-CN2R/B is a high-performance, Series B ControlNet communication bridge module engineered for the ControlLogix platform. This module facilitates deterministic data exchange between controllers, remote I/O, drives, and other intelligent field devices. As a redundant bridge, it provides a robust communication backbone for critical control applications, ensuring high availability through dual-channel coaxial support.Features
Redundant Communication: Dual BNC ports allow for media redundancy, enabling the network to maintain operations seamlessly if one coaxial cable segment fails.
Deterministic Throughput: Operates at a consistent 5 Mbps speed, ensuring predictable data delivery across the ControlNet network.
High Capacity: Supports up to 99 nodes on the network with a maximum of 131 total connections, including 128 dedicated Logix connections.
Integrated USB Port: Includes a local USB port for convenient configuration and diagnostics.
Series B Reliability: Updated hardware revision for enhanced processing and improved stability in industrial environments.
ApplicationsThis module is typically deployed in large-scale manufacturing and process control environments where network reliability is paramount. It is commonly used for distributed I/O control, inter-controller messaging, and high-speed data synchronization in ControlLogix systems.Technical Specifications
Model
1756-CN2R/B
Series
Series B
Communication Rate
5 Mbps
USB Port Speed
12 Mbps
Max Nodes
99
Max Connections
131 (128 Logix)
Backplane Current (5.1V)
1300 mA
Backplane Current (24V)
3 mA
Max Power Dissipation
6.7 Watts
Operating Temperature
0 to 60 deg C
Enclosure Type
Open
Installation Guidelines
Handling: This module is sensitive to electrostatic discharge (ESD). Ensure proper grounding procedures are followed before handling or installing the card.
Mounting: Designed for installation in any standard 1756 ControlLogix chassis. Ensure the module is fully seated in the slot and the top/bottom retaining clips are secured.
Cabling: Use only 1786-RG6 quad-shield coaxial cable for ControlNet connections to maintain signal integrity.
Power: Always disconnect power from the ControlLogix chassis backplane before inserting or removing the communication module.
Environment: Maintain adequate clearance around the chassis to ensure proper ventilation and cooling, keeping the ambient temperature within the specified 0 to 60 deg C range.
FAQQ: Does this module support non-redundant configurations?A: While the 1756-CN2R/B is designed for redundant media applications, it can be used in non-redundant setups if only one BNC port is connected, though it is specifically built to provide the redundancy feature.Q: Is this module compatible with all ControlLogix chassis?A: It is compatible with standard 1756 series chassis, including the 1756-A4, A7, A10, A13, and A17 models.

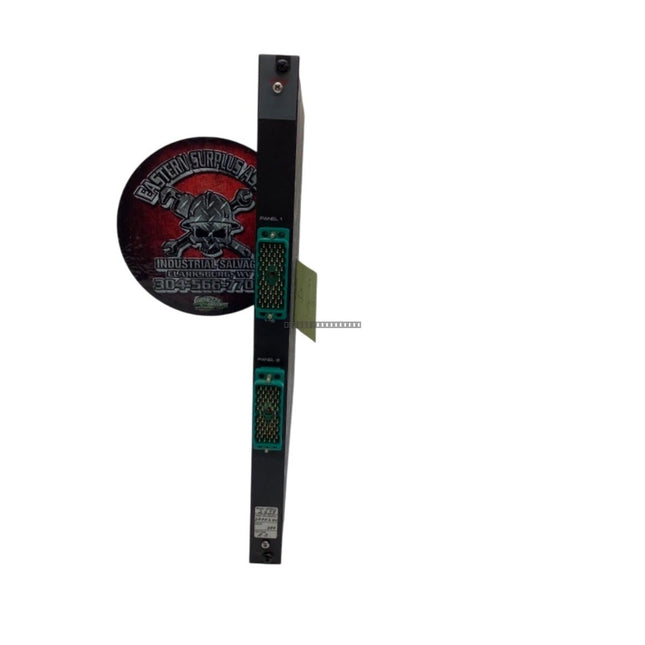

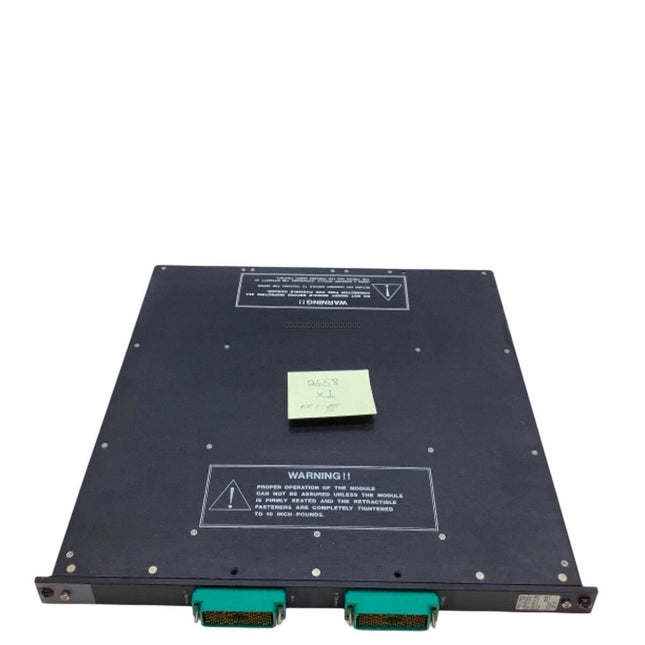

DescriptionThe Triconex 2658 is an external termination module engineered for use within high-integrity Triconex safety instrumented systems. It serves as a critical interface for digital input signal loops, facilitating the transition from field-side wiring to the primary system backplane. Designed for demanding industrial environments, the module ensures signal integrity by standardizing input paths and providing robust protection against electrical transients and common-mode noise, which helps maintain the reliability of safety-critical logic.Features
Optimized for Triple Modular Redundant (TMR) safety architectures.
Integrated passive protection circuitry, including current-limiting resistors and surge suppression diodes.
High-density screw-clamp terminal blocks for secure field wire termination.
Dedicated grounding rails and shield termination points to mitigate electromagnetic interference (EMI) and radio-frequency interference (RFI).
Locking ribbon cable headers for reliable, vibration-resistant connection to system I/O cards.
ApplicationsThis module is specifically suited for safety-critical applications in sectors such as oil and gas refining, petrochemical processing, power generation, and heavy mining. It is typically deployed where high-density digital signal processing requires consistent isolation and protection from field-induced electrical faults.Technical Specifications
Model
2658
Manufacturer
Triconex (Invensys)
Module Type
Digital Input External Terminator
Operating Temperature
0 to 60 deg C
Installation Guidelines
Ensure the system power is fully disconnected before installing or removing the module from the cabinet.
Mount the module in a clean, dry environment within the control cabinet to prevent moisture-related signal degradation.
Ensure all field-side shields are properly terminated to the provided grounding rails to maintain noise immunity.
Verify that all screw-clamp connections are tightened to the appropriate torque to prevent intermittent contact.
Maintain proper clearance around the module to ensure adequate thermal dissipation during operation.
FAQIs the 2658 module compatible with all Triconex systems?The 2658 is designed for specific Triconex digital input loop applications. We recommend verifying your system's hardware compatibility list and the specific I/O card revision before installation.What is the primary function of the passive protection network on this module?The internal network, consisting of resistors and diodes, is designed to limit current and suppress voltage surges originating from the field, thereby protecting the downstream I/O processing backplane from damage.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

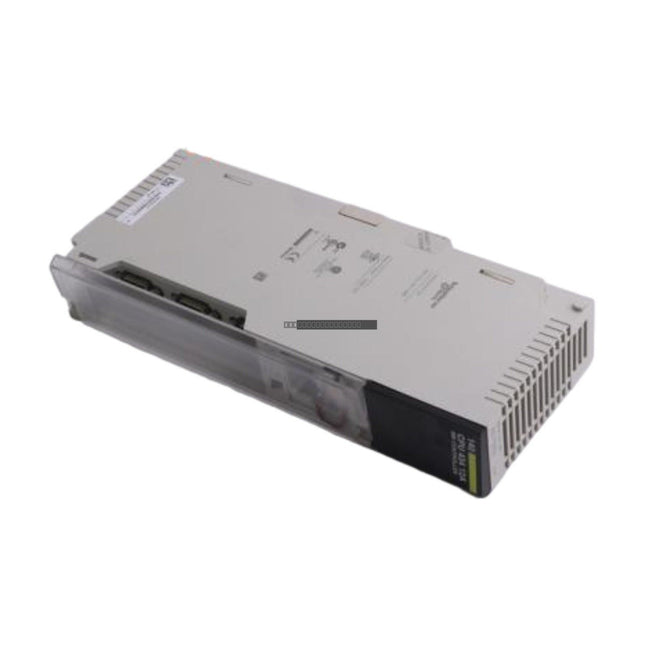

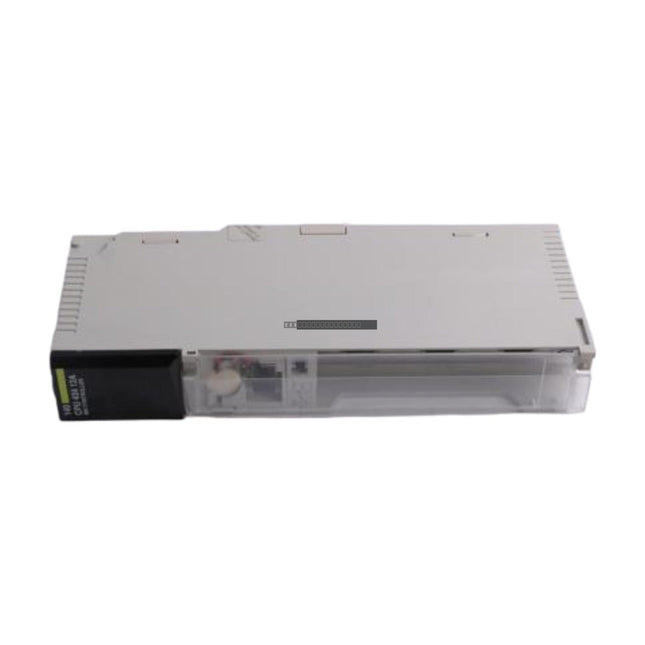

The Schneider Electric 140CPU4321A is a high-performance central processing unit designed for the Modicon Quantum automation platform. This module provides robust control capabilities suitable for demanding industrial environments, featuring an 80486 processor architecture running at a clock frequency of 66 MHz. It is engineered to support complex logic execution, offering reliable processing power for distributed and remote I/O configurations.Features
Processor: 80486 architecture operating at 66 MHz.
Memory: Equipped with 896 kB of internal RAM for application storage and data processing.
Instruction Speed: Optimized for LL984, with an execution time of 0.1 to 0.5 ms per 1 Kinstruction.
Network Capacity: Supports up to 63 distributed drops and 31 remote drops for scalable system expansion.
System Monitoring: Integrated 250 ms watchdog timer for enhanced operational safety.
Software Compatibility: Fully compatible with ProWORX 32 and Concept programming environments.
Technical Specifications
Model
140CPU4321A
Processor
80486
Clock Frequency
66 MHz
Internal RAM
896 kB
Bus Current Consumption
1250 mA
Clock Drift
+/- 8 s/day (0 to 60 degC)
Watchdog Timer
250 ms
Installation Guidelines
Ensure the power supply is disconnected before installing or removing the CPU module from the Quantum rack.
Verify that the backplane connector pins are clean and free of debris to ensure reliable electrical contact.
The module should be seated firmly into the designated slot and secured using the integrated locking mechanisms.
Maintain adequate ventilation within the control cabinet to prevent overheating, keeping the ambient temperature within the specified 0 to 60 degC range.
Route communication cables away from high-voltage power lines to minimize electromagnetic interference (EMI).
Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
FAQWhat software is required to program the 140CPU4321A?This module is compatible with Schneider Electric's ProWORX 32 and Concept programming software suites.What is the typical bus current requirement for this unit?The 140CPU4321A requires 1250 mA from the backplane bus.What is the operating temperature range for this CPU?The module is designed for operation within an ambient temperature range of 0 to 60 degC.
