ABB ABB DSQC363 3HAC1462-1 Robot Controller Circuit Board
ABB DSQC363 3HAC1462-1 Robot Controller Circuit Board The ABB DSQC363 3HAC1462-1, also cataloged as the DSQC363 Robot Controller Circuit Board, operates as a dedicated hardware component for internal power distribution and signal handling within ABB S4Cplus robot controller platforms. Hardware Specifications Parameter Specification Model ABB DSQC363 / 3HAC1462-1 Brand ABB Origin Sweden Product Type Robot Controller Circuit Boards Controller Platform ABB S4Cplus Robot Controller Systems Weight Approx. 1.35 kg to 1.9 kg Dimensions Approx. 18.4 cm x 22.2 cm x 24.1 cm Operating Temp Not specified by available documentation Power Consumption Internal controller power distribution load, system dependent Function Internal power and signal interface circuit board Application ABB Industrial Robot Spare Hardware Backplane Bus Communication and I/O Integration The ABB DSQC363 integrates into the ABB controller hardware architecture through internal electrical interfaces. Therefore, it supports controller-level power routing and signal exchange between connected assemblies. The module operates within the ABB S4Cplus platform structure, where backplane communication velocity and firmware compatibility depend on the installed controller generation. Additionally, correct hardware revision matching ensures proper integration with existing robot controller assemblies. Frequently Asked Questions Q: Is the ABB DSQC363 compatible with all ABB robot controllers?A: No. The DSQC363 is designed for specific ABB controller generations, including S4Cplus systems. The controller hardware revision and part number must match before installation. Q: Does the DSQC363 require firmware configuration after replacement?A: The board itself does not provide user-level firmware functions. However, the installed controller system may require hardware recognition checks after replacement. Q: What installation precautions apply to the DSQC363 circuit board?A: Technicians should verify power isolation, connector alignment, grounding condition, and electrostatic discharge protection before handling the module. Field Installation Guidelines Disconnect controller power before removing or installing the DSQC363 board. Verify the replacement part number matches ABB DSQC363 / 3HAC1462-1 before connection. Use proper ESD protection when handling exposed circuit assemblies. Inspect connectors and backplane contacts for contamination or mechanical damage. Maintain original cable routing to prevent interference with internal controller signals. Confirm grounding connections before returning the robot controller to service.
$199.00 $99.00
-
ABB ABB DSQC345B Rectifier Unit / Robot Controller Power Module
ABB DSQC345B Rectifier Unit / Robot Controller Power Module The ABB DSQC345B, also cataloged as the DSQC345B Rectifier Unit, provides AC to DC power conversion for ABB S4C robot controller power circuits. The module executes DC supply generation for servo drive and control hardware assemblies inside ABB industrial robot cabinets. Hardware Specifications Parameter Specification Model DSQC345B Brand ABB Product Type Rectifier Unit / Bridge Rectifier Module Application ABB Industrial Robot Controller Power System Controller Platform ABB S4C Robot Controller Related Part Number 3HAB8101-2/04B Power Conversion Type AC to DC rectification Input Voltage 230 VAC typical Output Voltage 24 VDC typical Output Current 10 A typical Installation Location Robot control cabinet Compatible Robot Series ABB IRB series Origin Sweden / Switzerland depending on supply source Weight Approx. 0.3 kg to 3.3 kg depending on assembly version Dimensions Approx. 112 mm x 77 mm x 20 mm reference Operating Temp Industrial cabinet environment Power Consumption Determined by connected robot control load ABB Robot Power Conversion and Control Cabinet Integration The DSQC345B operates as a power conversion component within ABB robot controller assemblies. It transforms AC input voltage into DC power used by control electronics and servo-related circuits. Therefore, correct installation requires verification of the controller configuration, terminal wiring, and DC output requirements. For ABB industrial control platforms, hardware compatibility depends on cabinet architecture, power distribution design, and module revision. The DSQC345B supports replacement applications where the original rectifier unit part number matches the installed controller configuration. Frequently Asked Questions Q: What electrical function does the ABB DSQC345B perform?A: The DSQC345B performs AC to DC rectification and supplies DC power for ABB robot controller power circuits and associated control hardware. Q: Can the DSQC345B be installed in any ABB robot controller cabinet?A: No. Installation requires confirmation of the controller model, power circuit design, connector arrangement, and matching ABB spare part number. Q: Does the DSQC345B require parameter configuration after installation?A: The rectifier unit does not normally require software parameter configuration. The technician must verify electrical connections and DC output conditions before system operation. Field Installation Guidelines Disconnect all AC power sources before removing the existing rectifier unit. Verify the replacement module part number before installation. Inspect terminal connections and cable routing inside the robot cabinet. Maintain correct grounding and protective earth connections. Confirm DC output voltage before enabling robot controller operation. Check cabinet ventilation and surrounding environmental conditions. Perform functional testing of the robot controller and servo power system after replacement.
$199.00 $99.00
-
ABB DSQC328A 3HAC17970-1/05 ABB Robot Digital I/O Cards
ABB DSQC328A I/O Interface Module Configured for digital signal interface execution in ABB robot controller architectures, the ABB DSQC328A (3HAC17970-1/05) I/O Interface Module provides direct physical and electrical signal handling between robot control hardware and external automation devices. The module functions as a hardware interface component within ABB industrial robot systems for input and output signal integration. Hardware Specifications Parameter Specification Model DSQC328A (3HAC17970-1/05) Brand ABB Product Type I/O Interface Module / Robot Controller Interface Board Application ABB industrial robot controller signal interface Function Digital and/or analog signal exchange between controller and peripheral equipment Compatibility ABB robot controller hardware platforms Installation Type Controller rack or internal robot cabinet mounting ABB Industrial Control Interface Characteristics The ABB DSQC328A operates as an interface component for ABB robotic control systems, managing electrical signal transmission between the controller and connected automation devices. Therefore, the module supports structured I/O expansion and signal routing within configured robot cells. The module is designed for integration with ABB controller architectures that use internal communication buses and standardized I/O structures. Furthermore, ABB controller backplane bus communication manages module data exchange and maintains synchronized signal processing between installed hardware components. The DSQC328A supports industrial automation integration where accurate I/O density scaling and firmware compatibility are required during controller maintenance or system expansion. Actual communication parameters depend on the installed ABB controller platform and system configuration. Frequently Asked Questions Q: Is the ABB DSQC328A compatible with all ABB robot controllers?A: No. Compatibility depends on the controller generation, rack configuration, and installed system software. Verify the hardware configuration before installation. Q: Does the DSQC328A provide independent field power supply outputs?A: The module power characteristics depend on the specific ABB controller architecture. Field wiring and power requirements must follow the applicable ABB hardware manual. Q: Can the DSQC328A be replaced without controller configuration changes?A: Replacement normally requires hardware verification and may require controller parameter validation depending on the robot system configuration. Field Installation Guidelines Install the DSQC328A inside the designated ABB controller rack position according to the system hardware layout. Disconnect controller power before removing or installing the module. Verify connector orientation and mechanical locking positions before insertion. Route signal cables separately from high-current power wiring to reduce electrical interference. Maintain proper grounding practices for shielded communication and I/O cables. Confirm controller firmware compatibility after module replacement or maintenance activities.
$199.00 $99.00
-
ABB ABB Robotics DSQC227 Digital I/O Expansion Board
ABB DSQC227 Digital I/O Expansion Board Configured for digital signal expansion and external device interfacing in ABB S4 / S4C robot controller platforms, the ABB DSQC227 (DSQC227 Digital I/O Expansion Board) provides direct physical signal execution between controller hardware and connected field devices. The module manages 24 VDC discrete input and transistor output channels for industrial robot I/O communication. Hardware Specifications Parameter Specification Model DSQC227 Brand ABB Robotics Product Type Digital I/O Expansion Board / Bus Master I/O Module Operating Temp -25 deg C to +60 deg C Power Consumption Not specified Compatible System ABB S4 / S4C Robot Controller Series Digital Inputs 8 channels Digital Outputs 8 channels, transistor / solid state Nominal Input Voltage 24 VDC Power Supply Range 10-32 VDC Certifications CE, UL, RoHS Compliant ABB Industrial Control Bus and I/O Expansion Characteristics The ABB DSQC227 operates as a discrete signal expansion interface within ABB robot controller architectures. It exchanges binary field signals through dedicated digital input and output channels, allowing controller logic to process external sensors, actuators, and peripheral equipment. Furthermore, the module supports ABB S4 and S4C controller environments where I/O density expansion is required. The digital architecture enables scalable signal distribution while maintaining compatibility with ABB controller backplane communication structures. The module design follows ABB industrial control hardware practices, including firmware flash compatibility considerations, controller communication synchronization, and I/O density scaling for robotic automation applications. Frequently Asked Questions Q: What type of signals does the ABB DSQC227 process?A: The DSQC227 processes discrete digital signals through 8 digital input channels and 8 transistor-based digital output channels. Q: Is the DSQC227 compatible with ABB S4C controllers?A: Yes. The module is specified for ABB S4 and S4C robot controller series integration. Q: Does the DSQC227 require special grounding during installation?A: Installation should follow standard industrial practices, including correct protective grounding, suitable cable routing, and separation between signal wiring and high-power conductors. Field Installation Guidelines Verify controller compatibility before installing the DSQC227 module into an ABB robot system. Disconnect system power before performing hardware installation or removal operations. Install signal wiring according to ABB controller documentation and maintain separation between I/O cables and high-voltage wiring. Connect protective grounding according to industrial electrical installation standards. Confirm 24 VDC field supply polarity before connecting digital input and output terminals. Inspect connector seating and cable shielding before system startup. Perform I/O channel verification through the robot controller diagnostic functions after installation.
$199.00 $99.00
-

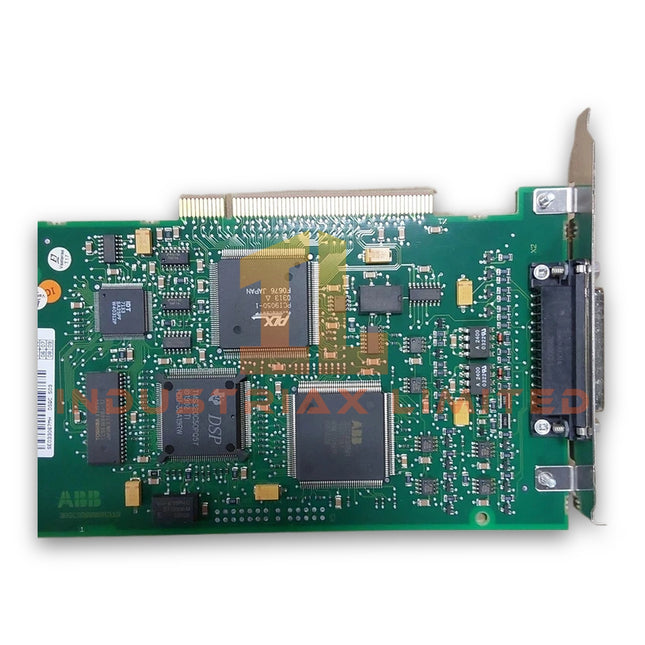

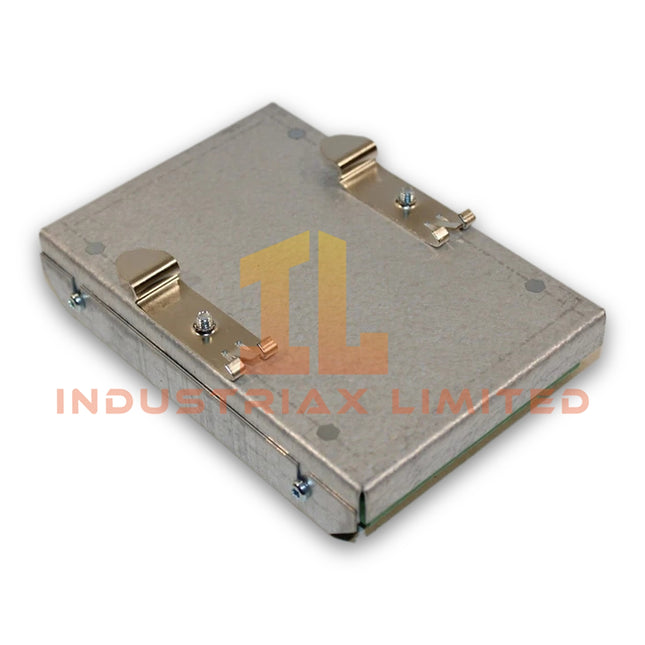

ABB ABB DSQC503 AXIS COMPUTER BOARD
ABB DSQC503 AXIS COMPUTER BOARD The ABB DSQC503 3HAC3619-1, also cataloged as the DSQC503 Axis Computer Board, operates as a dedicated hardware component for axis control signal processing within ABB industrial robot controller platforms. Hardware Specifications Parameter Specification Model DSQC503 3HAC3619-1 Brand ABB Product Type Axis Computer Board Origin Sweden Weight 2.36 kg Dimensions Estimated shipping size: 14.5 cm x 18 cm x 15 cm Operating Temp -10 deg C to 55 deg C Storage Temp -25 deg C to 70 deg C Humidity 5% to 95% non-condensing Input Voltage Typically 24 VDC Tariff Code 8537101190 ABB Industrial Control Architecture and Axis Processing The DSQC503 axis computer board executes axis-related processing functions inside ABB robot control architectures. It handles internal communication between motion control software and connected drive hardware. In addition, the board processes control data required for coordinated robot axis movement and feedback handling. For ABB controller systems, the hardware supports industrial control integration through internal backplane communication. Therefore, correct firmware compatibility and controller configuration are required before replacement or commissioning. The DSQC503 follows ABB PLC and robot automation design principles, including backplane bus communication velocity handling, firmware flash compatibility, and I/O density scaling within supported controller configurations. Frequently Asked Questions Q: Does the ABB DSQC503 support hot-swap replacement during controller operation?A: The DSQC503 is a controller hardware module. Hot-swap operation depends on the specific ABB robot controller architecture and system configuration. Power isolation is required before physical replacement unless the controller manual specifies otherwise. Q: What input voltage does the DSQC503 require?A: The available technical data specifies a typical input voltage of 24 VDC. The installed controller power distribution must match ABB system requirements. Q: Which environmental conditions apply to DSQC503 installation?A: The specified operating range is -10 deg C to 55 deg C with 5% to 95% non-condensing humidity. Installation should prevent condensation, contamination, and excessive vibration. Field Installation Guidelines Verify the ABB controller model and firmware compatibility before installing the DSQC503 3HAC3619-1 board. Disconnect controller power before removing or inserting the module. Inspect board connectors and backplane contacts for contamination or mechanical damage. Install the module according to ABB mechanical alignment requirements to prevent connector stress. Maintain proper cable routing to reduce electromagnetic interference near signal and power conductors. Confirm grounding continuity between the controller chassis and protective earth connection before startup. Perform controller diagnostics after installation to verify axis communication and module recognition.
$199.00 $99.00
-

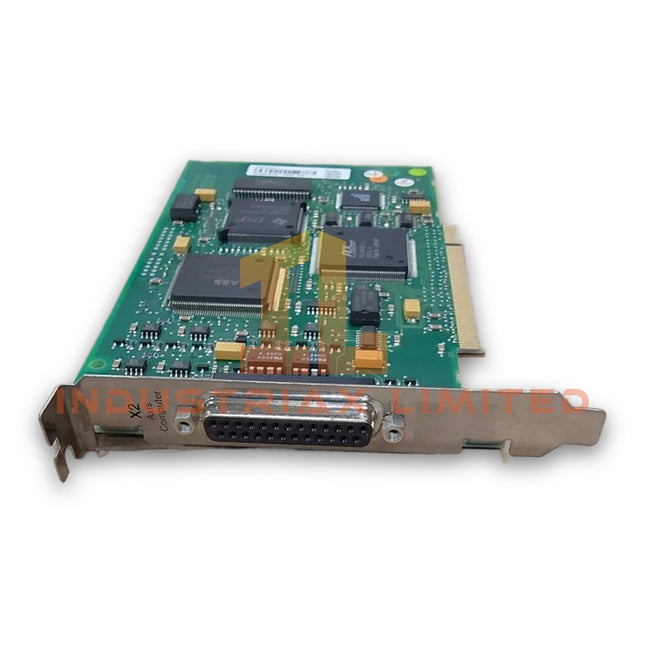

ABB ABB Robot DSQC503 3HAC3619-1 Axis Computer Board
ABB DSQC503 3HAC3619-1 Axis Computer Board The ABB DSQC503 3HAC3619-1, also cataloged as the DSQC503 Axis Computer Board, operates as a dedicated hardware component for axis control processing within ABB robot controller platforms. The board executes motion-related computing functions and handles internal communication between controller hardware and robot axis drive systems. Hardware Specifications Parameter Specification Model DSQC503 3HAC3619-1 Brand ABB Product Type Axis Computer Board Origin Sweden Weight 2.36 kg Dimensions 14.5 cm x 18 cm x 15 cm Operating Temp -10 deg C to 55 deg C Storage Temp -25 deg C to 70 deg C Humidity 5% to 95% non-condensing Input Voltage Typically 24 VDC Industrial Control and Drive Interface Characteristics The ABB DSQC503 supports axis-level processing functions inside ABB robot control architectures. Therefore, the module participates in real-time motion data handling between controller logic and servo drive components. The board is designed for ABB industrial control platforms that require coordinated axis computation, position processing, and internal backplane communication. Additionally, firmware flash compatibility should be verified before replacement to maintain controller software consistency. The DSQC503 belongs to ABB industrial control hardware using structured internal communication paths. Consequently, technicians should confirm controller generation, hardware revision, and software compatibility before installation. Frequently Asked Questions Q: What function does the ABB DSQC503 3HAC3619-1 perform in a robot controller?A: The DSQC503 functions as an Axis Computer Board that processes axis-related control tasks and exchanges data with compatible ABB robot controller hardware. Q: Does the DSQC503 require a specific input voltage supply?A: The module typically operates with a 24 VDC input supply according to the provided technical data. Q: What environmental conditions are specified for DSQC503 operation?A: The specified operating temperature range is -10 deg C to 55 deg C, with storage conditions from -25 deg C to 70 deg C and humidity from 5% to 95% non-condensing. Field Installation Guidelines Verify the ABB controller model and hardware revision before installing the DSQC503 board. Disconnect cabinet power before removing or inserting the module. Use anti-static protection when handling circuit board assemblies. Confirm connector alignment and seating condition after installation. Maintain proper cable routing to avoid electromagnetic interference from high-current drive circuits. Check grounding connections according to the controller cabinet installation requirements. Perform controller diagnostics and axis verification after module replacement.
$199.00 $99.00
-

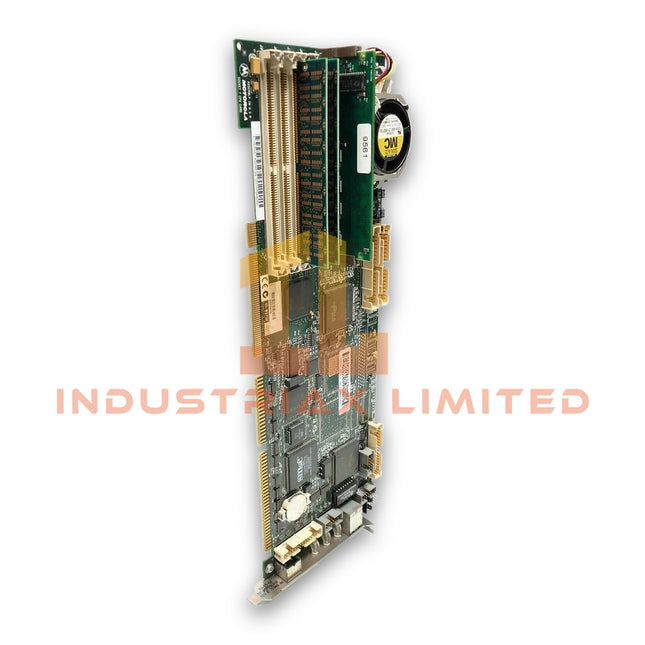

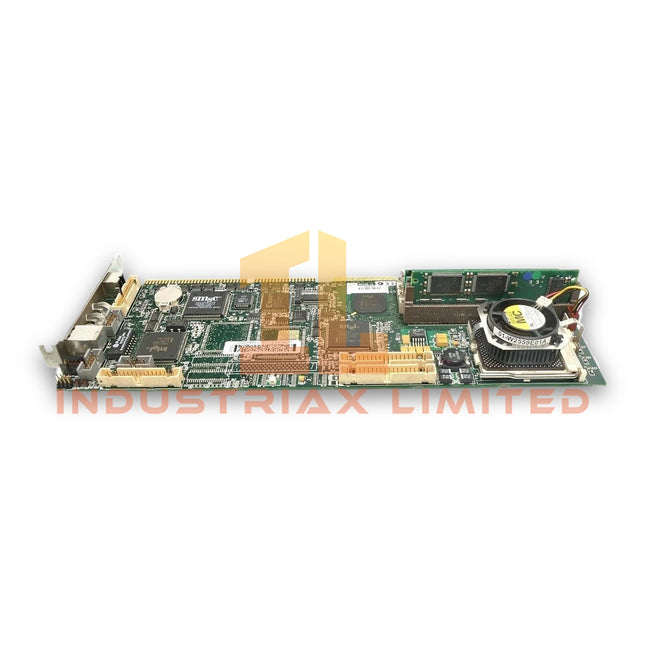

ABB DSQC500 3HAC3626-1 ABB Main Computer Board
ABB DSQC500 Main Computer Board The ABB 3HAC3616-1, also cataloged as the DSQC500 Main Computer Board, provides direct physical processing execution for ABB robot controller computer functions, including internal monitoring, system coordination, and controller data handling. Hardware Specifications Parameter Specification Model DSQC500 Full Order Number 3HAC3616-1 Brand ABB Product Type Main Computer Board Origin Sweden Weight 0.9 kg Dimensions 21.0 cm x 20.3 cm x 2.5 cm Controller Platform ABB Industrial Robot Controller Systems Hardware Function Main processing and monitoring board Industrial Controller Processing and Communication The ABB DSQC500 operates as a main computer board within ABB robot controller architectures. It manages internal processing tasks, controller monitoring functions, and communication between system hardware sections. Furthermore, ABB controller platforms depend on coordinated backplane communication and firmware compatibility to maintain correct module operation. The DSQC500 supports the controller's internal data exchange by executing programmed processing routines and hardware management functions. The board follows ABB industrial control design principles, including backplane bus communication velocity management, I/O density scaling capability, and firmware flash compatibility requirements for controller maintenance activities. Frequently Asked Questions Q: What is the primary function of the ABB DSQC500?A: The DSQC500 functions as a main computer board that performs controller processing, monitoring, and internal system coordination tasks within ABB robot systems. Q: Can the DSQC500 be installed in any ABB robot controller?A: No. Installation requires compatibility with the specific ABB controller architecture, hardware revision, and supported firmware configuration. Q: Does the DSQC500 support hot-swapping during operation?A: The provided technical data does not specify hot-swap capability. Replacement should follow ABB controller maintenance procedures with the system powered down unless documented otherwise. Field Installation Guidelines Verify the controller model and hardware revision before installing the DSQC500 board. Disconnect system power before removing or inserting the computer board. Use proper electrostatic discharge protection when handling the PCB assembly. Check connector alignment and ensure the board seats correctly in the controller chassis. Maintain clean cable routing to prevent mechanical stress on board connectors. Confirm firmware compatibility after hardware replacement according to ABB maintenance documentation.
$199.00 $99.00
-

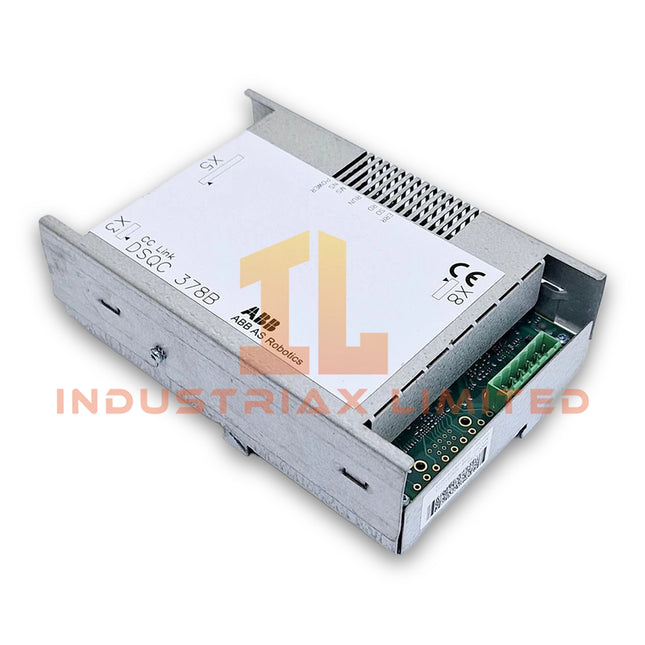

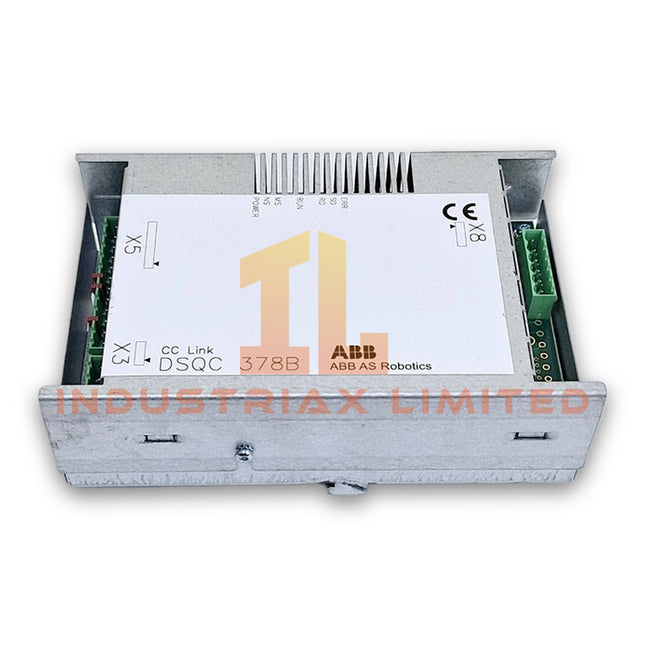

ABB ABB DSQC378B CC-Link Communication Module
ABB DSQC378B CC-Link Communication Module The ABB DSQC378B (3HNE00421-1), also cataloged as the DSQC378B CC-Link Communication Module, operates as a dedicated hardware component for CC-Link data exchange between ABB robot controllers and external automation devices. The module handles communication signals within ABB robot control architectures. Hardware Specifications Parameter Specification Model DSQC378B Brand ABB Origin Sweden Product Type CC-Link Communication Module Part Number 3HNE00421-1 Communication Protocol CC-Link Version 1.10 Data Transmission Speed Up to 10 Mbps Weight Approx. 0.55 kg Dimensions Approx. 15.2 cm x 12.7 cm x 3.6 cm Operating Temp -10 deg C to 50 deg C Power Consumption 5 W Industrial Network Communication Characteristics The ABB DSQC378B uses CC-Link Version 1.10 communication technology to exchange digital control data between ABB robot controllers and connected PLC systems. The module supports deterministic field communication by transferring process signals through the controller interface. Furthermore, ABB industrial control platforms use backplane bus communication methods to coordinate internal module data handling. The DSQC378B integrates into the robot controller cabinet and provides a defined communication channel for factory automation networks. The module design supports I/O density scaling requirements by allowing ABB robot systems to communicate with external automation equipment without additional signal conversion hardware. Firmware flash compatibility depends on the installed ABB controller generation and supported system software version. Frequently Asked Questions Q: What communication protocol does the ABB DSQC378B support?A: The DSQC378B supports CC-Link Version 1.10 communication for data exchange between ABB robot controllers and external automation equipment. Q: Can the DSQC378B operate as a standalone communication device?A: No. The module functions as an internal ABB robot controller interface and requires installation inside a compatible controller cabinet. Q: What installation factors should be considered for the DSQC378B?A: Installation requires correct controller slot placement, proper field cable routing, shielded communication wiring, and grounding practices according to ABB installation documentation. Field Installation Guidelines Install the DSQC378B inside the designated ABB robot controller cabinet slot. Verify controller compatibility and firmware support before module integration. Route CC-Link communication cables separately from high-voltage power cables to reduce electromagnetic interference. Connect cable shields according to industrial grounding practices. Inspect connector seating and mechanical fixing points before system power-up. Confirm communication status through ABB controller diagnostics after installation.
$199.00 $99.00
-

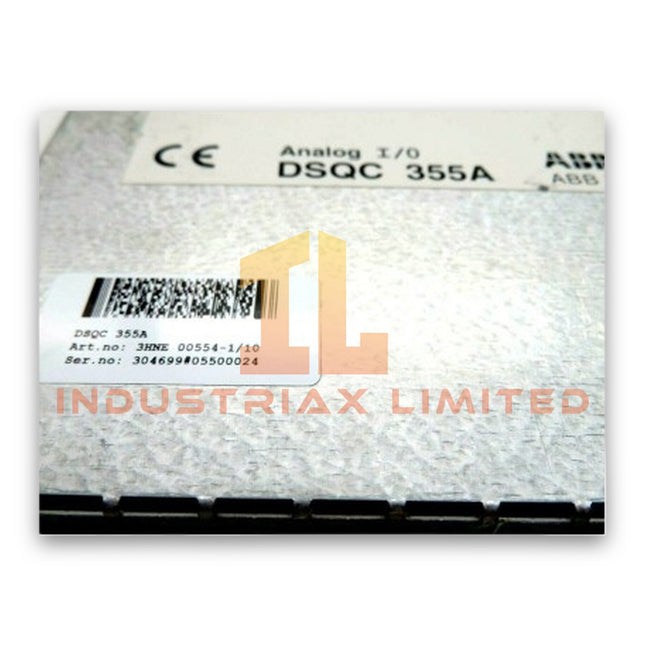

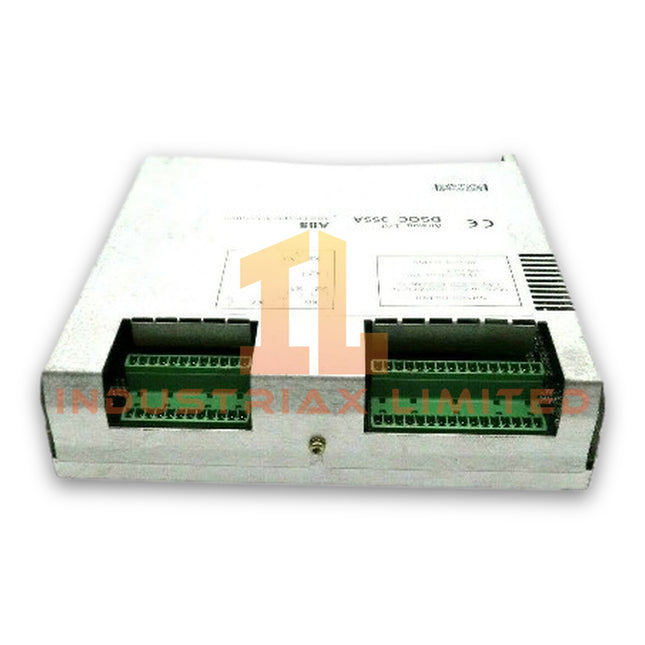

ABB ABB Robot DSQC355 Analog I/O Module
ABB DSQC355 Analog I/O Module Configured for analog signal processing in ABB industrial robot controller systems, the ABB DSQC355 (DSQC355 Analog I/O Module) provides direct physical and electrical execution for analog input and output signal conversion. The module handles voltage-based I/O channels with 12 bit resolution for controller interface operations. Hardware Specifications Parameter Specification Model DSQC355 Brand ABB Product Type Analog Input/Output Module Origin Sweden Weight Approx. 1.2 kg Analog Inputs 8 channels Analog Outputs 4 channels Input Signal Range -10 V to +10 V Output Signal Range 0 V to 10 V Resolution 12 bits Accuracy +/- 0.5% of full scale Update Rate 10 ms Industrial Control Interface and I/O Signal Processing The ABB DSQC355 uses analog channel processing technology for ABB automation controller environments. It supports voltage signal acquisition and output regulation through dedicated analog channels. Therefore, the module enables controlled data exchange between robot control hardware and external analog devices. The DSQC355 design supports I/O density scaling within ABB control architectures by providing multiple analog channels in a single hardware assembly. In addition, the module maintains signal conversion accuracy through defined resolution and update timing parameters. Frequently Asked Questions Q: What analog signals does the ABB DSQC355 support?A: The DSQC355 supports analog voltage input signals from -10 V to +10 V and analog voltage output signals from 0 V to 10 V. Q: How many analog channels are available on the DSQC355 module?A: The module provides 8 analog input channels and 4 analog output channels for controller signal interfaces. Q: Does the DSQC355 support hot-swapping during system operation?A: The provided technical data does not specify hot-swap capability. Installation and replacement should follow ABB controller power isolation procedures. Field Installation Guidelines Install the DSQC355 according to the ABB controller hardware configuration requirements. Verify controller power isolation before module insertion or removal. Use appropriate shielded wiring for analog signal connections to reduce electrical interference. Connect cable shields according to ABB grounding recommendations and site electrical standards. Separate analog signal wiring from high-voltage power cables to reduce noise coupling. Confirm channel configuration and signal scaling parameters before commissioning.
$199.00 $99.00
-
ABB ABB Robot Controllers DSQC354 Encoder Interface Card
ABB DSQC354 Encoder Interface Card Configured for encoder signal acquisition in ABB robot controller platforms, the ABB 3HNE00065-1/05 (DSQC354 Encoder Interface Card) provides direct physical and electrical execution for processing incremental encoder feedback and supporting robot axis position measurement functions. Hardware Specifications Parameter Specification Model DSQC354 Full Model 3HNE00065-1/05 Brand ABB Robotics Product Type Encoder Interface Card Origin Sweden Weight Approx. 0.4 kg Dimensions Not specified in available technical data Operating Temp -20 deg C to +70 deg C Power Consumption Approx. 5 W Supply Voltage 24 VDC Encoder Input Type Incremental, absolute, and servo encoder feedback interfaces Signal Format A/B phase orthogonal pulse inputs Pulse Resolution Configurable from 1 to 65,535 pulses per revolution Maximum Pulse Frequency Up to 1 MHz Profinet and Industrial Control Interface Characteristics The ABB DSQC354 operates as an encoder feedback processing module within ABB robot control architectures. It receives pulse-based position signals from connected encoders and converts these inputs into motion feedback data for controller axis regulation. Furthermore, the module supports high-speed encoder signal acquisition through differential A/B phase processing. The design allows ABB robot systems to maintain position feedback accuracy by reducing signal distortion during pulse transmission. The DSQC354 follows ABB industrial control hardware practices, including backplane communication management, I/O density scaling, and firmware compatibility requirements within supported controller generations. Frequently Asked Questions Q: What encoder signals can the ABB DSQC354 process?A: The DSQC354 processes encoder feedback signals including incremental, absolute, and servo encoder interfaces. The input method depends on the connected robot system configuration. Q: Does the DSQC354 require a separate power supply connection?A: The module operates with a 24 VDC supply input. Installation must follow the power distribution design of the applicable ABB robot controller. Q: Can the DSQC354 be installed in any ABB robot controller?A: No. Compatibility depends on controller generation, hardware configuration, firmware support, and system architecture requirements. Field Installation Guidelines Install the DSQC354 only in the designated ABB controller rack position defined by the system hardware configuration. Verify encoder cable shielding before commissioning. Connect shield layers according to ABB grounding practices to reduce electromagnetic interference. Separate encoder signal wiring from high-voltage motor cables and switching power circuits. Confirm encoder channel assignment, pulse direction, and feedback scaling parameters before robot calibration. Inspect connectors and cable terminations for proper mechanical locking and signal continuity. Verify firmware and controller compatibility before replacing an installed encoder interface module.
$199.00 $99.00
-
ABB ABB DSQC346G AC Servo Drive Unit
ABB DSQC346G AC Servo Drive Unit The ABB DSQC346G 3HAB8101-8, also cataloged as the DSQC346G AC Servo Drive Unit, operates as a dedicated hardware component for servo motor power regulation and motion execution within ABB S4C+ robot controller systems. Hardware Specifications Parameter Specification Model DSQC346G / 3HAB8101-8 Brand ABB Product Type AC Servo Drive Unit / Robot Drive Module Origin Sweden Weight 3.6 kg Dimensions Approx. 12.7 cm x 36.8 cm x 17.8 cm Compatible Controller ABB S4C+ robot controller systems Application Industrial robot motion control and servo motor regulation Industrial Drive Control and Backplane Communication The ABB DSQC346G functions as a servo power control interface inside ABB robotic controller architectures. It receives control commands from the robot controller and regulates electrical power output to AC servo motors for axis movement execution. Furthermore, the module operates within ABB industrial control hardware structures where backplane communication velocity and firmware compatibility affect system coordination. The DSQC346G supports synchronized interaction between the robot computer unit, drive electronics, and motor feedback circuits. The unit manages servo drive functions including motor current regulation, axis positioning response, and motion control feedback processing. Therefore, correct installation within the specified ABB controller configuration is required for proper axis operation. Frequently Asked Questions Q: Which ABB controller platform is compatible with the DSQC346G?A: The DSQC346G is designed for ABB S4C+ robot controller systems and functions as an AC servo drive unit within this hardware platform. Q: Does the DSQC346G provide direct motor feedback processing?A: The module participates in servo axis control loops, while complete feedback processing depends on the connected ABB robot controller architecture and associated feedback hardware. Q: Can the DSQC346G be installed in any ABB robot controller?A: No. Installation must follow the specified S4C+ controller hardware configuration, connector arrangement, and system compatibility requirements. Field Installation Guidelines Verify the controller power supply is isolated before removing or installing the servo drive unit. Confirm connector positions and mechanical mounting alignment before applying power. Use appropriate grounding methods for the controller cabinet and servo drive assembly. Keep motor power cables separated from low-level signal cables to reduce electrical interference. Inspect cable shielding and termination conditions before system commissioning. Confirm firmware compatibility and controller configuration after module replacement.
$199.00 $99.00
-

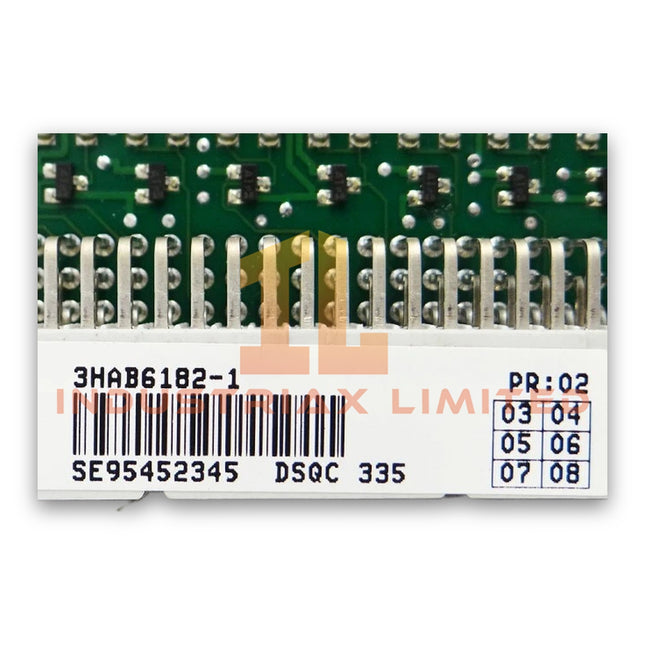

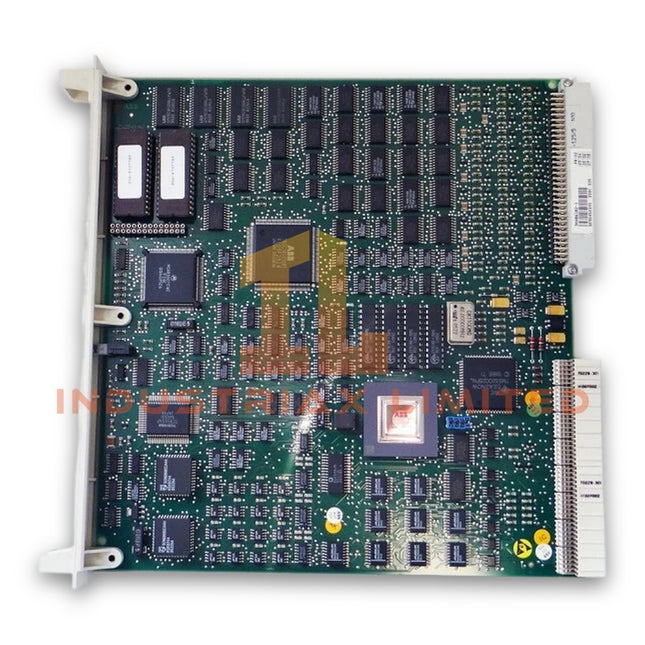

ABB ABB IRC5 DSQC335 Robot Control Board
ABB DSQC335 Robot Control Board The ABB DSQC335 (3HAB6182-1), also cataloged as the DSQC335 Robot Control Board, operates as a dedicated hardware component for communication processing and motion control execution within ABB industrial robot controller platforms. Hardware Specifications Parameter Specification Model DSQC335 Brand ABB Product Type Robot Control Boards Part Number 3HAB6182-1 Origin Sweden Weight Approx. 0.4 kg Dimensions Approx. 2.0 cm x 24.1 cm x 25.4 cm Operating Temp -20 deg C to +60 deg C System Compatibility ABB industrial robot systems, including S4C+ and IRC5 generation platforms Communication Interface DeviceNet support Hardware Function Robot controller communication and internal processing board Industrial Control Network and Firmware Compatibility The ABB DSQC335 integrates with ABB robot controller architectures through internal communication buses and controller firmware interfaces. It processes control data exchange between robot system components and connected automation devices. Furthermore, the module supports ABB controller communication functions through DeviceNet connectivity, allowing data transfer between robot controllers and external field devices. The hardware design supports firmware-controlled operation, where compatibility depends on the installed robot controller generation and software revision. Frequently Asked Questions Q: What is the primary function of the ABB DSQC335 module?A: The DSQC335 functions as a robot control and computer board that manages internal communication processing and controller data exchange within compatible ABB robot systems. Q: Does the DSQC335 support external industrial communication networks?A: Yes. The module provides DeviceNet communication support for exchanging signals between ABB robot controllers and connected automation equipment. Q: Can the DSQC335 be installed in any ABB robot controller?A: No. Installation requires compatibility verification with the specific ABB controller architecture, hardware configuration, and firmware version. Field Installation Guidelines Verify the controller power supply is disconnected before removing or installing the DSQC335 module. Confirm the replacement board matches the original hardware part number and controller configuration. Install the module according to ABB rack positioning and connector alignment requirements. Inspect backplane connectors for contamination, mechanical damage, or oxidation before installation. Maintain proper grounding and cable routing practices to reduce communication interference. Verify firmware compatibility after module replacement before returning the robot system to operation.
$199.00 $99.00
-

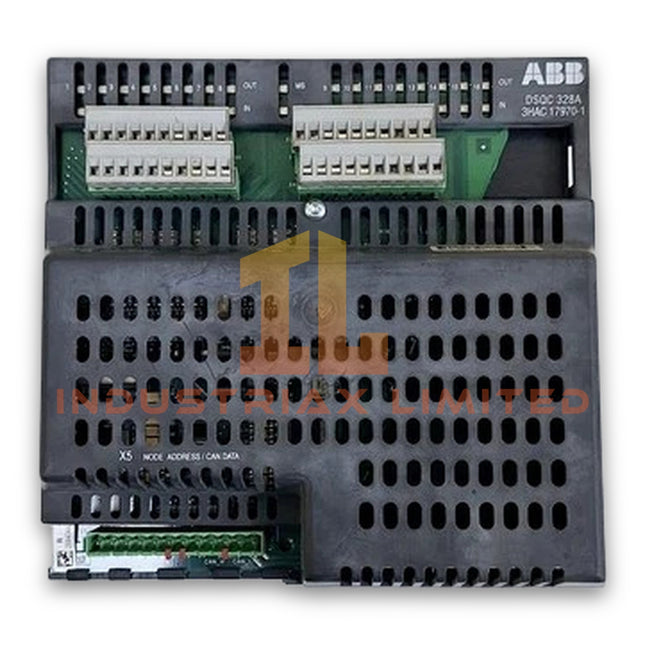

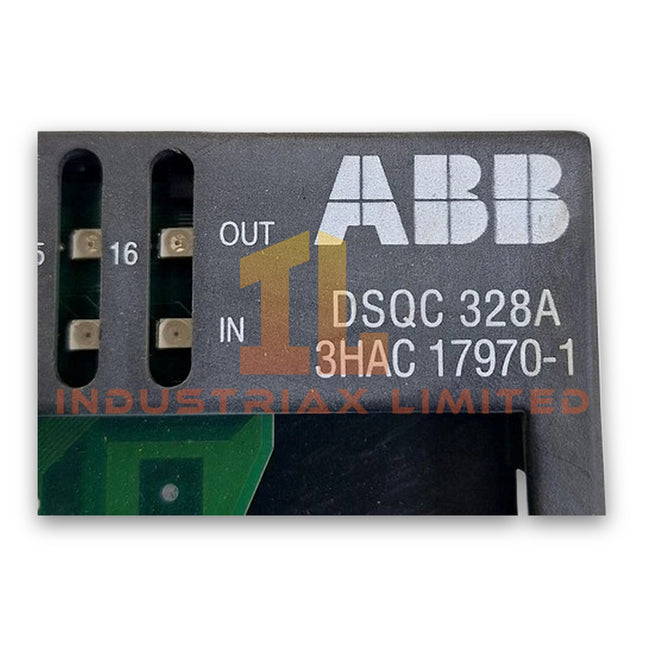

ABB ABB DSQC328A Digital Input/Output Module
ABB DSQC328A Digital Input/Output Module The ABB 3HAC17970-1, also cataloged as the DSQC328A Digital Input/Output Module, operates as a dedicated hardware component for signal acquisition and output execution within ABB robot controller platforms. The module processes 24 VDC field signals between controller electronics and connected sensors or actuators. Hardware Specifications Parameter Specification Model DSQC328A Brand ABB Part Number 3HAC17970-1 Product Type Digital Input/Output Module Origin Sweden Weight Approximately 0.38 kg Operating Voltage 24 VDC System Compatibility ABB S4C+ and IRC5 robot controller architectures Signal Function Digital field signal input and output processing Industrial Control Backplane and I/O Signal Management The ABB DSQC328A uses ABB robot controller I/O architecture to exchange discrete signals between the control system and external equipment. Therefore, the module supports direct connection of field devices such as proximity sensors, switches, and actuator control circuits. In addition, ABB industrial controller platforms apply structured backplane communication for module data transfer. The DSQC328A supports I/O density expansion by adding digital channels within compatible robot controller configurations. Firmware and hardware revision compatibility must be verified against the target controller configuration before replacement. The module design follows ABB industrial automation requirements for electrical noise resistance, channel status observation, and cabinet-based installation. Furthermore, LED status indicators provide local diagnostic information during commissioning and maintenance operations. Frequently Asked Questions Q: What type of signals does the ABB DSQC328A process?A: The DSQC328A processes digital input and output signals associated with ABB robot controller field interfaces. It is designed for discrete 24 VDC signal exchange. Q: Can the DSQC328A be installed in any ABB robot controller system?A: No. The module requires compatibility with the specific ABB controller architecture, hardware revision, and configured I/O system. Q: Does the DSQC328A support hot-swap replacement?A: Hot-swap operation depends on the controller platform configuration. Power isolation and manufacturer installation procedures should be followed before module removal or insertion. Field Installation Guidelines Confirm controller power isolation before installing or removing the DSQC328A module. Verify module position, rack configuration, and hardware revision against ABB controller documentation. Use appropriate industrial wiring practices for 24 VDC digital signal connections. Separate I/O signal cables from high-voltage power cables to reduce electrical interference. Connect cabinet grounding according to ABB installation requirements. Check LED indicators after startup to confirm module communication and channel status. Perform I/O configuration verification after hardware replacement.
$199.00 $99.00
-

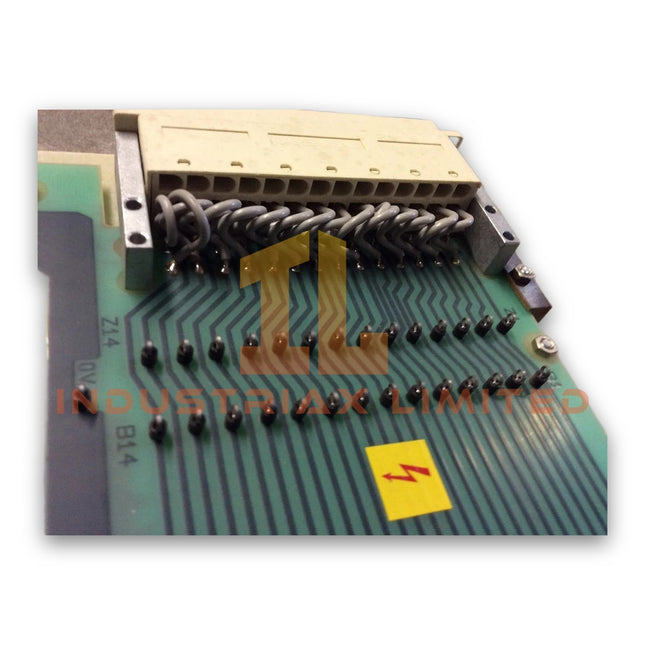

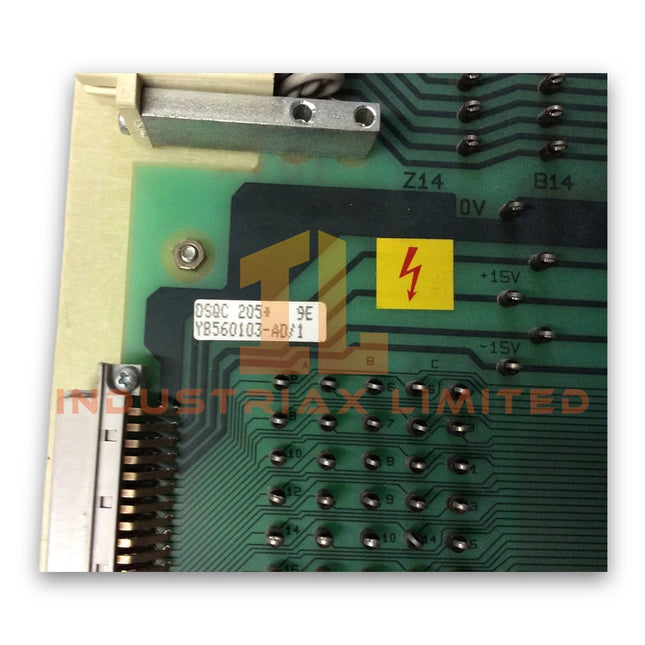

ABB DSQC205 ABB Robots Robot Modules
ABB DSQC205 Robot Module Configured for extension I/O control and communication interface tasks in ABB S4 and S4C robot controller systems, the ABB YB560103-AD/1 (DSQC205 Robot Module) provides direct physical and electrical execution for robotic cell signal expansion and controller communication functions. Hardware Specifications Parameter Specification Model DSQC205 Brand ABB Spare Model YB560103-AD/1 Product Type Robot Module Device Function Extension I/O and Communication Board Compatible Systems ABB S4 / S4C Robot Controller Platforms Input Voltage 220-240 VAC Input Frequency 50/60 Hz Output Voltage 24 VDC Maximum Output Current 4.16 A Power Consumption 120 W Weight 0.7 kg Dimensions 25.4 x 5.1 x 40.6 cm (shipping size provided) Storage Temperature -40 deg C to +85 deg C Backplane Bus Communication and I/O Density Scaling The ABB DSQC205 operates as an extension hardware module within ABB robot controller architectures. Therefore, the board supports controller-side signal expansion through defined internal communication paths. The module design follows ABB industrial control hardware practices, including backplane communication management and I/O density scaling for robotic cell configurations. The DSQC205 integrates electrical interfaces for controller communication and field signal handling. Additionally, correct firmware compatibility between the robot controller generation and installed hardware revision must be verified before replacement or system modification. Frequently Asked Questions Q: What controller platforms support the ABB DSQC205 module?A: The DSQC205 is specified for ABB S4 and S4C robot controller systems. Compatibility depends on the installed controller configuration and hardware revision. Q: Does the DSQC205 provide 24 VDC output capability?A: The provided technical data lists a 24 VDC output with a maximum output current of 4.16 A. Actual application loading must follow ABB controller specifications. Q: Can the DSQC205 be installed without firmware verification?A: No. The installed controller firmware and hardware revision should be checked before commissioning to maintain communication compatibility. Field Installation Guidelines Install the DSQC205 module inside the designated ABB robot controller cabinet slot according to the controller hardware manual. Verify power isolation before removing or installing the module. Check connector alignment and avoid mechanical stress on board interfaces during installation. Maintain proper cabinet grounding and ensure cable shields follow the original ABB wiring requirements. Separate signal wiring from high-current power cables to reduce electrical interference. Confirm controller recognition and communication status after installation before returning the robot system to operation.
$199.00 $99.00
-

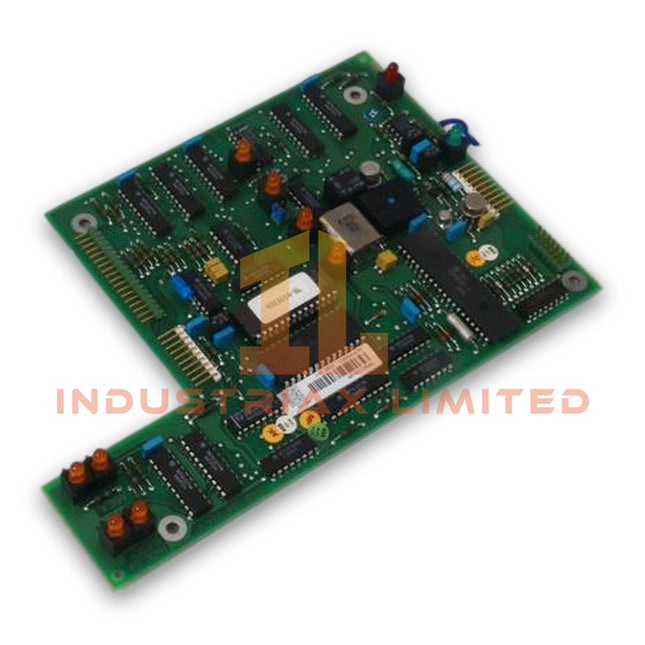

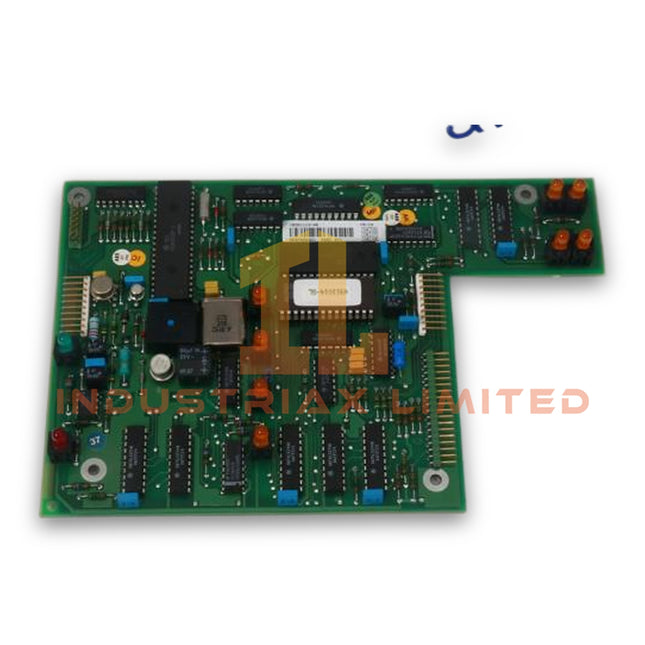

ABB DSQC201 ABB Robots Robot Modules
ABB DSQC201 Robot Module The ABB DSQC201 YB560103-AB, also cataloged as the DSQC201 Robot Module, operates as a dedicated hardware component for signal interface and control execution within ABB industrial robot controller platforms. Hardware Specifications Parameter Specification Model DSQC201 Brand ABB Product Type Robot Module / I/O Interface Module Weight 0.18 kg Dimensions 21.1 x 14 x 2.1 cm estimated shipping size Spare Model YB560103-AB System Compatibility ABB Industrial Robotics Systems Hardware Function Robot control signal interface and I/O processing Backplane Bus Communication and I/O Interface Characteristics The ABB DSQC201 operates as an interface module within ABB robot control architectures. It manages electrical signal exchange between controller hardware and connected robot system components. The module supports structured communication through the ABB controller hardware environment. Therefore, installation requires verification of controller rack compatibility, module addressing, and firmware support within the target robot system. The DSQC201 belongs to ABB industrial control hardware designed for modular expansion. Its compact PCB construction supports integration where limited installation space and direct signal routing are required. Frequently Asked Questions Q: What is the primary function of the ABB DSQC201 module?A: The DSQC201 functions as a robot module used for signal interface and hardware communication within ABB industrial robot controller systems. Q: Does the DSQC201 support installation in any ABB robot controller?A: No. The module requires compatibility verification with the specific ABB controller hardware configuration, rack structure, and firmware environment. Q: What installation conditions should be checked before replacing a DSQC201?A: Technicians should verify connector condition, module identification, controller compatibility, grounding arrangement, and communication settings before installation. Field Installation Guidelines Confirm the DSQC201 model identification and YB560103-AB part marking before installation. Disconnect controller power according to site electrical safety procedures before removing or inserting the module. Inspect backplane connectors for contamination, mechanical damage, or oxidation. Install the module with correct alignment to avoid connector pin damage. Maintain proper cabinet grounding and separate signal wiring from high-current power cables. Verify controller recognition and communication status after module replacement. Confirm firmware compatibility before commissioning the robot system.
$199.00 $99.00
-

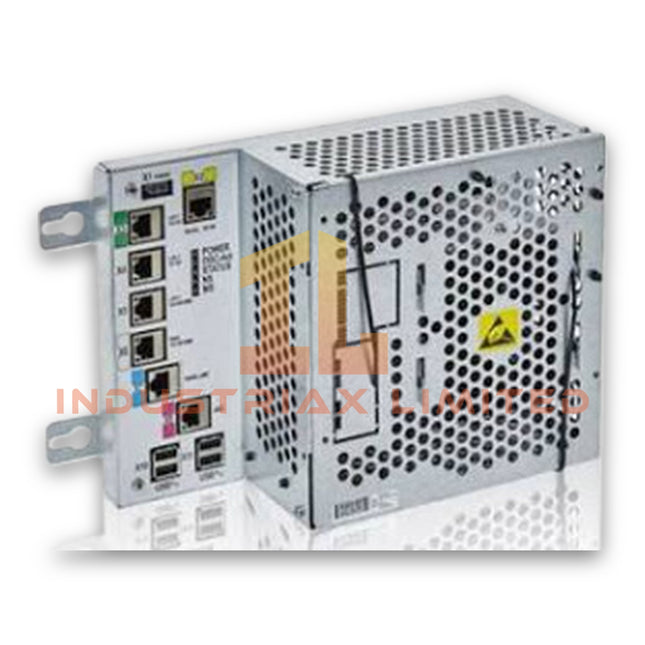

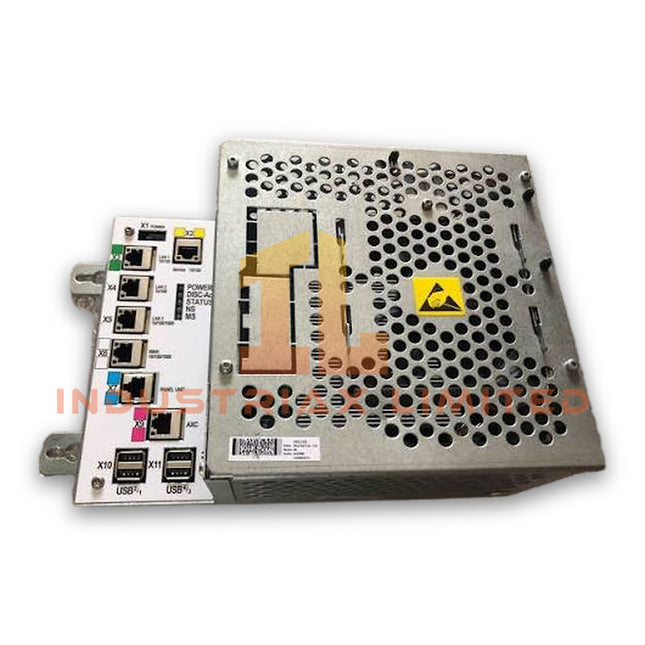

ABB ABB DSQC1000 DSQC1018 Computer Unit Modules
ABB DSQC1000 DSQC1018 Computer Unit Modules The ABB DSQC1000 3HAC042766-001, also cataloged as the DSQC1000 Computer Unit, operates as a dedicated hardware component for robot processing execution within ABB IRC5 controller platforms. The ABB DSQC1018 3HAC050363-001 (DSQC1018 Computer / Power Unit) provides controller computing and power distribution functions for ABB robot control hardware. Hardware Specifications Parameter Specification Model DSQC1000 / DSQC1018 Brand ABB Origin Switzerland / Sweden / Estonia Weight DSQC1000: Approx. 0.4 kg; DSQC1018: Approx. 1.86 kg Dimensions DSQC1000: Approx. 262 mm x 198 mm x 20 mm; DSQC1018: 290 mm x 180 mm x 105 mm Operating Temp Industrial automation operating environment Power Consumption Controller system dependent; determined by IRC5 configuration and installed modules Product Type Robot Controller Computer Units DSQC1000 Part Number 3HAC042766-001 DSQC1018 Part Number 3HAC050363-001 Compatible Platform ABB IRC5 robot controller systems Main Function Processor execution, system control, communication management, and power distribution Industrial Controller Bus and Firmware Compatibility The ABB DSQC1000 and DSQC1018 modules interface with ABB robot controller architectures through dedicated internal communication paths and controller backplane connections. Therefore, firmware compatibility must match the installed IRC5 system software configuration. The modules support ABB controller hardware management functions, including processor execution, robot motion command handling, and internal data communication. In addition, ABB controller platforms require correct firmware flash compatibility to maintain communication between computer units and peripheral modules. The DSQC1000 functions mainly as a computer processing unit, while the DSQC1018 integrates computing and power management functions within newer controller configurations. Frequently Asked Questions Q: Can the DSQC1000 and DSQC1018 be directly exchanged in an ABB IRC5 controller? A: No. The two modules have different hardware designs and functional configurations. Replacement requires verification of controller type, system software version, and hardware compatibility. Q: Does the DSQC1018 require firmware matching before installation? A: Yes. The controller firmware version must correspond with the installed ABB robot system configuration to ensure correct module communication and startup operation. Q: What handling precautions are required when replacing these computer units? A: Technicians should disconnect controller power, use ESD protection, and verify connector alignment before module installation. Field Installation Guidelines Confirm the ABB controller model and installed system software version before replacing the computer unit. Disconnect all controller power sources before removing the module from the rack assembly. Use ESD protection equipment during handling to prevent damage to electronic components. Inspect module connectors and backplane contacts for contamination or mechanical damage before installation. Maintain proper cable routing to avoid interference with controller communication wiring. Verify system startup diagnostics after replacement and confirm communication with connected robot modules.
$199.00 $99.00
-
ABB ABB Robot Controllers 3HAB5845-1/1 DSQC334 Power Supply
ABB 3HAB5845-1/1 DSQC334 Power Supply Configured for DC power conversion and distribution in ABB robot controller hardware platforms, the ABB 3HAB5845-1/1 (DSQC334 Power Supply) provides direct electrical power execution for internal automation system modules. This unit manages regulated power delivery within ABB robotic control architectures and supports stable operation of connected controller components. Hardware Specifications Parameter Specification Model 3HAB5845-1/1 Spare Model DSQC334 Brand ABB Product Type Power Supply Module Origin Finland Weight 4.9 kg Dimensions 18.4 x 22.2 x 24.1 cm Tariff Code 8504409540 Backplane Power Distribution and Controller Integration The ABB DSQC334 power supply module supports industrial robot controller power architectures through regulated electrical conversion and internal distribution functions. Furthermore, the module interfaces with ABB controller assemblies where controlled DC power delivery is required for processor units, I/O modules, and communication hardware. ABB automation platforms apply structured backplane power management to maintain module-level electrical stability. Therefore, installation requires verification of supply voltage compatibility, connector condition, and cabinet wiring integrity before system energization. Frequently Asked Questions Q: What is the primary function of the ABB DSQC334 module?A: The DSQC334 functions as a power supply module that provides regulated electrical power for compatible ABB robot controller hardware assemblies. Q: Can the DSQC334 be installed in any ABB robot controller cabinet?A: No. The module must match the specified ABB controller configuration, mechanical mounting arrangement, and electrical interface requirements. Q: What installation checks should be completed before replacement?A: Technicians should verify connector alignment, cabinet power isolation, module identification, and compatibility with the existing controller hardware configuration. Field Installation Guidelines Confirm the controller cabinet power source is isolated before removing or installing the DSQC334 module. Inspect the module connectors and backplane interfaces for contamination, mechanical damage, or oxidation before installation. Install the power supply module according to the ABB controller hardware layout and secure all mechanical fixing points. Route power cables separately from high-noise signal wiring to reduce electromagnetic interference. Verify grounding continuity and cabinet protection earth connections before applying system power. After installation, check controller diagnostics and power status indicators to confirm correct module operation.
$199.00 $99.00
-
ABB DSQC104 Resolver Board ABB Robots
ABB DSQC104 Resolver Board The ABB DSQC104, also cataloged as the DSQC 104 Resolver Board, operates as a dedicated hardware component for resolver signal processing within ABB industrial robot controller platforms. The board interfaces resolver feedback signals and converts position data for robot axis control functions. Hardware Specifications Parameter Specification Model DSQC104 Brand ABB Product Type Resolver Board / Resolver-Digital Board Origin Not specified Weight 0.4 kg Dimensions Estimated shipping size: 2.5 x 25.4 x 25.4 cm Spare Model DSQC 104 Manufacturer Status Discontinued by manufacturer ABB Resolver Signal Processing and Industrial Control Interface The ABB DSQC104 Resolver Board provides the electrical interface between resolver feedback devices and ABB robot control hardware. It processes resolver position signals and transfers digitalized feedback information to the controller system. Furthermore, ABB motion control architectures use resolver feedback channels to support axis position monitoring, synchronization, and servo loop operation. The DSQC104 design follows ABB controller hardware integration requirements, including internal backplane communication and firmware compatibility with supported robot controller configurations. Because the module belongs to ABB industrial control hardware families, installation requires verification of controller slot compatibility, backplane communication settings, and firmware support before replacement. Frequently Asked Questions Q: What is the primary function of the ABB DSQC104 module?A: The DSQC104 functions as a resolver/digital conversion board that processes resolver feedback signals for ABB robot axis position control. Q: Is the DSQC104 a standalone controller module?A: No. The DSQC104 operates as a dedicated interface board installed within compatible ABB robot controller hardware. Q: What installation checks are required before replacing a DSQC104?A: Verify controller compatibility, connector alignment, backplane interface condition, and applicable firmware configuration before installation. Field Installation Guidelines Confirm that the controller power supply is disconnected before removing or installing the DSQC104 board. Inspect board connectors and backplane contacts for contamination, oxidation, or mechanical damage before insertion. Install the module according to the ABB controller hardware layout and maintain correct board orientation. Keep resolver signal wiring separated from high-current motor cables to reduce electromagnetic interference. Verify shield termination and grounding practices according to the ABB robot controller installation requirements. After installation, perform controller diagnostics and confirm resolver feedback signals before returning the robot system to operation.
$199.00 $99.00
-

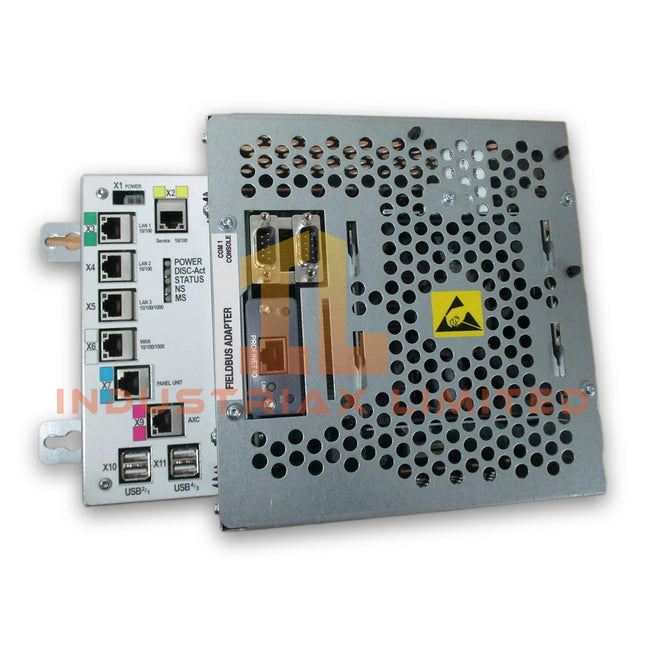

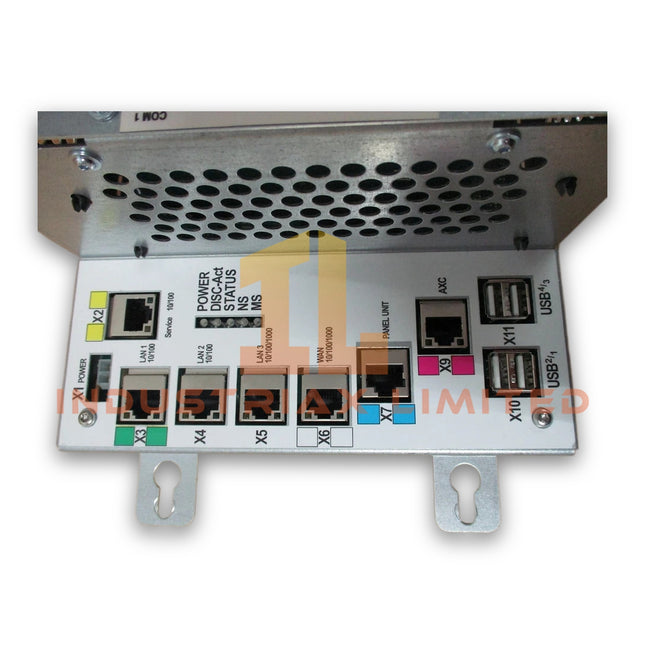

ABB ABB DSQC1018 3HAC050363-001 Computer Module
ABB DSQC1018 Computer Module The ABB DSQC1018 3HAC050363-001, also cataloged as the DSQC1018 Computer Module, operates as a dedicated controller hardware component for processor execution and system management within ABB IRC5 robot controller platforms. Hardware Specifications Parameter Specification Model DSQC1018 3HAC050363-001 Brand ABB Product Type Computer Module System Platform ABB IRC5 Robot Controller Origin Sweden / Estonia Weight 1.86 kg Dimensions 290 mm x 180 mm x 105 mm Main Function Controller computer unit for robot motion processing, communication management, and system operations Installation Type IRC5 controller cabinet mounting Application Interface ABB robot control system internal communication Backplane Communication and Controller Integration The ABB DSQC1018 integrates with the IRC5 controller architecture through internal controller communication interfaces. It executes robot application processing tasks, manages system data exchange, and supports communication between controller subsystems. Furthermore, the module follows ABB industrial control hardware design principles, including firmware flash compatibility and controller platform integration. The computer unit maintains coordinated operation between robot motion execution, I/O handling, and system diagnostics within the IRC5 environment. Frequently Asked Questions Q: What is the primary function of the ABB DSQC1018 module?A: The DSQC1018 functions as a computer/controller module for ABB IRC5 robot systems. It processes controller operations, manages system communication, and supports robot motion control execution. Q: Can the DSQC1018 be installed in non-IRC5 controller systems?A: The DSQC1018 is designed specifically for ABB IRC5 controller platforms. Compatibility depends on the controller hardware configuration and supported firmware version. Q: Does the DSQC1018 support hot-swap replacement?A: Hot-swap capability depends on the specific IRC5 controller cabinet configuration. Power isolation and manufacturer replacement procedures should be followed before module exchange. Field Installation Guidelines Install the DSQC1018 inside the designated ABB IRC5 controller cabinet position according to the system hardware manual. Verify connector alignment before insertion to prevent mechanical damage to controller interfaces. Disconnect controller power before removing or installing the module. Maintain proper cabinet grounding and ensure protective earth connections meet industrial electrical standards. Route communication and power cables separately where possible to reduce electromagnetic interference. Confirm firmware compatibility between the DSQC1018 module and the installed IRC5 controller software environment before commissioning.
$199.00 $99.00
