General Electric (GE) menawarkan rangkaian lengkap produk otomasi industri. Portofolionya meliputi PACSystems RX3i/RX7i, modul Genius I/O, pengontrol Mark VIe, dan sistem PLC. Produk-produk GE menjamin keandalan operasional, otomatisasi yang terukur, dan dukungan jangka panjang untuk aplikasi industri di seluruh dunia.
General Electric
-
General Electric GE DS200TBQCG1ABB Terminal Board Assembly
GE DS200TBQCG1ABB Terminal Board Assembly The GE DS200TBQCG1ABB, also cataloged as the DS200TBQC Terminal Board Assembly, operates as a dedicated hardware component for analog and digital field signal termination within the GE Mark V LM turbine control system. It provides physical wiring interfaces for I/O signals, actuator circuits, and sensor connections. Hardware Specifications Parameter Specification Model DS200TBQCG1ABB Brand GE General Electric Origin United States Product Type Analog Input Milliamp I/O Termination Module Series Mark V LM Functional Acronym TBQC Number of Channels 12 Signal Types Supported Analog input signals, digital signals, trip circuit signals Analog Output Current 0-20 mA Common Mode Voltage Range +5 VDC Maximum Lead Resistance 15 ohm Terminal Type Multi-level screw terminals Isolation Rating 2500 Vrms Weight 0.8 kg Operating Temp -30 to +55 deg C Power Consumption Passive termination board, no onboard processing Frequency 50 or 60 Hz Deterministic I/O Interface and Signal Conditioning The DS200TBQCG1ABB is a passive termination assembly within the GE Mark V LM control platform. It provides structured field wiring connections for analog milliamp signals, digital inputs, and turbine auxiliary circuits. The board transfers field signals to controller and I/O processing modules without executing application logic. The terminal module supports analog signal interface functions including: 12-channel analog termination capability 0-20 mA signal routing Field device connection through screw terminals Signal transfer between external instruments and Mark V controller electronics Compatibility with connected processor and I/O modules Industrial Control Network and I/O Density Scaling As a GE industrial control component, the TBQC module operates as part of the Mark V LM I/O architecture. The module supports I/O density scaling through organized termination of multiple field channels while maintaining defined wiring separation between signal groups. The terminal interface does not provide Ethernet, VMEbus, or independent communication processing. Data acquisition and control execution are performed by connected Mark V controller modules. Proper firmware and I/O configuration compatibility are required at the controller level for correct channel operation. Frequently Asked Questions Q: Does the DS200TBQCG1ABB contain a processor or configurable firmware?A: No. The DS200TBQCG1ABB is a passive terminal board. Processing functions are performed by connected Mark V controller and I/O modules. Q: What type of signals can be connected through the TBQC module?A: The module supports analog milliamp signals, digital field connections, and turbine control related wiring interfaces according to the Mark V LM configuration. Q: Does the terminal board require independent power input?A: No. The board functions as a passive signal termination interface and does not contain independent power conversion circuitry. Field Installation Guidelines Install the DS200TBQCG1ABB in the designated Mark V LM rack position and verify correct mechanical seating before connecting field wiring. Route analog signal cables separately from high-current power conductors and trip circuit wiring to reduce electromagnetic interference. Maintain proper cable identification and terminal labeling during installation. Connect cable shields according to the system grounding design. Check screw terminal tightness and inspect wiring condition during commissioning and maintenance activities. Verify channel assignments, controller configuration, and connected I/O module compatibility before applying field signals.
$200.00 $100.00
-
General Electric GE DS200DTBAG1AAA Terminal Board Assembly
GE DS200DTBAG1AAA Terminal Board Assembly The GE DS200DTBAG1AAA, also cataloged as the DS200DTBA Terminal Board Assembly, operates as a dedicated hardware component for field signal termination and electrical interfacing within the GE Mark V turbine control system. It provides physical connections for analog, digital, and trip circuit wiring between external devices and control rack electronics. Hardware Specifications Parameter Specification Model DS200DTBAG1AAA Brand GE General Electric Origin United States Product Type Terminal Board Assembly Series Mark V Speedtronic Functional Acronym DTBA Signal Types Supported Analog signals, digital 24 VDC signals, trip solenoid signals Input Voltage 125 VDC nominal field supply Terminal Type Screw-type terminals, 2-level Isolation Rating 2500 Vrms Weight 0.8 kg Dimensions 233 mm x 160 mm x 25 mm Operating Temp -30 to +65 deg C Power Consumption Passive board, no onboard power processing Industrial Control Interface and Signal Distribution The DS200DTBAG1AAA is a passive terminal interface board within the GE Mark V control architecture. It provides termination points for field wiring connected to turbine sensors, actuators, trip circuits, and protection devices. Signal routing is performed through terminal connections to associated processor and power interface boards. For GE Mark V systems, the terminal interface supports structured I/O wiring arrangements and connection compatibility with processor cards such as CPCA and power/control boards such as LDCC. The board does not execute control logic and depends on connected controller hardware for signal processing and diagnostics. The terminal assembly supports industrial control requirements including: Field signal termination and routing Analog and digital I/O connection Trip circuit wiring interface Connection between external devices and Mark V rack electronics Compatibility with redundant wiring configurations Profinet / EtherNet-IP Network and I/O Interface Considerations The DS200DTBAG1AAA does not provide direct network communication functions. Its role is limited to physical signal termination and electrical distribution. In Mark V systems, communication processing and deterministic data exchange are handled by controller and communication modules. The terminal board supports I/O density expansion through organized field wiring interfaces. Proper terminal assignment, cable segregation, and grounding practices are required to maintain signal integrity between field devices and control electronics. Frequently Asked Questions Q: Does the DS200DTBAG1AAA contain onboard processing or firmware?A: No. The DS200DTBAG1AAA is a passive terminal board assembly. Signal monitoring and diagnostics are performed by connected Mark V processor and control boards. Q: What signal types can be connected to this terminal board?A: The board supports analog signals, digital 24 VDC signals, and trip solenoid related field connections according to the Mark V system wiring configuration. Q: Does the board provide Ethernet or serial communication interfaces?A: No. The DS200DTBAG1AAA provides physical terminal connections only. Communication functions are managed by separate Mark V controller and communication modules. Field Installation Guidelines Install the DS200DTBAG1AAA in the designated GE Mark V rack position and verify mechanical alignment before securing the board. Field wiring should be installed according to the Mark V wiring documentation. Separate low-level analog signal cables from high-current power and trip circuit wiring to reduce electrical interference. Terminate cable shields according to the system grounding design. Ensure terminal screws are properly secured and verify wire identification before applying field power. Inspect terminal connections during maintenance activities for loose conductors, oxidation, or mechanical damage. Confirm compatibility with connected CPCA, LDCC, and other Mark V interface boards before replacement installation.
$200.00 $100.00
-
General Electric GE DS200CPCAG1ABB Contactor Pilot Card
GE DS200CPCAG1ABB Contactor Pilot Card Configured for contactor pilot control, processor execution, and communication functions in the GE Mark V turbine control system, the GE DS200CPCAG1ABB (DS200CPCAG1ABB Contactor Pilot Card) provides direct physical/electrical execution for turbine control logic and connected contactor circuits. Hardware Specifications Parameter Specification Model DS200CPCAG1ABB Brand GE Origin United States of America Product Type Contactor Pilot Card Functional Acronym CPCA System Series Mark V Speedtronic Processor Motorola 68020, 32-bit CPU Clock Speed 20 MHz Memory 2 MB DRAM, 512 KB SRAM, 1 MB EPROM Non-Volatile Storage EEPROM for configuration data Communication Interfaces VMEbus, RS-232, Ethernet 10 Mbps Operating Voltage +5 VDC, +/-15 VDC from backplane Isolation Rating 2500 Vrms Operating Temp -30 to +65 deg C Storage Temperature -40 to +85 deg C Humidity Range 5% to 95% RH, non-condensing Dimensions 233 mm x 160 mm x 25 mm Weight 0.9 kg Response Time Less than 10 ms control loop execution PCB Coating Normal Coating Functional Revision 1 A Functional Revision 2 B Artwork Revision B Mounting Type Single-slot VME rack mount Firmware Compatibility and Mark V Control Processing The DS200CPCAG1ABB operates within the GE Mark V control architecture as a CPCA board responsible for contactor pilot functions and control signal processing. The module manages processor execution, memory operations, and communication paths between the controller rack and connected turbine control hardware. Firmware flash compatibility is required for proper board initialization. The installed firmware revision must match the Mark V hardware configuration to maintain correct execution of control routines and diagnostic functions. Frequently Asked Questions Q: What is the functional role of the DS200CPCAG1ABB in the Mark V system?A: The DS200CPCAG1ABB functions as a Contactor Pilot Card, providing control processing and interface functions for contactor-related circuits within the Mark V turbine control system. Q: What communication interfaces are supported by the CPCA board?A: The board supports VMEbus, RS-232, and Ethernet 10 Mbps communication interfaces for system data exchange and diagnostics. Q: What backplane power requirements apply to this card?A: The DS200CPCAG1ABB receives operating power from the Mark V rack backplane through +5 VDC and +/-15 VDC supply rails. Field Installation Guidelines Install the DS200CPCAG1ABB in the designated GE Mark V VME rack slot and verify that the card connector is fully engaged before system power application. Confirm PCB revision information and hardware configuration settings before replacement or commissioning. Route communication cables separately from high-current switching conductors to reduce electromagnetic interference. Maintain proper chassis grounding and shield termination for connected wiring. After installation, verify processor status indicators, communication activity, and watchdog diagnostics through the Mark V control interface.
$200.00 $100.00
-
General Electric GE DS200LDCCH1AGA Drive Control/LAN Communications Board
GE DS200LDCCH1AGA Drive Control/LAN Communications Board Configured for DC power distribution, signal conditioning, and control communication functions in the GE Mark V turbine control system, the GE DS200LDCCH1AGA (DS200LDCCH1AGA Drive Control/LAN Communications Board) provides direct physical/electrical execution for turbine control electronics and protection circuits. Hardware Specifications Parameter Specification Model DS200LDCCH1AGA Brand GE Origin United States of America Product Type Drive Control/LAN Communications Board Functional Acronym LDCC System Series Mark V Speedtronic Input Voltage 125 VDC nominal Output Voltages +5 VDC, +/-15 VDC, +24 VDC Control Power Function Regulated supply distribution for logic and trip circuits Signal Conditioning Analog and digital signal processing for turbine monitoring Isolation Rating 2500 Vrms Operating Temp -30 to +65 deg C Storage Temperature -40 to +85 deg C Humidity Range 5% to 95% RH, non-condensing Dimensions 233 mm x 160 mm x 25 mm Weight 0.9 kg Response Time Less than 10 ms control loop execution Mounting Type Single-slot rack mount Jumpers 14 configuration jumpers Deterministic Control Communication and I/O Signal Processing The DS200LDCCH1AGA integrates Mark V control functions through regulated DC power conversion, signal conditioning, and communication interfaces. The LDCC board manages electrical signal paths between turbine control electronics, monitoring circuits, and protection-related devices. GE Mark V architecture uses dedicated board-level communication and control pathways. The DS200LDCCH1AGA supports configured firmware compatibility and jumper-based hardware settings to match the installed control rack configuration. Frequently Asked Questions Q: What power outputs are provided by the DS200LDCCH1AGA board?A: The board provides regulated +5 VDC, +/-15 VDC, and +24 VDC outputs for Mark V control electronics and connected circuits. Q: What configuration elements are available on this board?A: The DS200LDCCH1AGA includes 14 hardware configuration jumpers used for board setup according to the Mark V system configuration. Q: What rack installation type is required for the DS200LDCCH1AGA?A: The board is installed as a single-slot rack-mounted module within the GE Mark V control system. Field Installation Guidelines Install the DS200LDCCH1AGA in the designated Mark V rack position and verify correct alignment of the board edge connector before energizing the system. Check jumper configuration against the approved control system documentation before operation. Ensure power input wiring polarity is verified and that DC supply conductors are separated from low-level signal wiring where applicable. Maintain proper chassis grounding and shield termination practices for connected signal cables. Verify communication status, power indicators, and diagnostic LEDs after installation.
$200.00 $100.00
-
General Electric GE IS200VCMIH2BE VME Communication Interface Board
GE IS200VCMIH2BE VME Communication Interface Board Configured for deterministic data transfer between controller and I/O modules in the GE Mark VI turbine control system, the GE IS200VCMIH2BE (IS200VCMIH2BE VME Communication Interface Board) provides direct physical/electrical execution through VMEbus and serial communication paths. Hardware Specifications Parameter Specification Model IS200VCMIH2BE Brand GE Origin United States of America Product Type VME Communication Interface Board System Series Mark VI Speedtronic Processor Motorola MPC860 PowerPC, 32-bit RISC Clock Speed 100 MHz Memory 16 MB DRAM, 4 MB Flash Non-Volatile Storage 512 KB EEPROM Communication Interfaces VMEbus, Ethernet 10/100 Mbps, RS-232 Fiber-Optic Links 2 high-speed serial channels for I/O communication Operating Voltage +5 VDC, +/-12 VDC from backplane Isolation Rating 2500 Vrms Operating Temp -30 to +65 deg C Storage Temperature -40 to +85 deg C Humidity Range 5% to 95% RH, non-condensing Dimensions 233 mm x 160 mm x 25 mm Weight 0.9 kg Response Time Less than 10 ms communication cycle Mounting Type Single-slot VME rack mount Deterministic Network Communication and Firmware Compatibility The IS200VCMIH2BE manages communication synchronization between Mark VI controller processors and distributed I/O boards through VMEbus and fiber-optic serial channels. The module supports deterministic network timing by coordinating data exchange cycles between connected control components. Firmware flash compatibility is required for proper initialization with the Mark VI control platform. The installed firmware revision must correspond with the controller configuration and ToolboxST engineering environment. Frequently Asked Questions Q: What communication interfaces are available on the IS200VCMIH2BE?A: The board provides VMEbus communication, Ethernet 10/100 Mbps, RS-232 interface, and two high-speed fiber-optic serial channels for I/O communication. Q: What backplane power connections are required for this module?A: The board receives power from the VME backplane through +5 VDC and +/-12 VDC supply rails. Q: Can the IS200VCMIH2BE operate in redundant Mark VI configurations?A: The module supports Mark VI redundant architectures including TMR-based system configurations when installed with compatible controller and I/O hardware. Field Installation Guidelines Install the IS200VCMIH2BE in the designated Mark VI VME rack slot and verify correct mechanical seating before applying power. Confirm that the backplane connector is fully engaged and free from contamination. Route fiber-optic communication cables separately from high-current power conductors to reduce electromagnetic interference exposure. Maintain proper cable bend radius according to fiber cable specifications. Use appropriate grounding practices for the VME rack chassis. Verify shield termination and cable routing before system startup. Confirm firmware compatibility and communication status through controller diagnostics and front-panel indicators.
$200.00 $100.00
-
General Electric GE IS215UCVDH5AN VME Universal Controller Module
GE IS215UCVDH5AN VME Universal Controller Module Configured for turbine control algorithm execution in GE Mark VI Speedtronic systems, the GE IS215UCVDH5AN (IS215UCVDH5A Universal Controller Module) provides direct physical and electrical execution for processor-based control, I/O management, and VMEbus communication functions. Hardware Specifications Parameter Specification Model IS215UCVDH5AN Brand GE Origin United States of America Weight 0.9 kg Dimensions 16.51 cm high x 17.8 cm Operating Temp 0 to +60 deg C Power Consumption +5 VDC, 6 A Product Type Processor Controller Boards Series GE Mark VI Board Type Double-Slot Processor Controller Board Processor AMD-K6 300 MHz Memory 16 MB DRAM Operating System QNX Programming Boolean 16-bit signed Communication Interfaces VMEbus, Ethernet 10BaseT twisted pair RJ-45, RS-232 Operating Voltage +5 VDC, +/-12 VDC from backplane Analog Voltage Inputs 6 I/O Capability Analog and digital I/O management through connected modules Isolation Rating 2500 Vrms Response Time < 10 ms control loop execution Diagnostics Front-panel Run, Fail, Comm LEDs and watchdog timer Mounting Type VME rack mount, double-slot Redundancy Support Triple Modular Redundancy (TMR) compatible Deterministic Mark VI Controller Processing The IS215UCVDH5AN provides processor-based control execution within GE Mark VI turbine control architectures. The AMD-K6 300 MHz processor runs QNX operating system software to execute turbine control logic, manage I/O data processing, and coordinate communication with other Mark VI boards. The module uses VMEbus communication for deterministic backplane data exchange and supports Ethernet 10BaseT connectivity through an RJ-45 interface. Firmware flash compatibility and controller software matching are required for correct Mark VI system initialization. The processor controller architecture supports I/O density scaling through connected analog and digital interface modules. Six analog voltage inputs provide dedicated signal acquisition capability for turbine control applications. Frequently Asked Questions Q: What processor is installed on the IS215UCVDH5AN controller board?A: The module uses an AMD-K6 300 MHz microprocessor with 16 MB DRAM memory. Q: Which operating system is used by this controller?A: The IS215UCVDH5AN operates with the QNX operating system environment. Q: What communication interfaces are available on the board?A: The controller provides VMEbus communication, Ethernet 10BaseT through RJ-45, and RS-232 interfaces. Field Installation Guidelines Install the IS215UCVDH5AN in the assigned GE Mark VI VME rack position and verify mechanical alignment before applying power. Confirm the +5 VDC power supply connection and backplane voltage rails according to cabinet wiring documentation. Keep Ethernet, RS-232, and signal wiring separated from high-current conductors to reduce electromagnetic interference. Maintain proper grounding and shielding practices for analog input wiring. Verify VME backplane connectors are clean and fully engaged before system startup. Confirm QNX operating software and controller firmware compatibility with the installed Mark VI configuration. Ensure sufficient airflow around the VME rack assembly to maintain operating temperature limits.
$200.00 $100.00
-
General Electric GE IS200EMCSG1A Exciter Main Control and Signal Board
GE IS200EMCSG1A Exciter Main Control and Signal Board The GE IS200EMCSG1A, also cataloged as the IS200EMCSG1A Exciter Main Control and Signal Board, operates as a dedicated hardware component for excitation signal processing, control execution, and sensor interface management within GE Mark VI/Mark VIe excitation system platforms. Hardware Specifications Parameter Specification Model IS200EMCSG1A Brand GE Origin United States of America Weight 1 lbs Operating Temp -30 to +65 deg C Power Consumption Not specified Product Type Exciter Main Control and Signal Boards Series GE Mark VI Board Description Multibridge Connector Sensor Card Control Power Supply 125 VDC nominal Backplane Input Voltage +5 VDC, +/-15 VDC, +24 VDC Processor Motorola MPC860 PowerPC 32-bit RISC Clock Speed 100 MHz Memory 16 MB DRAM, 4 MB Flash Non-Volatile Storage 512 KB EEPROM Communication Interfaces Fiber-optic serial, RS-232, Ethernet 10/100 Mbps Signal Conditioning Inputs Analog inputs +/-10 V, digital inputs 24 VDC, current transformer inputs Isolation Rating 2500 Vrms Response Time < 10 ms control loop execution Mounting Type VME rack mount, single-slot Connector Quantity Six plugs for power supply Conduction Sensor Quantity Four sensors, E1-E4 Diagnostics Run, Fail, Comm, Fault front-panel LEDs Redundancy Support Triple Modular Redundancy (TMR) compatible Deterministic Excitation Control and I/O Signal Processing The IS200EMCSG1A provides excitation control processing within GE Mark VI/Mark VIe EX2100 excitation architectures. The board executes generator field regulation functions, processes analog and digital feedback signals, and manages communication between excitation control components. The hardware uses Motorola MPC860 PowerPC processing with VME rack integration for deterministic control execution. Fiber-optic serial, RS-232, and Ethernet interfaces provide communication paths for controller data exchange and system diagnostics. The board architecture supports industrial control I/O density scaling through multiple sensor and signal conditioning interfaces. The four conduction sensor inputs (E1-E4) and multibridge connector structure provide dedicated monitoring paths for excitation system feedback signals. Frequently Asked Questions Q: What type of sensor connections are available on the IS200EMCSG1A?A: The board provides four conduction sensor connections identified as E1-E4 through the multibridge connector structure. Q: Which communication interfaces are supported by this board?A: The IS200EMCSG1A supports fiber-optic serial communication, RS-232, and Ethernet 10/100 Mbps interfaces. Q: What backplane voltages are required for board operation?A: The board operates from GE Mark VI backplane supplies of +5 VDC, +/-15 VDC, and +24 VDC, with 125 VDC nominal control power. Field Installation Guidelines Install the IS200EMCSG1A in the assigned GE Mark VI VME rack position and verify connector seating before energizing the excitation cabinet. Confirm the 125 VDC control supply wiring and backplane voltage connections according to the cabinet electrical drawings. Keep sensor and communication wiring separated from high-current excitation conductors. Maintain proper shielding and grounding for analog signal inputs and communication cables. Verify that the six power supply connectors are fully engaged before system startup. Check firmware compatibility with the installed Mark VI/Mark VIe configuration. Ensure sufficient cabinet airflow around the VME rack assembly to maintain operating temperature limits.
$200.00 $100.00
-
General Electric GE IS200VTURH2BAB Turbine Protection Circuit Board
GE IS200VTURH2BAB Turbine Protection Circuit Board The GE IS200VTURH2BAB, also cataloged as the IS200VTURH2B Turbine Protection Circuit Board, operates as a dedicated hardware component for overspeed trip execution, speed signal processing, and shaft electrical monitoring within GE Mark VI Speedtronic turbine control platforms. Hardware Specifications Parameter Specification Model IS200VTURH2BAB Brand GE Origin United States of America Weight 0.23 kg Dimensions 12 cm x 6 cm x 3.5 cm Operating Temp 0 to +60 deg C Power Consumption Not specified Product Type Turbine Protection Circuit Boards Series GE Mark VI Functional Acronym VTUR Model Type Turbine Protection Circuit Board Power Supply 125 VDC MPU Pulse Rate Range 2 Hz to 20 kHz MPU Pulse Rate Accuracy +/-0.05% of reading MPU Input Circuit Sensitivity 27 mV peak Trip Solenoid Control 3 primary overspeed trip solenoids Speed Inputs 4 passive pulse rate device interfaces Application Specific I/Os Shaft voltage/current monitoring, trip system, synchronizing, speed rate inputs Communication Port 1 x J5 Isolation Rating 2500 Vrms Compatible Boards TTUR, TRPG, TRPS, TRPL, DRLY, DTRT, DTUR Deterministic Mark VI Turbine Protection Processing The IS200VTURH2BAB provides turbine-specific protection functions through GE Mark VI control architecture. The board processes MPU pulse signals, controls overspeed trip solenoids, and manages synchronization-related signals through dedicated hardware interfaces. The VTUR board uses deterministic signal processing for turbine speed monitoring with MPU pulse inputs ranging from 2 Hz to 20 kHz. The module integrates with Mark VI protection boards through the turbine control backplane, supporting coordinated operation with TTUR, TRPG, TRPS, TRPL, DRLY, DTRT, and DTUR modules. The hardware configuration supports industrial control signal management through dedicated I/O channels for shaft voltage and current monitoring. Firmware flash compatibility and controller configuration matching are required for proper Mark VI system initialization. Frequently Asked Questions Q: What type of speed input signals are supported by the IS200VTURH2BAB?A: The board processes MPU pulse rate signals from 2 Hz to 20 kHz with an input circuit sensitivity of 27 mV peak. Q: How many overspeed trip solenoids can the VTUR board control?A: The board controls three primary overspeed trip solenoids for turbine protection functions. Q: Which Mark VI boards interface with the IS200VTURH2BAB?A: The board is designed for integration with TTUR, TRPG, TRPS, TRPL, DRLY, DTRT, and DTUR modules. Field Installation Guidelines Install the IS200VTURH2BAB in the designated GE Mark VI rack location and verify connector engagement before applying power. Confirm the 125 VDC supply wiring polarity and grounding connections according to the cabinet wiring documentation. Route MPU pulse signal cables separately from high-current power conductors to reduce electrical interference. Maintain shielding continuity for speed sensor and shaft monitoring wiring. Verify terminal connections for trip solenoid circuits and synchronizing signals before system startup. Check environmental conditions against the specified operating temperature range. Confirm board compatibility with the installed Mark VI hardware configuration and firmware before initialization.
$200.00 $100.00
-
General Electric GE IS215UCVEH2AF VME Universal Controller Module
GE IS215UCVEH2AF VME Universal Controller Module The GE IS215UCVEH2AF, also cataloged as the IS215UCVEH2A VME Universal Controller Module, operates as a dedicated hardware component for turbine control algorithm execution, I/O management, and VMEbus communication within GE Mark VI Speedtronic control platforms. Hardware Specifications Parameter Specification Model IS215UCVEH2AF Brand GE Origin United States of America Weight 0.9 kg Dimensions 233 mm x 160 mm x 25 mm Operating Temp -30 to +65 deg C Power Consumption Not specified Product Type VME Boards System Compatibility GE Mark VI Speedtronic turbine control system Processor Motorola MPC860 PowerPC 32-bit RISC Clock Speed 100 MHz Memory 16 MB DRAM, 4 MB Flash Non-Volatile Storage 512 KB EEPROM Communication Interfaces VMEbus, Ethernet 10/100 Mbps, RS-232 Operating Voltage +5 VDC, +/-12 VDC from backplane Isolation Rating 2500 Vrms I/O Capability Analog and digital I/O management through connected modules Response Time < 10 ms control loop execution Diagnostics Front-panel Run, Fail, Comm LEDs and watchdog timer Redundancy Support Triple Modular Redundancy (TMR) compatible Mounting Type VME rack mount, single-slot Channel Count 6 channels Deterministic VMEbus Control Processing The IS215UCVEH2AF provides controller-level processing within the GE Mark VI architecture through VMEbus communication and embedded Ethernet connectivity. The Motorola MPC860 PowerPC processor executes turbine control logic, handles I/O data exchange, and manages communication between controller and interface modules. The module supports deterministic networks and industrial control synchronization through VMEbus backplane communication. Firmware flash compatibility allows controller software updates according to the installed Mark VI system configuration. The hardware architecture supports I/O density scaling through connection with multiple analog and digital interface boards. Frequently Asked Questions Q: What processor architecture is used in the IS215UCVEH2AF?A: The module uses a Motorola MPC860 PowerPC 32-bit RISC processor operating at 100 MHz. Q: Which communication interfaces are available on this VME board?A: The board provides VMEbus, Ethernet 10/100 Mbps, and RS-232 communication interfaces. Q: Does the IS215UCVEH2AF support redundant controller configurations?A: The module supports Triple Modular Redundancy (TMR) configurations within GE Mark VI control systems. Field Installation Guidelines Install the IS215UCVEH2AF in the assigned single-slot VME rack position within the GE Mark VI cabinet. Confirm the backplane connector alignment before applying system power. Verify that the backplane voltage rails are within the specified controller cabinet supply limits. Keep communication wiring separated from high-current switching conductors to reduce electromagnetic interference. Maintain proper grounding and shielding for Ethernet and serial communication cables. Inspect VME connectors for contamination or mechanical damage before insertion. Confirm firmware compatibility with the installed Mark VI control configuration before controller initialization. Use approved handling procedures to prevent electrostatic discharge damage to board components.
$200.00 $100.00
-
General Electric GE IS215VPROH1BD Emergency Turbine Protection Module
GE IS215VPROH1BD Emergency Turbine Protection Module Configured for emergency turbine protection execution in GE Mark VI Speedtronic systems, the GE IS215VPROH1BD (IS215VPROH1B Emergency Turbine Protection Module) provides direct physical and electrical processing for overspeed detection, trip solenoid control, and high-speed communication functions within VME-based turbine control architectures. Hardware Specifications Parameter Specification Model IS215VPROH1BD Brand GE Origin United States of America Weight 1.5 kg Dimensions 226 mm x 162 mm x 185 mm Operating Temp -40 to +85 deg C Power Consumption Not specified Product Type Emergency Turbine Protection Module System Compatibility GE Mark VI Speedtronic turbine control system Input Supply Voltage 125 VDC (70-145 VDC), redundant inputs Output Voltage 5 VDC logic supply and 28 VDC trip solenoid supply Communication Interfaces RS-485 Modbus RTU and VMEbus Digital Inputs 16 channels, 24 VDC Digital Outputs 8 channels, 24 VDC Isolation Rating 2500 Vrms Overspeed Detection Accuracy +/-0.1% Trip Execution Response Time < 50 ms MPU Pulse Rate Range 2 Hz to 20 kHz Frame Rate Up to 100 Hz Mounting Type VME-style rack mount, dual-width slot Redundancy Support Triple Modular Redundancy (TMR) compatible Deterministic Turbine Protection and VME Communication The IS215VPROH1BD integrates turbine protection logic processing with GE Mark VI control cabinet communication paths. The module processes overspeed signals, monitors sensor input conditions, and controls emergency trip outputs through dedicated trip solenoid interfaces. The hardware supports deterministic industrial control communication through VMEbus and RS-485 Modbus RTU interfaces. The module architecture supports TMR-compatible configurations for safety execution, with diagnostic monitoring of digital channels, communication status, and trip functions. Frequently Asked Questions Q: What input signals are processed by the IS215VPROH1BD?A: The module processes 24 VDC digital inputs and turbine speed signals through MPU pulse inputs with a frequency range of 2 Hz to 20 kHz. Q: Does the IS215VPROH1BD support redundant safety architectures?A: The module supports Triple Modular Redundancy (TMR) compatible configurations within GE Mark VI protection architectures. Q: What communication interfaces are available on this module?A: The module provides VMEbus communication and RS-485 Modbus RTU connectivity for control system integration. Field Installation Guidelines Install the IS215VPROH1BD in the designated VME rack position within the GE Mark VI control cabinet. Verify rack alignment and connector engagement before applying power. Confirm that the 125 VDC input supply wiring is correctly isolated and terminated according to cabinet wiring standards. Separate MPU signal wiring from high-current power conductors to reduce electrical interference. Maintain proper grounding and shielding practices for communication cables. Inspect RS-485 cable polarity, termination, and shielding continuity before system startup. Verify firmware compatibility with the installed Mark VI control configuration before initialization. Do not remove or insert the module under energized conditions unless the system hardware configuration specifically supports the operation.
$200.00 $100.00
-
General Electric IS200EDEXG1BBB GE Exciter Control Board
GE IS200EDEXG1BBB Exciter De-Excitation Control Board Configured for excitation field discharge control in GE Mark VI/Mark VIe Speedtronic systems, the GE IS200EDEXG1BBB (IS200EDEXG1B Exciter De-Excitation Control Board) provides direct electrical execution of excitation energy diversion through SCR-based discharge circuits. The board manages fault-triggered de-excitation paths, monitoring discharge channels, gate drive signals, and protection circuits within EX2100 exciter cabinet architectures. Hardware Specifications Parameter Specification Model IS200EDEXG1BBB Brand GE Origin United States Weight 0.72 kg Operating Temp -30 to +65 deg C Product Type Exciter De-Excitation Control Board System Compatibility Mark VI / Mark VIe Speedtronic, EX2100 excitation systems Form Factor Single-slot 6U CompactPCI Logic Input Voltage 24 VDC +/-10% Exciter Power Input 125 VDC EDIS supply +/-10% Backplane Voltage +5 VDC, +15 VDC, -15 VDC, +24 VDC Isolation Rating 2500 VAC between control and discharge circuits Communication Interface Fiber-optic high-speed serial interface and 9-pin D-sub De-Excitation Channels 6 independent channels, arranged as 3 phase pairs Switching Frequency 1.5 to 8 kHz software configurable Maximum Discharge Current 100 A peak per channel Discharge Energy Capacity 500 Joules per channel Fault Response Time < 1 ms Status Indicators Run, Fault, Watchdog LEDs and channel discharge LEDs SCR-Based Excitation Energy Discharge Control The IS200EDEXG1BBB uses SCR-based switching circuits to control excitation energy discharge paths. The hardware incorporates gate driver ICs, protection diodes, current sensing circuits, temperature monitoring components, and discharge resistors. The six-channel structure supports independent discharge control for excitation field circuits, with monitoring feedback for fault detection and system diagnostics. The board operates with GE Mark VI/Mark VIe deterministic control architectures through fiber-optic serial communication and CompactPCI backplane interfaces. The circuit design includes energy storage components consisting of 6 x 470 uF electrolytic capacitors rated at 450 VDC and 2 x 100 uF tantalum capacitors rated at 25 VDC. Frequently Asked Questions Q: What excitation discharge function does the IS200EDEXG1BBB perform?A: The board controls SCR-based discharge circuits to remove stored excitation energy during fault or shutdown events. Q: What voltage interfaces are supported by this control board?A: The board accepts 24 VDC logic input, 125 VDC exciter power input, and operates with +5 VDC, +15 VDC, -15 VDC, and +24 VDC backplane supplies. Q: How are discharge operations monitored?A: The board provides current sensing, temperature monitoring, watchdog diagnostics, and individual channel discharge status LEDs. Field Installation Guidelines Install the IS200EDEXG1BBB only in the designated GE EX2100 excitation cabinet slot position defined by the Mark VI/Mark VIe hardware configuration. Verify that excitation power sources are isolated before board replacement or maintenance. Confirm backplane connectors are clean and fully seated to maintain signal integrity. Route fiber-optic communication cables separately from high-current excitation conductors. Maintain proper cable shielding and grounding practices for control wiring to reduce electrical interference. Inspect discharge circuit wiring, terminal connections, and grounding paths before energizing the excitation system. Ensure thermal airflow paths around the board assembly remain unobstructed.
$200.00 $100.00
-
General Electric GE IS200ECTBG1ADE Exciter Control Terminal Board
GE IS200ECTBG1ADE Exciter Control Terminal Board The GE IS200ECTBG1ADE, also cataloged as the IS200ECTB Exciter Control Terminal Board, operates as a dedicated hardware component for exciter field wiring interface and signal distribution within the GE EX2100 Excitation Control System. It provides terminal connections for analog, digital, power, and protection circuits. Hardware Specifications Parameter Specification Model IS200ECTBG1ADE Brand GE General Electric Product Type Exciter Control Terminal Board System Series GE EX2100 Excitation Control System / Mark VI Speedtronic Functional Abbreviation ECTB Inputs Generator field feedback signals and control commands Outputs Exciter drive signals and protective trip signals Voltage Range 24 VDC logic, 125 VDC field Isolation 2500 Vrms channel-to-ground Connectors Multiple terminal blocks for field wiring PCB Treatment Conformal coating Assembly Type Normal Assembly Weight 0.9 kg Dimensions 160 mm x 100 mm x 20 mm Operating Temp -30 to +65 deg C GE EX2100 Terminal Interface and Control Signal Characteristics The IS200ECTBG1ADE provides the physical interface between EX2100 excitation control electronics and external field wiring. The board routes analog feedback signals, digital control commands, DC power connections, and protective circuit signals through dedicated terminal interfaces. Within the GE Mark VI Speedtronic and EX2100 architecture, the ECTB board supports deterministic signal routing between field devices and controller assemblies. Terminal-level connections allow field wiring inspection, maintenance access, and signal segregation. The board uses conformal-coated PCB construction for protection against moisture, dust, and industrial contaminants. The 2500 Vrms channel-to-ground isolation specification separates field circuits from control electronics. GE Industrial Control Interface Compatibility The IS200ECTBG1ADE follows GE EX2100 excitation hardware configuration rules and supports signal mapping through GE ToolboxST configuration software. The G1ADE revision identifies the board assembly version and conformal coating configuration. The ECTB functional design supports integration with EX2100 excitation subsystems through rack backplane connections and terminal block field interfaces. Frequently Asked Questions Q: What is the primary function of the IS200ECTBG1ADE?A: The board provides terminal connections between EX2100 excitation control electronics and external field wiring, including control, feedback, power, and protection signals. Q: What type of field connections are available on this board?A: The board uses multiple terminal blocks for connection of field wiring associated with exciter control signals and protective circuits. Q: Is the board compatible with earlier ECTB revisions?A: The provided data indicates backward compatibility with the first two revisions within the ECTB revision group. Field Installation Guidelines Install the IS200ECTBG1ADE in the designated EX2100 exciter rack position and verify correct backplane alignment before securing the assembly. Connect field wiring only to the assigned terminal blocks according to the system wiring documentation. Separate signal wiring from high-current conductors to reduce electromagnetic interference. Ground cable shields according to the EX2100 installation requirements. Verify terminal tightness, connector seating, and protective circuit wiring before energizing the excitation system. After installation, confirm signal mapping, terminal assignments, and communication status through ToolboxST configuration software.
$200.00 $100.00
-
General Electric GE IS200EACFG2ABB Exciter AC Feedback Board
GE IS200EACFG2ABB Exciter AC Feedback Board Configured for generator field AC feedback measurement in the GE EX2100 Excitation Control System, the GE IS200EACFG2ABB (IS200EACF Exciter AC Feedback Board) provides direct physical/electrical signal conditioning and isolated data transmission for exciter regulation control loops. Hardware Specifications Parameter Specification Model IS200EACFG2ABB Brand GE General Electric Origin United States of America (USA) Product Type Exciter AC Feedback Board System Series GE EX2100 Excitation Control System Function Generator field AC feedback measurement and signal conditioning Inputs Generator field AC feedback signals Signal Conditioning Filtering, scaling, and isolation Resolution 16-bit ADC Isolation 2500 Vrms channel-to-ground Communication Fiber-optic link to controller Power Supply 5 VDC logic, 24 VDC field supply PCB Treatment Conformal coating Weight 0.9 kg Dimensions 160 mm x 100 mm x 20 mm Operating Temp -30 to +65 deg C GE EX2100 Feedback Signal Processing Characteristics The IS200EACFG2ABB performs AC feedback acquisition from generator field circuits and applies signal filtering, scaling, and electrical isolation before transferring processed data to the EX2100 controller. The board supports closed-loop exciter regulation functions through measured feedback values. The EX2100 architecture uses deterministic controller communication paths. The fiber-optic communication interface on this board provides isolated signal transfer between feedback measurement circuits and controller electronics, reducing electromagnetic interference coupling. The conformal-coated PCB construction supports operation in industrial control environments where exposure to dust, moisture, and oil mist requires additional board-level protection. The 2500 Vrms channel-to-ground isolation rating separates field-side measurement circuits from control-side electronics. Firmware and Industrial Control Interface Compatibility The IS200EACFG2ABB operates as part of the GE EX2100 excitation platform and exchanges processed feedback data through the system communication interface. Hardware configuration and channel scaling parameters are managed through GE control configuration tools. The board revision G2ABB identifies the hardware revision level and conformal coating configuration used within the EX2100 control assembly. Frequently Asked Questions Q: What signal type does the IS200EACFG2ABB measure?A: The board measures generator field AC feedback signals and performs filtering, scaling, and isolation before controller transmission. Q: What isolation method is provided on this board?A: The board provides 2500 Vrms channel-to-ground isolation between feedback signal circuits and the control-side electronics. Q: How is data transferred from the board to the EX2100 controller?A: The board uses a fiber-optic communication link for isolated data transfer within the EX2100 excitation control system. Field Installation Guidelines Install the IS200EACFG2ABB in the designated EX2100 exciter rack position and verify correct alignment with the backplane connectors before fastening the board. Connect generator field AC feedback wiring according to the EX2100 terminal documentation. Maintain separation between feedback signal cables and high-current conductors to reduce electrical noise coupling. Inspect fiber-optic connectors for cleanliness, correct orientation, and secure connection before system startup. Apply appropriate grounding and cable shielding practices for the rack assembly. After installation, verify feedback channel configuration, scaling parameters, and communication status through the applicable GE configuration software before enabling excitation control.
$200.00 $100.00
-
General Electric GE IS200EACFG3ABB Exciter AC Feedback Board
GE IS200EACFG3ABB Exciter AC Feedback Board The GE IS200EACFG3ABB, also cataloged as the IS200EACF Exciter AC Feedback Board, operates as a dedicated hardware component for generator field AC feedback signal conditioning within the GE EX2100 Excitation Control System. It performs signal filtering, scaling, isolation, and data transmission for exciter regulation feedback loops. Hardware Specifications Parameter Specification Model IS200EACFG3ABB Brand GE General Electric Origin United States of America (USA) Product Type Exciter AC Feedback Board System Series EX2100 Excitation Control System Function Generator field AC feedback measurement, conditioning, and controller transmission Inputs Generator field AC feedback signals Signal Conditioning Filtering, scaling, and isolation Resolution 16-bit ADC Communication Fiber-optic link to controller Isolation 2500 Vrms channel-to-ground Power Supply 5 VDC logic, 24 VDC field supply Weight 0.9 kg Dimensions 160 mm x 100 mm x 20 mm Operating Temp -30 to +65 deg C Power Consumption Not specified EX2100 Excitation Signal Processing Characteristics The IS200EACFG3ABB processes generator field AC feedback signals through analog conditioning circuits before transferring measurement data to the EX2100 controller. The board supports filtering and scaling functions required for closed-loop exciter regulation. The GE EX2100 platform uses deterministic control communication paths, and this board provides fiber-optic data transfer to reduce electrical noise coupling between field measurement circuits and controller hardware. The conformal-coated PCB design supports installation in industrial control environments where moisture and contamination control are required. The feedback measurement path maintains channel isolation with 2500 Vrms channel-to-ground separation, reducing interference between field-side signals and control-side electronics. Frequently Asked Questions Q: What type of signal does the IS200EACFG3ABB process?A: The board processes generator field AC feedback signals, applying filtering, scaling, and isolation before transmitting data to the EX2100 controller. Q: What communication interface is used between the board and controller?A: The board uses a fiber-optic communication link for data transmission within the EX2100 excitation control architecture. Q: Does the board require specific rack installation orientation?A: The board is installed in the EX2100 exciter rack and must be aligned with the designated backplane connectors. Field Installation Guidelines Install the IS200EACFG3ABB in the specified EX2100 rack position and verify mechanical alignment before securing the module. Connect generator field AC feedback wiring according to the system terminal assignment documentation. Maintain separation between signal wiring and high-current power conductors to reduce electromagnetic interference. Fiber-optic connections should be inspected for correct routing, connector cleanliness, and secure engagement. Apply proper grounding practices for rack assemblies and cable shields according to the EX2100 installation documentation. Verify signal scaling, feedback channel configuration, and communication status through ToolboxST software before placing the excitation system into operation.
$200.00 $100.00
-
General Electric GE IS200AEPGG1A Analog Expansion Pack Module
GE IS200AEPGG1A Analog Expansion Pack Module The GE IS200AEPGG1A, also cataloged as the IS200AEPGG1A Analog Expansion Pack Module, operates as a dedicated hardware component for analog signal acquisition and output expansion within the GE Mark VI turbine control system. Hardware Specifications Parameter Specification Model IS200AEPGG1A Brand GE Weight 0.5 kg Operating Temp -30 to +65 deg C Power Consumption Approx. 12 W Product Type Analog Expansion Pack Module Series Mark VI Turbine Control / Drive Control Functional Description AEPG Board Assembly Analog Inputs 16 differential channels Analog Outputs 4 isolated channels Input Range +/-10 VDC, 4-20 mA configurable Output Range +/-10 VDC, 4-20 mA configurable Resolution 16-bit ADC/DAC Accuracy +/-0.05% of full scale at 25 deg C Isolation 1500 Vrms channel-to-backplane Scan Rate 5 ms typical per channel PCB Treatment Conformal coating, G1A revision Certifications CE, UL, CSA, RoHS Deterministic Analog I/O Processing Characteristics The IS200AEPGG1A provides additional analog processing capacity for GE Mark VI control architectures. The module handles differential analog acquisition and isolated analog output generation for turbine monitoring signals including temperature, pressure, and vibration-related measurements. The module supports configurable voltage and current signal interfaces through 16-bit ADC/DAC conversion. Channel isolation separates field signal circuits from the backplane interface, reducing interference transfer between external wiring and controller electronics. For GE industrial control platforms, the AEPG board assembly integrates with deterministic I/O communication structures. Firmware configuration through ToolboxST defines channel operation, signal scaling, and diagnostic parameters. Frequently Asked Questions Q: How many analog channels are available on the IS200AEPGG1A?A: The module provides 16 differential analog input channels and 4 isolated analog output channels. Q: What analog signal types can be configured on this module?A: The IS200AEPGG1A supports configurable +/-10 VDC and 4-20 mA input and output signal ranges. Q: Can the module be replaced while the control rack is energized?A: The supplied data identifies a hot-swappable design. Replacement procedures should follow the applicable GE Mark VI maintenance documentation and rack operating requirements. Field Installation Guidelines Install the IS200AEPGG1A in the designated GE Mark VI I/O rack position and verify correct alignment with the rack connector system before securing the module. Connect analog field wiring according to the configured channel assignments. Maintain separation between analog signal cables and high-current power conductors to reduce electrical noise coupling. Terminate cable shields according to the cabinet grounding design. Verify signal polarity, channel scaling, and I/O configuration parameters through ToolboxST before placing the module into service. Confirm that the conformal-coated PCB remains free from mechanical damage during handling and installation. Ensure all rack fasteners and connectors are properly secured before system startup.
$200.00 $100.00
-
General Electric GE IS200JPDSG1ACB Power Distribution Board
GE IS200JPDSG1ACB Power Distribution Board The GE IS200JPDSG1ACB, also cataloged as the IS200JPDSG1ACB Power Distribution Board, operates as a dedicated hardware component for regulated DC power distribution within the GE Mark VI turbine control system. It provides protected voltage routing to controller, exciter, and I/O subsystem assemblies through board-level power circuits. Hardware Specifications Parameter Specification Model IS200JPDSG1ACB Brand GE Origin United States of America (USA) Weight 0.9 kg Dimensions 16.51 cm x 17.8 cm x 2 cm Operating Temp -30 to +65 deg C Power Consumption Up to 250 W total power distribution capacity Product Type Power Distribution Board Series Mark VI Turbine Control / Excitation Systems Input Voltage 125 VDC nominal Output Voltages 5 VDC, 15 VDC, 24 VDC regulated outputs Protection Fuses, surge suppression, overvoltage protection Isolation 2500 Vrms channel-to-ground PCB Treatment Conformal coating, ACB revision Connectors Backplane and ribbon cable connectors Agency Approval Class 1 Division 2 explosive atmosphere Industrial Control Power Distribution Characteristics The IS200JPDSG1ACB applies GE Mark VI power distribution architecture for multi-voltage DC supply routing. The board provides regulated output paths for control electronics and exciter-related assemblies while maintaining electrical separation through protected distribution circuits. The JPDS board supports backplane-based power delivery and uses conformal coating to reduce exposure effects from moisture, dust, and industrial contaminants. Surge suppression and fuse protection circuits provide fault isolation at the board level. The board integrates within GE deterministic turbine control networks where stable DC power availability supports controller communication, I/O density scaling, and firmware-controlled hardware operation. Power distribution interfaces must match the configured Mark VI rack arrangement and connected modules. Frequently Asked Questions Q: What voltage inputs and outputs are supported by the IS200JPDSG1ACB?A: The board accepts 125 VDC nominal input and provides regulated 5 VDC, 15 VDC, and 24 VDC distribution outputs for compatible Mark VI control assemblies. Q: Does the IS200JPDSG1ACB provide electrical isolation?A: Yes. The board specification includes 2500 Vrms channel-to-ground isolation for power distribution protection. Q: What installation conditions are required for this power distribution board?A: The board requires correct rack alignment, proper backplane connection, grounding, and shielding practices to maintain power integrity and reduce EMI effects. Field Installation Guidelines Install the IS200JPDSG1ACB into the designated GE Mark VI rack position and verify mechanical alignment before securing the board assembly. Confirm that input and output power connections match the system wiring documentation. Connect grounding conductors according to the control cabinet grounding scheme. Maintain separation between power wiring and low-level signal cables to reduce electrical interference. Use shield termination practices appropriate for turbine control installations. Before energizing the rack, verify fuse conditions, connector seating, and DC supply polarity. Replacement or maintenance work should be performed with the rack de-energized unless the system documentation specifically permits live maintenance procedures.
$200.00 $100.00
-
General Electric GE IS200ACLEH1A Application Control Layer Module
GE IS200ACLEH1A Application Control Layer Module The GE IS200ACLEH1A, also cataloged as the IS200ACLE Application Control Layer Module, operates as a dedicated hardware component for deterministic control execution and communication management within GE Mark VI and EX2100 Excitation Control Systems. The module provides processor-based task execution, Ethernet and ISBus communication, and system diagnostics. Hardware Specifications Parameter Specification Model IS200ACLEH1A Brand GE Origin United States Weight 2.90 lbs Operating Temp -30 to +65 deg C Power Consumption 5 VDC logic supply Product Type Application Control Layer Module System Platform GE Mark VI / EX2100 Excitation Control Processor Intel 486 CPU, 100 MHz Memory 8 MB DRAM, 4 MB Flash BIOS Cache 128 KB L2 cache Communication Interfaces Ethernet, ISBus, COM1/COM2 serial ports PCI Controller Integrated bus management controller System Voltage 24 VDC nominal Mounting Type Rack-mounted, two half-slots PCB Protection Conformal coating Humidity Range 5-95% RH, non-condensing Storage Temperature -40 to +70 deg C Backplane Bus Communication and Firmware Flash Compatibility The IS200ACLEH1A functions as a processor-based control module within the EX2100 and Mark VI architectures. It executes turbine and excitation control tasks while managing communication traffic through Ethernet, ISBus, and serial interfaces. The module architecture supports deterministic task scheduling for real-time control operations. Firmware flash compatibility is maintained through GE ToolboxST engineering tools and EX2100 configuration environments. The integrated PCI controller manages internal bus communication, while diagnostic functions provide module health information and parameter access during system operation. Frequently Asked Questions Q: What communication interfaces are available on the IS200ACLEH1A?A: The module provides Ethernet, ISBus, and COM1/COM2 serial communication interfaces for control system data exchange. Q: What power supply does the IS200ACLEH1A require?A: The module uses a 5 VDC logic supply and interfaces with a 24 VDC nominal system voltage. Q: What mounting configuration is used for this module?A: The IS200ACLEH1A is installed as a rack-mounted module occupying two half-slots in compatible Mark VI or EX2100 racks. Field Installation Guidelines Verify rack power isolation before module installation or removal. Use ESD protection when handling the circuit board assembly. Align the module with the assigned Mark VI or EX2100 rack slot and secure the front panel mounting hardware. Connect Ethernet, ISBus, and serial cables according to the system wiring configuration. Maintain cable separation between communication wiring and high-current conductors. Apply proper grounding and shielding practices to reduce electromagnetic interference. Use ToolboxST software to verify module identification, firmware compatibility, and configuration parameters before system startup.
$200.00 $100.00
-
General Electric GE IS200EXHSG4A High-Speed Analog Signal Conditioning and Isolation Module
GE IS200EXHSG4A High-Speed Analog Signal Conditioning and Isolation Module The GE IS200EXHSG4A, also cataloged as the IS200EXHS High-Speed Analog Signal Conditioning and Isolation Module, operates as a dedicated hardware component for high-speed analog signal acquisition and isolated data processing within GE Mark VI and Mark VIe Turbine Control Systems. The module handles transient vibration and pressure signals through high-resolution conversion channels. Hardware Specifications Parameter Specification Model IS200EXHSG4A Brand GE Origin United States Weight 0.65 kg Dimensions 230 mm x 170 mm x 30 mm Operating Temp -25 to +75 deg C Power Consumption Not specified Product Type High-Speed Analog Signal Conditioning and Isolation Modules System Platform GE Mark VI / Mark VIe Turbine Control System Signal Channels 12 configurable channels (8 inputs, 4 outputs) Sampling Rate 100 kS/s per channel, simultaneous Resolution 18-bit ADC/DAC CMRR >120 dB Isolation 2000 Vrms channel-to-ground Processor AMD G-Series dual-core, 1.6 GHz Memory 2 GB DDR3 SDRAM, 128 GB storage Operating System QNX Neutrino RTOS Safety Compliance IEC 61508 SIL 2/3 Redundancy Support Simplex, Duplex, TMR configurations Coating IPC-CC-830 Class 3A coating Rotor Dynamics and High-Speed Signal Isolation Processing The IS200EXHSG4A processes high-frequency turbine condition signals through simultaneous high-speed sampling and isolated analog conversion. The module architecture supports vibration and combustion pressure signal conditioning with high common-mode rejection and channel-to-ground isolation for measurement integrity. Signal processing functions support rotor dynamics monitoring by capturing transient changes in vibration-related inputs and transferring conditioned data to Mark VI and Mark VIe controllers. Channel isolation and analog conditioning circuits reduce cross-talk effects between measurement paths in high-noise control cabinet environments. Frequently Asked Questions Q: What type of signals can the IS200EXHSG4A process?A: The module processes high-speed analog signals including vibration-related inputs and combustion pressure measurement signals through configurable analog channels. Q: What isolation level is provided by the IS200EXHSG4A?A: The module provides 2000 Vrms channel-to-ground isolation for signal separation and transient protection. Q: What redundancy configurations are supported?A: The module supports simplex, duplex, and TMR system configurations within compatible Mark VI and Mark VIe architectures. Field Installation Guidelines Verify system power removal before installing or replacing the module. Use ESD protection when handling the circuit board assembly. Install the module into the designated Mark VIe rack slot and ensure ribbon cable and backplane connections are fully seated. Connect field wiring according to the configured analog channel assignments. Maintain separation between low-level measurement wiring and high-current switching circuits. Apply proper shielding and grounding methods to minimize electrical noise coupling into analog measurement paths. Complete channel calibration and scaling verification through the control system configuration tools before returning the turbine control system to operation.
$200.00 $100.00
-
General Electric GE IS200EDEXG1AFA Exciter Dynamic Expansion Board
GE IS200EDEXG1AFA Exciter Dynamic Expansion Board The GE IS200EDEXG1AFA, also cataloged as the IS200EDEX Exciter Dynamic Expansion Board, operates as a dedicated hardware component for dynamic signal processing and generator field control execution within GE EX2100 Excitation Control Systems. The board extends analog and digital processing capacity through isolated signal interfaces and fiber-optic communication. Hardware Specifications Parameter Specification Model IS200EDEXG1AFA Brand GE Origin United States Weight 0.95 kg Dimensions 160 mm x 100 mm x 20 mm Operating Temp -30 to +65 deg C Power Consumption 5 VDC logic, 24 VDC field supply Product Type Exciter Dynamic Expansion Boards System Platform GE EX2100 Excitation Control System Inputs Analog voltage and current feedback channels Outputs Exciter drive signals and diagnostic signals ADC/DAC Resolution 16-bit Communication Interface Fiber-optic serial link Isolation 2500 Vrms optocoupler isolation Response Time < 1 ms PCB Treatment Conformal coating Revision G1AFA Firmware Flash Compatibility and Excitation Control Processing The IS200EDEXG1AFA operates as an expansion processing board within the EX2100 excitation architecture, providing additional I/O density scaling for generator field regulation functions. The board handles dynamic feedback signals through analog conversion circuits and exchanges processed data with the controller through a fiber-optic serial interface. Firmware flash compatibility is maintained through the EX2100 control configuration environment. Diagnostic functions provide board status monitoring through RUN, STATUS, and FAIL indicators, supporting verification of communication and processing conditions during operation. Frequently Asked Questions Q: What communication method is used by the IS200EDEXG1AFA?A: The board communicates with the excitation controller through a fiber-optic serial link designed for deterministic data transfer. Q: What power supplies are required for the IS200EDEXG1AFA?A: The board requires a 5 VDC logic supply and a separate 24 VDC field supply for operation. Q: What signal processing resolution does the board provide?A: The board supports 16-bit ADC and DAC signal conversion for excitation feedback and control signals. Field Installation Guidelines Verify EX2100 cabinet power isolation before installing the expansion board. Use ESD protection when handling the circuit board assembly. Install the board into the designated exciter rack position and confirm proper backplane connector engagement. Connect fiber-optic communication channels according to system configuration requirements. Maintain separation between signal wiring and high-current power conductors. Ensure cable routing and shielding practices follow cabinet grounding standards to reduce electromagnetic interference. Configure communication parameters and board functions through ToolboxST software before system startup. Verify LED status indicators and signal feedback operation after installation.
$200.00 $100.00
-

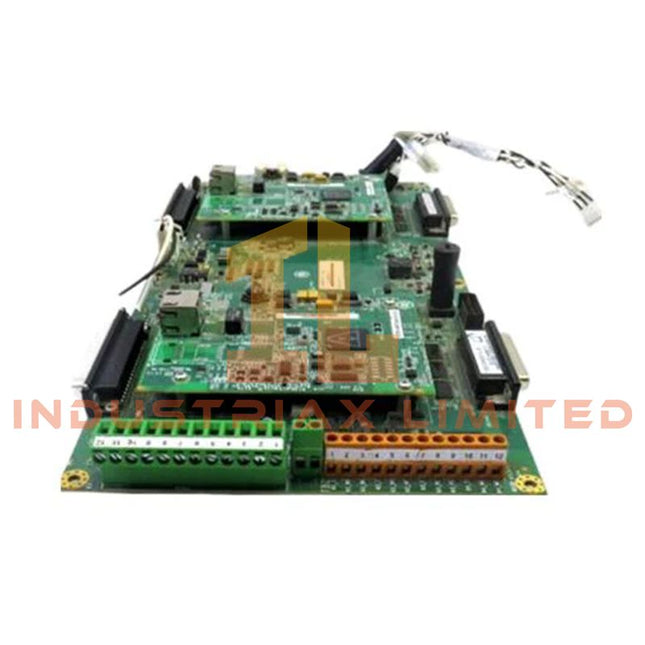

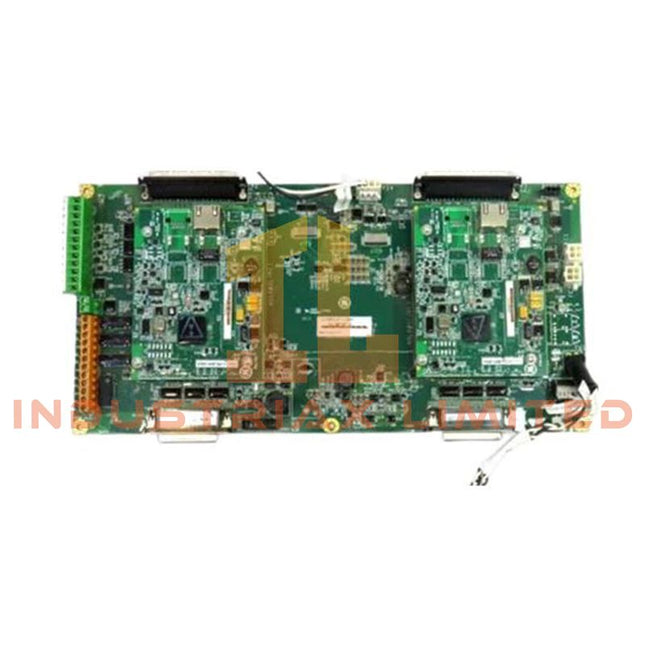

General Electric GE IS210TREAS1A Turbine Remote Emergency Trip Board
GE IS210TREAS1A Turbine Remote Emergency Trip Board The GE IS210TREAS1A, also cataloged as the IS210TREA Turbine Remote Emergency Trip Board, operates as a dedicated hardware component for emergency shutdown signal execution within GE Mark VIe Turbine Control Systems. The board processes trip commands and drives relay outputs for turbine protection circuits with deterministic response behavior. Hardware Specifications Parameter Specification Model IS210TREAS1A Brand GE Origin United States Weight 2.00 lbs Operating Temp -30 to +65 deg C Power Consumption 28 VDC nominal from Mark VIe backplane Product Type Aero Derivative Turbine Emergency Trip Board System Platform GE Mark VIe Turbine Control System Functional Acronym TREA Function Emergency Trip Terminal Board Inputs 6 trip command inputs Outputs 3 trip relay outputs Relay Type Electromechanical, normally energized Response Time < 10 ms Isolation 2500 Vrms channel-to-ground PCB Coating Type S-style conformal coating Technology Surface Mount Assembly Type IS210 Special Assembly Profinet / EtherNet-IP Deterministic Networks and Firmware Compatibility The IS210TREAS1A operates as a protection interface component within the Mark VIe control architecture, executing hardware-based emergency trip logic through defined input and relay output paths. The board supports deterministic trip signal handling by maintaining direct electrical interfaces between controller commands, protection inputs, and shutdown circuits. The module design follows GE industrial control hardware practices with firmware and configuration compatibility managed through the Mark VIe engineering environment. The conformal-coated PCB assembly provides additional protection for electronic circuits exposed to industrial cabinet conditions. Frequently Asked Questions Q: What is the primary switching function of the IS210TREAS1A?A: The board receives turbine trip command signals and actuates relay outputs connected to turbine shutdown circuits. Q: How many field signal channels are provided by the IS210TREAS1A?A: The board provides 6 trip command inputs and 3 relay output channels. Q: Does the board provide electrical isolation for trip circuits?A: The IS210TREAS1A provides channel-to-ground isolation rated at 2500 Vrms. Field Installation Guidelines Verify cabinet power isolation before installing or removing the board. Use ESD protection when handling the PCB assembly. Install the board into the designated Mark VIe I/O rack position and confirm connector engagement. Wire trip command inputs according to the configured protection logic. Route relay output wiring separately from high-current switching conductors. Apply appropriate cable shielding and grounding practices to reduce electrical interference and prevent unintended trip signals. Verify relay operation, input status, and diagnostic feedback through ToolboxST software before returning the turbine control system to service.
$200.00 $100.00
-

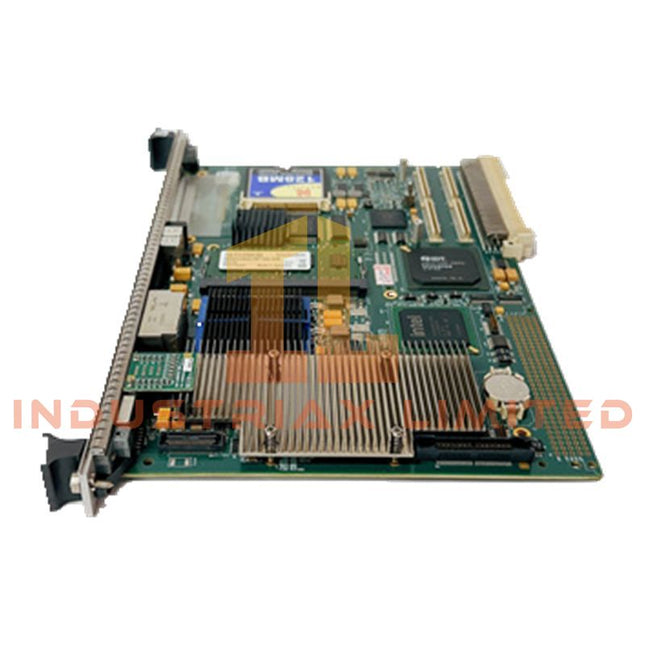

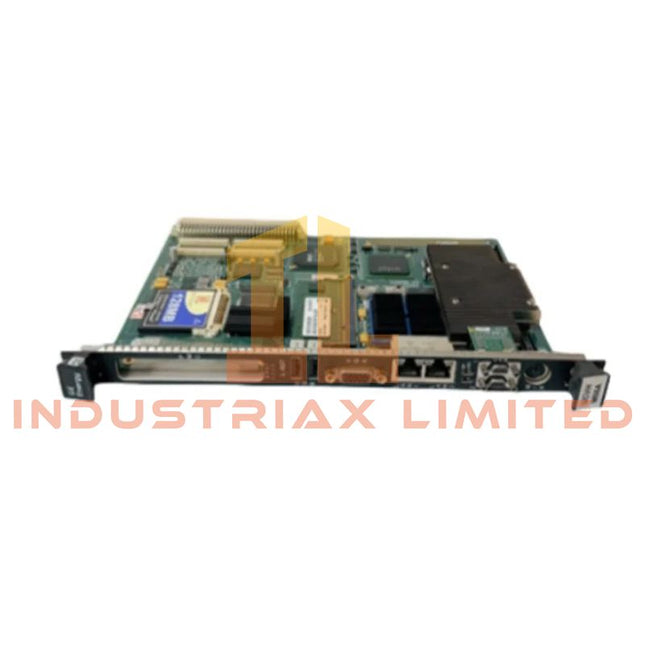

General Electric GE IS430SSUAH1A Universal Analog I/O Module
GE IS430SSUAH1A Universal Analog I/O Module The GE IS430SSUAH1A, also cataloged as the IS430SSUAH1A Universal Analog I/O Module, operates as a dedicated hardware component for configurable signal acquisition and output execution within GE Mark VIeS Functional Safety Control Systems. The module provides 16 configurable I/O channels supporting analog, digital, thermocouple, RTD, current, voltage, and pulse signal processing. Hardware Specifications Parameter Specification Model IS430SSUAH1A Brand GE Origin United States Weight 2 lbs Operating Temp -40 to +70 deg C Power Consumption Not specified Product Type Universal Analog I/O Module System Platform GE Mark VIeS Functional Safety Control System Channel Count 16 configurable channels Supported Inputs TC, RTD, +/-5 V, +/-10 V, 4-20 mA, digital input, pulse accumulator Supported Outputs 0-20 mA output, digital output, interposing relay interface ADC Resolution 16-bit Excitation Power 28 VDC nominal HART Support Optional for mA input/output modes Digital Input Modes NAMUR, externally wetted, internally wetted AC Common Mode Rejection 60 dB at 60 Hz DC Common Mode Rejection 80 dB Isolation Channel-to-ground isolation Field Wiring Range 24-12 AWG Mounting Type DIN rail Configuration Simplex Profinet / EtherNet-IP Deterministic Networks and I/O Density Scaling The IS430SSUAH1A is designed for configurable I/O density scaling within the Mark VIeS control architecture. Each channel can be assigned independently through ToolboxST configuration software, allowing different signal types to coexist on a single I/O module. The module processes analog conversion, pulse counting, and digital signal handling through a unified hardware interface. Firmware flash compatibility and configuration management are handled through the Mark VIeS engineering environment. Diagnostic functions include power-up self-test execution and LED-based module status indication for commissioning and maintenance activities. Frequently Asked Questions Q: Can the IS430SSUAH1A operate with redundant I/O configurations?A: The IS430SSUAH1A is configured as a simplex I/O module and does not provide redundant channel architecture. Q: What field wiring range is supported by this module?A: The module supports field wiring from 24 AWG minimum to 12 AWG maximum. Q: Which signal types can be configured on the module channels?A: Channels support thermocouple, RTD, voltage, current, digital I/O, and pulse accumulator signal types through software configuration. Field Installation Guidelines Install the module on a properly grounded DIN rail assembly. Verify cabinet power isolation before wiring or module replacement. Use ESD protection procedures when handling the I/O assembly. Connect field wiring according to the configured channel type before commissioning. Route analog and digital signal cables separately from high-current switching conductors. Apply appropriate cable shielding and grounding practices for turbine control environments with electrical noise exposure. Configure each channel assignment through ToolboxST software before system operation. Verify LED status indicators and perform signal validation after installation.
$200.00 $100.00
-

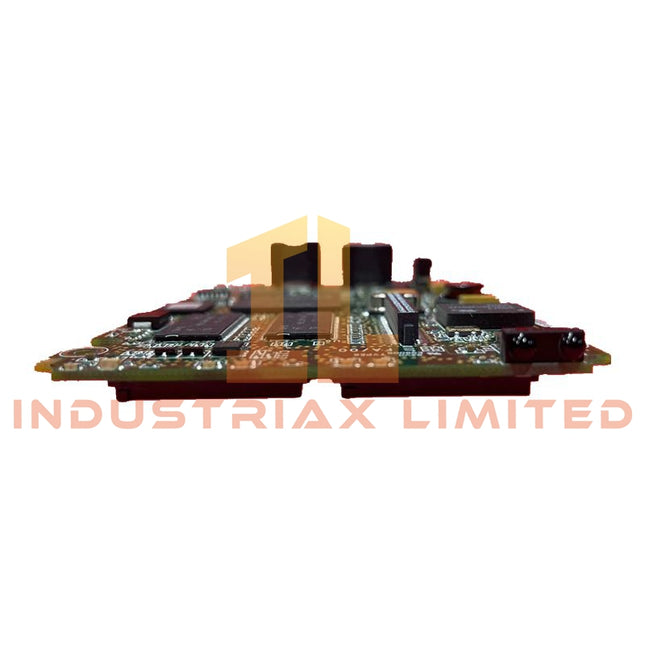

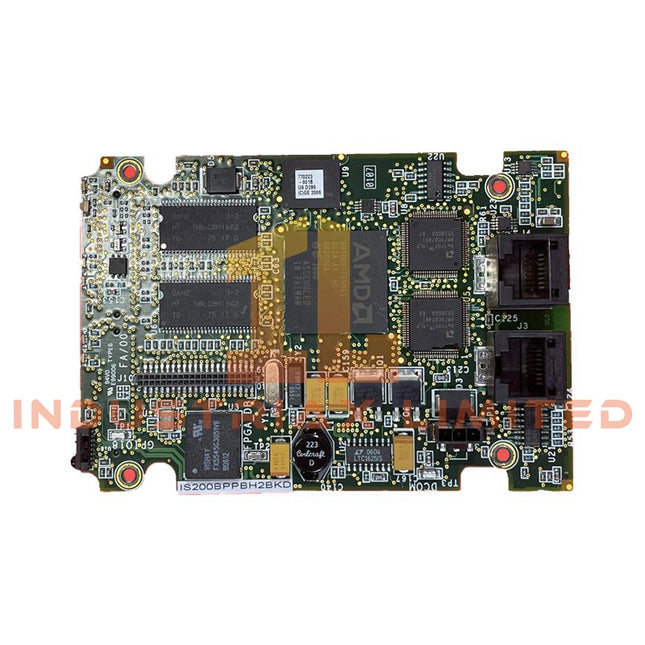

General Electric GE IS200BPPBH2BMD Analog I/O Processor Board
GE IS200BPPBH2BMD Analog I/O Processor Board Configured for analog signal acquisition and output processing in GE Mark VI Speedtronic Turbine Control Systems, the GE IS200BPPBH2BMD (IS200BPPB Analog I/O Processor Board) provides direct physical/electrical execution for sensor interfacing, channel processing, and analog data conversion. The board handles differential and single-ended input signals with 16-bit ADC processing and isolated analog outputs. Hardware Specifications Parameter Specification Model IS200BPPBH2BMD Brand GE Origin United States Weight 0.48 kg Dimensions 3.0 cm x 16.0 cm x 26.0 cm Operating Temp -30 to +65 deg C Power Consumption 5 VDC from host system Product Type Analog I/O Processor Board System Platform GE Mark VI Speedtronic Turbine Control System Analog Inputs 16 differential or 32 single-ended channels Analog Outputs 8 isolated analog channels ADC Resolution 16-bit DAC Resolution 14-bit Processor 32-bit RISC microcontroller Communication Interface Dual 64-pin backplane connectors Isolation Rating 2500 Vrms Coating Conformal coating revision H2BMD Profinet / EtherNet-IP Deterministic Networks and I/O Processing The IS200BPPBH2BMD operates as an analog processing node within the Mark VI control architecture, managing channel conversion, signal conditioning, and data exchange through the turbine control backplane. The board supports I/O density scaling by providing multiple analog channels in a single rack position while maintaining deterministic acquisition timing. Firmware flash compatibility and board revision control are maintained through the Mark VI hardware configuration environment. Diagnostic routines monitor channel status, conversion operation, and internal processing conditions for system-level fault reporting. Frequently Asked Questions Q: What analog input configurations are supported by the IS200BPPBH2BMD?A: The board supports 16 differential analog input channels or 32 single-ended analog input channels depending on system configuration. Q: How is the module connected to the Mark VI control system?A: The board interfaces with the host control rack through dual 64-pin backplane connectors. Q: Does the IS200BPPBH2BMD provide electrical isolation?A: The board provides isolated analog outputs and an isolation rating of 2500 Vrms for signal separation. Field Installation Guidelines Confirm system power removal before installation or replacement. Use ESD protection procedures when handling the board assembly. Insert the board into the designated Mark VI rack position until both backplane connectors are fully engaged. Secure front-panel hardware to maintain mechanical retention and chassis grounding. Route analog signal wiring separately from high-current switching conductors. Connect cable shields according to cabinet grounding practices to reduce electrical noise coupling. Configure differential or single-ended input modes through the Mark VI software configuration tools before returning the control system to operation.
$200.00 $100.00
-
General Electric IS200ACLEH1CAA GE Mark VI Application Control Module
GE IS200ACLEH1CAA Application Control Layer Module The GE IS200ACLEH1CAA, also cataloged as the IS200ACLEH1CAA Application Control Layer Module, operates as a dedicated hardware component for deterministic excitation control execution within GE Mark VI and EX2100 Excitation Control Systems. The module provides processor-based task management, communication handling, and control processing through a 100 MHz CPU, onboard memory, and system interface channels. Hardware Specifications Parameter Specification Model IS200ACLEH1CAA Brand GE Origin United States Weight 1.3 kg Operating Temp -30 to +65 deg C Power Consumption 5 VDC backplane supply Product Type Application Control Layer Module System Platform Mark VI / EX2100 Excitation Control System Processor Intel 486 CPU, 100 MHz Memory 8 MB DRAM, 4 MB Flash Cache 128 KB L2 cache Communication Interfaces Ethernet, ISBus, COM1/COM2 serial ports Input Voltage 125 VDC Output Voltage 24 VDC Mounting Type DIN-rail or exciter backplane slot Deterministic Control and Firmware Execution The IS200ACLEH1CAA uses a microprocessor-based architecture for execution of excitation control tasks, communication processing, and system synchronization functions. The 4 MB Flash memory stores firmware and configuration data, while the DRAM supports runtime processing requirements. The module manages Ethernet communication, ISBus synchronization, and serial interface operations within the Mark VI control architecture. Frequently Asked Questions Q: What communication interfaces are supported by the IS200ACLEH1CAA?A: The module supports Ethernet, ISBus, and COM1/COM2 serial communication interfaces for control system data exchange and diagnostics. Q: What power supply requirements apply to this module?A: The module operates with a 125 VDC input system interface and uses a 5 VDC backplane supply for internal module operation. Q: Is the IS200ACLEH1CAA compatible with EX2100 excitation systems?A: The module is designed for installation in GE EX2100 exciter racks and Mark VI control system architectures. Field Installation Guidelines Verify cabinet power isolation before module replacement or installation. Use ESD protection equipment when handling the circuit board assembly. Install the module into the assigned exciter backplane slot or DIN-rail mounting position according to rack configuration requirements. Route Ethernet, ISBus, and serial cables separately from high-voltage power conductors to reduce electromagnetic interference. Ensure cable shielding is connected according to cabinet grounding practices. Confirm backplane seating, connector engagement, and firmware compatibility before system energization.
$200.00 $100.00
-

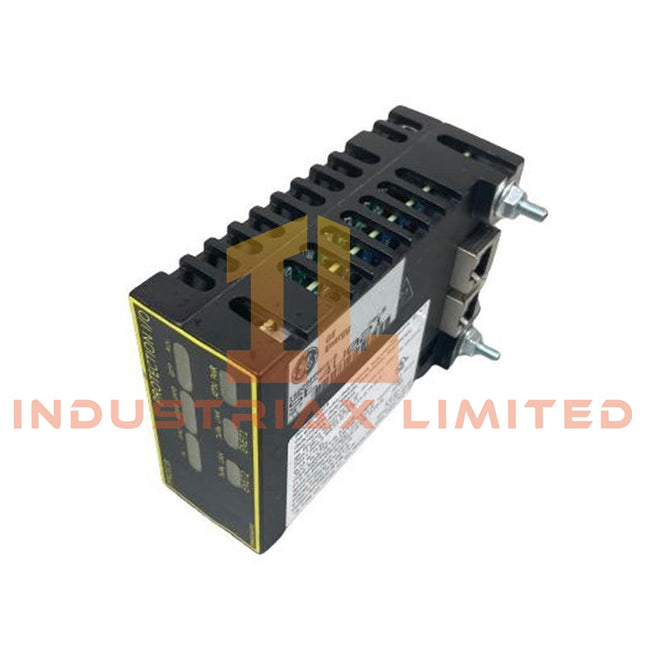

General Electric GE IS220PPRAS1A Proximity Input I/O Pack
GE IS220PPRAS1A Proximity Input I/O Pack Configured for proximity probe and Keyphasor signal acquisition in the GE Mark VIe turbine control system, the GE IS220PPRAS1A (IS220PPRAS1A Proximity Input I/O Pack) provides direct physical/electrical execution for shaft displacement, vibration, and speed measurement signals. Hardware Specifications Parameter Specification Model IS220PPRAS1A Brand GE Product Type Proximity Input I/O Pack System Compatibility GE Mark VIe Turbine Control System Origin United States Weight 0.6 kg Operating Temp -40 to +70 deg C Input Channels 2 proximity probe channels + 1 Keyphasor channel Sensor Type Eddy-current proximity probes, magnetic pickup or proximity Keyphasor sensors Probe Excitation -24 VDC Resolution 16-bit ADC Sampling Rate Up to 20 kHz Buffered Outputs BNC connectors for external monitoring Isolation 2500 Vrms channel-to-backplane Power Supply 28 VDC nominal from Mark VIe backplane PCB Treatment Conformal coating, S1A revision Certifications CE, UL, CSA, RoHS Eddy-Current Probe Signal Processing and Rotor Monitoring The IS220PPRAS1A interfaces with eddy-current proximity probes for shaft displacement and vibration measurement. Probe calibration requires validation of gap voltage conditions, with approximately -10 VDC used as the nominal probe gap reference. The module processes dynamic vibration signals and Keyphasor timing signals for rotor speed and phase-related monitoring. Signal conditioning functions include input filtering, channel isolation, and buffered output routing. The 2500 Vrms isolation between channels and backplane reduces interference transfer during turbine control operation. Frequently Asked Questions Q: What sensor types can be connected to the IS220PPRAS1A?A: The module supports eddy-current proximity probes for shaft measurement and magnetic pickup or proximity sensors for Keyphasor input signals. Q: Does the IS220PPRAS1A provide external monitoring outputs?A: Yes. Buffered outputs are available through BNC connectors for connection to external diagnostic equipment. Q: Is the module compatible with redundant Mark VIe configurations?A: The provided data specifies Mark VIe I/O rack installation and does not define a specific redundancy configuration. System configuration must follow the Mark VIe hardware design requirements. Field Installation Guidelines Install the IS220PPRAS1A in the designated Mark VIe I/O rack position and verify correct mechanical engagement with the rack connectors. Connect proximity probe and Keyphasor wiring according to the terminal assignment documentation. Sensor cable shields should be terminated according to site grounding practice to reduce electromagnetic interference. Route vibration sensor cables separately from high-current power wiring and switching circuits. Verify probe polarity, excitation wiring, and signal reference connections before system startup. Perform probe gap calibration and confirm the expected gap voltage before enabling turbine monitoring functions. Configure channel parameters through the applicable Mark VIe engineering software.
$200.00 $100.00
