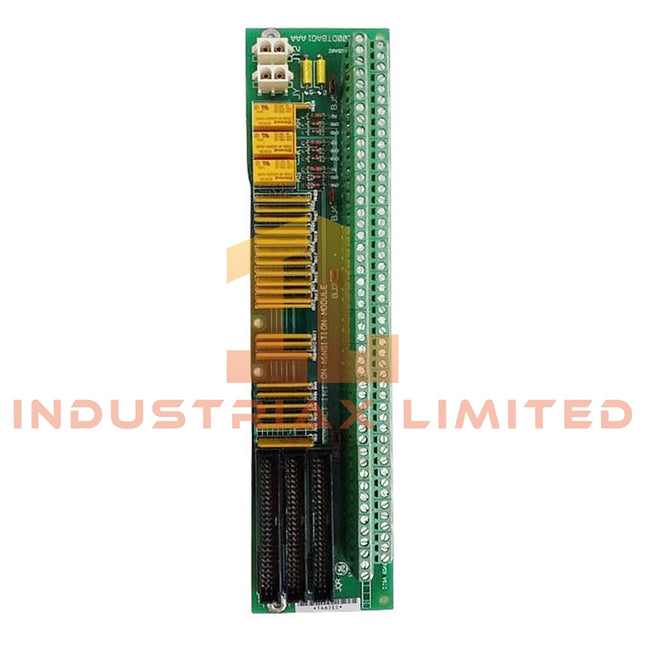

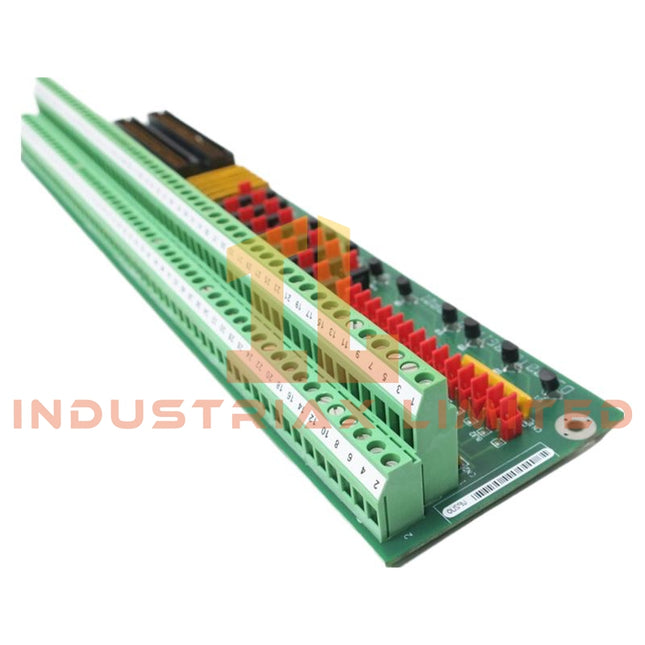

General Electric GE DS200PTBAG1BBA Terminal Board
GE DS200PTBAG1BBA Terminal Board The GE DS200PTBAG1BBA, also cataloged as the DS200PTBA Terminal Board, operates as a dedicated hardware component for field signal termination and protection circuit routing within the GE Mark V Speedtronic turbine control system. The board provides physical wiring interfaces for turbine sensors, actuators, and auxiliary devices connected to processor boards. Hardware Specifications Parameter Specification Model DS200PTBAG1BBA Brand GE Origin USA Weight 0.50 kg Dimensions 280 x 200 x 25 mm Operating Temp -30 deg C to +65 deg C Power Consumption Passive terminal interface board, no dedicated power consumption Board Type Terminal Board Functional Acronym PTBA System Platform GE Mark V Speedtronic Turbine Control System Product Series Mark V Speedtronic Functional Description Protection Termination Module Supported Signals Analog signals and discrete input/output circuits Terminal Interface Multiple screw-type field wiring terminals Isolation Galvanic isolation between field and logic interfaces Mounting Type Panel-mounted in Mark V cabinet Assembly Type Normal Assembly PCB Protection Conformal coating I/O Density Scaling and Protection Signal Routing The DS200PTBAG1BBA provides the termination layer for protection-related field circuits in the GE Mark V architecture. The board organizes external wiring connections from sensors, actuators, and auxiliary devices before signal transfer to control processing modules such as TCRA, TCCB, and TCDA. The PTBA terminal interface supports I/O density scaling by providing structured connection points for multiple turbine control circuits. The passive wiring design maintains signal separation and allows integration with different Mark V processor boards through defined terminal assignments. Frequently Asked Questions Q: Is the DS200PTBAG1BBA a signal processing module?A: No. The PTBA is a passive protection termination module used for field wiring connection and signal routing. Q: What type of field devices can be connected through the terminal board?A: The board supports wiring connections for turbine sensors, actuators, auxiliary devices, and analog/discrete I/O circuits according to the Mark V cabinet configuration. Q: Does the DS200PTBAG1BBA require firmware configuration?A: No. The terminal board does not contain a processor or firmware storage and functions as a hardware termination interface. Field Installation Guidelines Install the DS200PTBAG1BBA at the specified GE Mark V cabinet mounting location and verify terminal identification before connecting field wiring. Confirm screw terminal connections are tightened according to approved cabinet wiring procedures. Route field signal cables separately from high-current power conductors and switching circuits to reduce electromagnetic interference. Use shielded instrumentation wiring where required and connect cable shields according to the cabinet grounding arrangement. Before replacement or maintenance, isolate system power and verify field circuits are de-energized. Confirm terminal assignments, connector references, and revision compatibility before returning the control system to operation.
$200.00 $100.00
-

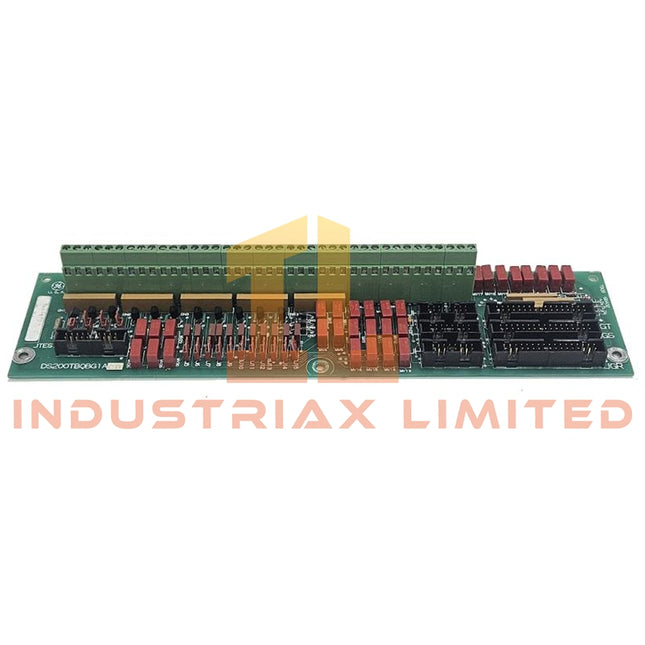

General Electric GE DS200TBQBG1ACB Terminal Board
GE DS200TBQBG1ACB Terminal Board The GE DS200TBQBG1ACB, also cataloged as the DS200TBQB Terminal Board, operates as a dedicated hardware component for field signal termination and I/O routing within the GE Mark V Speedtronic turbine control system. The board provides physical connection points for analog and discrete signals between field devices and control electronics. Hardware Specifications Parameter Specification Model DS200TBQBG1ACB Brand GE Origin USA Weight 0.48 kg Dimensions 280 x 200 x 25 mm Operating Temp -30 deg C to +65 deg C Power Consumption Passive terminal interface board, no dedicated power consumption Board Type Terminal Board Functional Acronym TBQB System Platform GE Mark V Speedtronic Turbine Control System Product Type Input Termination Module Supported Signals Discrete inputs/outputs and analog signals Terminal Interface Multiple screw-type field wiring terminals Isolation Galvanic isolation between field and logic interfaces Mounting Panel-mounted in Mark V cabinet PCB Protection Conformal coating I/O Density Scaling and Field Signal Routing The DS200TBQBG1ACB provides the field termination layer for GE Mark V turbine control I/O circuits. The terminal board routes analog and discrete signals from external sensors, switches, and actuators to processor interface boards including TCRA and TCCB modules. The board supports I/O density scaling within the Mark V cabinet by organizing multiple field circuits into structured terminal connections. Its passive signal routing design maintains wiring separation and simplifies connection between field devices and control processing hardware. Frequently Asked Questions Q: Is the DS200TBQBG1ACB responsible for signal processing?A: No. The board is a passive terminal interface module used for field wiring termination and signal routing. Q: What types of signals can be connected through the TBQB terminal board?A: The board supports discrete input/output signals and analog field signals according to the Mark V cabinet configuration. Q: Does the terminal board require an external power supply?A: No. The DS200TBQBG1ACB does not contain active processing circuits and does not require an independent power connection. Field Installation Guidelines Install the DS200TBQBG1ACB in the designated Mark V cabinet mounting location and verify terminal identification before field wiring connection. Confirm all screw terminals are properly tightened to maintain stable electrical contact. Route analog signal cables separately from high-current power conductors and switching circuits to minimize electromagnetic interference. Use shielded cables where required, and terminate shields according to the turbine control cabinet grounding practice. Before installation or maintenance, isolate system power and verify field circuits are de-energized. Check terminal assignments, signal polarity, and connection references against the approved Mark V wiring documentation before system startup.
$200.00 $100.00
-

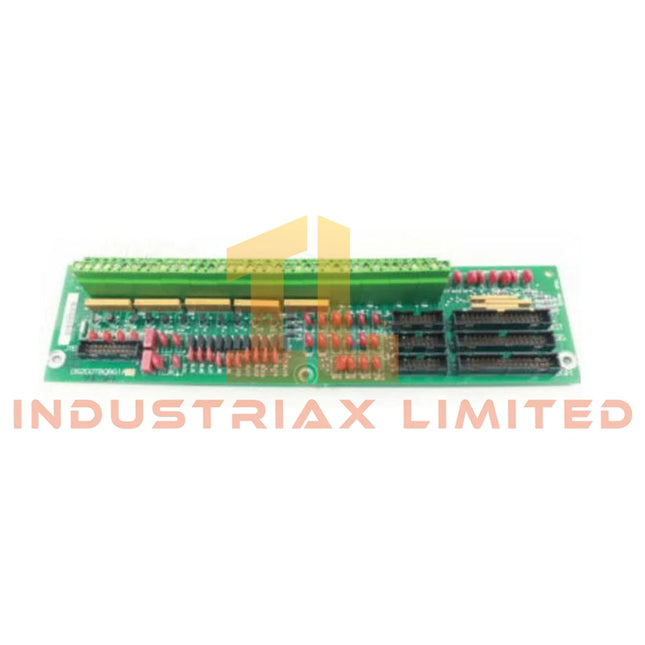

General Electric GE DS200TBCAG1AAA Terminal Board

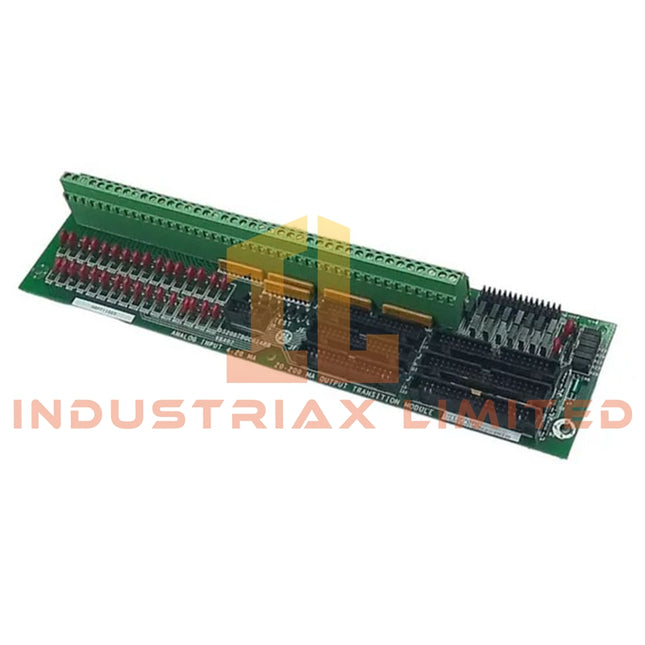

GE DS200TBCAG1AAA Terminal Board Configured for field signal termination and analog/discrete wiring connection in the GE Mark V Speedtronic turbine control system, the GE DS200TBCAG1AAA (DS200TBCA Terminal Board) provides direct physical/electrical execution for routing field device signals between external wiring and Mark V control modules. Hardware Specifications Parameter Specification Model DS200TBCAG1AAA Brand GE Origin USA Weight 0.45 kg Dimensions 280 x 200 x 25 mm Operating Temp -30 deg C to +65 deg C Power Consumption Passive terminal interface board, no dedicated power consumption Board Type Terminal Board Functional Acronym TBCA System Platform GE Mark V Speedtronic Turbine Control System Mounting Location R5 Core Communication Connector 3PL Input Signal Types 4-20 mA and discrete field signals Output Signal Type 4-20 mA Output Connector JAA Terminal Interface Screw-type field wiring terminals Isolation Galvanic isolation between field and logic interfaces PCB Protection Conformal coating Board Function Field wiring termination and signal routing I/O Density Scaling and Field Signal Integration The DS200TBCAG1AAA provides the physical termination layer between turbine field devices and GE Mark V control electronics. The terminal board supports organized connection of analog and discrete signals from sensors, switches, and actuators to processor interface boards such as TCCA and TCCB. Within the Mark V architecture, the terminal interface supports I/O density scaling by allowing multiple field circuits to be routed through structured terminal points before reaching control processing modules. The board maintains signal separation and wiring organization for analog current loops and discrete control circuits. Frequently Asked Questions Q: Is the DS200TBCAG1AAA an active processing module?A: No. The board is a passive terminal interface component used for field wiring termination and signal routing to Mark V control electronics. Q: What field signal types can be connected through this terminal board?A: The board supports analog 4-20 mA signals and discrete field device connections according to the Mark V cabinet configuration. Q: Does the DS200TBCAG1AAA require a separate power supply connection?A: No. The board functions as a passive wiring interface and does not contain an independent power conversion circuit. Field Installation Guidelines Install the DS200TBCAG1AAA at the specified Mark V cabinet mounting position and verify terminal identification before connecting field wiring. Ensure screw terminals are properly secured to maintain stable electrical contact. Route analog signal cables separately from high-current conductors and switching circuits to reduce electromagnetic interference. Use shielded instrumentation wiring where required, with cable shield termination following the cabinet grounding design. Before servicing or rewiring, remove applicable system power sources and confirm signal isolation. Verify terminal assignments, polarity, and connector references against the approved Mark V wiring documentation before system startup.
$200.00 $100.00
-

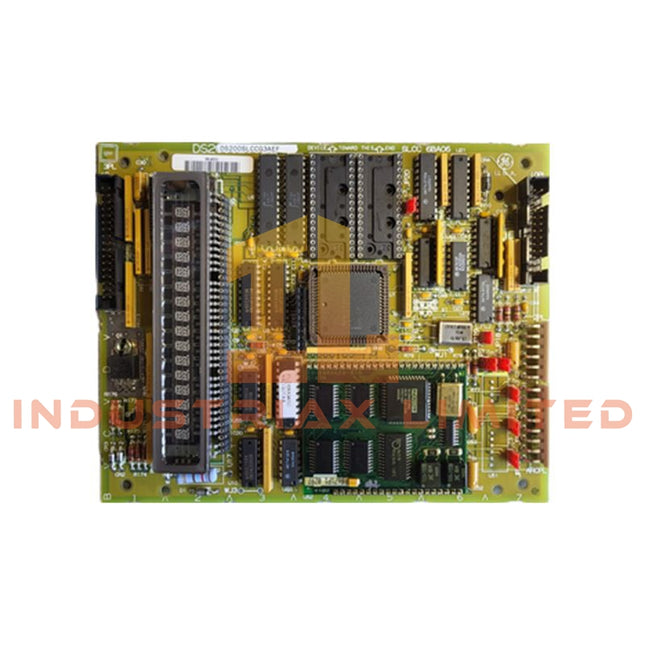

General Electric GE DS200SLCCG3AGH LAN Communication Board
GE DS200SLCCG3AGH LAN Communication Board Configured for Ethernet and ARCnet data communication in the GE Mark V Speedtronic turbine control system, the GE DS200SLCCG3AGH (DS200SLCC LAN Communication Board) provides direct physical/electrical execution for controller network interfacing, protocol processing, and diagnostic data exchange between turbine control processors and external systems. Suffix Breakdown & Model Matrix Model Element Description DS200 GE Mark V DS200 hardware series designation SLCC LAN Communication Board functional acronym G3 Board hardware configuration identifier AGH Functional revision and artwork revision designation Functional Revision 1 A Functional Revision 2 G Artwork Revision H Hardware Specifications Parameter Specification Model DS200SLCCG3AGH Brand GE Origin USA Weight 0.55 kg Dimensions 200 x 150 x 25 mm Operating Temp -30 deg C to +65 deg C Power Consumption 24 VDC, 250 mA max Board Type LAN Communication Board Functional Acronym SLCC System Platform GE Mark V Speedtronic Turbine Control System Network Interface 10Base-T Ethernet (RJ45) Additional Network Interface ARCnet communication Supported Protocols TCP/IP, Modbus TCP, GE SRTP, ARCnet Processor 32-bit CPU with integrated Ethernet controller Firmware Memory 512 KB flash SRAM Memory 256 KB Data Retention 0.22 F super capacitor, approx. 72 hours Isolation 1500 V RMS Ethernet-to-backplane isolation Connectors RJ45, 9-pin SUB-D debug port, terminal block Indicators Power, Link, Activity, Fault LEDs PCB Protection Normal coating Deterministic Network Communication The DS200SLCCG3AGH manages communication between Mark V controller cores and plant-level control networks through Ethernet and ARCnet interfaces. The onboard communication processor handles protocol conversion, packet processing, and network diagnostics without direct loading of the turbine control processor. The board supports industrial network integration through TCP/IP, Modbus TCP, and GE SRTP communication methods. Ethernet communication paths provide deterministic data transfer between controller racks, HMI interfaces, and distributed control system connections. Frequently Asked Questions Q: What network interfaces are available on the DS200SLCCG3AGH?A: The board provides a 10Base-T Ethernet RJ45 interface and ARCnet communication capability for Mark V turbine control network connections. Q: What diagnostic information can be monitored from the board?A: Four front-panel LEDs indicate power status, network link condition, communication activity, and fault conditions. Q: Does the board isolate Ethernet signals from the control backplane?A: Yes. The communication interface provides 1500 V RMS isolation between Ethernet circuitry and the Mark V backplane. Field Installation Guidelines Install the DS200SLCCG3AGH in the designated GE Mark V <C> core rack position and verify connector orientation before insertion. Follow approved cabinet procedures for module removal and installation. Use shielded Ethernet cabling where required by the cabinet network design. Route communication cables separately from high-current power wiring and switching circuits to reduce electromagnetic interference. Verify Ethernet connections, terminal wiring, and communication configuration settings before startup. Confirm DIP switch settings, network parameters, and protocol assignments according to the approved Mark V system configuration. After power application, observe the Power, Link, Activity, and Fault LEDs to confirm communication initialization and network status.
$200.00 $100.00
-

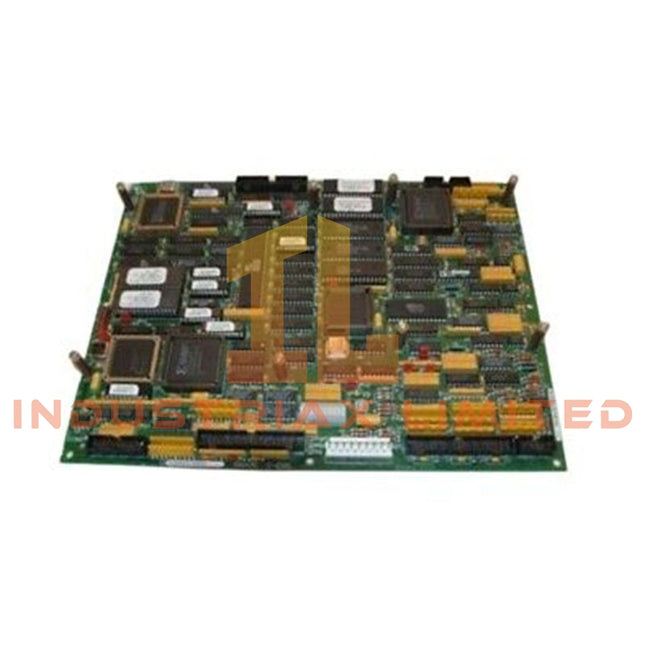

General Electric GE DS200TCCBG1BED Common Extended Analog I/O Board

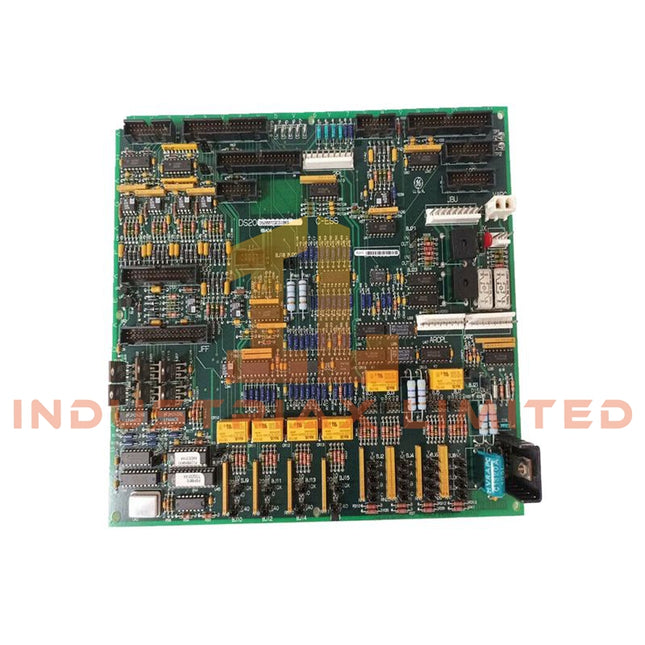

GE DS200TCCBG1BED Common Extended Analog I/O Board The GE DS200TCCBG1BED, also cataloged as the DS200TCCB Common Extended Analog I/O Board, operates as a dedicated hardware component for analog signal acquisition and conversion within the GE Speedtronic Mark V turbine control system. The board processes RTD, thermocouple, transmitter, and voltage input signals through integrated A/D conversion and analog output channels. Hardware Specifications Parameter Specification Model DS200TCCBG1BED Brand GE Origin USA Weight 2.00 lbs Dimensions 230 x 170 x 30 mm Operating Temp 0 deg C to +50 deg C typical; extended tolerance -30 deg C to +65 deg C Power Consumption Approx. 8 W Board Type Common Extended Analog I/O Board Functional Acronym TCCB System Platform GE Speedtronic Mark V Turbine Control System Analog Inputs 8 differential channels Supported Inputs RTD, thermocouple, 4-20 mA, +/-10 V Analog Outputs 4 channels, 0-10 V or 4-20 mA Input Resolution 12-bit A/D conversion Output Resolution 12-bit DAC conversion Input Accuracy +/-0.05% FS Output Accuracy +/-0.1% FS Sampling Rate Approx. 200 Hz per channel Isolation Voltage 1500 V field-to-logic Power Supply 24 VDC +/-10% and +5 VDC logic rail Connectors JCC/JDD RTD inputs, JEE auxiliary, 3PL I/O engine interface Processor Intel 80196 microcontroller Firmware Storage Socketed EPROMs PCB Protection Normal coating PCB Layers 6-layer noise-hardened design I/O Density Scaling and Analog Processing The DS200TCCBG1BED extends the analog processing capacity of the GE Mark V platform through additional RTD, thermocouple, current, and voltage measurement channels. The onboard signal conditioning circuitry performs local conversion of field analog signals before transferring processed data through the control architecture. The board uses GE industrial control I/O density scaling methods to increase sensor channel availability while maintaining compatibility with Mark V control racks. The onboard Intel 80196 microcontroller manages local scanning, conversion handling, and diagnostic processing. Frequently Asked Questions Q: What types of field signals can be connected to the DS200TCCBG1BED analog inputs?A: The board supports differential analog inputs for RTD, thermocouple, 4-20 mA transmitter signals, and +/-10 V voltage inputs. Q: Does the DS200TCCBG1BED provide isolation between field wiring and control electronics?A: Yes. The board provides 1500 V field-to-logic isolation for separation between external analog signals and internal control circuits. Q: Is firmware stored directly on the board hardware?A: Yes. The board uses socketed EPROM devices for firmware storage and calibration data management. Field Installation Guidelines Install the DS200TCCBG1BED in the designated GE Speedtronic Mark V rack location and verify connector identification before applying power. Confirm that JCC, JDD, JEE, and 3PL connections match the approved wiring documentation. Analog signal cables should be routed separately from high-voltage and high-current conductors to reduce electromagnetic interference. Shielded instrumentation cables should be used where required, with cable shields terminated according to the control cabinet grounding design. After installation, verify field input polarity, RTD and thermocouple wiring configuration, and analog channel assignments. Perform the required calibration procedure using the onboard reference points before returning the turbine control system to service.
$200.00 $100.00
-

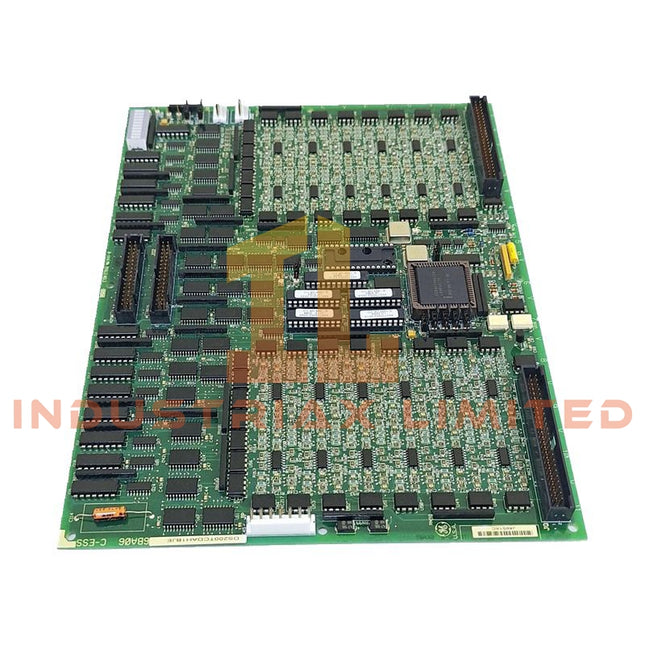

General Electric DS200TCDAH1BHJE GE Mark V Digital I/O Board

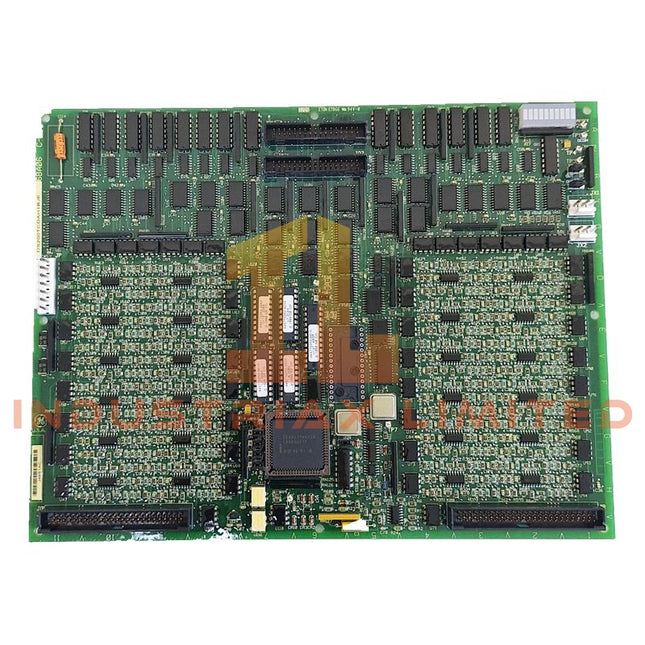

GE DS200TCDAH1BHJE Digital I/O Board Configured for discrete signal acquisition and output execution in the GE Speedtronic Mark V turbine control system, the GE DS200TCDAH1BHJE (DS200TCDA Digital I/O Board) provides direct physical/electrical execution through optically isolated digital input and output channels. The board transfers field contact, trip switch, sensor, and actuator signals through the IONET backplane interface. Hardware Specifications Parameter Specification Model DS200TCDAH1BHJE Brand GE Origin USA Weight 0.8 kg Dimensions 178 x 101 x 30 mm Operating Temp -20 deg C to +60 deg C Power Consumption Powered from 5 VDC, 24 VDC, and 125 VDC system rails Board Type Digital Input/Output Processor Board System Platform GE Speedtronic Mark V Turbine Control System Digital Inputs 16 optically isolated channels Digital Outputs 16 optically isolated channels Isolation Method Optocoupler-based galvanic isolation Communication Interface IONET proprietary backplane communication Connectors Dual 50-pin headers and 2 x 3-pin plugs Configuration 8 jumper blocks (JP1-JP8) Diagnostics 10-LED diagnostic array and CR9 side LED PCB Protection Full conformal coating IONET Backplane and Digital Signal Processing The DS200TCDAH1BHJE integrates GE Mark V digital I/O processing functions through the IONET backplane communication network. The onboard microcontroller performs local I/O scanning and signal handling, reducing direct processing load on the turbine control processor. The board supports deterministic digital data exchange between field devices and the Mark V control core. Input channels accept discrete signals from limit switches and sensors, while output channels provide control signals for relay interfaces, solenoid drivers, and annunciator circuits through compatible relay driver boards. Frequently Asked Questions Q: Does the DS200TCDAH1BHJE provide electrical isolation between field signals and the control system?A: Yes. The board uses optocoupler-based galvanic isolation for its digital input and output channels to separate field wiring from internal control electronics. Q: What communication method is used for data exchange with the Mark V system?A: The board communicates through the proprietary GE IONET backplane interface for digital signal transfer between I/O hardware and the turbine control processor. Q: What diagnostic functions are available on the board?A: The board includes a 10-LED diagnostic array for channel status indication and a CR9 LED for board power and processing activity monitoring. Field Installation Guidelines Install the DS200TCDAH1BHJE in the designated GE Speedtronic Mark V rack position and verify connector alignment before insertion. Ensure that dual 50-pin headers and auxiliary plugs are fully seated to maintain correct field signal routing. Field wiring should be separated from high-current power conductors and high-noise switching circuits. Use appropriate cable shielding practices, with shield termination following the grounding requirements of the turbine control cabinet design. Verify supply rail connections for 5 VDC, 24 VDC, and 125 VDC sources before energizing the module. Maintain clean cabinet conditions to preserve the conformal coating protection and prevent contamination from moisture, dust, or conductive particles. Confirm jumper block settings match the approved control configuration before system operation.
$200.00 $100.00
-

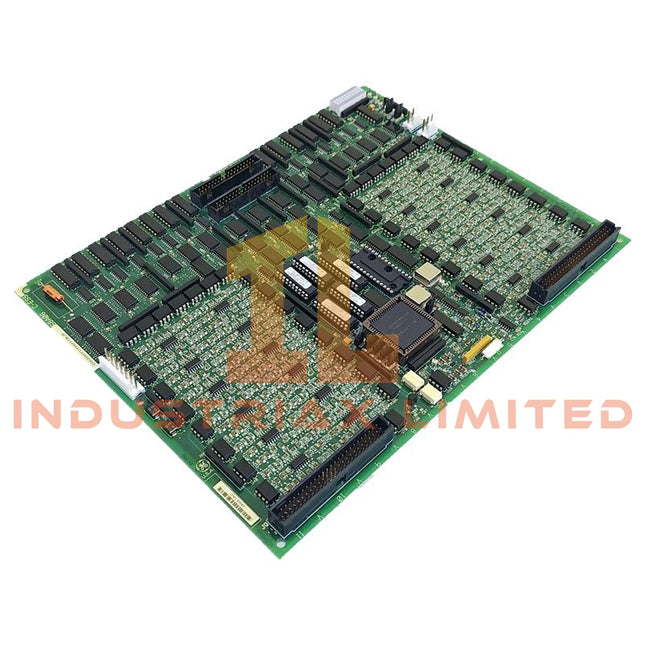

General Electric GE DS200TCDAH1BHE Digital to Analog Converter Board
GE DS200TCDAH1BHE Digital to Analog Converter Board Configured for digital signal conversion in the GE Mark V turbine control system, the GE DS200TCDAH1BHE (DS200TCDA Digital to Analog Converter Board) provides direct electrical conversion from processor-generated digital data to analog output signals for turbine control interfaces. Hardware Specifications Parameter Specification Model DS200TCDAH1BHE Brand GE General Electric Origin United States Weight 0.8 kg Dimensions 233 mm x 160 mm x 25 mm Operating Temp -30 to +65 deg C Power Consumption Supplied through +5 VDC and +/-15 VDC backplane power Product Type Digital I/O Boards Series Mark V Functional Acronym TCDA Input Voltage +5 VDC, +/-15 VDC from backplane Digital Input Interface 16-bit parallel bus from CPCA/SDCC boards Analog Output Range +/-10 VDC, 4-20 mA DAC Resolution 12-bit Isolation Rating 2500 Vrms Response Time < 5 ms signal conversion Diagnostics Front-panel LEDs: Run, Fail, Output Status Redundancy Support Dual/triple modular redundancy compatible Mounting Type Rack mount, single-slot Deterministic Network and I/O Density Characteristics The DS200TCDAH1BHE operates as an analog interface expansion board within the GE Mark V control architecture. The module receives digital control values through the processor board interface and performs digital-to-analog conversion for connected field devices. I/O density scaling is achieved through dedicated conversion channels supporting multiple analog output requirements within the rack system. The board interfaces with CPCA and SDCC processor modules through the Mark V backplane structure. Firmware flash compatibility and processor configuration must match the installed control system revision to maintain correct signal mapping and output execution. Frequently Asked Questions Q: What type of signals does the DS200TCDAH1BHE convert?A: The board converts 16-bit digital control data from processor boards into analog output signals including +/-10 VDC and 4-20 mA. Q: Does the DS200TCDAH1BHE contain independent control processing?A: No. The board performs digital-to-analog conversion functions and relies on connected Mark V processor boards for control logic execution. Q: Which processor boards interface with the TCDA board?A: The module interfaces with CPCA and SDCC processor boards within the GE Mark V control system. Field Installation Guidelines Install the DS200TCDAH1BHE in the designated Mark V rack slot and verify proper backplane connector alignment before energizing the system. Confirm that analog output wiring matches the approved terminal configuration and signal requirements. Route analog signal cables separately from high-power conductors to reduce electrical noise coupling. Cable shielding should be grounded according to the site grounding standard. Verify polarity, terminal tightness, and processor board compatibility before commissioning.
$200.00 $100.00
-

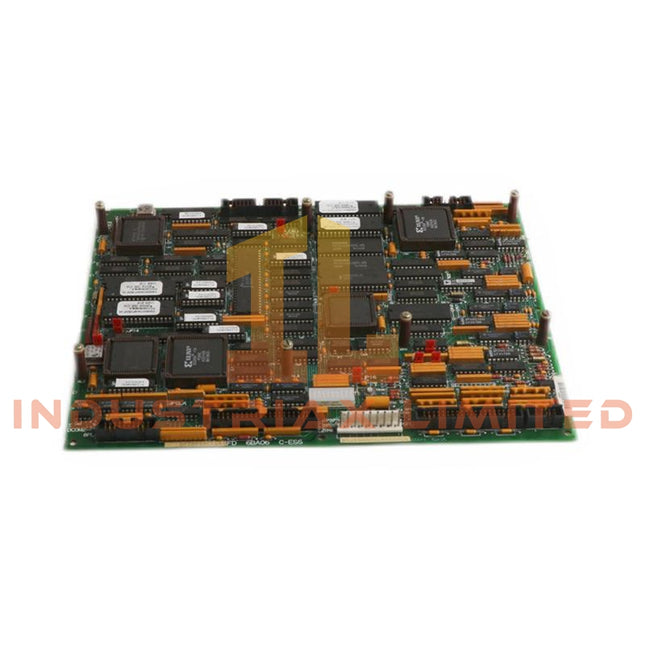

General Electric GE DS200SDCCG5AHD Drive Control Card
GE DS200SDCCG5AHD Drive Control Card The GE DS200SDCCG5AHD, also cataloged as the DS200SDCC Drive Control Card, operates as a dedicated hardware component for executing drive control algorithms and managing processor-based I/O functions within the GE Mark V control system. It provides CPU processing, communication interfaces, and deterministic control execution. Hardware Specifications Parameter Specification Model DS200SDCCG5AHD Brand GE General Electric Origin United States Weight 0.9 kg Dimensions 233 mm x 160 mm x 25 mm Operating Temp -30 to +65 deg C Power Consumption Supplied through +5 VDC and +/-15 VDC backplane power Product Type Drive Control Cards Series Mark V Functional Acronym SDCC Processor Motorola 68020 32-bit CPU Clock Speed 20 MHz Memory 2 MB DRAM, 512 KB SRAM, 1 MB EPROM Non-Volatile Storage EEPROM configuration storage Communication Interfaces VMEbus, RS-232, Ethernet 10 Mbps Isolation Rating 2500 Vrms Response Time < 10 ms control loop execution Diagnostics Front-panel LEDs: Run, Fail, Comm, Watchdog Mounting Type VME rack mount, single-slot Redundancy Support Dual and TMR compatible architecture Deterministic Network and Firmware Interface Characteristics The DS200SDCCG5AHD operates as a processor and communication node within the Mark V control architecture. The board manages backplane bus communication velocity through VMEbus interaction and coordinates data exchange between control logic, connected I/O assemblies, and external communication ports. Firmware flash compatibility and configuration data storage are managed through onboard memory devices including EEPROM and EPROM. Correct firmware matching is required for initialization and communication with the Mark V system. The processor executes control routines with defined timing for turbine and drive control applications. Frequently Asked Questions Q: What processor architecture is used on the DS200SDCCG5AHD?A: The board uses a Motorola 68020 32-bit CPU operating at 20 MHz for control algorithm execution and system processing. Q: Which communication interfaces are available on this control card?A: The DS200SDCCG5AHD provides VMEbus, RS-232, and Ethernet communication interfaces for system integration and diagnostics. Q: Does the SDCC board support redundant control configurations?A: The provided specifications indicate compatibility with dual and triple modular redundancy (TMR) configurations within the Mark V control architecture. Field Installation Guidelines Install the DS200SDCCG5AHD into the assigned Mark V VME rack slot with the correct mechanical alignment. Verify backplane connector engagement before applying system power. Ensure that firmware configuration matches the installed Mark V control system version. Route communication and signal cables separately from high-voltage conductors to reduce electromagnetic interference. Maintain proper grounding practices for rack assemblies and cable shields according to site electrical standards. Confirm airflow paths remain unobstructed to maintain the specified operating temperature range.
$200.00 $100.00
-

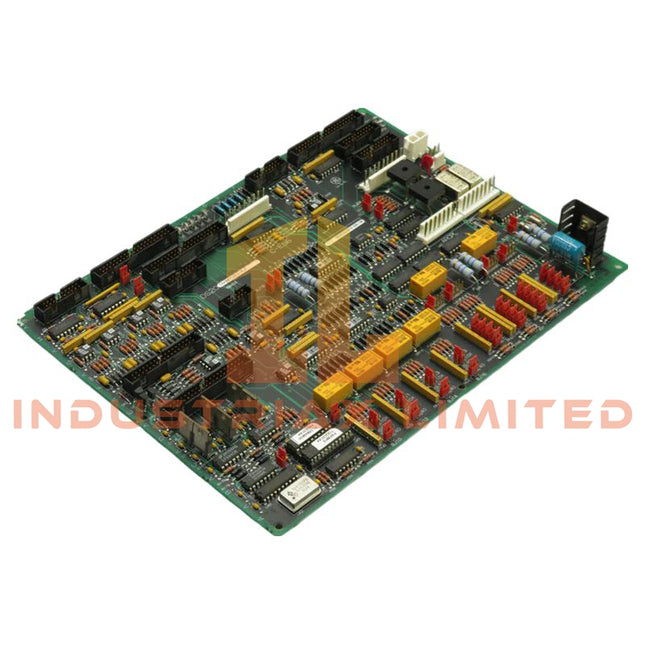

General Electric GE DS200TCQCG1BKG Digital I/O Termination Board

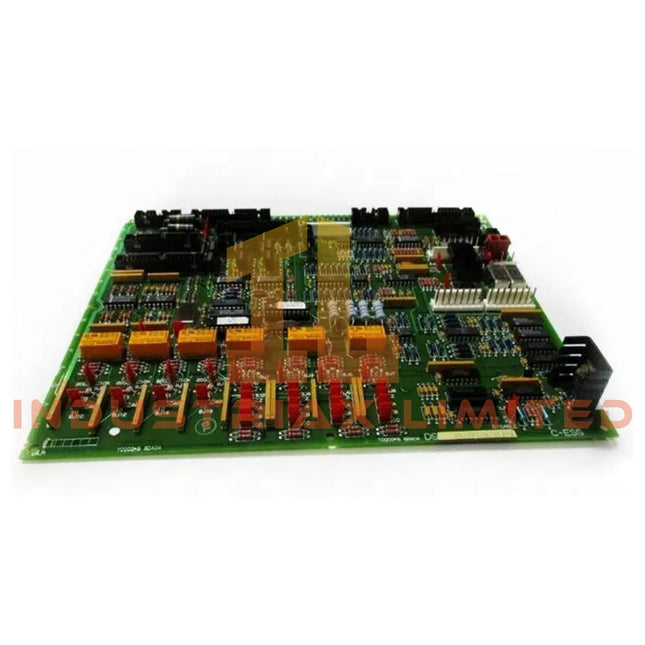

GE DS200TCQCG1BKG Digital I/O Termination Board The GE DS200TCQCG1BKG, also cataloged as the DS200TCQC Digital I/O Termination Board, operates as a dedicated hardware component for digital signal termination and field wiring interface within the GE Mark V turbine control system. It provides physical connections for digital input, output, and trip circuit signals between field devices and control processor boards. Hardware Specifications Parameter Specification Model DS200TCQCG1BKG Brand GE General Electric Origin United States Weight 0.8 kg Dimensions 233 mm x 160 mm x 25 mm Operating Temp -30 to +65 deg C Power Consumption Passive termination board; powered through connected control system interfaces Product Type Digital I/O Termination Board Series Mark V Functional Acronym TCQC Signal Types Supported Digital inputs, digital outputs, trip solenoid signals Input Voltage 125 VDC nominal field supply Digital Signal Level 24 VDC Terminal Type Multi-level screw terminals Isolation Rating 2500 Vrms Response Time < 10 ms signal transfer Mounting Type Rack mount, single-slot Diagnostics Passive board monitoring through connected CPCA/LDCC boards Redundancy Supports dual/triple wiring redundancy EtherNet/IP and I/O Density Interface Characteristics The DS200TCQCG1BKG is configured as a passive field termination interface within the Mark V control architecture. The board provides organized signal routing between external digital devices and processor modules without onboard signal execution. Digital I/O density scaling is achieved through the termination arrangement, allowing multiple field circuits to be connected within the rack-based control structure. Signal integrity depends on correct terminal assignment, cable routing, and interface compatibility with connected control boards. Frequently Asked Questions Q: Does the DS200TCQCG1BKG perform signal processing internally?A: No. The board is a passive termination assembly. Signal monitoring and processing are performed by connected Mark V processor and I/O control boards. Q: What field signals can be connected to this termination board?A: The board supports digital input signals, digital output signals, and trip solenoid related circuits using field wiring connections. Q: Is the board compatible with redundant wiring configurations?A: The supplied data indicates support for dual and triple wiring redundancy arrangements within the Mark V control system architecture. Field Installation Guidelines Install the DS200TCQCG1BKG in the designated Mark V rack slot and verify mechanical alignment before securing the board. Field wiring should be terminated according to the approved terminal assignment documentation. Maintain separation between low-level signal wiring and high-energy conductors to reduce electrical interference. Cable shields should be connected according to the system grounding standard, with attention to avoiding ground loops. Verify terminal tightness, insulation condition, and polarity before energizing the control system. Confirm compatibility with connected CPCA, LDCC, and related Mark V control modules before operation.
$200.00 $100.00
-
General Electric GE DS200TBQCG1ABB Terminal Board Assembly
GE DS200TBQCG1ABB Terminal Board Assembly The GE DS200TBQCG1ABB, also cataloged as the DS200TBQC Terminal Board Assembly, operates as a dedicated hardware component for analog and digital field signal termination within the GE Mark V LM turbine control system. It provides physical wiring interfaces for I/O signals, actuator circuits, and sensor connections. Hardware Specifications Parameter Specification Model DS200TBQCG1ABB Brand GE General Electric Origin United States Product Type Analog Input Milliamp I/O Termination Module Series Mark V LM Functional Acronym TBQC Number of Channels 12 Signal Types Supported Analog input signals, digital signals, trip circuit signals Analog Output Current 0-20 mA Common Mode Voltage Range +5 VDC Maximum Lead Resistance 15 ohm Terminal Type Multi-level screw terminals Isolation Rating 2500 Vrms Weight 0.8 kg Operating Temp -30 to +55 deg C Power Consumption Passive termination board, no onboard processing Frequency 50 or 60 Hz Deterministic I/O Interface and Signal Conditioning The DS200TBQCG1ABB is a passive termination assembly within the GE Mark V LM control platform. It provides structured field wiring connections for analog milliamp signals, digital inputs, and turbine auxiliary circuits. The board transfers field signals to controller and I/O processing modules without executing application logic. The terminal module supports analog signal interface functions including: 12-channel analog termination capability 0-20 mA signal routing Field device connection through screw terminals Signal transfer between external instruments and Mark V controller electronics Compatibility with connected processor and I/O modules Industrial Control Network and I/O Density Scaling As a GE industrial control component, the TBQC module operates as part of the Mark V LM I/O architecture. The module supports I/O density scaling through organized termination of multiple field channels while maintaining defined wiring separation between signal groups. The terminal interface does not provide Ethernet, VMEbus, or independent communication processing. Data acquisition and control execution are performed by connected Mark V controller modules. Proper firmware and I/O configuration compatibility are required at the controller level for correct channel operation. Frequently Asked Questions Q: Does the DS200TBQCG1ABB contain a processor or configurable firmware?A: No. The DS200TBQCG1ABB is a passive terminal board. Processing functions are performed by connected Mark V controller and I/O modules. Q: What type of signals can be connected through the TBQC module?A: The module supports analog milliamp signals, digital field connections, and turbine control related wiring interfaces according to the Mark V LM configuration. Q: Does the terminal board require independent power input?A: No. The board functions as a passive signal termination interface and does not contain independent power conversion circuitry. Field Installation Guidelines Install the DS200TBQCG1ABB in the designated Mark V LM rack position and verify correct mechanical seating before connecting field wiring. Route analog signal cables separately from high-current power conductors and trip circuit wiring to reduce electromagnetic interference. Maintain proper cable identification and terminal labeling during installation. Connect cable shields according to the system grounding design. Check screw terminal tightness and inspect wiring condition during commissioning and maintenance activities. Verify channel assignments, controller configuration, and connected I/O module compatibility before applying field signals.
$200.00 $100.00
-

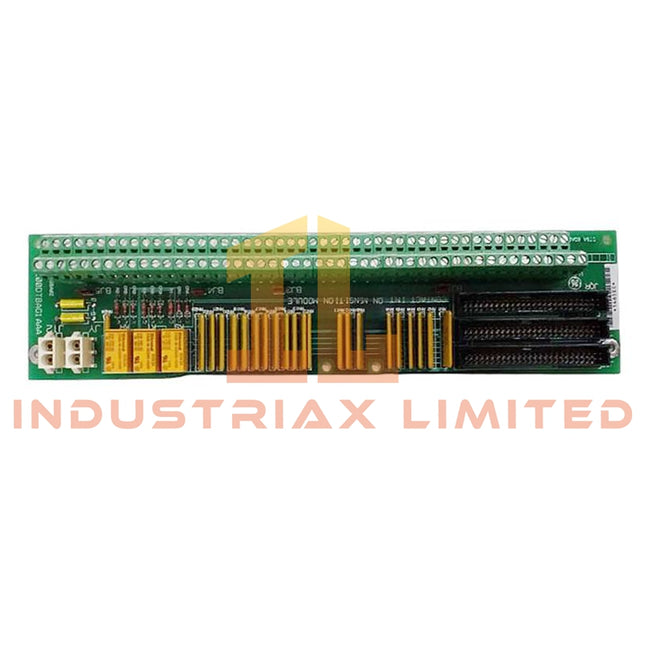

General Electric GE DS200DTBAG1AAA Terminal Board Assembly
GE DS200DTBAG1AAA Terminal Board Assembly The GE DS200DTBAG1AAA, also cataloged as the DS200DTBA Terminal Board Assembly, operates as a dedicated hardware component for field signal termination and electrical interfacing within the GE Mark V turbine control system. It provides physical connections for analog, digital, and trip circuit wiring between external devices and control rack electronics. Hardware Specifications Parameter Specification Model DS200DTBAG1AAA Brand GE General Electric Origin United States Product Type Terminal Board Assembly Series Mark V Speedtronic Functional Acronym DTBA Signal Types Supported Analog signals, digital 24 VDC signals, trip solenoid signals Input Voltage 125 VDC nominal field supply Terminal Type Screw-type terminals, 2-level Isolation Rating 2500 Vrms Weight 0.8 kg Dimensions 233 mm x 160 mm x 25 mm Operating Temp -30 to +65 deg C Power Consumption Passive board, no onboard power processing Industrial Control Interface and Signal Distribution The DS200DTBAG1AAA is a passive terminal interface board within the GE Mark V control architecture. It provides termination points for field wiring connected to turbine sensors, actuators, trip circuits, and protection devices. Signal routing is performed through terminal connections to associated processor and power interface boards. For GE Mark V systems, the terminal interface supports structured I/O wiring arrangements and connection compatibility with processor cards such as CPCA and power/control boards such as LDCC. The board does not execute control logic and depends on connected controller hardware for signal processing and diagnostics. The terminal assembly supports industrial control requirements including: Field signal termination and routing Analog and digital I/O connection Trip circuit wiring interface Connection between external devices and Mark V rack electronics Compatibility with redundant wiring configurations Profinet / EtherNet-IP Network and I/O Interface Considerations The DS200DTBAG1AAA does not provide direct network communication functions. Its role is limited to physical signal termination and electrical distribution. In Mark V systems, communication processing and deterministic data exchange are handled by controller and communication modules. The terminal board supports I/O density expansion through organized field wiring interfaces. Proper terminal assignment, cable segregation, and grounding practices are required to maintain signal integrity between field devices and control electronics. Frequently Asked Questions Q: Does the DS200DTBAG1AAA contain onboard processing or firmware?A: No. The DS200DTBAG1AAA is a passive terminal board assembly. Signal monitoring and diagnostics are performed by connected Mark V processor and control boards. Q: What signal types can be connected to this terminal board?A: The board supports analog signals, digital 24 VDC signals, and trip solenoid related field connections according to the Mark V system wiring configuration. Q: Does the board provide Ethernet or serial communication interfaces?A: No. The DS200DTBAG1AAA provides physical terminal connections only. Communication functions are managed by separate Mark V controller and communication modules. Field Installation Guidelines Install the DS200DTBAG1AAA in the designated GE Mark V rack position and verify mechanical alignment before securing the board. Field wiring should be installed according to the Mark V wiring documentation. Separate low-level analog signal cables from high-current power and trip circuit wiring to reduce electrical interference. Terminate cable shields according to the system grounding design. Ensure terminal screws are properly secured and verify wire identification before applying field power. Inspect terminal connections during maintenance activities for loose conductors, oxidation, or mechanical damage. Confirm compatibility with connected CPCA, LDCC, and other Mark V interface boards before replacement installation.
$200.00 $100.00
-

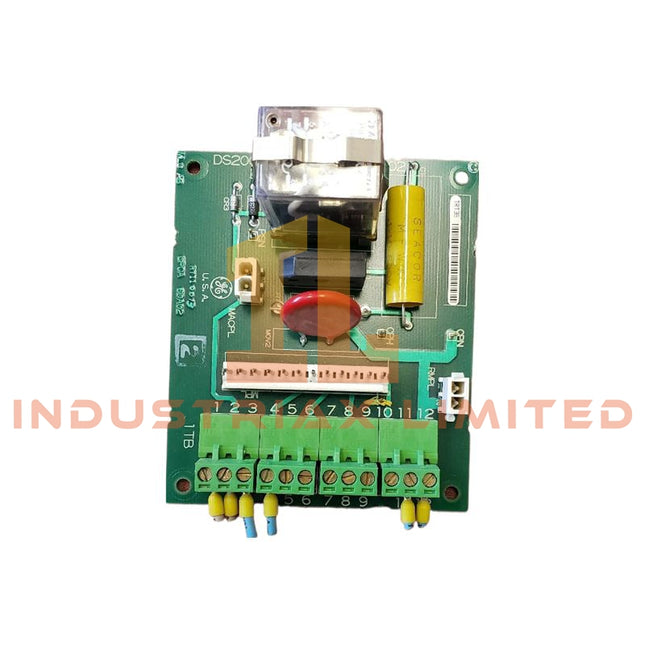

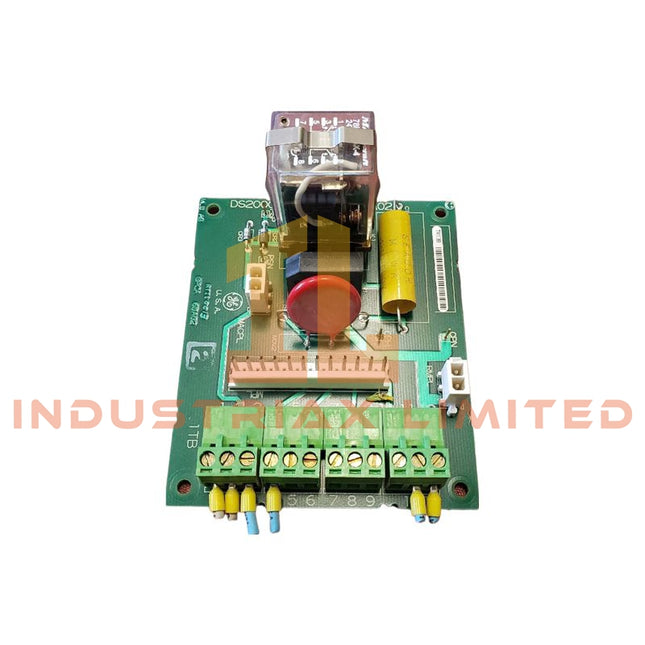

General Electric GE DS200CPCAG1ABB Contactor Pilot Card
GE DS200CPCAG1ABB Contactor Pilot Card Configured for contactor pilot control, processor execution, and communication functions in the GE Mark V turbine control system, the GE DS200CPCAG1ABB (DS200CPCAG1ABB Contactor Pilot Card) provides direct physical/electrical execution for turbine control logic and connected contactor circuits. Hardware Specifications Parameter Specification Model DS200CPCAG1ABB Brand GE Origin United States of America Product Type Contactor Pilot Card Functional Acronym CPCA System Series Mark V Speedtronic Processor Motorola 68020, 32-bit CPU Clock Speed 20 MHz Memory 2 MB DRAM, 512 KB SRAM, 1 MB EPROM Non-Volatile Storage EEPROM for configuration data Communication Interfaces VMEbus, RS-232, Ethernet 10 Mbps Operating Voltage +5 VDC, +/-15 VDC from backplane Isolation Rating 2500 Vrms Operating Temp -30 to +65 deg C Storage Temperature -40 to +85 deg C Humidity Range 5% to 95% RH, non-condensing Dimensions 233 mm x 160 mm x 25 mm Weight 0.9 kg Response Time Less than 10 ms control loop execution PCB Coating Normal Coating Functional Revision 1 A Functional Revision 2 B Artwork Revision B Mounting Type Single-slot VME rack mount Firmware Compatibility and Mark V Control Processing The DS200CPCAG1ABB operates within the GE Mark V control architecture as a CPCA board responsible for contactor pilot functions and control signal processing. The module manages processor execution, memory operations, and communication paths between the controller rack and connected turbine control hardware. Firmware flash compatibility is required for proper board initialization. The installed firmware revision must match the Mark V hardware configuration to maintain correct execution of control routines and diagnostic functions. Frequently Asked Questions Q: What is the functional role of the DS200CPCAG1ABB in the Mark V system?A: The DS200CPCAG1ABB functions as a Contactor Pilot Card, providing control processing and interface functions for contactor-related circuits within the Mark V turbine control system. Q: What communication interfaces are supported by the CPCA board?A: The board supports VMEbus, RS-232, and Ethernet 10 Mbps communication interfaces for system data exchange and diagnostics. Q: What backplane power requirements apply to this card?A: The DS200CPCAG1ABB receives operating power from the Mark V rack backplane through +5 VDC and +/-15 VDC supply rails. Field Installation Guidelines Install the DS200CPCAG1ABB in the designated GE Mark V VME rack slot and verify that the card connector is fully engaged before system power application. Confirm PCB revision information and hardware configuration settings before replacement or commissioning. Route communication cables separately from high-current switching conductors to reduce electromagnetic interference. Maintain proper chassis grounding and shield termination for connected wiring. After installation, verify processor status indicators, communication activity, and watchdog diagnostics through the Mark V control interface.
$200.00 $100.00
-

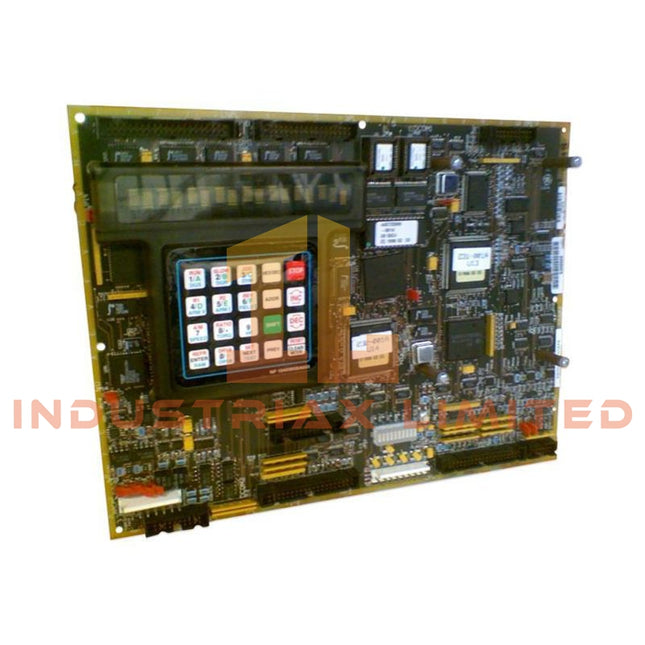

General Electric GE DS200LDCCH1AGA Drive Control/LAN Communications Board

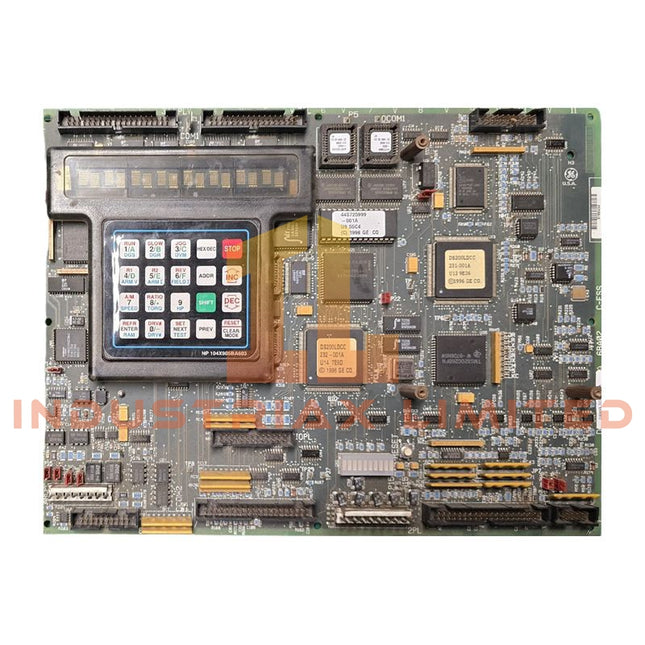

GE DS200LDCCH1AGA Drive Control/LAN Communications Board Configured for DC power distribution, signal conditioning, and control communication functions in the GE Mark V turbine control system, the GE DS200LDCCH1AGA (DS200LDCCH1AGA Drive Control/LAN Communications Board) provides direct physical/electrical execution for turbine control electronics and protection circuits. Hardware Specifications Parameter Specification Model DS200LDCCH1AGA Brand GE Origin United States of America Product Type Drive Control/LAN Communications Board Functional Acronym LDCC System Series Mark V Speedtronic Input Voltage 125 VDC nominal Output Voltages +5 VDC, +/-15 VDC, +24 VDC Control Power Function Regulated supply distribution for logic and trip circuits Signal Conditioning Analog and digital signal processing for turbine monitoring Isolation Rating 2500 Vrms Operating Temp -30 to +65 deg C Storage Temperature -40 to +85 deg C Humidity Range 5% to 95% RH, non-condensing Dimensions 233 mm x 160 mm x 25 mm Weight 0.9 kg Response Time Less than 10 ms control loop execution Mounting Type Single-slot rack mount Jumpers 14 configuration jumpers Deterministic Control Communication and I/O Signal Processing The DS200LDCCH1AGA integrates Mark V control functions through regulated DC power conversion, signal conditioning, and communication interfaces. The LDCC board manages electrical signal paths between turbine control electronics, monitoring circuits, and protection-related devices. GE Mark V architecture uses dedicated board-level communication and control pathways. The DS200LDCCH1AGA supports configured firmware compatibility and jumper-based hardware settings to match the installed control rack configuration. Frequently Asked Questions Q: What power outputs are provided by the DS200LDCCH1AGA board?A: The board provides regulated +5 VDC, +/-15 VDC, and +24 VDC outputs for Mark V control electronics and connected circuits. Q: What configuration elements are available on this board?A: The DS200LDCCH1AGA includes 14 hardware configuration jumpers used for board setup according to the Mark V system configuration. Q: What rack installation type is required for the DS200LDCCH1AGA?A: The board is installed as a single-slot rack-mounted module within the GE Mark V control system. Field Installation Guidelines Install the DS200LDCCH1AGA in the designated Mark V rack position and verify correct alignment of the board edge connector before energizing the system. Check jumper configuration against the approved control system documentation before operation. Ensure power input wiring polarity is verified and that DC supply conductors are separated from low-level signal wiring where applicable. Maintain proper chassis grounding and shield termination practices for connected signal cables. Verify communication status, power indicators, and diagnostic LEDs after installation.
$200.00 $100.00
-
General Electric GE IS200VCMIH2BE VME Communication Interface Board

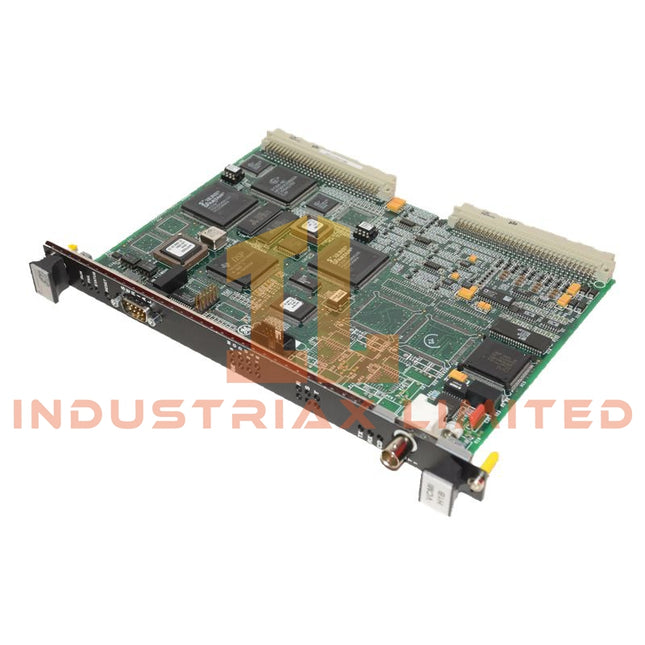

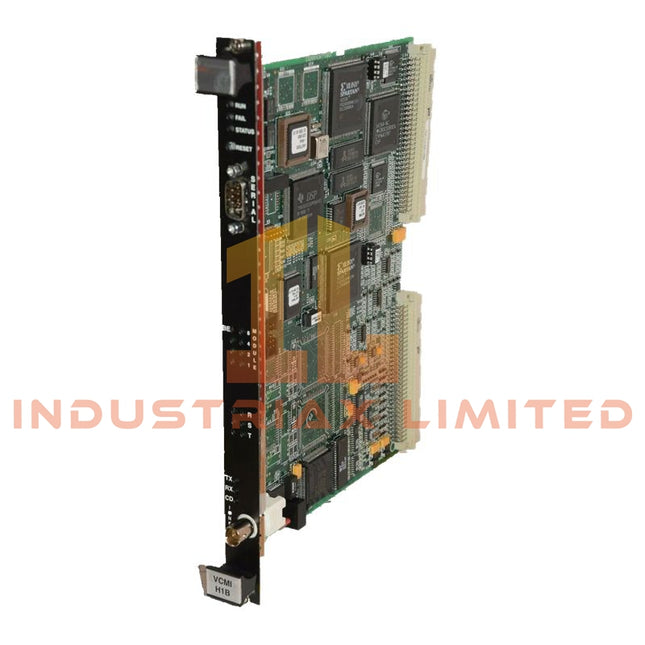

GE IS200VCMIH2BE VME Communication Interface Board Configured for deterministic data transfer between controller and I/O modules in the GE Mark VI turbine control system, the GE IS200VCMIH2BE (IS200VCMIH2BE VME Communication Interface Board) provides direct physical/electrical execution through VMEbus and serial communication paths. Hardware Specifications Parameter Specification Model IS200VCMIH2BE Brand GE Origin United States of America Product Type VME Communication Interface Board System Series Mark VI Speedtronic Processor Motorola MPC860 PowerPC, 32-bit RISC Clock Speed 100 MHz Memory 16 MB DRAM, 4 MB Flash Non-Volatile Storage 512 KB EEPROM Communication Interfaces VMEbus, Ethernet 10/100 Mbps, RS-232 Fiber-Optic Links 2 high-speed serial channels for I/O communication Operating Voltage +5 VDC, +/-12 VDC from backplane Isolation Rating 2500 Vrms Operating Temp -30 to +65 deg C Storage Temperature -40 to +85 deg C Humidity Range 5% to 95% RH, non-condensing Dimensions 233 mm x 160 mm x 25 mm Weight 0.9 kg Response Time Less than 10 ms communication cycle Mounting Type Single-slot VME rack mount Deterministic Network Communication and Firmware Compatibility The IS200VCMIH2BE manages communication synchronization between Mark VI controller processors and distributed I/O boards through VMEbus and fiber-optic serial channels. The module supports deterministic network timing by coordinating data exchange cycles between connected control components. Firmware flash compatibility is required for proper initialization with the Mark VI control platform. The installed firmware revision must correspond with the controller configuration and ToolboxST engineering environment. Frequently Asked Questions Q: What communication interfaces are available on the IS200VCMIH2BE?A: The board provides VMEbus communication, Ethernet 10/100 Mbps, RS-232 interface, and two high-speed fiber-optic serial channels for I/O communication. Q: What backplane power connections are required for this module?A: The board receives power from the VME backplane through +5 VDC and +/-12 VDC supply rails. Q: Can the IS200VCMIH2BE operate in redundant Mark VI configurations?A: The module supports Mark VI redundant architectures including TMR-based system configurations when installed with compatible controller and I/O hardware. Field Installation Guidelines Install the IS200VCMIH2BE in the designated Mark VI VME rack slot and verify correct mechanical seating before applying power. Confirm that the backplane connector is fully engaged and free from contamination. Route fiber-optic communication cables separately from high-current power conductors to reduce electromagnetic interference exposure. Maintain proper cable bend radius according to fiber cable specifications. Use appropriate grounding practices for the VME rack chassis. Verify shield termination and cable routing before system startup. Confirm firmware compatibility and communication status through controller diagnostics and front-panel indicators.
$200.00 $100.00
-

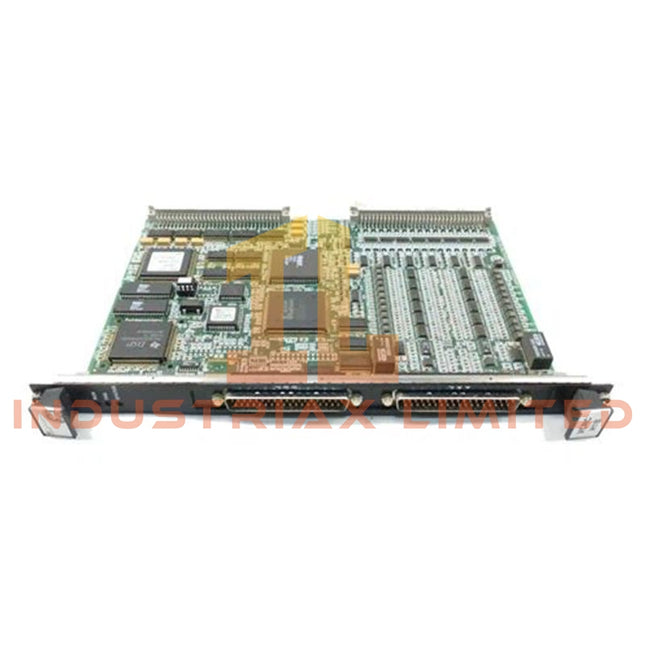

General Electric GE IS215UCVDH5AN VME Universal Controller Module

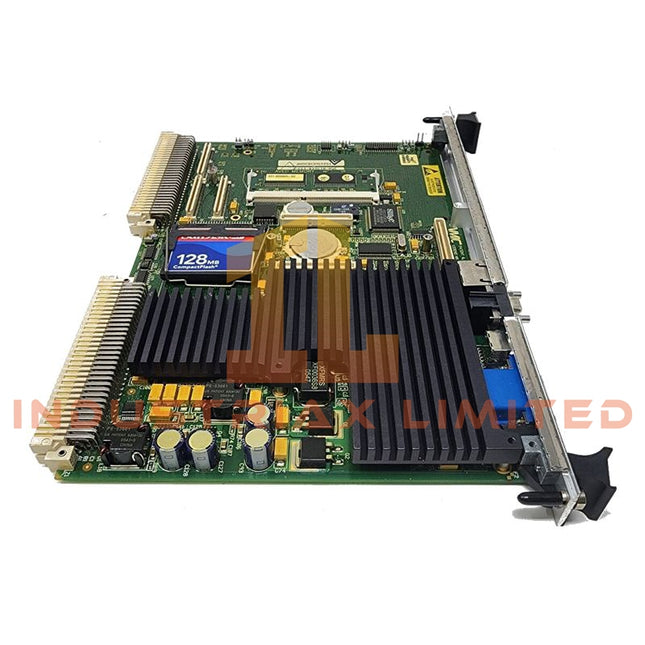

GE IS215UCVDH5AN VME Universal Controller Module Configured for turbine control algorithm execution in GE Mark VI Speedtronic systems, the GE IS215UCVDH5AN (IS215UCVDH5A Universal Controller Module) provides direct physical and electrical execution for processor-based control, I/O management, and VMEbus communication functions. Hardware Specifications Parameter Specification Model IS215UCVDH5AN Brand GE Origin United States of America Weight 0.9 kg Dimensions 16.51 cm high x 17.8 cm Operating Temp 0 to +60 deg C Power Consumption +5 VDC, 6 A Product Type Processor Controller Boards Series GE Mark VI Board Type Double-Slot Processor Controller Board Processor AMD-K6 300 MHz Memory 16 MB DRAM Operating System QNX Programming Boolean 16-bit signed Communication Interfaces VMEbus, Ethernet 10BaseT twisted pair RJ-45, RS-232 Operating Voltage +5 VDC, +/-12 VDC from backplane Analog Voltage Inputs 6 I/O Capability Analog and digital I/O management through connected modules Isolation Rating 2500 Vrms Response Time < 10 ms control loop execution Diagnostics Front-panel Run, Fail, Comm LEDs and watchdog timer Mounting Type VME rack mount, double-slot Redundancy Support Triple Modular Redundancy (TMR) compatible Deterministic Mark VI Controller Processing The IS215UCVDH5AN provides processor-based control execution within GE Mark VI turbine control architectures. The AMD-K6 300 MHz processor runs QNX operating system software to execute turbine control logic, manage I/O data processing, and coordinate communication with other Mark VI boards. The module uses VMEbus communication for deterministic backplane data exchange and supports Ethernet 10BaseT connectivity through an RJ-45 interface. Firmware flash compatibility and controller software matching are required for correct Mark VI system initialization. The processor controller architecture supports I/O density scaling through connected analog and digital interface modules. Six analog voltage inputs provide dedicated signal acquisition capability for turbine control applications. Frequently Asked Questions Q: What processor is installed on the IS215UCVDH5AN controller board?A: The module uses an AMD-K6 300 MHz microprocessor with 16 MB DRAM memory. Q: Which operating system is used by this controller?A: The IS215UCVDH5AN operates with the QNX operating system environment. Q: What communication interfaces are available on the board?A: The controller provides VMEbus communication, Ethernet 10BaseT through RJ-45, and RS-232 interfaces. Field Installation Guidelines Install the IS215UCVDH5AN in the assigned GE Mark VI VME rack position and verify mechanical alignment before applying power. Confirm the +5 VDC power supply connection and backplane voltage rails according to cabinet wiring documentation. Keep Ethernet, RS-232, and signal wiring separated from high-current conductors to reduce electromagnetic interference. Maintain proper grounding and shielding practices for analog input wiring. Verify VME backplane connectors are clean and fully engaged before system startup. Confirm QNX operating software and controller firmware compatibility with the installed Mark VI configuration. Ensure sufficient airflow around the VME rack assembly to maintain operating temperature limits.
$200.00 $100.00
-

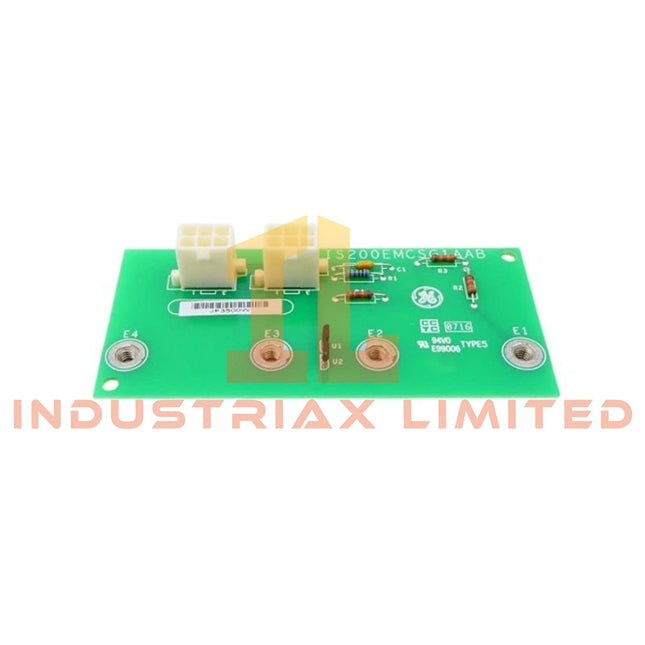

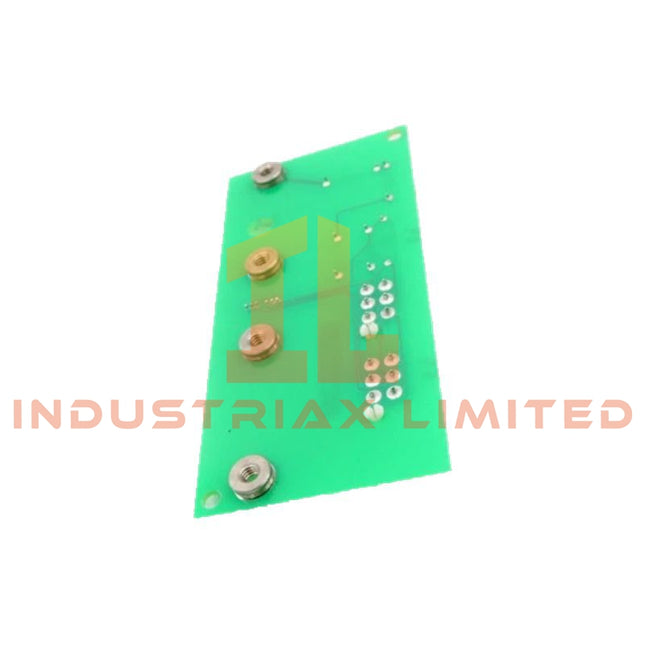

General Electric GE IS200EMCSG1A Exciter Main Control and Signal Board
GE IS200EMCSG1A Exciter Main Control and Signal Board The GE IS200EMCSG1A, also cataloged as the IS200EMCSG1A Exciter Main Control and Signal Board, operates as a dedicated hardware component for excitation signal processing, control execution, and sensor interface management within GE Mark VI/Mark VIe excitation system platforms. Hardware Specifications Parameter Specification Model IS200EMCSG1A Brand GE Origin United States of America Weight 1 lbs Operating Temp -30 to +65 deg C Power Consumption Not specified Product Type Exciter Main Control and Signal Boards Series GE Mark VI Board Description Multibridge Connector Sensor Card Control Power Supply 125 VDC nominal Backplane Input Voltage +5 VDC, +/-15 VDC, +24 VDC Processor Motorola MPC860 PowerPC 32-bit RISC Clock Speed 100 MHz Memory 16 MB DRAM, 4 MB Flash Non-Volatile Storage 512 KB EEPROM Communication Interfaces Fiber-optic serial, RS-232, Ethernet 10/100 Mbps Signal Conditioning Inputs Analog inputs +/-10 V, digital inputs 24 VDC, current transformer inputs Isolation Rating 2500 Vrms Response Time < 10 ms control loop execution Mounting Type VME rack mount, single-slot Connector Quantity Six plugs for power supply Conduction Sensor Quantity Four sensors, E1-E4 Diagnostics Run, Fail, Comm, Fault front-panel LEDs Redundancy Support Triple Modular Redundancy (TMR) compatible Deterministic Excitation Control and I/O Signal Processing The IS200EMCSG1A provides excitation control processing within GE Mark VI/Mark VIe EX2100 excitation architectures. The board executes generator field regulation functions, processes analog and digital feedback signals, and manages communication between excitation control components. The hardware uses Motorola MPC860 PowerPC processing with VME rack integration for deterministic control execution. Fiber-optic serial, RS-232, and Ethernet interfaces provide communication paths for controller data exchange and system diagnostics. The board architecture supports industrial control I/O density scaling through multiple sensor and signal conditioning interfaces. The four conduction sensor inputs (E1-E4) and multibridge connector structure provide dedicated monitoring paths for excitation system feedback signals. Frequently Asked Questions Q: What type of sensor connections are available on the IS200EMCSG1A?A: The board provides four conduction sensor connections identified as E1-E4 through the multibridge connector structure. Q: Which communication interfaces are supported by this board?A: The IS200EMCSG1A supports fiber-optic serial communication, RS-232, and Ethernet 10/100 Mbps interfaces. Q: What backplane voltages are required for board operation?A: The board operates from GE Mark VI backplane supplies of +5 VDC, +/-15 VDC, and +24 VDC, with 125 VDC nominal control power. Field Installation Guidelines Install the IS200EMCSG1A in the assigned GE Mark VI VME rack position and verify connector seating before energizing the excitation cabinet. Confirm the 125 VDC control supply wiring and backplane voltage connections according to the cabinet electrical drawings. Keep sensor and communication wiring separated from high-current excitation conductors. Maintain proper shielding and grounding for analog signal inputs and communication cables. Verify that the six power supply connectors are fully engaged before system startup. Check firmware compatibility with the installed Mark VI/Mark VIe configuration. Ensure sufficient cabinet airflow around the VME rack assembly to maintain operating temperature limits.
$200.00 $100.00
-

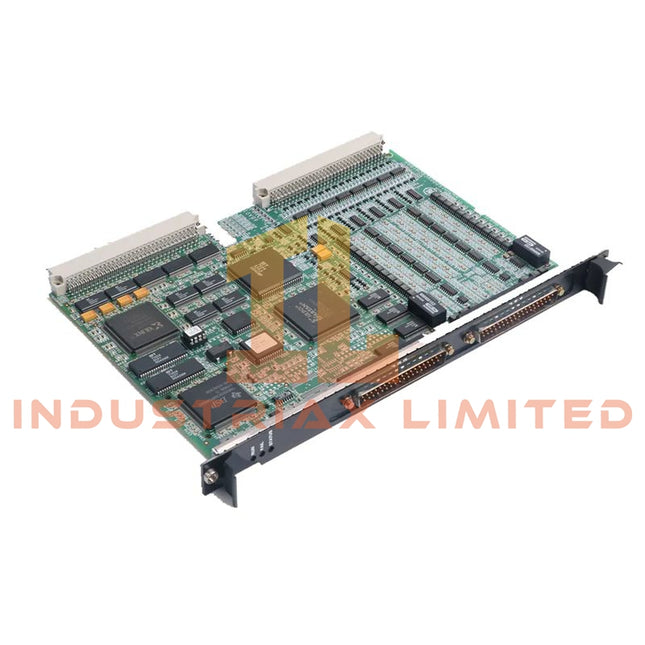

General Electric GE IS200VTURH2BAB Turbine Protection Circuit Board

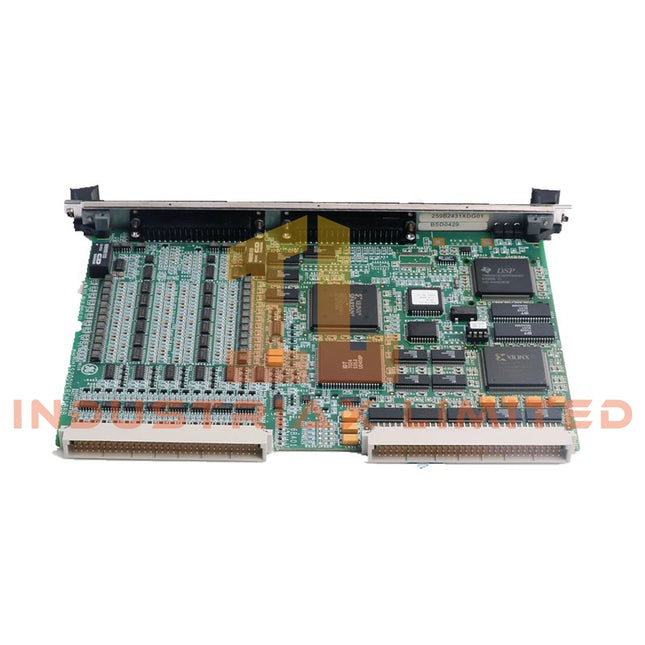

GE IS200VTURH2BAB Turbine Protection Circuit Board The GE IS200VTURH2BAB, also cataloged as the IS200VTURH2B Turbine Protection Circuit Board, operates as a dedicated hardware component for overspeed trip execution, speed signal processing, and shaft electrical monitoring within GE Mark VI Speedtronic turbine control platforms. Hardware Specifications Parameter Specification Model IS200VTURH2BAB Brand GE Origin United States of America Weight 0.23 kg Dimensions 12 cm x 6 cm x 3.5 cm Operating Temp 0 to +60 deg C Power Consumption Not specified Product Type Turbine Protection Circuit Boards Series GE Mark VI Functional Acronym VTUR Model Type Turbine Protection Circuit Board Power Supply 125 VDC MPU Pulse Rate Range 2 Hz to 20 kHz MPU Pulse Rate Accuracy +/-0.05% of reading MPU Input Circuit Sensitivity 27 mV peak Trip Solenoid Control 3 primary overspeed trip solenoids Speed Inputs 4 passive pulse rate device interfaces Application Specific I/Os Shaft voltage/current monitoring, trip system, synchronizing, speed rate inputs Communication Port 1 x J5 Isolation Rating 2500 Vrms Compatible Boards TTUR, TRPG, TRPS, TRPL, DRLY, DTRT, DTUR Deterministic Mark VI Turbine Protection Processing The IS200VTURH2BAB provides turbine-specific protection functions through GE Mark VI control architecture. The board processes MPU pulse signals, controls overspeed trip solenoids, and manages synchronization-related signals through dedicated hardware interfaces. The VTUR board uses deterministic signal processing for turbine speed monitoring with MPU pulse inputs ranging from 2 Hz to 20 kHz. The module integrates with Mark VI protection boards through the turbine control backplane, supporting coordinated operation with TTUR, TRPG, TRPS, TRPL, DRLY, DTRT, and DTUR modules. The hardware configuration supports industrial control signal management through dedicated I/O channels for shaft voltage and current monitoring. Firmware flash compatibility and controller configuration matching are required for proper Mark VI system initialization. Frequently Asked Questions Q: What type of speed input signals are supported by the IS200VTURH2BAB?A: The board processes MPU pulse rate signals from 2 Hz to 20 kHz with an input circuit sensitivity of 27 mV peak. Q: How many overspeed trip solenoids can the VTUR board control?A: The board controls three primary overspeed trip solenoids for turbine protection functions. Q: Which Mark VI boards interface with the IS200VTURH2BAB?A: The board is designed for integration with TTUR, TRPG, TRPS, TRPL, DRLY, DTRT, and DTUR modules. Field Installation Guidelines Install the IS200VTURH2BAB in the designated GE Mark VI rack location and verify connector engagement before applying power. Confirm the 125 VDC supply wiring polarity and grounding connections according to the cabinet wiring documentation. Route MPU pulse signal cables separately from high-current power conductors to reduce electrical interference. Maintain shielding continuity for speed sensor and shaft monitoring wiring. Verify terminal connections for trip solenoid circuits and synchronizing signals before system startup. Check environmental conditions against the specified operating temperature range. Confirm board compatibility with the installed Mark VI hardware configuration and firmware before initialization.
$200.00 $100.00
-

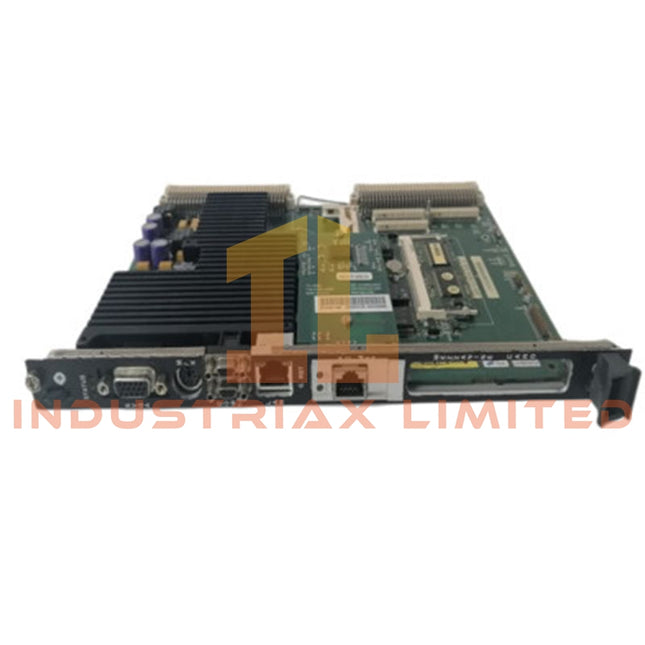

General Electric GE IS215UCVEH2AF VME Universal Controller Module
GE IS215UCVEH2AF VME Universal Controller Module The GE IS215UCVEH2AF, also cataloged as the IS215UCVEH2A VME Universal Controller Module, operates as a dedicated hardware component for turbine control algorithm execution, I/O management, and VMEbus communication within GE Mark VI Speedtronic control platforms. Hardware Specifications Parameter Specification Model IS215UCVEH2AF Brand GE Origin United States of America Weight 0.9 kg Dimensions 233 mm x 160 mm x 25 mm Operating Temp -30 to +65 deg C Power Consumption Not specified Product Type VME Boards System Compatibility GE Mark VI Speedtronic turbine control system Processor Motorola MPC860 PowerPC 32-bit RISC Clock Speed 100 MHz Memory 16 MB DRAM, 4 MB Flash Non-Volatile Storage 512 KB EEPROM Communication Interfaces VMEbus, Ethernet 10/100 Mbps, RS-232 Operating Voltage +5 VDC, +/-12 VDC from backplane Isolation Rating 2500 Vrms I/O Capability Analog and digital I/O management through connected modules Response Time < 10 ms control loop execution Diagnostics Front-panel Run, Fail, Comm LEDs and watchdog timer Redundancy Support Triple Modular Redundancy (TMR) compatible Mounting Type VME rack mount, single-slot Channel Count 6 channels Deterministic VMEbus Control Processing The IS215UCVEH2AF provides controller-level processing within the GE Mark VI architecture through VMEbus communication and embedded Ethernet connectivity. The Motorola MPC860 PowerPC processor executes turbine control logic, handles I/O data exchange, and manages communication between controller and interface modules. The module supports deterministic networks and industrial control synchronization through VMEbus backplane communication. Firmware flash compatibility allows controller software updates according to the installed Mark VI system configuration. The hardware architecture supports I/O density scaling through connection with multiple analog and digital interface boards. Frequently Asked Questions Q: What processor architecture is used in the IS215UCVEH2AF?A: The module uses a Motorola MPC860 PowerPC 32-bit RISC processor operating at 100 MHz. Q: Which communication interfaces are available on this VME board?A: The board provides VMEbus, Ethernet 10/100 Mbps, and RS-232 communication interfaces. Q: Does the IS215UCVEH2AF support redundant controller configurations?A: The module supports Triple Modular Redundancy (TMR) configurations within GE Mark VI control systems. Field Installation Guidelines Install the IS215UCVEH2AF in the assigned single-slot VME rack position within the GE Mark VI cabinet. Confirm the backplane connector alignment before applying system power. Verify that the backplane voltage rails are within the specified controller cabinet supply limits. Keep communication wiring separated from high-current switching conductors to reduce electromagnetic interference. Maintain proper grounding and shielding for Ethernet and serial communication cables. Inspect VME connectors for contamination or mechanical damage before insertion. Confirm firmware compatibility with the installed Mark VI control configuration before controller initialization. Use approved handling procedures to prevent electrostatic discharge damage to board components.
$200.00 $100.00
-
General Electric GE IS215VPROH1BD Emergency Turbine Protection Module

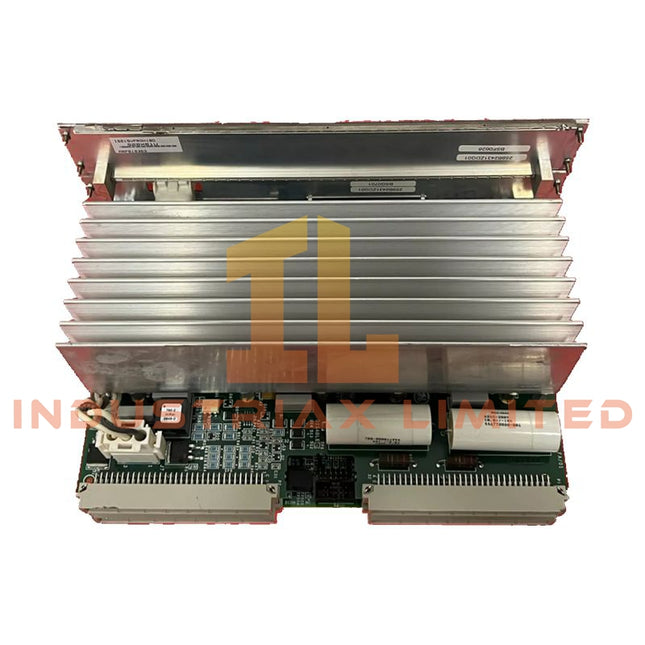

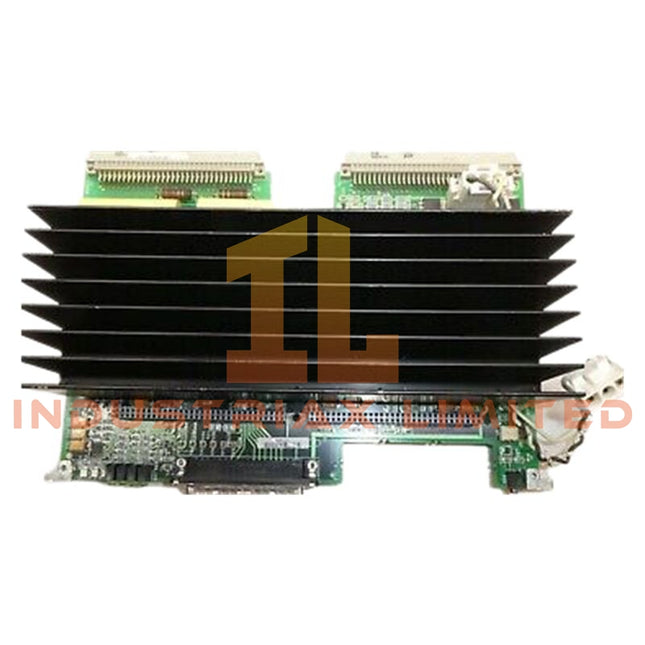

GE IS215VPROH1BD Emergency Turbine Protection Module Configured for emergency turbine protection execution in GE Mark VI Speedtronic systems, the GE IS215VPROH1BD (IS215VPROH1B Emergency Turbine Protection Module) provides direct physical and electrical processing for overspeed detection, trip solenoid control, and high-speed communication functions within VME-based turbine control architectures. Hardware Specifications Parameter Specification Model IS215VPROH1BD Brand GE Origin United States of America Weight 1.5 kg Dimensions 226 mm x 162 mm x 185 mm Operating Temp -40 to +85 deg C Power Consumption Not specified Product Type Emergency Turbine Protection Module System Compatibility GE Mark VI Speedtronic turbine control system Input Supply Voltage 125 VDC (70-145 VDC), redundant inputs Output Voltage 5 VDC logic supply and 28 VDC trip solenoid supply Communication Interfaces RS-485 Modbus RTU and VMEbus Digital Inputs 16 channels, 24 VDC Digital Outputs 8 channels, 24 VDC Isolation Rating 2500 Vrms Overspeed Detection Accuracy +/-0.1% Trip Execution Response Time < 50 ms MPU Pulse Rate Range 2 Hz to 20 kHz Frame Rate Up to 100 Hz Mounting Type VME-style rack mount, dual-width slot Redundancy Support Triple Modular Redundancy (TMR) compatible Deterministic Turbine Protection and VME Communication The IS215VPROH1BD integrates turbine protection logic processing with GE Mark VI control cabinet communication paths. The module processes overspeed signals, monitors sensor input conditions, and controls emergency trip outputs through dedicated trip solenoid interfaces. The hardware supports deterministic industrial control communication through VMEbus and RS-485 Modbus RTU interfaces. The module architecture supports TMR-compatible configurations for safety execution, with diagnostic monitoring of digital channels, communication status, and trip functions. Frequently Asked Questions Q: What input signals are processed by the IS215VPROH1BD?A: The module processes 24 VDC digital inputs and turbine speed signals through MPU pulse inputs with a frequency range of 2 Hz to 20 kHz. Q: Does the IS215VPROH1BD support redundant safety architectures?A: The module supports Triple Modular Redundancy (TMR) compatible configurations within GE Mark VI protection architectures. Q: What communication interfaces are available on this module?A: The module provides VMEbus communication and RS-485 Modbus RTU connectivity for control system integration. Field Installation Guidelines Install the IS215VPROH1BD in the designated VME rack position within the GE Mark VI control cabinet. Verify rack alignment and connector engagement before applying power. Confirm that the 125 VDC input supply wiring is correctly isolated and terminated according to cabinet wiring standards. Separate MPU signal wiring from high-current power conductors to reduce electrical interference. Maintain proper grounding and shielding practices for communication cables. Inspect RS-485 cable polarity, termination, and shielding continuity before system startup. Verify firmware compatibility with the installed Mark VI control configuration before initialization. Do not remove or insert the module under energized conditions unless the system hardware configuration specifically supports the operation.
$200.00 $100.00
-

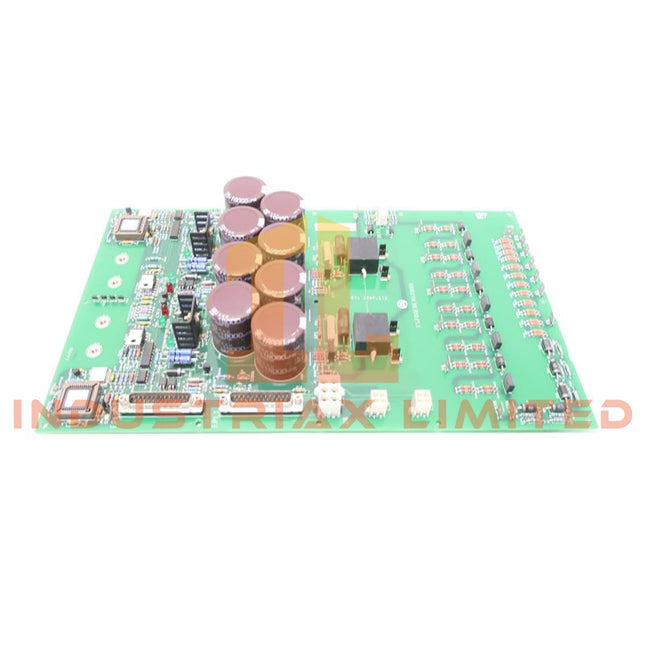

General Electric IS200EDEXG1BBB GE Exciter Control Board
GE IS200EDEXG1BBB Exciter De-Excitation Control Board Configured for excitation field discharge control in GE Mark VI/Mark VIe Speedtronic systems, the GE IS200EDEXG1BBB (IS200EDEXG1B Exciter De-Excitation Control Board) provides direct electrical execution of excitation energy diversion through SCR-based discharge circuits. The board manages fault-triggered de-excitation paths, monitoring discharge channels, gate drive signals, and protection circuits within EX2100 exciter cabinet architectures. Hardware Specifications Parameter Specification Model IS200EDEXG1BBB Brand GE Origin United States Weight 0.72 kg Operating Temp -30 to +65 deg C Product Type Exciter De-Excitation Control Board System Compatibility Mark VI / Mark VIe Speedtronic, EX2100 excitation systems Form Factor Single-slot 6U CompactPCI Logic Input Voltage 24 VDC +/-10% Exciter Power Input 125 VDC EDIS supply +/-10% Backplane Voltage +5 VDC, +15 VDC, -15 VDC, +24 VDC Isolation Rating 2500 VAC between control and discharge circuits Communication Interface Fiber-optic high-speed serial interface and 9-pin D-sub De-Excitation Channels 6 independent channels, arranged as 3 phase pairs Switching Frequency 1.5 to 8 kHz software configurable Maximum Discharge Current 100 A peak per channel Discharge Energy Capacity 500 Joules per channel Fault Response Time < 1 ms Status Indicators Run, Fault, Watchdog LEDs and channel discharge LEDs SCR-Based Excitation Energy Discharge Control The IS200EDEXG1BBB uses SCR-based switching circuits to control excitation energy discharge paths. The hardware incorporates gate driver ICs, protection diodes, current sensing circuits, temperature monitoring components, and discharge resistors. The six-channel structure supports independent discharge control for excitation field circuits, with monitoring feedback for fault detection and system diagnostics. The board operates with GE Mark VI/Mark VIe deterministic control architectures through fiber-optic serial communication and CompactPCI backplane interfaces. The circuit design includes energy storage components consisting of 6 x 470 uF electrolytic capacitors rated at 450 VDC and 2 x 100 uF tantalum capacitors rated at 25 VDC. Frequently Asked Questions Q: What excitation discharge function does the IS200EDEXG1BBB perform?A: The board controls SCR-based discharge circuits to remove stored excitation energy during fault or shutdown events. Q: What voltage interfaces are supported by this control board?A: The board accepts 24 VDC logic input, 125 VDC exciter power input, and operates with +5 VDC, +15 VDC, -15 VDC, and +24 VDC backplane supplies. Q: How are discharge operations monitored?A: The board provides current sensing, temperature monitoring, watchdog diagnostics, and individual channel discharge status LEDs. Field Installation Guidelines Install the IS200EDEXG1BBB only in the designated GE EX2100 excitation cabinet slot position defined by the Mark VI/Mark VIe hardware configuration. Verify that excitation power sources are isolated before board replacement or maintenance. Confirm backplane connectors are clean and fully seated to maintain signal integrity. Route fiber-optic communication cables separately from high-current excitation conductors. Maintain proper cable shielding and grounding practices for control wiring to reduce electrical interference. Inspect discharge circuit wiring, terminal connections, and grounding paths before energizing the excitation system. Ensure thermal airflow paths around the board assembly remain unobstructed.
$200.00 $100.00
-

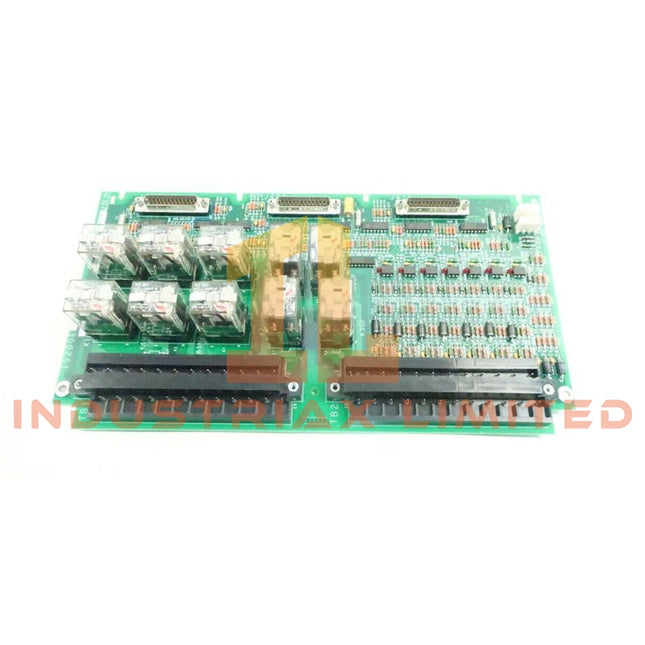

General Electric GE IS200ECTBG1ADE Exciter Control Terminal Board

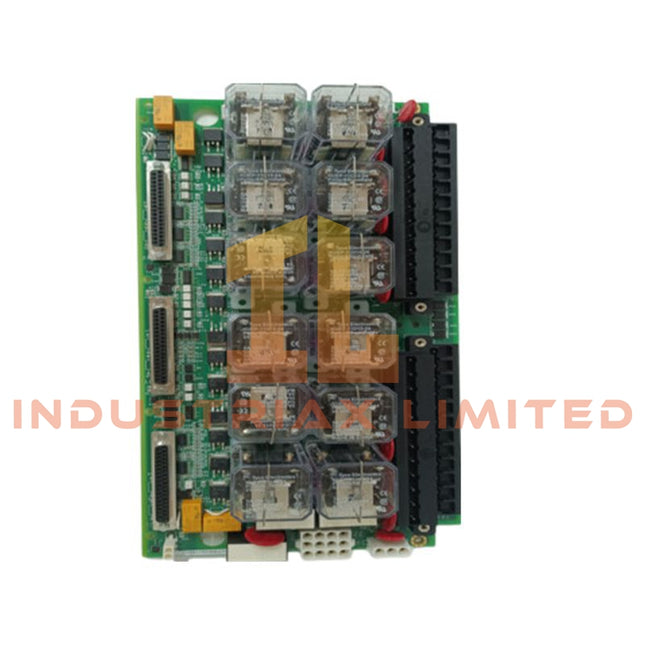

GE IS200ECTBG1ADE Exciter Control Terminal Board The GE IS200ECTBG1ADE, also cataloged as the IS200ECTB Exciter Control Terminal Board, operates as a dedicated hardware component for exciter field wiring interface and signal distribution within the GE EX2100 Excitation Control System. It provides terminal connections for analog, digital, power, and protection circuits. Hardware Specifications Parameter Specification Model IS200ECTBG1ADE Brand GE General Electric Product Type Exciter Control Terminal Board System Series GE EX2100 Excitation Control System / Mark VI Speedtronic Functional Abbreviation ECTB Inputs Generator field feedback signals and control commands Outputs Exciter drive signals and protective trip signals Voltage Range 24 VDC logic, 125 VDC field Isolation 2500 Vrms channel-to-ground Connectors Multiple terminal blocks for field wiring PCB Treatment Conformal coating Assembly Type Normal Assembly Weight 0.9 kg Dimensions 160 mm x 100 mm x 20 mm Operating Temp -30 to +65 deg C GE EX2100 Terminal Interface and Control Signal Characteristics The IS200ECTBG1ADE provides the physical interface between EX2100 excitation control electronics and external field wiring. The board routes analog feedback signals, digital control commands, DC power connections, and protective circuit signals through dedicated terminal interfaces. Within the GE Mark VI Speedtronic and EX2100 architecture, the ECTB board supports deterministic signal routing between field devices and controller assemblies. Terminal-level connections allow field wiring inspection, maintenance access, and signal segregation. The board uses conformal-coated PCB construction for protection against moisture, dust, and industrial contaminants. The 2500 Vrms channel-to-ground isolation specification separates field circuits from control electronics. GE Industrial Control Interface Compatibility The IS200ECTBG1ADE follows GE EX2100 excitation hardware configuration rules and supports signal mapping through GE ToolboxST configuration software. The G1ADE revision identifies the board assembly version and conformal coating configuration. The ECTB functional design supports integration with EX2100 excitation subsystems through rack backplane connections and terminal block field interfaces. Frequently Asked Questions Q: What is the primary function of the IS200ECTBG1ADE?A: The board provides terminal connections between EX2100 excitation control electronics and external field wiring, including control, feedback, power, and protection signals. Q: What type of field connections are available on this board?A: The board uses multiple terminal blocks for connection of field wiring associated with exciter control signals and protective circuits. Q: Is the board compatible with earlier ECTB revisions?A: The provided data indicates backward compatibility with the first two revisions within the ECTB revision group. Field Installation Guidelines Install the IS200ECTBG1ADE in the designated EX2100 exciter rack position and verify correct backplane alignment before securing the assembly. Connect field wiring only to the assigned terminal blocks according to the system wiring documentation. Separate signal wiring from high-current conductors to reduce electromagnetic interference. Ground cable shields according to the EX2100 installation requirements. Verify terminal tightness, connector seating, and protective circuit wiring before energizing the excitation system. After installation, confirm signal mapping, terminal assignments, and communication status through ToolboxST configuration software.
$200.00 $100.00
-
General Electric GE IS200EACFG2ABB Exciter AC Feedback Board

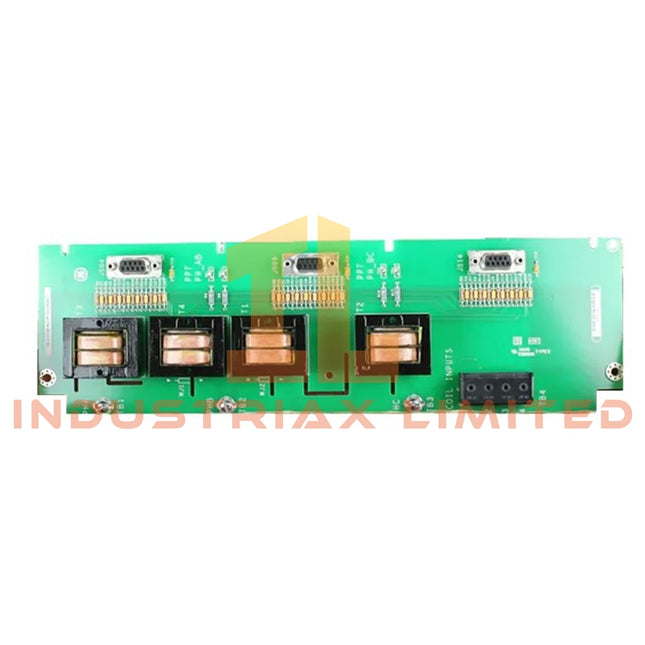

GE IS200EACFG2ABB Exciter AC Feedback Board Configured for generator field AC feedback measurement in the GE EX2100 Excitation Control System, the GE IS200EACFG2ABB (IS200EACF Exciter AC Feedback Board) provides direct physical/electrical signal conditioning and isolated data transmission for exciter regulation control loops. Hardware Specifications Parameter Specification Model IS200EACFG2ABB Brand GE General Electric Origin United States of America (USA) Product Type Exciter AC Feedback Board System Series GE EX2100 Excitation Control System Function Generator field AC feedback measurement and signal conditioning Inputs Generator field AC feedback signals Signal Conditioning Filtering, scaling, and isolation Resolution 16-bit ADC Isolation 2500 Vrms channel-to-ground Communication Fiber-optic link to controller Power Supply 5 VDC logic, 24 VDC field supply PCB Treatment Conformal coating Weight 0.9 kg Dimensions 160 mm x 100 mm x 20 mm Operating Temp -30 to +65 deg C GE EX2100 Feedback Signal Processing Characteristics The IS200EACFG2ABB performs AC feedback acquisition from generator field circuits and applies signal filtering, scaling, and electrical isolation before transferring processed data to the EX2100 controller. The board supports closed-loop exciter regulation functions through measured feedback values. The EX2100 architecture uses deterministic controller communication paths. The fiber-optic communication interface on this board provides isolated signal transfer between feedback measurement circuits and controller electronics, reducing electromagnetic interference coupling. The conformal-coated PCB construction supports operation in industrial control environments where exposure to dust, moisture, and oil mist requires additional board-level protection. The 2500 Vrms channel-to-ground isolation rating separates field-side measurement circuits from control-side electronics. Firmware and Industrial Control Interface Compatibility The IS200EACFG2ABB operates as part of the GE EX2100 excitation platform and exchanges processed feedback data through the system communication interface. Hardware configuration and channel scaling parameters are managed through GE control configuration tools. The board revision G2ABB identifies the hardware revision level and conformal coating configuration used within the EX2100 control assembly. Frequently Asked Questions Q: What signal type does the IS200EACFG2ABB measure?A: The board measures generator field AC feedback signals and performs filtering, scaling, and isolation before controller transmission. Q: What isolation method is provided on this board?A: The board provides 2500 Vrms channel-to-ground isolation between feedback signal circuits and the control-side electronics. Q: How is data transferred from the board to the EX2100 controller?A: The board uses a fiber-optic communication link for isolated data transfer within the EX2100 excitation control system. Field Installation Guidelines Install the IS200EACFG2ABB in the designated EX2100 exciter rack position and verify correct alignment with the backplane connectors before fastening the board. Connect generator field AC feedback wiring according to the EX2100 terminal documentation. Maintain separation between feedback signal cables and high-current conductors to reduce electrical noise coupling. Inspect fiber-optic connectors for cleanliness, correct orientation, and secure connection before system startup. Apply appropriate grounding and cable shielding practices for the rack assembly. After installation, verify feedback channel configuration, scaling parameters, and communication status through the applicable GE configuration software before enabling excitation control.
$200.00 $100.00
-
General Electric GE IS200EACFG3ABB Exciter AC Feedback Board

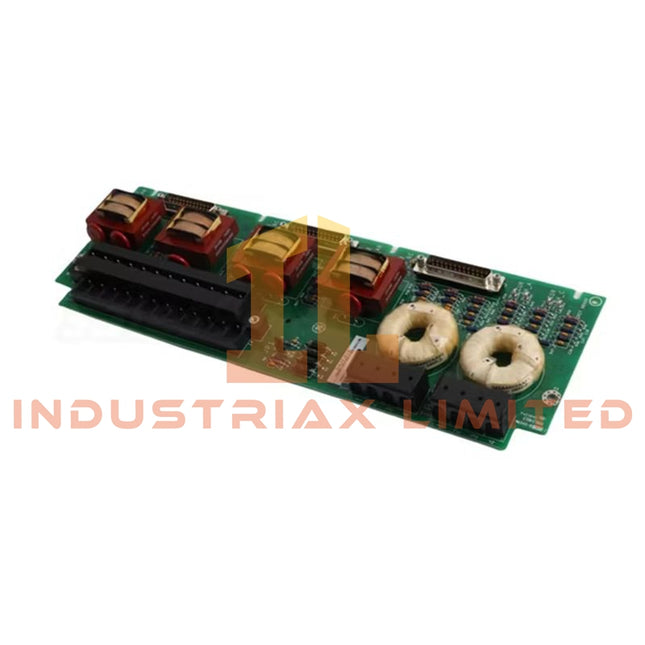

GE IS200EACFG3ABB Exciter AC Feedback Board The GE IS200EACFG3ABB, also cataloged as the IS200EACF Exciter AC Feedback Board, operates as a dedicated hardware component for generator field AC feedback signal conditioning within the GE EX2100 Excitation Control System. It performs signal filtering, scaling, isolation, and data transmission for exciter regulation feedback loops. Hardware Specifications Parameter Specification Model IS200EACFG3ABB Brand GE General Electric Origin United States of America (USA) Product Type Exciter AC Feedback Board System Series EX2100 Excitation Control System Function Generator field AC feedback measurement, conditioning, and controller transmission Inputs Generator field AC feedback signals Signal Conditioning Filtering, scaling, and isolation Resolution 16-bit ADC Communication Fiber-optic link to controller Isolation 2500 Vrms channel-to-ground Power Supply 5 VDC logic, 24 VDC field supply Weight 0.9 kg Dimensions 160 mm x 100 mm x 20 mm Operating Temp -30 to +65 deg C Power Consumption Not specified EX2100 Excitation Signal Processing Characteristics The IS200EACFG3ABB processes generator field AC feedback signals through analog conditioning circuits before transferring measurement data to the EX2100 controller. The board supports filtering and scaling functions required for closed-loop exciter regulation. The GE EX2100 platform uses deterministic control communication paths, and this board provides fiber-optic data transfer to reduce electrical noise coupling between field measurement circuits and controller hardware. The conformal-coated PCB design supports installation in industrial control environments where moisture and contamination control are required. The feedback measurement path maintains channel isolation with 2500 Vrms channel-to-ground separation, reducing interference between field-side signals and control-side electronics. Frequently Asked Questions Q: What type of signal does the IS200EACFG3ABB process?A: The board processes generator field AC feedback signals, applying filtering, scaling, and isolation before transmitting data to the EX2100 controller. Q: What communication interface is used between the board and controller?A: The board uses a fiber-optic communication link for data transmission within the EX2100 excitation control architecture. Q: Does the board require specific rack installation orientation?A: The board is installed in the EX2100 exciter rack and must be aligned with the designated backplane connectors. Field Installation Guidelines Install the IS200EACFG3ABB in the specified EX2100 rack position and verify mechanical alignment before securing the module. Connect generator field AC feedback wiring according to the system terminal assignment documentation. Maintain separation between signal wiring and high-current power conductors to reduce electromagnetic interference. Fiber-optic connections should be inspected for correct routing, connector cleanliness, and secure engagement. Apply proper grounding practices for rack assemblies and cable shields according to the EX2100 installation documentation. Verify signal scaling, feedback channel configuration, and communication status through ToolboxST software before placing the excitation system into operation.
$200.00 $100.00
-

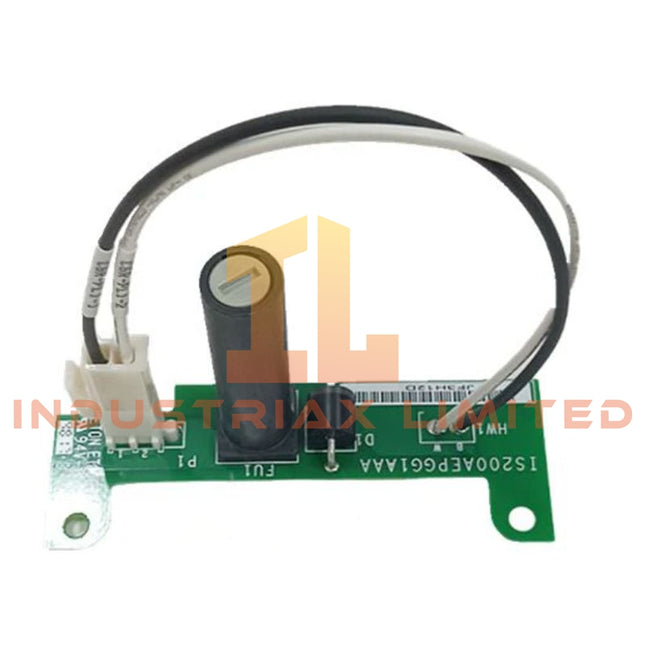

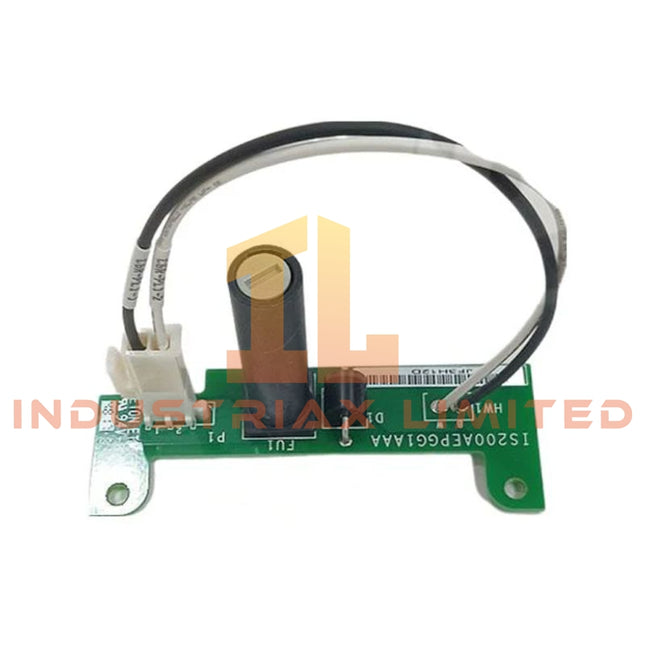

General Electric GE IS200AEPGG1A Analog Expansion Pack Module
GE IS200AEPGG1A Analog Expansion Pack Module The GE IS200AEPGG1A, also cataloged as the IS200AEPGG1A Analog Expansion Pack Module, operates as a dedicated hardware component for analog signal acquisition and output expansion within the GE Mark VI turbine control system. Hardware Specifications Parameter Specification Model IS200AEPGG1A Brand GE Weight 0.5 kg Operating Temp -30 to +65 deg C Power Consumption Approx. 12 W Product Type Analog Expansion Pack Module Series Mark VI Turbine Control / Drive Control Functional Description AEPG Board Assembly Analog Inputs 16 differential channels Analog Outputs 4 isolated channels Input Range +/-10 VDC, 4-20 mA configurable Output Range +/-10 VDC, 4-20 mA configurable Resolution 16-bit ADC/DAC Accuracy +/-0.05% of full scale at 25 deg C Isolation 1500 Vrms channel-to-backplane Scan Rate 5 ms typical per channel PCB Treatment Conformal coating, G1A revision Certifications CE, UL, CSA, RoHS Deterministic Analog I/O Processing Characteristics The IS200AEPGG1A provides additional analog processing capacity for GE Mark VI control architectures. The module handles differential analog acquisition and isolated analog output generation for turbine monitoring signals including temperature, pressure, and vibration-related measurements. The module supports configurable voltage and current signal interfaces through 16-bit ADC/DAC conversion. Channel isolation separates field signal circuits from the backplane interface, reducing interference transfer between external wiring and controller electronics. For GE industrial control platforms, the AEPG board assembly integrates with deterministic I/O communication structures. Firmware configuration through ToolboxST defines channel operation, signal scaling, and diagnostic parameters. Frequently Asked Questions Q: How many analog channels are available on the IS200AEPGG1A?A: The module provides 16 differential analog input channels and 4 isolated analog output channels. Q: What analog signal types can be configured on this module?A: The IS200AEPGG1A supports configurable +/-10 VDC and 4-20 mA input and output signal ranges. Q: Can the module be replaced while the control rack is energized?A: The supplied data identifies a hot-swappable design. Replacement procedures should follow the applicable GE Mark VI maintenance documentation and rack operating requirements. Field Installation Guidelines Install the IS200AEPGG1A in the designated GE Mark VI I/O rack position and verify correct alignment with the rack connector system before securing the module. Connect analog field wiring according to the configured channel assignments. Maintain separation between analog signal cables and high-current power conductors to reduce electrical noise coupling. Terminate cable shields according to the cabinet grounding design. Verify signal polarity, channel scaling, and I/O configuration parameters through ToolboxST before placing the module into service. Confirm that the conformal-coated PCB remains free from mechanical damage during handling and installation. Ensure all rack fasteners and connectors are properly secured before system startup.
$200.00 $100.00
