Keterangan

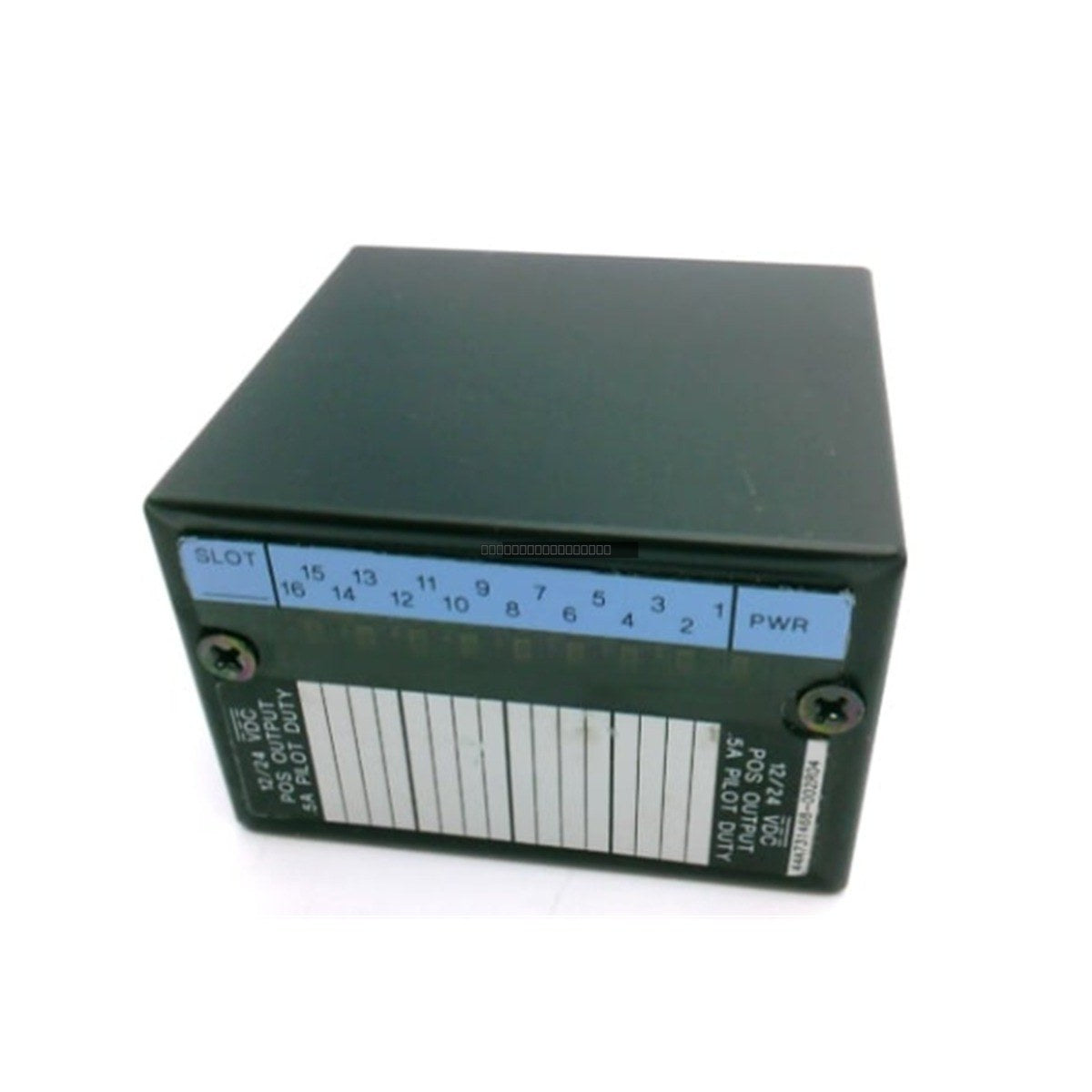

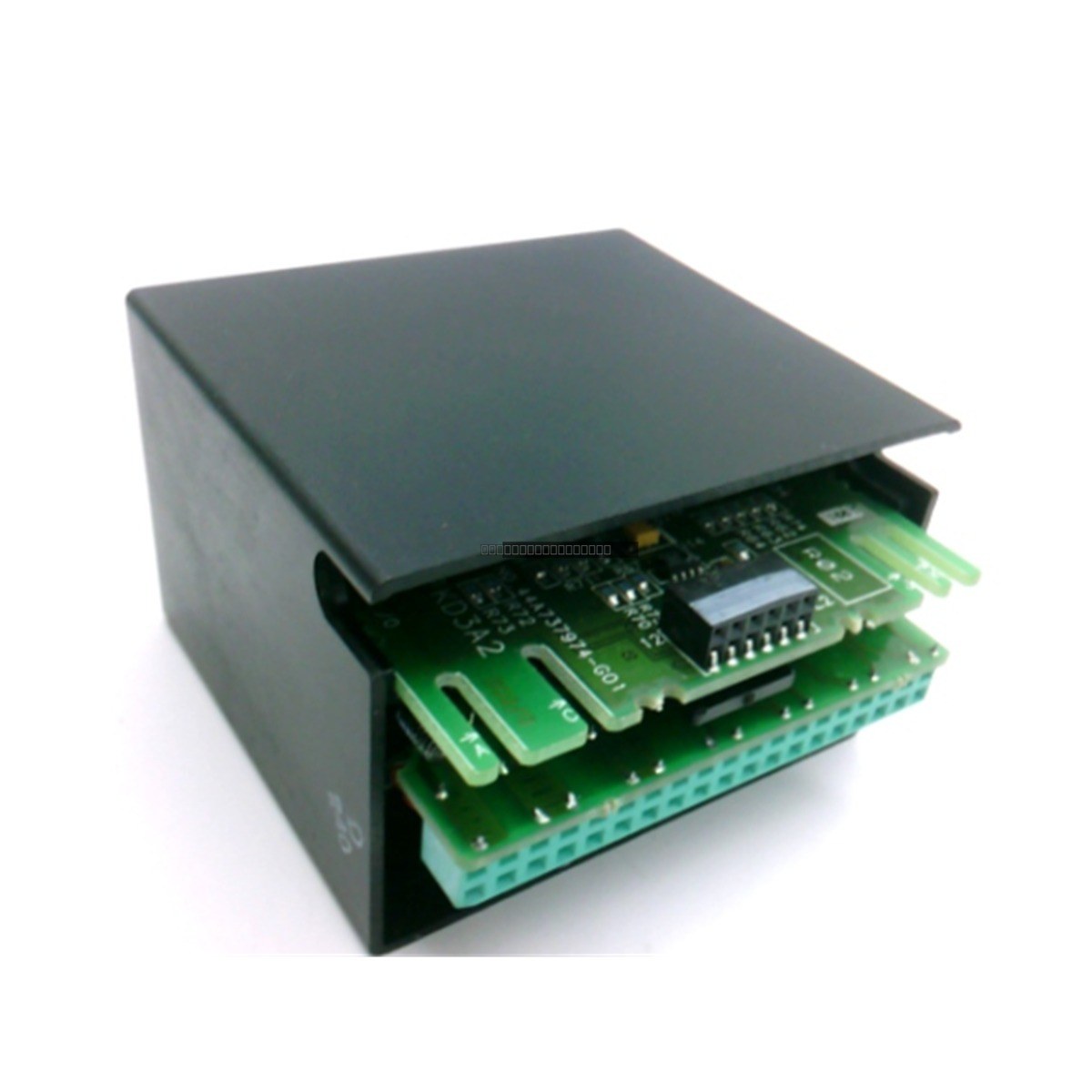

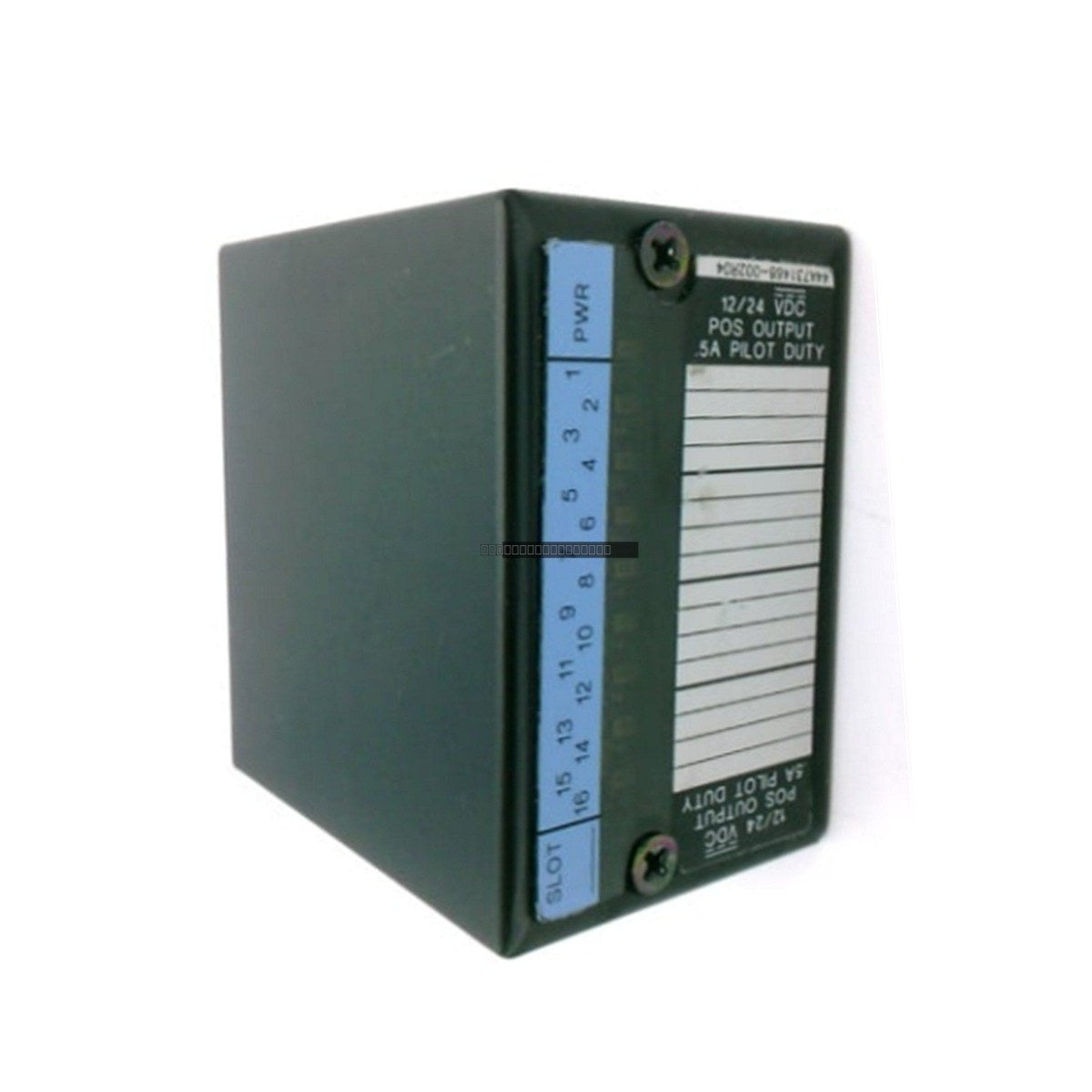

The General Electric IC670MDL740 is a high-performance 16-point discrete output module, specifically engineered for the Field Control I/O system. This module provides reliable positive logic (sourcing) output control for a variety of industrial automation tasks, operating within a voltage range of 10-30 VDC. It is designed to integrate seamlessly into distributed control architectures, offering efficient signal management for low-current output devices.
Features
- 16-point positive logic (sourcing) discrete output channels.
- Nominal operating voltage of 24 VDC with an input range of 10-30 VDC.
- Maximum load capacity of 0.5 Amps per channel, with a 4 Amp total module limit.
- Integrated status LED indicators for each output channel to simplify diagnostics.
- Common fuse protection for the output group, featuring a dedicated blown-fuse indicator.
- Compact, DIN-rail mountable design for space-constrained control cabinets.
- Standardized terminal base for simplified wiring and maintenance.
Applications
-
Actuator & Valve Control: Ideal for driving DC solenoids and pneumatic valve manifolds in assembly and fluid handling systems.
-
Operator Interface: Powers pilot lamps, status indicators, and industrial alarms on control panels.
-
Relay Switching: Capable of driving interposing relays for higher-power AC or DC load control.
-
Machine Automation: Suitable for integration into packaging, textile, and conveyor sorting systems.
-
Wastewater Infrastructure: Distributed architecture supports remote pump and sensor control in large-scale facilities.
Technical Specifications
| Model |
IC670MDL740 |
| Output Type |
Discrete (Positive Logic/Sourcing) |
| Number of Points |
16 |
| Voltage Range |
10-30 VDC |
| Current per Point |
0.5 A (Max) |
| Current per Module |
4 A (Max) |
| Response Time |
200 microseconds (0.5 A resistive load) |
| Internal Power Draw |
111 mA (from BIU) |
| Isolation |
1500 VAC (1 min) / 250 VAC (continuous) |
| Wiring Capacity |
AWG #14-22 (single); AWG #18 (dual) |
Installation Guidelines
- Ensure the Bus Interface Unit (BIU) is powered down before installing or removing the module to prevent electrical damage.
- Mount the module securely onto the designated DIN-rail, ensuring proper alignment with the terminal base.
- Use appropriate wire gauges (AWG #14-22) and ensure terminals are tightened to manufacturer specifications to maintain contact integrity.
- Maintain proper clearance around the module to facilitate adequate ventilation and cooling.
- Keep signal wiring separated from high-voltage or high-EMI sources to minimize noise and interference.
FAQ
What is the primary function of the IC670MDL740?
This module acts as a 16-point sourcing output interface for the GE Field Control system, allowing the PLC to control external DC loads such as solenoids, relays, and indicators.
Can this module be used for higher current requirements?
No, the IC670MDL740 is limited to 0.5A per point. For higher current applications, consider the IC670MDL742 (1.0A per point) or the IC670MDL730 (2.0A per point).
How is the module protected?
The output group is protected by a 5 Amp, 250V (5x20mm) slow-acting fuse, which includes a visual status indicator on the module faceplate.
