Keterangan

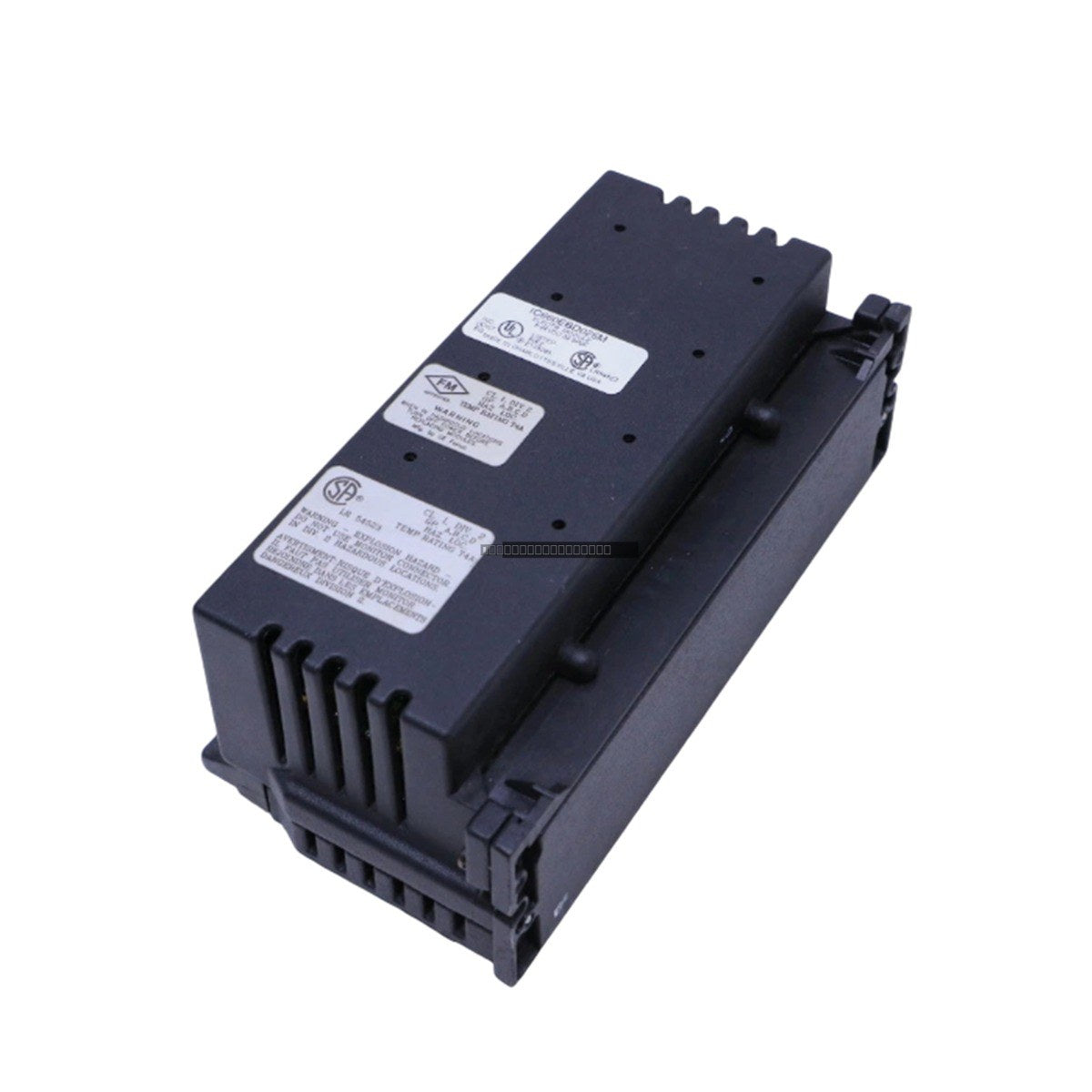

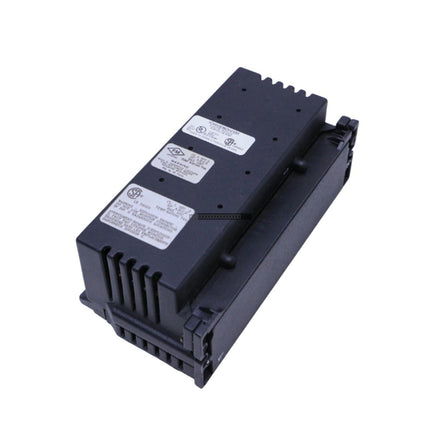

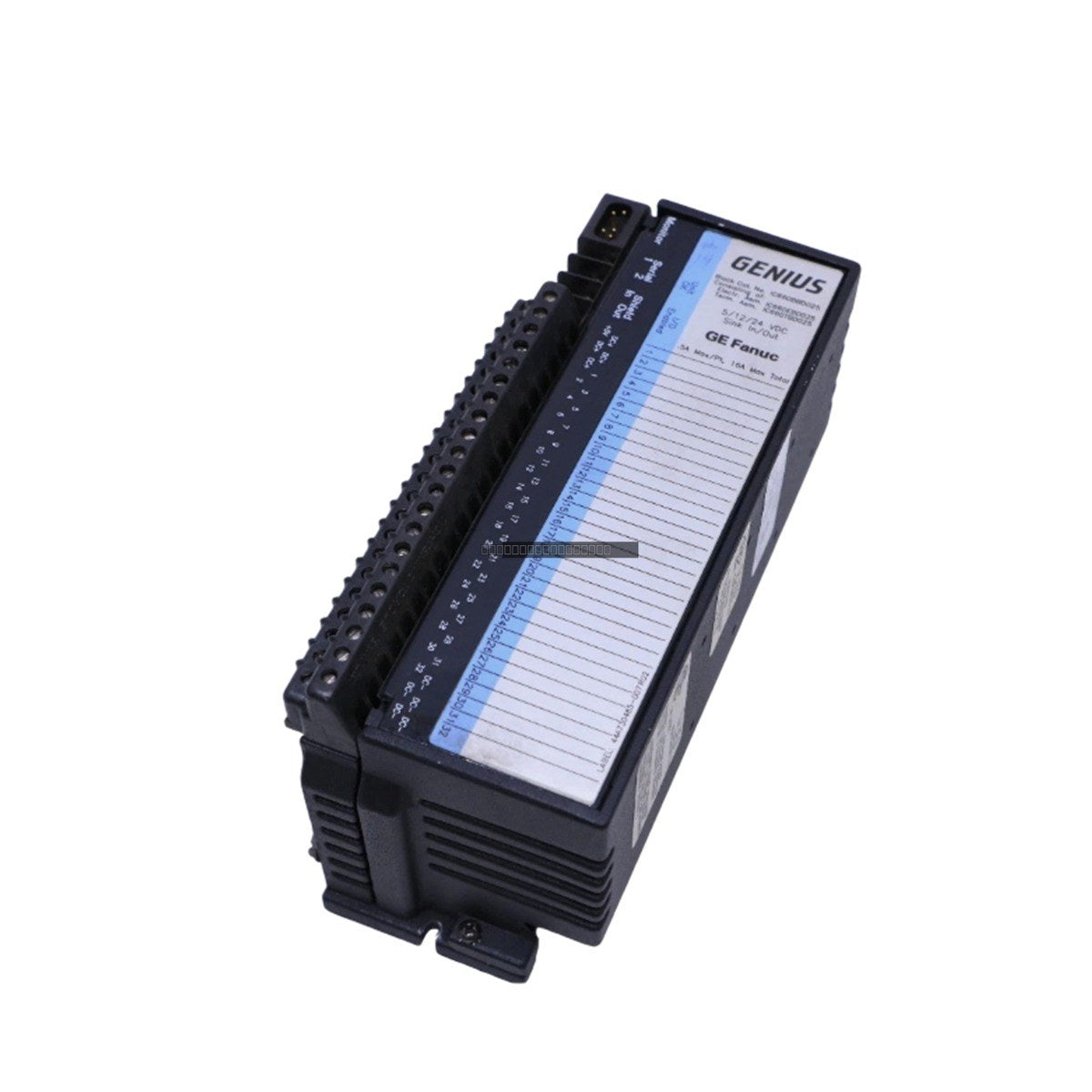

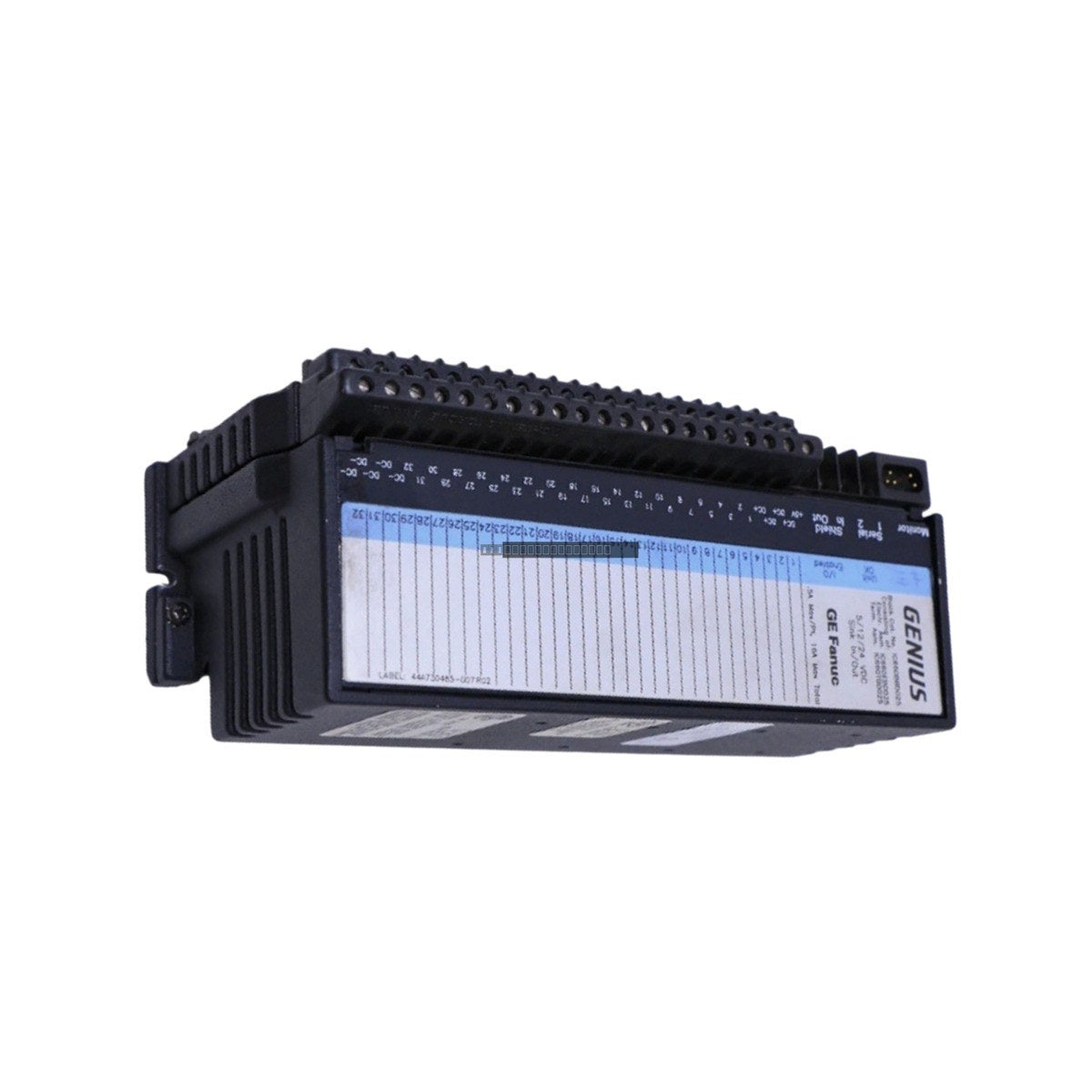

The General Electric IC660BBD025 is a high-density Genius Block I/O module engineered for robust industrial control environments. This unit features 32 configurable discrete I/O circuits, providing the flexibility to operate as inputs, outputs, or outputs with integrated feedback. Designed for sinking applications, the module supports nominal signal voltages of 5V, 12V, and 24V DC, making it highly adaptable for diverse sensor and actuator interfaces.
Features
- 32-circuit configurable I/O density
- Supports 5V TTL, 12V, and 24V DC signal levels
- Advanced diagnostic capabilities including switch fault detection
- Integrated resettable self-protecting circuits for output loads
- Software-configurable circuit parameters
- Equipped with a dedicated Hand-Held Monitor (HHM) port and Genius I/O bus terminals
- Individual circuit LEDs for status monitoring and block-level communication diagnostics
Applications
- Remote I/O distribution in oil, gas, and hydrocarbon processing plants
- Discrete I/O management for industrial robotics and CNC machinery
- Safety-critical control systems requiring modular redundancy
- Marine control and monitoring onboard shipboard systems
- Turbine control and power generation instrumentation
Technical Specifications
| Model |
IC660BBD025 |
| I/O Type |
Sinking |
| Circuit Count |
32 |
| Voltage Range |
5/12/24 VDC |
| Input Impedance |
3.3K Ohms (typical) |
| Output Current (Steady State) |
0.5 Amps per circuit |
| Max Inrush Current |
4 Amps (up to 10ms) |
| Isolation |
850V Block-to-Block |
| Operating Temperature |
0 to 60 degC |
| Storage Temperature |
-40 to 100 degC |
| Humidity |
5% to 95% (non-condensing) |
Installation Guidelines
-
Environment: Install within a clean, protective enclosure free from airborne contaminants. Ensure adequate airflow for cooling.
-
Mounting: The block can be oriented vertically or horizontally. Maintain a minimum clearance of 2 inches between adjacent blocks for thermal management.
-
Hardware: Use 8-32 screws for mounting. Utilize star washers at mounting points to ensure proper ground integrity.
-
Handling: This device contains static-sensitive components. Always use a grounded ESD wrist strap and handle the module only by its edges.
-
Wiring: Ensure all power is disconnected before installing or removing the module or modifying terminal connections.
FAQs
What is the primary function of the IC660BBD025?
The IC660BBD025 serves as an intelligent, configurable I/O block that interfaces field sensors and actuators with a controller using the Genius I/O bus protocol.
Is this module compatible with 5V signals?
Yes, this sinking I/O block is fully compatible with +5V TTL logic levels, as well as 12V and 24V DC systems.
What is the maximum output current rating?
Each individual circuit is rated for a steady-state current of 0.5 Amps, with a total block output capacity of 16 Amps.
What is the maximum communication distance for this module?
When integrated into a standard Genius I/O network, the system supports communication distances of up to 7,500 feet.
