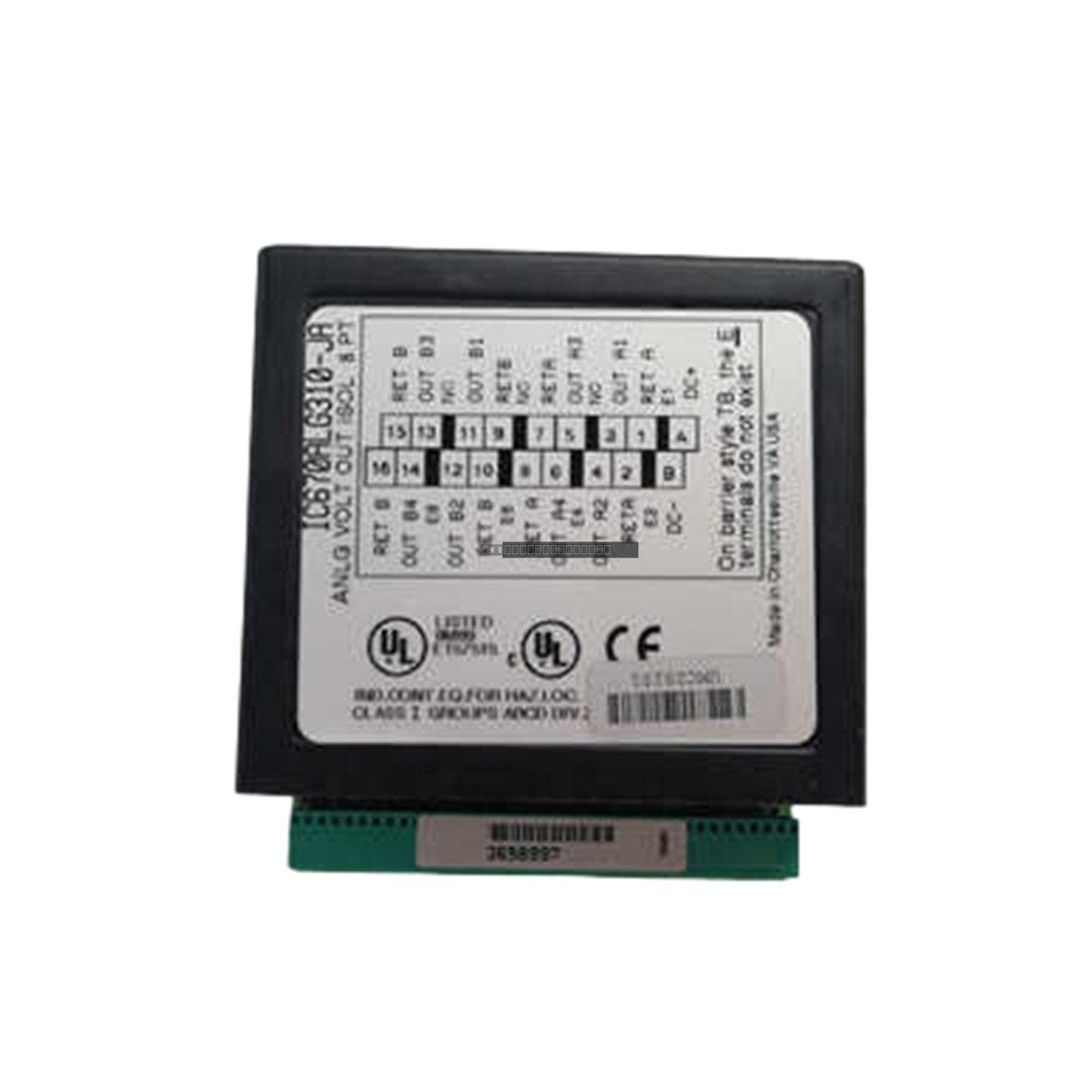

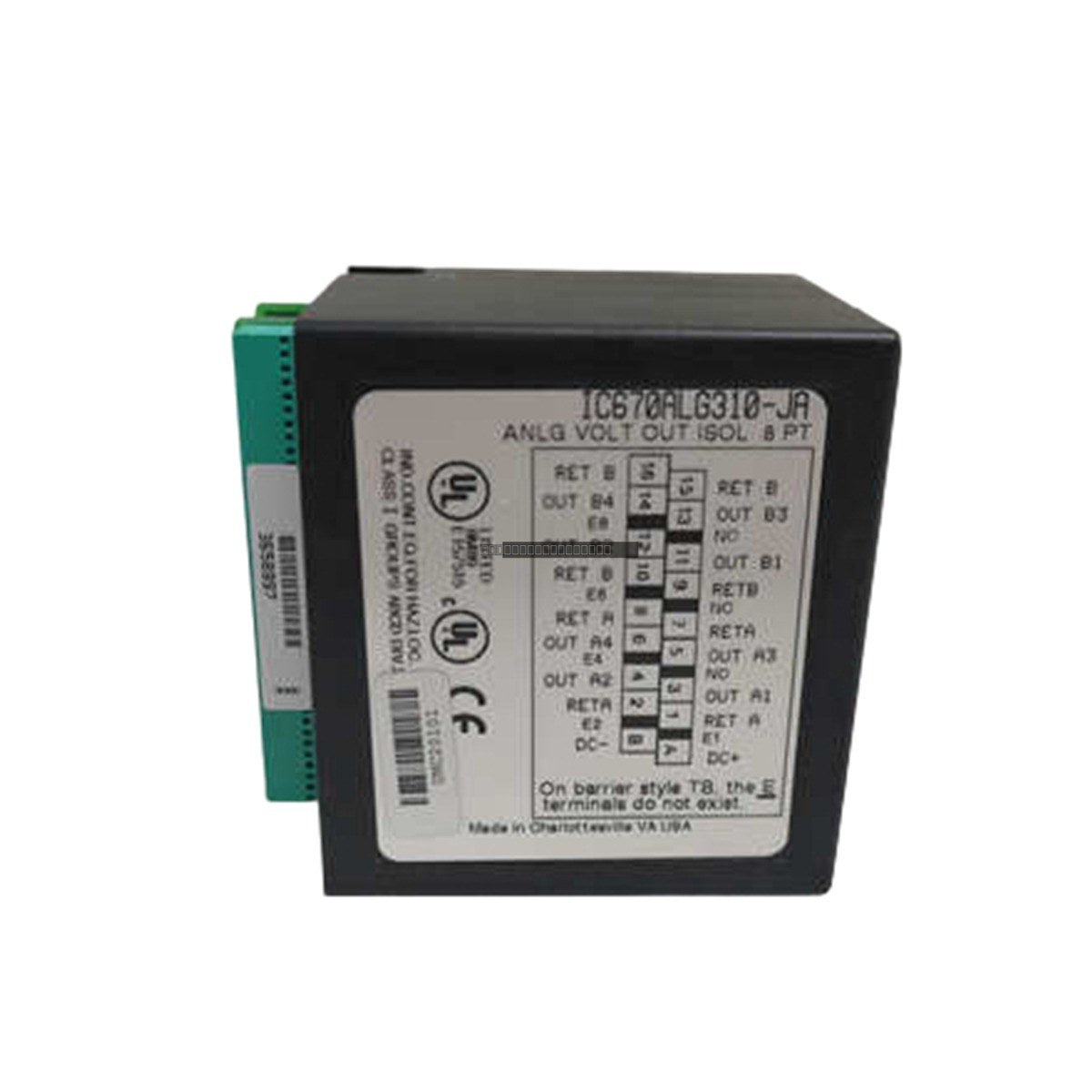

The General Electric IC670ALG310 is a high-performance analog output module designed for use within the GE Fanuc RX7i PACSystem architecture. This module provides precision signal conversion and control for industrial automation applications requiring reliable voltage output capabilities.
Features
- Provides a configurable voltage output range of -10 to +10 Volts.
- Features 14-bit resolution for high-precision control applications.
- Includes over/under range capability of 50 mV.
- Optimized for integration within the RX7i PACSystem series.
- Low power consumption with a bus current draw of 170 mA.
Technical Specifications
| Model |
IC670ALG310 |
| Manufacturer |
General Electric |
| Output Voltage Range |
-10 to 10 Volts |
| Resolution |
14 bits |
| Bus Current Draw |
170 mA |
| Input Data |
0-8 words, 0-3 bytes, 0-2 bytes |
| Tariff Code |
8537101190 |
| Weight |
0.24 kg |
Installation Guidelines
- Ensure all power to the backplane is disconnected before inserting or removing the module to prevent electrical damage.
- The module is designed for mounting in a standard GE RX7i I/O rack; ensure it is seated firmly to establish a secure connection with the backplane.
- Use shielded twisted-pair cabling for analog signal wiring to minimize electromagnetic interference (EMI) and noise.
- Verify that the module is installed in a clean, dry environment within the manufacturer's specified temperature range.
- Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect sensitive internal components.
FAQ
What is the primary function of the IC670ALG310 module?
This is an analog output module used to convert digital data from the controller into precise -10 to 10V analog signals for field devices.
Is this module compatible with other PACSystem series?
The IC670ALG310 is specifically engineered for the GE RX7i PACSystem series. Please consult your system documentation to ensure compatibility with your specific rack configuration.
What is the resolution of the output?
The module offers 14-bit resolution for both magnitude and signal output.
