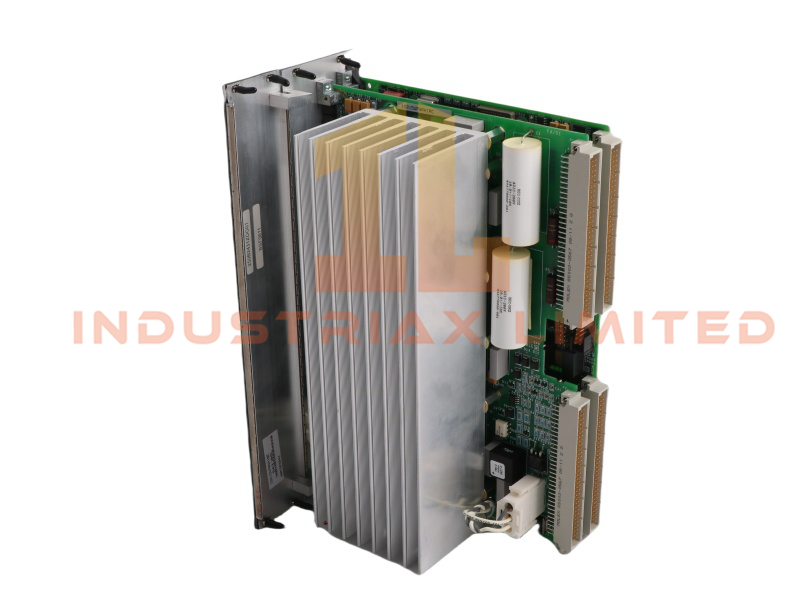

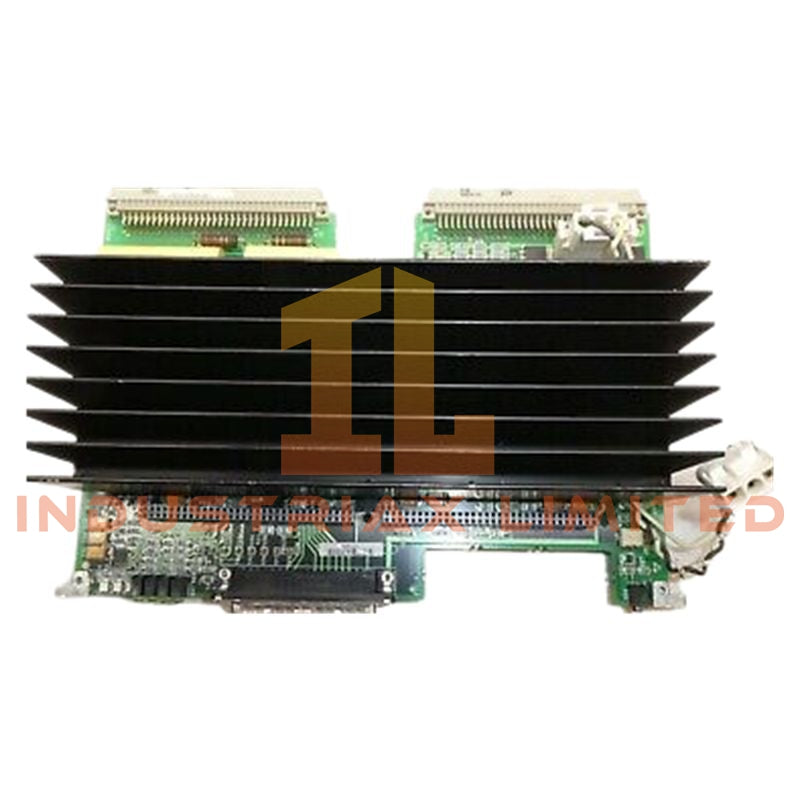

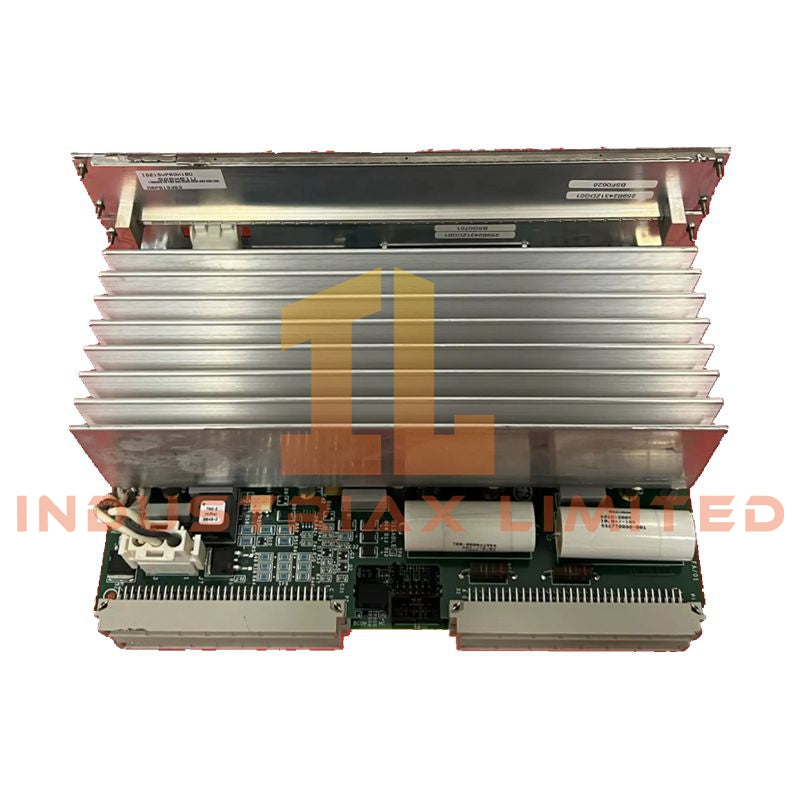

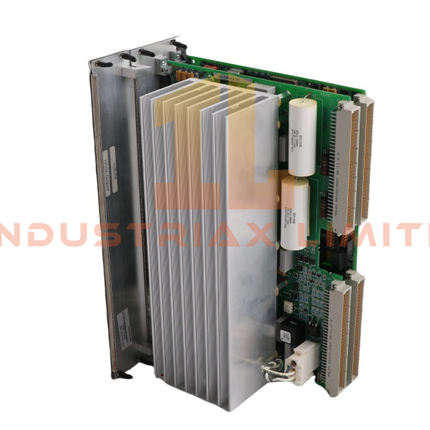

GE IS215VPROH1BD Emergency Turbine Protection Module
Configured for emergency turbine protection execution in GE Mark VI Speedtronic systems, the GE IS215VPROH1BD (IS215VPROH1B Emergency Turbine Protection Module) provides direct physical and electrical processing for overspeed detection, trip solenoid control, and high-speed communication functions within VME-based turbine control architectures.
Hardware Specifications
Parameter
Specification
Model
IS215VPROH1BD
Brand
GE
Origin
United States of America
Weight
1.5 kg
Dimensions
226 mm x 162 mm x 185 mm
Operating Temp
-40 to +85 deg C
Power Consumption
Not specified
Product Type
Emergency Turbine Protection Module
System Compatibility
GE Mark VI Speedtronic turbine control system
Input Supply Voltage
125 VDC (70-145 VDC), redundant inputs
Output Voltage
5 VDC logic supply and 28 VDC trip solenoid supply
Communication Interfaces
RS-485 Modbus RTU and VMEbus
Digital Inputs
16 channels, 24 VDC
Digital Outputs
8 channels, 24 VDC
Isolation Rating
2500 Vrms
Overspeed Detection Accuracy
+/-0.1%
Trip Execution Response Time
< 50 ms
MPU Pulse Rate Range
2 Hz to 20 kHz
Frame Rate
Up to 100 Hz
Mounting Type
VME-style rack mount, dual-width slot
Redundancy Support
Triple Modular Redundancy (TMR) compatible
Deterministic Turbine Protection and VME Communication
The IS215VPROH1BD integrates turbine protection logic processing with GE Mark VI control cabinet communication paths. The module processes overspeed signals, monitors sensor input conditions, and controls emergency trip outputs through dedicated trip solenoid interfaces.
The hardware supports deterministic industrial control communication through VMEbus and RS-485 Modbus RTU interfaces. The module architecture supports TMR-compatible configurations for safety execution, with diagnostic monitoring of digital channels, communication status, and trip functions.
Frequently Asked Questions
Q: What input signals are processed by the IS215VPROH1BD? A: The module processes 24 VDC digital inputs and turbine speed signals through MPU pulse inputs with a frequency range of 2 Hz to 20 kHz.
Q: Does the IS215VPROH1BD support redundant safety architectures? A: The module supports Triple Modular Redundancy (TMR) compatible configurations within GE Mark VI protection architectures.
Q: What communication interfaces are available on this module? A: The module provides VMEbus communication and RS-485 Modbus RTU connectivity for control system integration.
Field Installation Guidelines
Install the IS215VPROH1BD in the designated VME rack position within the GE Mark VI control cabinet. Verify rack alignment and connector engagement before applying power.
Confirm that the 125 VDC input supply wiring is correctly isolated and terminated according to cabinet wiring standards. Separate MPU signal wiring from high-current power conductors to reduce electrical interference.
Maintain proper grounding and shielding practices for communication cables. Inspect RS-485 cable polarity, termination, and shielding continuity before system startup.
Verify firmware compatibility with the installed Mark VI control configuration before initialization. Do not remove or insert the module under energized conditions unless the system hardware configuration specifically supports the operation.
