ABB TU837 / TU837V1 S800 I/O Module Termination Unit
Configured for field signal termination and ModuleBus interconnection in the ABB S800 I/O system, the ABB TU837V1 (TU837 Module Termination Unit) provides direct electrical termination between field wiring and the installed I/O module. The unit supports DIN rail mounting and defined conductor sizes for signal and return connections.
Hardware Specifications
Parameter
Specification
Model
TU837 / TU837V1
Brand
ABB
Product Type
Module Termination Unit (MTU)
Series
S800 I/O
Function
Field signal termination and ModuleBus interconnection
Mounting
Standard DIN rail
Signal Connection, Solid Wire
0.2 - 6 mm2
Signal Connection, Stranded Wire
0.2 - 4 mm2
Return Connection, Solid Wire
0.2 - 4 mm2
Return Connection, Stranded Wire
0.2 - 2.5 mm2
Signal Wire Stripping Length
8 mm
Return Wire Stripping Length
7 mm
Recommended Screw Torque
0.5 - 0.6 Nm
Protection Class
IP20
Operating Temp
-40 deg C to +70 deg C
Relative Humidity
5% to 95%, non-condensing
System Compatibility
ABB S800 I/O system
ABB S800 I/O ModuleBus and Termination Characteristics
The TU837V1 provides the physical termination interface between field conductors and the associated S800 I/O module. It also participates in the ModuleBus connection through the MTU assembly.
Furthermore, the termination unit separates field wiring operations from the electronic I/O module interface. This arrangement allows technicians to perform module replacement without removing the field conductors where the installed S800 I/O configuration supports hot-swap operation.
The TU837V1 accepts solid signal conductors from 0.2 - 6 mm2 and stranded signal conductors from 0.2 - 4 mm2. Return terminals accept solid conductors from 0.2 - 4 mm2 and stranded conductors from 0.2 - 2.5 mm2.
The DIN rail mounting arrangement supports horizontal or vertical cabinet installation. Therefore, cabinet layout can accommodate the MTU according to available wiring access and module orientation.
Frequently Asked Questions (FAQ)
Q: What conductor sizes does the TU837V1 support for signal wiring?A: The signal terminals accept 0.2 - 6 mm2 solid wire and 0.2 - 4 mm2 stranded wire.
Q: What screw torque should technicians apply to the TU837V1 terminals?A: The supplied specification recommends a screw torque of 0.5 - 0.6 Nm.
Q: Does the TU837V1 consume electrical power?A: The supplied data does not specify power consumption. The TU837V1 functions as a passive Module Termination Unit rather than an electronic I/O processing module.
Field Installation Guidelines
Mount the TU837V1 securely on the specified DIN rail before connecting field conductors.
Verify the installed MTU and I/O module combination against the S800 I/O system configuration.
Route signal wiring separately from high-voltage or high-current conductors where cabinet design permits.
Strip signal conductors to 8 mm and return conductors to 7 mm before terminal insertion.
Apply 0.5 - 0.6 Nm terminal torque according to the supplied specification.
Ensure each conductor is fully seated and mechanically secured before commissioning.
Maintain appropriate segregation between signal, power, and grounding conductors.
Connect cable shields according to the system grounding design and applicable cabinet wiring practices.
Confirm that the terminal arrangement matches the assigned I/O channel before energizing the field circuit.
Inspect the IP20 enclosure condition and terminal area after installation.
Do not infer hot-swap capability solely from the MTU design; verify the complete S800 I/O configuration and applicable module documentation before live replacement.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
ABB TU837V1 3BSE013238R1 Extended Module Termination Unit
Configured for ModuleBus distribution, I/O addressing, and field terminal interfacing, the ABB TU837V1 3BSE013238R1 (TU837V1 Extended Module Termination Unit) provides the physical connection between compatible S800 I/O modules and process wiring. It supports up to 8 I/O channels, with a maximum rated voltage of 250 V and maximum current of 3 A per channel.
Hardware Specifications
Parameter
Specification
Model
TU837V1
Article Number
3BSE013238R1
Brand
ABB
Product Type
Extended Module Termination Unit
Origin
Not specified in supplied data
Module Type
Extended
Connection
Terminal block
Channels
8
Maximum Rated Voltage
250 V
Maximum Current per I/O Channel
3 A
Maximum Current Process Connection
10 A
Process Connections
28; up to 8 I/O channels with 2 terminals per channel; 2 x 6 power common terminals
I/O Configuration
Single
Compatible I/O
DO820, DO821
ModuleBus Function
Distributes ModuleBus to the I/O module and next MTU
Address Function
Generates the I/O module address by shifting outgoing position signals
Mounting
Standard DIN rail, both directions
Mechanical Latch
DIN rail locking latch, screwdriver release
Mechanical Keys
2 keys, 6 positions each; 36 possible configurations
Dielectric Test Voltage
2000 V AC
Weight
0.26 kg
Dimensions
126 mm W x 64 mm D x 110 mm H, including connectors and terminals
Installed Width
120.5 mm edge to edge
Operating Temperature
0 to +55 deg C; approvals issued for +5 to +55 deg C
Storage Temperature
-40 to +70 deg C
Relative Humidity
5 to 95 %, non-condensing
Pollution Degree
Degree 2, IEC 60664-1
Corrosion Protection
ISA-S71.04: G3
Protection Class
IP20, IEC 60529
Mechanical Conditions
IEC/EN 61131-2
EMC
EN 61000-6-4, EN 61000-6-2
Electrical Safety
EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201
Overvoltage Category
IEC/EN 60664-1, EN 50178
Equipment Class
Class I according to IEC 61140
Marine Certification
ABS, BV, DNV-GL, LR
CE Mark
Yes
RoHS Compliance
EN 50581:2012
WEEE Compliance
Directive 2012/19/EU
ModuleBus Distribution and I/O Addressing
The TU837V1 distributes the ModuleBus from the connected I/O module toward the next MTU. It also generates the correct module address through mechanical position signaling.
The MTU shifts outgoing position signals to the next termination unit. Therefore, the physical MTU position contributes to the I/O module addressing sequence.
The unit supports up to 8 I/O channels and provides two terminals per channel. Additionally, two groups of six power common terminals support the specified process connection arrangement.
The TU837V1 uses two mechanical configuration keys. Each key provides six selectable positions, producing 36 possible mechanical configurations. These keys identify the intended I/O module arrangement mechanically and do not alter the electrical functionality of the MTU or I/O module.
Mechanical Installation and Wiring
The MTU mounts directly on a standard DIN rail. A mechanical latch secures the unit to the rail, while a screwdriver releases the latch during removal.
For signal wiring, the specified conductor ranges are:
Solid signal conductor: 0.2 to 6 mm2
Stranded signal conductor: 0.2 to 4 mm2
Signal conductor range: 24 to 10 AWG
Signal terminal torque: 0.5 to 0.6 Nm
Signal stripping length: 8 mm
Solid return conductor: 0.2 to 4 mm2
Stranded return conductor: 0.2 to 2.5 mm2
Return conductor range: 24 to 12 AWG
Return terminal torque: 0.5 to 0.6 Nm
Return stripping length: 7 mm
Frequently Asked Questions (FAQ)
Q: How many I/O channels does the TU837V1 support?
A: The TU837V1 supports up to 8 I/O channels, with a maximum rated current of 3 A per channel.
Q: How does the TU837V1 generate the I/O module address?
A: The MTU shifts outgoing position signals to the next MTU, thereby generating the correct address according to its physical position.
Q: Do the two mechanical keys change the electrical operation of the I/O module?
A: No. The two keys provide mechanical configuration only. Each key has six positions, giving 36 possible mechanical configurations without changing electrical functionality.
Field Installation Guidelines
Mount the TU837V1 on a compatible standard DIN rail and verify that the mechanical latch fully engages.
Release the DIN rail latch with a screwdriver when removing the MTU.
Configure the two mechanical keys according to the intended I/O module arrangement.
Verify the selected key positions before installing the compatible I/O module.
Connect signal and return conductors within the specified conductor-size ranges.
Apply 0.5 to 0.6 Nm terminal torque to the specified signal and return connections.
Maintain the specified stripping lengths of 8 mm for signal connections and 7 mm for return connections.
Route field wiring separately from high-energy switching conductors where the installation requires noise reduction.
Verify the ModuleBus connection between the I/O module, TU837V1, and adjacent MTU before energizing the assembly.
Confirm that the installation environment remains within the specified temperature, humidity, pollution, EMC, and IP20 conditions.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
ABB TU838 3BSE008572R1 Extended Module Termination Unit
Configured for direct field termination and process connection distribution, the ABB TU838 3BSE008572R1 (TU838 Extended Module Termination Unit) provides physical I/O termination for ABB automation systems. It supports 16 channels, 50 V rated voltage, and up to 3 A per I/O channel. The unit uses terminal block connections and supports mounting in both directions.
Hardware Specifications
Parameter
Specification
Model
TU838 3BSE008572R1
Brand
ABB
Product Type
Extended Module Termination Unit
Type
Extended
Origin
Sweden
Weight
0.3 kg
Dimensions
Estimated shipping size: 12.7 x 7.6 x 12.7 cm
Operating Temp
0 to +55 deg C; approvals issued for +5 to +55 deg C
Storage Temp
-40 to +70 deg C
Relative Humidity
5 to 95 %, non-condensing
Connection
Terminal block
Rated Voltage
50 V
I/O Channels
16
Mounting
Both directions
I/O Configuration
Single I/O
Maximum Current per I/O Channel
3 A
Maximum Current at Process Connection
10 A
Dielectric Test Voltage
500 V AC
Marine Certification
ABS, BV, DNV-GL, LR
ABB I/O Termination and Channel Density
The TU838 provides 16 physical I/O channels through terminal block connections. Therefore, the unit accommodates a relatively high number of field connections within its extended termination configuration. Each I/O channel permits a maximum current of 3 A, while the process connection has a maximum current rating of 10 A.
The 50 V rating defines the stated process-side voltage limit. In addition, the 500 V AC dielectric test voltage specifies the supplied insulation test level. The single I/O configuration does not indicate a redundant termination arrangement in the supplied specifications.
The unit supports mounting in both directions, which allows the installer to select the orientation appropriate to the cabinet or mounting arrangement. Marine approvals include ABS, BV, DNV-GL, and LR.
Frequently Asked Questions
Q: How many I/O channels does the ABB TU838 provide?
A: The TU838 provides 16 I/O channels through terminal block connections.
Q: What current can each I/O channel handle?
A: Each I/O channel has a maximum specified current of 3 A. The maximum current at the process connection is 10 A.
Q: What environmental temperature range does the TU838 support?
A: The specified operating range is 0 to +55 deg C. Storage temperature ranges from -40 to +70 deg C. Approval conditions are specified for +5 to +55 deg C.
Field Installation Guidelines
Install the TU838 in the specified cabinet or mounting location with adequate mechanical support. Verify terminal identification before connecting field wiring, and keep signal wiring separated from high-voltage or high-current conductors where applicable.
Use wiring and protective devices suitable for the connected load and the stated 50 V rating. Do not exceed the 3 A maximum current per I/O channel or the 10 A process connection limit.
Maintain appropriate separation between signal conductors and power conductors to reduce electromagnetic interference. Where shielded cables are used, terminate shields according to the system grounding design and avoid unintended ground loops.
Before energization, inspect terminal tightness, conductor routing, polarity, and insulation condition. Confirm that the installed temperature and humidity conditions remain within the specified operating limits.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
ABB TU839 Extended Module Termination Unit
The ABB TU839 3BSE046966R1, also cataloged as the TU839 Extended Module Termination Unit, distributes ModuleBus signals to the installed I/O module and the next MTU while providing eight I/O channels and two isolated sensor-power groups.
Hardware Specifications
Parameter
Specification
Model
TU839
Article Number
3BSE046966R1
Brand
ABB
Product Type
Extended Module Termination Unit
Type
Extended
Connection
Terminal block
Channels
8 I/O channels
I/O Connections
2 connections per channel
Process Connections
28 total; 8 I/O channels plus 2 x 6 process power terminals
Sensor Power Distribution
2 individually isolated groups
Sensor Power Fuse
200 mA per group
Maximum Rated Voltage
250 V
Maximum Current per I/O Channel
1 A
Maximum Current Process Connection
10 A
I/O Compatibility
DI820, DI821, DI825
I/O Configuration
Single I/O
ModuleBus Distribution
To the I/O module and the next MTU
Address Generation
Outgoing position signals shifted to the next MTU
Mounting
Standard DIN rail
Mounting Direction
Both directions
DIN Rail Retention
Mechanical latch
Mechanical Keying
2 keys, 6 positions each
Keying Configurations
36 possible mechanical configurations
Acceptable Wire Size
Stranded: 24-14 AWG; 0.2-2.5 mm2 solid or stranded
Recommended Terminal Torque
0.5 Nm
Dielectric Test Voltage
2300 V AC channel to ground; 1350 V AC channel to channel
Operating Temperature
0 to +55 deg C; approvals issued for +5 to +55 deg C
Storage Temperature
-40 to +70 deg C
Relative Humidity
5 to 95 %, non-condensing
Pollution Degree
Degree 2, IEC 60664-1
Corrosion Protection
ISA-S71.04: G3
Protection Class
IP20 according to IEC 60529
EMC
EN 61000-6-4, EN 61000-6-2
Electrical Safety
EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201
Overvoltage Category
IEC/EN 60664-1, EN 50178
Equipment Class
Class I according to IEC 61140
Mechanical Conditions
IEC/EN 61131-2
CE Mark
Yes
RoHS Compliance
EN 50581:2012
WEEE Compliance
DIRECTIVE/2012/19/EU
Width
126 mm including connector; 120.5 mm edge to edge installed
Depth
64 mm including terminals
Height
110 mm
Weight
0.28 kg
ModuleBus Distribution and Mechanical Addressing
The TU839 distributes the ModuleBus from the I/O module to the following MTU. It also generates the I/O module address by shifting the outgoing position signals toward the next MTU.
Two mechanical keys configure the MTU for different I/O module types. Each key provides six selectable positions, resulting in 36 possible mechanical configurations. This keying function provides physical configuration only and does not change the electrical functionality of the MTU or I/O module.
Furthermore, the MTU uses a mechanical DIN rail latch for retention. Installers can mount the unit on a standard DIN rail in either supported direction.
Sensor Power Distribution
The TU839 provides two individually isolated process-voltage groups for sensor power distribution. Each group incorporates a 200 mA fuse.
Each of the eight I/O channels provides two I/O connections. The channel rating permits a maximum current of 1 A, while the maximum process-connection current is specified as 10 A.
The fuse rating should match the actual application load and connected sensor requirements. Do not select the fuse solely from the maximum channel rating.
Frequently Asked Questions (FAQ)
Q: How many I/O channels does the TU839 support?A: The TU839 supports up to 8 I/O channels, with 2 I/O connections assigned to each channel.
Q: How does the TU839 generate the I/O module address?A: The MTU shifts the outgoing position signals to the next MTU, thereby generating the corresponding I/O module address.
Q: What is the purpose of the two mechanical keys?A: The keys provide physical configuration for different I/O module types. Each key has 6 positions, creating 36 possible mechanical configurations without changing MTU functionality.
Field Installation Guidelines
Mount the TU839 on a compatible standard DIN rail and engage the mechanical latch fully.
Verify the mechanical key positions before installing the associated I/O module.
Connect the ModuleBus according to the intended MTU sequence and verify the outgoing connection toward the next MTU.
Separate process wiring from high-energy switching and power conductors where practical to reduce electrical interference.
Maintain correct polarity and termination for all connected process circuits.
Select the sensor-power fuse rating according to the actual application load and circuit requirements.
Keep the two sensor-power groups electrically separated as specified by the installation design.
Use acceptable conductor sizes from 24-14 AWG or 0.2-2.5 mm2.
Apply the specified 0.5 Nm terminal torque when terminating field wiring.
Verify protective earth and enclosure arrangements according to the applicable installation standard.
Confirm that the installation remains within the specified 0 to +55 deg C operating range.
Maintain the IP20 protection requirements of the installed assembly.
Inspect channel-to-ground and channel-to-channel insulation requirements before energizing the process connections.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
ABB TU840 3BSE020846R1 Termination Unit
Configured for redundant I/O termination in the ABB Modulebus architecture, the ABB TU840 3BSE020846R1 (TU840 Termination Unit) provides the physical and electrical interface for a 1+1 TB840 configuration. It includes a power supply connector and TB807 Modulebus terminator interface.
Hardware Specifications
Parameter
Specification
Model
TU840 3BSE020846R1
Base Model
TU840
Spare Model
3BSE020846R1
Product Type
Termination Unit
Manufacturer
ABB
Origin
Sweden
Weight
0.42 kg
Dimensions
Estimated shipping size: 18.5 x 12.2 x 4.7 cm
Application
For 1+1 TB840
I/O Configuration
Supports redundant I/O
Communication Protocol
Modulebus
Power Input
24 VDC
Mounting
Vertical or horizontal
Modulebus Current Distribution
Maximum 5 V, 1.5 A; 24 V, 1.5 A
Mechanical Keys
36 different combinations
Rated Insulation Voltage
50 V
Dielectric Test Voltage
500 VAC
Power Dissipation
2.0 W
Operating Temperature
0 to +55 deg C; approvals issued for +5 to +55 deg C
Storage Temperature
-40 to +70 deg C
Relative Humidity
5 to 95 %, non-condensing
Tariff Code
8537101190
Place of Shipment
Xiamen, China
ABB Modulebus and Redundant I/O Interface
The TU840 terminates and distributes electrical connections associated with a 1+1 TB840 redundant I/O arrangement. The unit provides a dedicated power supply connector and accepts the TB807 Modulebus terminator.
Furthermore, the specified Modulebus current distribution reaches 1.5 A at 5 V and 1.5 A at 24 V. Therefore, installation planning should keep the connected module load within these stated distribution limits.
The mechanical keying system provides 36 different combinations. This feature controls physical module positioning and helps prevent incompatible module or termination-unit combinations during installation.
Frequently Asked Questions
Q: What TB840 configuration does the TU840 support?A: The TU840 is specified for a 1+1 TB840 configuration and supports redundant I/O.
Q: What power distribution does the TU840 provide?A: The specified maximum Modulebus current distribution is 1.5 A at 5 V and 1.5 A at 24 V.
Q: What mounting orientations are permitted?A: The supplied specification permits both vertical and horizontal mounting.
Field Installation Guidelines
Verify the complete part number TU840 3BSE020846R1 before installation.
Confirm that the termination unit matches the intended 1+1 TB840 redundant configuration.
Install the unit in the specified vertical or horizontal orientation.
Connect the 24 VDC power input with correct polarity and suitable industrial wiring practices.
Keep the connected Modulebus load within the specified 5 V and 24 V current distribution limits.
Install the TB807 Modulebus terminator at the designated interface.
Use the mechanical keying arrangement to prevent an incorrect module combination.
Route power and communication wiring to minimize unnecessary coupling with high-current or high-noise conductors.
Verify terminal tightness and connector seating before energizing the assembly.
Confirm that the installation environment remains within the specified temperature and humidity limits.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

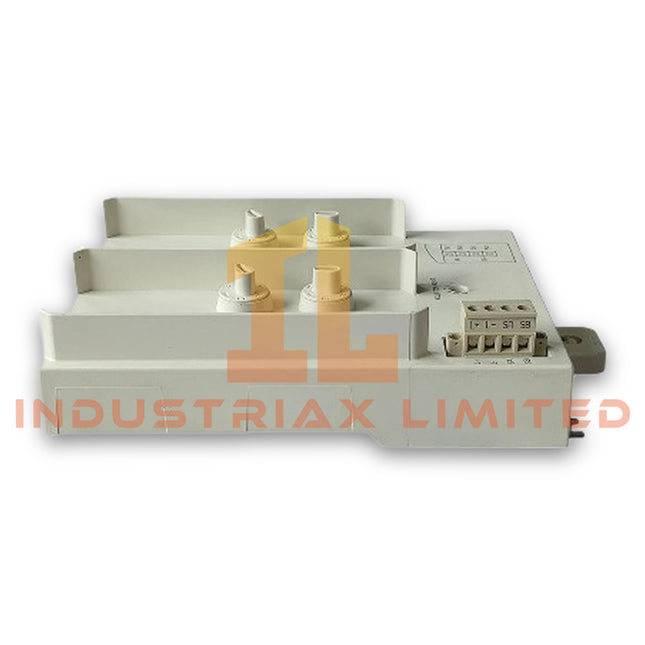

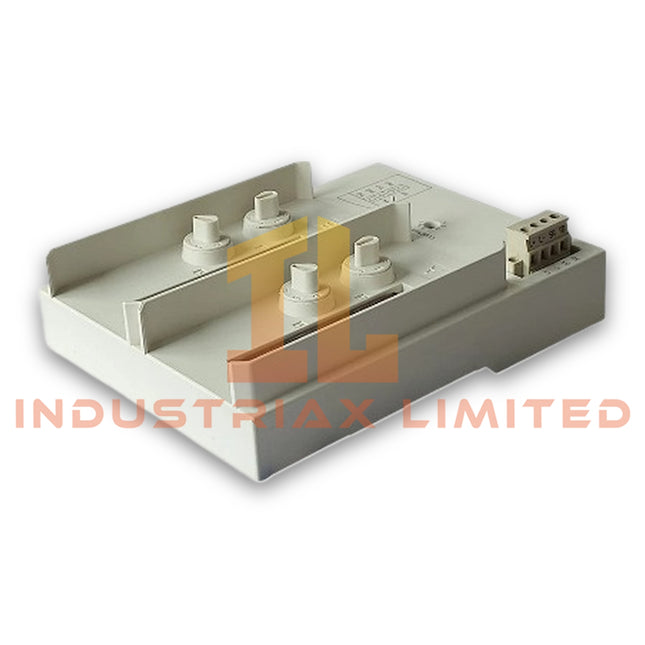

ABB TU841 Termination Unit for 1+1 TB840
Configured for redundant TB840/TB840A termination and ModuleBus distribution, the ABB TU841 3BSE020848R1 (TU841 Termination Unit) provides the physical interface for single I/O and single power configurations. It accepts 24 VDC input and supports ModuleBus line redundancy. The unit supports vertical or horizontal mounting and uses mechanical keys for configuration control.
Hardware Specifications
Parameter
Specification
Model
TU841
Spare Model
3BSE020848R1
Article Number
3BSE020848R11
Brand
ABB
Product Type
Termination Unit for 1+1 TB840
Configuration
Redundant TB840/TB840A, Single I/O, Single Power
Communication Protocol
ModuleBus
Master or Slave
N/A
Line Redundancy
Yes
Hot Swap
No
Power Input
24 VDC, 19.2 to 30 V
ModuleBus Current Distribution
Maximum 5 V, 1.5 A; 24 V, 1.5 A
Power Consumption
2.0 W power dissipation
Mounting
Vertical or Horizontal
Mechanical Keys
36 different combinations
Acceptable Wire Size
Solid: 0.2 to 2.5 mm2; Stranded: 0.2 to 2.5 mm2, 24 to 12 AWG
Recommended Torque
0.5 Nm
Rated Insulation Voltage
50 V
Dielectric Test Voltage
500 VAC
Operating Temperature
0 to +55 deg C; approvals issued for +5 to +55 deg C
Storage Temperature
-40 to +70 deg C
Relative Humidity
5 to 95 %, non-condensing
Maximum Ambient Temperature
55 deg C; 40 deg C for vertical mounting
Ingress Protection
IP20 according to IEC 60529
Equipment Class
Class I according to IEC 60536, earth protected
CE Marking
Yes
Electrical Safety
EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201
Hazardous Location
cULus Hazardous Location Class 1 Zone 2, ATEX Zone 2
Marine Certificates
ABS, BV, DNV-GL, LR
RoHS Compliance
EU RoHS, UAE RoHS, CN RoHS
WEEE Compliance
Directive 2012/19/EU
Dimensions
124 x 186 x 47 mm
Height
186 mm including latch
Estimated Shipping Size
185 x 123 x 45 mm
Weight
0.45 kg
ABB ModuleBus and I/O Interface Characteristics
The TU841 distributes ModuleBus power and provides the termination interface for redundant TB840/TB840A configurations. Line redundancy supports the specified redundant ModuleBus arrangement, while the unit itself does not support hot swapping.
The 24 VDC input accepts 19.2 to 30 V. ModuleBus current distribution is rated up to 1.5 A on the 5 V supply and 1.5 A on the 24 V supply.
Furthermore, the TU841 provides 36 mechanical key combinations. These keys support physical configuration control and help prevent incompatible module placement.
The unit supports both vertical and horizontal installation. However, the maximum ambient temperature is reduced to 40 deg C for vertical mounting according to the supplied data.
Frequently Asked Questions (FAQ)
Q: Does the ABB TU841 support hot swapping?A: No. The supplied specifications identify Hot Swap as "No". Installation and replacement should therefore follow the applicable system shutdown and isolation procedure.
Q: What ModuleBus current can the TU841 distribute?A: The specified maximum distribution is 1.5 A at 5 V and 1.5 A at 24 V.
Q: Can the TU841 operate with redundant TB840/TB840A configurations?A: Yes. The specified configuration is redundant TB840/TB840A with single I/O and single power, and the unit supports ModuleBus line redundancy.
Field Installation Guidelines
Verify the TU841 model and article number before installation.
Confirm that the supply voltage remains within 19.2 to 30 VDC.
Mount the unit vertically or horizontally according to the cabinet design and applicable temperature limits.
Maintain the specified wire range of 0.2 to 2.5 mm2 for field wiring.
Apply the recommended 0.5 Nm terminal torque where applicable.
Use the mechanical key configuration specified for the intended module arrangement.
Connect protective earth according to the cabinet grounding design and applicable electrical standards.
Separate power and signal wiring where required by the installation design to reduce electrical interference.
Do not perform hot-swapping because the supplied specification does not support this function.
Verify ModuleBus connections and redundant line routing before energizing the assembly.
Maintain the IP20 enclosure requirements by installing the TU841 inside an appropriate protected cabinet or enclosure.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

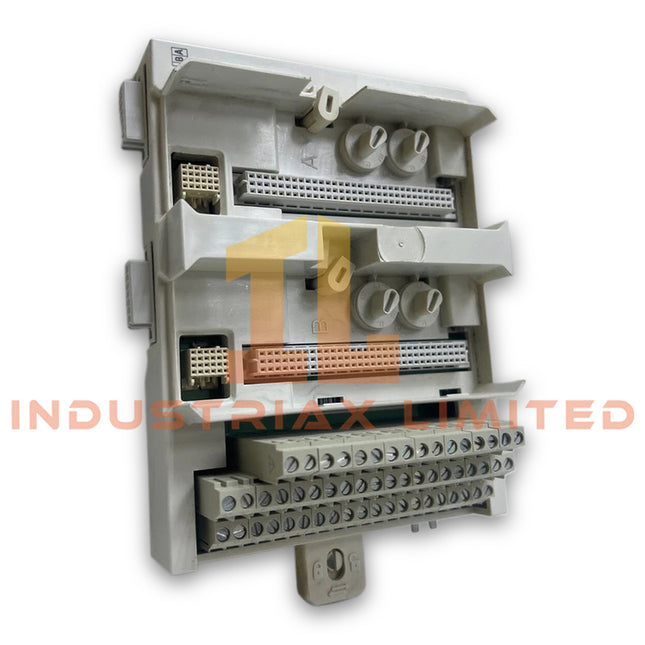

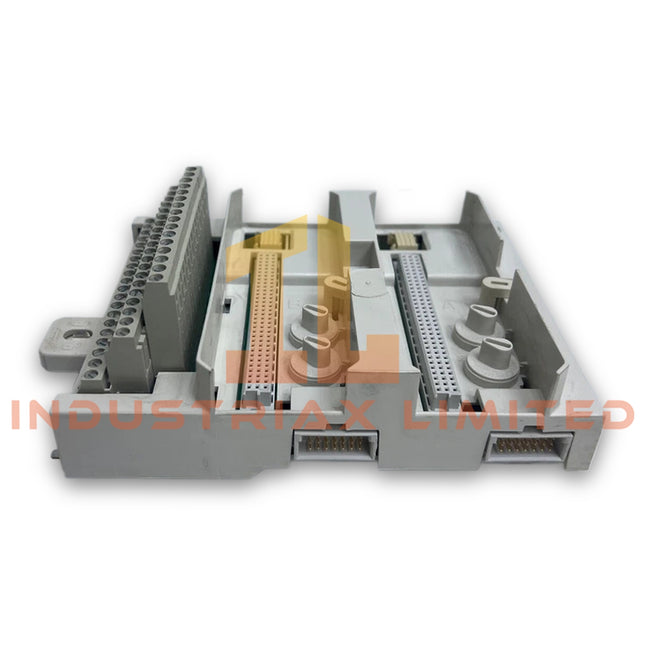

ABB TU843 Module Termination Unit
Configured for 50 V signal termination in redundant I/O applications, the ABB 3BSE021443R1 (TU843 Module Termination Unit) provides the physical termination interface required for compatible ABB I/O assemblies. The unit supports redundant application configurations and provides the associated field wiring termination points.
Hardware Specifications
Parameter
Specification
Model
TU843
Spare Model
3BSE021443R1
Brand
ABB
Product Type
Module Termination Unit
Application
Redundant applications
Rated Signal Voltage
50 V
Origin
Not specified in supplied data
Weight
0.62 kg
Dimensions
18.5 x 13 x 6.5 cm estimated shipping size
Hardware Function
I/O module field termination
Redundancy Support
Yes
Shipping Size
18.5 x 13 x 6.5 cm
ABB Redundant I/O Termination Characteristics
The TU843 terminates field wiring for compatible ABB I/O configurations and supports redundant application arrangements. Therefore, installation should maintain the intended redundant wiring topology and preserve clear separation between associated field circuits.
The unit is a termination component rather than an independent control processor. Consequently, it does not replace the I/O electronics responsible for signal acquisition, processing, or control execution.
The supplied specification identifies a 50 V application rating. However, the available data does not define channel count, terminal allocation, isolation voltage, or backplane current consumption. These values should therefore be confirmed against the applicable ABB hardware documentation before system integration.
Frequently Asked Questions
Q: What is the primary function of the ABB TU843?A: The TU843 functions as a Module Termination Unit for field wiring associated with compatible ABB I/O hardware.
Q: Does the TU843 support redundant applications?A: Yes. The supplied specification identifies the TU843 as a 50 V Module Termination Unit intended for redundant applications.
Q: Does the TU843 require a separate power-consumption specification?A: The supplied data does not specify a power-consumption value. The TU843 should therefore be treated as a termination unit rather than assigned an unsupported electrical consumption figure.
Field Installation Guidelines
Verify the TU843 model and spare number before installation.
Confirm compatibility with the associated ABB I/O module and redundant configuration.
Install the unit according to the applicable ABB system wiring documentation.
Route field wiring according to the required separation rules for signal and power circuits.
Secure all conductors in the designated termination points and verify mechanical retention.
Maintain correct polarity and circuit identification during wiring.
Connect cable shields according to the plant grounding and EMC design.
Inspect terminal connections before energizing the associated I/O system.
Do not apply field voltage until the complete termination and wiring inspection is complete.
Confirm the applicable 50 V circuit rating before connecting external field signals.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

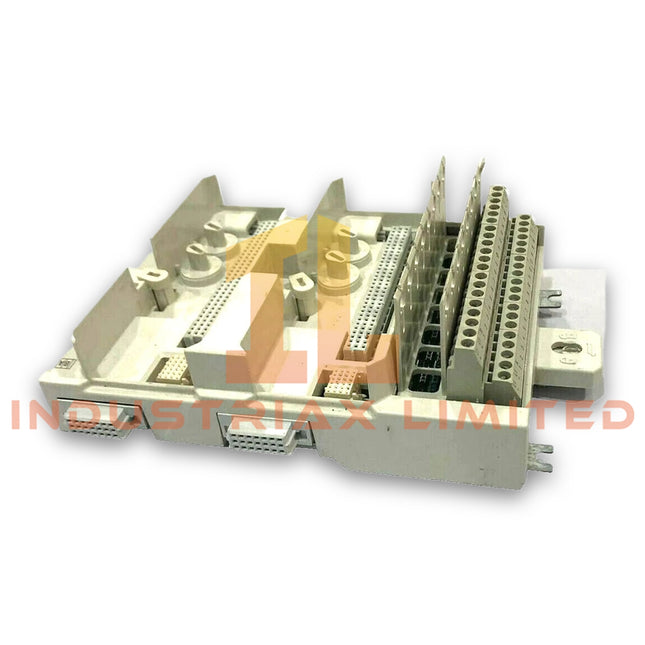

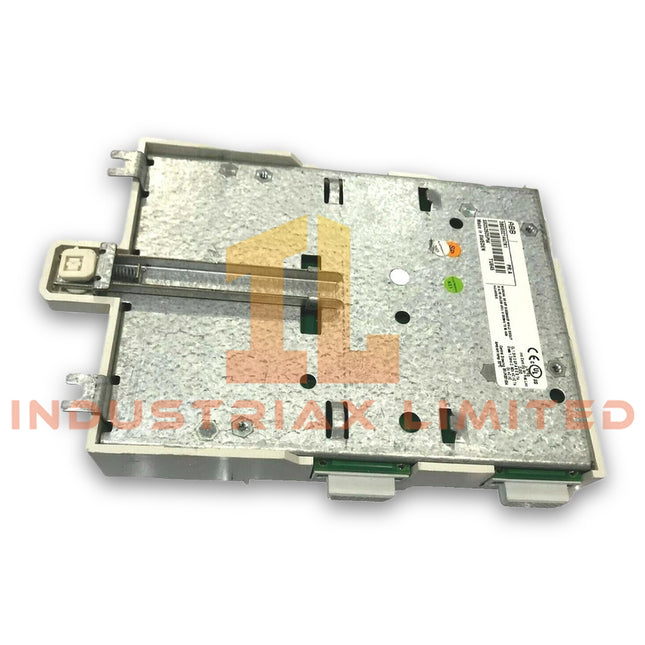

ABB TU845 3BSE021447R1 Module Termination Unit
Configured for terminal-level I/O termination in ABB control hardware, the ABB TU845 3BSE021447R1 (TU845 Module Termination Unit) provides an 8-channel physical connection interface. It uses a terminal block connection and supports redundant configurations with a maximum 50 V operating voltage.
Hardware Specifications
Parameter
Specification
Model
TU845 3BSE021447R1
Spare Model
3BSE021447R1
Brand
ABB
Product Type
Module Termination Unit
Origin
Sweden
Weight
0.58 kg
Dimensions
18.5 x 13 x 6.2 cm estimated shipping size
Type
Redundant
Connection
Terminal block
Channels
8
Maximum Voltage
50 V
Maximum Current per I/O Channel
2 A
Maximum Current at Process Connection
5 A
Dielectric Test Voltage
500 V AC
Operating Temperature
0 to +55 deg C
Storage Temperature
-40 to +70 deg C
ABB I/O Termination and Backplane Interface
The TU845 provides terminal-level termination for eight I/O channels. Therefore, field wiring connects directly through the terminal block rather than through a separate signal termination assembly.
The unit supports a maximum 50 V voltage level and limits each I/O channel to 2 A. In addition, the process connection supports a maximum current of 5 A. These limits define the electrical loading conditions for connected field circuits.
The supplied data identifies the TU845 as a redundant termination unit. However, the data does not specify a backplane communication protocol, communication velocity, firmware dependency, or I/O module compatibility matrix. These parameters should therefore be verified against the associated ABB I/O system documentation before installation.
The specified 500 V AC dielectric test voltage provides the stated insulation test level between applicable electrical sections. Installation should maintain the manufacturer's wiring and insulation requirements.
Frequently Asked Questions
Q: How many I/O channels does the TU845 provide?A: The TU845 provides 8 terminal connections for I/O channels.
Q: What are the stated current limits?A: Each I/O channel supports a maximum current of 2 A, while the process connection supports a maximum current of 5 A.
Q: What operating temperature range does the TU845 support?A: The specified operating range is 0 to +55 deg C. The storage range is -40 to +70 deg C.
Field Installation Guidelines
Mount the TU845 according to the mechanical arrangement specified for the associated ABB control system.
Verify terminal assignments before connecting field conductors.
Keep signal wiring separated from high-voltage and high-current power conductors where the cabinet design permits.
Confirm that connected circuits remain within the 50 V maximum voltage specification.
Limit individual I/O channel current to 2 A and process connection current to 5 A.
Route shielded signal cables according to the cabinet grounding design. Avoid creating unintended ground loops through multiple shield termination points.
Inspect terminal tightening and conductor seating before energizing the circuit.
Confirm the dielectric and insulation requirements of the complete installation before commissioning.
Maintain the specified operating temperature range during service.
Do not infer hot-swap capability, backplane current consumption, or firmware compatibility unless the associated ABB system documentation explicitly confirms those functions.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
2 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

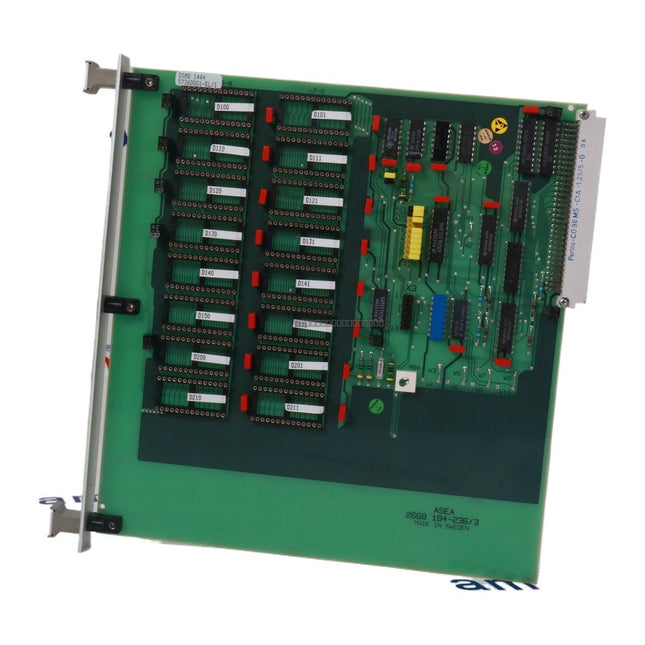

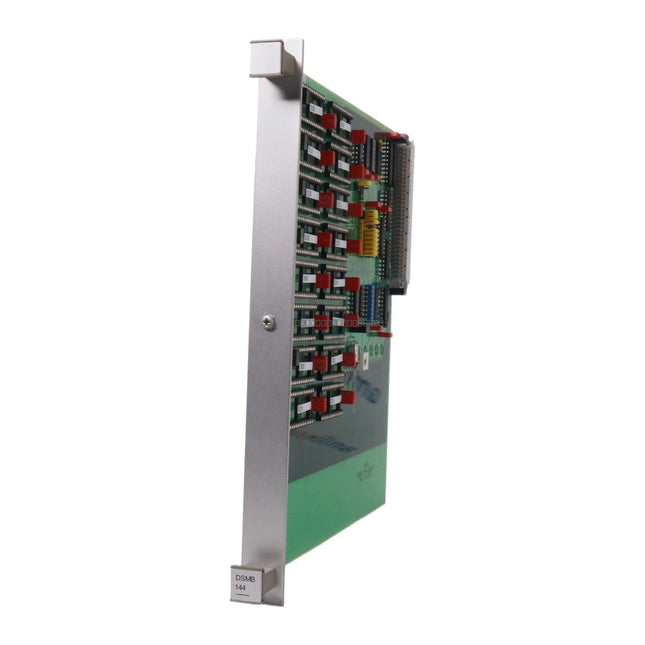

DescriptionThe ABB DSMB144 is a dedicated memory module designed for use within ABB Master control systems. This component serves as a critical storage element for system configuration, application logic, or operational data, ensuring the reliable execution of control tasks within the ABB Master architecture. As a legacy component, it is frequently utilized in the maintenance and restoration of established industrial control environments.Features
Designed specifically for ABB Master series control systems.
Provides reliable data and memory storage for controller operations.
Robust construction suitable for industrial control cabinet environments.
Compatible with spare part reference 57360001-EL.
ApplicationsThis memory module is primarily used in ABB Master distributed control systems (DCS) and related industrial automation platforms. It is intended for use by maintenance engineers and system integrators tasked with the upkeep of legacy ABB automation hardware in power generation, chemical processing, and manufacturing facilities.Technical Specifications
Manufacturer
ABB
Model
DSMB144
Spare Part Number
57360001-EL
Product Type
Memory Module
Country of Origin
Sweden
Tariff Code
8523510000
Installation Guidelines
Ensure the control system is powered down before attempting to insert or remove the memory module to prevent electrical damage or data corruption.
Handle the module using standard ESD (Electrostatic Discharge) precautions to protect sensitive internal circuitry.
Verify that the module is correctly seated in the designated slot within the ABB Master rack or controller housing.
Ensure the environment is free from excessive vibration and within the specified temperature ranges for the host controller system.
Check for proper alignment of connector pins before applying pressure to seat the module.
FAQIs the ABB DSMB144 still in production?No, this module has been discontinued by the manufacturer. We provide these units as refurbished or surplus spare parts to support legacy system maintenance.What is the relationship between DSMB144 and 57360001-EL?These are identifiers for the same hardware component; 57360001-EL is the associated spare part reference number for the DSMB144 module.
2 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
1 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

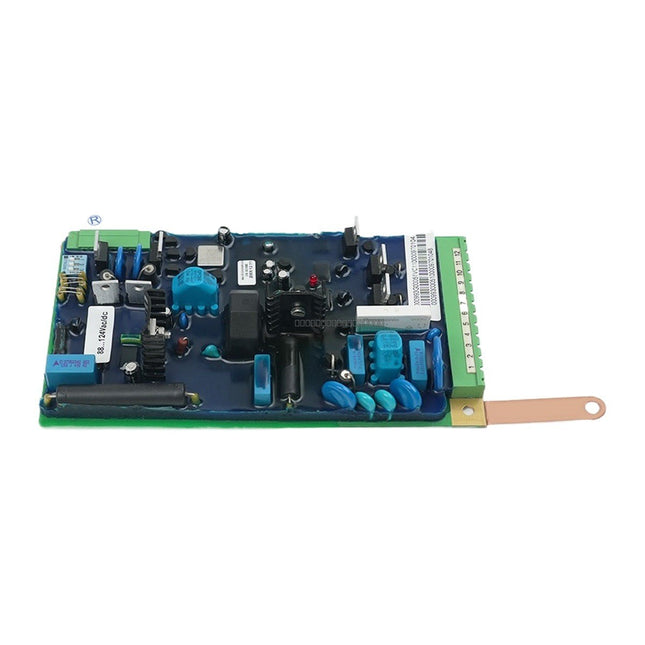

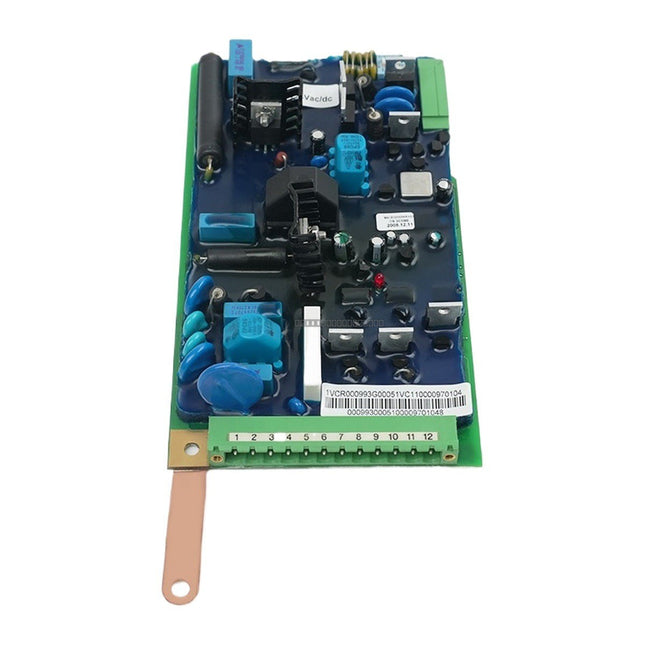

DescriptionThe ABB 1VCR000993G00051 is a high-reliability power supply board designed for use within ABB Advant OCS and Advant 800xA control systems. This module serves as a critical component for power distribution, signal processing, and communication support, ensuring stable operation of I/O and processor modules in demanding industrial environments.Features
Designed specifically for ABB Advant and AC 800M series automation platforms.
Provides stable DC power output for control system components.
High efficiency design with low output ripple and noise.
Engineered for robust performance in industrial control cabinets.
Applications
Distributed Control Systems (DCS): Powers processor and I/O modules in large-scale automation architectures.
Power Generation: Supports control systems for turbines and generators.
Pulp & Paper Industry: Coordinates drives, sensors, and machinery in high-speed production lines.
Utility Systems: Stabilizes power flow in critical electrical infrastructure.
Technical Specifications
Manufacturer
ABB
Model
1VCR000993G00051
Input Voltage Range
85 - 264 VAC
Input Current
2.5 A max at 100 VAC
Main Output Voltage
+5.1 VDC
Output Ripple & Noise
< 100 mV peak-to-peak
Efficiency
> 85% typical at nominal load
Operating Temperature
0 degC to +60 degC
Storage Temperature
-40 degC to +85 degC
Relative Humidity
5% to 95% non-condensing
Installation Guidelines
Safety First: Ensure the system is fully de-energized before attempting installation or removal of the module.
Handling: Use proper ESD (Electrostatic Discharge) precautions when handling the PCB to prevent damage to sensitive electronic components.
Mounting: Ensure the module is securely seated in the designated slot within the ABB control terminal or rack.
Environment: Maintain adequate ventilation within the cabinet to stay within the specified operating temperature range.
Wiring: Verify all power connections are tight and follow local electrical codes for industrial control equipment.
FAQIs this product brand new?Yes, the ABB 1VCR000993G00051 is available as a new, original, and unused component.Do you provide a warranty?Yes, we provide a 12-month warranty for this module, covering defects under normal operating conditions from the date of delivery.Is this module compatible with legacy systems?Yes, this board is designed for the ABB Advant OCS and Advant 800xA series, making it suitable for both legacy maintenance and ongoing system support.
1 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
5 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe ABB 3AFE64547992 is a specialized field kit designed for use with ABB drive systems. This kit provides the necessary PCMCIA hardware interface to enable communication between a PC and the drive, facilitating the use of the DriveWindow software suite for configuration, monitoring, and diagnostics.Features
Enables connectivity between PC and ABB drive hardware
Utilizes PCMCIA interface standard
Essential for DriveWindow software operation
Compact, field-ready design for maintenance and commissioning tasks
ApplicationsThis field kit is primarily used by field service engineers and maintenance technicians for the commissioning, parameterization, and troubleshooting of ABB industrial drives. It is a critical component for establishing a stable communication link during drive startup or when performing firmware updates and data logging.Technical Specifications
Product Model
3AFE64547992
Type
DriveWindow PCMCIA Field Kit
Manufacturer
ABB
Weight
0.28 kg
Installation Guidelines
Ensure the PCMCIA slot on the host computer is powered down or supports hot-swapping before insertion.
Verify that the appropriate DriveWindow software drivers are installed on the host PC prior to connecting the hardware.
Handle the PCMCIA card with care to avoid bending pins or damaging the connector interface.
Keep the connection cable away from high-voltage power lines and sources of electromagnetic interference (EMI) to ensure stable data transmission.
Store in a clean, dry environment when not in use to prevent oxidation of the connector contacts.
FAQWhat is the primary purpose of the 3AFE64547992 kit?This kit provides the physical hardware interface required to connect a computer to an ABB drive, allowing the DriveWindow software to communicate with the drive's internal control board.Is this kit compatible with all ABB drives?This kit is specifically designed for ABB drives that utilize the PCMCIA interface for external connectivity. Please verify your specific drive model's communication port requirements before use.
5 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
5 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

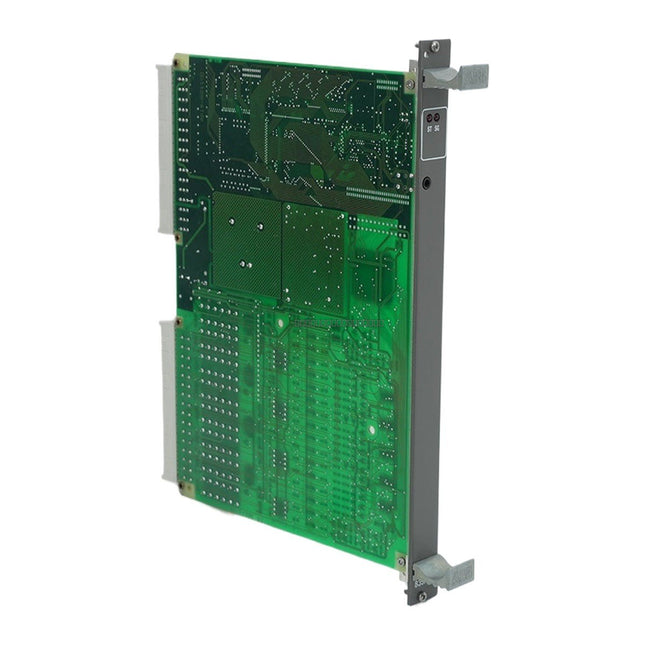

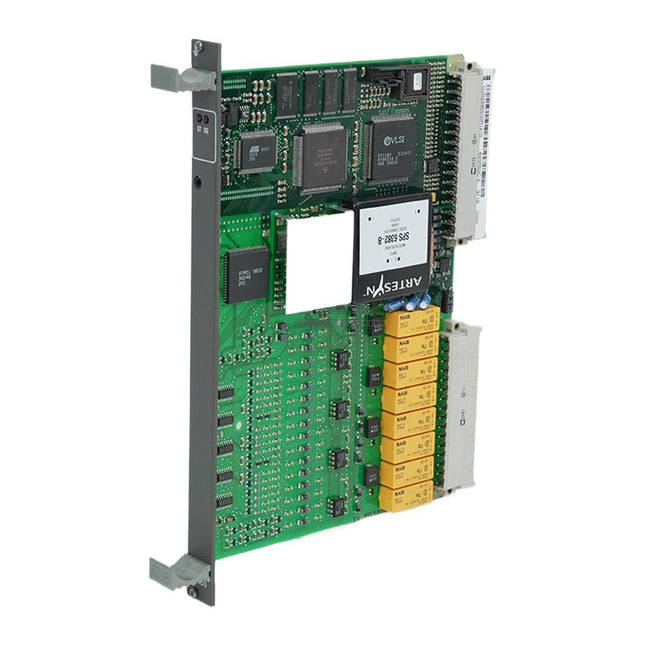

DescriptionThe ABB 83SR50c-E (GJR2395500R1210) is a high-performance control module designed for the Procontrol P14 system. This module is engineered for binary control applications, providing versatile drive control capabilities for reversible and unidirectional drives, actuators, and solenoid valves. It features a multiprocessor design with an integrated 32-bit CPU, allowing for the execution of complex application programs based on predefined function blocks.Features
Integrated 32-bit DSP for local processing of application programs.
Four independent control channels, each featuring four digital inputs (DI) and two digital outputs (DO).
Supports advanced control modes including 3-step control, signal conditioning, and function group management.
Designed for high-reliability industrial automation environments within the Procontrol P14 ecosystem.
Robust isolation between field and logic circuits (1500V AC).
Applications
Drive Control: Management of reversible and unidirectional motors and actuators.
Substations & Switchgear: Monitoring and control for distribution boards and fault prevention.
Renewable Energy: Circuit monitoring and protection for wind and solar power systems.
Water Management: Remote SCADA control for transmission and distribution networks.
General Automation: Binary signal interfacing for industrial process control.
Technical Specifications
Parameter
Specification
Model
83SR50c-E
Order Code
GJR2395500R1210
Supply Voltage
24V DC (+/- 10%)
Power Consumption
15W (typical)
Operating Temperature
0 degC to +55 degC (derate above 40 degC)
Storage Temperature
-40 degC to +85 degC
Humidity
5-95% RH (non-condensing)
Isolation
1500V AC (field-to-logic)
Processor
32-bit DSP
Installation Guidelines
Mounting: Designed for installation in Procontrol P14 process stations; mount on a standard DIN rail within a protected industrial cabinet.
Handling: Use ESD-safe handling procedures when installing or removing the module to prevent damage to sensitive internal components.
Wiring: Ensure all field wiring is routed according to the specific control task requirements. Verify polarity before applying power.
Safety: Always power down the system before inserting or removing the module to prevent process disruption or electrical damage.
Environment: Ensure adequate ventilation within the cabinet to maintain operating temperatures within the specified range.
FAQsWhat is the primary function of the 83SR50c-E?The 83SR50c-E is a control module for the Procontrol P14 system, primarily used for binary control, drive management, and function group control in industrial automation.How many channels does this module provide?The module provides four independent control channels, with each channel configured for four digital inputs and two digital outputs.Is this module compatible with live maintenance?No. Removing or adjusting this module while the system is live is not recommended as it may disrupt the controlled process and cause equipment damage.
5 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
5 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

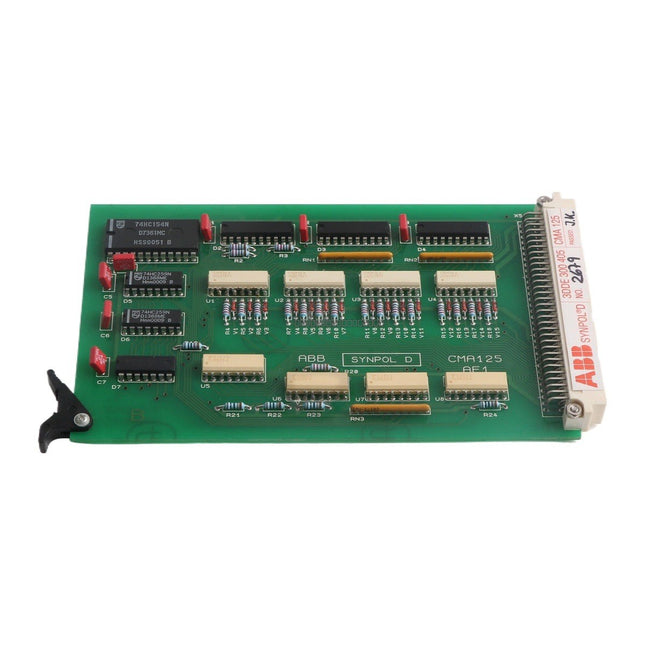

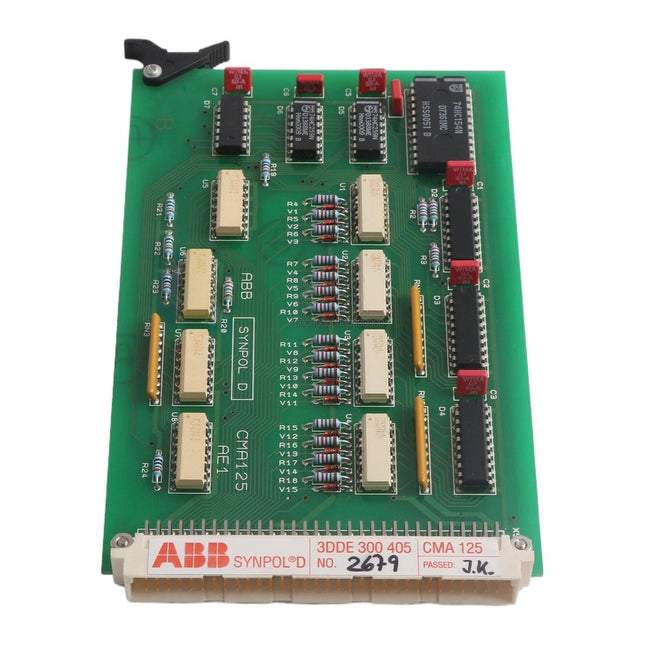

DescriptionThe ABB CMA125 is a specialized I/O generator card, historically utilized within ABB control and excitation systems. This module, also identified by the spare part reference 3DDE300405, is designed to facilitate signal processing and interface management within industrial generator control applications. As a legacy component, it is currently discontinued by the manufacturer, making it a critical spare for maintaining existing infrastructure.Features
Designed for integration with ABB Synpol D control systems.
Functions as a dedicated generator I/O interface card.
Compact form factor for efficient rack or panel mounting.
Compatible with legacy ABB excitation and control hardware.
Technical Specifications
Product Model
CMA125
Spare Part Number
3DDE300405
Manufacturer
ABB
Product Type
Generator I/O Card
Weight
0.1 kg
Installation Guidelines
Ensure the control system is fully powered down before attempting to install or remove the CMA125 card.
Handle the module using proper ESD (Electrostatic Discharge) protection protocols to prevent damage to sensitive internal circuitry.
Verify that the card is correctly seated in the designated slot to ensure reliable electrical contact with the backplane.
Ensure all associated wiring is properly routed and secured to prevent mechanical stress on the connector interfaces.
Maintain adequate cabinet ventilation to prevent localized overheating of the control hardware.
FAQIs the ABB CMA125 still in production?No, the CMA125 has been discontinued by ABB. We provide these units as refurbished or surplus spare parts to support legacy system maintenance.What is the alternate part number for this module?The CMA125 is also referenced by the spare model number 3DDE300405.
5 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
1 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

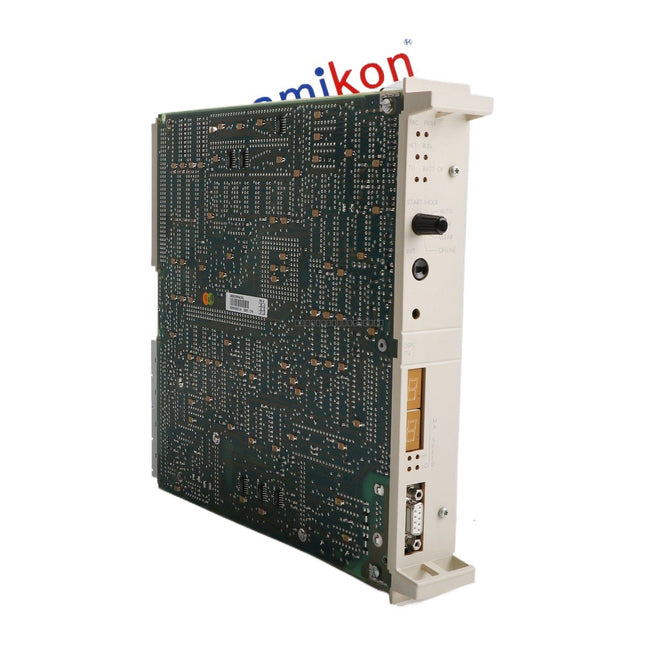

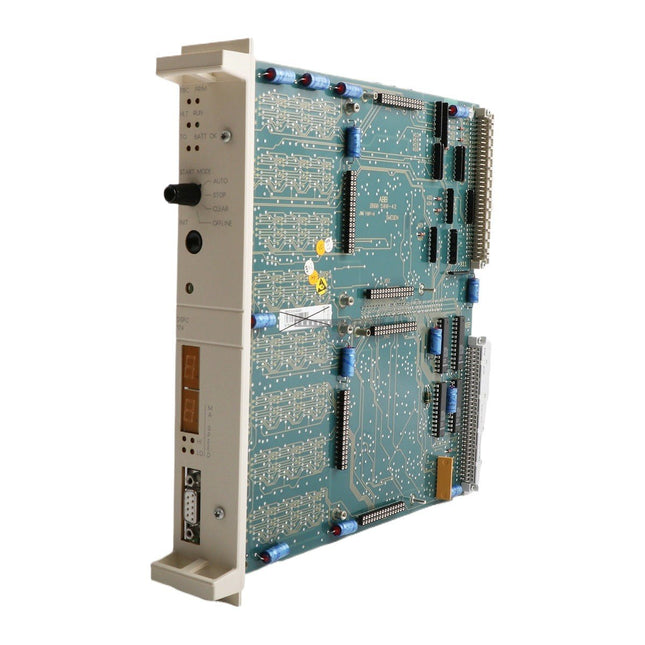

DescriptionThe ABB DSPC174 (3BSE005461R1) is a high-performance processor board module designed for the ABB Master control system architecture. As a core CPU component, this module handles critical logic processing, data management, and communication tasks within the Master series environment. It is engineered for reliability in demanding industrial automation applications, ensuring consistent execution of control algorithms and system monitoring.Features
Core processor module for ABB Master control systems
Robust design suitable for industrial environments
Integrated memory architecture for efficient task handling
Low power consumption profile
High-voltage isolation for enhanced system protection
Technical Specifications
Product Model
DSPC174 (3BSE005461R1)
Manufacturer
ABB
Power Supply
24 V DC
Power Consumption
≤ 10 W
Memory
128 MB SDRAM
Isolation
1500 V AC
Operating Temperature
-40 degC to +85 degC
Storage Temperature
-55 degC to +90 degC
Humidity
5 - 95 % RH non-condensing
Tariff Code
8537101190
Installation Guidelines
Ensure the control system is powered down before inserting or removing the DSPC174 module to prevent electrical damage.
Handle the module using ESD-safe practices to protect sensitive internal components from electrostatic discharge.
Verify that the module is fully seated in the designated rack slot and that all locking mechanisms are engaged.
Ensure adequate ventilation in the cabinet to maintain operating temperatures within the specified range.
Route communication and power cables away from high-EMI sources to maintain signal integrity.
FAQWhat is the primary function of the DSPC174 module?The DSPC174 serves as a central processor board within the ABB Master system, responsible for executing control logic and managing data processing tasks for the automation network.Is this module compatible with other ABB Master series components?Yes, the DSPC174 is designed specifically for integration within the ABB Master series ecosystem. Please verify your specific system revision and backplane compatibility before installation.What are the environmental requirements for this module?The module is designed for wide-temperature operation, supporting environments from -40 degC to +85 degC, provided that the humidity remains within the 5-95% non-condensing range.
1 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
5 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe ProSoft MVI56-MCM is a high-performance Modbus Master/Slave communication module specifically designed for the Rockwell Automation ControlLogix platform. This module provides seamless integration for serial devices into the ControlLogix backplane, enabling reliable communication via RS-232, RS-485, or RS-422 interfaces. It serves as a bridge for legacy equipment and specialized industrial sensors, supporting both Modbus RTU and ASCII protocols.Features
Dual serial ports independently configurable as Modbus Master or Slave.
Supports RS-232, RS-485, and RS-422 physical interfaces.
User-controlled 5,000-word database for efficient data exchange between the processor and the network.
Includes specialized support for Enron and Daniel floating-point implementations.
Optical isolation from the backplane (rated at 500 V) for enhanced signal integrity and safety.
Real-time status indicators for module health, backplane transfer, and serial communication activity.
Applications
Oil & Gas: Remote monitoring and control for pipelines and offshore platforms.
Water and Wastewater: Integration of remote stations into SCADA systems.
Food Processing: Connecting specialized processing equipment to the main PLC network.
Pulp and Paper: Interfacing legacy machinery with modern automation controllers.
Mining: Coordinating large-scale industrial equipment on a unified network.
Technical Specifications
Product Model
MVI56-MCM
Backplane Current Load
800 mA @ 5 VDC / 3 mA @ 24 VDC
Operating Temperature
0 to 60 degC (32 to 140 degF)
Storage Temperature
-40 to 85 degC (-40 to 185 degF)
Data Format
7-8 data bits, 1-2 stop bits, parity (none, odd, even)
Isolation
500 V optical isolation
Protocol Support
Modbus RTU (binary) and ASCII
Weight
0.25 kg
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
Seat the module firmly into the designated slot on the ControlLogix backplane and secure the top and bottom retaining screws.
Use shielded communication cables for serial connections to minimize EMI interference in industrial environments.
Ensure proper grounding of the serial cable shields at the appropriate termination points.
The module is configured using standard ladder logic within the Studio 5000 / RSLogix 5000 environment.
Maintain adequate ventilation around the chassis to ensure operation within the specified 0 to 60 degC range.
FAQsWhat is the difference between MVI56-MCM and MVI56-MCMR?The MCM version uses a larger I/O image (250 input/248 output words) and is typically preferred for local chassis use. The MCMR version uses a smaller I/O image (42 input/42 output words), making it better suited for remote racks over ControlNet to reduce bandwidth consumption.How do I handle more than 100 commands per port?While each port's standard command list supports up to 100 entries, you can utilize Event Command control blocks to trigger additional Modbus commands directly from your PLC ladder logic.
5 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe ProSoft MVI56-MCMR is a specialized Modbus Master/Slave communication module designed for the Rockwell Automation ControlLogix platform. It is specifically optimized for remote chassis applications, such as those utilizing ControlNet, where bandwidth optimization is critical. By utilizing a reduced 42-word Input/Output image, the MVI56-MCMR minimizes bandwidth impact compared to standard modules, making it an ideal choice for complex, distributed control systems.Features
Optimized for Remote Racks: Designed for ControlNet and remote chassis environments to reduce bandwidth consumption.
Dual Serial Ports: Features two configurable serial ports supporting RS-232, RS-422, and RS-485 physical standards.
Flexible Baud Rates: Supports communication speeds ranging from 110 baud up to 115,200 baud.
Configuration: Configured via ProSoft Configuration Builder (PCB) with integration into RSLogix 5000 using Add-On Instructions (AOI).
Visual Diagnostics: Integrated LED indicators provide real-time status updates for communication and module health.
Applications
Oil and Gas: Data acquisition for pipelines and offshore platform monitoring.
Water and Wastewater: Managing data exchange between control systems and remote monitoring stations.
Food Processing: Integration of automated production line equipment.
Mining, Pulp, and Paper: Connecting legacy serial equipment to modern ControlLogix architectures.
Technical Specifications
Model
MVI56-MCMR
Backplane Current (5 VDC)
800 mA
Backplane Current (24 VDC)
3 mA
Operating Temperature
0 to 60 degC
Slot Requirements
1 Slot
Communication Standards
RS-232, RS-485, RS-422
Baud Rate
110 to 115,200 bps
I/O Mapping
42-word reduced image
Installation Guidelines
Power Off: Always remove power from the ControlLogix chassis before inserting or removing the module to prevent electrical damage.
Slot Placement: The module occupies one slot in the ControlLogix rack. Ensure it is seated firmly and the locking tab is engaged.
Jumper Configuration: Physical serial standards (RS-232/422/485) are selected via jumpers located at the bottom of the module. Ensure these are set correctly before installation.
Wiring: Use a minimum phase wire size of 1.3 mm squared. Ensure proper shielding for serial cables to minimize EMI in industrial environments.
Grounding: Follow standard industrial grounding practices for the chassis to ensure signal integrity.
FAQWhat is the primary difference between MVI56-MCM and MVI56-MCMR?The MVI56-MCMR is optimized for remote chassis applications by using a reduced 42-word I/O image to save bandwidth, whereas the MVI56-MCM uses a larger 250-word image. Additionally, the MCMR does not support the Modbus Pass-Thru feature.How is the module configured?The MVI56-MCMR is configured using an offline file created in ProSoft Configuration Builder (PCB) and integrated into the processor using Add-On Instructions (AOI) within RSLogix 5000.Can I prevent data loss during a power cycle?Yes, you can use the Initialize Input Image parameter to cache values from the processor so they are not reset to zero during a module reset or power loss.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe ABB 07KR51 is a compact basic unit within the Advant Controller 31 (AC31) series. Designed for industrial automation and control tasks, this controller provides a robust platform for managing digital and analog I/O signals in small to medium-sized applications. It serves as a central processing unit capable of executing user programs stored in Flash EPROM, ensuring reliable operation in diverse industrial environments.Features
Integrated 24V DC power supply support.
Equipped with 6 relay outputs for direct load control.
Supports high-speed hardware counter inputs up to 7 kHz.
Expandable I/O capacity supporting up to 1000 digital I/O points and extensive analog I/O configurations.
Non-volatile Flash EPROM memory for secure program storage.
Technical Specifications
Product Model
07KR51 / 1SBP260010R1001
Supply Voltage
24V DC
Memory Capacity (User Program)
34 kB
Memory Capacity (User Data)
4.4 kB
Max Digital I/O
1000
Max Analog I/O
258 AI / 224 AO
Relay Outputs
6
Max Counter Frequency
7 kHz
Output Current
2 A
Operating Altitude
Up to 2000 m
Installation Guidelines
Ensure the controller is mounted in a clean, dry environment with adequate ventilation to prevent overheating.
Use shielded cables for all I/O connections to minimize electromagnetic interference (EMI).
Verify that the power supply is disconnected before performing any wiring or module replacement.
Ensure proper grounding of the controller chassis to a common reference point to maintain signal integrity.
Follow local electrical codes and ABB hardware installation manuals regarding terminal torque and wire gauge requirements.
FAQWhat is the primary function of the 07KR51?The 07KR51 is a basic controller unit for the ABB Advant Controller 31 system, used for processing logic and managing I/O in automated control systems.Can the I/O capacity be expanded?Yes, the AC31 series supports expansion modules to reach the maximum specified digital and analog I/O counts.What type of memory does this unit use?The unit utilizes Flash EPROM for user program storage, which allows for reliable, non-volatile data retention.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
7 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

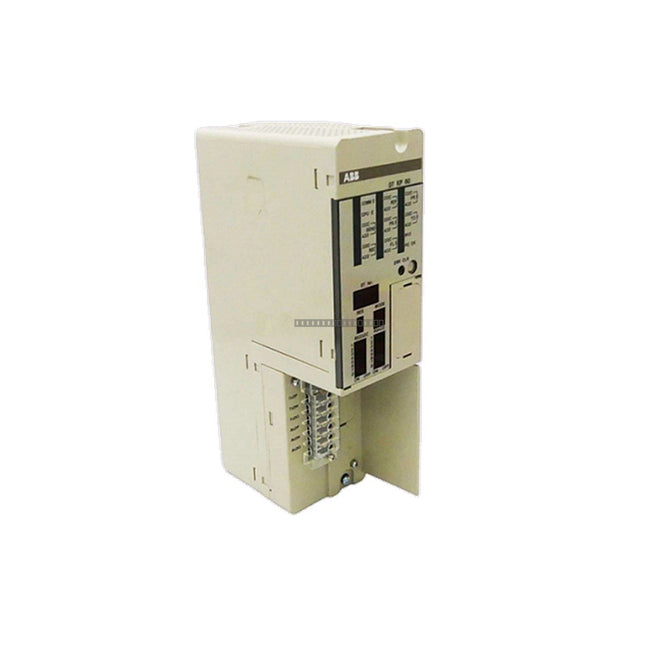

DescriptionThe ABB 07KP60R101 is a communication module designed for the Procontic T200 automation system. This module facilitates data exchange and connectivity within the T200 architecture, serving as a critical interface component for serial communication tasks. Please note that this unit has been discontinued by the manufacturer.Features
Designed specifically for the ABB Procontic T200 series.
Equipped with 2 serial ports for flexible communication connectivity.
Robust industrial design suitable for integration into existing T200 control racks.
Direct replacement or spare for GJV3074360R101.
Technical Specifications
Model
07KP60R101
Spare Model
GJV3074360R101
System
Procontic T200
Communication
2 Serial Ports
Manufacturer
ABB
Weight
0.8 kg
Installation Guidelines
Ensure the T200 rack power is disconnected before inserting or removing the communication module.
Verify that the module is correctly aligned with the backplane connector before applying pressure to seat it.
Use appropriate ESD protection when handling the module to prevent damage to sensitive internal circuitry.
Ensure that serial communication cables are properly shielded and routed away from high-voltage or high-EMI sources to maintain signal integrity.
Verify that the module is securely fastened to the rack using the provided mounting hardware to prevent vibration-related disconnection.
FAQIs the 07KP60R101 still in production?No, this module has been discontinued by ABB. It is primarily available through secondary market channels as a spare part.What is the spare model number for this unit?The 07KP60R101 is also identified by the spare model number GJV3074360R101.How many serial ports does this module provide?This communication module features 2 serial ports for system integration.
7 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

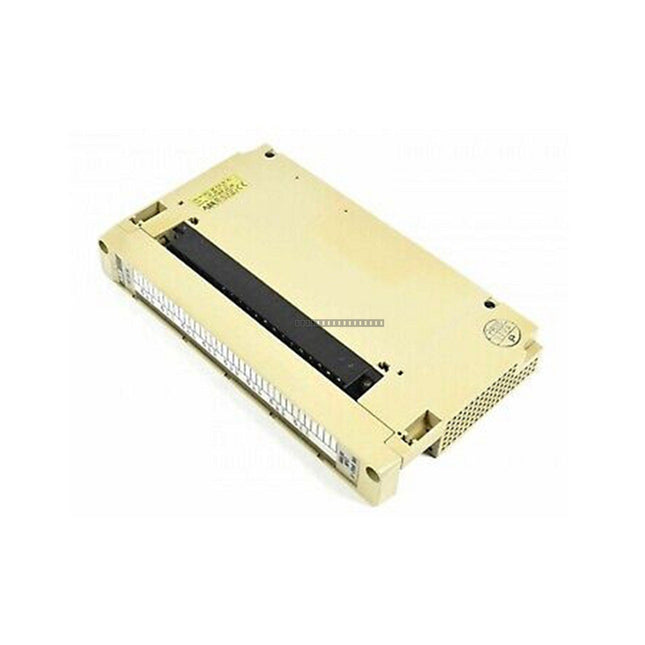

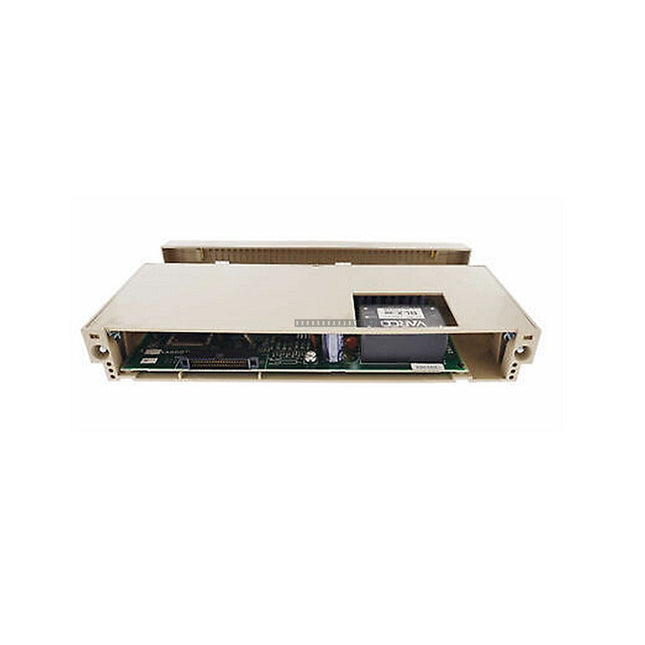

DescriptionThe ABB 07 EA 61 R1 (Order Code: GJV3074351R1) is a high-performance analog input module designed for industrial control systems. This module provides 8 channels of signal acquisition, supporting a wide range of standard industrial voltage and current signals. It is engineered for reliable data processing in demanding automation environments, ensuring high accuracy and integration flexibility within ABB control architectures.Features
8-channel analog input capability for versatile signal monitoring.
Supports multiple signal ranges: 0 to 20 mA, 4 to 20 mA, 0 to 10 V, and +/- 10 V.
12-bit resolution for precise analog-to-digital conversion.
Robust input impedance: >= 100 kOhm for voltage inputs and <= 250 Ohm for current inputs.
Standard 24 V DC power supply operation with +/- 20% tolerance.
ApplicationsThis module is typically utilized in process automation, manufacturing, and infrastructure control systems where precise monitoring of analog sensors, transmitters, and transducers is required. It is suitable for integration into PLC and DCS racks for real-time process data acquisition.Technical Specifications
Model
07 EA 61 R1
Order Code
GJV3074351R1
Number of Channels
8
Input Signal Types
0 to 20 mA, 4 to 20 mA, 0 to 10 V, +/- 10 V
Resolution
12-bit
Input Impedance
>= 100 kOhm (Voltage); <= 250 Ohm (Current)
Power Supply
24 V DC +/- 20%
Operating Temperature
0 degC to +60 degC
Storage Temperature
-40 degC to +70 degC
Installation Guidelines
Ensure the system power is disconnected before installing or removing the module to prevent electrical damage.
Mount the module securely on a standard DIN rail or within the designated rack space.
Maintain proper ventilation around the module to ensure operation within the specified temperature range (0 to 60 degC).
Use shielded twisted-pair cabling for analog signal connections to minimize electromagnetic interference (EMI).
Ensure proper grounding of the module chassis to the system common ground to maintain signal integrity.
Verify correct polarity of the 24 V DC power supply before energizing the unit.
Compliance and CertificationsThis module is designed to meet international industrial standards, including CE, UL, CSA, and RoHS compliance.FAQIs the 07 EA 61 R1 compatible with standard 4-20 mA sensors?Yes, the module supports 4-20 mA current loops as well as 0-20 mA, 0-10 V, and +/- 10 V signals.What is the resolution of the analog inputs?The module features 12-bit resolution for all supported analog input channels.
5 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe ABB 07CR41-C12 is a compact basic unit within the Advant Controller 31 (AC31) series. This controller is designed for small-to-medium scale automation tasks, providing reliable logic control and I/O management in industrial environments. It serves as a foundational component for distributed control architectures, offering integrated processing and I/O capabilities in a single, space-saving housing.Features
Integrated processing unit with 32 KB memory capacity for control program storage.
16 onboard I/O ports for direct field device interfacing.
Compact design suitable for panel-mount applications where space is limited.
Designed for operation on standard 230 VAC power supplies.
Part of the established Advant Controller 31 product family, ensuring compatibility with legacy AC31 infrastructure.
ApplicationsThe 07CR41-C12 is typically utilized in industrial automation systems requiring localized control, such as small machine control, HVAC management, conveyor systems, and distributed I/O nodes in larger process control networks.Technical Specifications
Model
07CR41-C12
Memory Capacity
32 KB
I/O Ports
16
Operating Voltage
230 VAC
Weight
0.7 kg
Installation Guidelines
Ensure the controller is mounted in a clean, dry environment with adequate ventilation to prevent overheating.
Verify that the supply voltage matches the 230 VAC rating before applying power.
Use appropriate shielded cabling for I/O signals to minimize electromagnetic interference (EMI) from high-voltage lines or variable frequency drives.
Always power down the system before inserting or removing any wiring or communication cables to prevent electrical damage.
Ensure proper grounding of the controller chassis to a common plant ground bus to maintain signal integrity and safety.
FAQIs the 07CR41-C12 compatible with other AC31 modules?Yes, as part of the Advant Controller 31 series, this unit is designed to work within the AC31 ecosystem. Please consult the specific system manual for your configuration to ensure bus compatibility and software support.What is the primary power requirement for this unit?This model is designed for a 230 VAC power input. Ensure your power distribution system is fused appropriately for this load.
5 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
7 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe ProSoft MVI56-MNET is a high-performance network interface module designed specifically for Rockwell Automation ControlLogix processors. This module enables seamless integration between ControlLogix systems and Modbus TCP/IP-compatible devices, acting as a bridge to facilitate data exchange in industrial automation environments. It supports both Client and Server modes, providing flexibility for various network architectures.Features
Designed for seamless integration with Allen-Bradley ControlLogix backplanes.
Supports Modbus TCP/IP protocol for robust industrial communication.
Configurable as a Modbus TCP/IP Client or Server.
Includes one RJ45 Ethernet port for network communication and one RJ45 serial port for local configuration.
Facilitates data transfer between ControlLogix processors and third-party Modbus devices.
ApplicationsThe MVI56-MNET is widely utilized in industrial control systems where Allen-Bradley PLCs must communicate with external Modbus-enabled hardware, such as variable frequency drives (VFDs), power meters, remote I/O, or other third-party controllers. It is commonly found in oil and gas, water/wastewater, and manufacturing process control applications.Technical Specifications
Product Model
MVI56-MNET
Manufacturer
ProSoft
Protocol
Modbus TCP/IP
Compatibility
Allen-Bradley ControlLogix
Ethernet Port
1 x RJ45 (Modbus)
Configuration Port
1 x RJ45 (Serial)
Tariff Code
8537101190
Installation Guidelines
Ensure the ControlLogix rack is powered down before inserting or removing the MVI56-MNET module.
Slide the module into an available slot in the ControlLogix chassis and secure it using the top and bottom locking tabs.
Use shielded twisted-pair Ethernet cabling for the Modbus TCP/IP connection to minimize electromagnetic interference (EMI).
Connect the configuration cable to the serial port for initial setup and parameter configuration via ProSoft Configuration Builder.
Verify that the module status LEDs indicate successful backplane communication and network link activity after power-up.
FAQDoes the MVI56-MNET require external power?No, the module is powered directly through the ControlLogix backplane once properly seated in the chassis.Can this module act as both a Client and a Server?Yes, the MVI56-MNET is capable of operating as a Modbus TCP/IP Client, Server, or both simultaneously, depending on the configuration.
7 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
7 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

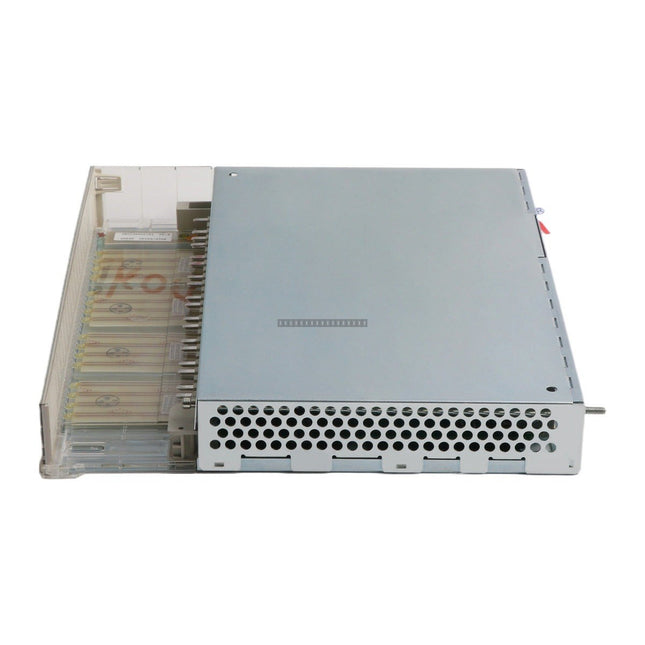

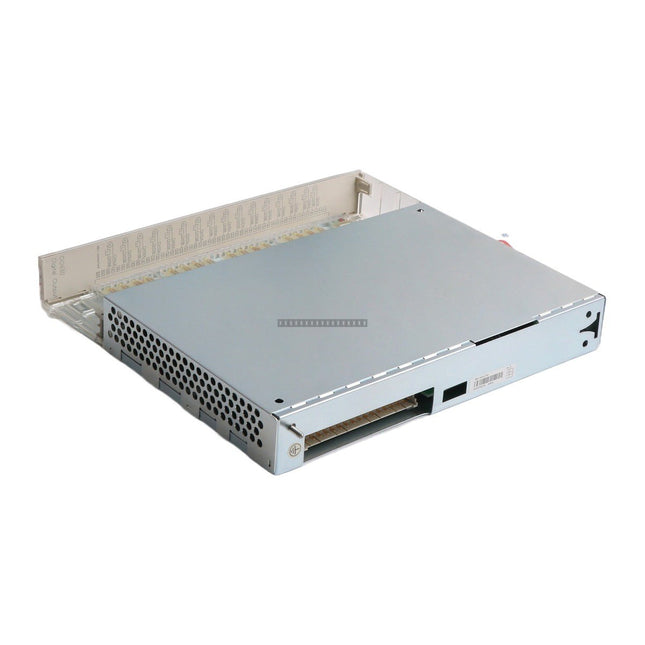

DescriptionThe ABB DO630 (3BHT300007R1) is a high-performance 16-channel digital output module designed for the ABB S600 I/O series and Advant Controller 160 systems. This module provides reliable binary output control for industrial automation, enabling direct interaction with field devices such as solenoid valves, contactors, motor starters, and alarm indicators. It is engineered for demanding environments, including power generation, oil and gas, and chemical processing.Features
16 independent digital output channels with galvanic isolation.
Load voltage rating up to 250 VAC for versatile field device control.
Supports hot-swapping for maintenance without system downtime.
Integrated status indication for simplified diagnostics.
Compact design suitable for standard DIN rail mounting.
Applications
Power generation and distribution control systems.
Chemical and material processing telemetry and mixing loops.
High-speed machinery coordination in packaging and textile lines.
Material handling systems including conveyors and ASRS.
Municipal water and wastewater pump station management.
Technical Specifications
Model
DO630
Part Number
3BHT300007R1
Channels
16 (Isolated)
Load Voltage
250 V AC
Switching Frequency
Up to 10 Hz (resistive/lamp loads)
Leakage Current
1.1 mA RMS (132 V AC) / 1.8 mA RMS (264 V AC)
Operating Temperature
-20 degC to +60 degC
Compliance
RoHS Directive 2011/65/EU
Installation Guidelines
Ensure the controller power is disconnected before installing or removing the module.
Mount the module securely onto the designated DIN rail within the S600 I/O rack.
Verify that all field wiring is properly shielded and routed away from high-EMI sources to maintain signal integrity.
Ensure correct polarity for DC power connections.
Use appropriate wire gauges as specified in the system installation manual to prevent terminal overheating.
The module supports hot-swapping; ensure the system configuration allows for live replacement before proceeding.
FAQWhat is the DO630?The ABB DO630 is a 16-channel digital output module used primarily within the S600 I/O and Advant automation systems for controlling industrial field devices.What is the maximum voltage?Each output channel is rated for a maximum load voltage of 250 VAC.Can the DO630 module be hot-swapped?Yes, the module supports hot-swapping, allowing for replacement while the controller station is operational.How many channels does the DO630 offer?It provides 16 independent, galvanically isolated digital output channels.
7 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
2 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

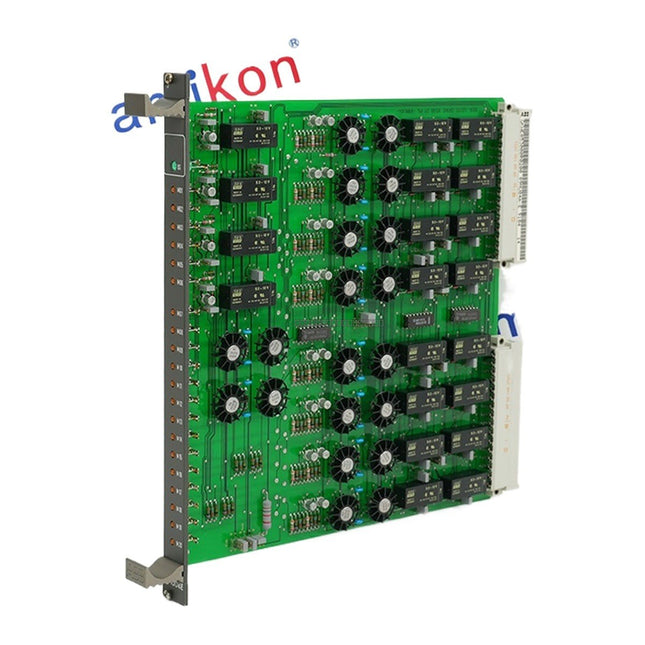

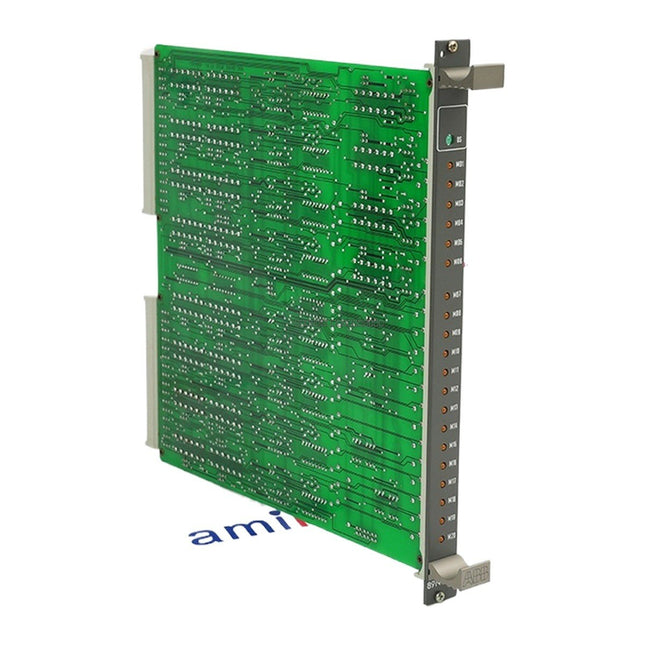

The ABB GKWE853000R0200 (89NU04A-E) is a specialized coupling and annunciation module designed for use within the ABB Procontrol P14 automation system. This module serves as a critical interface for signal processing, providing reliable relay-based indications for process status, operational alerts, and fault monitoring.Features
Designed for integration within ABB Procontrol P14 control systems.
Supports configurable signal processing (0 to 20 mA or 4 to 20 mA).
Features two isolated segments for enhanced signal integrity.
Provides robust relay-based annunciation for industrial process status.
ApplicationsThis module is typically deployed within industrial control panels and rack-mounted automation environments, including ABB Advant OCS and Procontrol P14 systems, where high-reliability signal coupling and fault annunciation are required.Technical Specifications
Model
GKWE853000R0200 / 89NU04A-E
Manufacturer
ABB
System
Procontrol P14
Power Supply
24 V DC
Channels
2 isolated segments
Signal Range
0-20 mA / 4-20 mA
Cable Length
Max 1,200 m per segment
Isolation
1,500 V DC segment-to-segment
Operating Temperature
-20 degC to +70 degC (rack inlet air)
Storage Temperature
-40 degC to +85 degC
Relative Humidity
0 - 95 % RH (non-condensing)
Installation Guidelines
Ensure the system power is disconnected before installing or removing the module from the rack.
Verify that the module is correctly seated in the designated rack slot to ensure proper backplane connectivity.
Maintain proper ventilation within the cabinet to ensure the operating temperature remains within the specified -20 degC to +70 degC range.
Use shielded cabling for signal connections to minimize electromagnetic interference (EMI), especially when operating at maximum cable lengths.
Adhere to standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
FAQsWhat type of module is the GKWE853000R0200 89NU04A-E?It is a coupling and annunciation module used for signal processing and communication interface tasks within ABB automation systems.What is the primary function of this module?It provides reliable visual and relay-based indications for process status, operational alerts, and fault conditions.Where is this module typically installed?It is designed for use in control panels and racks as part of the ABB Procontrol or Advant OCS systems.
2 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

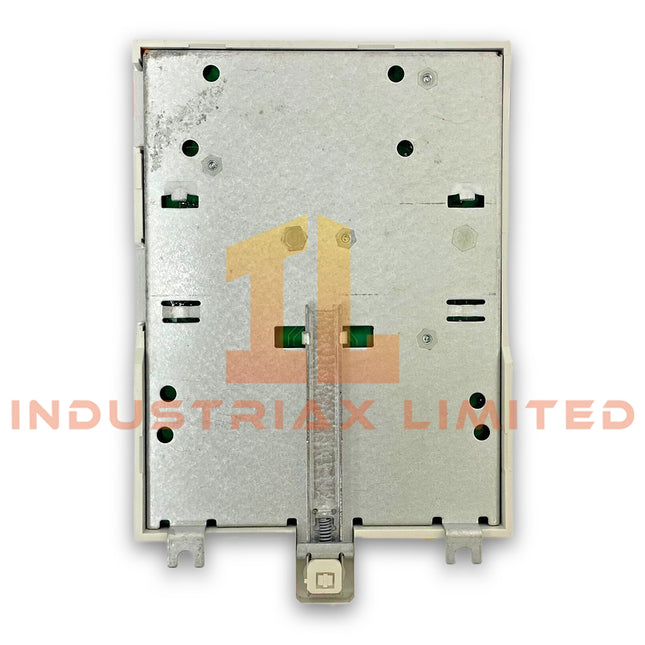

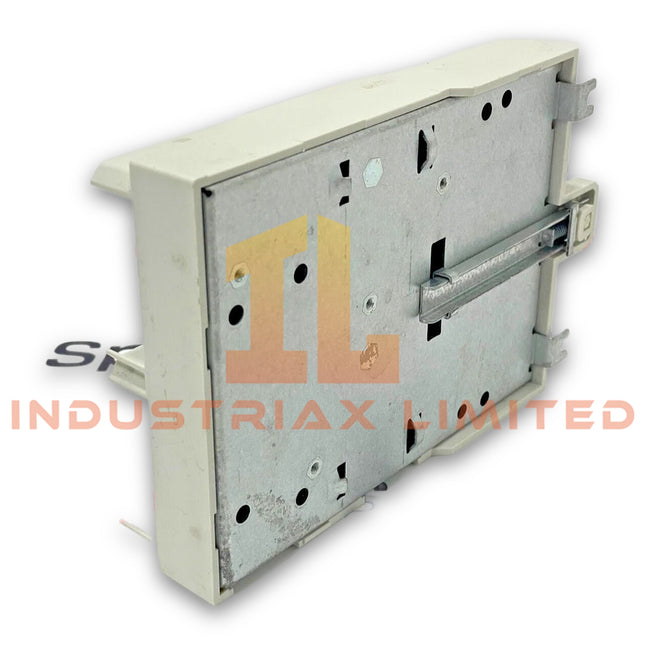

ABB TU848 Module Termination Unit
Configured for redundant TB840/TB840A Optical ModuleBus Modem interfacing in the ABB S800 I/O system, the ABB TU848 3BSE042558R1 (TU848 Module Termination Unit) provides the physical and electrical termination interface for redundant ModuleBus connections, dual power inputs, and modem installation.
Hardware Specifications
Parameter
Specification
Model
TU848
Full Article Number
3BSE042558R1
Brand
ABB
Product Type
Module Termination Unit for redundant TB840/TB840A
System
ABB S800 I/O
ModuleBus Interface
Redundant electrical ModuleBus
Supported Modems
TB840 / TB840A
Power Input
24 VDC, 19.2 to 30 VDC
ModuleBus Current Distribution
5 V: max. 1.5 A; 24 V: max. 1.5 A
Power Consumption
2.5 W
Rated Insulation Voltage
50 V
Dielectric Test Voltage
500 VAC
Mounting
DIN rail, vertical or horizontal
Wire Size
Solid / stranded, 0.2 to 2.5 mm2 (24 to 12 AWG)
Operating Temp
0 to +55 deg C
Storage Temp
-40 to +70 deg C
Relative Humidity
5 to 95%, non-condensing
Ingress Protection
IP20, IEC 60529
Dimensions
124 mm x 186.5 mm x 47 mm
Weight
0.45 kg
Origin
Not specified in supplied data
Certifications / Standards
CE, EN 61010-1, UL 61010-1, ATEX Zone 2, cULus Hazardous Locations Class 1 Zone 2, Marine ABS, BV, DNV-GL, LR
Redundant ModuleBus and Modem Interface
The TU848 provides two modem positions for redundant TB840 or TB840A Optical ModuleBus Modems. Each modem has an associated power connection, while the MTU distributes the required ModuleBus supply to the installed modem arrangement.
The unit incorporates a redundant electrical ModuleBus interface for connection to redundant S800 I/O configurations. Therefore, the TU848 functions as the termination and mounting interface rather than as an active communication processor.
A rotary switch provides cluster address selection from 1 through 7. The setting must correspond to the applicable S800 I/O cluster configuration.
The mechanical keying system provides 36 configuration combinations. Consequently, the installed module type can be mechanically restricted according to the configured key position, reducing the possibility of installing an incompatible module.
Frequently Asked Questions
Q: Does the TU848 operate as an active ModuleBus communication module?A: No. The TU848 is a passive Module Termination Unit. It provides physical termination, power distribution, modem mounting, and ModuleBus interconnection for TB840/TB840A modules.
Q: Can the TU848 support redundant TB840/TB840A configurations?A: Yes. The TU848 is specified for redundant TB840/TB840A Optical ModuleBus Modem configurations and provides separate power connections for the redundant modem arrangement.
Q: What cluster address range can be configured on the TU848?A: The integrated rotary switch supports cluster address settings from 1 through 7.
Field Installation Guidelines
Mount the TU848 on a suitable DIN rail and engage the integrated latching mechanism. Verify that the unit is mechanically secured and that the mounting arrangement provides the required protective grounding path.
Install the applicable TB840 or TB840A modems according to the configured mechanical keying. Confirm that the module key position matches the intended hardware configuration before insertion.
Connect the two 24 VDC supply circuits to their designated power terminals when implementing the redundant modem configuration. Observe the specified 19.2 to 30 VDC input range.
Keep ModuleBus and power wiring separated from high-current switching conductors and sources of electromagnetic interference where practical.
Use solid or stranded conductors within the specified 0.2 to 2.5 mm2 range. Secure each conductor according to the terminal manufacturer's applicable wiring practice.
Set the rotary cluster address before placing the assembly into service. Verify that the selected address corresponds to the S800 I/O cluster configuration.
Verify polarity, terminal assignment, module seating, mechanical keying, and redundant connections before energizing the assembly.
Maintain the specified operating environment of 0 to +55 deg C and 5 to 95% relative humidity, non-condensing. The enclosure rating is IP20; therefore, additional cabinet-level environmental protection may be required.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
