Description

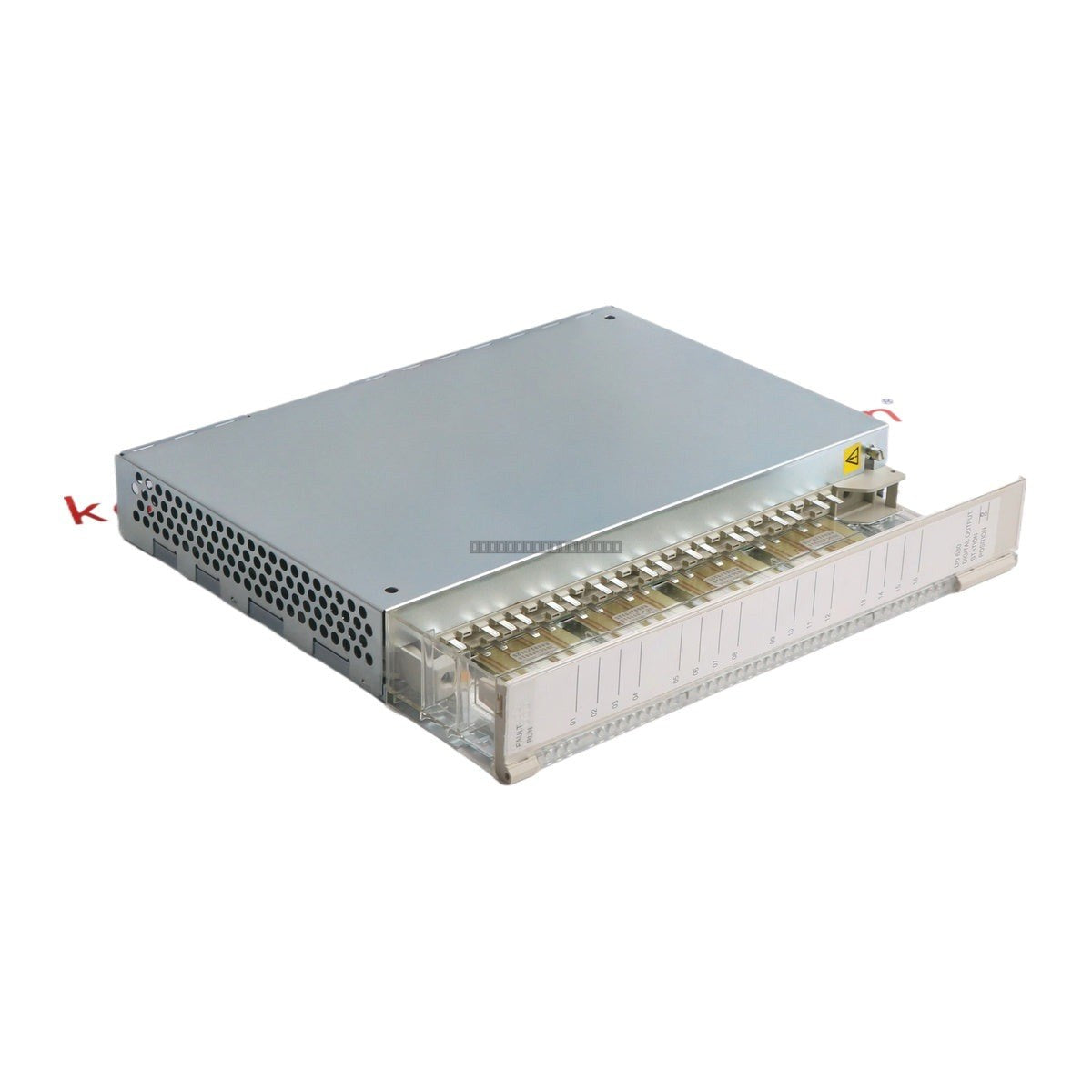

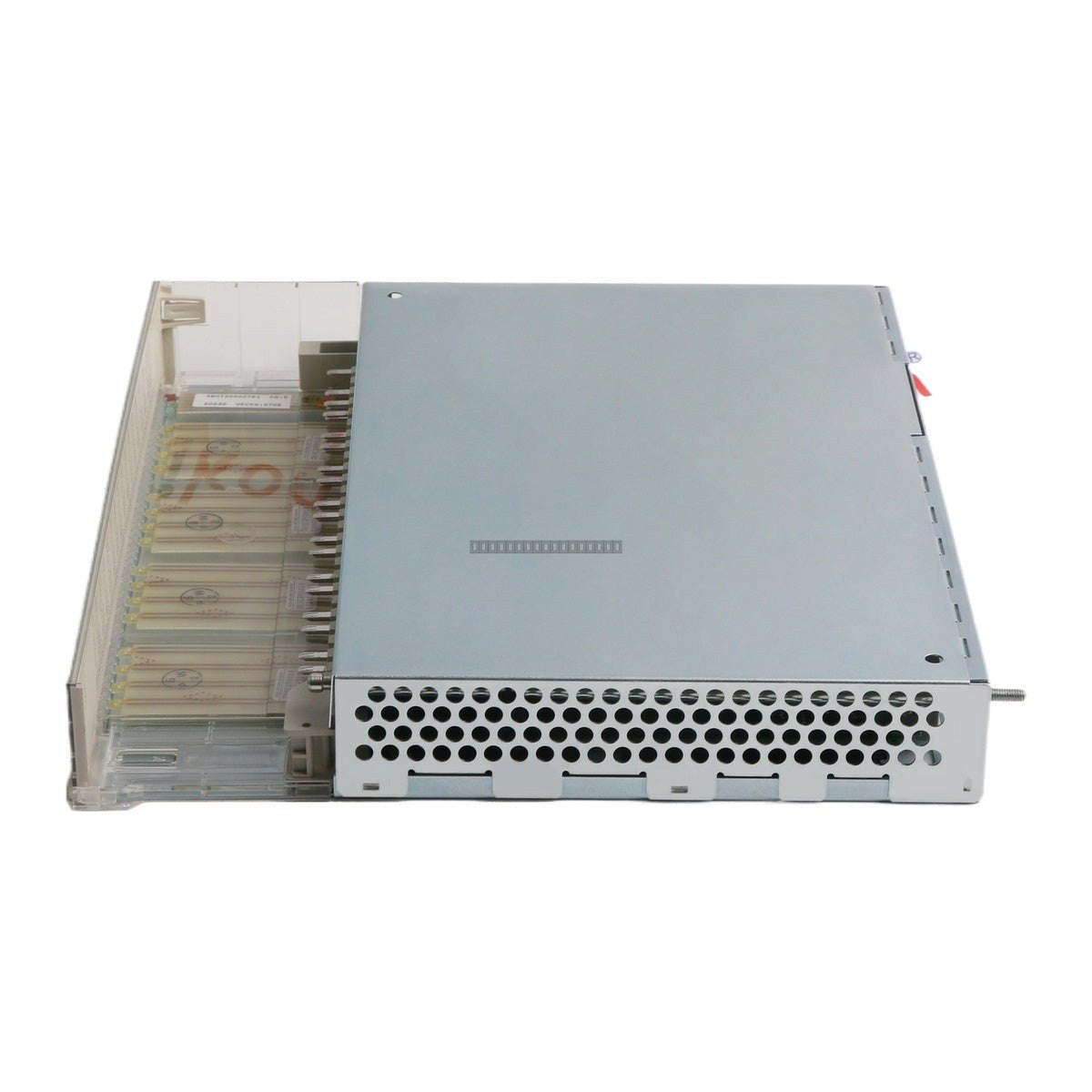

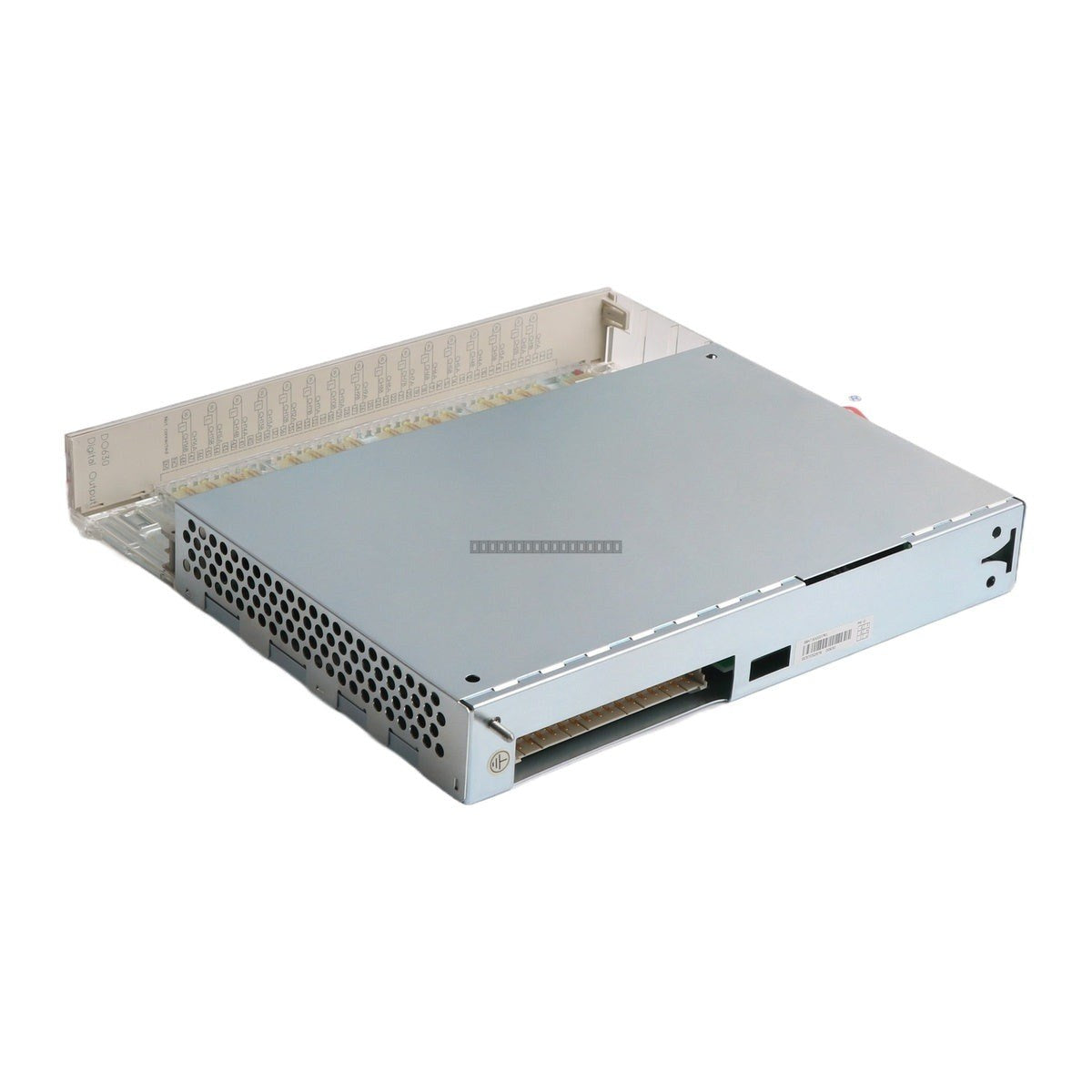

The ABB DO630 (3BHT300007R1) is a high-performance 16-channel digital output module designed for the ABB S600 I/O series and Advant Controller 160 systems. This module provides reliable binary output control for industrial automation, enabling direct interaction with field devices such as solenoid valves, contactors, motor starters, and alarm indicators. It is engineered for demanding environments, including power generation, oil and gas, and chemical processing.
Features
- 16 independent digital output channels with galvanic isolation.
- Load voltage rating up to 250 VAC for versatile field device control.
- Supports hot-swapping for maintenance without system downtime.
- Integrated status indication for simplified diagnostics.
- Compact design suitable for standard DIN rail mounting.
Applications
- Power generation and distribution control systems.
- Chemical and material processing telemetry and mixing loops.
- High-speed machinery coordination in packaging and textile lines.
- Material handling systems including conveyors and ASRS.
- Municipal water and wastewater pump station management.
Technical Specifications
| Model |
DO630 |
| Part Number |
3BHT300007R1 |
| Channels |
16 (Isolated) |
| Load Voltage |
250 V AC |
| Switching Frequency |
Up to 10 Hz (resistive/lamp loads) |
| Leakage Current |
1.1 mA RMS (132 V AC) / 1.8 mA RMS (264 V AC) |
| Operating Temperature |
-20 degC to +60 degC |
| Compliance |
RoHS Directive 2011/65/EU |
Installation Guidelines
- Ensure the controller power is disconnected before installing or removing the module.
- Mount the module securely onto the designated DIN rail within the S600 I/O rack.
- Verify that all field wiring is properly shielded and routed away from high-EMI sources to maintain signal integrity.
- Ensure correct polarity for DC power connections.
- Use appropriate wire gauges as specified in the system installation manual to prevent terminal overheating.
- The module supports hot-swapping; ensure the system configuration allows for live replacement before proceeding.
FAQ
What is the DO630?
The ABB DO630 is a 16-channel digital output module used primarily within the S600 I/O and Advant automation systems for controlling industrial field devices.
What is the maximum voltage?
Each output channel is rated for a maximum load voltage of 250 VAC.
Can the DO630 module be hot-swapped?
Yes, the module supports hot-swapping, allowing for replacement while the controller station is operational.
How many channels does the DO630 offer?
It provides 16 independent, galvanically isolated digital output channels.
