Description

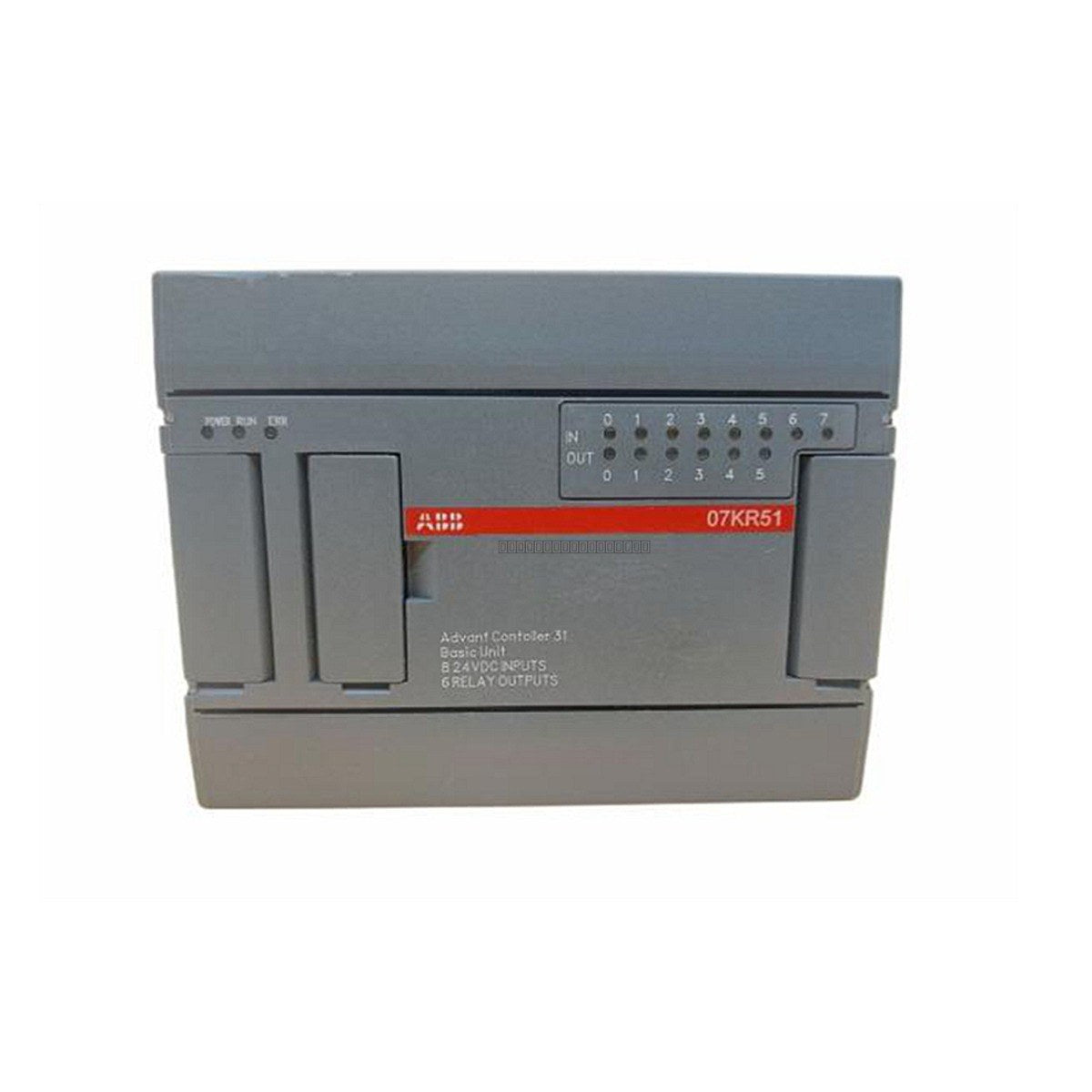

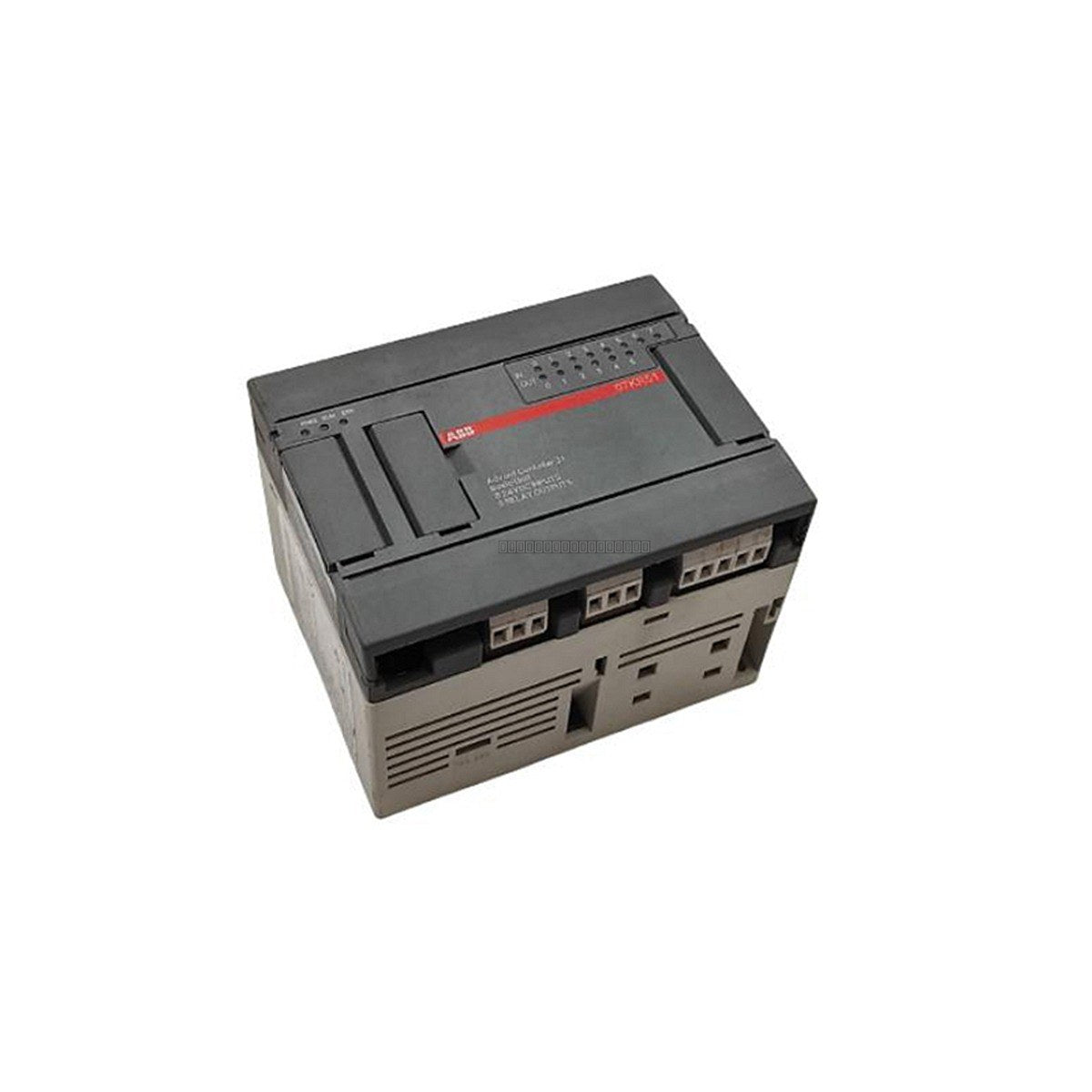

The ABB 07KR51 is a compact basic unit within the Advant Controller 31 (AC31) series. Designed for industrial automation and control tasks, this controller provides a robust platform for managing digital and analog I/O signals in small to medium-sized applications. It serves as a central processing unit capable of executing user programs stored in Flash EPROM, ensuring reliable operation in diverse industrial environments.
Features
- Integrated 24V DC power supply support.
- Equipped with 6 relay outputs for direct load control.
- Supports high-speed hardware counter inputs up to 7 kHz.
- Expandable I/O capacity supporting up to 1000 digital I/O points and extensive analog I/O configurations.
- Non-volatile Flash EPROM memory for secure program storage.
Technical Specifications
| Product Model |
07KR51 / 1SBP260010R1001 |
| Supply Voltage |
24V DC |
| Memory Capacity (User Program) |
34 kB |
| Memory Capacity (User Data) |
4.4 kB |
| Max Digital I/O |
1000 |
| Max Analog I/O |
258 AI / 224 AO |
| Relay Outputs |
6 |
| Max Counter Frequency |
7 kHz |
| Output Current |
2 A |
| Operating Altitude |
Up to 2000 m |
Installation Guidelines
- Ensure the controller is mounted in a clean, dry environment with adequate ventilation to prevent overheating.
- Use shielded cables for all I/O connections to minimize electromagnetic interference (EMI).
- Verify that the power supply is disconnected before performing any wiring or module replacement.
- Ensure proper grounding of the controller chassis to a common reference point to maintain signal integrity.
- Follow local electrical codes and ABB hardware installation manuals regarding terminal torque and wire gauge requirements.
FAQ
What is the primary function of the 07KR51?
The 07KR51 is a basic controller unit for the ABB Advant Controller 31 system, used for processing logic and managing I/O in automated control systems.
Can the I/O capacity be expanded?
Yes, the AC31 series supports expansion modules to reach the maximum specified digital and analog I/O counts.
What type of memory does this unit use?
The unit utilizes Flash EPROM for user program storage, which allows for reliable, non-volatile data retention.
