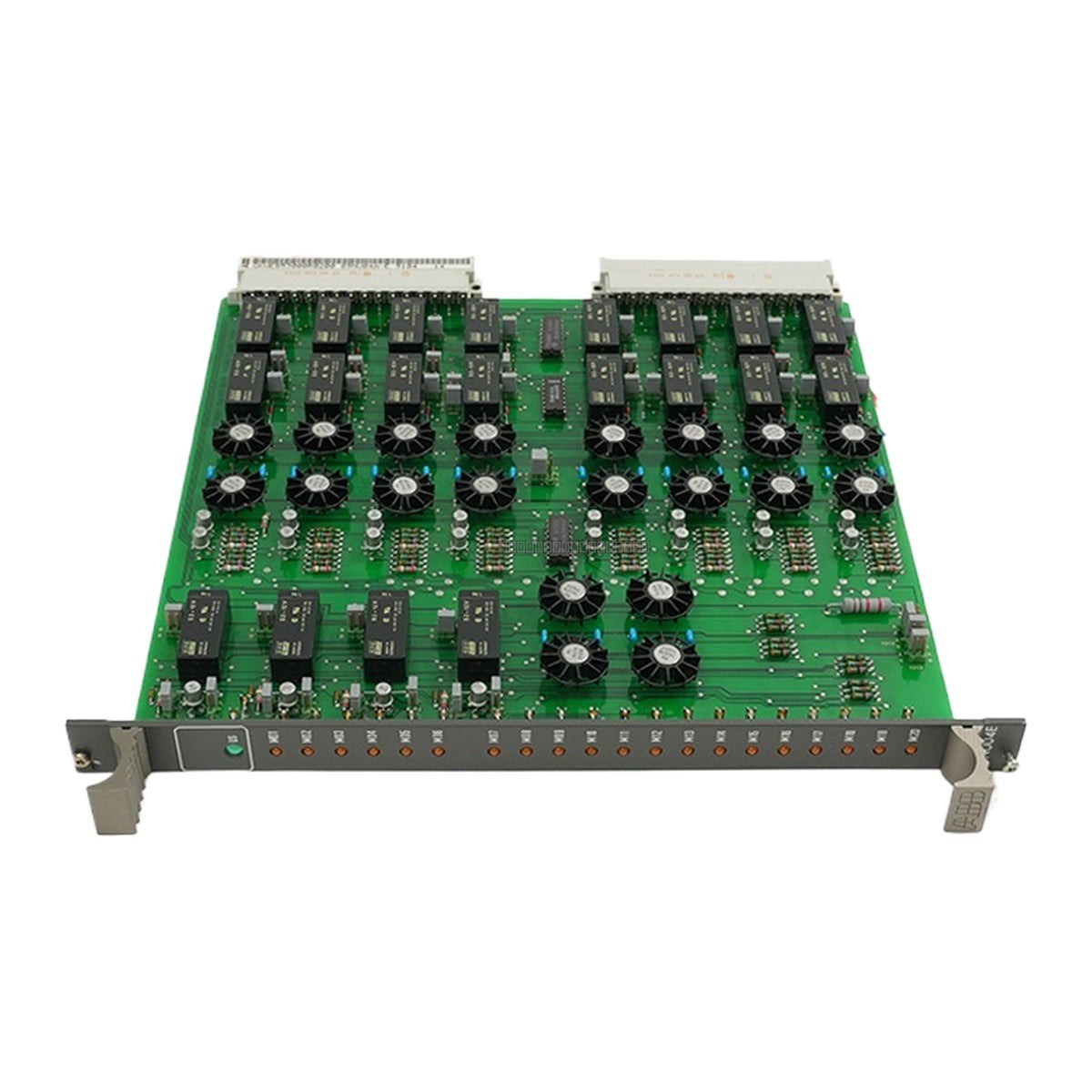

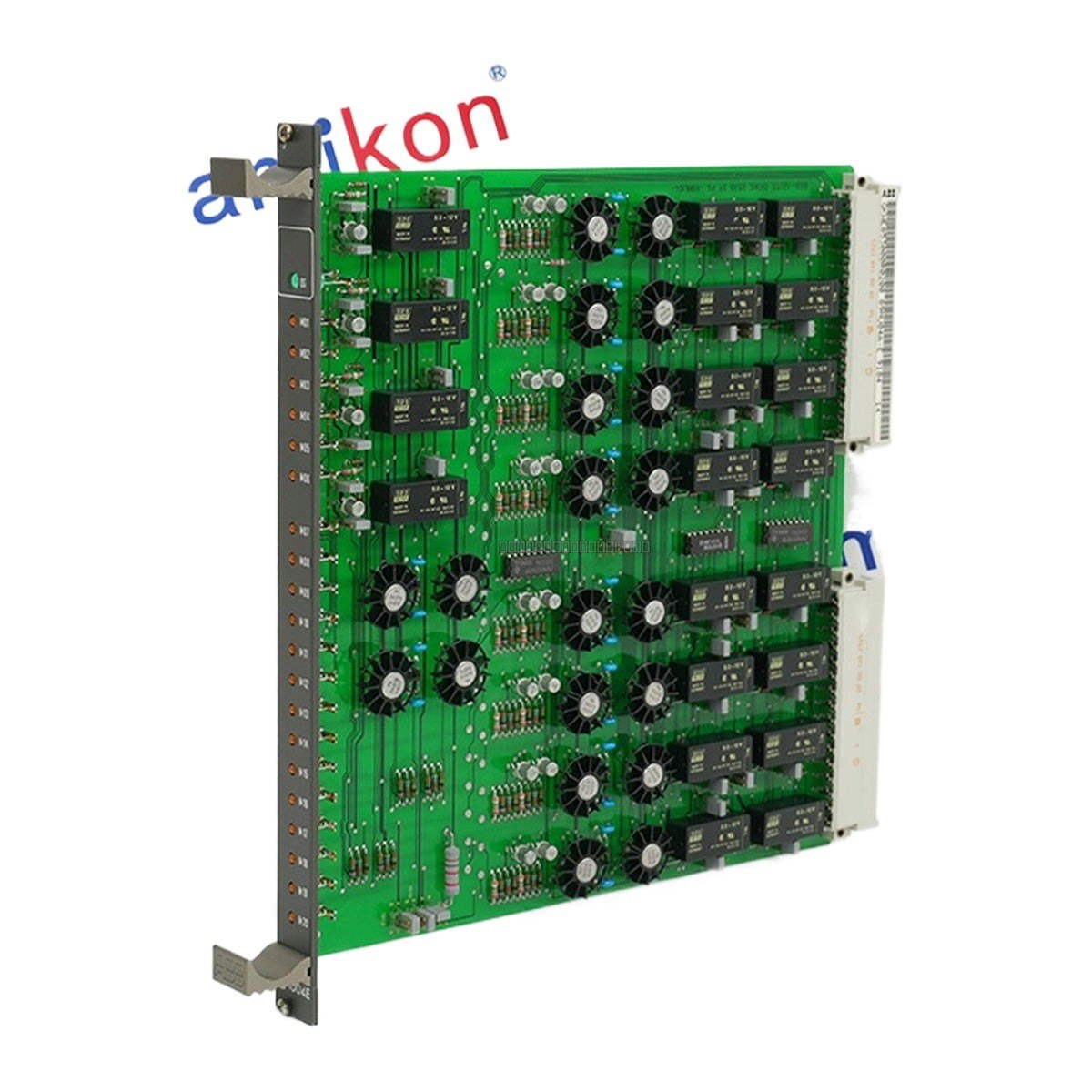

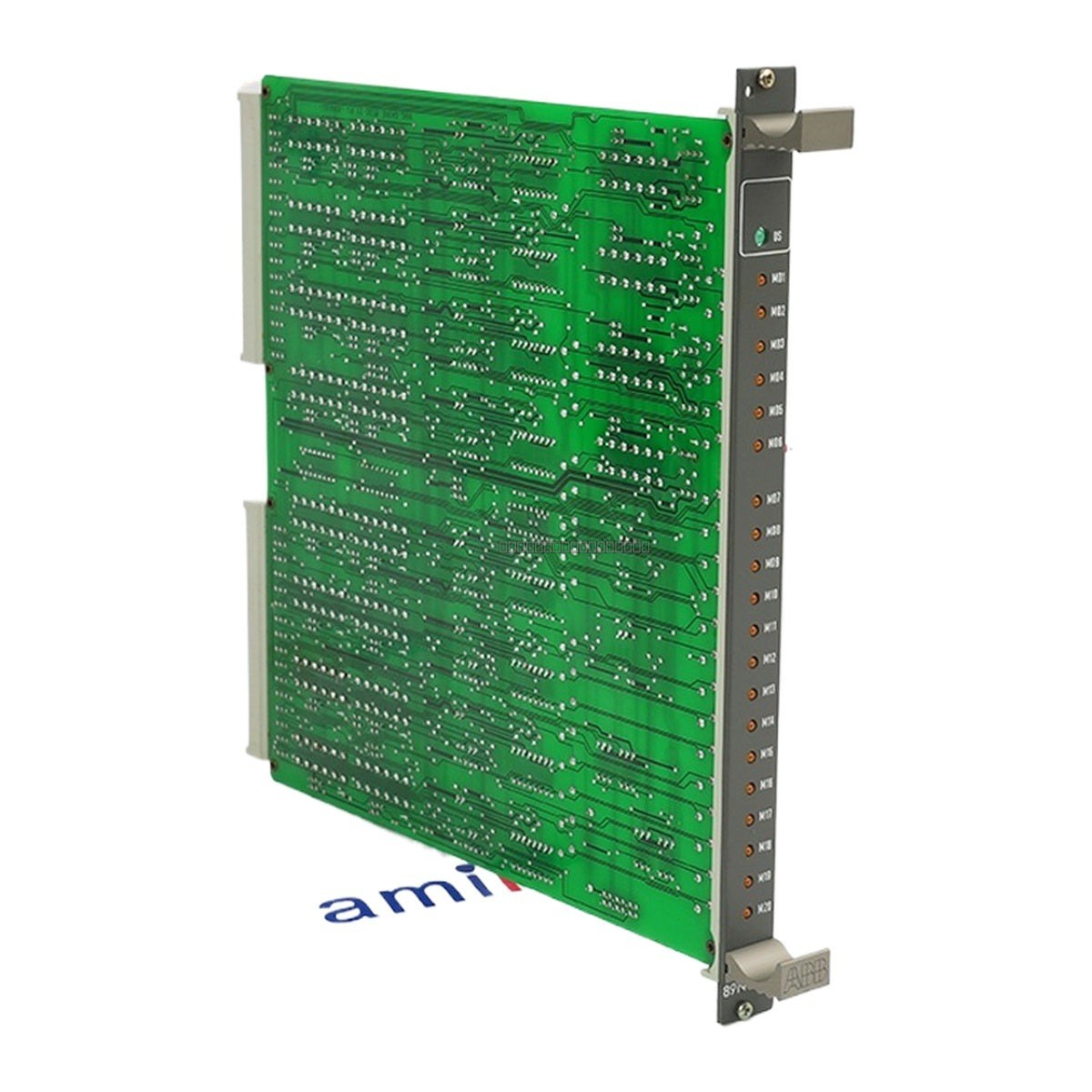

The ABB GKWE853000R0200 (89NU04A-E) is a specialized coupling and annunciation module designed for use within the ABB Procontrol P14 automation system. This module serves as a critical interface for signal processing, providing reliable relay-based indications for process status, operational alerts, and fault monitoring.
Features
- Designed for integration within ABB Procontrol P14 control systems.
- Supports configurable signal processing (0 to 20 mA or 4 to 20 mA).
- Features two isolated segments for enhanced signal integrity.
- Provides robust relay-based annunciation for industrial process status.
Applications
This module is typically deployed within industrial control panels and rack-mounted automation environments, including ABB Advant OCS and Procontrol P14 systems, where high-reliability signal coupling and fault annunciation are required.
Technical Specifications
| Model |
GKWE853000R0200 / 89NU04A-E |
| Manufacturer |
ABB |
| System |
Procontrol P14 |
| Power Supply |
24 V DC |
| Channels |
2 isolated segments |
| Signal Range |
0-20 mA / 4-20 mA |
| Cable Length |
Max 1,200 m per segment |
| Isolation |
1,500 V DC segment-to-segment |
| Operating Temperature |
-20 degC to +70 degC (rack inlet air) |
| Storage Temperature |
-40 degC to +85 degC |
| Relative Humidity |
0 - 95 % RH (non-condensing) |
Installation Guidelines
- Ensure the system power is disconnected before installing or removing the module from the rack.
- Verify that the module is correctly seated in the designated rack slot to ensure proper backplane connectivity.
- Maintain proper ventilation within the cabinet to ensure the operating temperature remains within the specified -20 degC to +70 degC range.
- Use shielded cabling for signal connections to minimize electromagnetic interference (EMI), especially when operating at maximum cable lengths.
- Adhere to standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
FAQs
What type of module is the GKWE853000R0200 89NU04A-E?
It is a coupling and annunciation module used for signal processing and communication interface tasks within ABB automation systems.
What is the primary function of this module?
It provides reliable visual and relay-based indications for process status, operational alerts, and fault conditions.
Where is this module typically installed?
It is designed for use in control panels and racks as part of the ABB Procontrol or Advant OCS systems.
