General Electric (GE) menawarkan rangkaian lengkap produk otomasi industri. Portofolionya meliputi PACSystems RX3i/RX7i, modul Genius I/O, pengontrol Mark VIe, dan sistem PLC. Produk-produk GE menjamin keandalan operasional, otomatisasi yang terukur, dan dukungan jangka panjang untuk aplikasi industri di seluruh dunia.
2 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe DS200TCRAG1ABC is a high-performance control and protection board engineered for the GE Mark V Speedtronic turbine control system. This module functions as a critical processing unit for safety-sensitive operations within power generation and heavy industrial drive environments. By utilizing a triple-microprocessor architecture with shared RAM, the module facilitates complex control logic, multitasking, and parallel processing. It is specifically designed to monitor turbine speed and temperature parameters, providing redundant protection layers to safeguard equipment. The module supports advanced diagnostic functions, including electrical overspeed and mechanical piston release testing, to ensure maximum system availability.Features
Triple-Microprocessor Architecture: Delivers deterministic response times required for emergency trip sequences and high-speed control loops.
Integrated Diagnostics: Features an onboard 10-LED array for encoded fault status reporting, enabling rapid field troubleshooting.
Configurable I/O: Jumper-selectable settings allow for precise servo valve integration, supporting coil currents from 10 to 120 mA and resistance ranges from 22 to 1000 Ohms.
Communication Protocols: Supports versatile data exchange via RS485 and Ethernet interfaces, including compatibility with Modbus TCP/IP and SRTP protocols for SCADA integration.
ApplicationsThis module is primarily utilized in power plant turbine control systems, refinery drive control, and critical safety-instrumented systems where high-speed processing and redundant protection are required.Technical Specifications
Model
DS200TCRAG1ABC
Brand
GE Fanuc (General Electric)
Series
Mark V Speedtronic
Processor Type
Triple Microprocessor
Interface Ports
RS485, Ethernet
Supported Protocols
Modbus TCP/IP, SRTP
Coil Current Range
10 to 120 mA (Jumper Configurable)
Resistance Range
22 to 1000 Ohms
Diagnostics
10-LED fault code display
Operating Temperature
0 to 60 deg C
Installation Guidelines
ESD Precautions: Always use a grounded wrist strap and anti-static mat when handling the module to prevent damage to sensitive electronic components.
Power Down: Ensure the turbine control system is powered down and locked out before inserting or removing the module from the rack.
Jumper Configuration: Verify all jumper settings for coil current and resistance match the specific application requirements before final installation.
Environment: Ensure the control cabinet provides adequate ventilation and is free from excessive dust, moisture, or corrosive gases to maintain the specified operating temperature range.
Cable Routing: Keep communication cables (Ethernet/RS485) separated from high-voltage power lines to minimize EMI interference.
FAQWhat is the primary function of the DS200TCRAG1ABC?It acts as a central processing and protection module for the GE Mark V Speedtronic system, managing turbine speed, temperature monitoring, and emergency trip sequences.How do I troubleshoot faults on this module?The module includes 10 onboard LEDs that display encoded fault codes. Refer to your specific Mark V system documentation to interpret these codes for rapid field diagnosis.Is the module configurable for different servo valves?Yes, the module features jumper-selectable settings that allow you to adjust coil current (10-120 mA) and resistance (22-1000 Ohms) to suit various servo valve requirements.
2 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
8 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe GE Fanuc IC670ALG330 is an 8-point analog current-source output module designed for the Field Control series. This module provides high-precision current output signals for industrial control applications, featuring 16-bit conversion resolution and a nominal output range of 0-20 mA. It is engineered to interface seamlessly with Field Control Bus Interface Units (BIUs), providing reliable analog control for actuators, valves, and other current-driven field devices.Features
8-channel analog current output configuration.
16-bit conversion resolution with 14-bit magnitude data size.
Supports a nominal output range of 0-20 mA, with a total range of 0.0-20.48 mA.
High-speed update time of 1.5 ms typical.
Integrated open-wire detection with a configurable threshold.
Galvanic isolation rated at 1500 VAC for 1 minute.
Technical Specifications
Model
IC670ALG330
Channels
8
Signal Type
Analog Current (0-20 mA)
Resolution
16 bits (0.3125 uA per count)
Supply Voltage
18-30 VDC (24 VDC nominal)
Current Draw (BIU)
85 mA
Current Draw (External)
250 mA (at 20 mA per channel)
Isolation
1500 VAC (1 min) / 250 VAC (continuous)
Load Inductance
0.5 H maximum
Load Capacitance
2000 pF maximum
Installation Guidelines
Ensure the Field Control BIU is powered down before inserting or removing the module to prevent electrical damage.
Mount the module securely on the designated Field Control carrier or DIN-rail system.
Use shielded twisted-pair cabling for analog signal lines to minimize EMI interference.
Ensure proper grounding of the cable shields at the control cabinet entry point.
Verify that the external 24 VDC power supply is within the 18-30 VDC range and meets the ripple requirements (10% maximum).
Handle the module using ESD-safe practices to prevent damage to internal sensitive components.
FAQWhat is the primary function of the IC670ALG330?This module acts as an 8-channel analog output interface, converting digital data from the controller into precise 0-20 mA current signals to drive field instrumentation.Does this module require external power?Yes, the module requires an external 24 VDC power supply, drawing up to 250 mA when all channels are active at full load.What is the resolution of the analog output?The module features a 16-bit conversion resolution, providing a step size of 0.3125 uA per count.
8 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

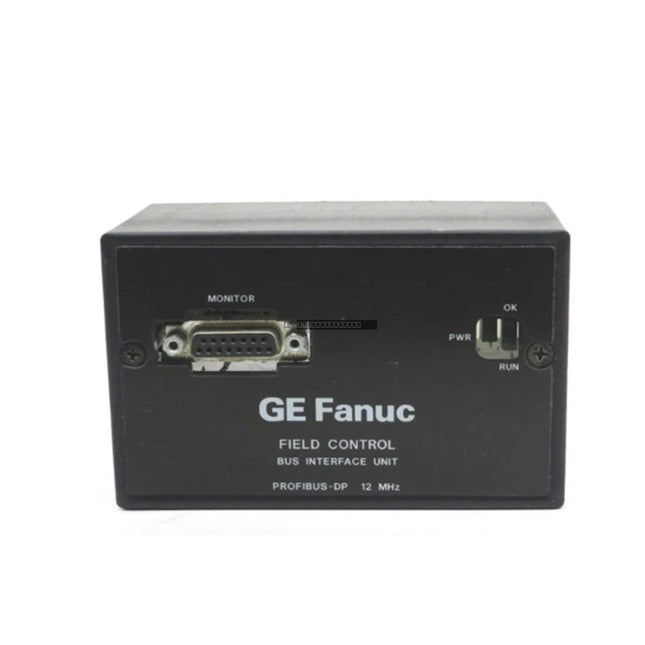

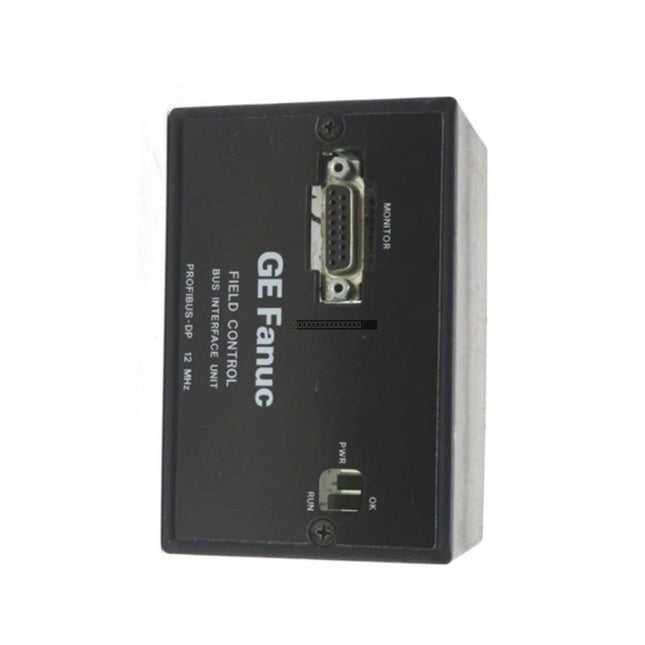

DescriptionThe General Electric IC670PBI001 is a Profibus Bus Interface Unit (BIU) designed for the Field Control series. This module serves as the communication gateway between a Profibus-DP network and the local Field Control I/O station. It manages data exchange, diagnostics, and configuration parameters for up to eight I/O modules connected within the same station.Features
Supports standard Profibus-DP communication protocols.
Integrated support for up to eight (8) Field Control I/O modules.
Configurable addressing via embedded DIP switches.
Diagnostic status LEDs for Power (PWR), Run, and OK status.
Wide transmission speed range from 9.6 Kbits up to 12 Mbits.
Robust MTBF of 180,000 hours for industrial reliability.
Technical Specifications
Model
IC670PBI001
Input Voltage
24 VDC (18-30 VDC range)
Power Consumption
7.7 W (Input), 4.45 W (Dissipation)
Profibus Ports
1 x 9-pin D-sub
Programmer Port
1 x 9-pin D-sub
Network Medium
Shielded twisted pair
Operating Temperature
0 to 55 degC
Holdup Time
10 ms maximum
Installation Guidelines
Ensure the power supply is disconnected before mounting or removing the module from the DIN rail or panel.
The module supports DIN rail or panel mounting via the BIU terminal block.
Use shielded twisted pair cabling for Profibus connections to minimize EMI interference.
Maintain proper ventilation within the cabinet to ensure the ambient temperature remains within the 0-55 degC operating range.
Handle with standard ESD precautions to prevent damage to internal circuitry.
FAQWhat is the primary function of the IC670PBI001?The IC670PBI001 acts as a communication interface that allows a Profibus master to control and monitor up to eight Field Control I/O modules.How is the station address configured?The station address is set manually using the embedded DIP switches located on the module.What type of cable is required for the Profibus network?The unit is designed for use with shielded twisted pair cabling to ensure signal integrity across the Profibus segment.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
5 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

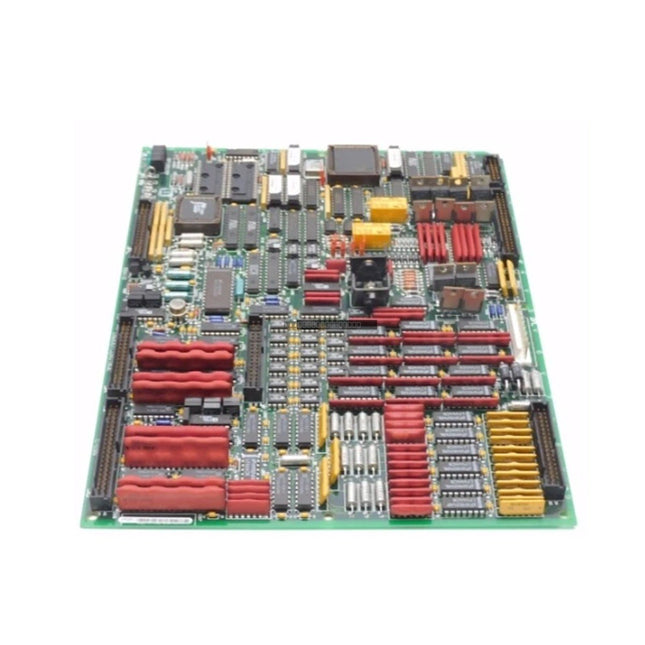

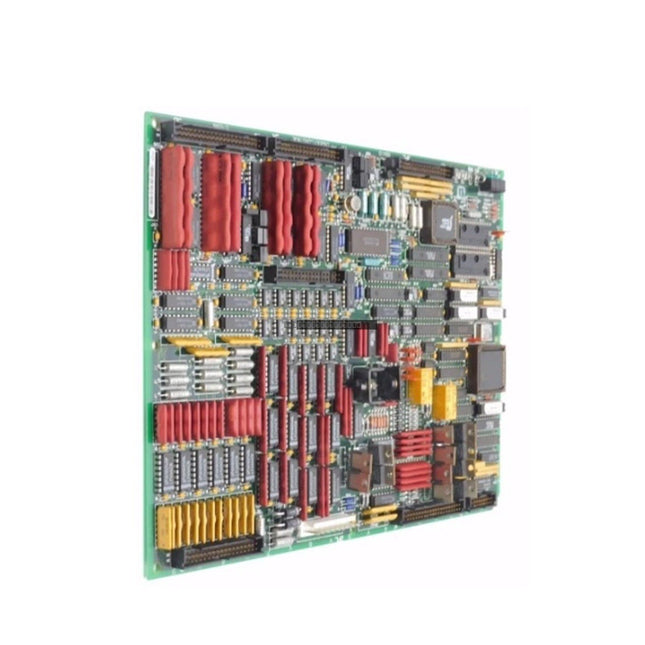

DescriptionThe General Electric DS200TCQAG1BGE is an RST Analog Termination Board designed for use within the Mark series turbine control systems. This I/O board serves as a critical interface for analog signal processing, facilitating the connection between field instrumentation and the control system architecture. It is engineered to handle multi-input and multi-output analog signals, ensuring reliable data acquisition and control signal distribution in demanding turbine management environments.Features
Designed for Mark series turbine control applications.
Supports multi-channel analog input and output signal processing.
Integrated on-board memory (RAM) for local data handling and configuration support.
Robust termination interface for field wiring, minimizing signal noise and connection impedance.
Specifically engineered for high-reliability industrial control environments.
ApplicationsThis termination board is primarily utilized in power generation and industrial turbine control systems. It is essential for monitoring and regulating analog parameters such as pressure, temperature, flow, and valve positioning within the Mark series control architecture.Technical Specifications
Product Model
DS200TCQAG1BGE
Component Type
RST Analog Termination Board
Manufacturer
General Electric
System Compatibility
Mark Series Turbine Control
Tariff Code
8537101190
Weight
0.36 kg
Installation Guidelines
Ensure the control system is powered down before installing or removing the board to prevent electrical damage.
Handle the module using proper ESD (Electrostatic Discharge) precautions to protect sensitive on-board components.
Verify that all field wiring is securely terminated to the board connectors to ensure signal integrity.
Ensure the board is correctly seated in the designated rack slot and that all locking mechanisms are engaged.
Route signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain analog signal accuracy.
FAQWhat system is the DS200TCQAG1BGE compatible with?This board is designed for use with General Electric Mark series turbine control systems.What is the primary function of this board?The DS200TCQAG1BGE acts as an RST Analog Termination Board, providing the necessary interface for analog I/O signals between field devices and the turbine control system.Does this board require special handling?Yes, as an electronic circuit board, it should be handled with standard ESD protection measures to avoid damaging the internal components.
5 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

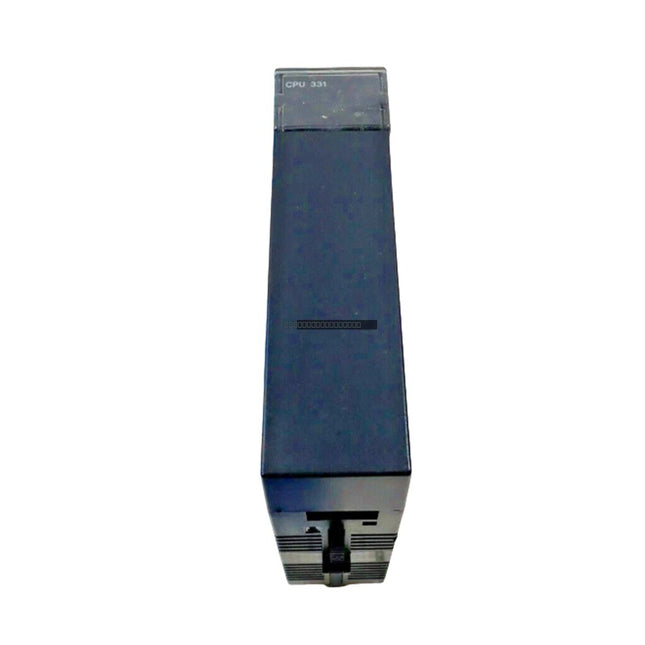

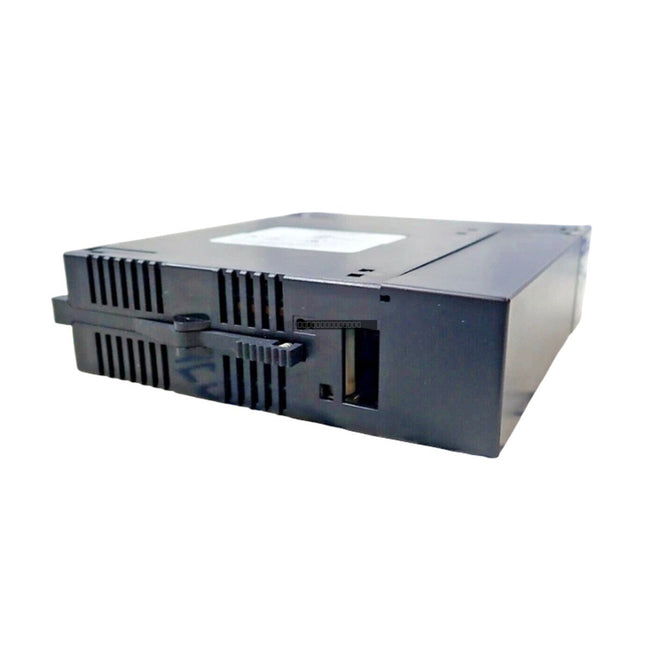

DescriptionThe IC693CPU331S is a modular CPU module designed for the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) system. This processor module serves as the central control unit for the rack-based automation system, providing efficient logic execution and system management for industrial applications.Features
Processor: 80188 microprocessor architecture.
Clock Speed: 10 MHz operation for reliable logic processing.
Scan Rate: Typical scan rate of 0.4 ms per 1K of Boolean logic.
Capacity: Supports up to 680 timers and counters.
Expansion Capability: Supports up to four (4) expansion baseplates and four (4) remote I/O baseplates for system scalability.
Power Requirements: Operates on a +5VDC bus voltage with a current draw of 350mA.
Technical Specifications
Model
IC693CPU331S
Manufacturer
General Electric (GE Fanuc)
Series
Series 90-30
Processor Type
80188
Clock Speed
10 MHz
Current Load
350mA
Bus Voltage
+5VDC
Operating Temperature
0 to 60 degC (32 to 140 degF)
Installation Guidelines
Ensure the PLC rack is powered down before inserting or removing the CPU module to prevent electrical damage or data corruption.
Align the module carefully with the backplane connector before seating it into the designated CPU slot.
Secure the module using the built-in locking tabs to ensure a stable connection to the backplane.
Maintain proper ventilation in the control cabinet to keep the operating temperature within the specified 0 to 60 degC range.
Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
FAQWhat is the primary function of the IC693CPU331S?This module acts as the central processor for a GE Series 90-30 PLC rack, handling program execution, I/O scanning, and communication tasks.How many expansion baseplates can this CPU support?The IC693CPU331S supports up to four expansion baseplates and four remote I/O baseplates, allowing for significant system expansion.What is the required input voltage for this module?The module operates on a +5VDC bus voltage provided by the rack power supply.
7 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

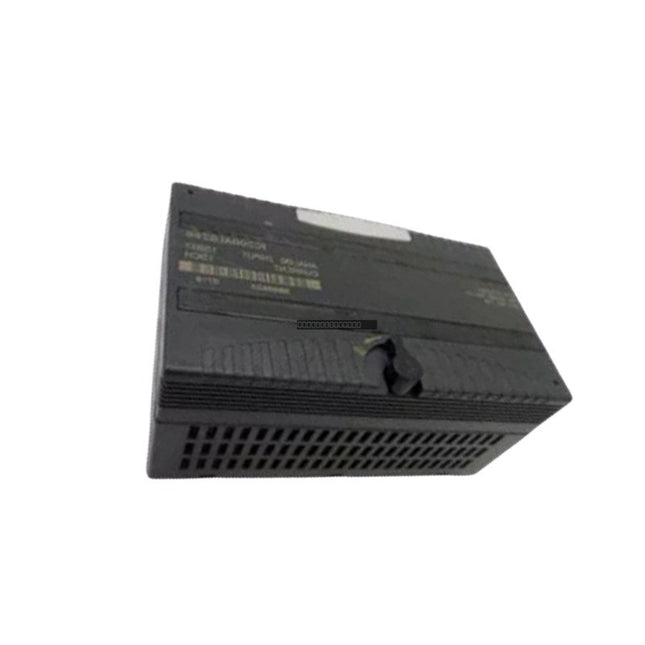

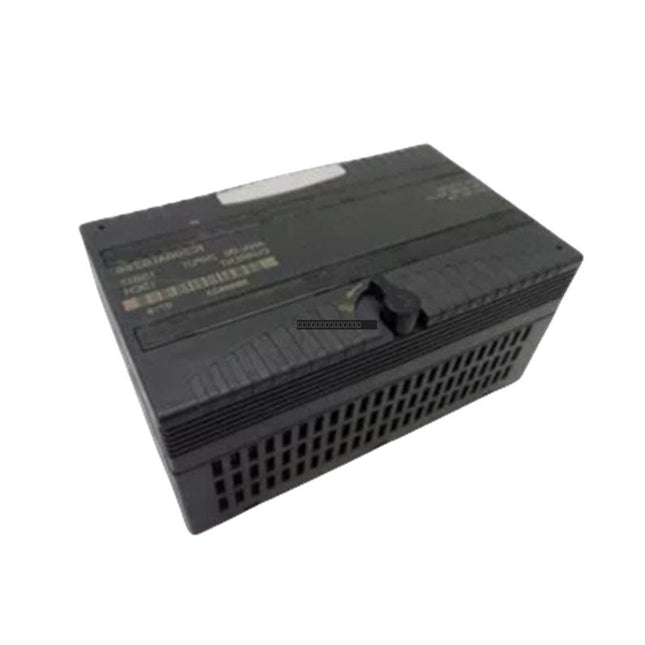

DescriptionThe General Electric IC200ALG266F is a high-performance analog input module designed for the VersaMax I/O system. This module provides 15 single-ended input channels, grouped together, allowing for efficient data acquisition in industrial automation environments. It is specifically engineered to process current signals, supporting standard 4-20 mA or 0-20 mA ranges with high precision.Features
15 single-ended analog input channels in a single group.
Supports 4-20 mA and 0-20 mA current input ranges.
15-bit resolution for accurate signal conversion.
Optimized update rate of 7.5 ms per module.
Integrated 24 Hz filter response.
Compact VersaMax form factor for space-constrained control cabinets.
Technical Specifications
Product Model
IC200ALG266F
Manufacturer
General Electric
Channels
15 Single-ended
Input Range
4-20 mA / 0-20 mA
Input Impedance
100 Ohm
Resolution
15-bit
Update Rate
7.5 ms
Filter Response
24 Hz
Backplane Current (5V)
100 mA
Backplane Current (3.3V)
50 mA
Installation Guidelines
Ensure the VersaMax backplane is powered down before installing or removing the module to prevent electrical damage.
Mount the module securely onto the I/O carrier, ensuring the locking mechanism is engaged.
Use shielded twisted-pair cabling for analog signal connections to minimize EMI interference.
Maintain proper grounding practices for the I/O system to ensure signal integrity and safety.
Verify that the input signal range matches the module configuration settings within the PLC software.
FAQWhat is the primary function of the IC200ALG266F?This module is an analog input module used to convert current signals from field devices into digital data for processing by the VersaMax PLC system.Does this module support voltage inputs?No, the IC200ALG266F is specifically designed for current-based inputs (4-20 mA / 0-20 mA).How are the channels configured?The module features 15 single-ended channels that are organized into a single group.
7 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

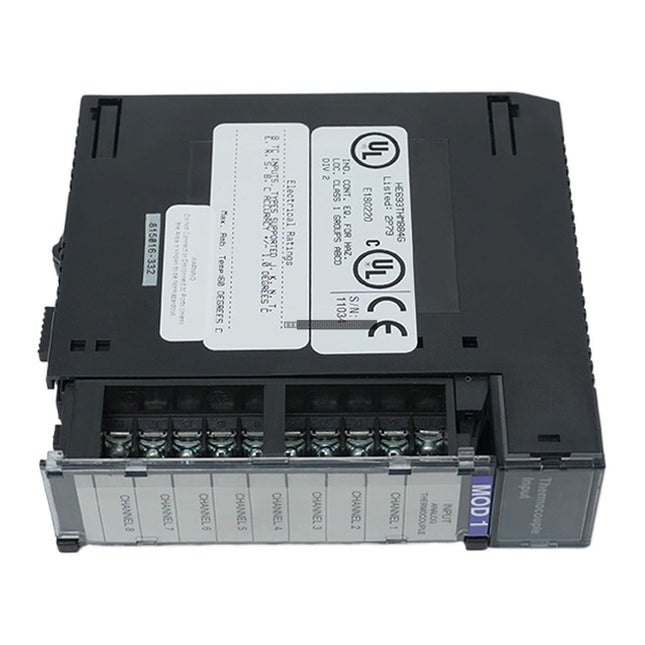

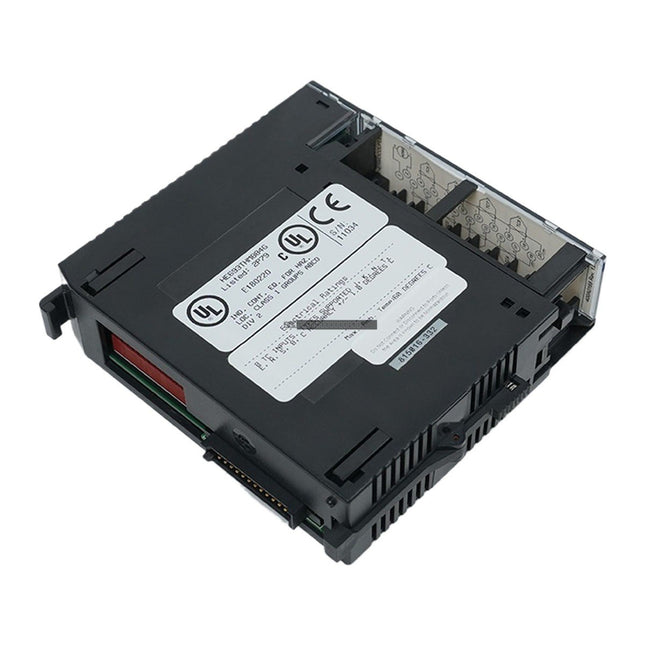

The HE693THM884G is a high-resolution, 8-channel thermocouple input module designed for the GE Fanuc Series 90-30 PLC platform. This Horner APG-engineered module enables direct connection of J and K type thermocouples to the PLC, removing the requirement for external signal conditioning hardware such as transmitters or transducers.Features
8-channel thermocouple input support for J and K types.
High-resolution measurement (0.1 degC) with internal analog and digital signal processing.
18-bit integrating A/D conversion with a 5 ms conversion time.
Configurable reporting increments (0.5 degC/F or 0.1 degC/F).
Integrated alarm monitoring with 16 %I alarm bits (open circuit and setpoint alarms).
Backplane-powered design requiring no external excitation for the module.
Applications
Heat Treatment: Monitoring furnace, kiln, and oven temperatures for precise thermal profiling.
Food & Beverage: Managing pasteurization and baking processes to maintain safety standards.
Chemical & Pharmaceutical: Controlling reactor vessel temperatures for sensitive chemical reactions.
Plastics: Managing melt temperatures in injection molding to ensure material integrity.
Energy: Boiler and exhaust temperature monitoring for improved fuel efficiency.
Technical Specifications
Model
HE693THM884G
Channels
8
Supported Types
J, K
Resolution
0.1 degC
Power Consumption
100mA @ 5VDC
A/D Conversion
18-Bit Integrating
Conversion Time
5 ms
Scan Rate
40 Channels per second
Input Impedance
>20 Mohms
Common Mode Rejection
>100 dB
Operating Temperature
0 to 60 degC
Humidity
5% to 95% non-condensing
Installation Guidelines
Safety: Always power down the PLC backplane before inserting or removing the module to prevent electrical damage.
Mounting: The module is designed for direct insertion into any available I/O slot on a Series 90-30 baseplate.
Wiring: Use shielded, twisted-pair extension wiring to ensure maximum immunity against electrical noise and interference.
CJC: Ensure the Removable Terminal Board (RTB) is securely seated, as it houses the Cold Junction Compensation sensors necessary for accurate temperature conversion.
FAQWhat is the HE693THM884G?It is an 8-channel thermocouple input module for the Series 90-30 PLC that allows direct sensor connection, eliminating the need for external transducers.How is the module powered?The unit draws its power (100mA at 5VDC) directly from the PLC backplane.What is the scan rate of this module?The module features a scan rate of 40 channels per second with an A/D conversion time of 5 ms.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
8 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

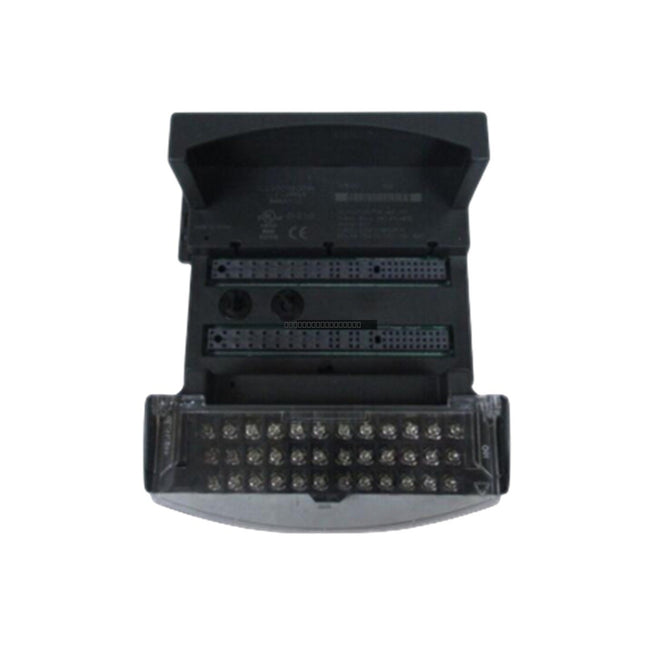

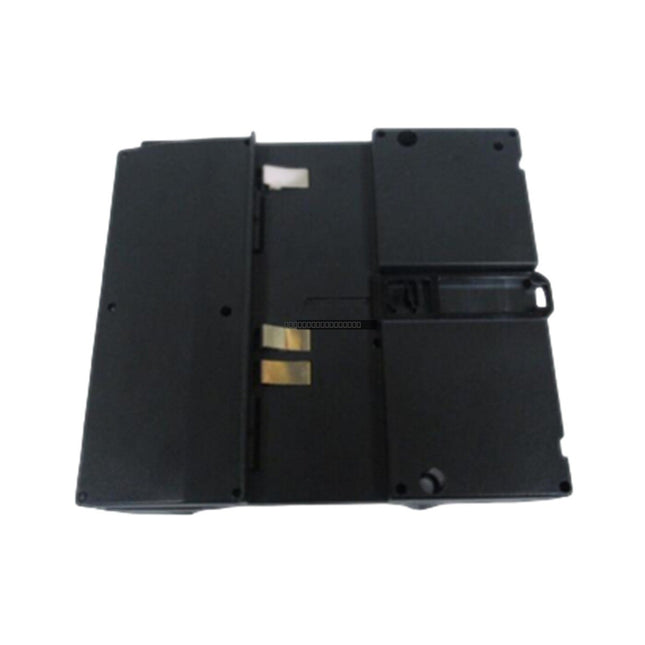

DescriptionThe General Electric IC200CHS001A is a box-style I/O carrier designed for the VersaMax PLC series. This carrier provides the necessary mounting and electrical interface for VersaMax I/O modules, facilitating reliable signal distribution and field wiring connections in industrial automation environments. It is engineered to support up to 32 I/O points, offering a compact solution for distributed or centralized control architectures.Features
Supports up to 32 I/O points for high-density signal management.
Equipped with 36 box-style screw terminals for secure field wiring.
Designed for standard DIN-rail mounting, ensuring quick and efficient installation.
Rated for a maximum voltage of 264 VAC, accommodating a wide range of industrial control applications.
Robust construction suitable for demanding automation environments.
Technical Specifications
Model
IC200CHS001A
Series
VersaMax
Terminal Type
Box-style
Terminal Count
36
Max I/O Points
32
Max Current per Point
2 Amps
Max Voltage Rating
264 VAC
Max Voltage Transients
300 VAC
Mounting
DIN Rail
Terminal Torque
0.37 to 0.5 lb-ft
Installation Guidelines
Ensure all power to the I/O system is disconnected before installing or removing modules from the carrier.
Mount the carrier onto a standard 35mm DIN rail, ensuring it is securely locked in place.
When wiring, ensure that terminal screws are tightened to the specified torque range (0.37 to 0.5 lb-ft) to prevent loose connections and potential signal degradation.
Maintain proper cable routing to minimize electromagnetic interference (EMI) from high-voltage lines or high-frequency drives.
Verify that the total current draw of the I/O modules does not exceed the capacity of the power supply connected to the carrier.
FAQWhat is the primary function of the IC200CHS001A?The IC200CHS001A serves as a base carrier for GE VersaMax I/O modules, providing both the mechanical mounting interface and the electrical terminal blocks for field wiring.Can this carrier be used with all VersaMax modules?This carrier is specifically designed for box-style I/O modules within the VersaMax family. Please verify compatibility with your specific module part number before installation.What is the maximum current rating per point?The carrier supports a maximum of 2 Amps per point.
8 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
5 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

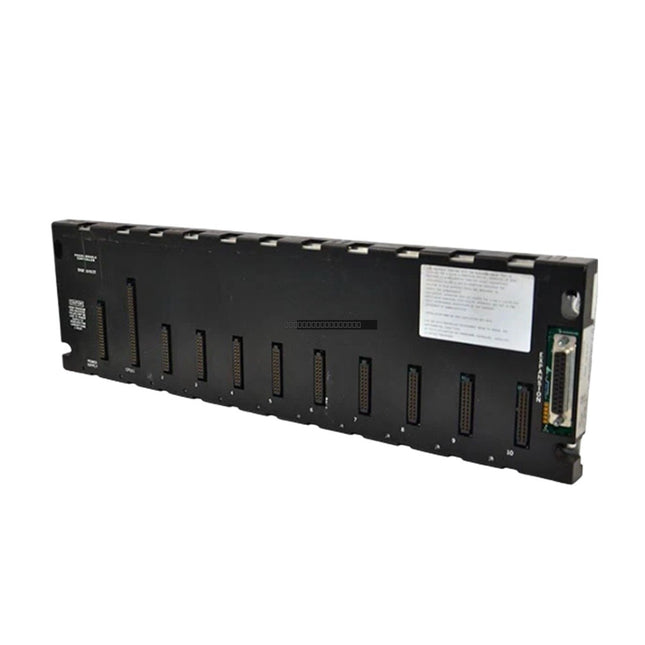

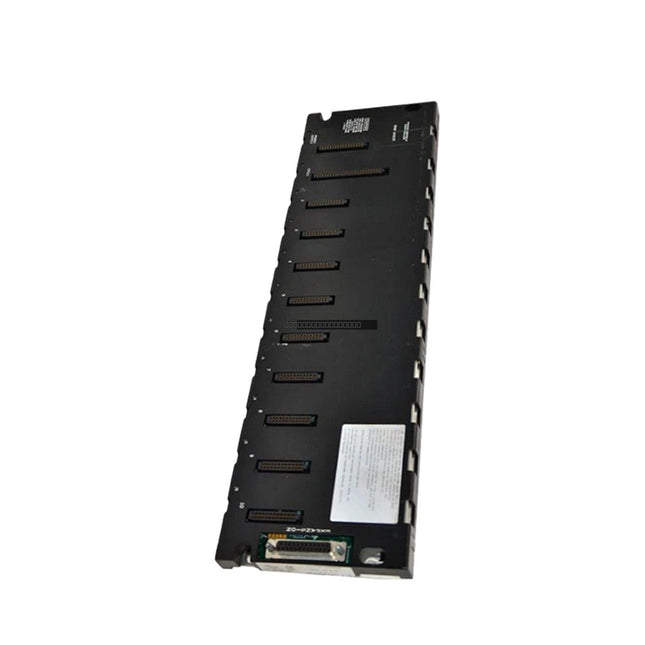

DescriptionThe General Electric IC693CHS391D is a 10-slot expansion baseplate designed for the Series 90-30 Programmable Logic Controller (PLC) system. This modular baseplate provides the physical mounting and electrical backplane connectivity required for expanding I/O capacity in industrial automation applications. It is engineered to support a single CPU or specialty module in the first slot, with nine additional slots available for various I/O or option modules.Features
Ten total slots for flexible system configuration.
Dedicated slot 1 for CPU or specialty module support.
Nine slots for I/O or option modules.
Integrated 25-pin female connector for expansion cable interface.
Compatible with standard GE Fanuc Series 90-30 rack-mount architectures.
Technical Specifications
Model Number
IC693CHS391D
Series
Series 90-30
Total Slots
10
CPU/Specialty Slots
1 (Slot 1)
I/O Slots
9
Operating Voltage
5V DC
Current Consumption
420 mA
Connector Type
25-Pin Female
Installation Guidelines
Ensure the power supply is disconnected before installing or removing the baseplate or any modules.
Mount the baseplate securely on a flat, grounded metal surface to ensure proper chassis grounding.
Maintain adequate clearance around the baseplate to allow for proper airflow and cooling, preventing thermal degradation of the modules.
When inserting modules, ensure they are fully seated in the backplane connector before securing them with the module retention screws.
Use shielded cables for expansion connections to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Handle modules using ESD-safe practices to prevent damage to sensitive internal circuitry.
FAQWhat is the primary function of the IC693CHS391D?This unit serves as an expansion baseplate for the GE Series 90-30 PLC system, allowing for the addition of extra I/O modules to an existing control rack configuration.Can this baseplate hold a CPU?Yes, the IC693CHS391D is designed with one dedicated slot (Slot 1) specifically for a CPU or a specialty module, while the remaining nine slots are reserved for I/O and other option modules.What is the power requirement for this baseplate?The baseplate operates on 5V DC and has a current consumption of 420 mA.
5 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
10 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe GE Fanuc IC693CHS391K is a 10-slot expansion baseplate designed for the Series 90-30 programmable logic controller (PLC) system. This modular baseplate provides the physical mounting and electrical backplane connectivity required for CPU modules, I/O modules, and specialty option modules. It is engineered to facilitate system expansion, allowing users to increase the I/O capacity of their control architecture by providing nine dedicated slots for I/O and one dedicated slot for the CPU or specialty module.Features
Ten total slots for flexible module configuration.
Dedicated slot 1 for CPU or specialty module support.
Nine slots available for standard I/O modules.
Integrated 25-pin female connector for reliable communication and expansion.
Operates at 5 Volts DC with a current consumption of 420 mA.
Compatible with Series 90-30 backplane architecture.
Technical Specifications
Manufacturer
General Electric (GE Fanuc)
Series
Series 90-30
Part Number
IC693CHS391K
Total Slots
10
CPU/Specialty Slots
1 (Slot 1)
I/O Slots
9 (Slots 2-10)
Voltage
5V DC
Current
420 mA
Connector Type
25-Pin Female
Installation Guidelines
Ensure the power supply is disconnected before installing or removing the baseplate or any modules.
Mount the baseplate on a flat, grounded metal surface to ensure proper EMI shielding and heat dissipation.
When inserting modules, ensure they are fully seated in the backplane connector to prevent intermittent communication errors.
Maintain adequate clearance around the baseplate to allow for proper airflow and cooling, as the system relies on convection.
Use appropriate shielded cabling for expansion connections to minimize signal interference in high-noise industrial environments.
Handle modules using ESD-safe practices to prevent damage to sensitive electronic components.
FAQWhat is the primary function of the IC693CHS391K?This unit acts as an expansion baseplate for the Series 90-30 PLC, providing the necessary backplane slots to add more I/O modules to an existing control system.Can this baseplate be used as a standalone CPU base?Yes, it features a dedicated slot 1 designed to house the CPU module, allowing it to function as the primary or expansion base for your PLC configuration.What is the power requirement for this baseplate?The baseplate operates on 5V DC and draws 420 mA of current during operation.
10 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
4 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

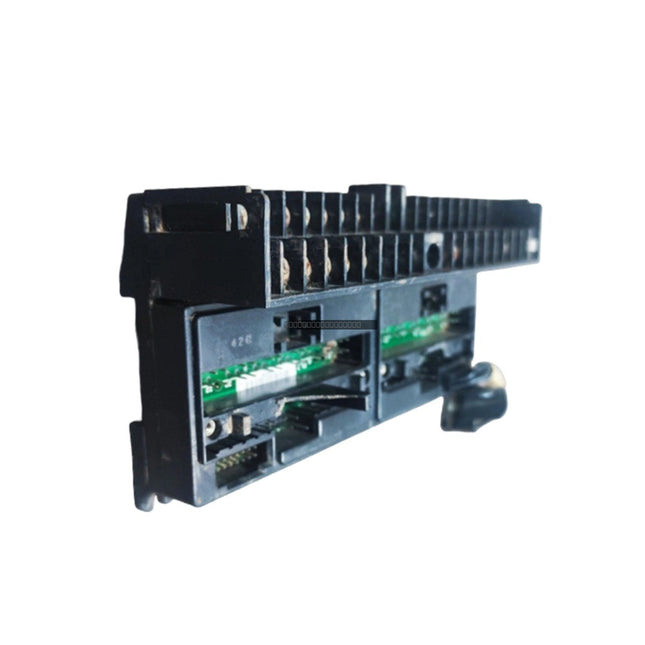

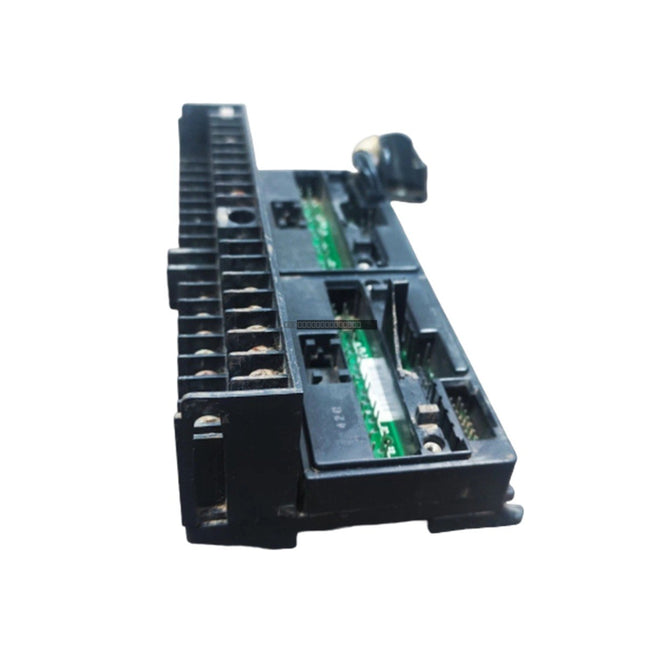

The GE Fanuc IC670CHS101C is a high-density I/O terminal block designed for the Field Control series. This component serves as the physical interface for field wiring, providing a secure and organized connection point for I/O modules within the control system architecture.Features
Designed for integration with the GE Field Control system series.
Supports up to 2 I/O modules per terminal block assembly.
Features 37 individual terminal points for versatile field wiring configurations.
Hot-swap compatible, allowing for maintenance and module replacement without interrupting system power.
Robust construction suitable for industrial control environments.
Technical Specifications
Product Model
IC670CHS101C
Component Type
I/O Terminal Block
Terminal Count
37
Module Capacity
2 modules per block
Wiring Gauge
14-22 AWG
Maximum Terminal Current
10 Amperes
Tariff Code
8537101190
Installation Guidelines
Ensure the system power is switched off before installing or removing the terminal block or associated I/O modules.
Verify that the terminal block is securely seated on the mounting rail to maintain proper electrical contact with the backplane.
Use appropriate wire stripping lengths for 14-22 AWG conductors to ensure a secure connection without exposing excess copper.
Maintain proper cable routing practices to minimize electromagnetic interference (EMI) and ensure adequate airflow for heat dissipation.
Handle with care to prevent damage to the connector pins during alignment and insertion.
FAQIs the IC670CHS101C hot-swappable? Yes, this terminal block is designed to be hot-swap compatible, supporting module replacement while the system is operational.How many modules can this block accommodate? This specific terminal block is designed to support up to 2 I/O modules.What is the wire size range for the terminals? The terminals are designed to accommodate wire gauges ranging from 14 to 22 AWG.
4 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
2 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

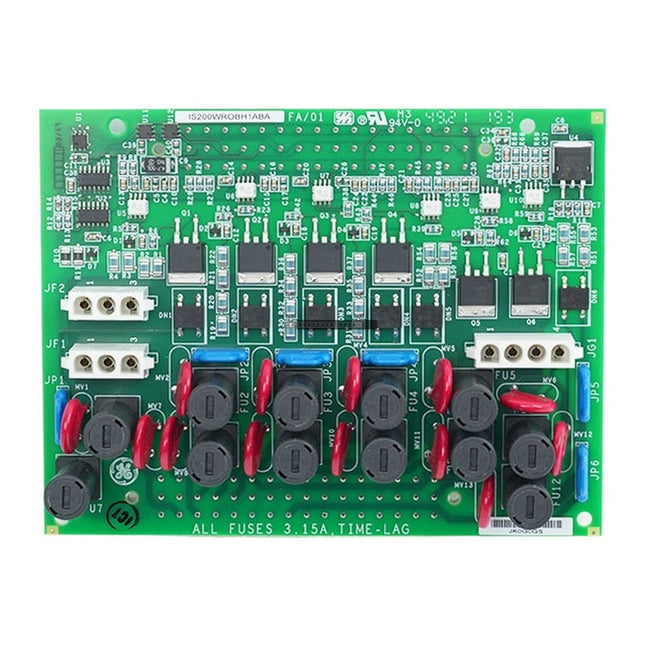

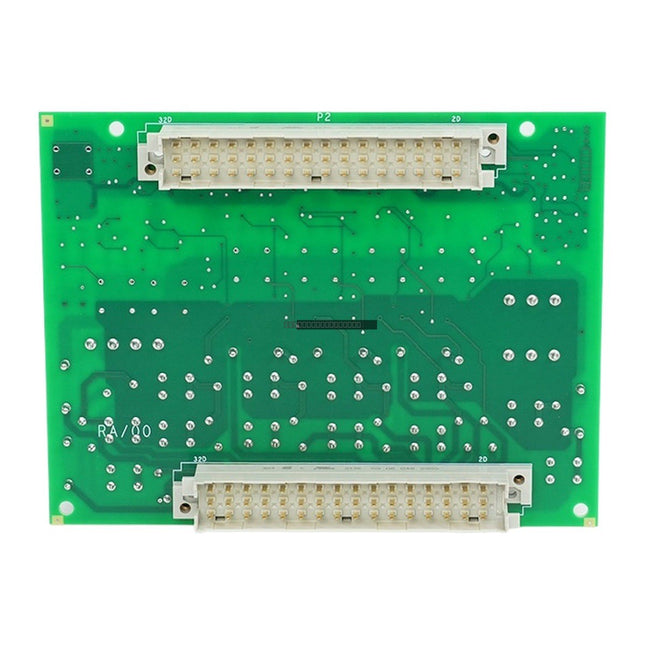

The IS200WROBH1ABA is a WROB Relay Fuse and Power Sensing Board, a critical component of the General Electric Mark VIe control system. This option board is designed to integrate with PDIO Discrete Input/Output modules, specifically supporting attachment to TDBS, SRLY, and TDBT terminal boards.Features
Designed for the Mark VIe control system architecture.
Supports Simplex, Redundant, and Triple Modular Redundant (TMR) configurations.
Provides fused power distribution and isolated voltage sensing for relay outputs.
Features 12 fuse positions for circuit protection.
Enables diagnostic fault generation to the controller if a fuse opens during operation.
Compatible with a wide range of application voltages, including 24/48/125 VDC and 120/240 VAC.
Applications
Combined Cycle Power Plants: Manages gas and steam turbine interplay.
Heavy Industrial Refineries: Supports turbine compressors and overspeed protection systems.
Metallurgy and Smelting: Provides high-current relay sensing for critical process control.
Large-Scale Manufacturing: Facilitates precise relay-driven machine control via PDIO modules.
Utilities and Municipal Engineering: Enables redundant fault detection for boilers and energy plants.
Technical Specifications
Model Number
IS200WROBH1ABA
Spare Model
IS200WROBH1A
Manufacturer
General Electric
Fuse Quantity
12
Default Fuse Rating
3.15 A
Power Sensing Voltage
24 VDC
DC Application Range
24 / 48 / 125 VDC
AC Application Range
120 / 240 VAC
Operating Temperature
-40 degC to +70 degC
Storage Temperature
-40 degC to +85 degC
Installation Guidelines
Ensure the control system is powered down before installing or removing the board from the PDIO module.
Handle the board using proper ESD (Electrostatic Discharge) protection practices to prevent damage to sensitive electronic components.
Verify that the board is securely seated in the designated slot on the TDBS, SRLY, or TDBT terminal board.
Ensure all wiring connections are tightened to the specified torque requirements for the terminal blocks.
Maintain adequate ventilation in the cabinet to ensure the operating temperature remains within the specified -40 degC to +70 degC range.
FAQWhich I/O redundancies are supported by this board?The IS200WROBH1ABA supports both Simplex and Triple Modular Redundant (TMR) I/O pack configurations.What is the primary purpose of the IS200WROBH1ABA?It serves as a relay fuse and power sensing board, providing fused power distribution to relay outputs and real-time diagnostic feedback to the Mark VIe controller.How does the board handle fuse status detection?When used with isolated voltage on a compatible terminal board like the TDBS, the IS200WROBH1ABA detects the state of fuse pairings and generates a diagnostic fault if a fuse opens while voltage is present.
2 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

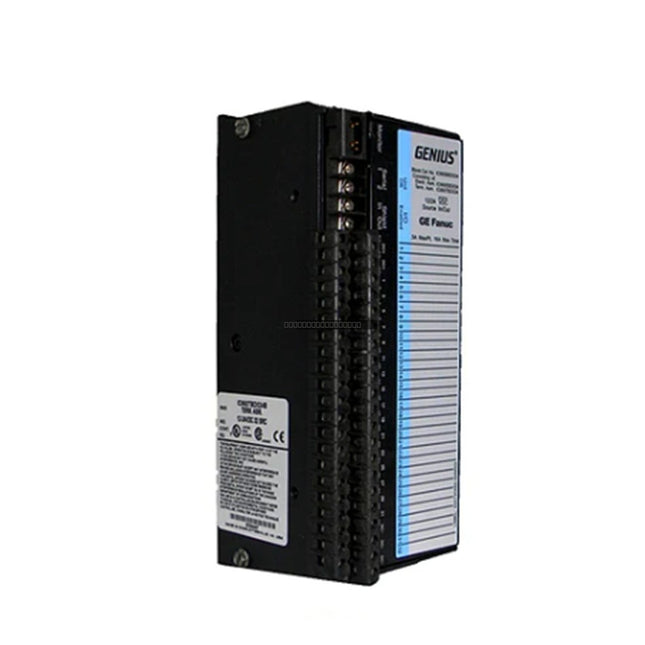

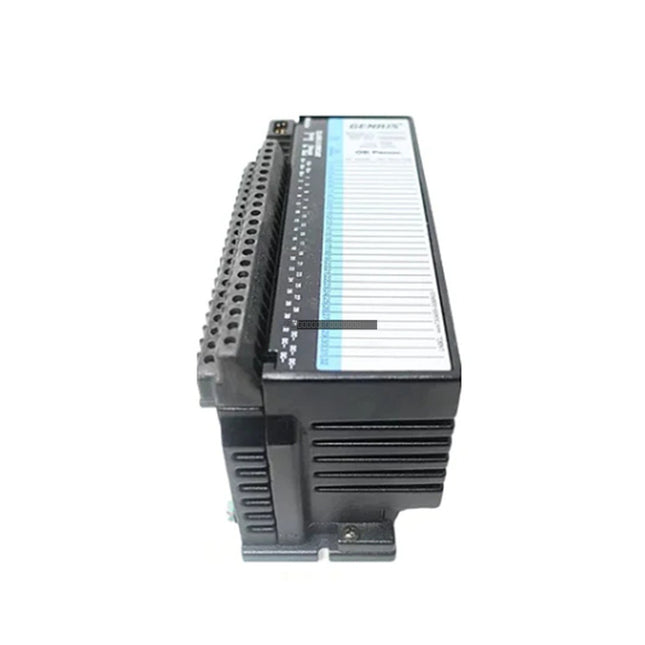

The IC660BBD120 is a high-speed counter module within the GE Genius I/O series. This block is designed for high-performance pulse processing and motion control applications, capable of operating independently of a CPU for rapid input sensing and output response. The module consists of two primary components: the terminal base assembly (IC660TBD120) and the electronics assembly (IC660EBD120).Features
12 discrete inputs (5V DC to 30V DC) supporting frequencies up to 200 kHz.
4 output channels (4.75V DC to 5.25V DC at 200mA).
Configurable counter modes: supports 1, 2, or 4 counters of varying complexity.
Direct processing capability allows the block to sense inputs and trigger outputs without CPU intervention.
Built-in protection against power surges on outputs.
Software-configurable parameters and failed switch diagnostics.
Supports 115 VAC or 10-30 VDC block power, including backup battery operation.
Applications
Turbine Flowmeter monitoring and meter proving.
High-speed velocity measurement and motion control.
Automated material handling and logistics counting systems.
Industrial automation tasks requiring fast, stand-alone I/O processing.
Technical Specifications
Product Model
IC660BBD120
Input Channels
12
Output Channels
4
Input Frequency
Up to 200 kHz
Operating Voltage
93V to 132VAC / 10V to 30VDC
Frequency Range
47Hz to 63Hz
Operating Temperature
0 degC to 60 degC
Storage Temperature
-40 degC to 100 degC
Humidity
5% to 95% (non-condensing)
Weight
1.8 kg
Installation Guidelines
The Genius I/O block is open-type equipment and must be mounted within a protective enclosure suitable for the industrial environment.
Ensure the installation area is clean and free of airborne contaminants.
Maintain adequate airflow for cooling; leave at least 2 inches of clearance between blocks.
The block may be mounted in any orientation (upright or inverted).
Secure the block using 8-32 screws/bolts; use star washers to ensure proper ground integrity.
Always disconnect power before installing or removing the electronics assembly from the terminal base.
FAQsWhat is the IC660BBD120?It is a configurable, self-contained high-speed counter block from the GE Genius I/O series, designed to directly process rapid pulse signals.What are the main I/O specifications?It features 12 discrete inputs supporting frequencies up to 200 kHz and 4 output channels.What is the operating voltage?This module can be powered by 115VAC or 10-30VDC. It supports mixed power configurations, allowing 115VAC as the main supply and 10-30VDC as a backup.
7 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

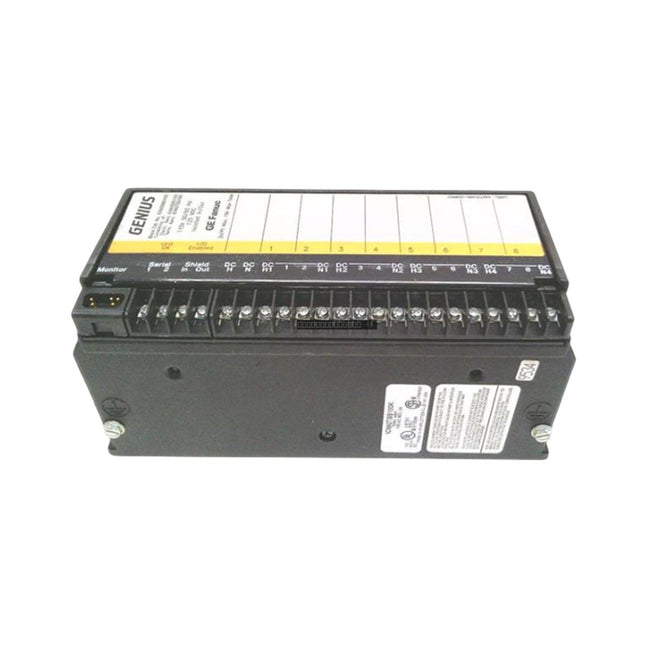

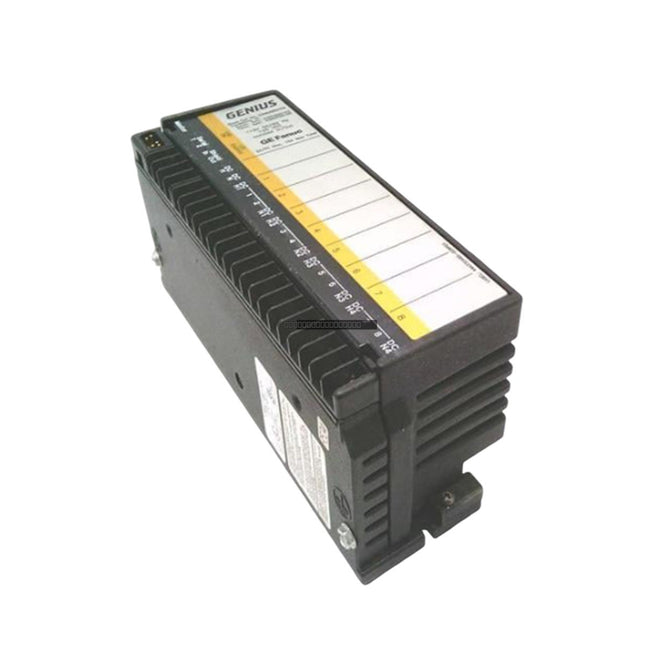

The General Electric IC660BBS103 is a Genius Block I/O module designed for industrial control applications. This discrete output block provides eight (8) output circuits, supporting a nominal voltage of 115 VAC or 125 VDC. It is engineered for robust performance in demanding environments, featuring comprehensive diagnostic capabilities to monitor system health and operational status.Features
Eight (8) discrete output circuits.
Supports 115 VAC and 125 VDC nominal voltage ranges.
Integrated diagnostics for output monitoring, including short circuit, overload, no load, overtemperature, and loss of I/O power detection.
Internal electronic short circuit protection with defined trip times.
Designed for integration within the Genius I/O system architecture.
Technical Specifications
Model
IC660BBS103
Module Type
Discrete Output Block
Number of Circuits
8
Nominal Voltage
115 VAC / 125 VDC
Output Current (AC)
2 A RMS
Output Current (DC)
2 A Resistive / 1 A Inductive
Peak Block Output
15 A
Operating Temperature
0 to 60 degC
Relative Humidity
5 to 95% (non-condensing)
Installation Guidelines
Ensure the control system power is disconnected before installing or removing the block.
Mount the module in a location that allows for adequate ventilation to maintain operating temperatures within the specified 0 to 60 degC range.
Verify that all wiring connections are secure and comply with local electrical codes.
Use shielded cables where necessary to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
FAQWhat type of diagnostics does the IC660BBS103 support?The module supports output diagnostics including short circuit, overload, no load, overtemperature, and loss of I/O power.What is the maximum output current for this block?The peak block output is 15 Amps, with individual circuit ratings of 2 A RMS for AC and 2 A resistive (1 A inductive) for DC.
7 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
7 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
The General Electric IC693CHS391E is a 10-slot modular baseplate designed for the GE Fanuc Series 90-30 PLC system. This expansion baseplate provides the necessary physical mounting and electrical backplane connectivity for a CPU module and various I/O or specialty modules, facilitating scalable automation configurations.Features
Ten (10) total slots for system configuration.
Dedicated slot for one (1) CPU or specialty module (Slot 1).
Nine (9) dedicated slots for I/O or option modules (Slots 2-10).
Integrated power supply module slot.
25-pin female connector for system communication.
Supports PCI card connectivity.
Technical Specifications
Model
IC693CHS391E
Series
Series 90-30
Total Slots
10
CPU/Specialty Slots
1 (Slot 1)
I/O Option Slots
9 (Slots 2-10)
Voltage
5V DC
Current Consumption
420 mA
Connector Type
25-Pin Female
Installation Guidelines
Ensure the power supply is disconnected before installing or removing any modules from the baseplate.
Mount the baseplate securely on a flat, vibration-resistant surface within the control cabinet.
Maintain adequate clearance around the baseplate to allow for proper airflow and cooling.
Use shielded cables for I/O connections to minimize electromagnetic interference (EMI).
Ensure proper grounding of the baseplate to the cabinet ground bus to prevent electrical noise and potential damage to sensitive components.
Handle modules using ESD-safe practices to prevent damage to internal circuitry.
FAQWhat is the primary function of the IC693CHS391E?The IC693CHS391E serves as the primary mounting and communication backplane for the GE Series 90-30 PLC, allowing the CPU to interface with up to nine additional I/O or specialty modules.Can this baseplate be used for expansion?Yes, this unit is designed as a modular baseplate that supports the expansion of the Series 90-30 system architecture, provided the power supply capacity is sufficient for the total module load.
7 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
6 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

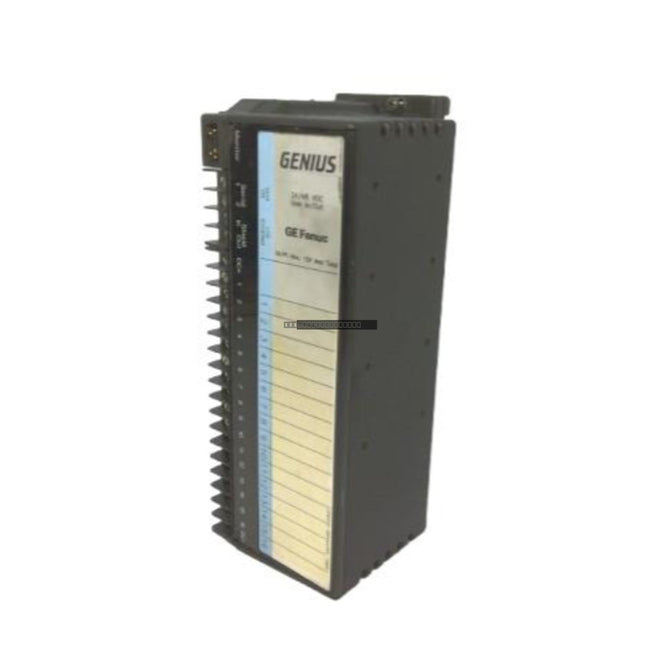

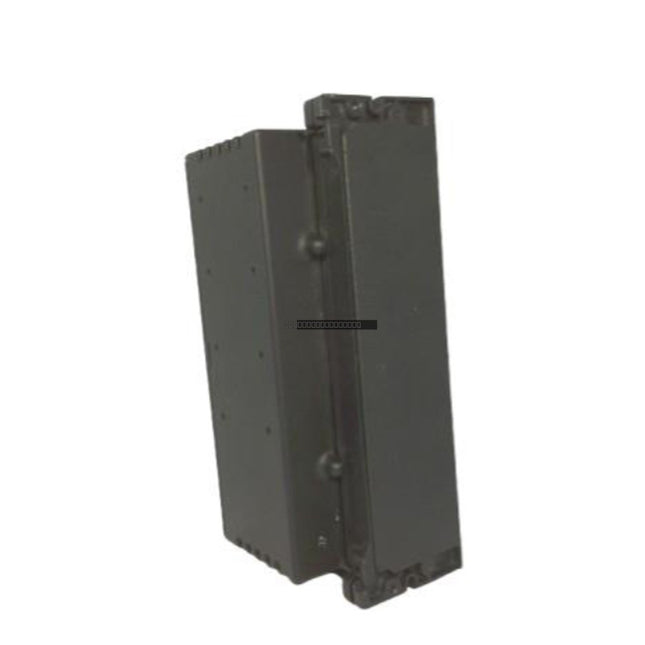

DescriptionThe General Electric IC660TSD021 is a terminal assembly designed for use within the GE Genius I/O system. This component serves as a critical interface for the IC660BBD021 I/O block, facilitating secure and reliable field wiring connections for industrial automation applications. It is engineered to support solid-state sensors and provides configurable input filtering to ensure signal integrity in demanding environments.Features
Designed specifically for compatibility with the IC660BBD021 Genius I/O block.
Supports integration with solid-state sensors for versatile field device connectivity.
Configurable input filter timing ranging from 5 to 100 milliseconds to mitigate noise.
Robust construction suitable for standard industrial control cabinet environments.
Technical Specifications
Product Model
IC660TSD021
Manufacturer
General Electric
Product Type
Terminal Assembly
Compatibility
IC660BBD021 I/O Block
Operating Temperature
0 to 60 degC (32 to 140 degF)
Relative Humidity
5 to 95% (non-condensing)
Input Filter Time
5 to 100 ms
Installation Guidelines
Ensure the main power is disconnected before installing or removing the terminal assembly from the I/O block.
Verify that the terminal assembly is properly seated and locked into the corresponding I/O block to ensure reliable electrical contact.
Follow standard industrial wiring practices, ensuring that field wires are properly stripped and secured within the terminal blocks to prevent loose connections.
Maintain proper cable routing to separate signal wiring from high-voltage power lines to reduce the risk of electromagnetic interference (EMI).
Operate within the specified temperature and humidity ranges to ensure long-term reliability of the electronic components.
FAQWhat is the primary function of the IC660TSD021?The IC660TSD021 is a terminal assembly that provides the physical wiring interface for the GE Genius I/O block, allowing field devices to communicate with the control system.Is this module compatible with other Genius I/O blocks?This terminal assembly is specifically designed for compatibility with the IC660BBD021 I/O block. Please consult your system documentation before attempting to use it with other models.What are the environmental requirements for this module?The module is designed to operate in temperatures between 32 and 140 degrees Fahrenheit (0 to 60 degC) and supports a relative humidity range of 5 to 95 percent.
6 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
4 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

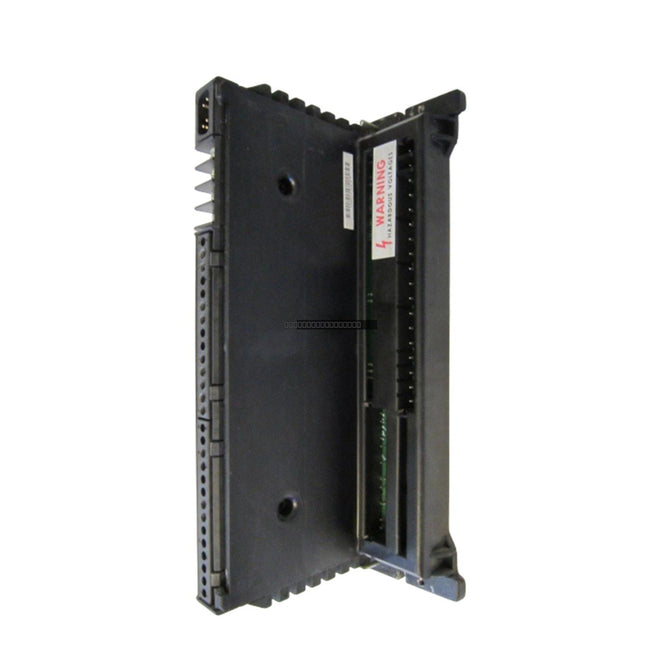

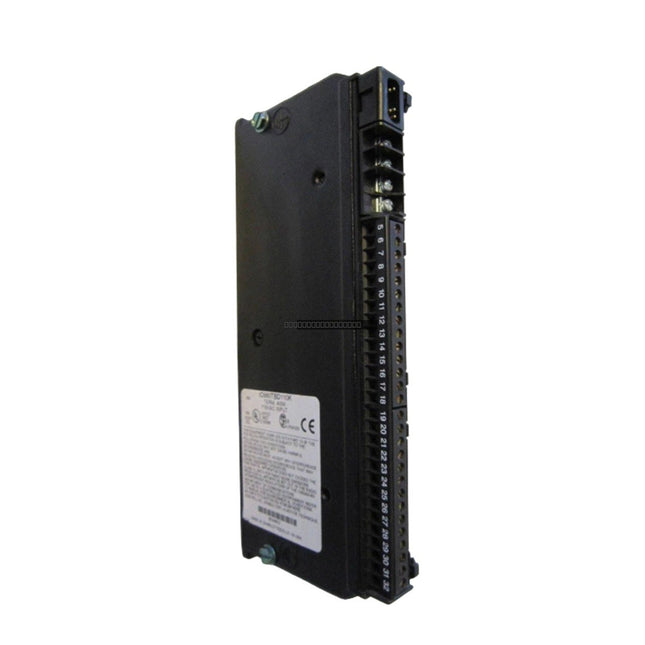

DescriptionThe General Electric IC660TBD110 is a Genius Block I/O module designed for industrial automation control systems. This module provides 16 input circuits, specifically engineered for 115 VAC operation within the Genius I/O series. It serves as a reliable interface for monitoring AC signal states in distributed control environments.Features
16-circuit input capacity for high-density signal monitoring.
Designed for 115 VAC nominal operation with an operating range of 93 to 132 VAC.
Supports standard industrial power frequencies from 47 to 63 Hz.
Robust isolation rating of 1500 Volts between input and ground for enhanced system protection.
Optimized for integration within the GE Genius I/O distributed architecture.
Technical Specifications
Product Model
IC660TBD110
Block Type
16-circuit Input Module
Rated Voltage
115 VAC
Operating Voltage Range
93 to 132 VAC
Frequency
47 to 63 Hz
Power Supply Dropout Time
1 cycle
Input to Ground Isolation
1500 Volts
Maximum Heat Dissipation
28 Watts
Operating Temperature
0 to 60 degC (32 to 140 degF)
Installation Guidelines
Ensure the system power is completely disconnected before installing or removing the module from the I/O bus.
Mount the block in a location that allows for adequate airflow to manage the 28W maximum heat dissipation.
Verify that the input voltage levels match the module's specified operating range (93-132 VAC) to prevent damage.
Ensure proper grounding of the module chassis to maintain the 1500V isolation integrity.
Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.
FAQWhat is the primary function of the IC660TBD110?The IC660TBD110 is a 16-point AC input block used in the GE Genius I/O system to interface field-level 115 VAC signals with a programmable controller or host system.What is the operating voltage range for this module?The module is designed to operate within a voltage range of 93 to 132 VAC at a frequency of 47 to 63 Hz.
4 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
1 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

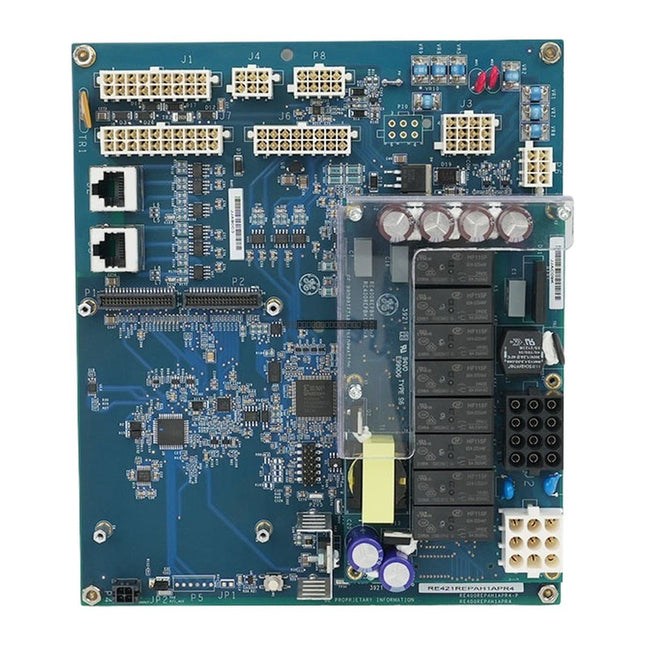

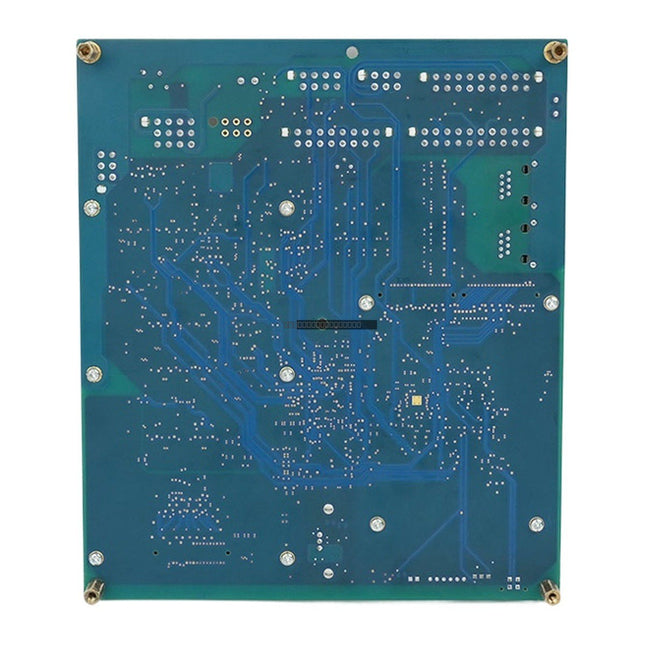

DescriptionThe General Electric RE421REPAH1APR4 is a specialized control board designed for integration within the Mark VIe control system architecture. This module serves as a critical component for industrial automation, facilitating precise power regulation and signal management. Engineered for high reliability, it is commonly utilized in demanding environments to support efficient switching control and phase regulation for various industrial loads.Features
Designed for compatibility with GE Mark VIe control systems.
High-precision power control and regulation capabilities.
Compact form factor suitable for standard control cabinet mounting.
Robust construction ensuring stability in industrial thermal and electrical environments.
Supports efficient phase control and switching functions for inductive and resistive loads.
Applications
Industrial Turbomachinery: Supports safety-critical logic within GE Speedtronic turbine control systems.
Large-Scale AC/DC Drives: Manages torque and overload signaling for mining, paper, and metal processing drives.
Power Conversion Systems: Interfaces low-power control signals with high-voltage wind and solar energy converters.
Material Handling Equipment: Provides functional safety and connectivity for cranes and hoist systems.
Technical Specifications
Product Model
RE421REPAH1APR4
Manufacturer
General Electric
Operating Voltage
24 V DC
Power Consumption
12 W
Output Channels
4–8 channels
Operating Temperature
0 degC to +60 degC
Storage Temperature
-20 degC to +70 degC
Humidity
5–95% non-condensing
Tariff Code
8537101190
Installation Guidelines
Power Down: Always disconnect all power sources to the control cabinet before installing or removing this module to prevent electrical shock or damage to internal circuitry.
ESD Protection: Use appropriate electrostatic discharge (ESD) grounding straps when handling the board to protect sensitive electronic components.
Mounting: Ensure the module is securely seated in the designated rack or cabinet slot. Verify that all terminal connections are tightened to the manufacturer's specified torque to prevent intermittent signals.
Wiring: Route signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
Environment: Ensure adequate ventilation within the cabinet to maintain operating temperatures within the specified 0 degC to +60 degC range.
FAQsWhat is the primary function of the RE421REPAH1APR4?The RE421REPAH1APR4 is a control board used primarily within GE Mark VIe systems to manage circuit connections and provide power regulation for industrial automation and drive systems.Is this module compatible with legacy systems?Yes, this component is frequently utilized in GE Distributed Control Systems (DCS) and is often required for the maintenance and support of legacy industrial automation platforms.What are the environmental requirements for this module?The module should be operated in an environment with a temperature range of 0 degC to +60 degC and relative humidity between 5% and 95% (non-condensing) to ensure optimal performance and longevity.
1 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
4 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

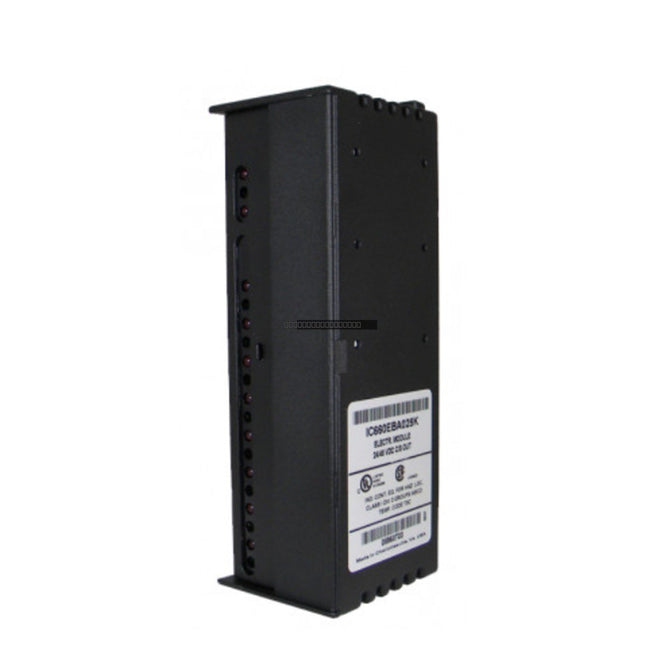

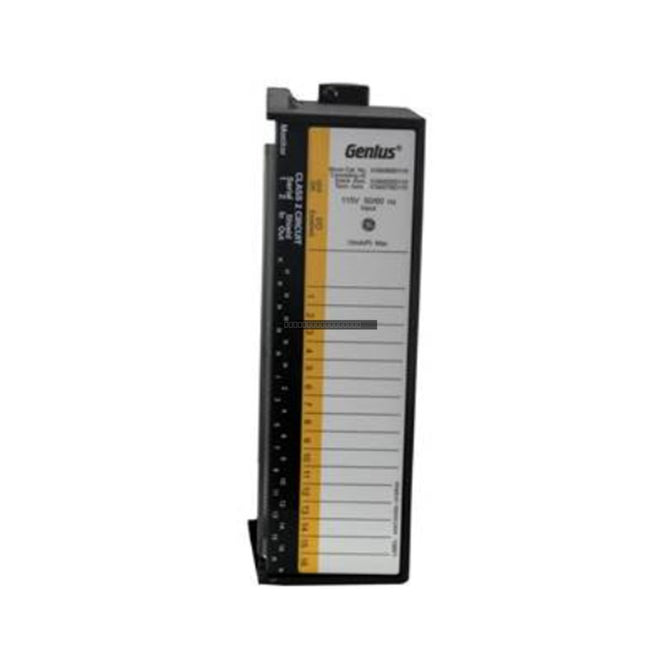

DescriptionThe General Electric IC660EBD021 is a high-performance Genius Block I/O module designed for industrial automation control systems. As part of the GE Genius I/O series, this electronic assembly provides reliable signal processing and distributed control capabilities. It is engineered to support discrete input and output operations, facilitating seamless communication between field devices and the primary controller.Features
Sixteen (16) configurable discrete inputs for versatile signal monitoring.
Supports a wide nominal input voltage range of 24 VDC to 48 VDC (18-56 VDC operating range).
Individual load-side circuit LEDs for real-time status monitoring and diagnostics.
Robust block-to-block isolation of 1500 V to protect sensitive control electronics.
High-efficiency power handling with a 10-microsecond power supply dropout time.
ApplicationsThis module is widely utilized in industrial environments requiring distributed I/O, including manufacturing assembly lines, process control systems, and material handling equipment. Its ability to handle 2 Amps per circuit makes it suitable for driving various actuators, solenoid valves, and relay interfaces within a Genius I/O network.Technical Specifications
Parameter
Specification
Product Model
IC660EBD021
Operating Voltage
18 to 56 VDC
Discrete Inputs
16 Configurable
Output Current (Steady State)
2 Amps per circuit
Block Output Current
15 Amps at 35 degC
Required DC Power
300 mA (Max)
Operating Temperature
0 to 60 degC
Storage Temperature
-40 to 100 degC
Isolation
1500 V (Block to Block)
Installation Guidelines
Ensure the control system is powered down before installing or removing the module from the I/O bus.
Mount the module in a clean, dry environment with adequate ventilation to maintain operating temperatures within the 0 to 60 degC range.
Use shielded cabling for I/O signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Verify that all wiring connections are secure and follow local electrical codes for DC power distribution.
Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal components.
FAQWhat is the primary function of the IC660EBD021?The IC660EBD021 is a Genius Block I/O module used to interface discrete field devices with a GE Genius I/O network, providing 16 configurable inputs and output switching capabilities.What is the maximum output current for this module?The module supports a steady-state output current of 2 Amps per circuit, with a total block output current capacity of 15 Amps at an ambient temperature of 35 degC.
4 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
5 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

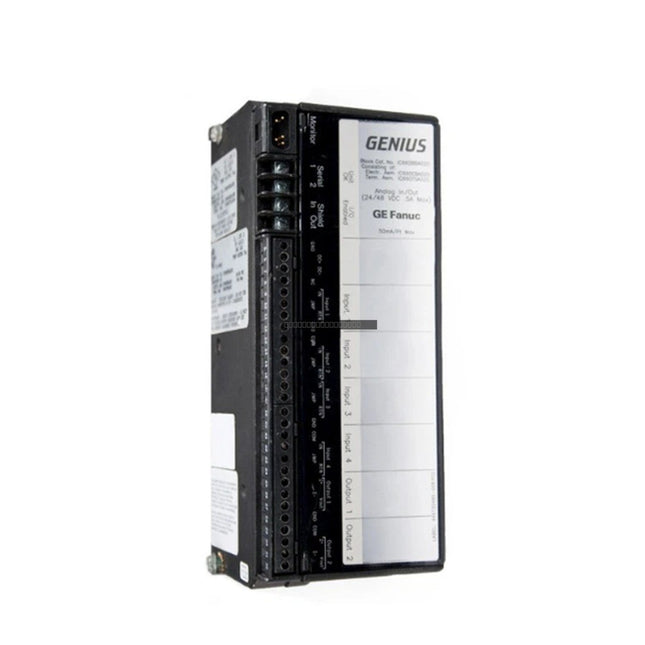

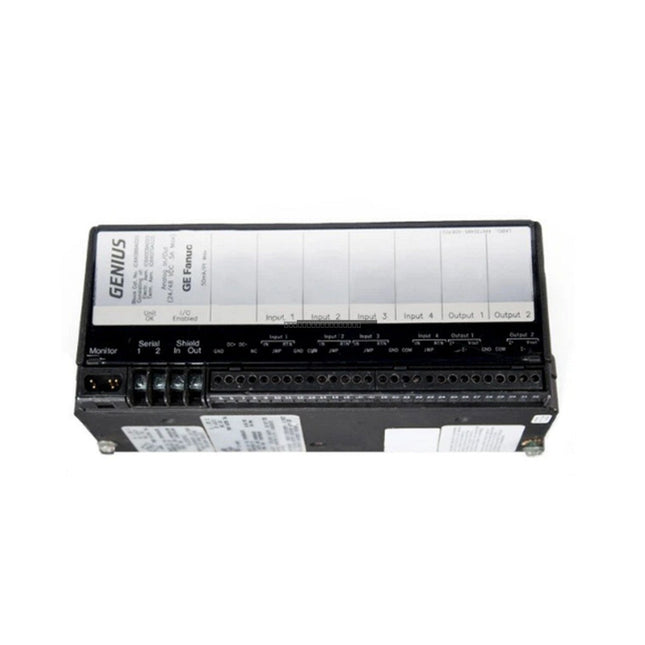

DescriptionThe General Electric IC660BBA106 is a high-performance analog input block from the Genius I/O series. This module is designed to provide reliable signal processing for industrial automation applications, specifically handling current source inputs. It features six independent input channels, supporting standard process signals of 0-20 mA and 4-20 mA with a high input resolution of 1 µA.Features
Six (6) configurable analog input channels.
Supports 0-20 mA and 4-20 mA current source signals.
1500V RMS channel-to-channel isolation for enhanced signal integrity and protection.
User-selectable input conversion time ranging from 16.6ms to 400ms.
Integrated status LEDs for Unit OK and I/O Enabled diagnostics.
Robust thermal stability with 70 ppm thermal drift.
Technical Specifications
Model
IC660BBA106
Input Channels
6
Input Signals
0-20 mA, 4-20 mA
Input Impedance
100 ohms
Input Resolution
1 µA
Conversion Time
16.6ms to 400ms (selectable)
Block Power (Nominal)
115 VAC / 125 VDC
Block Power (Range)
93-132 VAC / 105-145 VDC
Heat Dissipation
12 Watts
Isolation
1500V RMS
Installation Guidelines
Ensure the system power is disconnected before installing or removing the I/O block to prevent electrical damage.
Mount the module in an environment that allows for adequate heat dissipation, accounting for the 12W thermal output.
Use shielded twisted-pair cabling for analog signal inputs to minimize electromagnetic interference (EMI).
Ensure proper grounding of the Genius I/O bus to maintain signal accuracy and system stability.
Verify that the input power supply matches the specified 115 VAC / 125 VDC nominal range before energizing.
FAQWhat is the primary function of the IC660BBA106?The IC660BBA106 is an analog input block used in the Genius I/O system to convert current-based field signals into digital data for the controller.Can the conversion time be adjusted?Yes, the input conversion time is user-selectable between 16.6ms and 400ms, allowing for optimization based on the specific process requirements.
5 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
8 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

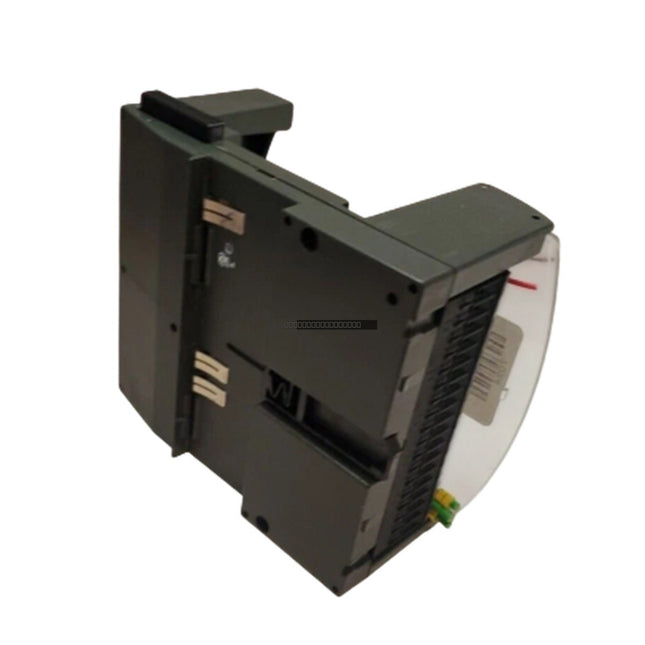

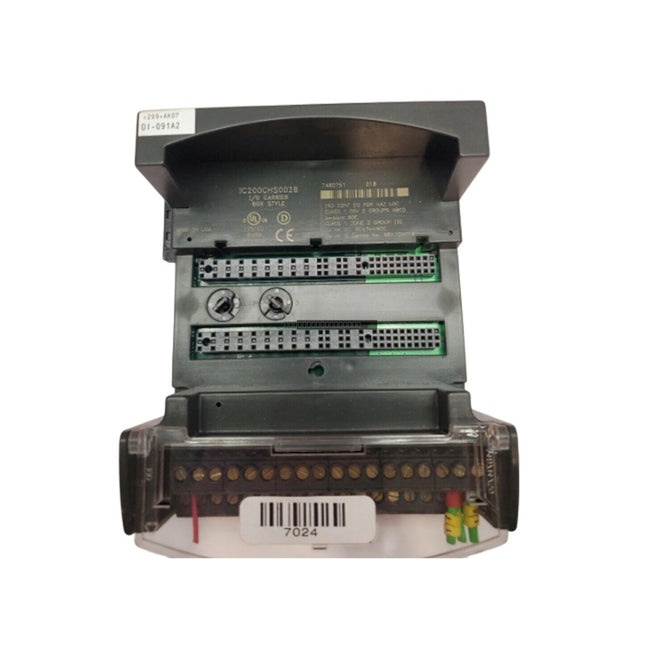

DescriptionThe General Electric IC200CHS002B is a box-style I/O carrier designed for the VersaMax PLC system. This carrier provides the necessary physical mounting and electrical interface for VersaMax I/O modules, facilitating reliable field wiring connections in industrial automation environments. It features an integrated terminal block design, allowing for direct connection of field devices to the I/O modules.Features
Designed for VersaMax I/O modules
Box-style terminal configuration with 36 terminals
Supports field voltages up to 264 VAC
Integrated field termination for simplified wiring
DIN rail mountable for standard industrial enclosures
Supports up to 2 Amps per point current rating
Technical Specifications
Model
IC200CHS002B
Product Type
Box-Style I/O Carrier
Terminal Count
36
Voltage Rating
0-264 VAC
Transient Voltage Rating
Up to 300 VAC
Per Point Current
2 Amps
Ground/Power Segment Current
8 Amperes
Mounting
DIN Rail (Horizontal)
Compatible Wire Size
AWG #14 to #22 (single); AWG #18 (two-wire)
Installation Guidelines
Ensure the power is disconnected from the system before installing or removing the carrier or any attached I/O modules.
Mount the carrier on a standard DIN rail in a horizontal orientation.
Maintain proper clearance for ventilation and maintenance: 2 inches (5.1 cm) at the top and bottom, and 1 inch (2.54 cm) on the sides.
Use appropriate wire gauges (AWG #14 to #22) to ensure secure connections and prevent overheating.
Follow standard ESD (Electrostatic Discharge) practices when handling the module to prevent damage to internal electronics.
Ensure all field wiring is properly routed and secured to minimize mechanical stress on the terminals.
FAQWhat is the primary function of the IC200CHS002B?The IC200CHS002B acts as a base carrier for VersaMax I/O modules, providing the mechanical support and electrical terminal points required to connect field sensors and actuators to the PLC system.Can this carrier be used with non-VersaMax modules?No, this carrier is specifically engineered for the General Electric VersaMax series and is not compatible with other PLC I/O families.
8 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
8 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

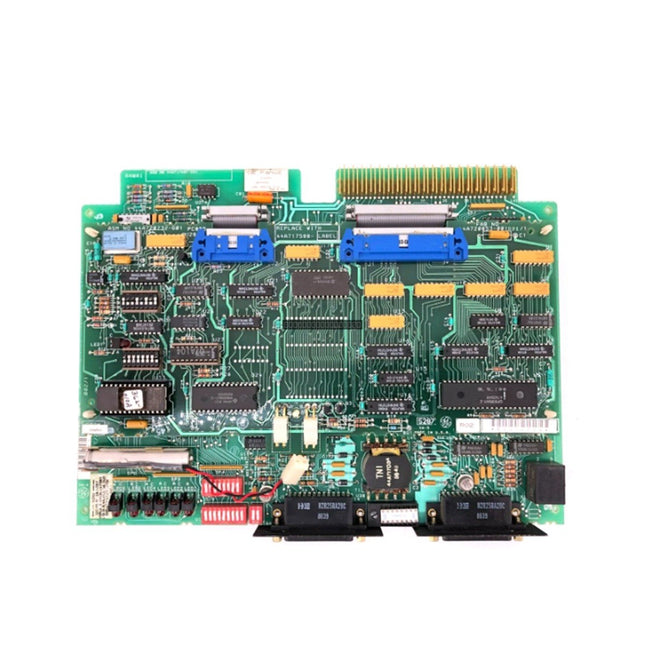

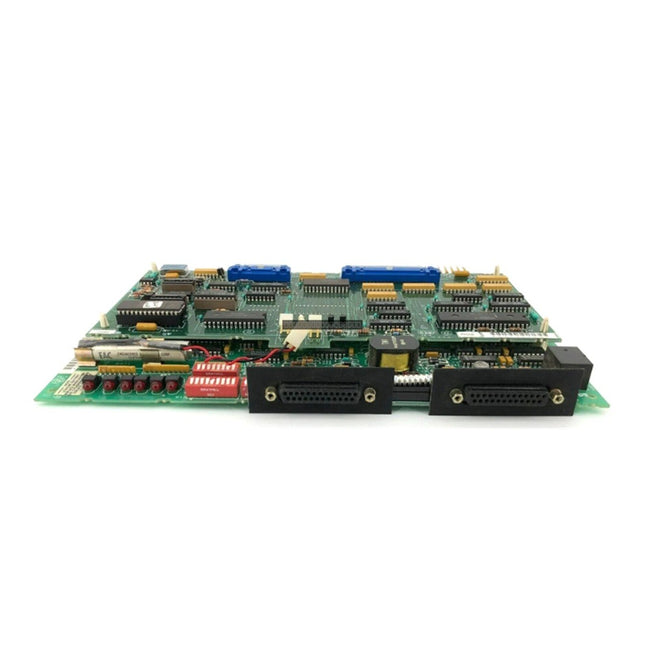

DescriptionThe GE Fanuc IC600BF949 is a versatile ASCII/BASIC module designed for the Series Six programmable controller system. This module provides advanced computational and communication capabilities, enabling the Series Six controller to interface with external devices such as terminals, printers, and computers. It features full-function floating-point math capabilities, making it suitable for complex data processing tasks within industrial automation environments.Features
Supports dual communication ports for flexible connectivity.
Integrated RS-232C and RS-422 communication interface options.
Full-function floating-point math processing.
Designed for seamless integration into Series Six I/O racks.
Supports extended cable runs for RS-422 communication up to 4000 feet.
Technical Specifications
Model
IC600BF949
Manufacturer
General Electric (GE Fanuc)
Series
Series Six
Communication Ports
RS-232C, RS-422
Max RS-232C Cable Length
50 Feet
Max RS-422 Cable Length
4000 Feet
Power Requirements
5V DC, 12V DC (20 Units of Load at 5V DC)
Operating Temperature
0 to 60 degC
Storage Temperature
0 to 70 degC
Slot Requirement
1 Series Six I/O Module Slot
Installation Guidelines
Ensure the Series Six rack power is disconnected before installing or removing the module.
The module occupies a single standard I/O slot in the Series Six backplane.
Use shielded communication cables to minimize EMI interference, especially for long-distance RS-422 runs.
Maintain proper ventilation in the control cabinet to ensure the module operates within the 0 to 60 degC temperature range.
Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.
FAQWhat is the primary function of the IC600BF949 module?The IC600BF949 acts as an ASCII/BASIC communication and processing module for the GE Series Six PLC, allowing for custom BASIC programming and serial communication with peripheral devices.Can this module be used for long-distance communication?Yes, when configured for RS-422, the module supports communication cable lengths of up to 4000 feet.
8 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
7 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

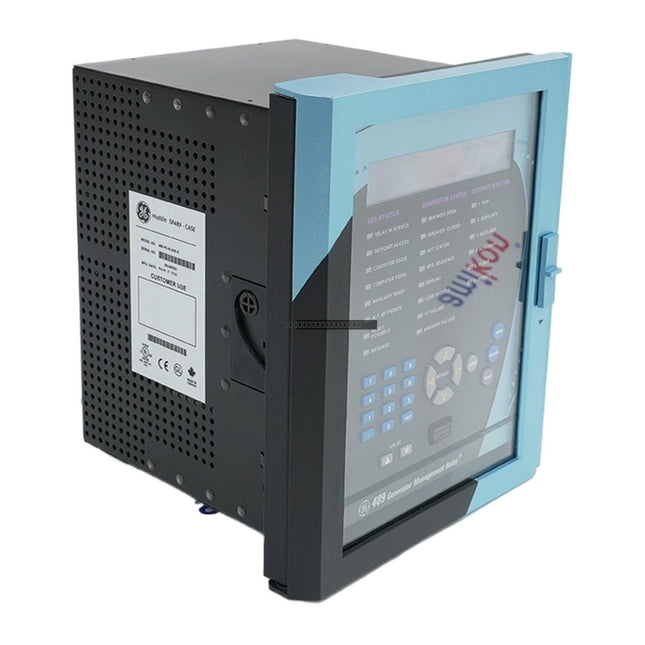

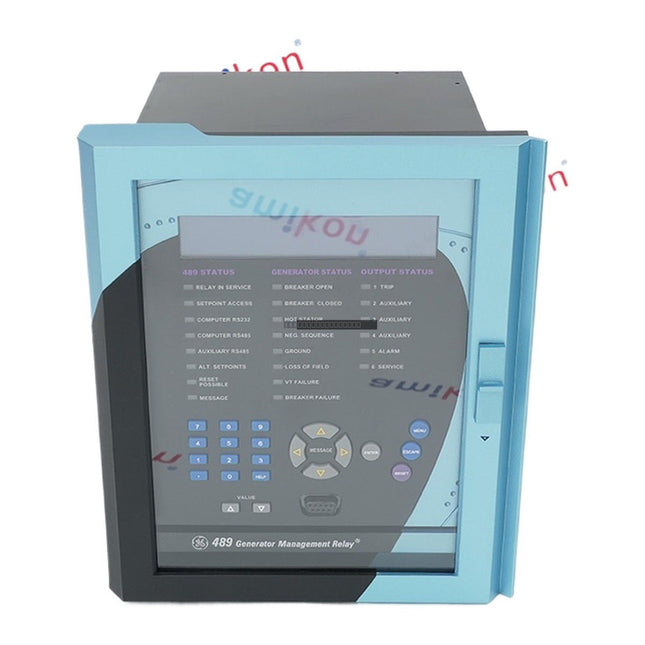

DescriptionThe General Electric Multilin 489-P5-HI-A20-E is a microprocessor-based generator management relay engineered for the comprehensive protection, control, and monitoring of small to medium-sized generators. As a key component of the SR family, it provides advanced features such as generator stator differential protection and detailed diagnostic logging to minimize troubleshooting time. This unit features a draw-out construction, allowing for efficient maintenance and reduced system downtime.Features
Comprehensive generator protection including stator differential, reverse power, overexcitation, and inadvertent energization.
Enhanced display unit for improved local monitoring and setpoint management.
Supports RTD and analog inputs for monitoring critical parameters like bearing temperature and vibration.
Integrated waveform capture, event recording, and data logging capabilities.
Communication support via RS232, RS485, and Modbus protocols.
Built-in waveform simulation tools for setpoint verification.
Applications
Primary and backup protection for industrial power generation systems.
Synchronization and protection management in cogeneration plants.
Critical monitoring for high-demand industrial power environments.
Stator and bearing temperature monitoring for generator health diagnostics.
Technical Specifications
Model
SR489-CASE 489-P5-HI-A20-E
Manufacturer
General Electric (GE Multilin)
Phase Current Inputs
5 Amp
Control Power
90-300 VDC / 70-265 VAC (48-62 Hz)
Analog Outputs
4-20 mA
EFT Standard
IEEE/ANSI C37.90.1
Impulse Voltage Withstand
5 kV
3rd Harmonic Timing Accuracy
+/- 3.0 s
Installation Guidelines
Ensure the device is installed in a clean, dry environment protected from excessive vibration and extreme temperatures.
Verify that the control power supply matches the 90-300 VDC or 70-265 VAC rating before energizing.
Use shielded communication cables for RS485 connections to minimize EMI interference.
The unit utilizes a draw-out design; ensure the chassis is properly seated and locked to maintain electrical continuity.
Always power down the system before inserting or removing the relay module from the rack to prevent electrical arcing or damage to internal components.
Follow standard ESD (Electrostatic Discharge) precautions when handling the module internals.
FAQsWhat is the 489-P5-HI-A20-E?The GE Multilin 489-P5-HI-A20-E is a microprocessor-based generator management relay designed for protecting, controlling, and monitoring small to medium-sized generators.What is the function of the 489-P5-HI-A20-E?It offers complete generator protection, including stator thermal protection, bearing over-temperature monitoring, and negative sequence overcurrent for rotor protection.How do I view metered values?Metered values (voltage, current, power) are available on the front panel display or via communication ports.Does the relay support 4-wire RS485?No, the 489-P5-HI-A20-E communicates only in 2-wire half-duplex mode.What are the analog output ranges?The analog outputs are 4 to 20 mA.
7 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

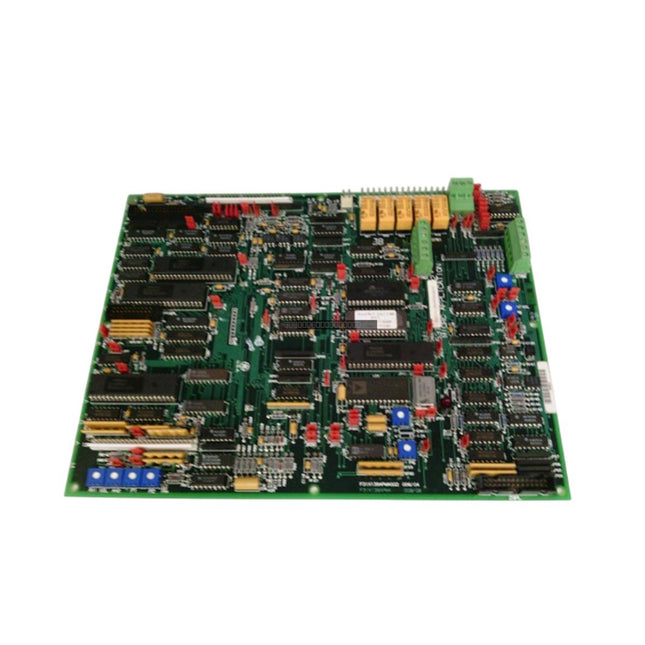

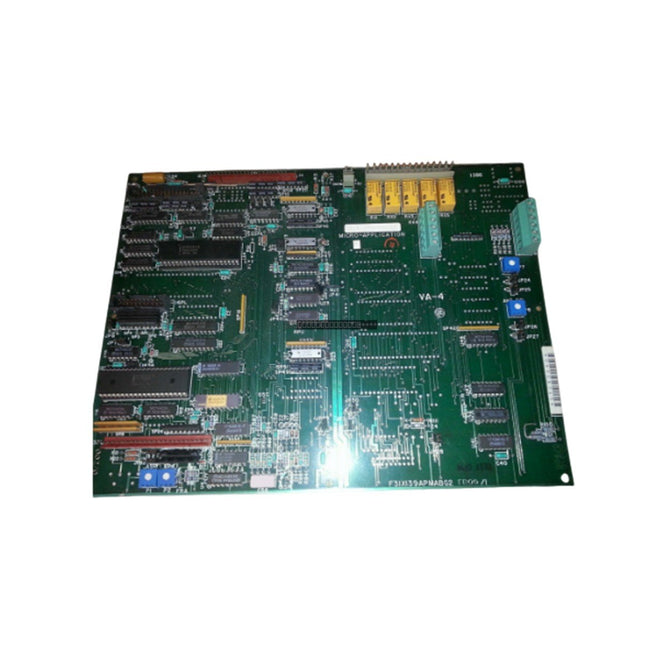

DescriptionThe General Electric 531X139APMARM7 is a controller application board designed for use within GE industrial control systems. This component serves as a critical interface or processing board, facilitating communication and logic execution within the control architecture. As a discontinued item, it is often utilized as a replacement or spare part for legacy automation systems requiring maintenance or restoration to original operational standards.Features
Designed for integration with GE controller hardware.
Functions as a dedicated application board for control logic processing.
Compatible with specified legacy GE control system configurations.
Robust construction suitable for industrial control cabinet environments.
ApplicationsThis controller application board is primarily used in GE drive and control systems, including legacy power conversion and automation platforms. It is typically found in industrial manufacturing, power generation, and heavy process control applications where specific GE controller hardware is deployed.Technical Specifications
Product Model
531X139APMARM7
Spare Model
F31X139APMASG2
Manufacturer
General Electric
Component Type
Controller Application Board
Status
Discontinued by Manufacturer
Installation Guidelines
Ensure all power to the control cabinet is disconnected before attempting to remove or install this board.
Handle the board using proper ESD (Electrostatic Discharge) precautions to prevent damage to sensitive electronic components.
Verify that the slot or mounting position is clean and free of debris before seating the board.
Ensure the board is fully seated in its connector to prevent intermittent signal loss or communication errors.
Check for proper alignment of any ribbon cables or edge connectors associated with the board installation.
Consult the original system manual for specific configuration or jumper settings required for your application.
FAQIs the 531X139APMARM7 still being manufactured?No, this product has been discontinued by General Electric. Units provided are typically refurbished, surplus, or legacy stock.What is the spare model for this board?The documented spare model for this component is F31X139APMASG2.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
