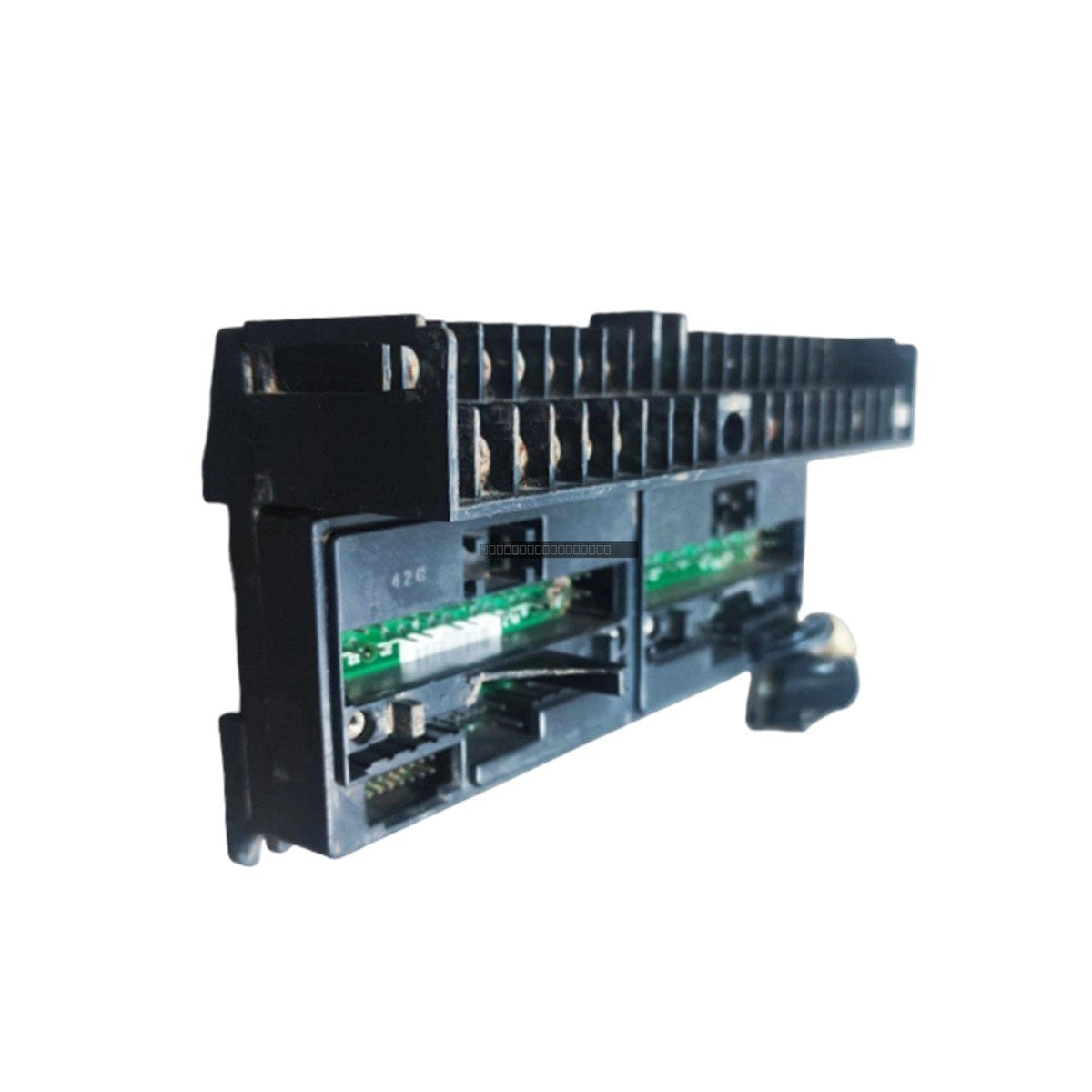

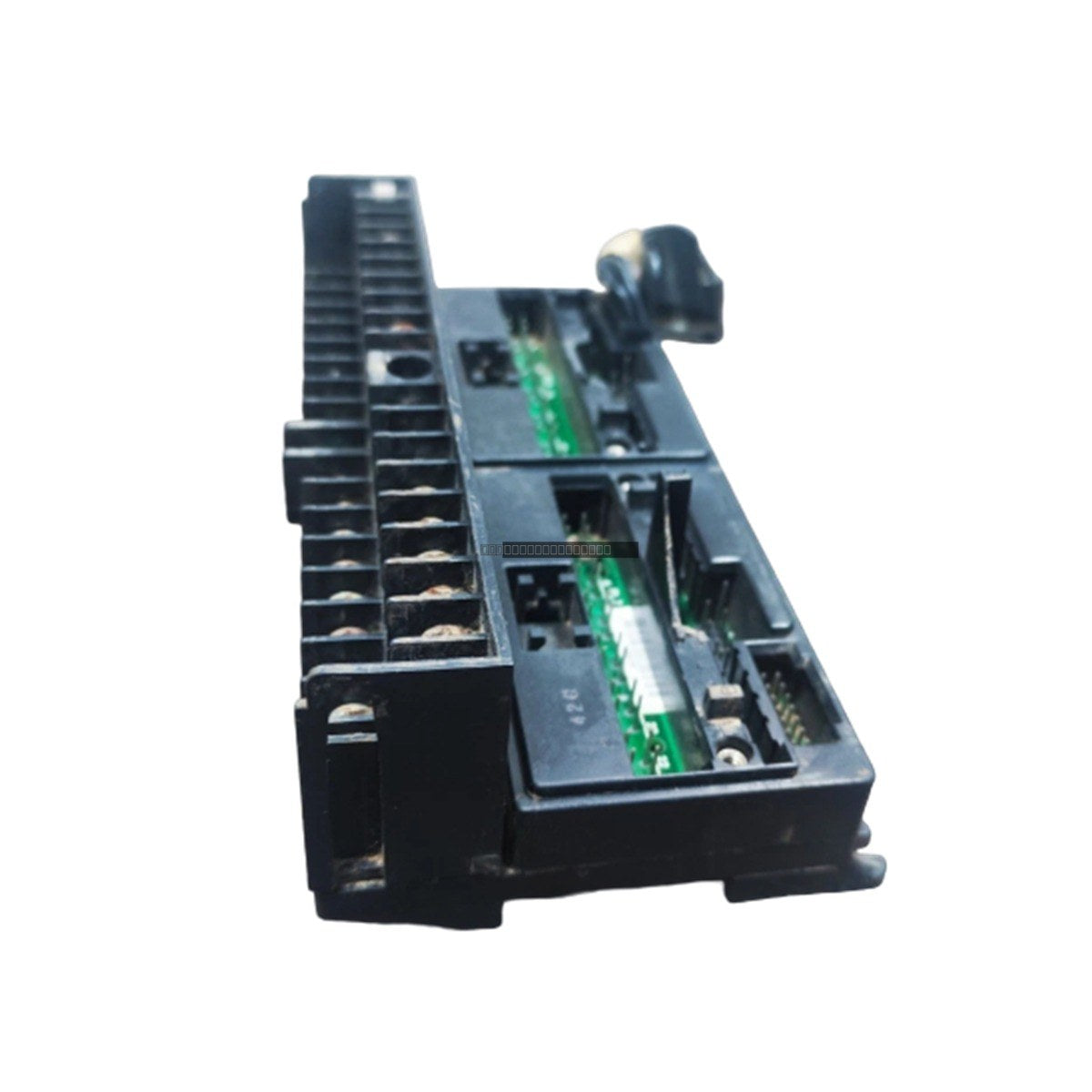

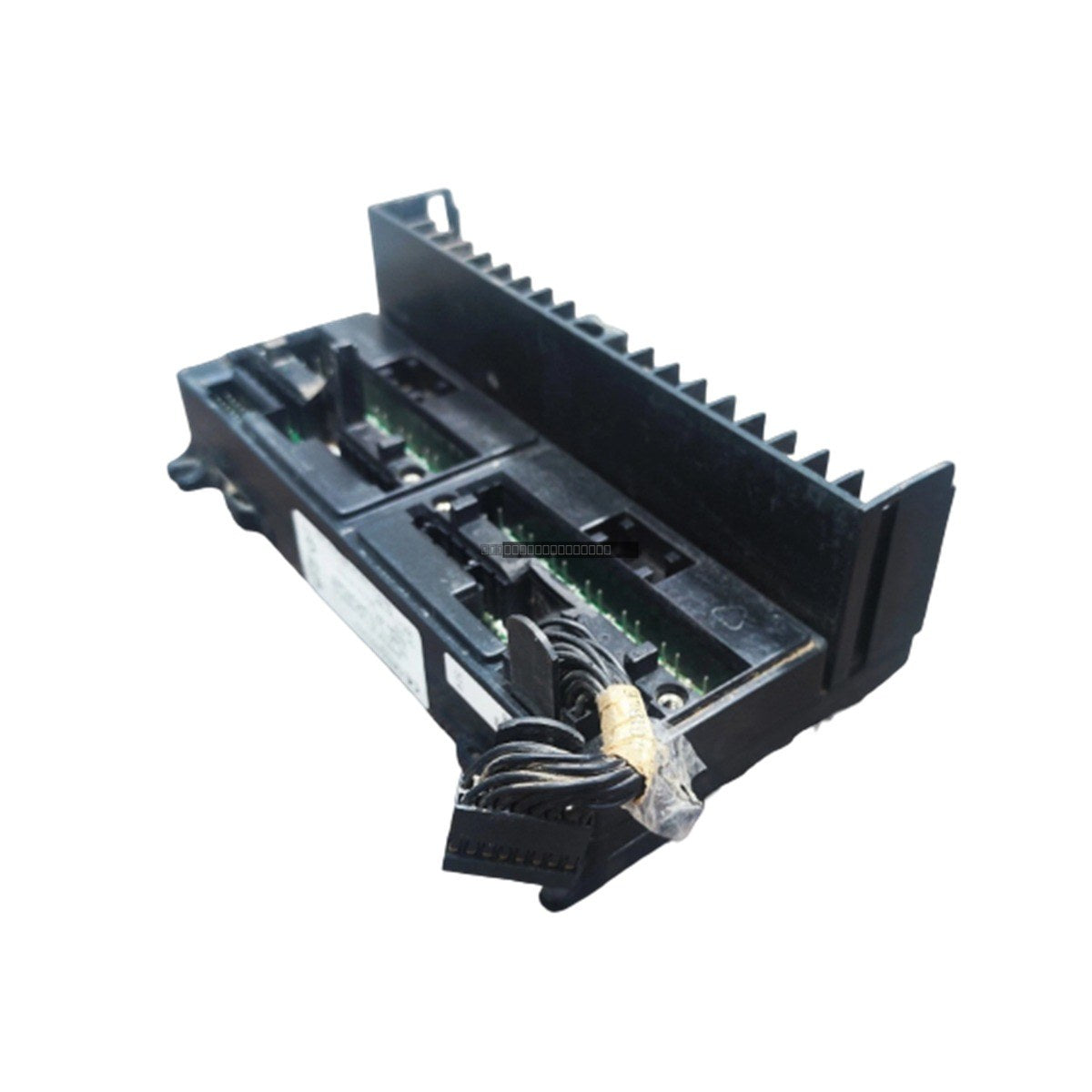

The GE Fanuc IC670CHS101C is a high-density I/O terminal block designed for the Field Control series. This component serves as the physical interface for field wiring, providing a secure and organized connection point for I/O modules within the control system architecture.
Features
- Designed for integration with the GE Field Control system series.
- Supports up to 2 I/O modules per terminal block assembly.
- Features 37 individual terminal points for versatile field wiring configurations.
- Hot-swap compatible, allowing for maintenance and module replacement without interrupting system power.
- Robust construction suitable for industrial control environments.
Technical Specifications
| Product Model |
IC670CHS101C |
| Component Type |
I/O Terminal Block |
| Terminal Count |
37 |
| Module Capacity |
2 modules per block |
| Wiring Gauge |
14-22 AWG |
| Maximum Terminal Current |
10 Amperes |
| Tariff Code |
8537101190 |
Installation Guidelines
- Ensure the system power is switched off before installing or removing the terminal block or associated I/O modules.
- Verify that the terminal block is securely seated on the mounting rail to maintain proper electrical contact with the backplane.
- Use appropriate wire stripping lengths for 14-22 AWG conductors to ensure a secure connection without exposing excess copper.
- Maintain proper cable routing practices to minimize electromagnetic interference (EMI) and ensure adequate airflow for heat dissipation.
- Handle with care to prevent damage to the connector pins during alignment and insertion.
FAQ
Is the IC670CHS101C hot-swappable? Yes, this terminal block is designed to be hot-swap compatible, supporting module replacement while the system is operational.
How many modules can this block accommodate? This specific terminal block is designed to support up to 2 I/O modules.
What is the wire size range for the terminals? The terminals are designed to accommodate wire gauges ranging from 14 to 22 AWG.
