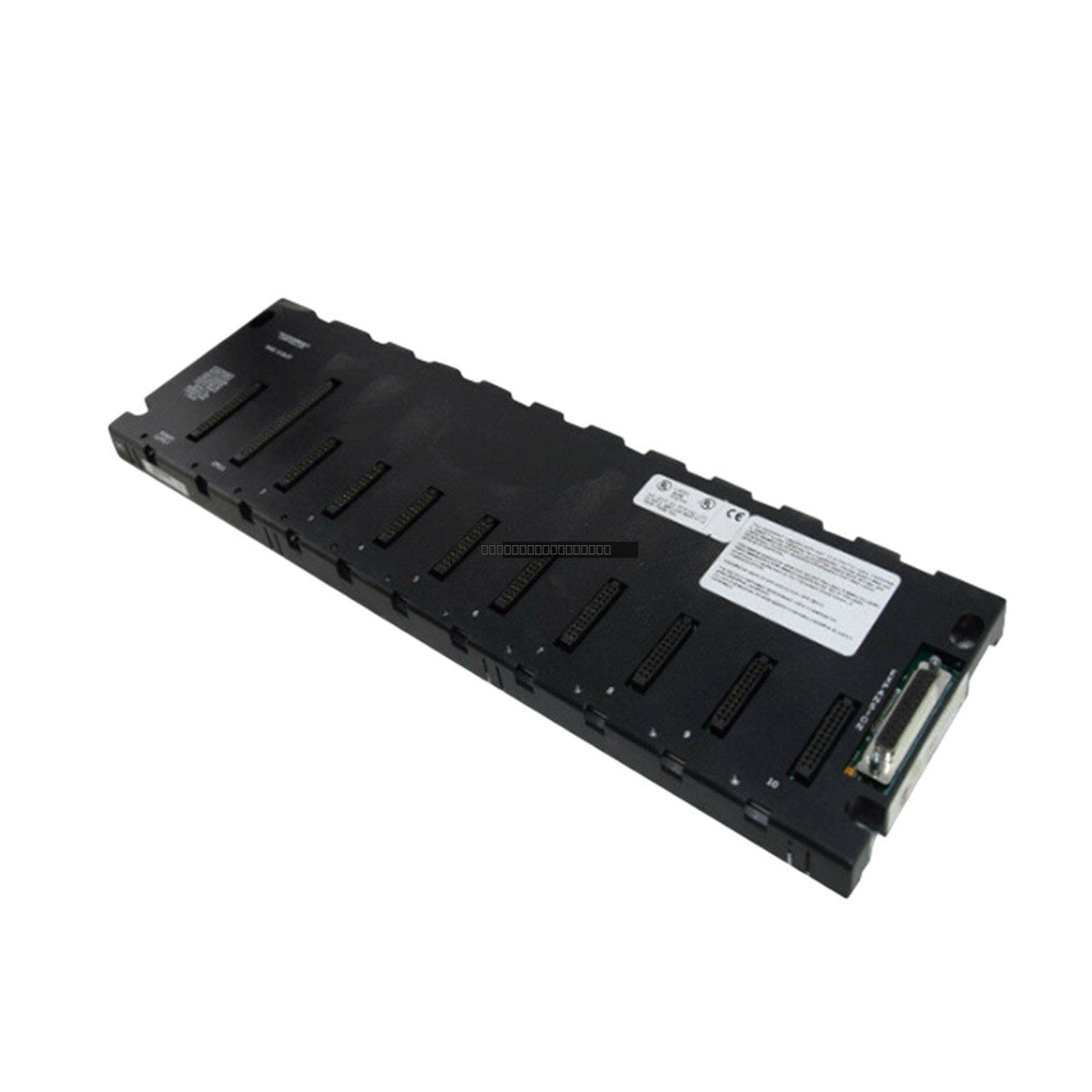

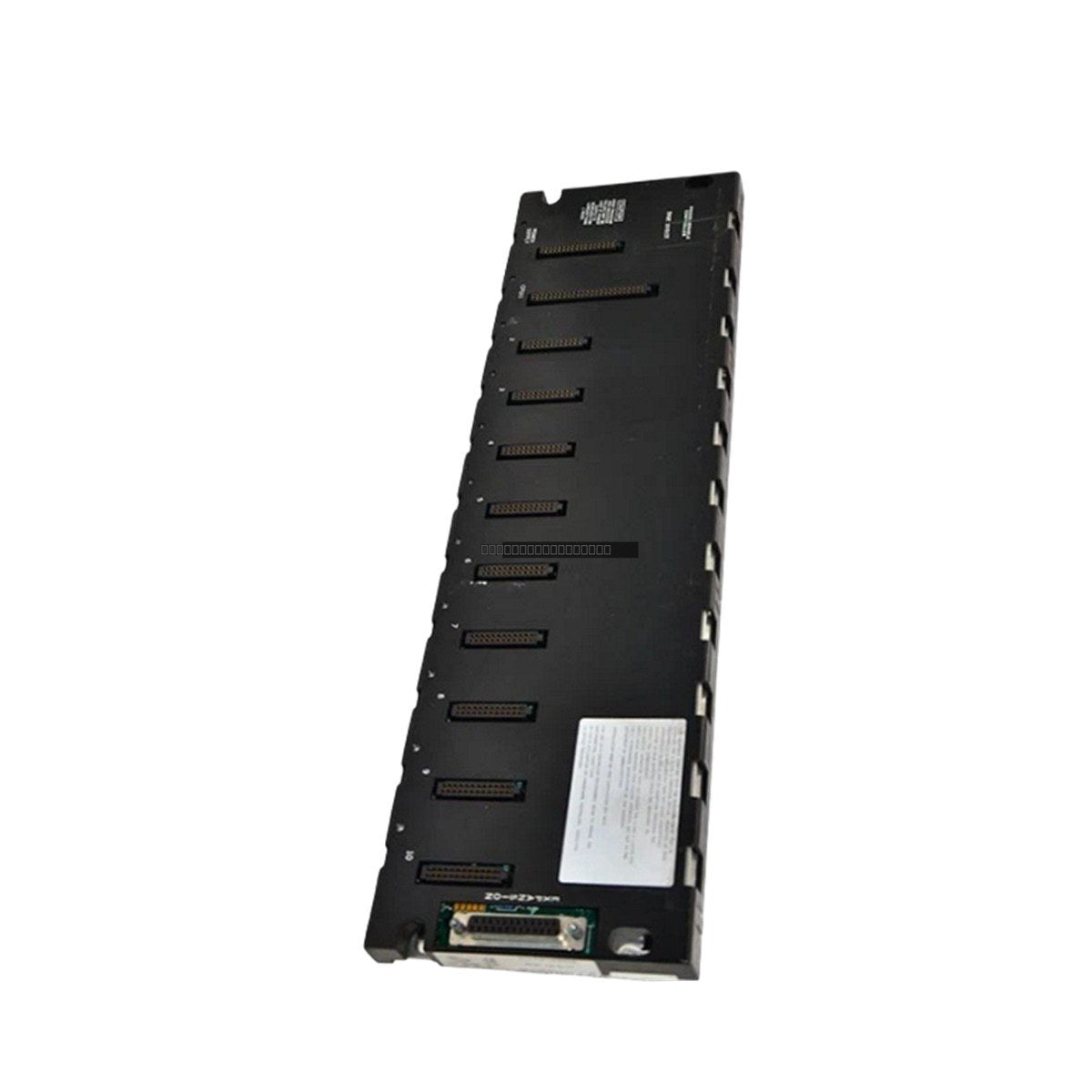

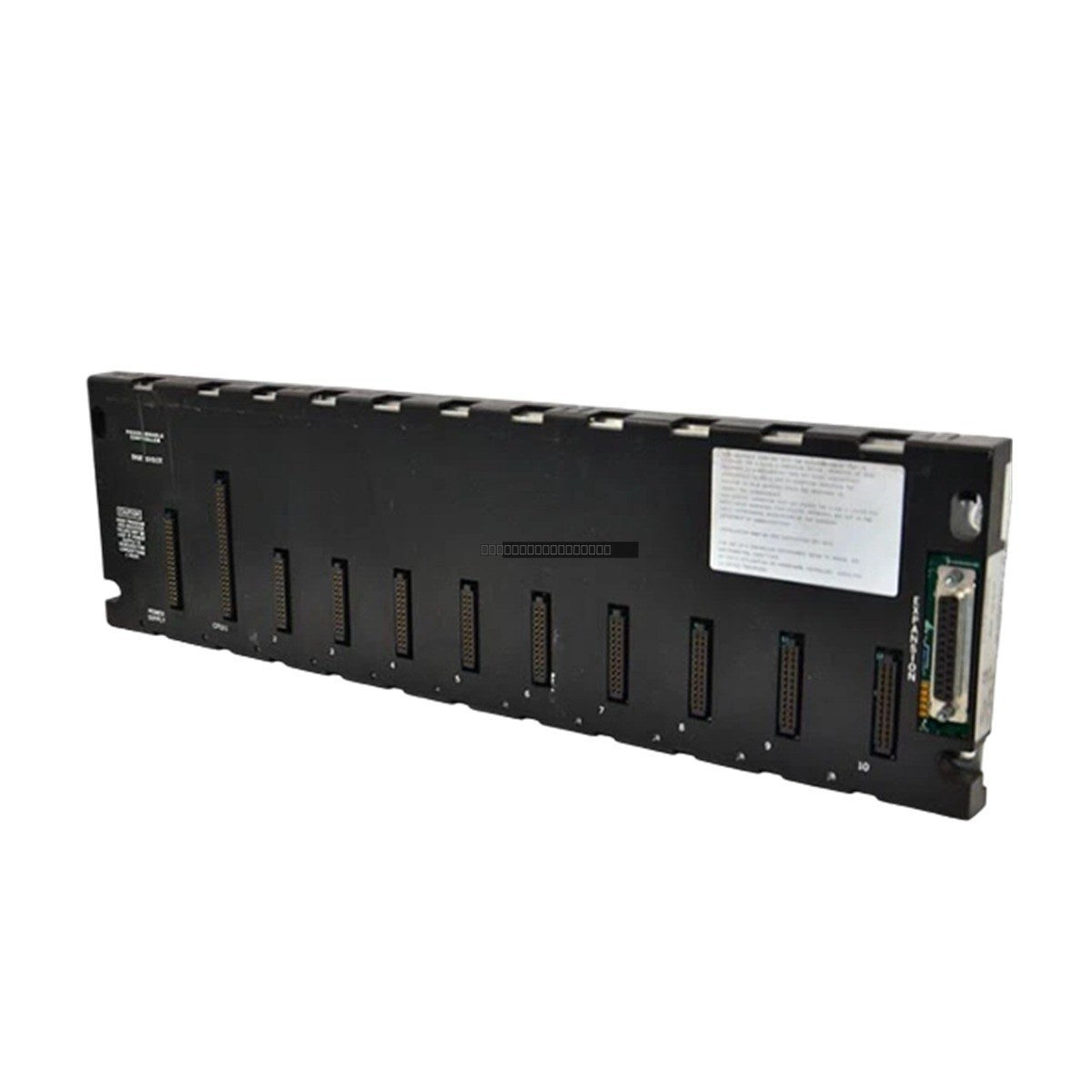

The GE Fanuc IC693CHS391K is a 10-slot expansion baseplate designed for the Series 90-30 programmable logic controller (PLC) system. This modular baseplate provides the physical mounting and electrical backplane connectivity required for CPU modules, I/O modules, and specialty option modules. It is engineered to facilitate system expansion, allowing users to increase the I/O capacity of their control architecture by providing nine dedicated slots for I/O and one dedicated slot for the CPU or specialty module.
Features
- Ten total slots for flexible module configuration.
- Dedicated slot 1 for CPU or specialty module support.
- Nine slots available for standard I/O modules.
- Integrated 25-pin female connector for reliable communication and expansion.
- Operates at 5 Volts DC with a current consumption of 420 mA.
- Compatible with Series 90-30 backplane architecture.
Technical Specifications
| Manufacturer |
General Electric (GE Fanuc) |
| Series |
Series 90-30 |
| Part Number |
IC693CHS391K |
| Total Slots |
10 |
| CPU/Specialty Slots |
1 (Slot 1) |
| I/O Slots |
9 (Slots 2-10) |
| Voltage |
5V DC |
| Current |
420 mA |
| Connector Type |
25-Pin Female |
Installation Guidelines
- Ensure the power supply is disconnected before installing or removing the baseplate or any modules.
- Mount the baseplate on a flat, grounded metal surface to ensure proper EMI shielding and heat dissipation.
- When inserting modules, ensure they are fully seated in the backplane connector to prevent intermittent communication errors.
- Maintain adequate clearance around the baseplate to allow for proper airflow and cooling, as the system relies on convection.
- Use appropriate shielded cabling for expansion connections to minimize signal interference in high-noise industrial environments.
- Handle modules using ESD-safe practices to prevent damage to sensitive electronic components.
FAQ
What is the primary function of the IC693CHS391K?
This unit acts as an expansion baseplate for the Series 90-30 PLC, providing the necessary backplane slots to add more I/O modules to an existing control system.
Can this baseplate be used as a standalone CPU base?
Yes, it features a dedicated slot 1 designed to house the CPU module, allowing it to function as the primary or expansion base for your PLC configuration.
What is the power requirement for this baseplate?
The baseplate operates on 5V DC and draws 420 mA of current during operation.
