Description

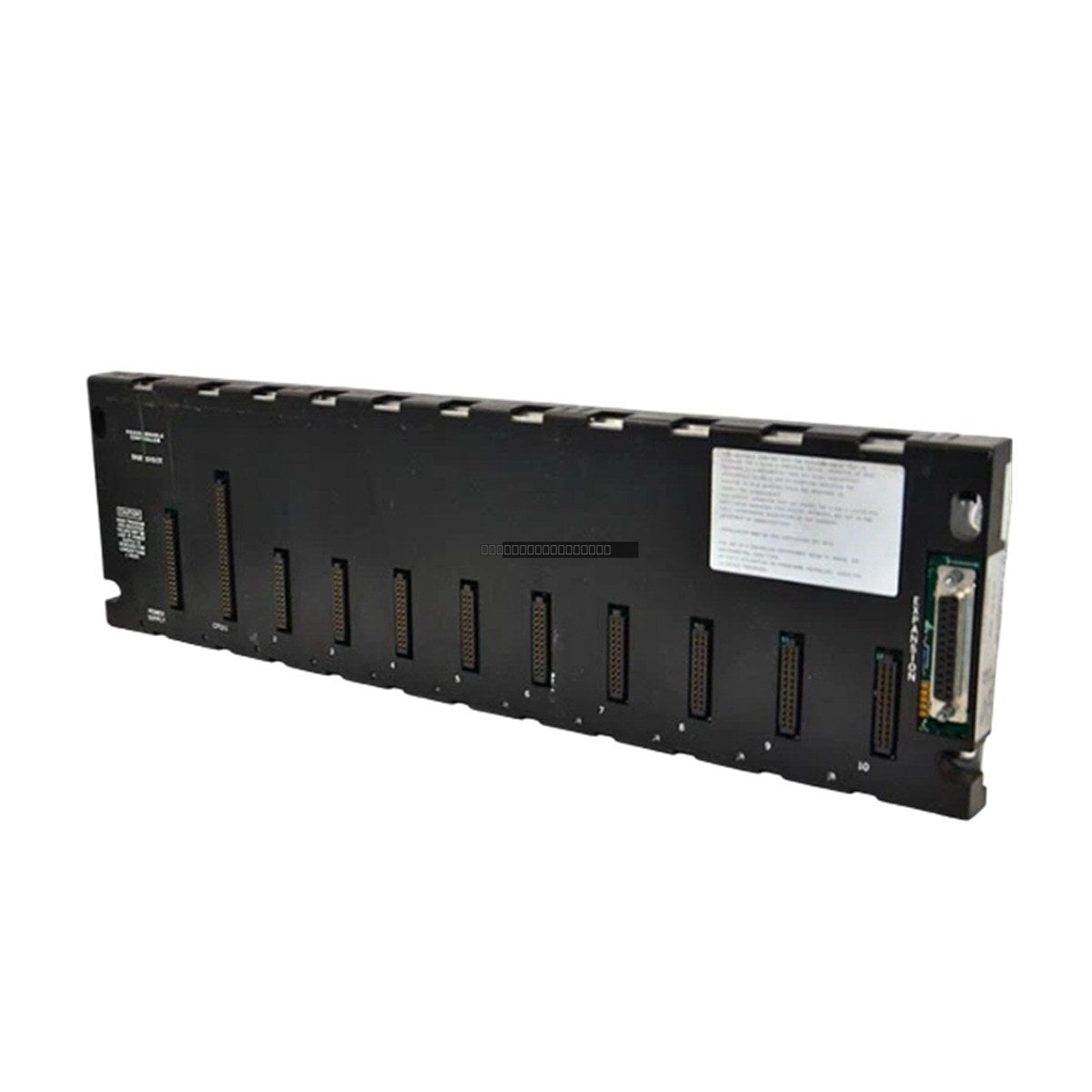

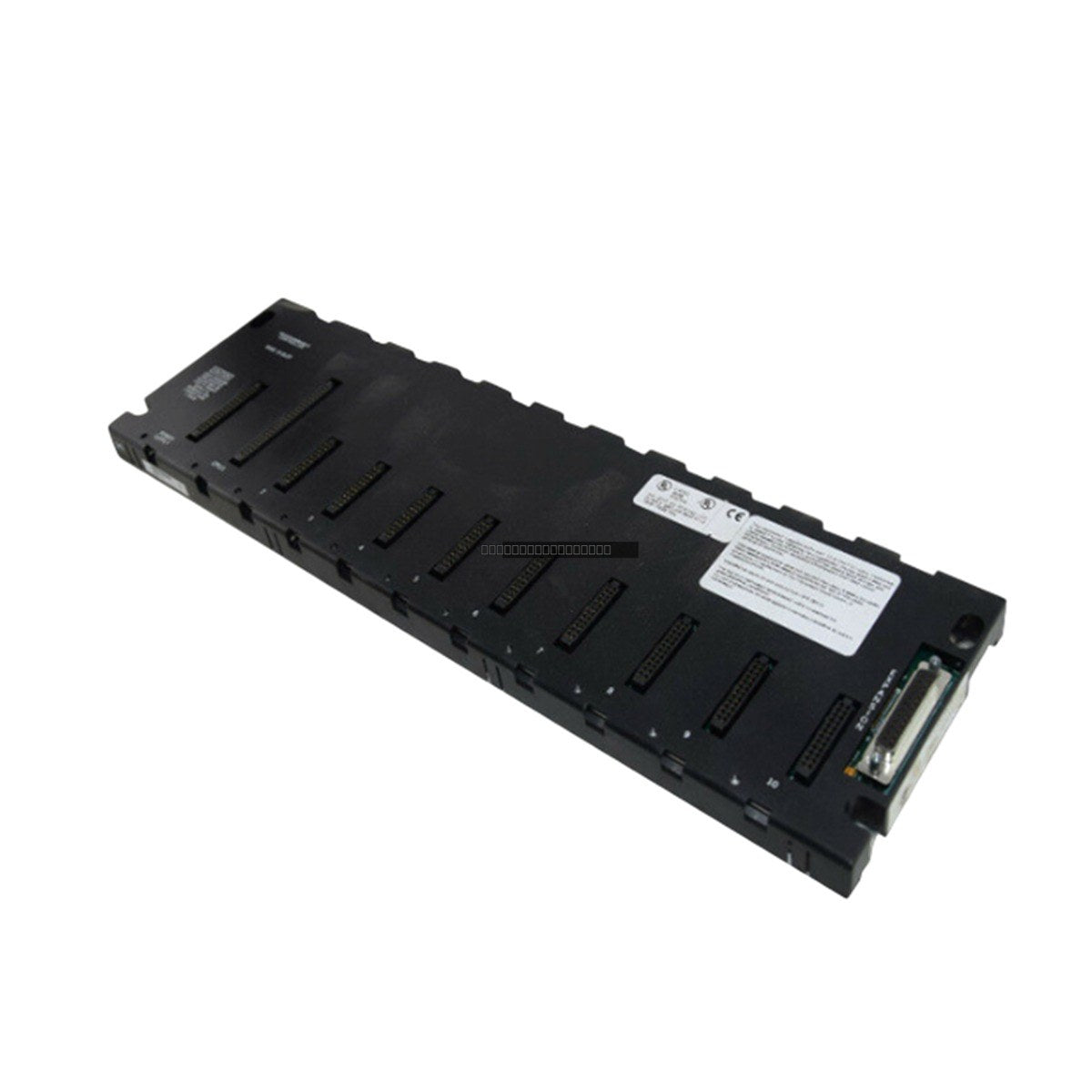

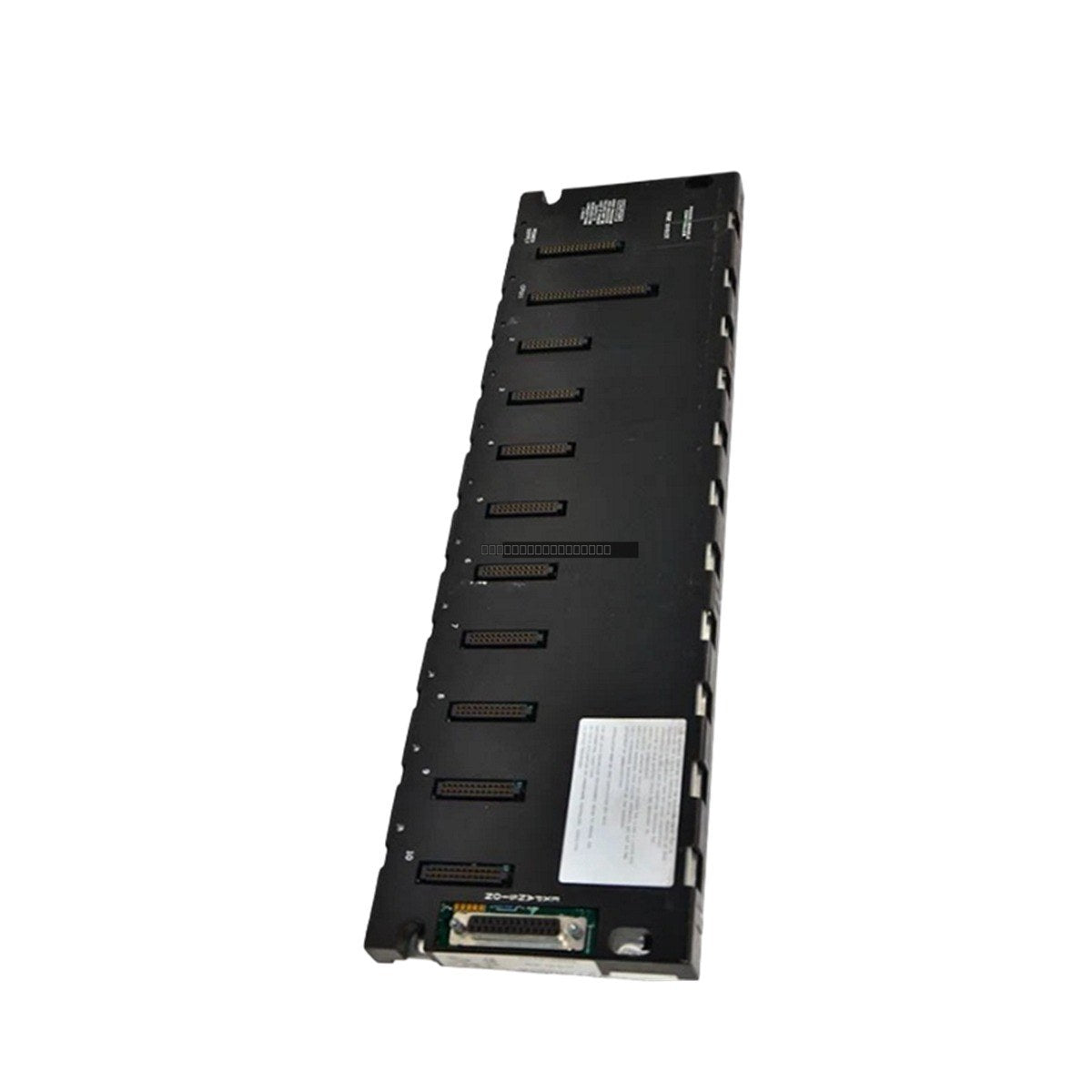

The General Electric IC693CHS391D is a 10-slot expansion baseplate designed for the Series 90-30 Programmable Logic Controller (PLC) system. This modular baseplate provides the physical mounting and electrical backplane connectivity required for expanding I/O capacity in industrial automation applications. It is engineered to support a single CPU or specialty module in the first slot, with nine additional slots available for various I/O or option modules.
Features
- Ten total slots for flexible system configuration.
- Dedicated slot 1 for CPU or specialty module support.
- Nine slots for I/O or option modules.
- Integrated 25-pin female connector for expansion cable interface.
- Compatible with standard GE Fanuc Series 90-30 rack-mount architectures.
Technical Specifications
| Model Number |
IC693CHS391D |
| Series |
Series 90-30 |
| Total Slots |
10 |
| CPU/Specialty Slots |
1 (Slot 1) |
| I/O Slots |
9 |
| Operating Voltage |
5V DC |
| Current Consumption |
420 mA |
| Connector Type |
25-Pin Female |
Installation Guidelines
- Ensure the power supply is disconnected before installing or removing the baseplate or any modules.
- Mount the baseplate securely on a flat, grounded metal surface to ensure proper chassis grounding.
- Maintain adequate clearance around the baseplate to allow for proper airflow and cooling, preventing thermal degradation of the modules.
- When inserting modules, ensure they are fully seated in the backplane connector before securing them with the module retention screws.
- Use shielded cables for expansion connections to minimize electromagnetic interference (EMI) in high-noise industrial environments.
- Handle modules using ESD-safe practices to prevent damage to sensitive internal circuitry.
FAQ
What is the primary function of the IC693CHS391D?
This unit serves as an expansion baseplate for the GE Series 90-30 PLC system, allowing for the addition of extra I/O modules to an existing control rack configuration.
Can this baseplate hold a CPU?
Yes, the IC693CHS391D is designed with one dedicated slot (Slot 1) specifically for a CPU or a specialty module, while the remaining nine slots are reserved for I/O and other option modules.
What is the power requirement for this baseplate?
The baseplate operates on 5V DC and has a current consumption of 420 mA.
