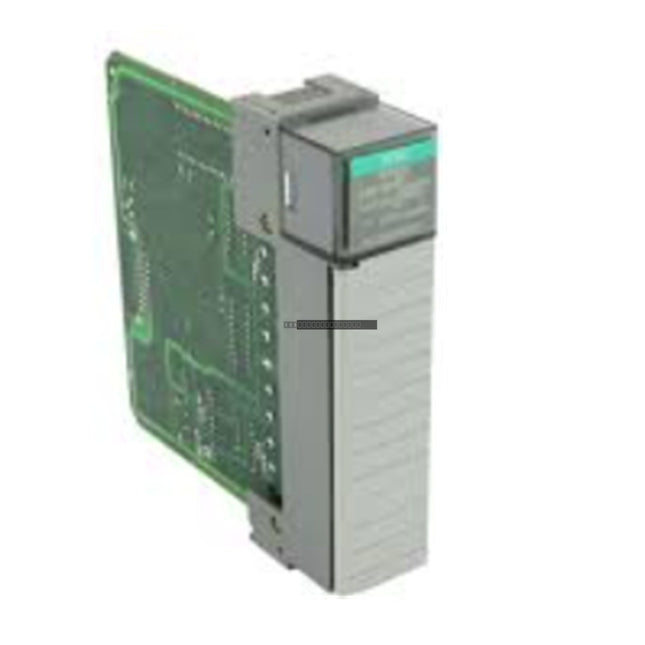

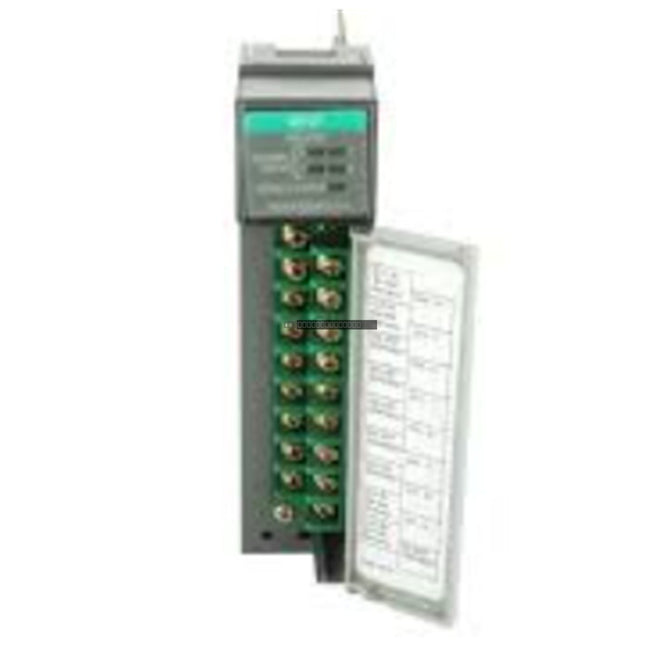

DescriptionThe Allen-Bradley 1746-BAS is a specialized co-processor module designed for the SLC 500 programmable controller system. It enables the execution of independent BASIC programs, allowing for advanced data processing, complex string manipulation, and custom communication protocols that standard I/O modules cannot handle. This module acts as an intelligent bridge between the PLC and various serial-based peripheral devices.Features
Executes independent BASIC programs for custom data manipulation and logic.
Equipped with 24 KB of battery-backed RAM for program and data storage.
Three configurable communication ports for versatile device interfacing.
Supports RS-232, RS-422, and RS-485 electrical standards.
Integrated DH-485 network port for system-wide communication.
Configurable DF1 protocol support on PRT2 for modem and serial connectivity.
ApplicationsThe 1746-BAS is commonly utilized in industrial environments requiring integration with non-Allen-Bradley hardware. Typical applications include interfacing with bar code scanners, industrial printers, modems, weigh scales, and custom serial instrumentation that requires specific data formatting or protocol translation.Technical Specifications
Parameter
Specification
Brand
Allen-Bradley
Product Line
SLC 500
Module Type
BASIC Language Co-processor
Memory
24 KB (Battery-backed RAM)
PRT1/PRT2 Standards
RS-232/423, RS-422, RS-485
PRT3 Standard
DH-485 (Non-isolated)
Baud Rates
300 to 19200 bps
Backplane Current (5V)
150 mA
Backplane Current (24V)
40 mA
Operating Temperature
0 to 60 degC (32 to 140 degF)
Operating Shock
30 g
Installation Guidelines
Ensure the SLC 500 chassis power is disconnected before installing or removing the module.
Seat the module firmly into the designated SLC 500 chassis slot and secure it using the integrated mounting screws.
Use shielded communication cables to minimize electromagnetic interference (EMI) in industrial environments.
Maintain proper ventilation within the enclosure to ensure the module operates within the 0 to 60 degC temperature range.
Follow standard ESD precautions when handling the module to prevent damage to internal circuitry.
Note: Enabling the DF1 protocol on PRT2 will disable the DH-485 network port (PRT3).
FAQWhat is the primary function of the 1746-BAS module?The 1746-BAS serves as a co-processor that runs BASIC programs to handle tasks like custom serial communication, string processing, and data collection, offloading these tasks from the main SLC 500 processor.Can the 1746-BAS communicate with non-AB devices?Yes, the module is specifically designed to interface with third-party serial devices such as bar code scanners, printers, and weigh scales using its configurable RS-232/422/485 ports.What happens if I enable DF1 on PRT2?Enabling the DF1 protocol on the second serial port (PRT2) will automatically disable the DH-485 network port (PRT3), as they share internal resources.
10 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
2 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

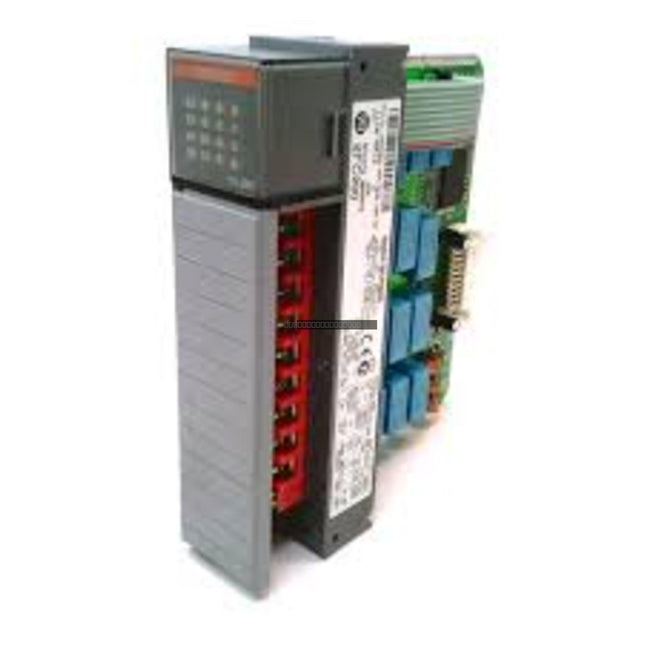

DescriptionThe Allen-Bradley 1746SC-IA8I is a high-performance isolated digital input module designed for use with the SLC 500 programmable logic controller platform. Manufactured by Spectrum Controls, this module provides eight individually isolated 100/120V AC/DC digital inputs, ensuring robust signal integrity and protection against ground loops in complex industrial control environments. It is engineered to integrate seamlessly into existing SLC 500 chassis configurations.Features
8 individually isolated input points, providing 1 point per common for maximum flexibility.
Compatible with 100/120V AC/DC signal levels.
Designed specifically for the Allen-Bradley SLC 500 system architecture.
High-density I/O design to optimize rack space.
Robust isolation to mitigate electrical noise and interference.
ApplicationsThis module is ideal for industrial automation applications where electrical isolation between input channels is required to prevent cross-talk or ground-related faults. Common use cases include monitoring AC/DC sensors, limit switches, and push-button signals in manufacturing lines, power distribution panels, and process control systems.Technical Specifications
Model
1746SC-IA8I
Input Type
Isolated Digital Input
Number of Inputs
8
Voltage Rating
100/120V AC/DC
Nominal Input Current
16 mA @ 120V AC
Max Off-state Current
4 mA @ 20V AC
Max Power Dissipation
4 W
Manufacturer
Allen-Bradley / Spectrum Controls
Installation Guidelines
Ensure the SLC 500 chassis power is disconnected before installing or removing the module.
Handle the module using ESD-safe practices to prevent damage to internal electronic components.
Seat the module firmly into the designated slot in the SLC 500 chassis and secure it using the integrated locking mechanism.
Ensure that field wiring is properly shielded and routed away from high-voltage AC lines to minimize EMI.
Verify that the common connections for each isolated input are correctly wired according to the specific application requirements.
FAQIs the 1746SC-IA8I compatible with standard SLC 500 racks?Yes, this module is designed to be fully compatible with the standard Allen-Bradley SLC 500 chassis backplane.Does this module require external power for the inputs?The module receives its backplane power from the SLC 500 chassis, but the input signals themselves must be powered by an external 100/120V AC/DC source.
2 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
6 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

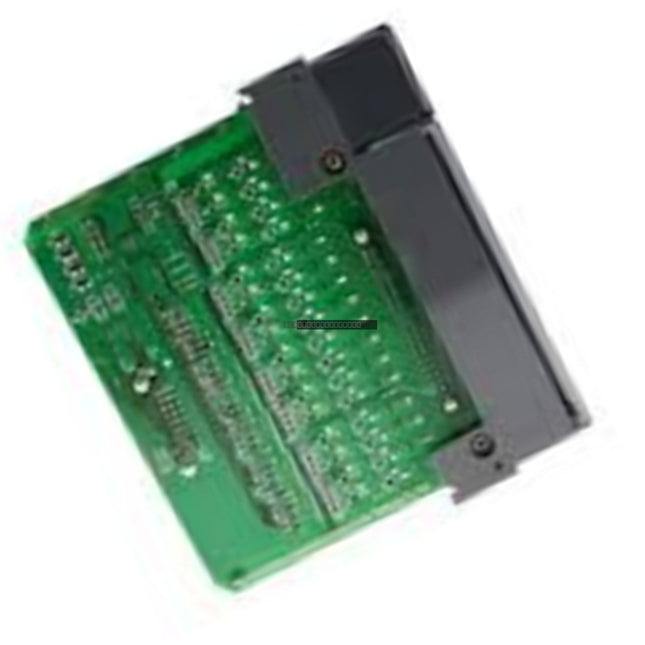

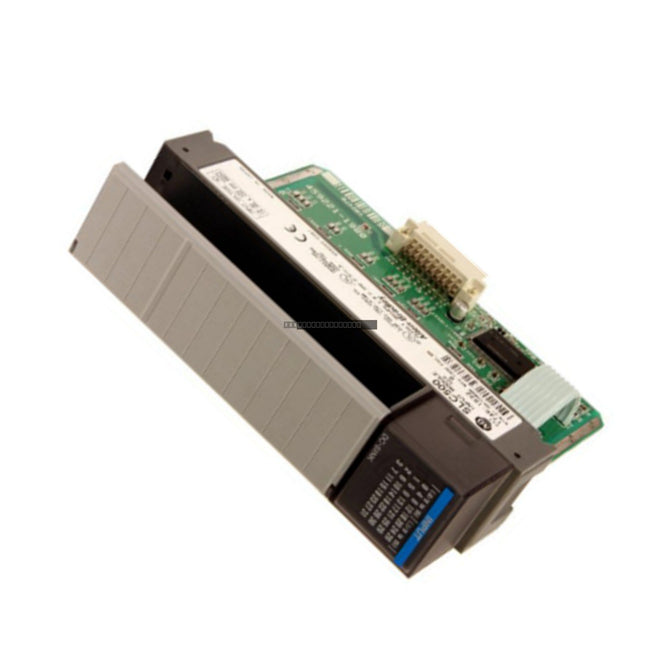

DescriptionThe Allen-Bradley 1746-IB32 is a high-density 32-point DC digital input module designed for the SLC 500 programmable logic controller system. This module provides reliable signal acquisition for industrial control applications, featuring a sink-load configuration and a robust design suitable for standard 24VDC control environments. It is engineered to integrate seamlessly into the SLC 500 chassis, offering efficient I/O expansion for complex automation tasks.Features
32-point digital DC input capacity for high-density I/O requirements.
Sink-load input configuration with 8 points per common.
Wide operating voltage range: 15-30 VDC at 50 degC and 15-26.4 VDC at 60 degC.
Low backplane power consumption of 50 mA at 5 V.
Designed for direct compatibility with the Allen-Bradley SLC 500 controller series.
ApplicationsThe 1746-IB32 module is widely utilized in industrial automation systems where high-density digital input monitoring is required. Typical applications include machine control, process monitoring, and integration with sensors, limit switches, and other 24VDC signaling devices within manufacturing plants and distributed control systems.Technical Specifications
Product Model
1746-IB32
Input Type
Digital DC Input
Number of Inputs
32
Points per Common
8
Input Voltage Range
15-30 VDC (at 50 degC) / 15-26.4 VDC (at 60 degC)
Backplane Current
50 mA at 5 V
Load Type
Sink
Installation Guidelines
Ensure the SLC 500 chassis power is disconnected before installing or removing the module to prevent electrical damage.
Slide the module into the designated slot in the SLC 500 chassis, ensuring proper alignment with the backplane connector.
Secure the module using the integrated locking tabs or mounting screws to ensure a stable connection and proper grounding.
Use appropriate shielded cabling for input signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Maintain adequate ventilation around the chassis to ensure operation within the specified temperature ranges (up to 60 degC).
Handle with care using ESD-safe practices to prevent damage to internal electronic components.
FAQWhat is the input voltage for the 1746-IB32?The module operates with a DC input voltage range of 15-30 VDC at 50 degC, or 15-26.4 VDC at 60 degC.How many points does this module support?The 1746-IB32 supports 32 digital inputs, organized into 8 points per common.Is this module compatible with all SLC 500 systems?The 1746-IB32 is designed for the SLC 500 platform. Please verify your specific chassis and power supply capacity to ensure compatibility with the module's backplane current draw of 50 mA.
6 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
6 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

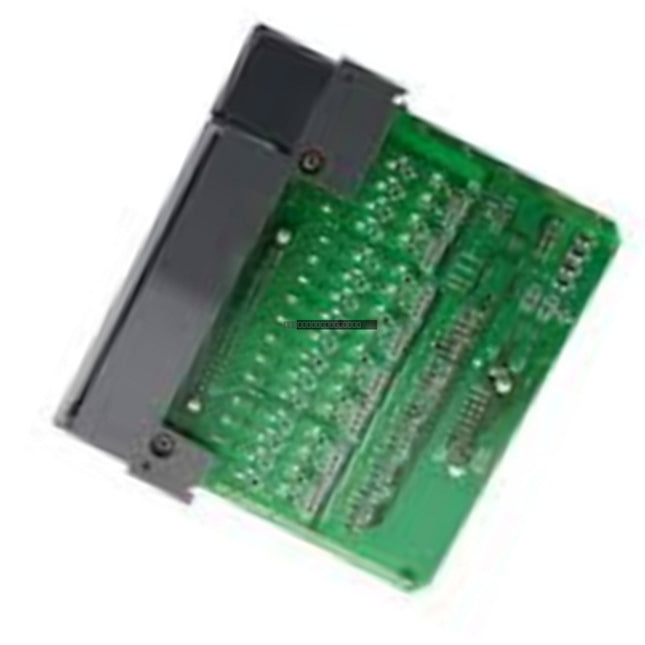

DescriptionThe 1746SC-IN04VI is a high-precision, four-channel analog output module engineered by Spectrum Controls for the Allen-Bradley SLC 500 platform. The 'VI' designation signifies its versatile dual-mode capability, allowing each of the four channels to be independently configured for either voltage or current output. This module is designed for industrial applications requiring high resolution and robust electrical isolation to maintain signal integrity across diverse field devices.Features
Four independently configurable analog output channels.
Individual channel-to-channel isolation (500V AC continuous).
16-bit resolution for high-precision control.
Supports multiple current ranges: 0-20 mA, 4-20 mA, and 0-21 mA.
Supports multiple voltage ranges: +/- 10V, 0-10V, 0-5V, and 1-5V DC.
Fast 1 ms step response time to 95% of full scale.
Designed specifically for the Allen-Bradley SLC 500 I/O chassis.
ApplicationsThis module is ideal for process control environments where ground loops and electrical noise are common. Typical applications include controlling variable frequency drives (VFDs), actuators, proportional valves, and other field devices that require isolated, high-accuracy analog signals.Technical Specifications
Model
1746SC-IN04VI
Manufacturer
Spectrum Controls
Product Line
SLC 500
Channels
4 (Independently Configurable)
Resolution
16-bit
Current Ranges
0-20 mA, 4-20 mA, 0-21 mA
Voltage Ranges
+/- 10V, 0-10V, 0-5V, 1-5V DC
Step Response
1 ms (to 95% of full scale)
Accuracy (Current)
0.08% of full scale @ 25 degC
Accuracy (Voltage)
0.10% of full scale @ 25 degC
Backplane Current
120 mA @ 5V DC / 250 mA @ 24V DC
Thermal Dissipation
5 Watts (Maximum)
Installation Guidelines
Ensure the SLC 500 chassis power is disconnected before installing or removing the module.
Verify that the module is fully seated in the chassis slot and secured with the provided screws.
Use shielded twisted-pair cabling for all analog signals to minimize EMI interference.
Maintain proper grounding practices to ensure the effectiveness of the 500V channel-to-channel isolation.
Ensure adequate ventilation around the chassis to prevent exceeding the 5W thermal dissipation limit.
FAQCan I mix voltage and current signals on the same module? Yes, the 1746SC-IN04VI allows each of the four channels to be independently configured for either voltage or current output.Does this module provide isolation between channels? Yes, the module features individual channel-to-channel isolation, which prevents ground loops and signal crosstalk between connected devices.
6 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
6 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

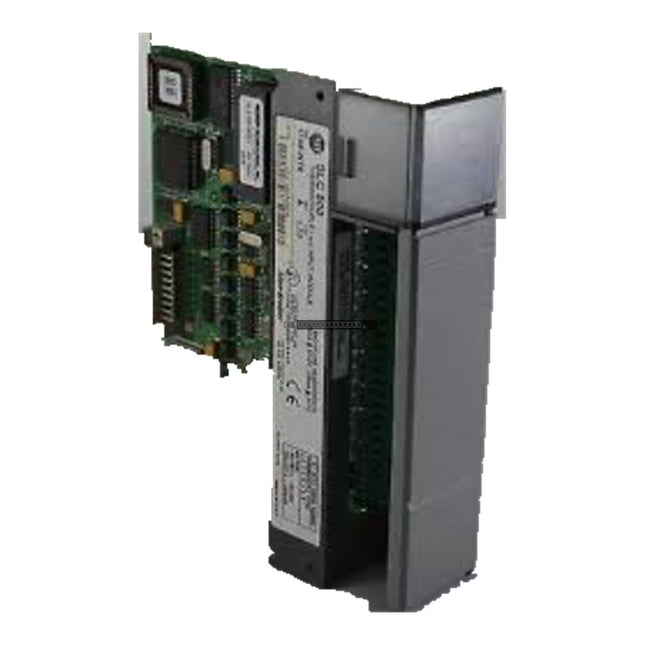

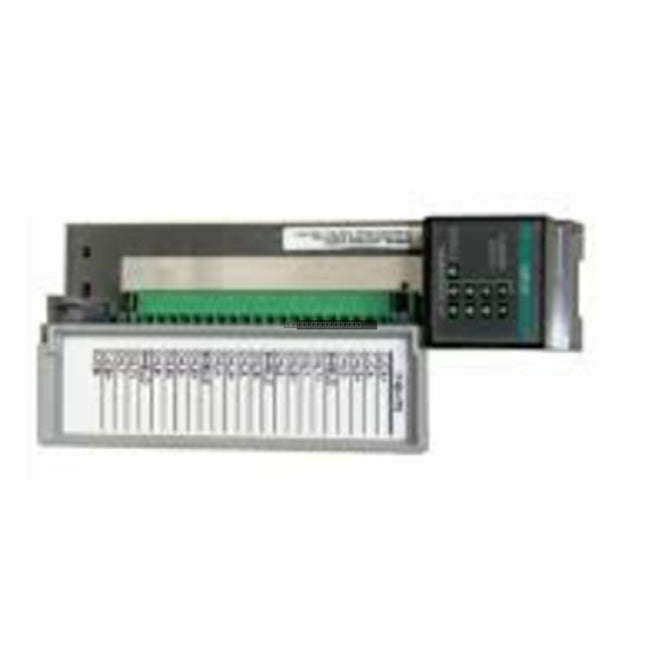

DescriptionThe Allen-Bradley 1746-NR4 is a 4-point resistance input module designed for the SLC 500 programmable logic controller system. This analog input module is specifically engineered to interface with RTD (Resistance Temperature Detector) sensors and resistive devices, providing high-precision temperature or resistance monitoring in industrial automation environments. It allows for the integration of various resistance-based sensors directly into the SLC 500 rack, facilitating reliable data acquisition for process control applications.Features
4-channel analog input for RTD and resistance monitoring.
Compatible with the Allen-Bradley SLC 500 chassis-based system.
Configurable bandwidth settings ranging from 2.62 Hz to 65.5 Hz to suit specific noise filtering requirements.
Designed for installation in any I/O slot of the SLC 500 chassis (excluding slot 0).
Low power consumption profile for efficient rack operation.
ApplicationsThis module is widely utilized in industrial process control systems requiring temperature monitoring, such as HVAC systems, chemical processing, food and beverage manufacturing, and machinery thermal management. It is suitable for applications where precise resistance-to-digital conversion is required for PLC logic processing.Technical Specifications
Product Model
1746-NR4
Module Type
4-Point Resistance/RTD Input
Backplane Current
50 mA @ 5V DC; 50 mA @ 24V DC
Power Consumption
1.5 W max (0.3 W @ 5V, 1.2 W @ 24V)
Bandwidth
2.62 - 65.5 Hz
Chassis Location
Any slot except Slot 0
Installation Guidelines
Ensure the PLC chassis power is disconnected before installing or removing the module.
The module can be installed in any available slot in the SLC 500 chassis except for the processor slot (Slot 0).
Use shielded twisted-pair cabling for sensor inputs to minimize electromagnetic interference (EMI) in industrial environments.
Ensure proper grounding of the chassis and cable shields to maintain signal integrity.
Handle the module using ESD-safe practices to prevent damage to internal sensitive components.
FAQIs the 1746-NR4 still in production?No, the Allen-Bradley 1746-NR4 was discontinued by the manufacturer on December 30, 2015. We provide refurbished or surplus units to support legacy systems.Can this module be installed in Slot 0?No, the 1746-NR4 must be installed in any I/O slot other than Slot 0, which is reserved for the SLC 500 processor.
6 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
ABB DSQC239 Robotic Remote I/O Module
The ABB DSQC239, also cataloged as the DSQC 239 Robotic Remote I/O Module, operates as a dedicated hardware component for remote input and output signal handling within ABB robot control platforms. The module provides dual terminal connectors and LED indication for field signal monitoring and connection management.
Hardware Specifications
Parameter
Specification
Model
DSQC239 / DSQC 239
Brand
ABB
Product Type
Robotic Remote I/O Module
Weight
0.3 kg
Dimensions
5.1 x 25.4 x 25.4 cm
I/O Function
Remote digital input/output signal interface
Connector Type
Dual terminal connectors
Status Indication
LED array
Manufacturer Status
Discontinued by manufacturer
Industrial Control Interface and I/O Communication Characteristics
The ABB DSQC239 provides remote I/O signal processing capability for ABB robotic control systems. It manages field-level input and output connections through terminal interfaces, while the integrated LED array provides local status indication during operation and maintenance activities.
The module belongs to the ABB industrial control hardware family, where I/O density scaling and backplane bus communication velocity support structured signal exchange between controller units and connected field devices. Therefore, installation requires correct module addressing, terminal assignment, and controller configuration compatibility.
Frequently Asked Questions
Q: What is the primary function of the ABB DSQC239 module?A: The DSQC239 functions as a robotic remote I/O module that provides input and output signal connections between ABB robot control hardware and external field devices.
Q: Does the DSQC239 support direct field wiring connections?A: Yes. The module includes dual terminal connectors designed for field signal wiring and provides LED array indication for connection and status observation.
Q: Is firmware upgrade compatibility specified for the DSQC239?A: No firmware upgrade information is provided. Compatibility should be verified against the target ABB robot controller configuration before replacement or integration.
Field Installation Guidelines
Install the DSQC239 in the designated ABB robot control hardware location according to the applicable controller documentation.
Verify terminal wiring assignments before applying power to prevent incorrect I/O signal mapping.
Maintain proper cable routing between I/O terminals and field devices to reduce electrical interference.
Connect signal cable shields according to site grounding standards where shielded cables are used.
Confirm LED status indicators after installation to validate module communication and field connection conditions.
Check controller configuration parameters before placing the robot system into production operation.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
ABB DSQC472 Robotics Controller Component
The ABB DSQC472, also cataloged as the DSQC472 Robotics Controller Component, operates as a dedicated hardware component for physical control execution and module integration within ABB S4Cplus and IRC5 robot controller platforms.
Hardware Specifications
Parameter
Specification
Model
DSQC472
Brand
ABB
Origin
Sweden
Product Type
Robotics Controller Component / Module
Series
ABB DSQC Robotics Series
Compatibility
ABB S4Cplus and IRC5 industrial robot controller systems
Weight
0.5 kg net weight; 0.7 kg gross weight
Dimensions
150 mm x 100 mm x 30 mm
Operating Temp
Standard ABB controller enclosure operating environment
Backplane Bus Communication and Firmware Compatibility
The ABB DSQC472 belongs to the ABB industrial control hardware family and interfaces with controller architectures through ABB internal communication structures. The module supports integration within S4Cplus and IRC5 controller assemblies, where backplane communication velocity and firmware flash compatibility depend on the installed controller revision.
The component maintains defined electrical connections between controller modules and supports ABB hardware configuration requirements. Therefore, installation requires verification of controller generation, firmware compatibility, and system parameter configuration before replacement.
Frequently Asked Questions
Q: Is the ABB DSQC472 compatible with all ABB robot controllers?A: No. Compatibility depends on the specific controller architecture, hardware revision, and installed system configuration. The controller type must be verified before installation.
Q: Does the DSQC472 support hot-swap replacement during robot operation?A: The DSQC472 does not have a confirmed hot-swap specification. Replacement should follow ABB controller shutdown and maintenance procedures.
Q: What installation factors should be checked before powering the module?A: Verify connector alignment, module seating, grounding condition, and controller firmware compatibility before applying system power.
Field Installation Guidelines
Disconnect controller power before removing or installing the DSQC472 module.
Confirm the module position according to the ABB controller hardware configuration documentation.
Inspect connectors and backplane contacts for contamination or mechanical damage before installation.
Maintain proper grounding and avoid cable routing near high-noise power conductors.
After installation, verify controller diagnostics, firmware recognition, and communication status before returning the robot system to service.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
ABB DSQC227 Digital I/O Expansion Board
Configured for digital signal expansion and external device interfacing in ABB S4 / S4C robot controller platforms, the ABB DSQC227 (DSQC227 Digital I/O Expansion Board) provides direct physical signal execution between controller hardware and connected field devices. The module manages 24 VDC discrete input and transistor output channels for industrial robot I/O communication.
Hardware Specifications
Parameter
Specification
Model
DSQC227
Brand
ABB Robotics
Product Type
Digital I/O Expansion Board / Bus Master I/O Module
Operating Temp
-25 deg C to +60 deg C
Power Consumption
Not specified
Compatible System
ABB S4 / S4C Robot Controller Series
Digital Inputs
8 channels
Digital Outputs
8 channels, transistor / solid state
Nominal Input Voltage
24 VDC
Power Supply Range
10-32 VDC
Certifications
CE, UL, RoHS Compliant
ABB Industrial Control Bus and I/O Expansion Characteristics
The ABB DSQC227 operates as a discrete signal expansion interface within ABB robot controller architectures. It exchanges binary field signals through dedicated digital input and output channels, allowing controller logic to process external sensors, actuators, and peripheral equipment.
Furthermore, the module supports ABB S4 and S4C controller environments where I/O density expansion is required. The digital architecture enables scalable signal distribution while maintaining compatibility with ABB controller backplane communication structures.
The module design follows ABB industrial control hardware practices, including firmware flash compatibility considerations, controller communication synchronization, and I/O density scaling for robotic automation applications.
Frequently Asked Questions
Q: What type of signals does the ABB DSQC227 process?A: The DSQC227 processes discrete digital signals through 8 digital input channels and 8 transistor-based digital output channels.
Q: Is the DSQC227 compatible with ABB S4C controllers?A: Yes. The module is specified for ABB S4 and S4C robot controller series integration.
Q: Does the DSQC227 require special grounding during installation?A: Installation should follow standard industrial practices, including correct protective grounding, suitable cable routing, and separation between signal wiring and high-power conductors.
Field Installation Guidelines
Verify controller compatibility before installing the DSQC227 module into an ABB robot system.
Disconnect system power before performing hardware installation or removal operations.
Install signal wiring according to ABB controller documentation and maintain separation between I/O cables and high-voltage wiring.
Connect protective grounding according to industrial electrical installation standards.
Confirm 24 VDC field supply polarity before connecting digital input and output terminals.
Inspect connector seating and cable shielding before system startup.
Perform I/O channel verification through the robot controller diagnostic functions after installation.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
5 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

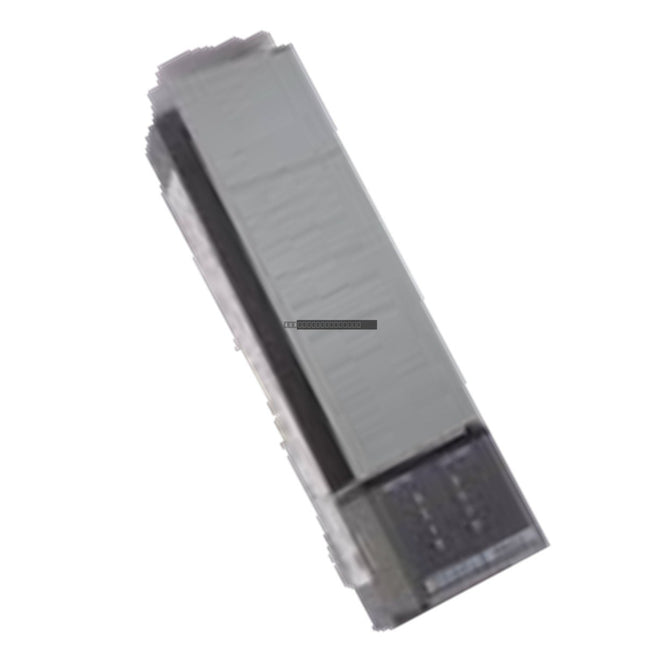

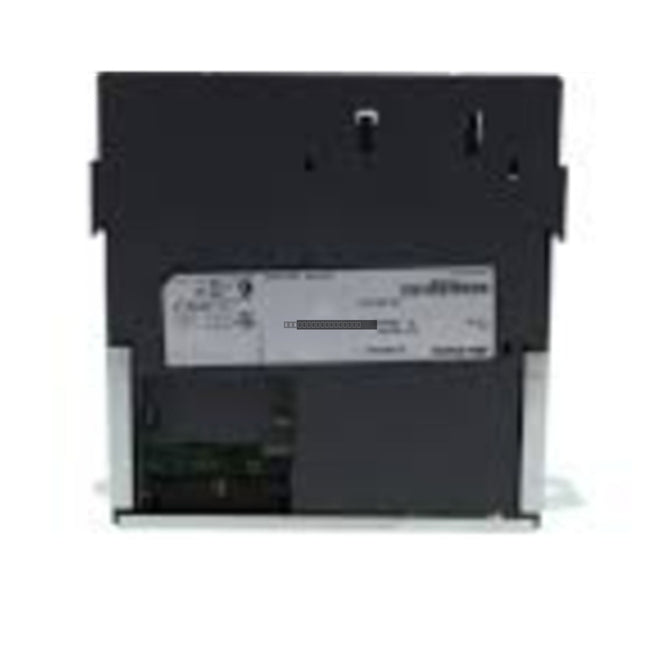

DescriptionThe Allen-Bradley 1756-DMD30 is a specialized drive control module designed for the ControlLogix platform. This single-axis motion control module provides precise interface capabilities for drive systems, utilizing fiber optic communication to ensure high-speed, noise-immune data transfer within industrial automation environments. It is engineered to integrate seamlessly into a standard ControlLogix chassis, facilitating advanced motion control applications.Features
Single-axis drive control functionality for high-precision motion tasks.
Fiber optic interface for reliable, interference-free communication.
Integrated LED status indicators for real-time diagnostic monitoring.
Designed for high-performance integration within the Allen-Bradley ControlLogix architecture.
Compact module design optimized for standard rack mounting.
Technical Specifications
Model
1756-DMD30
Control Axis
1-Axis
Power Requirements
1.35 Amps at 5.1 VDC
Operating Voltage
24 VDC
Peak Power Dissipation
6.96 Watts
Thermal Dissipation
23.7 BTU/hr
Operating Temperature
0 to 60 degC (32 to 140 degF)
Storage Temperature
-40 to 85 degC (-40 to 185 degF)
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the 1756-DMD30 module to prevent electrical damage.
Verify that the module is fully seated in the chassis slot and that the locking tabs are engaged.
Handle the module using proper ESD (Electrostatic Discharge) precautions to protect sensitive internal components.
Route fiber optic cables carefully, avoiding sharp bends or excessive tension that could compromise signal integrity.
Maintain adequate clearance around the module to allow for proper airflow and heat dissipation, adhering to the specified thermal dissipation limits.
FAQWhat is the primary function of the 1756-DMD30?The 1756-DMD30 acts as a single-axis drive control interface for the ControlLogix system, allowing the PLC to command and monitor drive operations via fiber optic communication.Is this module compatible with standard ControlLogix chassis?Yes, the 1756-DMD30 is designed to be installed in a standard Allen-Bradley ControlLogix I/O chassis.What are the power requirements for this module?The module operates on 24 VDC and consumes 1.35 Amps at 5.1 VDC from the chassis backplane.
5 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
2 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

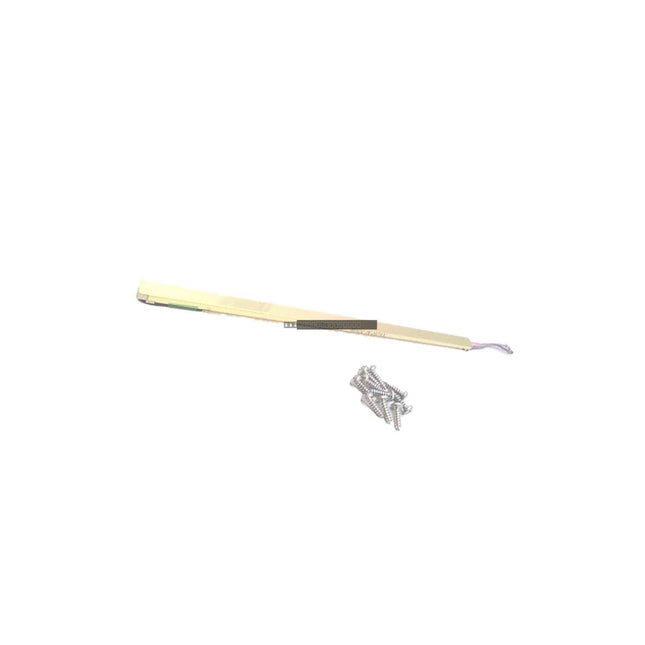

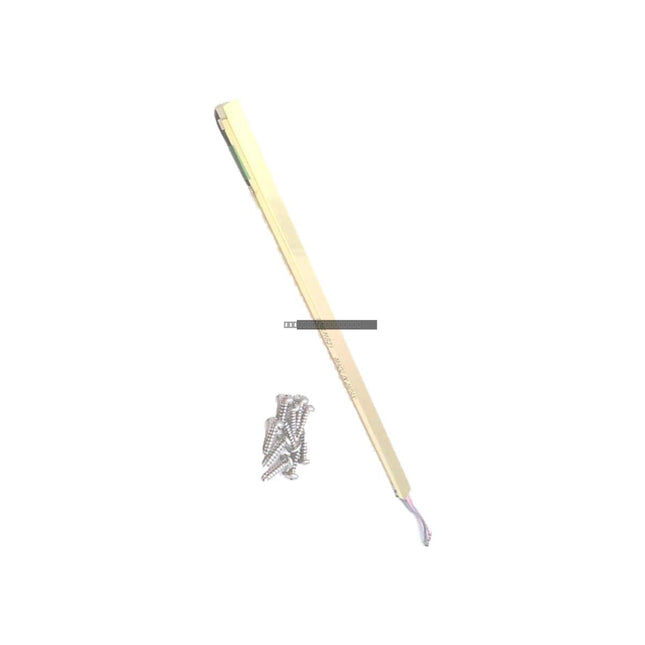

DescriptionThe Allen-Bradley 2711-NL7 is a specialized replacement backlight component engineered for PanelView 1000 color terminals, specifically those within the Series C architecture. This unit is designed to restore display brightness and visual clarity to legacy operator interface terminals, ensuring that critical process data remains legible for operators in industrial environments. By replacing degraded illumination components, this part helps maintain the operational lifespan of existing HMI hardware and avoids the necessity of full terminal replacement.Features
Designed specifically for compatibility with PanelView 1000 Series C color terminals.
Restores optimal screen luminance and contrast for improved operator visibility.
Lightweight, compact design for direct integration into existing terminal housing.
Essential for extending the service life of legacy control room and plant floor interfaces.
ApplicationsThis backlight is intended for use in industrial automation systems where PanelView 1000 Series C terminals are deployed. It is typically utilized during maintenance cycles to address dimming or failed display backlighting, ensuring continued compliance with safety and operational monitoring requirements.Technical Specifications
Model
2711-NL7
Brand
Allen-Bradley
Category
HMI / OIT Component
Compatibility
PanelView 1000 Color Terminals (Series C only)
Lifecycle Status
Discontinued (Effective 2018-08-30)
Weight
0.04 lbs
Installation Guidelines
Ensure the PanelView terminal is fully disconnected from all power sources before attempting any disassembly or component replacement.
Handle the replacement backlight with care to avoid damage to the glass or electrical leads.
Follow standard ESD (Electrostatic Discharge) mitigation procedures when opening the terminal housing to prevent damage to sensitive internal circuitry.
Verify that the terminal is a Series C unit before installation; this component is not compatible with other series versions.
Ensure all internal connectors are securely seated and that the backlight is correctly aligned within the display assembly before re-securing the terminal chassis.
FAQIs this part compatible with all PanelView 1000 units? No, the 2711-NL7 is specifically engineered for Series C color terminals only. Please verify your terminal's series designation before purchase.Is this an original manufacturer part? This is a replacement component intended for use with Allen-Bradley hardware. As the product was discontinued by the manufacturer in 2018, factory warranties no longer apply.
2 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
7 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

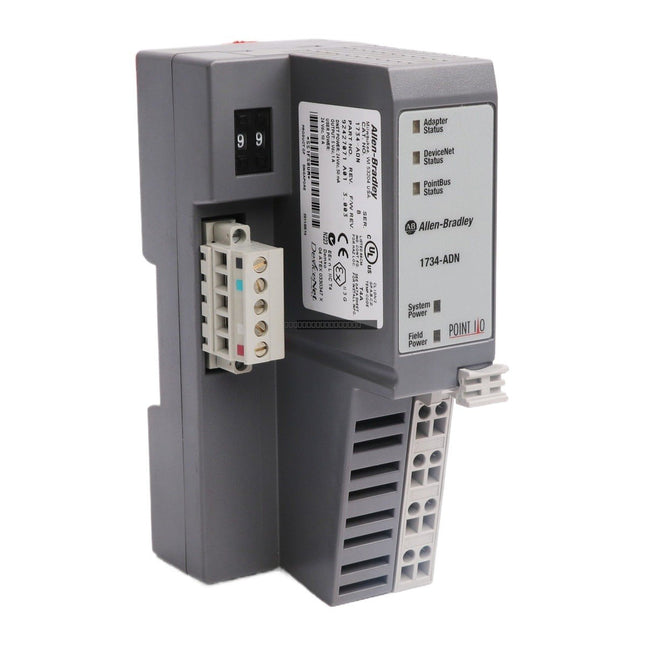

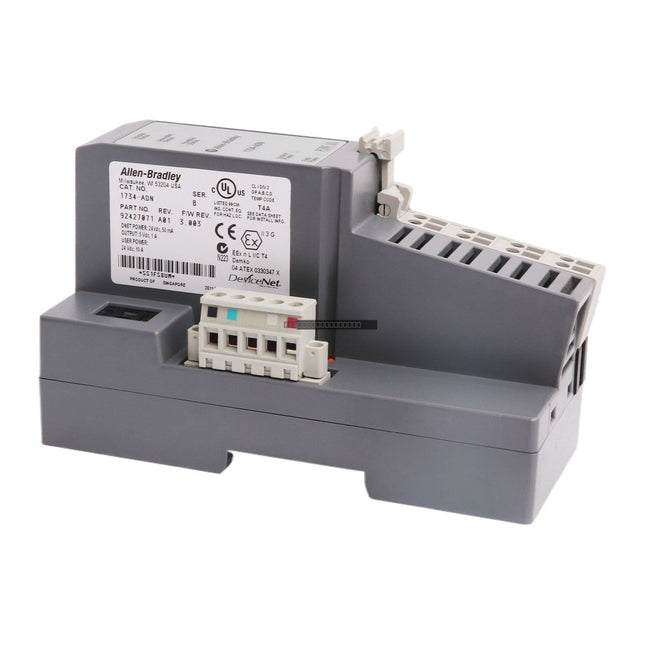

DescriptionThe Allen-Bradley 1734-ADN is a high-performance DeviceNet network adapter designed for the POINT I/O system. This modular communication interface facilitates seamless data exchange between the DeviceNet network and connected I/O modules, supporting up to 504 I/O points. It is engineered for industrial environments requiring reliable, distributed I/O control.Features
Supports DeviceNet communication protocols with selectable baud rates of 125, 250, or 500 kbit/s.
Modular design allows for flexible configuration and easy expansion of I/O points.
Compact form factor optimized for space-constrained control cabinets.
Designed for 24V DC power input with low power consumption.
Compatible with the extensive Allen-Bradley POINT I/O product family.
Technical Specifications
Product Model
1734-ADN
Communication Protocol
DeviceNet
Input Voltage
24V DC
Current Consumption
50 mA
I/O Capacity
Up to 504 I/O points
Baud Rates
125, 250, 500 kbit/s
Weight
0.26 kg
Installation Guidelines
Ensure the power is disconnected from the system before installing or removing the adapter module.
Mount the 1734-ADN onto a standard DIN rail, ensuring it is securely seated and locked into the backplane.
Maintain proper grounding practices to minimize electromagnetic interference (EMI) in the control environment.
Use shielded twisted-pair cabling for DeviceNet connections to ensure signal integrity.
Verify that the power supply meets the 24V DC requirements and is properly fused according to local electrical codes.
Ensure adequate ventilation around the module to prevent overheating during continuous operation.
FAQWhat is the primary function of the 1734-ADN?The 1734-ADN acts as a communication gateway, allowing a DeviceNet master to control and monitor a cluster of POINT I/O modules.Can this module be used with different baud rates?Yes, the 1734-ADN supports selectable communication speeds of 125, 250, and 500 kbit/s to accommodate various network requirements.Is this module hot-swappable?While the POINT I/O system supports RIUP (Removable Insertion Under Power) for many components, always consult the specific system manual and safety protocols before performing maintenance on live equipment.
7 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
4 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
The Allen-Bradley 2711E-UT12ET10 is a specialized hardware migration and adapter bezel kit designed to streamline the mechanical transition from legacy 12-inch PanelView 1200e touchscreen terminals to modern 10.4-inch PanelView 1000e units. This kit eliminates the requirement for structural modifications or additional sheet-metal fabrication on existing control enclosures, providing a secure and professional mounting solution for industrial HMI upgrades.Features
Engineered for precise dimensional transition between legacy 12-inch cutouts and 10.4-inch HMI form factors.
Constructed from heavy-gauge carbon steel with a durable, industrial-grade powder coating.
Includes high-density compression gaskets to maintain NEMA Type 4X and Type 12 enclosure integrity.
Features pre-positioned mounting studs and integrated locking hardware for simplified installation.
Designed to withstand high-vibration environments, protecting internal HMI components from mechanical fatigue.
ApplicationsThis migration kit is primarily deployed in continuous-process industries where legacy HMI hardware requires replacement without disrupting the existing cabinet infrastructure. Typical applications include automotive assembly lines, water and wastewater treatment facilities, and chemical processing plants where maintaining environmental sealing is critical for equipment longevity.Technical Specifications
Model
2711E-UT12ET10
Primary Function
Structural Bezel Adapter / Migration Kit
Compatibility
PanelView 1200e to 10.4-inch PanelView 1000e
Material
Heavy-gauge carbon steel
Enclosure Rating
Maintains NEMA Type 4X / 12
Operating Temperature
0 to 50 deg C (32 to 122 deg F)
Storage Temperature
-25 to 70 deg C
Installation Guidelines
Ensure the existing enclosure cutout is clean and free of debris before mounting the adapter plate.
Verify that the compression gasket is seated correctly against the enclosure surface to ensure a proper seal.
Tighten mounting hardware evenly around the perimeter to prevent warping and ensure uniform pressure distribution.
Always disconnect power to the HMI terminal before performing any mechanical installation or maintenance.
Ensure the installation environment remains within the specified temperature range to prevent thermal stress on the HMI display.
FAQDoes this kit require cutting the existing panel? No, the 2711E-UT12ET10 is designed to fit the existing legacy cutout, removing the need for additional sheet-metal work.Does this kit maintain the NEMA rating of the cabinet? Yes, when installed correctly with the provided compression gaskets, the kit is designed to maintain NEMA Type 4X and Type 12 environmental sealing.
4 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

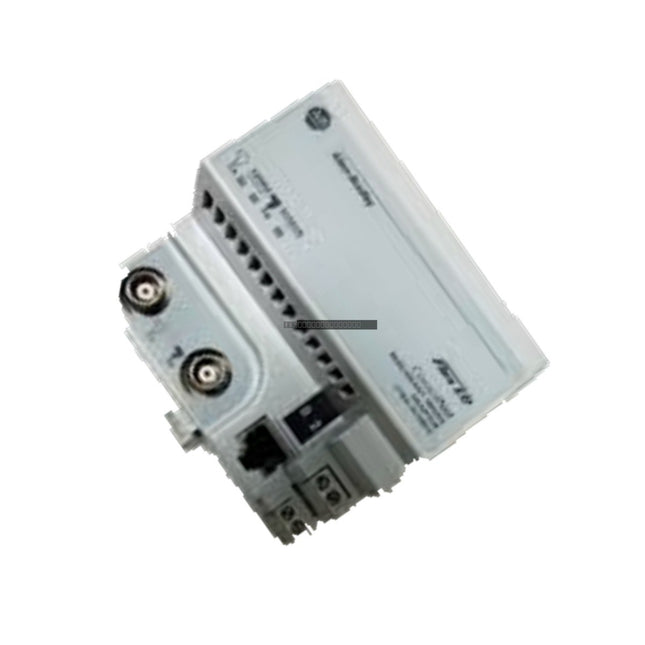

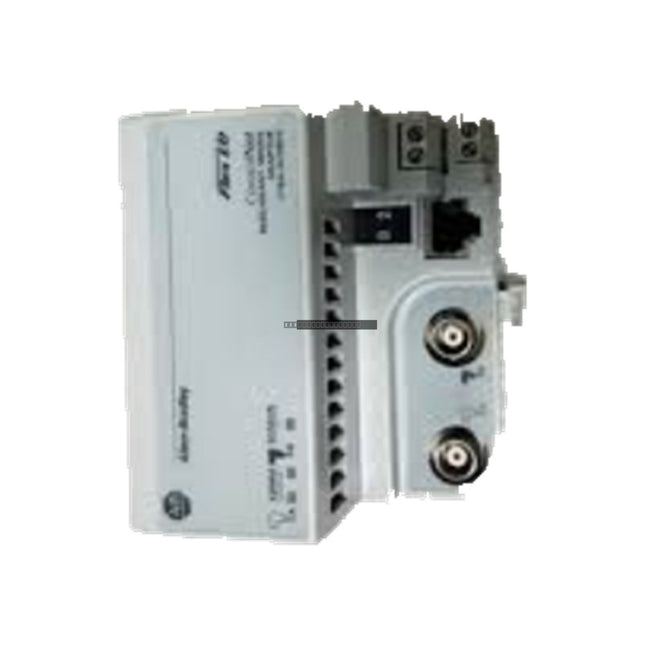

The Allen-Bradley 1794-ASB2 is a compact Remote I/O (RIO) adapter module designed for the FLEX I/O 1794 platform. This adapter serves as a communication interface node, enabling the connection of up to two local FLEX I/O modules to a master programmable controller via the Allen-Bradley RIO network. It is specifically optimized for low-density, distributed automation tasks, such as remote valve control, operator interface stations, and compact machinery sub-panels.Features
Compact Architecture: Supports a 2-slot configuration, providing a space-efficient solution for small-scale I/O requirements.
Network Compatibility: Utilizes standard Allen-Bradley Blue Hose coaxial media for reliable communication on RIO networks.
Selectable Baud Rates: Supports communication speeds of 57.6 Kbps, 115.2 Kbps, and 230.4 Kbps to match existing system requirements.
Robust Power Management: Converts 24 VDC input to a regulated 5 VDC backplane supply, providing up to 640 mA for attached modules.
Industrial Hardening: Engineered with high immunity to Electrical Fast Transients (EFT) and surges up to 2 kV, along with 8 kV ESD protection and 10 V/m RF field immunity.
ApplicationsThe 1794-ASB2 is ideal for decentralized plant floor applications where limited I/O points are required at a specific location. Common use cases include localized control of pneumatic valve nests, remote push-button stations, and small-footprint machine control panels that require integration into a larger RIO network architecture.Technical Specifications
Model
1794-ASB2
Communication Protocol
Remote I/O (RIO)
Module Capacity
Up to 2 FLEX I/O modules
Input Voltage
24 VDC (19.2 to 31.2 VDC range)
Power Consumption
4.2 W
FLEXbus Output
5 VDC @ 640 mA
Isolation
50 V Continuous
Operating Temperature
-20 to 55 degC
Mounting
35 mm DIN Rail or Panel Mount
Installation Guidelines
Ensure the power is disconnected before installing or removing the module from the DIN rail or terminal base.
Mount the module in a clean, dry environment; the unit is an open-style device and requires an appropriate enclosure for protection against contaminants.
Use shielded Blue Hose cable for RIO network connections to minimize electromagnetic interference.
Maintain proper grounding practices to prevent ground loops; ensure the chassis ground is connected to a low-impedance earth ground.
Verify that the external 24 VDC power supply is within the specified 19.2 to 31.2 VDC range before applying power.
FAQQ: Can I use this module with more than 2 I/O modules?A: No, the 1794-ASB2 is specifically designed to support a maximum of 2 functional FLEX I/O modules.Q: What is the primary communication medium for this adapter?A: This module is designed for use with Allen-Bradley Blue Hose coaxial cable.Q: Is this module suitable for high-vibration environments?A: While robust, it is an open-style module. Ensure it is mounted securely on a 35 mm DIN rail or panel within an enclosure rated for the specific industrial environment.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
8 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
The Allen-Bradley 2711P-K10C4D2 is a high-performance operator interface terminal from the PanelView Plus 1000 series, engineered for reliable visualization and control in industrial automation environments. This unit features a 10.4-inch active-matrix color TFT display and a robust keypad interface, designed to withstand the rigors of heavy-duty applications such as chemical processing, power generation, and automated manufacturing.Features
10.4-inch color TFT display providing clear, high-resolution process visualization.
Tactile keypad input for precise operator control in industrial settings.
Integrated 10/100Base-T Ethernet and RS-232 serial communication ports for flexible connectivity.
Dual USB host ports for peripheral support and data transfer.
DC power input (18-32 VDC) suitable for standard industrial control cabinets.
128 MB internal memory for application storage and runtime execution.
ApplicationsThis terminal is suitable for monitoring and controlling complex industrial processes. It is commonly deployed in systems requiring localized operator interaction, such as PLC-based machine control, SCADA data monitoring, and distributed control system (DCS) interface points.Technical Specifications
Model
2711P-K10C4D2
Display Size
10.4 in
Display Type
Active Matrix Color TFT LCD
Resolution
640 x 480 pixels
Input Type
Keypad
Input Voltage
18-32 VDC
Power Consumption
70 W max
Operating Temperature
0 to 55 degC
Communication
Ethernet, RS-232, USB
Memory
128 MB
Installation Guidelines
Ensure the panel cutout is prepared according to the manufacturer's specifications to maintain the NEMA/IP rating.
Use a clean, dry, and vibration-free mounting surface.
Verify that the power supply is within the 18-32 VDC range before connection to prevent damage.
Maintain proper clearance around the unit for adequate ventilation and cooling.
Ensure the unit is properly grounded to the cabinet chassis to mitigate EMI/RFI interference.
Always disconnect power before installing or removing communication cables or peripheral devices.
FAQWhat is the primary power requirement for this unit? The 2711P-K10C4D2 requires a DC power supply between 18 and 32 VDC, with 24 VDC being the nominal operating voltage.Can the backlight be replaced? Yes, this model uses a field-replaceable CCFL backlight (Part Number: 2711P-RL10C).What communication options are available? This unit includes an integrated 10/100Base-T Ethernet port, an RS-232 serial port, and two USB host ports for external device connectivity.
8 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
6 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

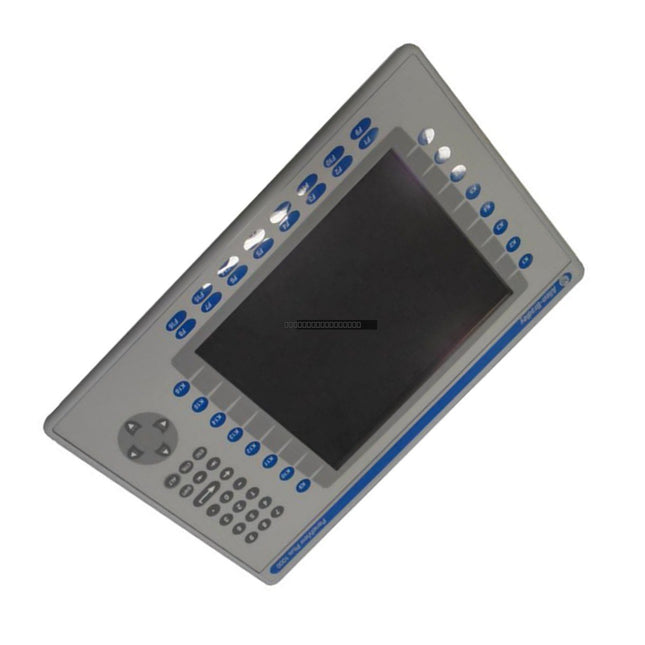

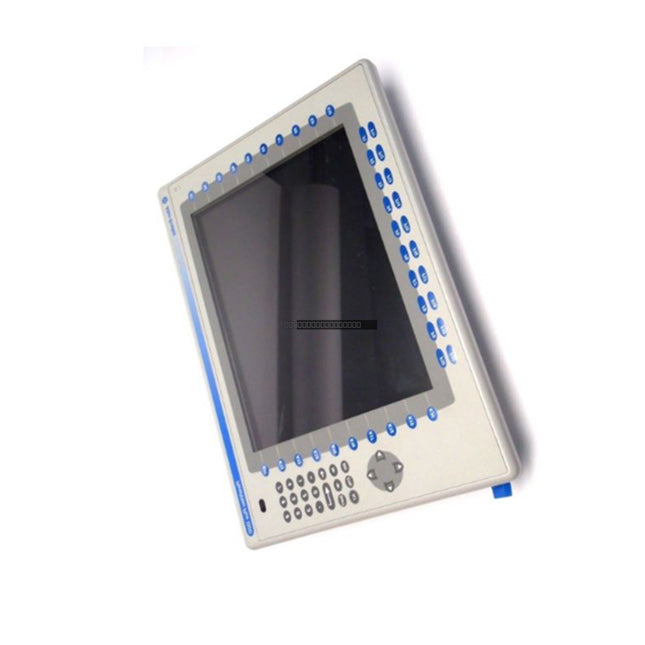

The Allen-Bradley 2711P-B10C4A1 is a high-performance operator terminal designed for industrial human-machine interface (HMI) applications. As part of the PanelView Plus 1000 series, this unit provides robust visualization and control capabilities, making it suitable for demanding manufacturing environments, including packaging, material handling, and discrete automation systems.Features
Integrated keypad and touchscreen input for versatile operator control.
10.4-inch color display for clear process monitoring and data visualization.
Ethernet and RS-232 communication ports for seamless integration into existing control networks.
EtherNet/IP protocol support for real-time messaging and application transfers.
RJ45 10/100Base-T connector with auto-crossover (MDI/MDI-X) functionality.
ApplicationsThis terminal is designed for use in industrial automation where reliable operator interaction with PLCs and other control hardware is required. It is commonly deployed in legacy systems requiring direct replacement or maintenance support for existing PanelView Plus infrastructure.Technical Specifications
Model
2711P-B10C4A1
Brand
Allen-Bradley
Display Size
10.4 in.
Input Method
Keypad and Touchscreen
Communication
Ethernet, RS-232
Power Input
85-264 VAC
Memory
64 MB
Operating Temperature
0 to 55 deg C
Series Compatibility
Ser A, B, C, D, and F
Installation Guidelines
Ensure the unit is installed in a clean, dry environment within the specified temperature range.
Verify that the panel cutout dimensions are correct before mounting to ensure a proper NEMA/IP seal.
Always disconnect power before installing or removing the terminal to prevent electrical damage.
Use shielded communication cables for Ethernet and RS-232 connections to minimize electromagnetic interference (EMI).
Maintain proper clearance around the unit to ensure adequate ventilation and cooling.
Ground the terminal chassis according to local electrical codes to prevent noise and potential ground loops.
FAQIs this unit compatible with newer PanelView Plus models?The 2711P-B10C4A1 is a legacy component. While it may be functionally replaced in some systems, you should verify firmware compatibility and project file conversion requirements within FactoryTalk View Studio before attempting a direct swap with newer hardware.What type of power supply does this terminal require?This model is designed for an AC power input range of 85-264 VAC. Please ensure your supply voltage is stable and within this range to prevent operational failure.
6 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
6 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

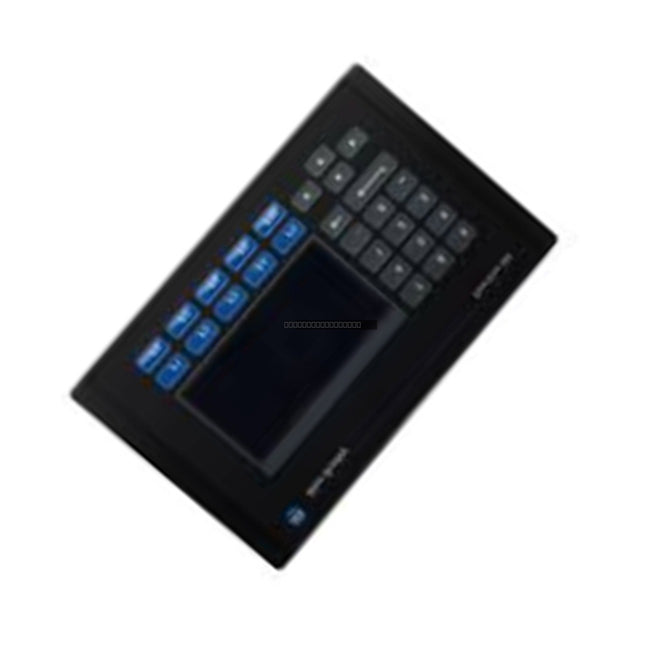

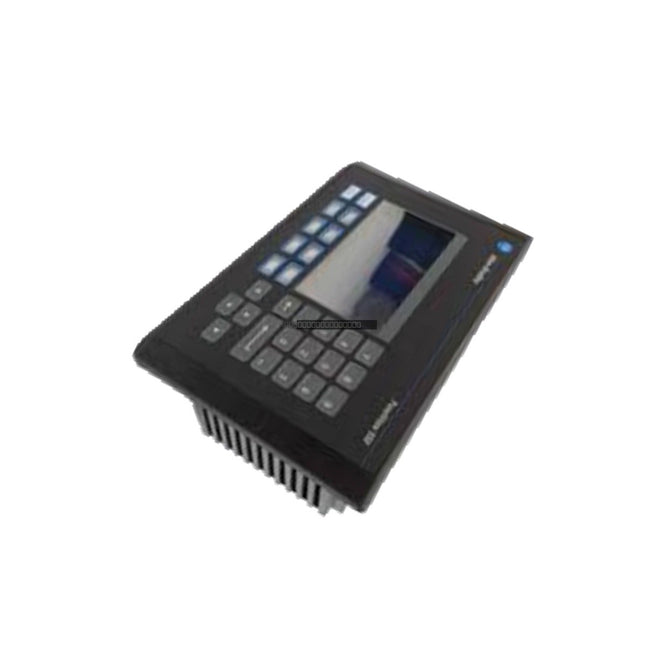

The Allen-Bradley 2711-K6C2 is a robust operator interface terminal from the PanelView 600 series, engineered for reliable machine-level visualization and industrial process control. This unit facilitates efficient data entry and system monitoring in demanding automation environments, such as assembly lines and packaging machinery, providing operators with a stable interface for continuous process management.Features
Color active-matrix TFT display for clear visual feedback.
Resilient 10-key stainless-steel domed membrane keypad for tactile input.
Integrated DH-485 communication port for multi-node connectivity with SLC 500 and MicroLogix controllers.
Field-replaceable display backlight to extend operational lifespan.
Nonvolatile flash memory for secure storage of application data.
ApplicationsThis terminal is designed for integration into industrial automation systems requiring direct operator interaction. It is commonly utilized in applications involving PLC-based control, including machine status monitoring, alarm management, and setpoint adjustment for manufacturing equipment.Technical Specifications
Model
2711-K6C2
Display Size
5 inches
Display Resolution
320 x 234 pixels
Input Type
Keypad
Input Voltage
85-264 VAC
Input Frequency
47-63 Hz
Power Consumption
50 VA max
Memory
240 KB nonvolatile
Communication
DH-485
Operating Temperature
0 to 50 degC
Installation Guidelines
Ensure the terminal is mounted in an enclosure that provides adequate protection against environmental contaminants.
Maintain proper clearance around the unit to allow for sufficient airflow and cooling.
Use shielded communication cables for DH-485 networks to minimize electromagnetic interference (EMI).
Verify that the AC power supply is within the specified 85-264 VAC range before applying power.
Always disconnect power before performing any maintenance or replacing the display backlight.
FAQWhat controllers are compatible with the 2711-K6C2?The unit is designed to communicate with Allen-Bradley SLC 500 and MicroLogix controllers via the DH-485 network protocol.Is the display backlight replaceable?Yes, the display backlight on this model is field-replaceable, allowing for easier maintenance and longer service life.
6 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
4 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

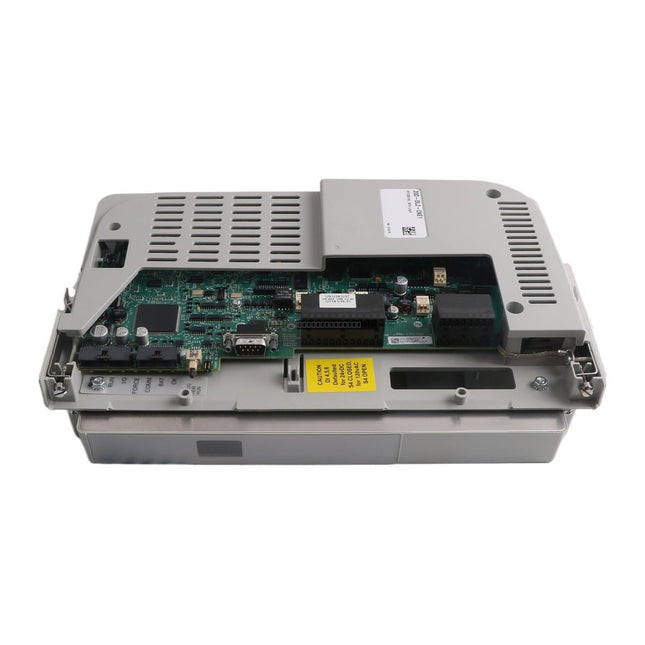

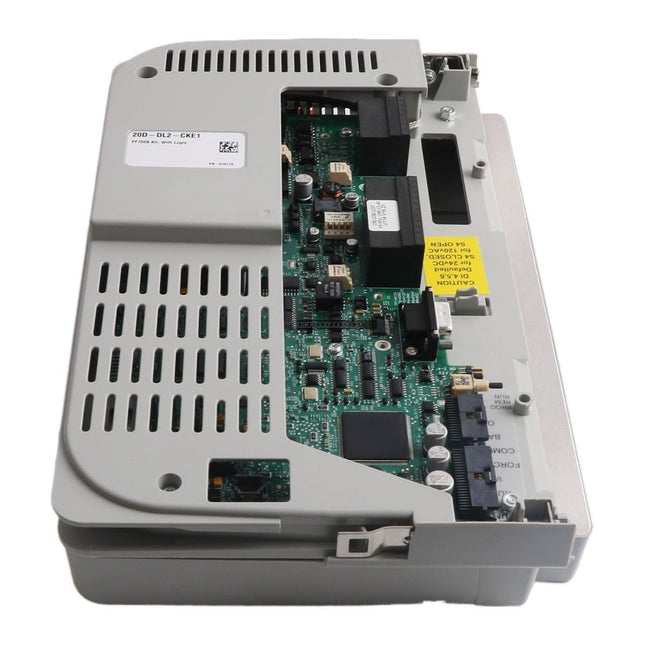

DescriptionThe Allen-Bradley 20D-DL2-CKE1 is a DriveLogix control module upgrade kit designed for the PowerFlex 700S series variable frequency drives. This kit provides the necessary hardware to expand the drive's control capabilities, incorporating the DriveLogix 5730 controller functionality. It is specifically engineered for Phase II PowerFlex 700S configurations, allowing for advanced logic processing and enhanced drive control within a single integrated package.Features
Integrated DriveLogix 5730 controller for advanced logic execution.
Expanded cassette design for seamless integration with PowerFlex 700S drive frames.
Facilitates complex motion and machine control tasks directly at the drive level.
Designed for Phase II PowerFlex 700S drive systems.
Robust construction consistent with Allen-Bradley industrial standards.
Installation Guidelines
Ensure the drive is fully de-energized and locked out before attempting to install or remove the control module.
Verify that the drive firmware is compatible with the DriveLogix 5730 module before commissioning.
Use appropriate ESD protection when handling the module to prevent damage to sensitive internal electronics.
Ensure the cassette is fully seated and the retaining screws are tightened to the manufacturer's specified torque to maintain proper grounding and electrical contact.
Check all ribbon cable connections for secure seating to avoid communication errors between the control module and the drive power structure.
Technical Specifications
Manufacturer
Allen-Bradley
Model Number
20D-DL2-CKE1
Series
PowerFlex 700S
Component Type
DriveLogix Control Module Upgrade Kit
Compatibility
PowerFlex 700S Phase II
Weight
0.96 kg
FAQWhat is the primary function of the 20D-DL2-CKE1 kit?This kit serves as a control module upgrade that adds DriveLogix 5730 capabilities to a PowerFlex 700S drive, enabling the drive to perform programmable logic controller (PLC) functions.Is this module compatible with all PowerFlex 700S drives?This specific kit is intended for Phase II PowerFlex 700S drives. Please verify your drive's specific hardware revision and firmware compatibility before installation.
4 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
4 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

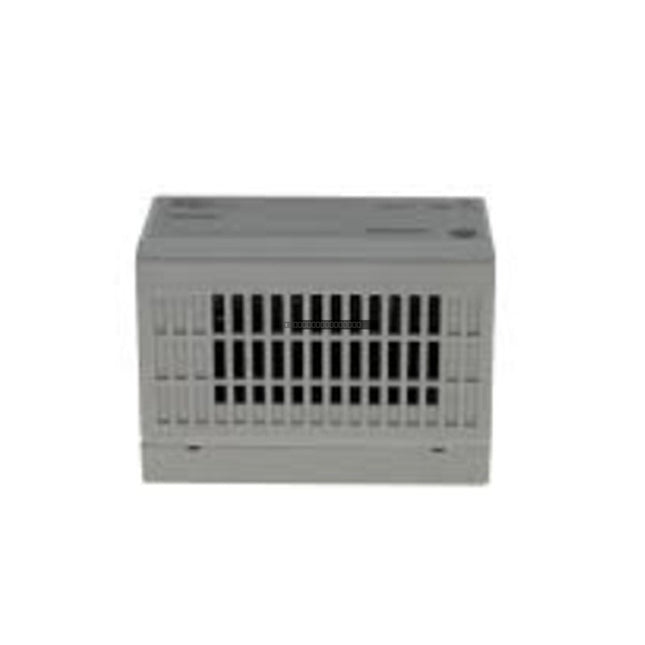

DescriptionThe Allen-Bradley 1794-ASB is a Flex Remote I/O adapter module designed to interface Flex I/O modules with a Universal Remote I/O (RIO) network. This adapter acts as a communication bridge, allowing for distributed I/O configurations in industrial automation environments. Please note that this unit was officially discontinued by the manufacturer on March 30, 2015.Features
Supports Universal Remote I/O network communication.
Designed for use within the Allen-Bradley Flex I/O product family.
Operates on a 24 VDC power supply.
Compact, modular design for space-efficient cabinet installation.
Facilitates remote data exchange between I/O modules and the primary controller.
Technical Specifications
Product Model
1794-ASB
Manufacturer
Allen-Bradley
Input Voltage
24 VDC
Communication Network
Universal Remote I/O
Product Type
Remote I/O Adapter
Weight
0.18 kg
Installation Guidelines
Ensure the power is disconnected from the system before installing or removing the 1794-ASB module to prevent electrical damage.
Mount the adapter on a standard DIN-rail within an enclosure suitable for the operating environment.
Maintain proper grounding practices to minimize electromagnetic interference (EMI).
Ensure adequate ventilation around the module to prevent overheating during continuous operation.
Verify that the wiring connections for the 24 VDC power supply are secure and follow the polarity requirements specified in the user manual.
FAQIs the 1794-ASB still in production?No, the 1794-ASB was discontinued by Allen-Bradley on March 30, 2015. It is currently available primarily through surplus or secondary market channels.What network does this adapter support?This adapter is specifically designed for the Universal Remote I/O (RIO) network protocol.What is the required input voltage for this module?The 1794-ASB operates on a 24 VDC power supply.
4 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
The Allen-Bradley 1756-L84E is a high-performance Programmable Automation Controller (PAC) belonging to the ControlLogix 5580 series. Designed for demanding industrial environments, this controller provides robust processing power and integrated connectivity, making it suitable for large-scale automation, motion control, and complex process applications.Features
Integrated 1 Gb Ethernet port for high-speed communication and EtherNet/IP device support
20 MB of user memory for extensive application logic and data storage
USB 2.0 port for local configuration and firmware updates
Energy storage solution eliminates the need for traditional batteries
4-character alphanumeric display for status and diagnostic information
Supports up to 256 local I/O modules
Applications
Automotive and heavy industry assembly line control
High-speed packaging systems in food and beverage production
Process and safety control in oil, gas, and chemical facilities
Plant-wide distributed I/O management for water and wastewater treatment
Technical Specifications
Product Model
1756-L84E
Series
ControlLogix 5580
User Memory
20 MB
Max Discrete I/O
128,000 points
Max Analog I/O
4,000 points
Power Requirements
5 mA @ 1.2V DC, 1.20 A @ 5.1V DC
Power Consumption
8 W (typical)
Operating Temperature
0 to 60 degC (32 to 140 degF)
Communication Ports
1x 1Gb Ethernet, 1x USB 2.0
Installation Guidelines
Ensure the controller is installed in a ControlLogix chassis with adequate ventilation to maintain operating temperatures within the 0 to 60 degC range.
Power down the chassis before inserting or removing the controller module to prevent electrical damage.
Use shielded Ethernet cabling for high-EMI environments to ensure reliable communication.
Firmware updates should be performed using the ControlFlash or ControlFlash Plus utility via the USB or Ethernet interface.
Studio 5000 Logix Designer (Version 28 or higher) is required for full feature support.
FAQWhat is the 1756-L84E?It is a high-performance Programmable Automation Controller (PAC) from the ControlLogix 5580 family, designed for large-scale industrial systems, real-time processing, motion control, and safety, with an integrated 1 Gb Ethernet port.How many I/O points does it support?It supports a maximum of 128,000 discrete I/O points and 4,000 analog I/O points.Does the controller require a battery?No, the 1756-L84E utilizes a modern energy storage solution that eliminates the need for a battery to retain volatile memory contents.
4 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

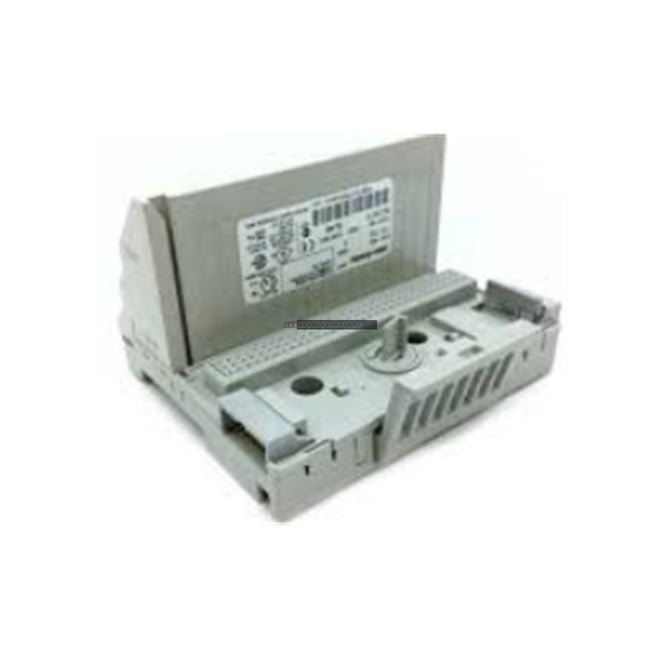

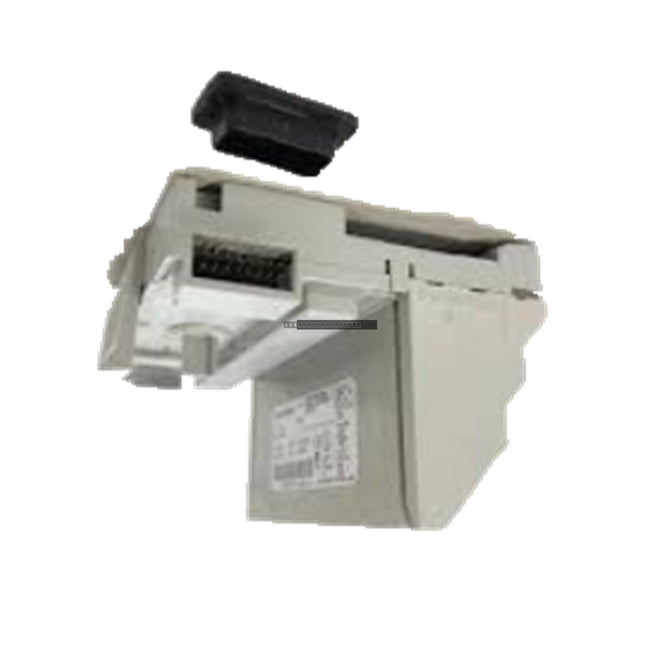

DescriptionThe Allen-Bradley 1794-TBN is a FLEX I/O terminal base unit designed to provide a robust wiring interface for FLEX I/O modules. This component serves as the physical connection point for field wiring, allowing for efficient installation and maintenance of industrial I/O systems. It features a compact, open-style design suitable for DIN-rail mounting within control cabinets.Features
16 I/O terminals for field device connectivity
2 common terminals for signal distribution
2 positive voltage terminals for power supply distribution
Reliable screw-clamp terminal blocks for secure wire retention
IP20-rated enclosure for protection against solid objects
Designed for seamless integration with the Allen-Bradley FLEX I/O platform
Installation Guidelines
Ensure the power is disconnected from the system before installing or removing any I/O modules from the terminal base.
Mount the 1794-TBN on a standard 35mm DIN rail. Ensure the base is securely locked into position.
Use appropriate wire gauges as specified by local electrical codes and the FLEX I/O system manual.
Maintain proper cable routing to minimize electromagnetic interference (EMI) from high-voltage lines.
Verify that all screw-clamp connections are tightened to the recommended torque to prevent loose connections or intermittent signal loss.
Handle with care to avoid damage to the backplane connector pins.
Technical Specifications
Product Model
1794-TBN
Manufacturer
Allen-Bradley
Product Type
FLEX I/O Terminal Base
I/O Terminals
16
Common Terminals
2
Voltage Terminals
2 (+V)
Terminal Type
Screw-clamp
Mounting
DIN-rail
Enclosure Rating
IP20
FAQWhat is the primary function of the 1794-TBN?The 1794-TBN acts as a terminal base for FLEX I/O modules, providing the necessary wiring connections for field sensors and actuators while facilitating communication with the I/O adapter.Is this unit compatible with all FLEX I/O modules?The 1794-TBN is designed for specific FLEX I/O applications. Please verify the compatibility of your specific I/O module with the 1794-TBN terminal base by consulting the module's technical documentation.How is this unit mounted?This terminal base is designed for standard DIN-rail mounting, allowing for easy installation in industrial control panels.
4 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

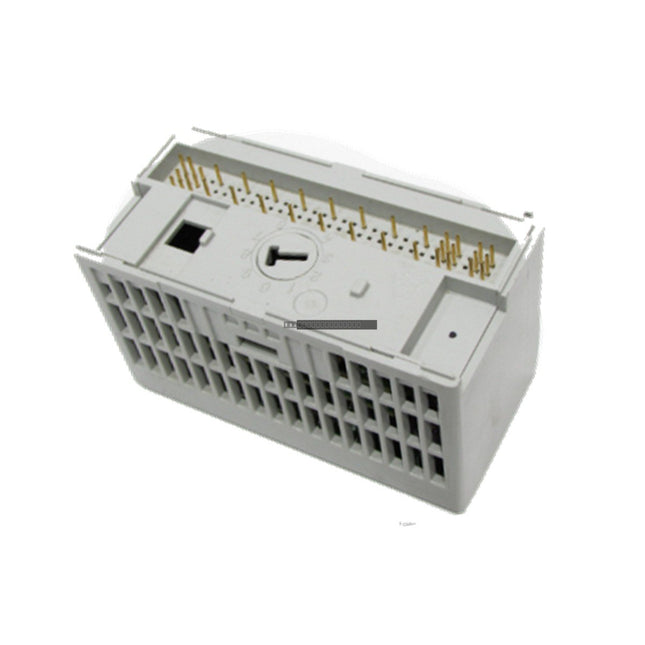

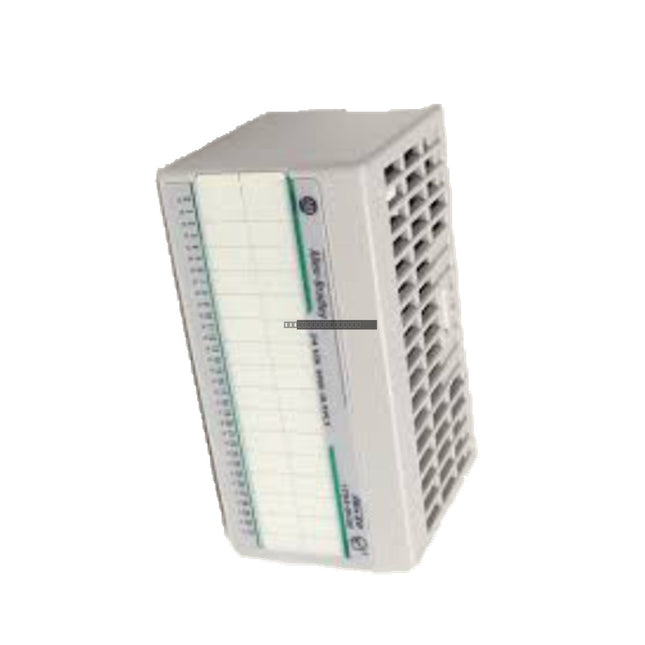

DescriptionThe Allen-Bradley 1794-ID2 is a high-speed, 2-channel incremental encoder counter module engineered for the FLEX I/O 1794 platform. This module functions as a high-speed pulse interface, converting raw mechanical rotational feedback into digital data for the programmable automation controller. It is designed for precision applications requiring high-speed counting, such as robotic positioning, conveyor synchronization, web-tension control, and continuous process monitoring. By processing pulses independently of the main controller scan cycle, the 1794-ID2 minimizes latency and improves tracking accuracy in high-speed industrial environments.Features
Dual-Channel Processing: Features two independent high-speed counter channels, each supporting four optocoupled inputs for versatile signal evaluation.
Flexible Signal Configuration: Supports multiple operating modes including standard Quadrature (Phase A/B) and Up/Down count tracking.
Robust Isolation: Integrated 500 VAC continuous optical isolation protects internal circuitry from field-side electrical noise and ground potential differences.
Diagnostic Indicators: Equipped with 13 front-panel LEDs, including a bi-color system health indicator and 12 channel-specific status indicators for real-time troubleshooting.
ApplicationsThe 1794-ID2 is widely utilized in automation systems where precise motion and position feedback are critical. Typical applications include:
High-speed conveyor line tracking and synchronization.
Robotic sorting and material handling cells.
Metal rolling mill speed and position control.
Packaging machinery and web-tension monitoring.
Technical Specifications
Model
1794-ID2
Product Line
FLEX I/O 1794
Counter Channels
2
Inputs per Channel
4 (Optocoupled)
Max Counting Frequency
100 kHz
Nominal Input Voltage
12/24 VDC
Input Voltage Range
6.0 to 26.4 VDC
Backplane Current
5 mA at 5 VDC
Thermal Dissipation
17.1 BTU/hr at 26.4 VDC
Isolation
500 VAC continuous
Mounting
35 mm DIN Rail or Panel Mount
Installation Guidelines
Power Down: Always disconnect power from the FLEX I/O backplane before installing or removing the module.
Grounding: Ensure the DIN rail or mounting panel is properly grounded to provide a low-impedance path for EMI/RFI noise.
Shielding: Use shielded twisted-pair cabling for encoder signals to minimize interference in high-EMI environments.
Environment: This is an open-style device; it must be installed within a suitable industrial enclosure rated for the operating environment.
Ventilation: Maintain adequate clearance around the module to ensure proper thermal dissipation during operation.
FAQWhat is the maximum pulse frequency supported by the 1794-ID2?The module supports a maximum counting frequency of 100 kHz.Does this module support differential encoder signals?Yes, the 1794-ID2 is designed to evaluate both complementary and non-complementary differential encoder signals using its optocoupled inputs.What type of mounting does this module require?The 1794-ID2 is designed for standard 35 mm DIN rail mounting or direct surface mounting on a sub-panel within an industrial enclosure.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
10 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

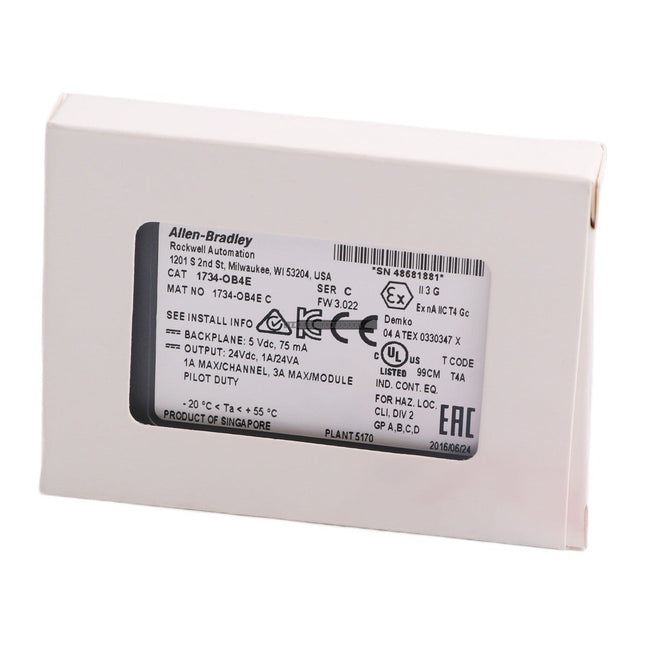

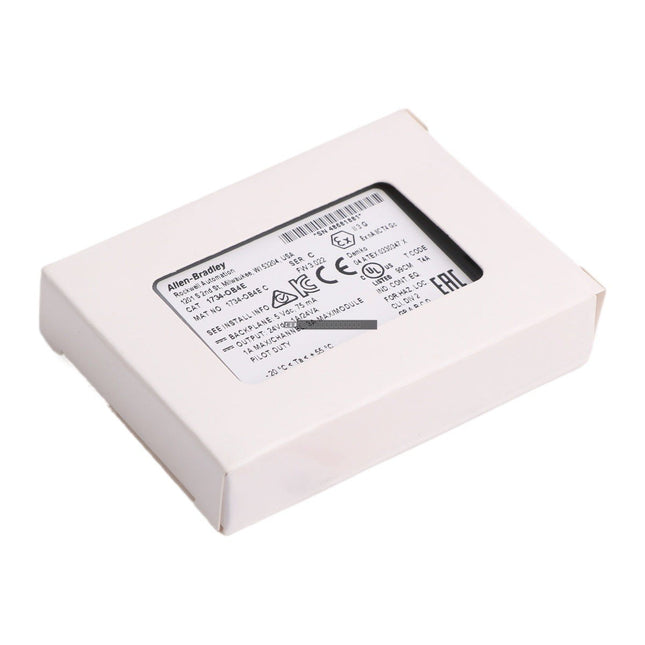

DescriptionThe Allen-Bradley 1734-OB4E is a compact, four-channel digital DC output module belonging to the POINT I/O family. Designed for high-density distributed I/O applications, this module provides reliable switching for 24V DC loads. It features electronic protection to safeguard against short circuits and overloads, ensuring operational continuity in industrial control environments.Features
Four independent sourcing output channels.
Nominal operating voltage of 24V DC.
Integrated electronic protection for output circuitry.
Compact, modular design suitable for space-constrained control cabinets.
DIN-rail mountable for quick installation and removal within the POINT I/O system.
ApplicationsThis module is commonly utilized in automated manufacturing, process control, and machine-level monitoring systems. It is ideal for interfacing with actuators, relays, and indicators that require a 24V DC sourcing signal from a PLC or distributed control node.Technical Specifications
Model
1734-OB4E
Module Type
Digital DC Output
Number of Channels
4
Output Type
Current Sourcing
Voltage Rating
24V DC
Protection
Electronic
Mounting
DIN Rail
Enclosure Type
Open Style
Installation Guidelines
Ensure the system power is disconnected before installing or removing the module from the POINT I/O base.
Mount the module on a standard 35mm DIN rail.
Verify that the module is fully seated and locked into the communication interface or adjacent terminal base.
Maintain proper clearance around the module to allow for adequate airflow and heat dissipation.
Use shielded cabling for I/O signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Adhere to local electrical codes for grounding and wiring practices.
FAQIs the 1734-OB4E protected against short circuits?Yes, the module includes electronic protection features to prevent damage from short circuits and overloads on the output channels.What is the mounting method for this module?The 1734-OB4E is designed for DIN-rail mounting, allowing it to integrate seamlessly into standard POINT I/O rack configurations.
10 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
6 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

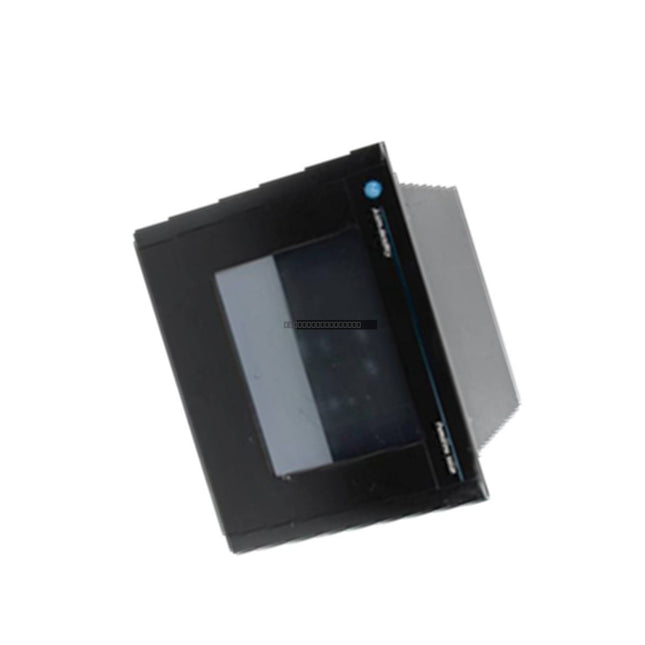

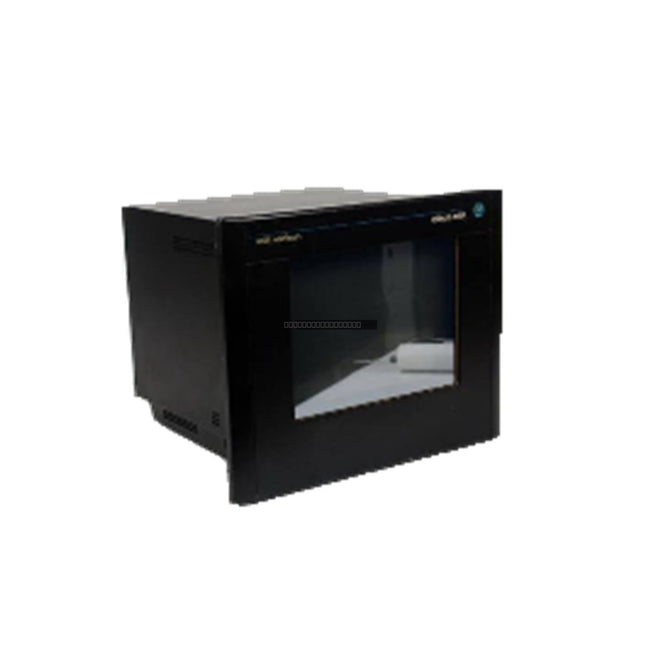

The Allen-Bradley 2711E-UKCK10SW is an industrial-grade migration and retrofit bundle engineered to simplify the transition from legacy 12-inch PanelView 1200 keypad terminals to the 10.4-inch PanelView 1000e series. This comprehensive kit provides the necessary mechanical, electrical, and software components to modernize operator stations without requiring extensive panel modifications or custom sheet-metal fabrication. It is designed to maintain enclosure integrity while reducing downtime during critical system upgrades in manufacturing environments.Features
Turnkey migration solution for PanelView 1200 to PanelView 1000e transition.
Includes 2711E-K10C6 HMI terminal with 10.4-inch color TFT display and keypad interface.
Integrated support for Data Highway Plus (DH+), Remote I/O (RIO), and RS-232 communication protocols.
Includes 2711-NR5K mechanical cutout adapter plate for seamless mounting in existing 12-inch cutouts.
Maintains NEMA Type 4X/12 enclosure sealing standards when installed correctly.
Supplied with 2711-NC13 serial communication cable and application migration utility software.
ApplicationsThis kit is intended for use in continuous processing industries where legacy HMI hardware requires replacement due to obsolescence. Typical applications include automotive assembly lines, chemical batch processing, and pulp and paper manufacturing facilities where maintaining the physical enclosure rating is essential.Technical Specifications
Model
2711E-UKCK10SW
Included HMI
2711E-K10C6 (10.4-inch Color TFT)
Input Power
180 to 264 VAC
Communication
DH+, RIO, RS-232
Operating Temperature
0 to 50 deg C
Storage Temperature
-25 to 70 deg C
Enclosure Rating
NEMA Type 4X / 12 (when mounted)
Installation Guidelines
Ensure power is disconnected from the control panel before beginning the installation process.
Use the provided 2711-NR5K adapter plate to secure the 10.4-inch terminal into the legacy 12-inch cutout.
Verify that all compression gaskets are seated correctly to maintain the NEMA 4X/12 environmental seal.
Follow standard ESD precautions when handling the HMI terminal and internal components.
Route communication cables (DH+/RIO) away from high-voltage power lines to minimize EMI interference.
Perform a full backup of legacy application files before initiating the conversion process using the provided utility software.
FAQDoes this kit include the software required for migration? Yes, the 2711E-UKCK10SW includes the necessary utility software to assist in the conversion and transfer of legacy screen files to the 1000e environment.Can this kit be used for non-keypad terminals? No, this specific kit is designed for the migration of keypad-based PanelView 1200 units to the keypad-based 1000e series.
6 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

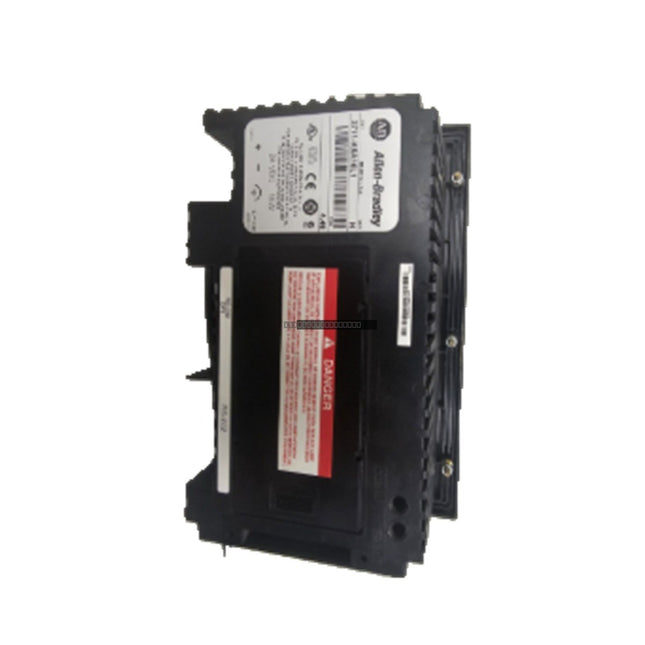

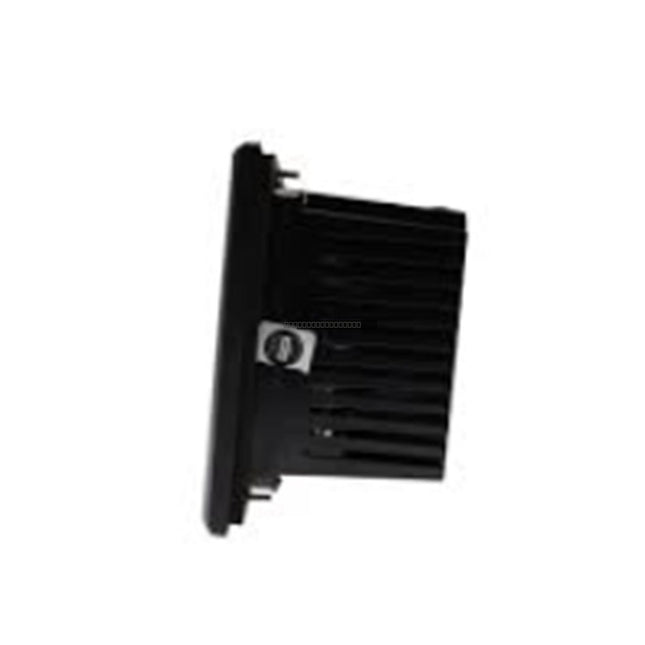

Product OverviewThe Allen-Bradley 2711-B5A8L3 is a robust operator terminal from the PanelView 550 series, designed to provide reliable human-machine interface (HMI) capabilities in demanding industrial environments. This unit features a hybrid input design, combining a resistive touchscreen with a tactile keypad, allowing for versatile control and monitoring of automated processes. It is engineered for long-term deployment in sectors such as water treatment, chemical processing, and automated manufacturing, where it serves to streamline operator interaction and reduce system downtime.Hardware FeaturesThe 2711-B5A8L3 utilizes a 5.5-inch monochrome blue-mode LCD display, offering a clear 256 x 128 pixel resolution suitable for process visualization. The input system includes 10 dedicated function keys (F1-F10) alongside a touchscreen matrix with 128 active cells, ensuring operational reliability even in high-vibration settings. For networking and data management, the terminal is equipped with a Data Highway Plus (DH+) communication port for deterministic plant-floor connectivity and an RS-232 serial port for local printer logging.Technical Specifications
Model
2711-B5A8L3
Brand
Allen-Bradley
Product Line
PanelView 550
Display
5.5-inch Monochrome Blue-Mode LCD
Resolution
256 x 128 pixels
Input Method
Keypad (10 Function Keys) and Touchscreen
Memory
170 KB Runtime / 240 KB Nonvolatile
Communication
DH+ Port, RS-232 Printer Port
Input Voltage
24 VDC (18-32 VDC range)
Operating Temperature
0 to 55 deg C
Installation Guidelines
Ensure the panel cutout is prepared according to the manufacturer's mounting specifications to maintain the NEMA/IP rating of the enclosure.
Verify that the DC power supply is within the 18-32 VDC range before connection to prevent damage to the internal circuitry.
Use shielded cables for DH+ and RS-232 communications to minimize electromagnetic interference (EMI) in high-noise industrial areas.
Always power down the terminal before connecting or disconnecting communication cables or performing maintenance.
Handle the unit with care to avoid damage to the resistive touchscreen overlay and the LCD backlight assembly.
FAQIs this terminal still in production? No, the 2711-B5A8L3 is classified as a discontinued or obsolete product by the manufacturer. We provide these units as spare parts for legacy system maintenance.What is the primary communication protocol for this unit? This model features a dedicated Data Highway Plus (DH+) port, which is the standard for high-speed deterministic networking in legacy Allen-Bradley architectures.
