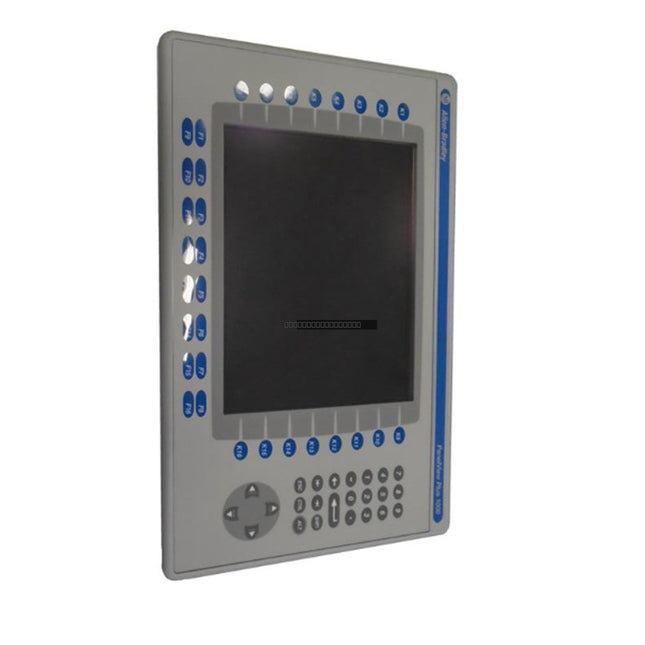

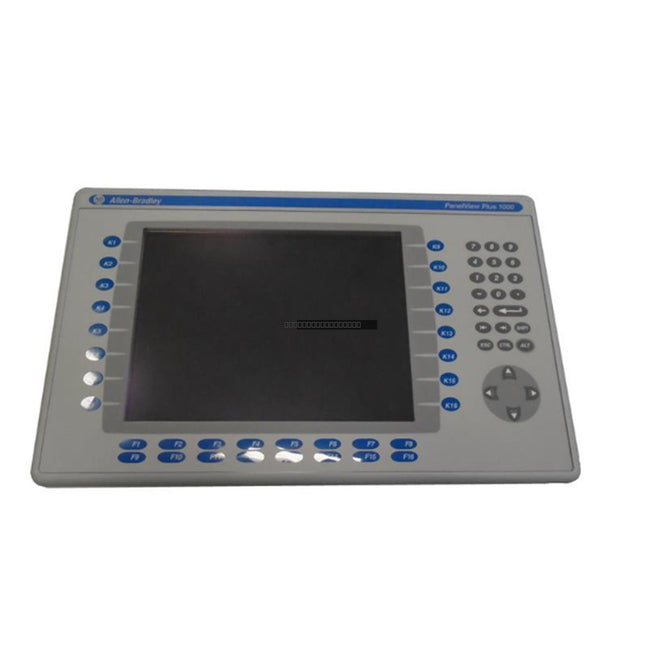

DescriptionThe 2711P-B10C15A2 is an Allen-Bradley PanelView Plus 1000 operator interface terminal designed for demanding industrial automation environments. This unit provides a robust visualization solution featuring a 10.4-inch color display with a resolution of 640 x 480 pixels. It offers dual-input functionality, allowing operators to interact via both a physical keypad and an analog resistive touch screen. The module is equipped with an upgraded 128 MB logic module to support complex visualization tasks and high-performance data processing.Features
10.4-inch color display with 640 x 480 resolution for clear process monitoring.
Dual-input interface: Integrated keypad and analog resistive touch screen.
Upgraded 128 MB logic module for enhanced application performance.
Versatile communication suite including ControlNet, Ethernet, RS-232, and USB ports.
Designed for modular integration within the PanelView Plus 1000 architecture.
ApplicationsThis operator interface is suitable for various industrial applications, including machine control, process visualization, and data logging in manufacturing, water treatment, and power distribution systems where reliable HMI performance is required.Technical Specifications
Model
2711P-B10C15A2
Brand
Allen-Bradley
Product Line
PanelView Plus 1000
Display Size
10.4 inches
Resolution
640 x 480 pixels
Input Voltage
100 to 240 VAC
Frequency
50/60 Hz
Logic Module Memory
128 MB
Communication
ControlNet, Ethernet, RS-232, USB
Installation Guidelines
Ensure the terminal is mounted in a panel enclosure that provides adequate protection against environmental hazards.
Verify that the power supply voltage is within the 100-240 VAC range before connection.
Use shielded cables for communication ports to minimize EMI interference in noisy industrial environments.
Maintain proper clearance around the unit to ensure adequate ventilation and cooling.
Always power down the system before installing or removing the logic module or communication cables.
FAQDoes this terminal support both touch and keypad input? Yes, the 2711P-B10C15A2 features both a physical keypad and an analog resistive touch screen for flexible operator control.What is the primary communication protocol for this model? This unit supports multiple protocols, including ControlNet and Ethernet, along with standard RS-232 and USB connectivity.
6 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
5 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

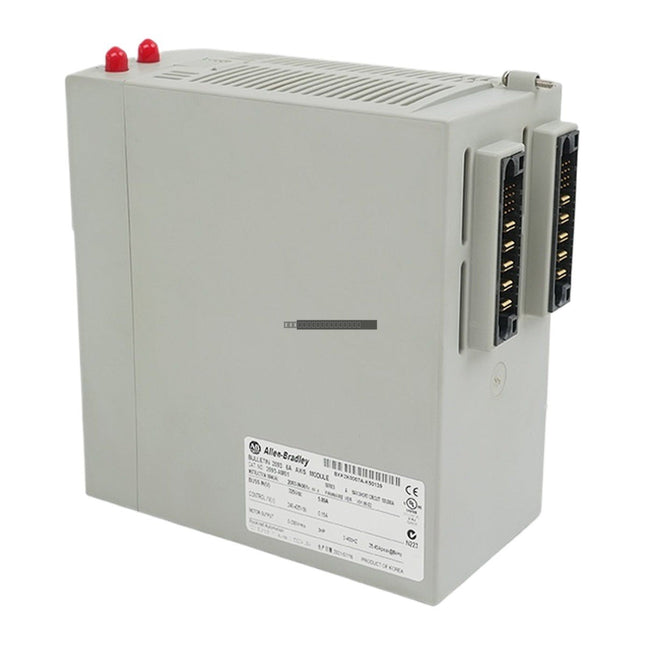

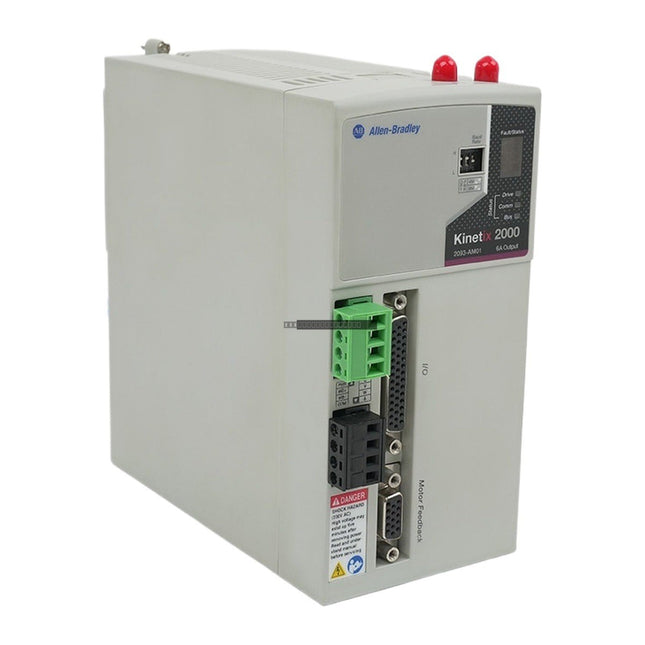

The Allen-Bradley 2093-AM01 is an axis module inverter designed for the Kinetix 2000 multi-axis servo drive system. This module serves as an expansion unit for Integrated Axis Modules (IAM), providing precise motion control for demanding industrial automation applications.Features
Multi-axis servo drive capability for complex motion control tasks
Nominal DC bus voltage of 325V DC
Continuous output power rating of 1.9 kW
Designed for integration with Kinetix 2000 series systems
Supports high-speed velocity and current loops for responsive performance
Applications
Packaging Machinery: Food and general packaging control
Converting & Web Processing: Film, paper, and metal line handling
Material Handling: Precise motion control for automated systems
Robotics & Indexing: Drive control for small robots and indexing tables
Electronics Assembly: High-speed, high-precision assembly processes
Technical Specifications
Product Model
2093-AM01
Series
Kinetix 2000
Nominal Input Voltage
325V DC
Continuous Current (RMS)
6.0 A
Peak Current (RMS)
18.0 A
Continuous Power Out (Nom)
1.9 kW
Velocity Loop
500 Hz
Current Loop
860 Hz
PWM Frequency
8 kHz
Installation Guidelines
Ensure all modules are fully installed and wired before applying power to prevent electrical shock.
Use the dedicated motor power (MP) and motor brake (BC) wiring plugs provided with the module.
Maintain short wire lengths to minimize impedance.
Route signal cables, such as encoder and serial lines, away from high-voltage motor and power wiring to mitigate electromagnetic interference (EMI).
Verify that the module is properly seated in the Kinetix 2000 drive system rack before operation.
FAQWhat is the 2093-AM01?It is an Axis Module in the Kinetix 2000 multi-axis servo drive family, commonly used for motion control, with a 6A output.Which system does 2093-AM01 belong to?It runs on the Kinetix 2000 platform, which uses a general-purpose bus follower model and communicates via Sercos.What do the status indicators on the 2093-AM01 represent?This module features drive status indicators, communication status indicators, and bus status indicators.Is it compatible with 2093-AC05?Yes, the 2093-AM01 acts as an expansion axis module for the 2093-ACxx Integrated Axis Modules (IAM).
5 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

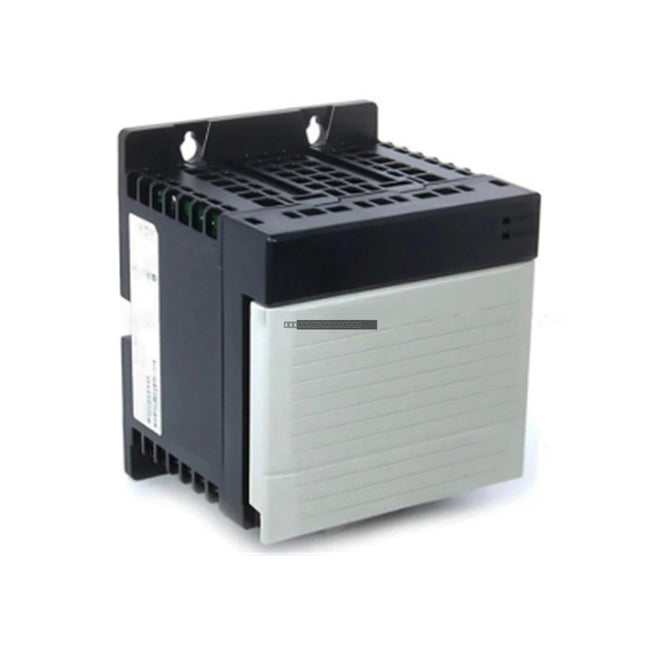

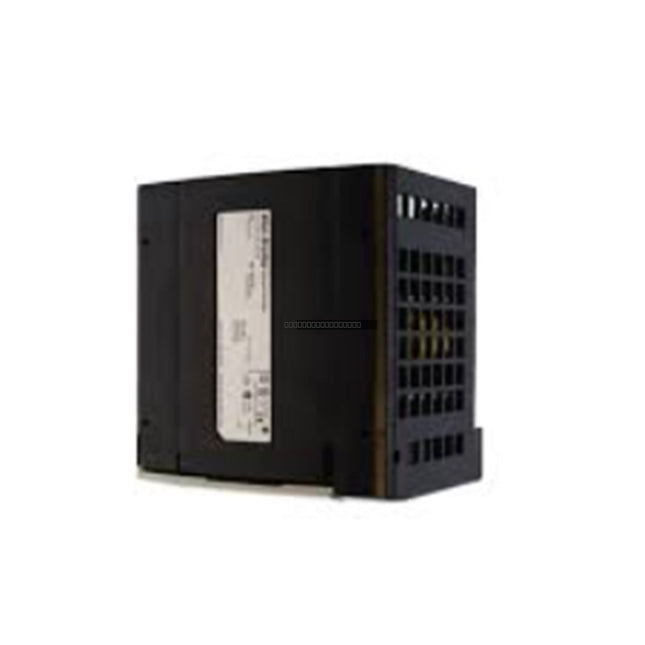

The 1756-PA75R is a ControlLogix redundant AC power supply module designed to provide high-availability power for ControlLogix chassis in critical industrial applications. It supports an input voltage range of 85 to 265V AC (nominal 120/240V AC) at 47 to 63 Hz, making it suitable for global deployment.Features
Wide-range AC input voltage support
Automatic chassis load sharing when used in redundant pairs
Seamless failover protection with < 5 ms switchover time
Visual status indicators for real-time health monitoring
Solid-state relay annunciator output for remote status signaling
Hot-swappable design for maintenance without system de-energization
Applications
Water/Wastewater: Chemical dosing and valve control systems
Oil/Gas/Petrochemical: Pressure loop management and burner gas-feed systems
Food/Beverage: PID-controlled temperature regulation for mixing and cooking
Power Generation: Steam governor actuators and cooling tower fan speed integration
Technical Specifications
Product Model
1756-PA75R
Input Voltage Range
85-265V AC
Input Frequency
47-63 Hz
Output Power
75 Watts at 60 degC
Backplane Output
5.1V DC / 24V DC
Isolation Voltage
250V (continuous)
Operating Temperature
0 degC to 60 degC
Weight
1.45 kg
Installation Guidelines
Ensure all system power is disconnected before handling the module.
The 1756-PA75R is typically installed on the far-left side of the chassis or remotely via a chassis adapter.
Align the top and bottom guides of the power supply with the chassis grooves and slide the module until the rear connector fully seats into the backplane.
Tighten the top and bottom retaining screws to secure the unit.
For redundant configurations, use the 1756-PSCA2 chassis adapter and 1756-CPR2 cables.
Use 2.5 mm2 (14 AWG) copper wire rated at 90 degC or greater for power connections.
FAQWhat is the input voltage range for the 1756-PA75R?The module is auto-ranging and supports an input voltage range of 85 to 265V AC (nominal 120V or 240V AC at 47 to 63 Hz).Can I use this power supply as a standalone unit?Yes, it can operate as a standalone supply. However, its primary purpose is to function in a redundant pair configuration for high-availability systems.What components are required to build a redundant power supply assembly?To assemble a redundant pair, you need two 1756-PA75R power supplies, a 1756-PSCA2 chassis adapter module, and two 1756-CPR2 redundant power supply cables.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
10 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

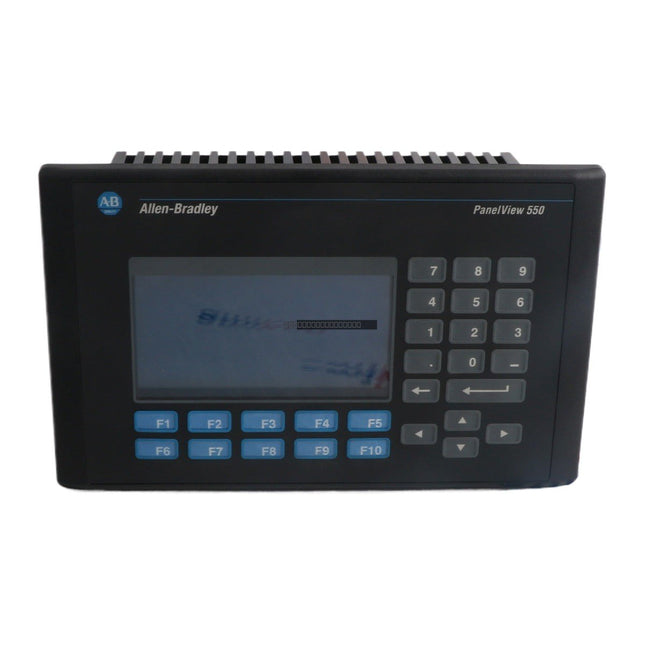

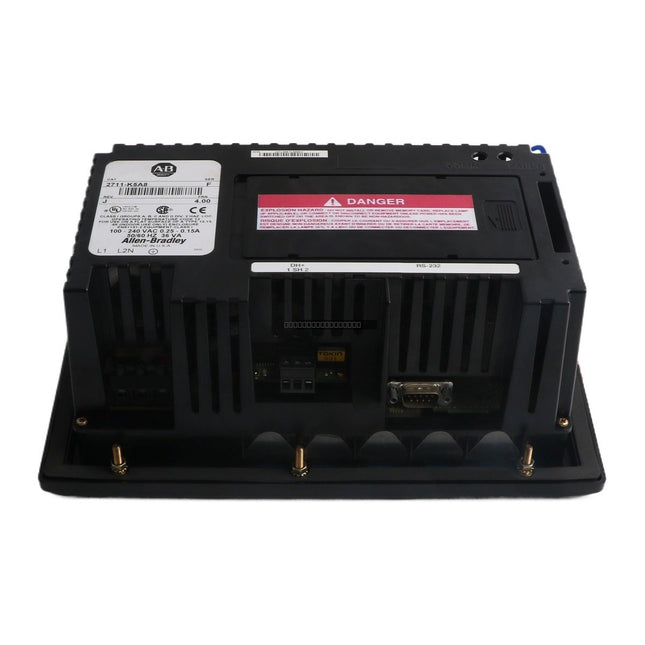

DescriptionThe Allen-Bradley 2711-K5A8 is a PanelView 550 standard operator interface terminal designed for industrial visualization and control applications. This monochrome terminal provides a robust interface for monitoring and interacting with PLC systems. Please note that this model was officially discontinued by the manufacturer on June 30, 2012.Features
5.5-inch monochrome display for clear process visualization.
Integrated keypad interface for operator input and navigation.
Equipped with an RS-232 printer port for documentation and logging.
Operates on a 100-240 VAC power supply (50/60 Hz).
Compact design suitable for panel-mount configurations.
Technical Specifications
Model
2711-K5A8
Display Type
Monochrome
Screen Size
5.5-inch
Input Method
Keypad
Communication Port
RS-232 (Printer)
Input Voltage
100-240 VAC
Frequency
50/60 Hz
Power Consumption
36 VA
Current Rating
0.15-0.25 A
Installation Guidelines
Ensure the panel cutout is prepared according to the manufacturer's dimensional specifications for the PanelView 550 series.
Verify that the supply voltage matches the 100-240 VAC requirement before connecting power.
Use appropriate grounding practices to minimize electrical noise and protect the terminal from EMI.
Ensure adequate ventilation around the unit to maintain operating temperatures within the specified limits.
Always disconnect power before installing or removing communication cables to prevent damage to the interface ports.
Handle with care to avoid damage to the display screen or keypad membrane.
FAQIs the 2711-K5A8 still supported by the manufacturer?No, the 2711-K5A8 was discontinued by Allen-Bradley on June 30, 2012. Support is limited to legacy hardware maintenance and replacement through secondary market sources.What is the primary communication method for this terminal?The 2711-K5A8 features an RS-232 printer port. For specific PLC communication protocols, please refer to the original product documentation for the specific firmware version installed on your unit.
10 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
6 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

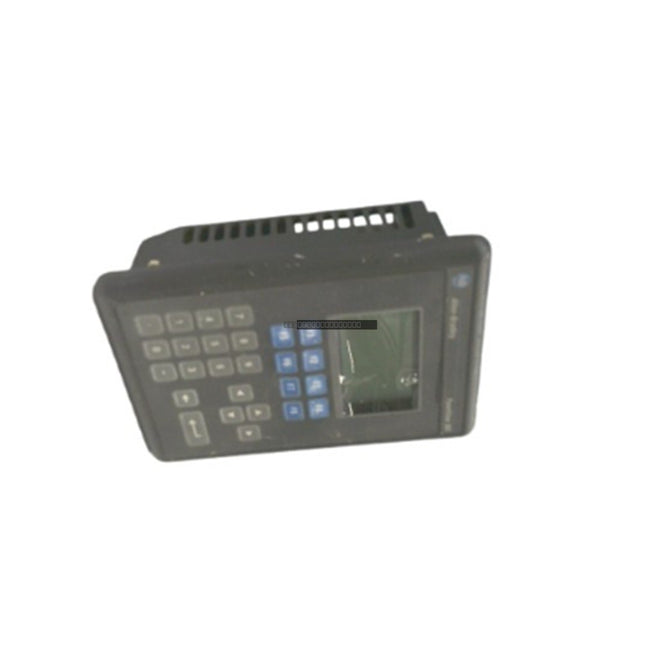

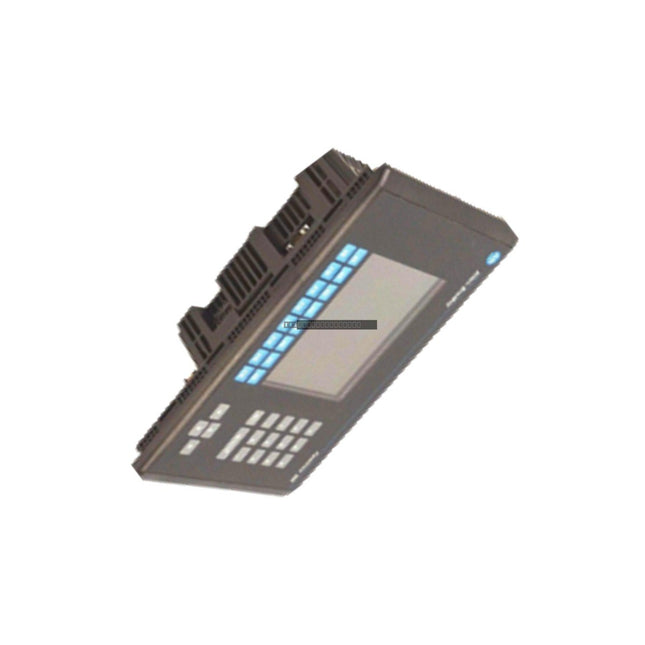

The 2711-K5A20 is a network-integrated human-machine interface within the Allen-Bradley PanelView Standard 550 operator terminal family. This visualization station establishes high-speed, deterministic communication and real-time plant-floor monitoring by connecting directly to industrial automation controllers. Optimized for enterprise-level control networks, it is widely implemented in wastewater treatment facilities, food production lines, and continuous manufacturing plants. The hardware processes complex graphical representations and alarm tables locally, which significantly decreases processing overhead on the host programmable logic controller and minimizes system diagnostic downtime.Industrial Networking and Memory ArchitectureThe hardware platform integrates a dual-channel communication subsystem featuring native network connectivity and a dedicated peripheral interface. The primary communication port utilizes an onboard industrial Ethernet (EtherNet/IP) interface, ensuring noise-immune, low-latency register mapping and peer-to-peer data transfers across standard TCP/IP network structures. An auxiliary RS-232 serial configuration functions strictly as an isolated printer port, allowing immediate, hardcopy logging of system fault banners without introducing traffic onto the primary control network. Local memory architecture consists of 170 KB of volatile RAM for application runtime and 240 KB of non-volatile storage, which can be expanded via a built-in PCMCIA ATA flash card slot to support large localization databases and historical trend storage.Features
Rugged membrane keypad interface with 10 assignable function keys (F1-F10)
Monochrome transflective LCD blue mode display with long-life LED backlight
Integrated EtherNet/IP connectivity for high-speed controller communication
Field-serviceable backlight and battery-backed real-time clock
NEMA 4X/12/13 and IP65 environmental protection for harsh industrial conditions
ApplicationsThis operator terminal is designed for use in diverse industrial environments, including:
Wastewater treatment and water management systems
Food and beverage processing lines
Continuous manufacturing and assembly automation
General machine control and diagnostic monitoring
Technical Specifications
Model
2711-K5A20
Series
PanelView 550 Standard
Display Size
5.5 inch
Resolution
256 x 128 Pixels
Backlight Life
100,000 hours
RAM
170 KB
Non-volatile Memory
240 KB
Communication
Ethernet (EtherNet/IP), RS-232 (Printer)
Input Voltage
85 to 264 VAC
Frequency
47 to 63 Hz
Protection Rating
NEMA 4X, 12, 13; IP65
Installation Guidelines
Ensure the panel cutout is clean and free of debris before mounting the terminal.
Use the provided mounting clips to secure the unit to the enclosure, ensuring an even seal against the gasket to maintain NEMA/IP ratings.
Verify that the power supply is within the 85-264 VAC range before applying power.
Maintain proper clearance around the unit for adequate ventilation and access to the PCMCIA slot.
Route communication cables away from high-voltage power lines to prevent EMI interference.
Always power down the device before inserting or removing PCMCIA flash cards.
FAQIs the backlight on this unit field-replaceable?Yes, the LED backlight is field-serviceable using the 2711-NL1 replacement part.What is the primary function of the RS-232 port?The RS-232 port is configured strictly as a printer port for hardcopy logging of system events and faults.Can the memory be expanded?Yes, the unit includes a PCMCIA ATA flash card slot for expanding storage for localization databases and historical trends.
6 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe General Electric IC660EBA101 is a high-performance Electronics Assembly designed for the Genius I/O block system. This module provides reliable input signal processing and communication within industrial control networks, utilizing the established Genius protocol for seamless integration into GE automation architectures.Features
Designed for the Genius I/O Block series.
Features 6 discrete inputs organized into 3 isolated groups.
Integrated LED diagnostics including 1 unit status LED and 1 input status LED.
Robust isolation: 1500 V rms group-to-group and block-to-block isolation.
Configurable input update frequencies of 400, 800, or 1600 ms.
Supports wide power supply ranges for both AC and DC applications.
Technical Specifications
Model
IC660EBA101
Manufacturer
General Electric
Input Configuration
6 inputs in 3 isolated groups
AC Supply Voltage
93-132 VAC (47-63 Hz)
DC Supply Voltage
105-145 VDC (10% ripple)
Isolation
1500 V rms
Heat Dissipation
7 Watts
Operating Temperature
0 to 60 degC
Storage Temperature
-40 to 100 degC
Installation Guidelines
Ensure the system power is disconnected before installing or removing the electronics assembly from the I/O block base.
Verify that the supply voltage matches the specified range (93-132 VAC or 105-145 VDC) to prevent damage.
Maintain proper ventilation within the enclosure to accommodate the 7W heat dissipation.
Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components.
Ensure all wiring is securely terminated and that isolation barriers are maintained between input groups.
FAQWhat is the primary function of the IC660EBA101?The IC660EBA101 is an electronics assembly for a Genius I/O block, used to interface field input signals with a Genius-based control network.What is the isolation rating for this module?The module provides 1500 V rms isolation between groups and block-to-block, ensuring signal integrity and protection against electrical noise.Can this module operate on DC power?Yes, the module is designed to operate on a DC supply voltage range of 105-145 VDC with up to 10% ripple.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
10 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

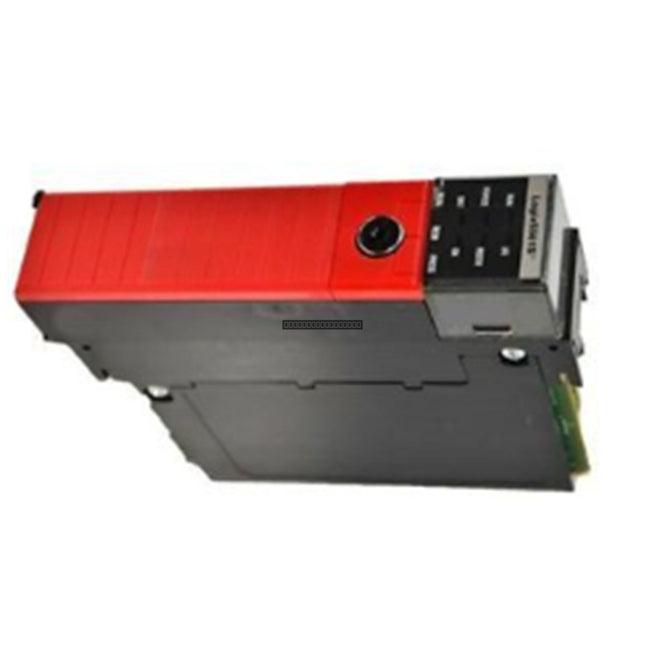

DescriptionThe Allen-Bradley 1756-L7SP is a ControlLogix GuardLogix Safety Partner module designed for high-integrity safety applications. This module is used in conjunction with a primary ControlLogix controller to achieve SIL 3 and PLe safety ratings, providing the necessary redundancy and diagnostic coverage required for critical safety-instrumented systems. It occupies two slots in a standard ControlLogix chassis.Features
Designed for SIL 3 and PLe safety-rated control architectures.
Functions as a dedicated safety partner for GuardLogix controllers.
Occupies two slots in the ControlLogix chassis.
Optimized for high-reliability industrial automation environments.
Integrated diagnostic monitoring for safety-critical operations.
Technical Specifications
Product Model
1756-L7SP
Series
GuardLogix
Power Dissipation
2.5 W
Thermal Dissipation
8.5 BTU/hr
Backplane Current (5.1V DC)
5 mA
Backplane Current (24V DC)
800 mA
Module Width
2 Slots
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the 1756-L7SP module to prevent electrical damage.
The module must be installed in a compatible ControlLogix chassis; ensure it is fully seated and the top and bottom latches are secured.
Maintain adequate ventilation within the cabinet to ensure the module operates within its thermal limits.
Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.
Ensure all safety-related wiring is routed according to local electrical codes and the specific safety system design documentation.
FAQWhat is the primary function of the 1756-L7SP?The 1756-L7SP acts as a safety partner module within the GuardLogix system, enabling the controller to meet SIL 3 and PLe safety requirements by providing the necessary redundant processing capabilities.How many slots does this module require?This module occupies two slots in a standard ControlLogix chassis.Is this module compatible with standard ControlLogix controllers?The 1756-L7SP is specifically designed for use in GuardLogix safety systems. It must be paired with a compatible safety-rated controller to function as intended in a safety-instrumented system.
10 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

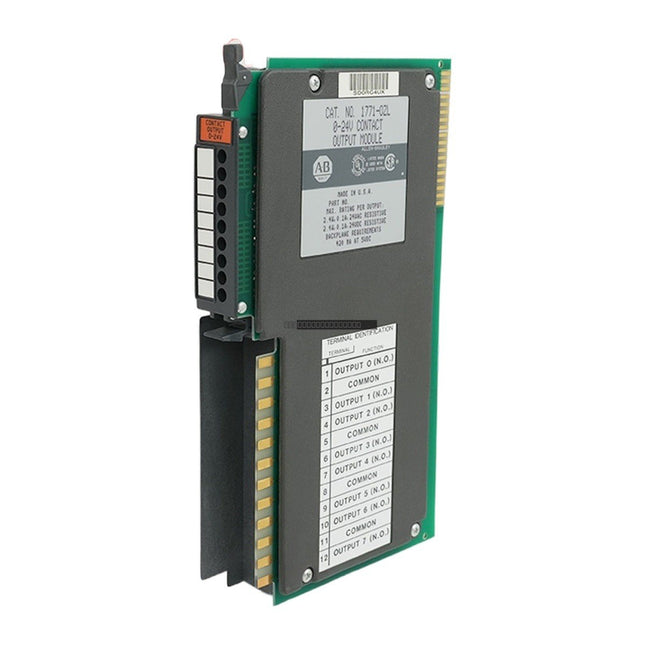

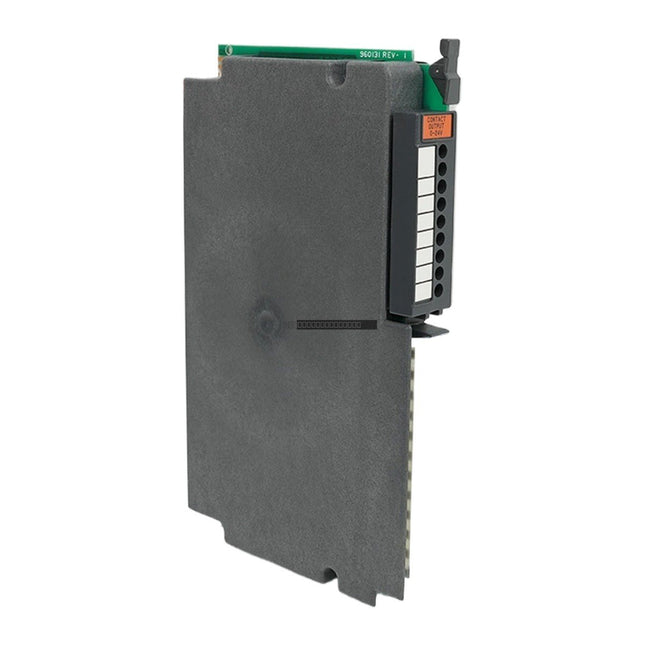

DescriptionThe Allen-Bradley 1771-OZL is a high-performance digital output module designed for the PLC-5 programmable controller system. This module features 8 reed relay contact outputs, providing reliable switching for low-voltage control applications. It is engineered for integration into 1771 I/O chassis, offering a robust solution for industrial automation tasks requiring isolated contact switching.Features
8 Form A (Normally Open) reed relay outputs.
Configured in 4 groups of 2 outputs each.
Supports a voltage range of 0–24 V AC RMS or 0–24 V DC.
Fast switching performance with 1 ms maximum operate/release and bounce times.
High isolation voltage: 1000 V between open contacts and 1500 V between coil and contact.
Compact design for standard 1771 I/O chassis mounting.
Technical Specifications
Model
1771-OZL
Outputs per Module
8 (4 groups of 2)
Contact Configuration
8 Form A (N.O.)
Voltage Rating
0–24 V AC RMS / 0–24 V DC
Current Rating
100 mA per output
Switching Frequency
10 Hz maximum
Backplane Current
420 mA maximum
Operate/Release Time
1 ms maximum
Bounce Time
1 ms maximum
Installation Guidelines
Ensure the PLC-5 chassis power is disconnected before installing or removing the 1771-OZL module to prevent electrical damage.
Verify the module is fully seated in the 1771 I/O chassis slot and secured with the locking tabs.
Use appropriate shielded cabling for field wiring to minimize electromagnetic interference (EMI).
Ensure field wiring is routed away from high-voltage AC lines and high-current power cables.
Observe the 100 mA per output current limit to prevent relay contact degradation.
Maintain adequate ventilation within the enclosure to ensure the module operates within its specified temperature range.
FAQWhat type of relay does the 1771-OZL use?The 1771-OZL utilizes reed relays, which are ideal for low-current, high-speed switching applications where mechanical durability and fast response times are required.Can this module be used for AC and DC loads?Yes, the 1771-OZL is rated for both 0–24 V AC RMS and 0–24 V DC, making it versatile for various low-voltage signal control requirements.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

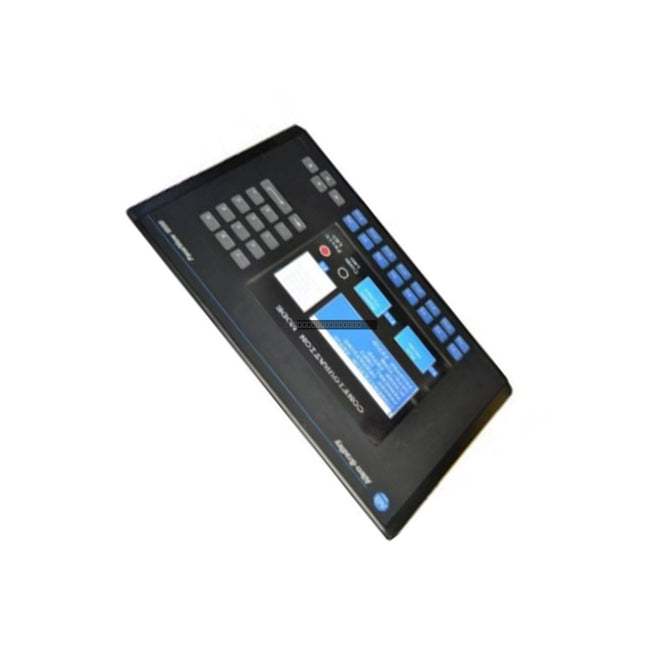

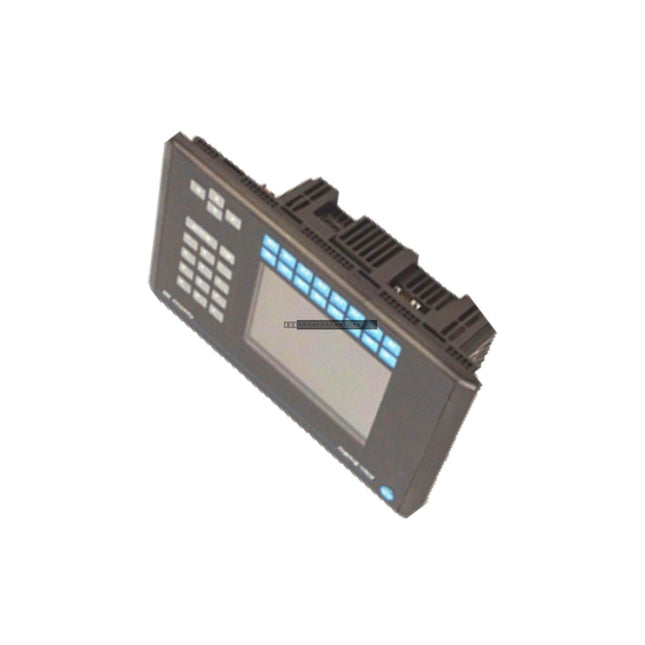

DescriptionThe Allen-Bradley 2711-K5A15L2 is a robust industrial human-machine interface (HMI) terminal from the PanelView Standard series, engineered for reliable command and diagnostic monitoring in demanding industrial environments. This unit is specifically designed for applications requiring high-durability input methods, such as automotive assembly, material handling, and wastewater treatment facilities. Featuring a 5.5-inch monochrome LCD and a tactile mechanical keypad, the terminal provides operators with clear visibility of process loops, machine status, and alarm conditions, facilitating rapid response and reduced downtime.Features
Rugged Interface: Tactile mechanical keypad with numeric matrix and F1-F10 function keys, ideal for high-vibration environments where touchscreens may be impractical.
Deterministic Communication: Integrated ControlNet port for high-speed, time-critical data exchange with host programmable logic controllers.
Diagnostic Support: Dedicated RS-232 printer port for generating hardcopy fault summaries, sequence logs, and diagnostic reports.
Industrial Power Design: Operates on 100-240 VAC with integrated line filtering to mitigate electromagnetic interference and grid fluctuations.
Compact Display: 5.5-inch blue monochrome LCD with 256 x 128 pixel resolution for clear, high-contrast process visualization.
ApplicationsThis operator terminal is suited for legacy automation systems where deterministic communication and physical keypad input are required. Typical applications include:
Automotive assembly lines
Material handling and conveyor control
Wastewater treatment process monitoring
Localized machine diagnostics and alarm management
Technical Specifications
Model
2711-K5A15L2
Brand
Allen-Bradley / Rockwell Automation
Display Type
Blue Monochrome LCD
Display Size
5.5 inch (5.3 inch active area)
Resolution
256 x 128 Pixels
Input Voltage
100-240 VAC
Line Frequency
50/60 Hz
Communication
ControlNet
Serial Port
RS-232 (Printer)
Operating Temperature
0 to 55 deg C
Storage Temperature
-25 to 70 deg C
Humidity
5 to 95% Non-condensing
Installation Guidelines
Mounting: Ensure the unit is mounted in a NEMA-rated enclosure suitable for the application environment to maintain the integrity of the front panel seal.
Grounding: Always connect the chassis ground terminal to a low-impedance earth ground to prevent electrical noise interference and ensure operator safety.
Power Wiring: Verify that the input voltage matches the 100-240 VAC specification before applying power. Use shielded cables for communication lines to minimize EMI.
Handling: This device contains sensitive electronic components. Handle with care and ensure the power is disconnected before performing any wiring or maintenance.
Cooling: Maintain adequate clearance around the unit to ensure proper airflow and prevent overheating during continuous operation.
FAQIs the 2711-K5A15L2 compatible with modern Ethernet networks?No, this specific model is designed for ControlNet communication. It does not support native Ethernet/IP connectivity.Can this unit replace a touchscreen model?This unit is designed for applications requiring a mechanical keypad. While it can replace other PanelView Standard units, ensure your application logic supports the specific ControlNet communication protocol used by this model.What is the primary purpose of the RS-232 port?The RS-232 port on this model is configured as a dedicated printer port for outputting diagnostic logs and fault history, rather than for general-purpose PLC communication.
7 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

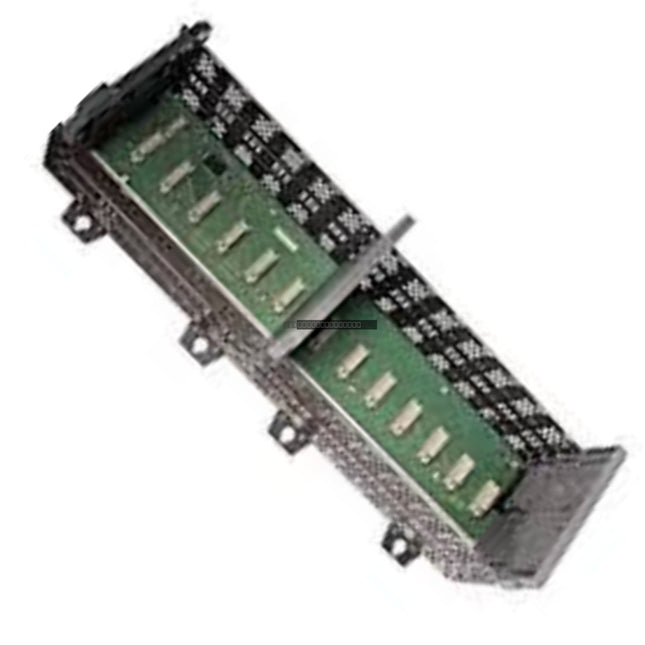

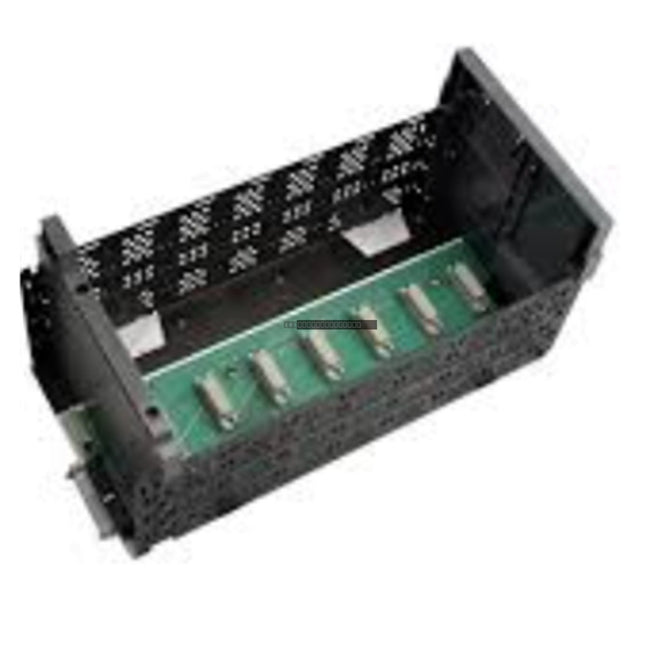

DescriptionThe Allen-Bradley 1756-A10 is a 10-slot modular chassis designed for the ControlLogix programmable automation controller (PAC) platform. It serves as the physical foundation for ControlLogix systems, providing the backplane communication bus and power distribution rails for controllers, I/O modules, communication adapters, and motion control modules. The chassis features a robust design suitable for industrial environments, supporting high-speed data exchange between installed modules.Features
Provides 10 dedicated slots for ControlLogix modules.
High-speed backplane architecture for reliable data communication.
Slot-independent module installation allows for flexible system configuration.
Compatible with 1756-series controllers, I/O, and communication modules.
Integrated power distribution rails for 1.2V, 3.3V, 5.1V, and 24V DC.
Horizontal panel-mounting design for standard control cabinet installation.
ApplicationsThe 1756-A10 is widely used in demanding industrial sectors requiring scalable and high-performance control, including:
Automotive Manufacturing: Robotic assembly, welding, and conveyor systems.
Oil, Gas, and Chemical: Hazardous area operations and critical parameter monitoring.
Water and Wastewater: Pumping stations and filtration process control.
Power Generation: Turbine control and substation management.
Food and Beverage: Sanitary processing and packaging line automation.
Technical Specifications
Model
1756-A10
Slots
10
Backplane Current @ 1.2V DC
1.5 A
Backplane Current @ 3.3V DC
4 A
Backplane Current @ 5.1V DC
15 A
Backplane Current @ 24V DC
2.8 A
Mounting Tabs
6
Operating Temp (Series B)
0 to 60 degC
Operating Temp (Series C)
-25 to 60 degC
Storage Temperature
-40 to 85 degC
Installation Guidelines
Ensure the chassis is mounted horizontally in an industrial control cabinet with adequate clearance for airflow.
Use 1756-N2 slot filler modules in any empty slots to maintain proper cooling and environmental protection.
Power down the system before inserting or removing any modules or power supplies to prevent electrical damage.
Ensure the chassis is properly grounded according to local electrical codes to minimize EMI/RFI interference.
When installing an RTB (Removable Terminal Block), ensure the module is fully locked into the chassis before snapping the RTB into place.
FAQWhat is the 1756-A10?The 1756-A10 is a 10-slot ControlLogix chassis that provides the structural, communication, and power backbone for Allen-Bradley ControlLogix automation systems.Does the power supply occupy one of the 10 slots?No. The power supply mounts to the far-left side of the chassis and does not consume any of the 10 module slots.How are the slots numbered?The slots are numbered 0 through 9 in the software configuration, corresponding to the physical positions from left to right.
7 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
4 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

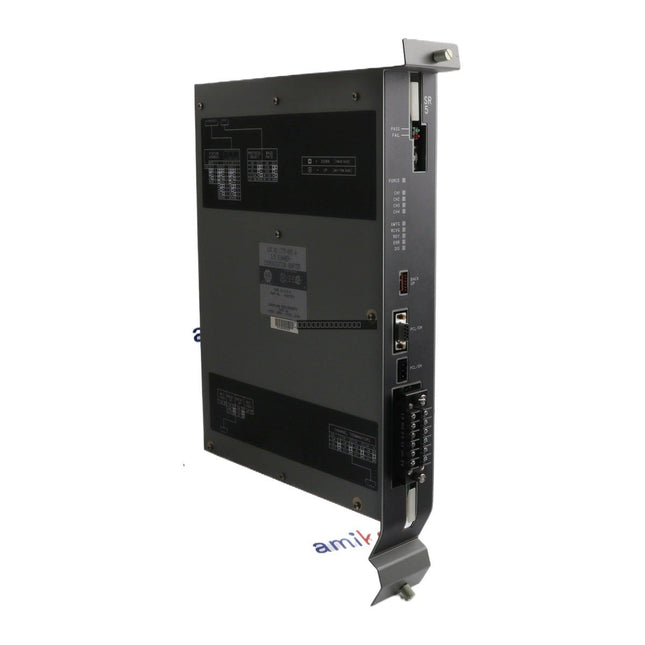

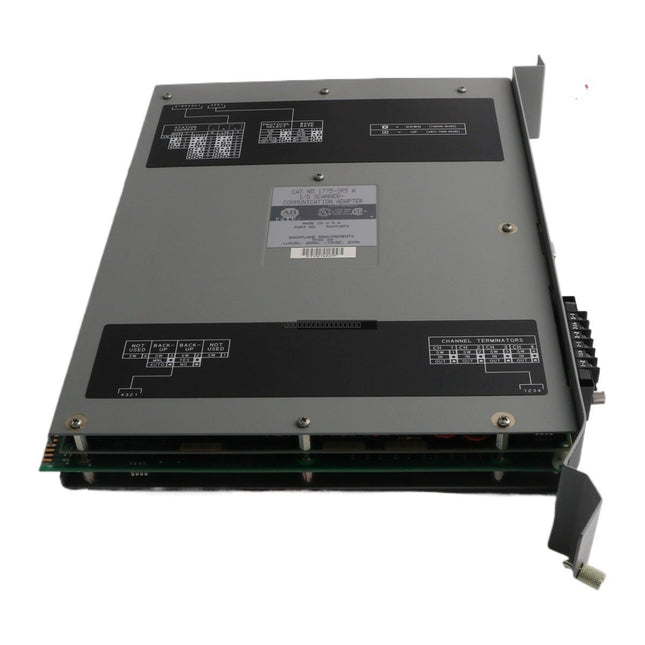

DescriptionThe Allen-Bradley 1775-SR5 is an I/O Scanner Communications Module designed for use within the PLC-3/10 control system architecture. This module facilitates high-speed data exchange and communication management between the processor and remote I/O chassis, ensuring reliable synchronization and monitoring of industrial automation processes. As a critical component for legacy PLC-3 systems, it enables the expansion of I/O capacity and distributed control capabilities.Features
Designed specifically for integration with the Allen-Bradley PLC-3/10 controller platform.
Provides robust I/O scanning functionality for distributed automation networks.
Optimized for backplane communication within standard PLC-3 chassis configurations.
Engineered for industrial environments requiring consistent, high-availability data throughput.
Technical Specifications
Product Model
1775-SR5
Manufacturer
Allen-Bradley
Module Type
I/O Scanner Communications Module
System Compatibility
PLC-3/10
Backplane Power Requirements
5VDC at 6A
Weight
2.96 kg
Installation Guidelines
Ensure the PLC-3 system power is completely disconnected before inserting or removing the 1775-SR5 module to prevent electrical damage or backplane faults.
Verify that the module is correctly aligned with the backplane connector pins before applying pressure to seat it firmly into the chassis.
Maintain proper ventilation within the control cabinet to prevent heat buildup, as this module draws significant current (6A) from the 5VDC rail.
Follow standard ESD (Electrostatic Discharge) precautions during handling to protect sensitive internal circuitry.
Ensure that all communication cabling is properly shielded and routed away from high-voltage power lines to minimize EMI interference.
FAQIs the 1775-SR5 still in production?No, the 1775-SR5 has been discontinued by the manufacturer. We provide these units as refurbished or surplus spare parts to support legacy PLC-3/10 system maintenance.What are the power requirements for this module?The module requires a 5VDC power supply from the backplane and consumes 6A of current during operation.
4 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
1 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

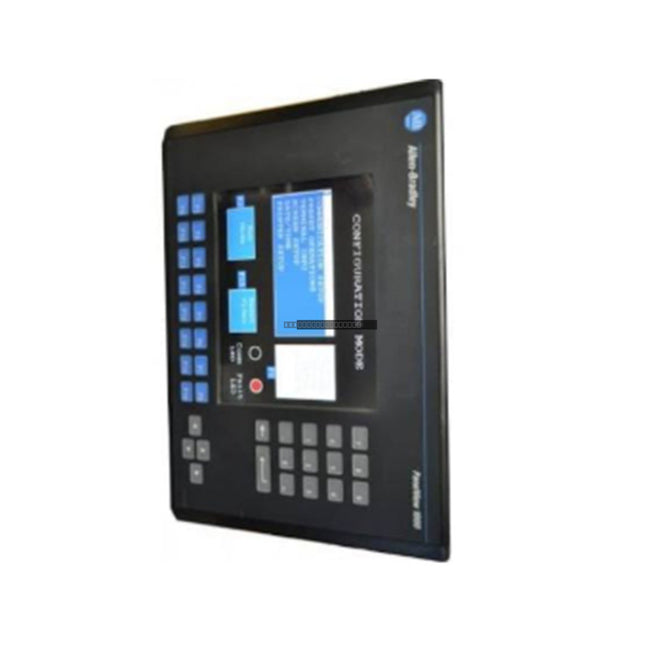

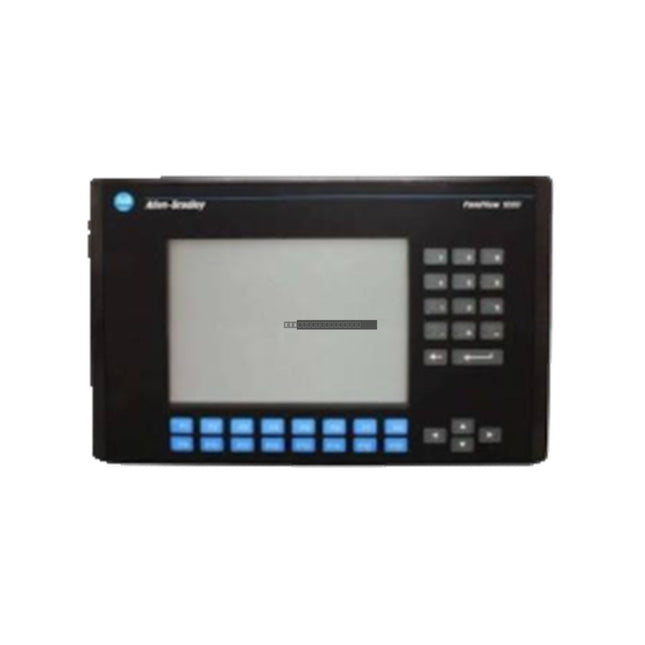

DescriptionThe Allen-Bradley 2711-K5A10 is a ruggedized industrial human-machine interface (HMI) terminal from the PanelView 550 series. Designed for centralized process visualization and data entry, this unit provides reliable control and monitoring within demanding automated environments. It is widely utilized in sectors such as automotive manufacturing, chemical processing, and water treatment to serve as a localized control node. By rendering clear machine mimic layouts, process symbols, and real-time text diagnostics, the terminal enables operators to monitor system status and respond rapidly to field changes, thereby reducing processing errors and minimizing unexpected downtime.Features
Tactile Input Matrix: Features a physical keypad assembly with 10 programmable function keys (F1 to F10), a numerical key set, and navigation buttons for precise parameter entry and command execution.
Industrial Display: Equipped with a 5.5-inch monochrome LCD blue mode display with a 256 x 128 pixel resolution for clear status and diagnostic visualization.
Extended Backlight Longevity: Includes a long-life integral LED backlight rated for up to 100,000 hours of operation.
Industrial Networking: Integrated DeviceNet communication port for high-speed peer-to-peer data exchange with PLC5 and SLC 500 controllers.
Peripheral Logging: Dedicated RS-232 serial printer port for documenting system alarm logs and historical events.
Durable Enclosure: NEMA Type 12/13 and 4X (IP54/IP65) indoor-rated chassis designed to resist dust and moisture in harsh industrial settings.
ApplicationsThis terminal is designed for integration into legacy Allen-Bradley control systems. It is ideal for machine-level monitoring, alarm management, and localized operator control in manufacturing lines where high-speed communication via DeviceNet is required.Technical Specifications
Model
2711-K5A10
Display Size
5.5 inches
Resolution
256 x 128 Pixels
Input Voltage
85 to 264 VAC (47-63 Hz)
Power Consumption
45 VA maximum
Memory
170 KB Runtime / 240 KB Nonvolatile
Communication
DeviceNet, RS-232 Printer Port
Weight
1.50 kg
Installation Guidelines
Mounting: Ensure the panel cutout is prepared to the specified dimensions (6.20 inches height). Use the provided mounting hardware to secure the terminal against the enclosure gasket to maintain the NEMA/IP seal.
Power: Verify input voltage is within the 85-264 VAC range before applying power. Ensure a solid earth ground connection to the chassis to prevent EMI interference.
Wiring: Use shielded cables for communication ports. Keep signal cables separated from high-voltage power lines to minimize electrical noise.
Environment: Install in an environment that allows for adequate ventilation. Ensure the ambient temperature remains within the specified operational limits for the PanelView 550 series.
Maintenance: Power down the unit before performing any maintenance or cable connections.
FAQQ: Does this unit support color graphics?A: No, the 2711-K5A10 features a monochrome LCD blue mode display.Q: Can this terminal communicate with modern ControlLogix systems?A: This unit is primarily designed for legacy integration with PLC5 and SLC 500 controllers via DeviceNet. Please consult your system architecture documentation for compatibility with newer platforms.Q: What is the purpose of the printer port?A: The RS-232 serial port is dedicated to printing alarm logs and historical event data for record-keeping and troubleshooting purposes.
1 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
4 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
Description

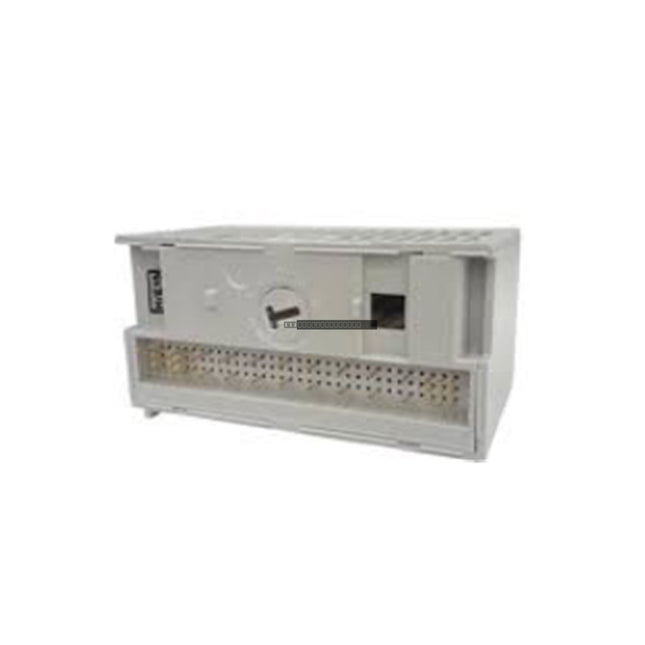

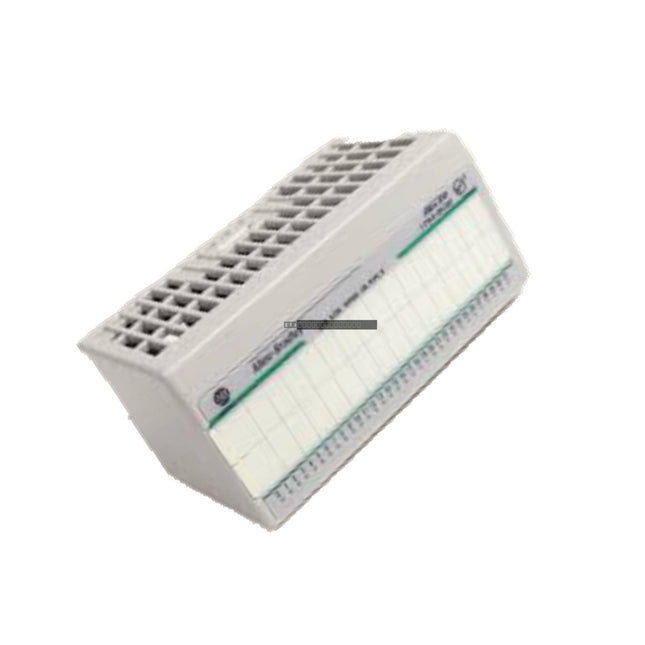

The 1794-OV16P is a high-density, 16-channel solid-state discrete DC digital output module designed for the Allen-Bradley Flex I/O 1794 platform. This module functions as a sinking switch array, providing a path to ground (0V DC reference) for up to 16 independent field-side loads, such as solenoid valves, relay coils, and pilot lamps. As a "Protected" (P) variant, it includes integrated electronic short-circuit, overcurrent, and thermal overload protection. The module supports Removal and Insertion Under Power (RIUP), allowing for maintenance and hot-swapping without requiring a system-wide power cycle.
Features
16 independent sinking (NPN) output channels.
Integrated electronic protection: automatic shutdown and recovery for short-circuits, overcurrent, and thermal overloads.
Supports RIUP (Removal and Insertion Under Power) for reduced downtime.
16 yellow status LEDs for local channel state verification.
Compatible with 1794-TB3 and 1794-TB3S terminal bases.
High-density design for space-constrained control cabinets.
Applications
The 1794-OV16P is widely used in industrial automation environments requiring reliable discrete control. Typical applications include driving interposing relays, small solenoid actuators, and status indicators in manufacturing, packaging, and process control systems. It is compatible with various Flex I/O communication adapters, including EtherNet/IP, ControlNet, and DeviceNet.
Technical Specifications
Model
1794-OV16P
Output Channels
16 (Sinking/NPN)
Nominal Voltage
24 VDC
Operating Voltage Range
10 to 31.2 VDC
Current per Channel
0.5 A (Max)
Total Module Current
8.0 A (Max)
Flexbus Current
80 mA at 5 VDC
Power Dissipation
4.2 W at 31.2 VDC
Operating Temperature
0 to 55 degC
Vibration Resistance
5 g at 10 to 500 Hz
Installation Guidelines
Ensure the terminal base (1794-TB3 or 1794-TB3S) is securely mounted to a standard DIN-rail before installing the module.
Verify that the module is fully seated and locked into the terminal base to ensure proper backplane communication.
Maintain proper grounding practices for the 24V DC power supply to minimize noise interference.
Use shielded cabling for field I/O to prevent EMI/RFI issues in high-noise environments.
Handle with ESD precautions; avoid touching backplane pins.
Ensure adequate ventilation in the enclosure to keep ambient temperatures within the 0 to 55 degC range.
FAQ
Does this module require external fuses?
No, the 1794-OV16P is a "Protected" module. It features internal electronic protection that handles short-circuits and overcurrents automatically. Once the fault is cleared, the module will reset itself.
Can I hot-swap this module while the system is running?
Yes, this module supports Removal and Insertion Under Power (RIUP), allowing you to replace the unit without shutting down the entire Flex I/O rack.
4 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
ABB DSQC3026 Measurement Board
The ABB DSQC3026 3HAC059122-001, also cataloged as the DSQC3026 Measurement Board, operates as a dedicated hardware component for serial measurement data processing within ABB IRC5 robot controller platforms.
Hardware Specifications
Parameter
Specification
Model
DSQC3026 3HAC059122-001
Brand
ABB
Product Type
Measurement Board / Serial Measurement Board
Origin
Sweden
Compatible System
ABB Robotics IRC5 controller environments
Communication Interface
Serial communication interface
Power Supply
24 VDC
Weight
Approx. 2.5 kg
Dimensions
Approx. 200 mm x 150 mm x 50 mm
Operating Temp
-10 deg C to +60 deg C
Application Function
Robot position feedback and measurement signal processing
Industrial Control and Drive Integration
The ABB DSQC3026 measurement board processes serial measurement signals from robot feedback devices and transfers position-related data to the IRC5 controller system. Therefore, the module supports closed-loop motion control by maintaining communication between measurement hardware and robot control software.
The board integrates with ABB industrial control architectures through dedicated communication paths. In addition, ABB controller platforms use firmware flash compatibility management to ensure that installed hardware revisions match the configured robot system software.
The DSQC3026 supports industrial I/O density scaling concepts within ABB robotic cells by providing a dedicated measurement interface instead of general-purpose signal handling. Its hardware design focuses on stable signal acquisition, controller communication, and precise feedback execution.
Frequently Asked Questions
Q: What is the primary function of the ABB DSQC3026 board?A: The DSQC3026 functions as a serial measurement board that processes feedback data from ABB robot measurement systems and transfers position information to the IRC5 controller.
Q: Does the DSQC3026 use standard digital I/O channels for measurement feedback?A: No. The DSQC3026 is designed as a dedicated measurement interface board and uses serial communication for measurement data exchange.
Q: What installation checks are required before replacing a DSQC3026 module?A: Verify controller compatibility, firmware matching, connector condition, grounding arrangement, and correct cable routing before installation.
Field Installation Guidelines
Confirm that the ABB controller is powered down before removing or installing the DSQC3026 board.
Inspect board connectors and backplane interfaces for contamination, mechanical damage, or oxidation.
Install the module according to the ABB controller hardware configuration requirements.
Keep measurement signal cables separated from high-current motor power wiring to reduce electrical interference.
Connect protective grounding according to the robot controller installation specification.
Verify communication status and measurement feedback signals after system restart.
Confirm firmware and controller configuration compatibility before returning the robot system to operation.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
4 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

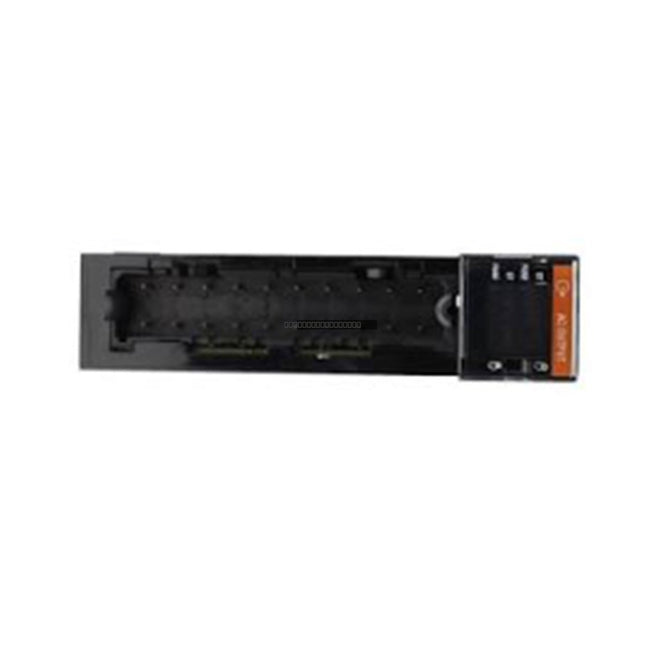

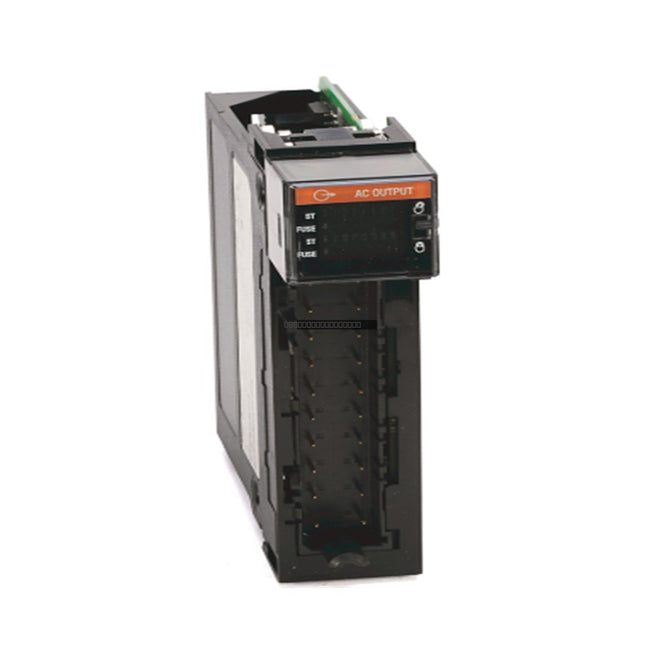

DescriptionThe Allen-Bradley 1756-OA8 is a high-performance discrete output module designed for the ControlLogix platform. This module provides 8 output points, specifically engineered to handle AC voltage applications. It is widely used in industrial automation environments to interface the ControlLogix controller with AC-powered field devices such as motor starters, contactors, and solenoid valves.Features
8 isolated AC output points for flexible control configurations.
Wide operating voltage range of 74-265 Volts AC, supporting both 120V and 240V systems.
High current capacity of 0.5 A per point at 60 degC.
Integrated status indicators for clear visual diagnostics of output states.
Designed for seamless integration into the standard ControlLogix chassis.
ApplicationsThis module is suitable for various industrial control applications, including machine control, process automation, and manufacturing line management where AC load switching is required. It is commonly deployed in systems requiring reliable, high-density AC output control within a unified ControlLogix architecture.Technical Specifications
Number of Outputs
8
Voltage Category
120 / 240 Volts AC
Operating Voltage Range
74-265 Volts AC
Current per Point
0.5 A @ 60 degC
Current per Group (Max)
2 A @ 60 degC
Backplane Current @ 5V
200 mA
Backplane Current @ 24V
2 mA
Power Dissipation (Max)
5.1 W @ 60 degC
Isolation Voltage
50 Volts Continuous
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the 1756-OA8 module to prevent electrical arcing or damage to the backplane.
Verify that the module is properly seated in the chassis slot and secured with the top and bottom locking tabs.
Use appropriate wire gauges for the terminal block to ensure secure connections and prevent overheating.
Route high-voltage AC wiring away from low-voltage signal cables to minimize electromagnetic interference (EMI).
Maintain adequate clearance around the module to ensure proper airflow and cooling, as the module dissipates heat during operation.
Follow all local electrical codes and safety standards regarding grounding and circuit protection for AC output devices.
FAQWhat is the primary function of the 1756-OA8?The 1756-OA8 is a discrete output module that allows the ControlLogix controller to switch AC-powered devices on or off based on the control program logic.Can this module be used with 120V and 240V systems?Yes, the module supports an operating voltage range of 74-265 Volts AC, making it compatible with both standard 120V and 240V AC industrial control circuits.Is this module hot-swappable?Yes, the ControlLogix system supports Removal and Insertion Under Power (RIUP), allowing you to replace the module without shutting down the entire chassis, provided that safety protocols are followed.
4 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
10 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

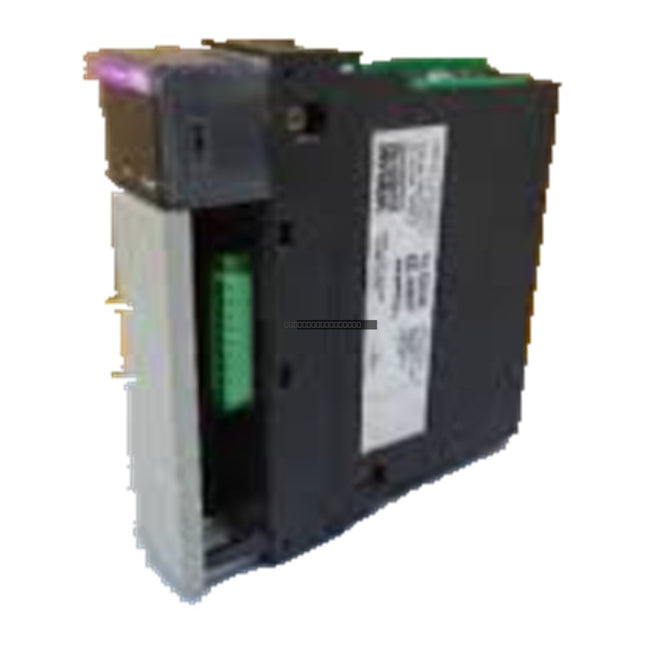

DescriptionThe Allen-Bradley 1756-EWEB is a dedicated EtherNet/IP communication module designed for the ControlLogix platform. This module serves as a web server, providing enhanced connectivity and data access capabilities for industrial control systems. It facilitates communication between the ControlLogix controller and other Ethernet-enabled devices, supporting 128 Logix connections and Class 3 messaging.Features
EtherNet/IP communication interface for ControlLogix systems.
Integrated web server functionality for remote monitoring and data access.
Supports up to 128 Logix connections.
Optimized for Class 3 messaging applications.
Data transfer rates of 10/100 Mbps.
Mounts directly into any slot of a standard ControlLogix chassis.
Technical Specifications
Parameter
Specification
Product Model
1756-EWEB
Manufacturer
Allen-Bradley
Module Type
EtherNet/IP Web Server Module
Communication Rate
10/100 Mbps
Logix Connections
128
Messaging Type
Class 3 Only
Backplane Current @ 5.1V DC
700 mA
Backplane Current @ 24V DC
3 mA
Mounting
ControlLogix Chassis (Any Slot)
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the 1756-EWEB module to prevent electrical damage.
Align the module carefully with the chassis slot guide rails and press firmly until the module is fully seated and the locking tabs are engaged.
Use shielded twisted-pair Ethernet cabling to minimize electromagnetic interference (EMI) in industrial environments.
Ensure proper grounding of the chassis backplane to maintain signal integrity.
Verify that the module firmware is compatible with your existing ControlLogix controller revision before commissioning.
FAQWhat is the primary function of the 1756-EWEB?The 1756-EWEB acts as a communication bridge that allows a ControlLogix system to communicate via EtherNet/IP and provides a web server interface for diagnostic and data viewing purposes.Can this module be placed in any slot in the chassis?Yes, the 1756-EWEB is designed to be placed in any available slot within a standard ControlLogix chassis.Does this module support Class 1 messaging?No, the 1756-EWEB is specifically designed for Class 3 messaging only.
10 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
5 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe Allen-Bradley 1788-CN2FF is a high-performance linking device designed to bridge ControlNet networks with Foundation Fieldbus H1 segments. This module facilitates seamless communication and data exchange between the two protocols, allowing for the integration of Fieldbus-enabled field devices into a ControlNet-based control architecture.Features
Protocol Conversion: Enables transparent communication between ControlNet and Foundation Fieldbus H1 networks.
Power Requirements: Operates on a standard 11-30 VDC power supply.
Mounting: Designed for standard DIN-rail installation, ensuring space-efficient integration into control cabinets.
Connectivity: Equipped with 9-pin Sub-D connectors for reliable network interfacing.
Robust Design: Built to withstand typical industrial environments with specified vibration and temperature tolerances.
Technical Specifications
Product Model
1788-CN2FF
Device Type
ControlNet to Fieldbus Linking Device
Input Voltage
11-30 VDC
Operating Temperature
0 to 60 degC (32 to 140 degF)
Storage Temperature
0 to 60 degC (32 to 140 degF)
Relative Humidity
5 to 95% non-condensing
Vibration Rating
0.5 g @ 10 to 500 Hz
Installation Guidelines
Ensure the power supply is disconnected before installing or removing the module from the DIN rail.
Verify that the operating environment remains within the specified temperature range (0 to 60 degC) and humidity limits.
Use appropriate shielded cabling for both ControlNet and Fieldbus connections to minimize electromagnetic interference (EMI).
Ensure the module is securely snapped onto the DIN rail and that all 9-pin Sub-D connectors are fully seated and tightened.
Maintain adequate clearance around the module to allow for proper airflow and cooling.
FAQWhat is the primary function of the 1788-CN2FF?The 1788-CN2FF acts as a bridge, allowing a ControlNet network to communicate with and control Foundation Fieldbus H1 devices, effectively integrating disparate network segments into a unified control system.Is this device suitable for high-vibration environments?The module is rated for 0.5 g vibration at 10 to 500 Hz. It is intended for standard industrial cabinet mounting; if your application exceeds these vibration specifications, additional shock-absorbing mounting hardware may be required.
5 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

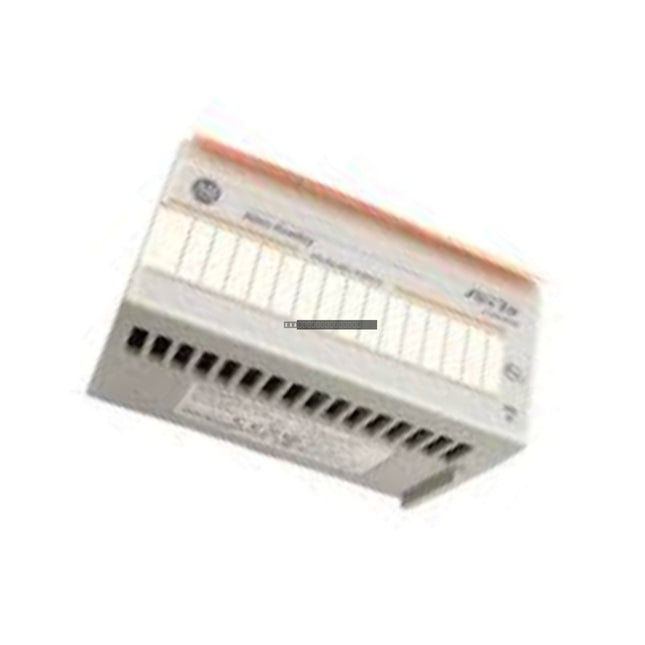

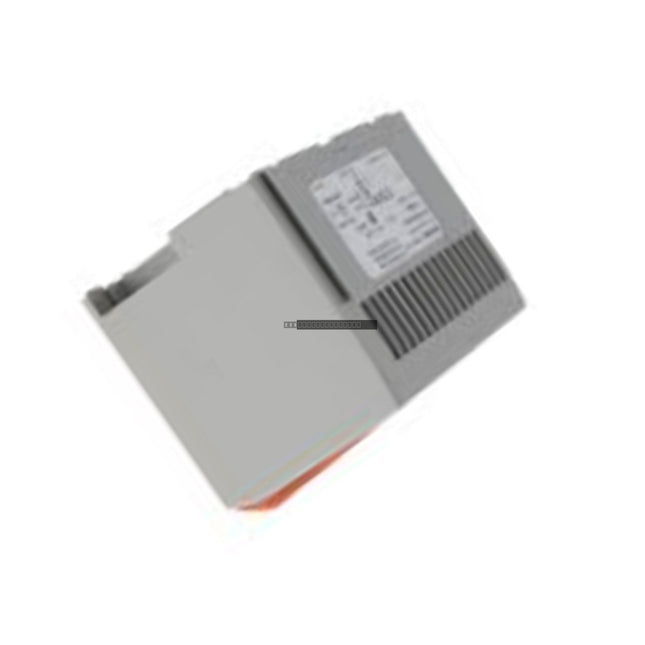

DescriptionThe Allen-Bradley 1794-OA8I is a member of the FLEX I/O product family, designed to provide reliable discrete output control in industrial automation environments. This module features 8 isolated AC output points, specifically engineered for 120VAC applications. As part of the FLEX I/O system, it offers a compact, modular design that allows for flexible configuration and easy integration into distributed I/O networks.Features
8 isolated output points for 120VAC operation.
Compact FLEX I/O form factor suitable for space-constrained control cabinets.
Designed for high-density discrete output applications.
IP20-rated enclosure for protection against solid objects.
Supports standard DIN-rail mounting for efficient installation.
ApplicationsThe 1794-OA8I is typically utilized in manufacturing, process control, and material handling systems where discrete AC control is required. It is commonly deployed in conjunction with FLEX I/O adapters to interface field devices such as contactors, solenoids, and indicators with the main PLC controller.Technical Specifications
Product Model
1794-OA8I
Module Type
Digital AC Output Module
Number of Outputs
8 Points
Voltage Rating
120VAC
Isolation
Isolated
Enclosure Rating
IP20
Mounting
DIN Rail
Installation Guidelines
Ensure the power is disconnected from the FLEX I/O base and the module before installation or removal.
Mount the module on a standard 35mm DIN rail. Ensure the module is securely seated in the terminal base.
Maintain proper clearance around the module to allow for adequate ventilation and heat dissipation.
Use shielded cables for I/O wiring to minimize electromagnetic interference (EMI).
Ensure all wiring connections are tight and follow local electrical codes for AC circuit protection.
Handle with care to prevent electrostatic discharge (ESD) damage to the internal circuitry.
FAQWhat is the primary function of the 1794-OA8I?The 1794-OA8I is a digital output module used to control 120VAC field devices from an Allen-Bradley FLEX I/O system.Is this module isolated?Yes, the 1794-OA8I features isolated output channels, which helps prevent electrical noise and ground loops from affecting other parts of the control system.Can this module be mounted on a DIN rail?Yes, the module is designed for standard DIN-rail mounting within a FLEX I/O terminal base.
2 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

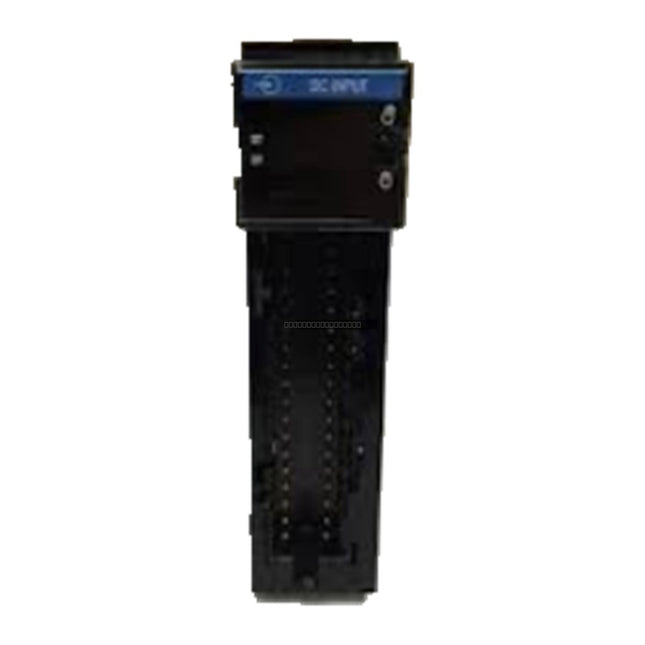

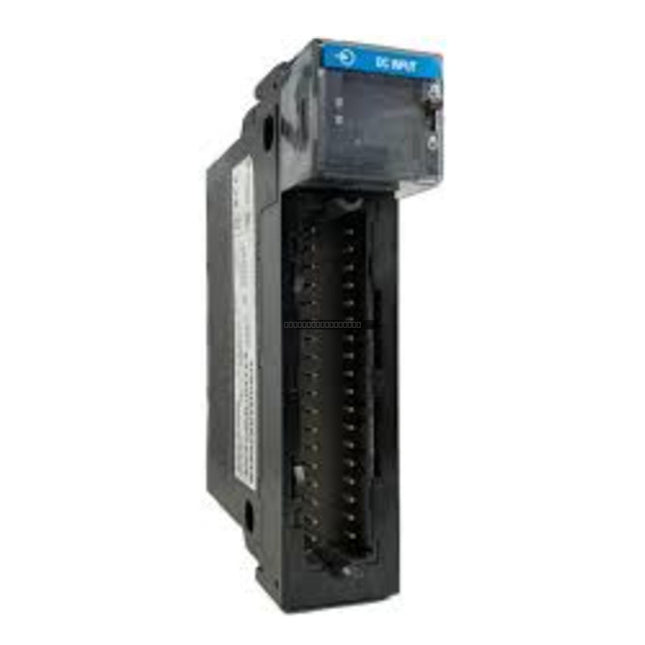

DescriptionThe Allen-Bradley 1756-IB16I is a high-performance 16-point digital input module designed for the ControlLogix platform. This module provides individually isolated inputs, allowing for flexible wiring configurations and enhanced noise immunity in demanding industrial environments. It is engineered to interface with 10-30V DC signals, making it suitable for a wide range of sensor and switch monitoring applications within automated control systems.Features
16 individually isolated digital input points.
Operating voltage range: 10-30V DC.
Standard ControlLogix form factor for seamless integration into 1756 chassis.
High-density I/O design to optimize cabinet space.
Compatible with standard 36-pin removable terminal blocks (RTB).
ApplicationsThis module is widely utilized in industrial automation applications requiring robust signal isolation, including:
Process control and manufacturing lines.
Monitoring of field devices such as proximity switches, pushbuttons, and limit switches.
Applications where electrical isolation between input channels is required to prevent ground loops or interference.
Integration with complex PLC architectures requiring reliable DC signal acquisition.
Technical Specifications
Product Model
1756-IB16I
Module Type
Digital Input Module
Input Points
16 (Individually Isolated)
Voltage Category
10-30V DC
Platform
ControlLogix
Connector Type
36-Pin
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
Verify the module is fully seated in the chassis slot and secured with the top and bottom latches.
Use appropriate shielded cabling for input signals to minimize electromagnetic interference (EMI).
Ensure proper grounding of the chassis and power supply common to maintain signal integrity.
Handle the module using ESD-safe practices to prevent damage to internal electronic components.
FAQWhat does 'individually isolated' mean for this module?Individually isolated means that each of the 16 input channels is electrically separated from the others, which helps prevent cross-talk and protects the system from ground potential differences between field devices.Is the 36-pin terminal block included?Typically, the removable terminal block (RTB) is sold separately or included based on specific regional packaging; please verify your order contents if you require a new RTB.
2 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
3 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

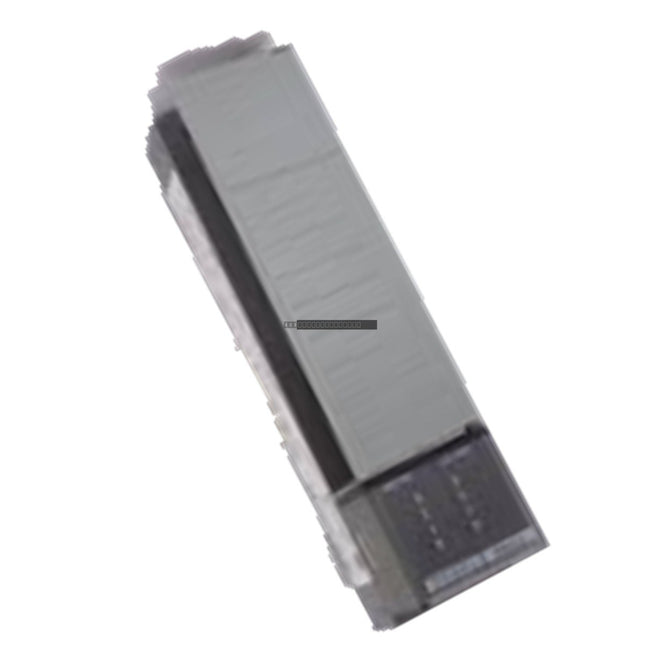

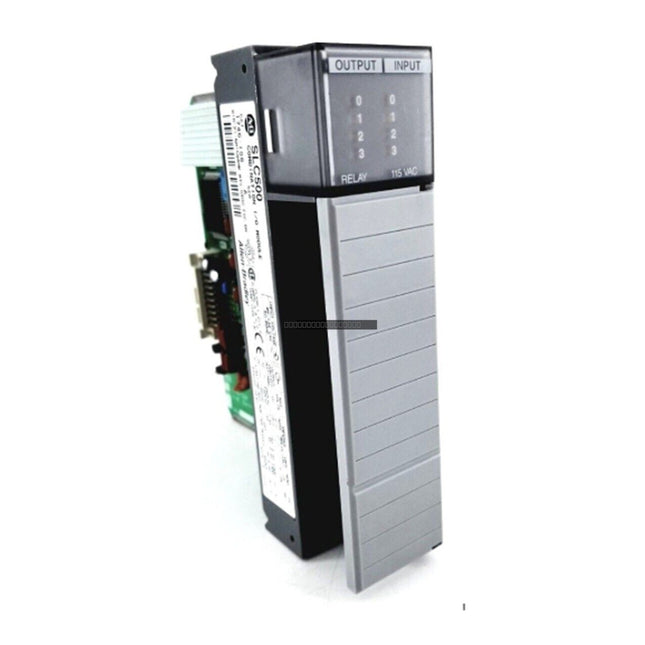

DescriptionThe Allen-Bradley 8500-1746I is a specialized adapter interface module designed for the 8500 series. This module serves as a high-speed communication bridge, enabling Bulletin 1746 SLC I/O modules to be deployed in remote locations, physically separated from the main controller. Acting as a dedicated microcomputer, the module manages the exchange of control data between the SLC-500 PLC and distributed field devices, providing the flexibility required for complex industrial system architectures.Features
Facilitates remote I/O communication for SLC-500 systems.
Utilizes the I/O RING protocol for high-speed, reliable data transmission.
Enables local processing of I/O signals to reduce latency in distributed applications.
Designed for integration with Bulletin 1746 I/O hardware.
ApplicationsThis module is ideal for large-scale industrial environments where sensors, actuators, and other field devices are located at a significant distance from the main electrical cabinet. It is commonly used in distributed control systems where centralized processing is required but physical I/O distribution is necessary for cabling efficiency.Technical Specifications
Brand
Allen-Bradley
Product Line
8500 Motors / SLC 500
Module Type
Adapter Interface
Communication Protocol
I/O RING
Operating Voltage
5V DC (via backplane)
Current Consumption
470 mA
Thermal Dissipation
2.49 Watts (8.4962 BTU/hr)
Operating Temperature
Max 60 degC (140 degF)
Environmental Rating
IP20
Installation Guidelines
Ensure the system power is disconnected before installing or removing the module from the backplane.
Verify that the module is securely seated in the chassis slot to ensure proper backplane connection.
Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components.
Ensure adequate ventilation in the cabinet to maintain operating temperatures below 60 degC.
Route communication cables away from high-voltage lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
FAQWhat is the primary function of the 8500-1746I?The 8500-1746I acts as a communication adapter that allows SLC-500 I/O modules to operate in remote locations, effectively extending the reach of the PLC system using the I/O RING protocol.Can this module be used with standard SLC-500 processors?Yes, it is designed to bridge communication between the SLC-500 PLC and distributed 1746 I/O modules.
3 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
1 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

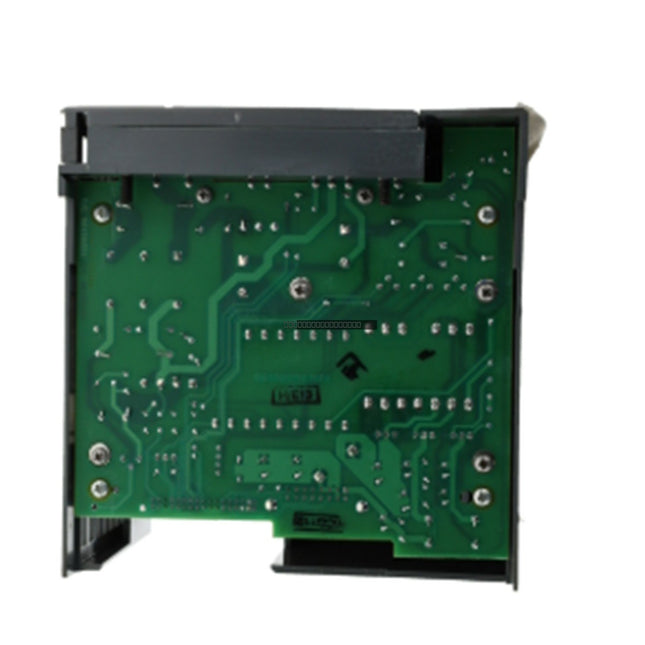

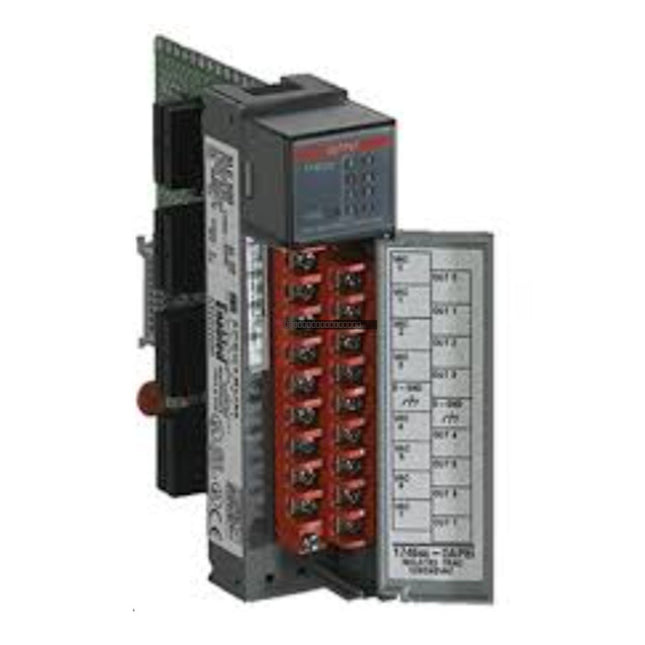

DescriptionThe Allen-Bradley 1746-OW4 is a 4-point relay output module designed for the SLC 500 programmable controller system. This module provides four isolated, normally open relay contact outputs, allowing for the control of various field devices using either AC or DC power sources. It is suitable for applications requiring high-voltage switching or electrical isolation between the PLC backplane and the controlled load.Features
4-point relay output configuration
Isolated output channels for flexible wiring
Compatible with a wide range of voltages: 5-265 VAC or 5-125 VDC
Designed for seamless integration into the SLC 500 chassis
Reliable N.O. relay contact switching for industrial loads
ApplicationsThe 1746-OW4 is commonly used in industrial automation environments where the PLC must interface with external devices such as motor starters, contactors, solenoid valves, or indicator lamps that operate on different voltage levels than the controller backplane.Technical Specifications
Model
1746-OW4
Manufacturer
Allen-Bradley
Module Type
Relay Output Module
Number of Outputs
4
Output Type
N.O. Relay Contact
Operating Voltage Range
5-265 VAC / 5-125 VDC
Current Rating (120 VAC)
1.5 A per output
Installation Guidelines
Ensure the SLC 500 chassis power is disconnected before installing or removing the module.
Slide the module into the designated slot in the SLC 500 rack and secure it using the top and bottom retaining screws.
Use appropriate wire gauges for the terminal block connections to ensure secure contact.
Maintain proper cable routing to separate high-voltage signal wiring from low-voltage communication cables to minimize EMI.
Handle the module using ESD-safe practices to prevent damage to internal electronic components.
FAQIs the 1746-OW4 still in production?No, the 1746-OW4 has been discontinued by the manufacturer. We provide high-quality surplus or refurbished units to support legacy systems.Can this module be used for both AC and DC loads?Yes, the relay contacts are rated for both AC (up to 265V) and DC (up to 125V) operations, providing significant flexibility for diverse field requirements.
1 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
1 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

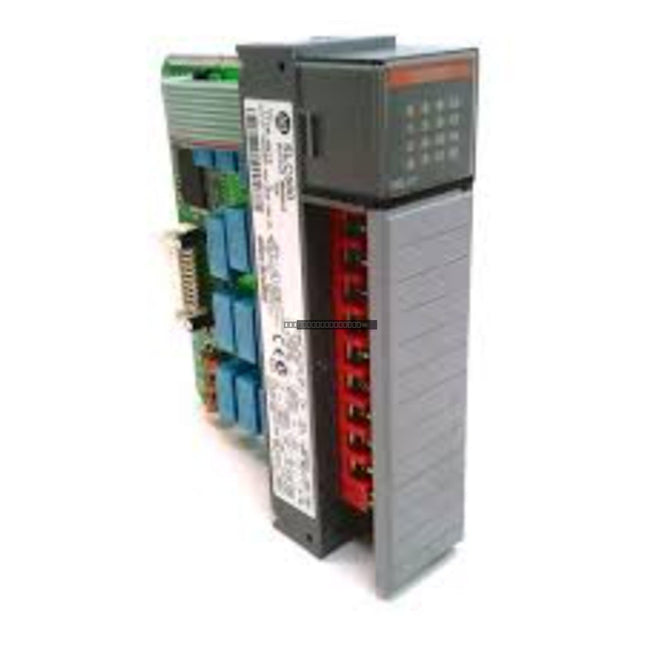

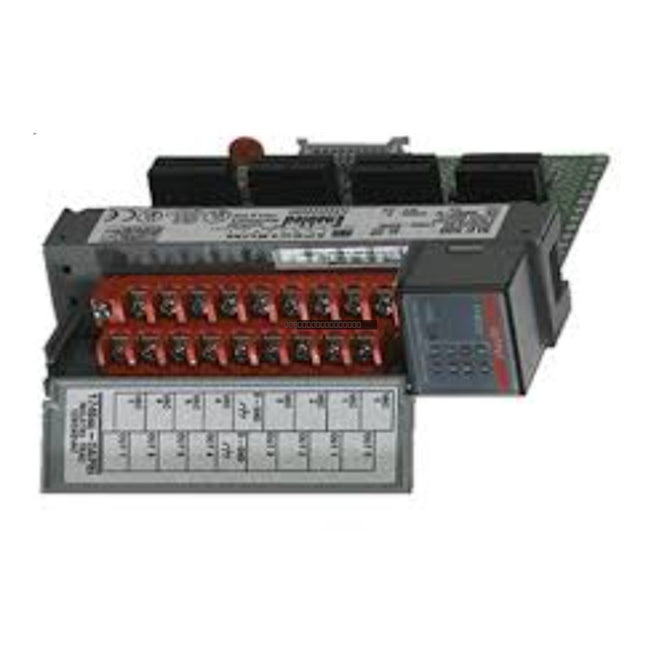

DescriptionThe Allen-Bradley 1746-OA8 is a high-performance discrete output module engineered for the SLC 500 programmable controller platform. This module provides eight (8) isolated AC output channels, designed to interface with 120/240V AC industrial loads. It is specifically suited for controlling devices such as motor starters, solenoid valves, and indicator lamps in demanding industrial control environments.Features
Eight (8) discrete AC output points.
Organized into two (2) isolated groups of four (4) outputs each, allowing for independent power source or phase usage.
Wide operating voltage range of 85 to 264V AC.
High surge current capacity of 10.0 Amps for 25 ms per point to accommodate inductive loads.
Compact SLC 500 form factor for efficient rack mounting.
ApplicationsThis module is widely used in manufacturing and process automation for the control of AC-powered field devices. Typical applications include the operation of contactors, relays, and pilot lights within automated assembly lines, packaging machinery, and material handling systems.Technical Specifications
Brand
Allen-Bradley
Product Line
SLC 500
Module Type
Discrete AC Output
Number of Outputs
8 (2 groups of 4)
Nominal Voltage
120 / 240V AC
Operating Voltage Range
85-264V AC
Backplane Current (5V DC)
185 mA
On-Signal Delay
1 ms (max resistive load)
Off-Signal Delay
11 ms (max resistive load)
On-State Voltage Drop
1.5V at 1.0 A
Surge Current
10.0 Amps for 25 ms (per point)
Operating Temperature
0 to 60 degC (32 to 140 degF)
Installation Guidelines
Ensure the SLC 500 chassis power is disconnected before installing or removing the module.
Insert the module into any available slot in the SLC 500 chassis, ensuring proper alignment with the backplane connector.
Secure the module using the provided mounting screws to ensure a reliable electrical connection and mechanical stability.
Use appropriate wire gauges for the terminal block connections and ensure all wiring is routed away from high-voltage AC lines or EMI sources to prevent signal interference.
Verify that the external power source connected to the module matches the specified voltage range to prevent damage.
Handle the module using ESD-safe practices to prevent damage to sensitive internal circuitry.
FAQWhat is the benefit of the isolated groups in the 1746-OA8?The 1746-OA8 features two isolated groups of four outputs. This allows the user to operate the module using two different power sources or phases, providing greater flexibility in circuit design and preventing a fault in one power circuit from affecting the other group.Can this module be used for 240V AC applications?Yes, the 1746-OA8 is designed for both 120V and 240V AC applications, with an operating range of 85 to 264V AC.
1 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
3 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

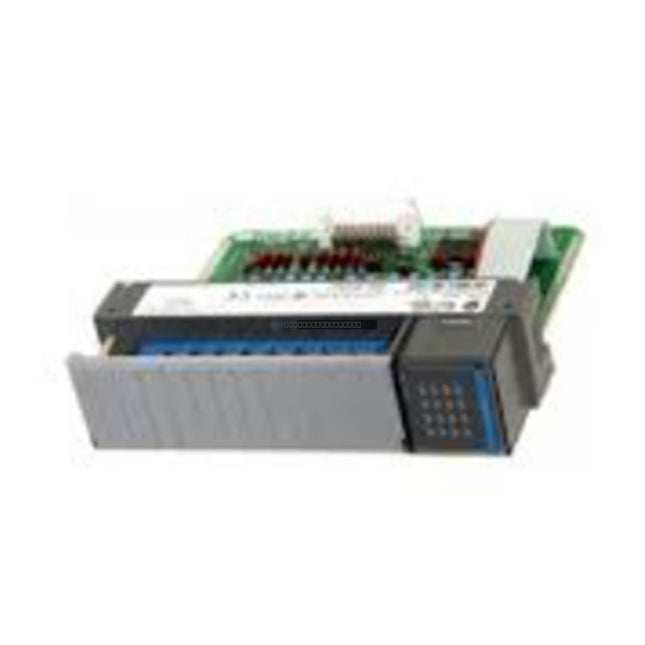

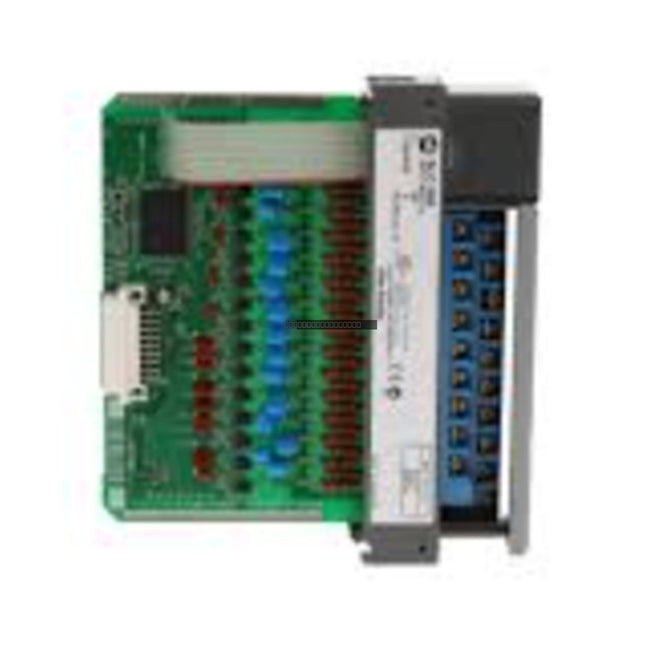

DescriptionThe Allen-Bradley 1746-IN16 is a 16-point digital input module designed for use with the SLC 500 programmable logic controller (PLC) system. This module provides 16 discrete inputs, allowing the SLC 500 processor to monitor the status of field devices operating at 24V AC/DC. It serves as a reliable interface between industrial sensors, switches, and the control system, facilitating high-speed data acquisition in automated environments.Features
16-point digital input configuration.
Compatible with 24V AC/DC signal levels.
Designed specifically for integration with the Allen-Bradley SLC 500 platform.
Compact modular design for efficient rack mounting.
Status indicators for real-time monitoring of each input channel.
ApplicationsThis module is widely used in industrial automation applications requiring the monitoring of discrete signals, such as limit switches, pushbuttons, proximity sensors, and relay contacts. It is suitable for manufacturing, material handling, and process control systems that utilize the SLC 500 architecture.Technical Specifications
Product Model
1746-IN16
Manufacturer
Allen-Bradley
Input Type
Digital (Discrete)
Number of Inputs
16
Voltage Category
24V AC/DC
System Compatibility
SLC 500
Status
Discontinued by Manufacturer (08/31/2018)
Installation Guidelines
Ensure the SLC 500 chassis power is disconnected before installing or removing the module to prevent electrical damage.
Slide the module into the designated slot in the SLC 500 chassis, ensuring the backplane connector is properly seated.
Secure the module using the top and bottom retaining screws to ensure a stable connection and proper grounding.
Use appropriate shielded cabling for input signals to minimize electromagnetic interference (EMI) in high-noise environments.
Verify that the input voltage levels do not exceed the specified 24V AC/DC rating to prevent hardware failure.
Maintain adequate ventilation around the chassis to prevent overheating during continuous operation.
FAQIs the 1746-IN16 still being manufactured?No, the 1746-IN16 was officially discontinued by Allen-Bradley on August 31, 2018. It is now typically sourced through secondary market channels or as refurbished equipment.Can this module be used with other PLC systems?The 1746-IN16 is specifically engineered for the Allen-Bradley SLC 500 series backplane and is not compatible with other PLC families like ControlLogix or CompactLogix.
3 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
2 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

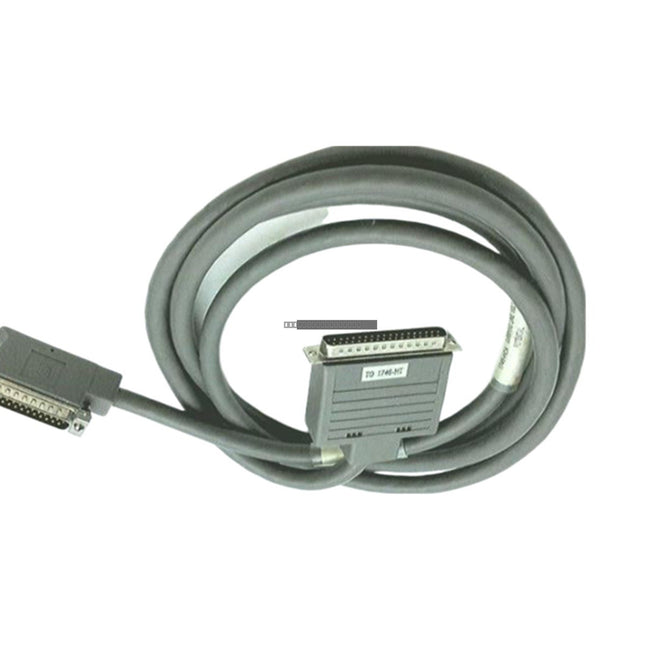

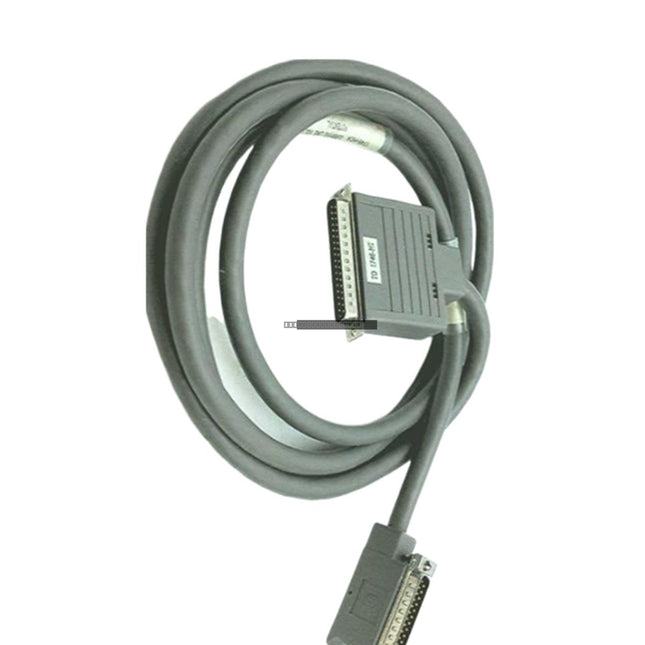

DescriptionThe Allen-Bradley 1746-HCA is a specialized interface cable engineered for the SLC 500 motion control system. This cable facilitates a high-integrity physical connection between 1746 series motion control modules, such as the 1746-HSCE or 1746-HSRV, and the 1746-HT termination panel. It is designed to ensure reliable transmission of high-speed encoder signals and drive command voltages between the PLC rack and field wiring.Features
Secure Connectivity: Equipped with locking connectors at both ends to prevent accidental disconnection in high-vibration industrial environments.
Signal Integrity: Integrated shielding protects sensitive low-voltage, high-speed signals from electromagnetic interference (EMI) typically found near servo drives and power cabling.
Application Compatibility: Specifically designed for seamless integration with the 1746-HT termination panel within the SLC 500 ecosystem.
Robust Design: Built to withstand the demands of motor-driven machinery and motion control applications.
ApplicationsThe 1746-HCA is primarily used in industrial automation systems requiring precise motion control, including servo drive interfacing and high-speed counter signal processing within SLC 500 rack-based configurations.Technical Specifications
Brand
Allen-Bradley
Product Line
SLC 500
Hardware Type
Motion Control Interface Cable
Cable Length
2.13 meters (7 feet)
Connector Type
Keyed with locking mechanisms
Compatible Termination Panel
1746-HT
Weight
0.44 kg
Installation Guidelines
Power Down: Always ensure the PLC rack and associated drive equipment are de-energized before connecting or disconnecting the cable.
Routing: Route the cable away from high-voltage power lines and high-EMI sources to maintain signal integrity.
Securing: Ensure the locking mechanisms are fully engaged at both the module and the 1746-HT termination panel to prevent vibration-induced loosening.
Handling: Avoid sharp bends or excessive tension on the cable during installation to prevent internal conductor damage.
FAQIs this cable compatible with other SLC 500 modules?The 1746-HCA is specifically designed for use with 1746 motion control modules and the 1746-HT termination panel. Please verify your specific module catalog number to ensure compatibility.Does this cable require special grounding?The cable's integrated shielding is designed to mitigate EMI. Ensure the associated 1746-HT termination panel is properly grounded according to your system's installation manual to maximize the effectiveness of the cable's shield.
2 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
