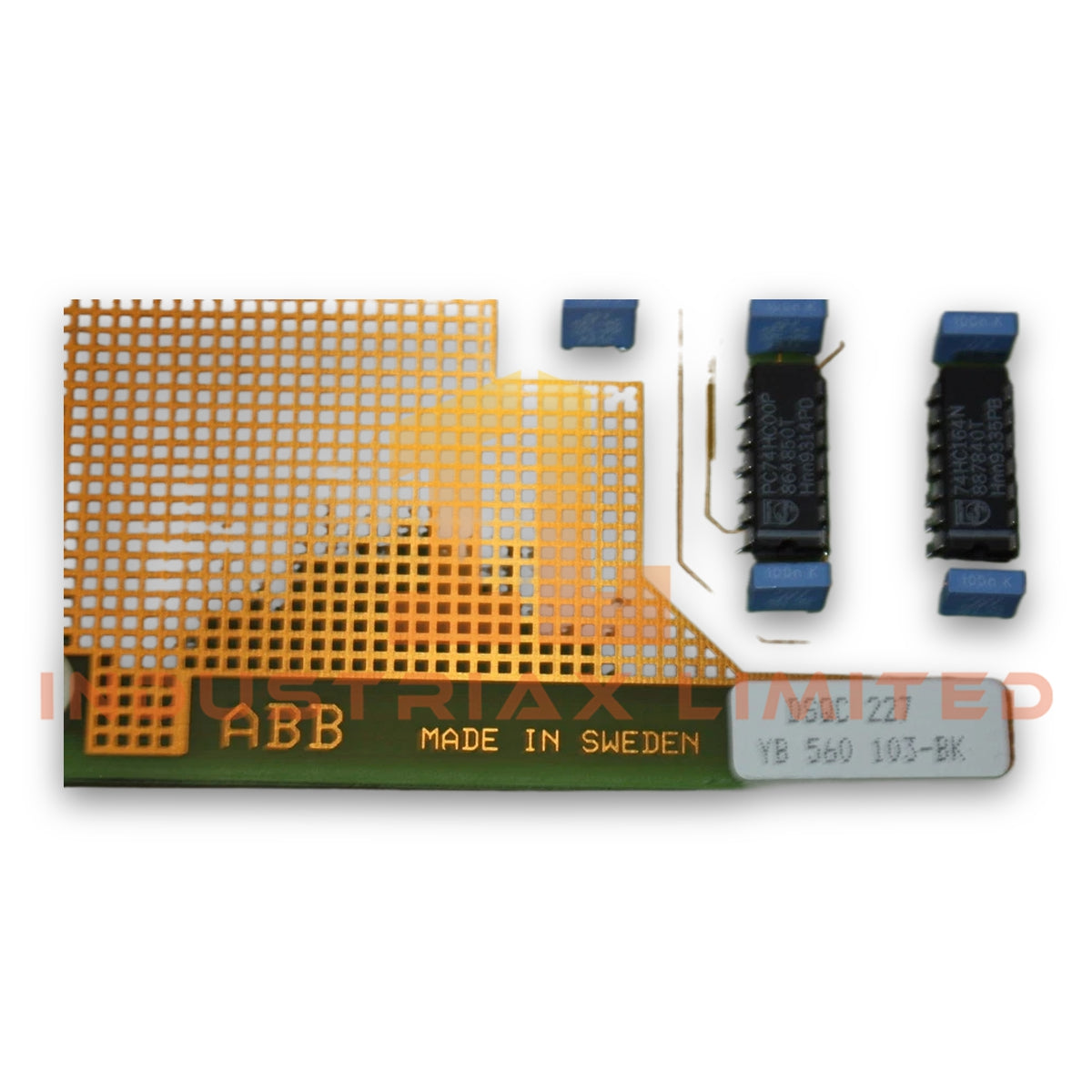

ABB DSQC227 Digital I/O Expansion Board
Configured for digital signal expansion and external device interfacing in ABB S4 / S4C robot controller platforms, the ABB DSQC227 (DSQC227 Digital I/O Expansion Board) provides direct physical signal execution between controller hardware and connected field devices. The module manages 24 VDC discrete input and transistor output channels for industrial robot I/O communication.
Hardware Specifications
Parameter
Specification
Model
DSQC227
Brand
ABB Robotics
Product Type
Digital I/O Expansion Board / Bus Master I/O Module
Operating Temp
-25 deg C to +60 deg C
Power Consumption
Not specified
Compatible System
ABB S4 / S4C Robot Controller Series
Digital Inputs
8 channels
Digital Outputs
8 channels, transistor / solid state
Nominal Input Voltage
24 VDC
Power Supply Range
10-32 VDC
Certifications
CE, UL, RoHS Compliant
ABB Industrial Control Bus and I/O Expansion Characteristics
The ABB DSQC227 operates as a discrete signal expansion interface within ABB robot controller architectures. It exchanges binary field signals through dedicated digital input and output channels, allowing controller logic to process external sensors, actuators, and peripheral equipment.
Furthermore, the module supports ABB S4 and S4C controller environments where I/O density expansion is required. The digital architecture enables scalable signal distribution while maintaining compatibility with ABB controller backplane communication structures.
The module design follows ABB industrial control hardware practices, including firmware flash compatibility considerations, controller communication synchronization, and I/O density scaling for robotic automation applications.
Frequently Asked Questions
Q: What type of signals does the ABB DSQC227 process? A: The DSQC227 processes discrete digital signals through 8 digital input channels and 8 transistor-based digital output channels.
Q: Is the DSQC227 compatible with ABB S4C controllers? A: Yes. The module is specified for ABB S4 and S4C robot controller series integration.
Q: Does the DSQC227 require special grounding during installation? A: Installation should follow standard industrial practices, including correct protective grounding, suitable cable routing, and separation between signal wiring and high-power conductors.
Field Installation Guidelines
Verify controller compatibility before installing the DSQC227 module into an ABB robot system.
Disconnect system power before performing hardware installation or removal operations.
Install signal wiring according to ABB controller documentation and maintain separation between I/O cables and high-voltage wiring.
Connect protective grounding according to industrial electrical installation standards.
Confirm 24 VDC field supply polarity before connecting digital input and output terminals.
Inspect connector seating and cable shielding before system startup.
Perform I/O channel verification through the robot controller diagnostic functions after installation.
