Sensor dan probe menyediakan pemantauan yang akurat untuk peralatan industri. Produk kami mencakup probe getaran, jarak, dan perpindahan dari produsen terkemuka. Kami menyediakan model yang masih ada maupun yang sudah dihentikan produksinya dengan dukungan global yang tepercaya.
Sensor dan Probe
-
Bently Nevada 330130-080-02-CN | Bently Nevada | 3300 XL Extension Cable
Bently Nevada 330130-080-02-CN 3300 XL Extension Cable Configured for signal transmission between proximity probes and monitoring modules in the 3300 XL Proximity Transducer System, the Bently Nevada 330130-080-02-CN (330130 3300 XL Extension Cable) provides direct physical connection and electrical signal routing. Hardware Specifications Parameter Specification Model 330130-080-02-CN Brand Bently Nevada Product Type 3300 XL Extension Cable Origin USA Cable Length 8.0 meters (26.2 feet) Cable Construction 75 ohm triaxial cable, FEP insulated Connector Configuration Standard cable with connector protectors Agency Approval CN approvals option Weight 0.272 kg (0.034 kg/m x 8 m) Power Consumption Passive cable component, no external power consumption Eddy-Current Signal Transmission and Rotor Dynamics Interface The 330130-080-02-CN extension cable maintains the electrical characteristics required for Bently Nevada 3300 XL eddy-current measurement systems. The cable transfers high-frequency probe signals between the proximity probe and signal conditioning electronics while maintaining impedance control. Furthermore, the triaxial construction supports measurement stability for rotor dynamics monitoring applications. The FEP insulation material provides electrical insulation performance for industrial machinery monitoring circuits. The connector protectors reduce mechanical stress on connection points during installation and maintenance activities. The cable assembly supports proper eddy-current probe scaling and gap voltage validation procedures when integrated with compatible 3300 XL proximity transducer components. Technicians can verify probe operation by checking the system gap voltage, with standard Bently Nevada systems using -10 VDC target gap voltage conditions for calibration reference. Frequently Asked Questions Q: What function does the Bently Nevada 330130-080-02-CN cable perform in the 3300 XL system?A: The cable provides the electrical connection path between a 3300 XL proximity probe and the associated extension system components for vibration and position measurement signals. Q: Does the 330130-080-02-CN cable require external power?A: No. The extension cable is a passive signal transmission component and does not consume electrical power. Q: What cable construction is used for this model?A: This model uses a 75 ohm triaxial cable design with fluoroethylene propylene (FEP) insulation and standard connector protectors. Field Installation Guidelines Install the 330130-080-02-CN cable according to the approved 3300 XL system wiring arrangement. Maintain separation between the extension cable and high-voltage power conductors to reduce electromagnetic interference. Avoid sharp bending, crushing, or excessive mechanical stress on the triaxial cable structure. Verify connector protector installation before equipment startup. Confirm correct probe, extension cable, and monitor compatibility before commissioning. Use proper shielding and grounding practices according to the Bently Nevada installation documentation. Check gap voltage readings after installation to confirm correct eddy-current probe operation.
$200.00 $100.00
-
Bently Nevada 330130-080-03-05 | 3300 XL Standard Extension Cable | Bently Nevada
Bently Nevada 330130-080-03-05 3300 XL Standard Extension Cable Configured for signal transmission between proximity probes and signal conditioning electronics in the 3300 XL Proximity Transducer System, the Bently Nevada 330130-080-03-05 (330130 3300 XL Standard Extension Cable) provides direct electrical connection with armored cable protection, connector protection, and agency-certified installation compatibility. Hardware Specifications Parameter Specification Model 330130-080-03-05 Brand Bently Nevada Product Type 3300 XL Standard Extension Cable Origin USA Weight 0.15 kg Dimensions 20.5 x 22.4 x 3.3 cm (estimated shipping size) Operating Temp Not specified Power Consumption Passive cable component, no external power consumption Cable Length 8.0 meters (26.2 feet) Cable Construction Armored cable with connector protector Output Resistance 50 ohm Connector Protection Included Agency Approvals CSA, ATEX, IECEx Tariff Code 8537101190 Eddy-Current Signal Transmission and Rotor Dynamics Interface The 330130-080-03-05 extension cable transfers eddy-current probe signals between the 3300 XL proximity probe and compatible Proximitor Sensor modules. Therefore, the cable maintains the electrical characteristics required for vibration displacement measurement and shaft position monitoring. The cable uses a 50 ohm output resistance design to support stable signal transmission within the proximity measurement circuit. In addition, the armored construction improves mechanical protection in industrial routing environments where cable exposure may occur. The 3300 XL system requires correct probe-cable-sensor matching because eddy-current measurement accuracy depends on cable electrical length and impedance characteristics. Furthermore, proper installation helps maintain gap voltage validation performance and rotor dynamics monitoring accuracy. Frequently Asked Questions Q: What is the function of the Bently Nevada 330130-080-03-05 cable in the 3300 XL system?A: The cable connects a 3300 XL proximity probe to the compatible Proximitor Sensor while transmitting eddy-current displacement signals. Q: Does the 330130-080-03-05 require an external power supply?A: No. The extension cable is a passive component and does not consume electrical power. Q: What protection features are included in this cable version?A: This model includes armored cable construction and a connector protector for mechanical protection during field installation. Field Installation Guidelines Install the 330130-080-03-05 cable according to the 3300 XL system wiring requirements. Maintain correct probe, extension cable, and Proximitor Sensor combinations to preserve calibration characteristics. Avoid routing the cable parallel to high-current power conductors to reduce electromagnetic interference. Connect cable shielding according to the equipment grounding practice specified for the monitoring system. Protect connectors from mechanical stress, moisture exposure, and excessive bending during installation. Verify cable continuity and physical condition before commissioning the vibration monitoring circuit.
$200.00 $100.00
-
Bently Nevada Bently Nevada 330130-080-12-05 3300 XL Standard Extension Cable
Bently Nevada 330130-080-12-05 3300 XL Standard Extension Cable The Bently Nevada 330130-080-12-05, also cataloged as the 330130 3300 XL Standard Extension Cable, provides electrical signal extension between proximity probes and monitor systems within the 3300 XL Proximity Transducer System. Hardware Specifications Parameter Specification Model 330130-080-12-05 Brand Bently Nevada Product Type 3300 XL Standard Extension Cable Origin USA Weight 0.98 kg Dimensions 30.5 x 31.5 x 5 cm estimated shipping size Operating Temp Not specified Power Consumption Passive cable component, no external power consumption Cable Length 8.0 meters (26.2 feet) Cable Construction FluidLoc cable with connector protector Connector Protection Connector protector installed Agency Approvals CSA, ATEX, IECEx Cable Application Signal transmission between proximity probe and monitoring electronics Tariff Code 8537101190 Eddy-Current Signal Extension and Rotor Dynamics Interface The 3300 XL Standard Extension Cable maintains the electrical connection path required for eddy-current proximity measurement circuits. Therefore, it supports accurate transmission of vibration, shaft position, and gap measurement signals between the probe and the associated proximity sensor interface. The cable design supports Bently Nevada TSI applications where probe scaling, gap voltage validation, and rotor dynamics monitoring require consistent signal characteristics. Moreover, the FluidLoc cable construction reduces the risk of fluid migration through the cable structure during field operation. The connector protector provides additional mechanical protection at the connection point. In addition, the cable configuration supports CSA, ATEX, and IECEx approved installation environments when used with compatible system components. Frequently Asked Questions Q: What is the function of the Bently Nevada 330130-080-12-05 cable?A: The cable extends the electrical connection between a 3300 XL proximity probe and the monitoring system input interface while maintaining eddy-current measurement signal transmission. Q: Does the 330130-080-12-05 cable require external power?A: No. The extension cable is a passive component and does not consume external electrical power. Q: What cable protection features are included in this model?A: This model includes FluidLoc cable construction and a connector protector to improve protection against fluid migration and mechanical stress. Field Installation Guidelines Install the 330130-080-12-05 extension cable according to the approved Bently Nevada proximity transducer system wiring requirements. Route the cable away from high-current power cables and strong electromagnetic interference sources. Maintain proper separation between signal wiring and motor or drive power conductors. Verify connector engagement before system commissioning. Avoid sharp bends, excessive pulling force, and mechanical damage to the cable jacket. Connect cable shielding according to the monitoring system grounding specification. Confirm probe, extension cable, and proximity monitor compatibility before operation. Check gap voltage values during commissioning to verify correct eddy-current probe operation.
$200.00 $100.00
-
Bently Nevada Bently Nevada 330130-085-02-CN 3300 XL Standard Extension Cable
Bently Nevada 330130-085-02-CN 3300 XL Standard Extension Cable The Bently Nevada 330130-085-02-CN, also cataloged as the 330130 3300 XL Standard Extension Cable, provides signal transmission between proximity probes and monitoring modules within the Bently Nevada 3300 XL Proximity Transducer System. Hardware Specifications Parameter Specification Model 330130-085-02-CN Brand Bently Nevada Product Type 3300 XL Standard Extension Cable Origin USA Weight 0.22 kg Dimensions 20.4 x 22.2 x 3.5 cm (shipping size) Power Consumption Passive cable assembly, no external power consumption Cable Length 085 = 8.5 meters (27.9 feet) Cable Type 75 Ohm triaxial cable Standard Cable Insulation Fluoroethylenepropylene (FEP) insulated Connector Configuration Standard cable with connector protector Minimum Cable Bend Radius 25.4 mm (1.0 in) Extended Temperature Range Option Available with 75 Ohm triaxial PFA insulated cable Eddy-Current Signal Transmission and Rotor Dynamics Interface The 330130 extension cable transfers eddy-current probe signals between the proximity probe and the monitoring system. Therefore, the cable maintains the electrical characteristics required for accurate shaft displacement and vibration measurement. The 3300 XL system uses matched probe, extension cable, and proximity sensor electronics to maintain proper signal scaling. In addition, correct cable impedance and shielding performance support gap voltage validation procedures, including the standard -10 VDC target condition used during probe setup. The triaxial construction provides signal shielding and reduces external electrical interference. Furthermore, the cable routing design helps minimize cross-talk effects between adjacent vibration measurement channels in rotating equipment monitoring installations. Frequently Asked Questions Q: What is the function of the Bently Nevada 330130-085-02-CN cable?A: The cable connects a 3300 XL proximity probe to the associated monitoring interface while maintaining the required electrical characteristics for eddy-current measurement signals. Q: Does the 330130-085-02-CN require external power?A: No. The extension cable is a passive component and does not consume external electrical power. Q: What installation limitation applies to cable routing?A: The cable must follow the specified minimum bend radius of 25.4 mm (1.0 in) to prevent mechanical stress and maintain signal integrity. Field Installation Guidelines Install the cable using the specified connector protector configuration to prevent mechanical damage at connection points. Maintain separation from high-current power cables, motor feeders, and high-frequency switching sources to reduce electrical interference. Avoid sharp bends and maintain the minimum cable bend radius during routing. Verify connector engagement and cable shielding continuity before commissioning the proximity measurement loop. Confirm probe, extension cable, and monitor compatibility according to the 3300 XL system configuration requirements. Perform gap voltage verification after installation to confirm correct eddy-current probe operating conditions.
$200.00 $100.00
-
Bently Nevada 330140-XX-XX-10-02-05 Bently Nevada 3300 XL 8 mm Smooth Case Proximity Probe
Bently Nevada 330140-XX-XX-10-02-05 3300 XL 8 mm Smooth Case Proximity Probe The Bently Nevada 330140-XX-XX-10-02-05, also cataloged as the 330140 3300 XL 8 mm Smooth Case Proximity Probe, operates as a dedicated hardware component for shaft displacement and vibration measurement within the 3300 XL Proximity Transducer System. Hardware Specifications Parameter Specification Model 330140-XX-XX-10-02-05 Brand Bently Nevada Product Type 3300 XL 8 mm Smooth Case Proximity Probe Origin USA Operating Temp -52 deg C to +177 deg C Power Consumption Passive probe device; power supplied by compatible Proximitor Sensor Measurement Principle Eddy-current non-contact displacement measurement Probe Configuration Smooth case, non-armored design Linear Range 2.0 mm (80 mils) Starting Gap 0.25 mm (10 mils) Scale Factor (ISF) 7.87 V/mm (200 mV/mil) +/- 5% Deviation from Best Fit Straight Line Less than +/- 25.4 um (+/- 1.0 mil) Frequency Response 0 to 10 kHz (+0, -3 dB) Output Signal DC voltage proportional to probe target distance Probe Tip Material Polyphenylene sulfide (PPS) Probe Case Material AISI 303 or 304 Stainless Steel Cable Type 75 ohm triaxial FEP insulated cable Connector Type Gold-plated brass ClickLoc coaxial connector Tensile Strength 330 N (75 lbf) probe case to probe lead Hazardous Area Approval CSA, ATEX, IECEx multiple approvals Environmental Protection TipLoc molding for oil and fluid ingress protection Eddy-Current Measurement and Rotor Dynamics Characteristics The 330140 series probe uses an eddy-current measurement circuit to detect shaft position changes without physical contact. The probe generates a proportional electrical output when connected to a compatible Proximitor Sensor. Therefore, the system can capture both static shaft position and dynamic vibration movement. Bently Nevada proximity systems validate mechanical shaft movement through calibrated probe scaling. The 7.87 V/mm (200 mV/mil) scale factor allows the monitoring system to convert displacement variations into vibration amplitude data. Additionally, the probe supports rotor dynamics analysis by providing continuous radial displacement feedback from rotating machine shafts. The smooth case construction allows axial adjustment through clamp-style mounting brackets. As a result, engineers can position the probe accurately in installations where threaded mounting arrangements are not practical. Frequently Asked Questions Q: Does the 330140-XX-XX-10-02-05 probe operate independently without a Proximitor Sensor?A: No. The probe requires a compatible Bently Nevada Proximitor Sensor to provide excitation and convert eddy-current signals into usable voltage output. Q: What is the purpose of the smooth case mechanical design?A: The smooth case allows axial adjustment through external clamp mounting methods. It is used where fixed threaded probe installation is unsuitable. Q: How is probe installation gap verified during commissioning?A: Technicians verify the electrical gap voltage through the connected Proximitor Sensor. Bently Nevada systems commonly use a -10 VDC gap target for correct probe operating position validation. Field Installation Guidelines Install the 330140 probe using a rigid clamp mounting structure to prevent mechanical movement during machine operation. Maintain proper probe alignment with the shaft target surface before final tightening. Route the 75 ohm triaxial cable away from high-current power conductors to reduce electrical interference. Connect cable shielding according to the monitoring system grounding requirements and avoid unnecessary shield loops. During commissioning, verify the probe gap voltage through the Proximitor Sensor output. Confirm that the measured voltage remains within the approved operating range before enabling vibration monitoring functions. Protect the ClickLoc coaxial connector from contamination and mechanical stress. Ensure the cable bend radius follows standard instrumentation installation practices to prevent signal degradation.
$200.00 $100.00
-
Bently Nevada Bently Nevada 330171-00-12-10-01-05 3300 5 mm Proximity Probe
Bently Nevada 330171-00-12-10-01-05 3300 5 mm Proximity Probe The Bently Nevada 330171-00-12-10-01-05, also cataloged as the 330171 3300 5 mm Proximity Probe, operates as a dedicated hardware component for shaft displacement and vibration measurement within the 3300 Transducer System. Hardware Specifications Parameter Specification Model 330171-00-12-10-01-05 Brand Bently Nevada Product Type 3300 5 mm Proximity Probe Origin USA Dimensions Case length 1.2 in; total cable length 1.0 metre Operating Temp -35 deg C to +177 deg C Power Consumption Supplied by compatible 3300 Proximitor Sensor Sensor Technology Non-contacting eddy current proximity measurement Measurement Range 2.0 mm linear range Recommended Gap Setting 1.27 mm Output Sensitivity -200 mV/mil with matching 3300 Proximitor Sensor Thread Size 1/4-28 UNF Probe Tip Material Polyphenylene Sulfide (PPS) Probe Case Material AISI 303 or 304 Stainless Steel Cable Type 75 ohm triaxial cable with FEP insulation Connector Type Miniature coaxial ClickLoc connector with protector Cable Length 1.0 metre Agency Approval Multiple hazardous area approvals Eddy Current Measurement and Rotor Dynamics The 330171-00-12-10-01-05 uses eddy-current probe scaling to convert shaft position changes into proportional electrical signals. Therefore, the matching 3300 Proximitor Sensor processes the probe signal for vibration, position, and gap monitoring functions. The system requires correct gap voltage validation during installation. Technicians normally verify the probe operating point near the -10 VDC target range to maintain measurement accuracy within the transducer system. Additionally, the probe supports rotor dynamics analysis by providing shaft displacement data from rotating equipment. The non-contact measurement method eliminates mechanical contact between the probe tip and the rotating surface. Frequently Asked Questions Q: What type of signal does the 330171-00-12-10-01-05 generate?A: The probe generates an eddy-current displacement signal that requires connection to a compatible 3300 Proximitor Sensor for voltage output conversion. Q: Can the probe measure shaft vibration without physical contact?A: Yes. The probe measures shaft movement through an electromagnetic eddy-current field without contacting the rotating shaft. Q: What installation factor affects measurement accuracy?A: Probe gap setting, target material condition, cable routing, and proper connection to the Proximitor Sensor directly affect measurement performance. Field Installation Guidelines Install the probe using the specified 1/4-28 UNF mounting thread and maintain mechanical alignment with the shaft target surface. Set the probe gap according to the 3300 Transducer System calibration requirements before operation. Route the triaxial cable away from high-voltage power conductors and strong electromagnetic interference sources. Maintain proper cable connector engagement to preserve ClickLoc connector performance. Connect the cable shield according to the system grounding practice to reduce electrical noise interference. Verify the gap voltage and output signal before placing the monitored machine into service.
$200.00 $100.00
-
Bently Nevada 330171-00-94-10-02-00 | 3300 Series 5 mm Proximity Probe Bently Nevada
Bently Nevada 330171-00-94-10-02-00 3300 Series 5 mm Proximity Probe The Bently Nevada 330171-00-94-10-02-00, also cataloged as the 330171 3300 Series 5 mm Proximity Probe, operates as a dedicated hardware component for non-contact shaft displacement measurement within Bently Nevada TSI monitoring systems. Hardware Specifications Parameter Specification Model 330171-00-94-10-02-00 Brand Bently Nevada Product Type 3300 Series 5 mm Proximity Probe Origin USA Dimensions Overall case length: 9.4 in (238.8 mm); cable length: 1.0 m Operating Temp -35 deg C to +177 deg C Power Consumption Supplied by Proximitor Sensor; -17.5 VDC to -26 VDC at 12 mA max Measurement Principle Non-contact eddy current displacement measurement Sensing Diameter 5 mm Linear Range 2.0 mm (80 mils), typically 0.25 mm to 2.25 mm (10 to 90 mils) Recommended Gap Setting 1.27 mm (50 mils) Output Impedance 50 ohm Mounting Thread 1/4-28 UNF Case Material Stainless steel AISI 304 Tip Material Polyphenylene sulfide (PPS) with TipLoc molding Cable Type 75 ohm triaxial FEP insulated cable Connector Type Gold-plated miniature coaxial ClickLoc connector Cable Configuration Standard cable without armor Connector Locking Method Finger-tight click-locking connection Eddy Current Probe Scaling and Rotor Dynamics Measurement The 330171 proximity probe applies Bently Nevada eddy-current probe scaling characteristics to convert shaft displacement changes into proportional electrical signals. The probe operates with a Proximitor Sensor to maintain the required excitation and signal conditioning loop. Furthermore, the 5 mm sensing tip provides measurement capability in restricted mechanical clearances. The probe detects radial and axial shaft movement, allowing TSI systems to evaluate rotor dynamics parameters such as vibration amplitude, shaft position, and mechanical displacement behavior. The recommended operating gap is 1.27 mm (50 mils), where the probe provides the specified linear response range. During commissioning, technicians verify gap voltage conditions to confirm correct probe positioning and signal output. Frequently Asked Questions Q: What measurement principle does the Bently Nevada 330171-00-94-10-02-00 use?A: The probe uses non-contact eddy current measurement technology to detect shaft displacement changes between the probe tip and conductive target surface. Q: Can the 330171 probe replace an 8 mm proximity probe in all applications?A: No. The 5 mm sensing tip is designed for applications requiring reduced installation space. Engineers must verify mechanical clearance, target material, and monitoring system compatibility before replacement. Q: What electrical interface does this proximity probe require?A: The probe requires connection to a compatible Bently Nevada Proximitor Sensor that provides excitation power and processes the displacement signal. Field Installation Guidelines Install the probe with the specified 1/4-28 UNF mounting thread and ensure mechanical alignment with the shaft target surface. Adjust the probe position to achieve the recommended 1.27 mm (50 mils) operating gap before final tightening. Maintain proper cable routing to reduce mechanical stress, sharp bending, and electromagnetic interference. Connect the ClickLoc miniature coaxial connector using the specified finger-tight locking method. Verify the signal output and gap voltage condition through the connected Proximitor Sensor before placing the monitoring channel into service. Maintain proper shield and grounding practices according to the installed Bently Nevada monitoring system configuration.
$200.00 $100.00
-
Bently Nevada Bently Nevada 330703-000-070-10-02-00 3300 XL 11 mm Proximity Probe
Bently Nevada 330703-000-070-10-02-00 3300 XL 11 mm Proximity Probe The Bently Nevada 330703-000-070-10-02-00, also cataloged as the 330703 3300 XL 11 mm Proximity Probe, operates as a dedicated hardware component for non-contact shaft displacement measurement within Bently Nevada vibration monitoring systems. Hardware Specifications Parameter Specification Model 330703-000-070-10-02-00 Brand Bently Nevada Product Series 3300 XL 11 mm Proximity Probe Product Type Eddy-current Proximity Sensor Thread Type M14 x 1.5 Armor Type Without armor Unthreaded Length 0 mm Overall Case Length 70 mm Total Length 1.0 meter (3.3 feet) Connector Type Miniature coaxial ClickLoc connector standard cable Origin USA Weight 0.16 kg Dimensions Estimated shipping size: 20.4 x 22.2 x 3.7 cm Eddy-Current Probe Scaling and Rotor Dynamics Monitoring The Bently Nevada 3300 XL 11 mm Proximity Probe uses eddy-current measurement technology to detect shaft displacement without physical contact. Therefore, the probe provides a proportional electrical output related to the distance between the probe tip and the rotating target surface. The probe supports vibration and position measurement applications by maintaining signal stability during rotor operation. Additionally, the eddy-current probe scaling characteristics allow the connected monitoring system to interpret displacement signals for rotor dynamics analysis. The probe design supports gap voltage validation procedures, where engineers typically verify probe operation through gap voltage measurements. Furthermore, Bently Nevada monitoring systems commonly use -10 VDC target gap voltage references for proper probe setup and signal verification. Frequently Asked Questions Q: What is the sensing method used by the 330703-000-070-10-02-00 probe?A: The probe uses an eddy-current sensing principle to measure shaft displacement through electromagnetic field changes between the probe tip and the target surface. Q: Does this model include armored construction?A: No. The 330703-000-070-10-02-00 configuration uses a non-armored probe design with a miniature coaxial ClickLoc connector standard cable. Q: What cable configuration does this probe provide?A: This model includes a 1.0 meter (3.3 feet) total length cable with a miniature coaxial ClickLoc connector interface. Field Installation Guidelines Install the probe with the specified M14 x 1.5 mounting thread and maintain correct mechanical alignment with the monitored shaft surface. Ensure that the probe tip remains free from mechanical contact during operation. The sensing gap must be adjusted according to the connected Bently Nevada monitoring system requirements. Use shielded cable routing practices to reduce electromagnetic interference. Additionally, separate the probe cable from high-voltage power conductors and strong electromagnetic sources. Verify the electrical connection at the miniature coaxial ClickLoc connector before commissioning. During setup, check gap voltage output and confirm that the signal polarity and displacement direction match the monitoring channel configuration.
$200.00 $100.00
-

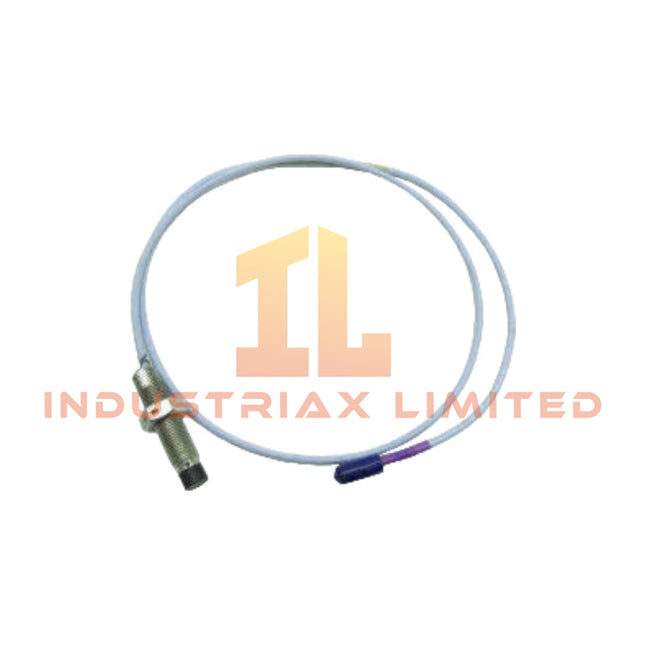

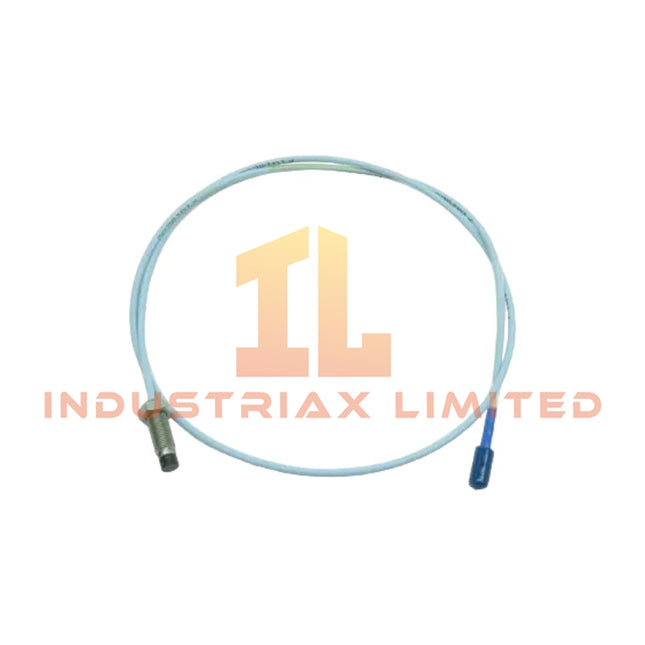

Bently Nevada Bently Nevada 330703-000-100-10-02-CN 3300 XL 11 mm Proximity Probe
Bently Nevada 330703-000-100-10-02-CN 3300 XL 11 mm Proximity Probe The Bently Nevada 330703-000-100-10-02-CN, also cataloged as the 330703 3300 XL 11 mm Proximity Probe, operates as a dedicated hardware component for eddy-current displacement measurement and rotor position monitoring within Bently Nevada 3300 XL Transducer System platforms. Suffix Breakdown & Model Matrix Code Segment Specification Base Model 330703 Probe Series 3300 XL 11 mm Proximity Probe Thread Configuration M14 x 1.5 metric thread Unthreaded Length 0 mm Case Length 100 mm Cable Length 1.0 meter Cable Type Standard unarmored cable Connector Type Miniature coaxial ClickLoc connector Approval Code CN country-specific approval Hardware Specifications Parameter Specification Model 330703-000-100-10-02-CN Brand Bently Nevada Origin USA Dimensions 11 mm probe tip diameter, 100 mm case length Operating Temp Probe: -52 deg C to +177 deg C; System: -51 deg C to +177 deg C Power Consumption Supplied through compatible Proximitor Sensor system Product Type 3300 XL 11 mm Proximity Probe Measurement Principle Eddy-current non-contact displacement measurement Linear Range 4.0 mm nominal Scale Factor 3.94 V/mm (100 mV/mil) Frequency Response 0 Hz to 8.0 kHz (+0, -3 dB) Target Material 4140 Steel calibration target Cable Impedance 75 ohm triaxial cable Probe Tip Material Polyphenylene sulfide (PPS) Probe Case Material 300-series stainless steel Relative Humidity 100% condensing, non-submerged Mounting Torque Recommended 21.1 N m, maximum 63.3 N m Eddy-Current Measurement and Rotor Dynamics The 3300 XL 11 mm probe uses eddy-current sensing technology to convert shaft displacement into proportional electrical output signals. Therefore, the probe provides continuous gap measurement feedback for machinery monitoring applications. The 11 mm sensing tip provides a 4.0 mm linear measurement range and supports axial position, differential expansion, rod position, speed, and phase reference measurements. Additionally, the system uses calibrated scaling characteristics to maintain measurement accuracy between the probe, extension cable, and Proximitor Sensor. The probe installation requires gap voltage validation during commissioning. Bently Nevada systems typically verify probe operation using gap voltage targets near -10 VDC to confirm correct mechanical positioning and electrical output conditions. Frequently Asked Questions Q: What measurement signals can the Bently Nevada 330703-000-100-10-02-CN provide?A: The probe provides non-contact displacement signals for axial position, differential expansion, rod position, Keyphasor phase reference, and speed measurement applications. Q: Does the 330703 probe require direct contact with the monitored shaft?A: No. The probe operates through eddy-current technology and measures shaft position without mechanical contact. Q: What installation factors affect measurement accuracy?A: Proper probe gap setting, target material compatibility, cable connection integrity, and correct shield grounding affect signal stability and measurement performance. Field Installation Guidelines Install the probe using the specified M14 x 1.5 metric mounting thread and verify mechanical alignment before operation. Adjust probe position according to the required electrical gap range and validate the output gap voltage during commissioning. Connect the ClickLoc miniature coaxial connector securely to the compatible Proximitor Sensor input. Maintain separation between probe cables and high-voltage power conductors to reduce electromagnetic interference. Ground cable shields according to the monitoring system installation requirements and avoid multiple grounding points. Inspect the PPS probe tip and stainless steel housing for mechanical damage before installation.
$200.00 $100.00
-
Bently Nevada 330704-000-050-10-02-CN | Bently Nevada | Proximity Probes
Bently Nevada 330704-000-050-10-02-CN 3300 XL 8 mm Proximity Probe The Bently Nevada 330704-000-050-10-02-CN, also cataloged as the 330704 Proximity Probe, operates as a dedicated eddy-current sensing component for shaft displacement measurement within Bently Nevada 3300 XL monitoring systems. Hardware Specifications Parameter Specification Model 330704-000-050-10-02-CN Brand Bently Nevada Product Type Proximity Probe Series 3300 XL 8 mm Proximity Probe Origin USA Weight Not specified Dimensions Overall case length: 50 mm; Total length: 1.0 m Power Consumption Passive probe element; powered by compatible proximity sensor interface Sensing Technology Eddy-current non-contact displacement measurement Probe Tip Diameter 8 mm Cable Length 1.0 m (3.3 feet) Connector Type Miniature coaxial ClickLoc connector Cable Type Standard coaxial cable Agency Approval CN country-specific approval option Certificate Of Origin Available upon request Eddy-Current Measurement and Rotor Dynamics Interface The 330704-000-050-10-02-CN uses eddy-current sensing technology to convert shaft movement into electrical displacement signals. The probe operates with a compatible driver and monitoring module to provide vibration, radial position, and axial displacement measurements. Furthermore, Bently Nevada 3300 XL proximity systems apply probe scaling characteristics to maintain consistent displacement output across the operating range. The system verifies probe gap conditions through gap voltage validation, with typical monitoring references including -10 VDC target gap settings for correct installation checks. The probe assembly supports rotor dynamics analysis by providing non-contact shaft motion data. In addition, the miniature coaxial ClickLoc connector maintains signal integrity between the probe and extension cable interface while reducing connection-related signal disturbances. Frequently Asked Questions Q: What measurement principle does the Bently Nevada 330704-000-050-10-02-CN use?A: The probe uses eddy-current technology to measure shaft displacement without physical contact between the probe tip and rotating target surface. Q: What connector configuration does this model include?A: This model uses a miniature coaxial ClickLoc connector with a standard cable configuration. Q: How is the probe gap condition verified during installation?A: Technicians verify installation by checking the probe gap voltage output. Bently Nevada systems typically use a -10 VDC target gap reference for correct probe positioning. Field Installation Guidelines Install the probe perpendicular to the measured shaft surface to maintain accurate displacement sensing. Confirm the target material compatibility before commissioning the monitoring circuit. Route the coaxial cable away from high-voltage power conductors and strong electromagnetic interference sources. Maintain proper shielding practices and connect cable shields according to the monitoring system grounding requirements. Verify probe gap voltage after mechanical installation and before system calibration. Use the specified ClickLoc connector interface to prevent signal instability caused by improper cable connections. Check mechanical mounting tightness and ensure the probe tip does not contact the rotating shaft during operation.
$200.00 $100.00
-
Bently Nevada Bently Nevada 330707-00-62-10-01-00 3300 XL 11 mm Proximity Probe
Bently Nevada 330707-00-62-10-01-00 3300 XL 11 mm Proximity Probe The Bently Nevada 330707-00-62-10-01-00, also cataloged as the 330707 3300 XL 11 mm Proximity Probe, operates as a dedicated hardware component for shaft displacement and vibration measurement within Bently Nevada 3300 XL Proximity Transducer System installations. Hardware Specifications Parameter Specification Model 330707-00-62-10-01-00 Brand Bently Nevada Product Series 3300 XL 11 mm Proximity Probe Product Type Eddy Current Proximity Sensor Origin USA Weight 0.16 kg Dimensions Estimated shipping size: 2.6 x 2.3 x 123 cm Operating Temp Not specified in supplied data Power Consumption Supplied through compatible Bently Nevada Proximity System driver, not specified Probe Thread Type 5/8-18 UNF thread Probe Construction Without armor Unthreaded Length Option 0.0 in Overall Case Length Option 6.2 in Total Length Option 1.0 meter (3.3 feet) Connector Type Miniature coaxial ClickLoc connector with connector protector Cable Type Standard cable Eddy Current Measurement and Rotor Dynamics Monitoring The 330707-00-62-10-01-00 uses eddy-current sensing technology to measure shaft movement without physical contact between the probe tip and the rotating target. Therefore, the probe provides direct measurement of radial vibration, axial displacement, and shaft position signals when connected with a compatible 3300 XL Proximitor module. The 3300 XL 11 mm probe design supports extended measurement applications where larger target motion ranges are required. Additionally, the system uses calibrated probe scaling and gap voltage validation principles to maintain measurement accuracy. The typical operating setup verifies probe gap voltage conditions around -10 VDC targets to confirm correct shaft-to-probe positioning. Furthermore, the probe signal path supports rotor dynamics analysis by providing displacement information required for vibration phase, orbit analysis, and machinery condition monitoring functions. The miniature coaxial ClickLoc connector reduces installation time while maintaining signal connection integrity in industrial monitoring assemblies. Frequently Asked Questions Q: What measurement technology does the 330707-00-62-10-01-00 use?A: The probe uses eddy-current sensing technology to measure shaft displacement and vibration without mechanical contact. Q: What connector configuration does this probe include?A: The probe includes a miniature coaxial ClickLoc connector with a connector protector and standard cable configuration. Q: Can the probe operate independently without a Proximitor module?A: No. The probe requires a compatible Bently Nevada 3300 XL Proximitor system module to provide excitation, signal conditioning, and output processing. Field Installation Guidelines Install the 330707-00-62-10-01-00 probe using the specified 5/8-18 UNF threaded mounting interface and maintain proper mechanical alignment with the rotating shaft target surface. Verify the probe gap setting before commissioning and confirm the gap voltage remains within the expected operating range for the connected Proximitor system. The cable routing should avoid high-current power conductors, strong electromagnetic interference sources, and excessive mechanical stress. Maintain proper shielding practices during installation. Connect cable shields according to the monitoring system grounding requirements to reduce electrical noise and prevent unwanted signal interference. Before operation, inspect the ClickLoc connector engagement and ensure the connector protector remains correctly installed for environmental protection.
$200.00 $100.00
-
Bently Nevada Bently Nevada 330709-000-050-50-02-00 3300 XL 11 mm Proximity Probe
Bently Nevada 330709-000-050-50-02-00 3300 XL 11 mm Proximity Probe The Bently Nevada 330709-000-050-50-02-00, also cataloged as the 330709 3300 XL 11 mm Proximity Probe, operates as a dedicated hardware component for shaft displacement and vibration measurement within 3300 XL Proximity Transducer System installations. Hardware Specifications Parameter Specification Model 330709-000-050-50-02-00 Brand Bently Nevada Product Series 3300 XL 11 mm Proximity Probe Product Type Eddy Current Proximity Sensor Origin USA Weight Approx. 0.2 kg Dimensions 50 mm case length, 5.0 m total system length Operating Temp -35 deg C to +177 deg C Power Consumption Powered by compatible 3300 XL Proximitor Sensor module Measurement Principle Eddy current non-contact displacement measurement Probe Tip Diameter 11 mm Thread Size M16 x 1.5 metric thread Linear Range 4.0 mm Average Scale Factor 3.94 V/mm (100 mV/mil) +/- 5% Frequency Response 0 Hz to 8 kHz (+0 dB, -3 dB) Cable Type 75 ohm coaxial cable with FEP insulation Cable Length 5.0 meters (16.4 feet) Connector Type Miniature coaxial ClickLoc connector Case Material AISI 304 stainless steel Probe Tip Material Polyphenylene sulfide (PPS) Pressure Resistance Up to 34 bar differential pressure at probe tip sealing interface Eddy Current Measurement and Rotor Dynamics Characteristics The 330709-000-050-50-02-00 uses eddy-current probe scaling to convert shaft target movement into proportional electrical output signals. The probe operates with a 3300 XL Proximitor Sensor to provide a calibrated displacement signal for vibration monitoring and shaft position analysis. The system uses gap voltage validation methods with typical -10 VDC target gap settings to confirm probe installation condition and measurement range. Therefore, technicians can verify mechanical clearance before commissioning rotating equipment monitoring loops. Furthermore, the 11 mm probe geometry supports rotor dynamics analysis by providing displacement measurements required for shaft orbit monitoring, axial position detection, and Keyphasor speed reference applications. The probe design also minimizes signal distortion during dynamic shaft movement. Frequently Asked Questions Q: What measurement signals does the Bently Nevada 330709-000-050-50-02-00 provide?A: The probe provides eddy-current displacement signals for radial vibration, axial position, differential expansion, and speed reference measurement when paired with a compatible 3300 XL Proximitor Sensor. Q: Can this probe operate without a 3300 XL Proximitor Sensor?A: No. The probe requires a compatible Proximitor Sensor to supply excitation power, process the eddy-current signal, and output the conditioned measurement signal. Q: What installation factors affect measurement accuracy?A: Probe gap setting, target material condition, cable routing, connector integrity, and proper shielding practices directly affect signal stability and measurement accuracy. Field Installation Guidelines Install the probe with the M16 x 1.5 threaded mounting interface according to the mechanical drawing requirements of the machine assembly. Maintain correct probe-to-shaft target spacing during installation. Verify the gap voltage after mounting to confirm that the probe operates within the calibrated measurement range. Route the coaxial cable away from high-current power conductors and strong electromagnetic interference sources. Avoid sharp cable bends and mechanical stress at the ClickLoc connector area. Connect the cable shield according to the system grounding design. Improper grounding practices may introduce electrical noise into the vibration monitoring circuit. Before operation, confirm probe polarity, cable connection integrity, Proximitor Sensor compatibility, and channel configuration within the monitoring system.
$200.00 $100.00
-
Bently Nevada 330709-000-060-50-02-00 3300 XL 11 mm Proximity Probe Bently Nevada
Bently Nevada 330709-000-060-50-02-00 3300 XL 11 mm Proximity Probe The Bently Nevada 330709-000-060-50-02-00, also cataloged as the 330709 3300 XL 11 mm Proximity Probe, operates as a dedicated hardware component for shaft displacement and vibration signal measurement within the 3300 XL Proximity Transducer System. Hardware Specifications Parameter Specification Model 330709-000-060-50-02-00 Brand Bently Nevada Product Series 3300 XL 11 mm Proximity Probe Product Type Eddy Current Proximity Sensor Origin USA Weight Approx. 0.7 kg Dimensions 11 mm probe tip diameter, 60 mm case length, 5.0 m total probe length Operating Temp -52 deg C to +177 deg C Power Consumption Maximum 12 mA Measurement Technology Eddy current non-contact displacement measurement Probe Tip Diameter 11 mm Thread Type M16 x 1.5 metric thread Unthreaded Length 0 mm Connector Type Miniature coaxial ClickLoc connector Cable Type Standard cable Linear Range Approximately 2 mm Scale Factor 3.94 V/mm (100 mV/mil) Recommended Gap Setting Approximately 2.5 mm Frequency Response 0 Hz to 8 kHz typical Target Material AISI 4140 steel target recommended Minimum Target Diameter 31 mm Power Supply Requirement -17.5 VDC to -26 VDC Eddy Current Measurement and Rotor Dynamics Characteristics The 330709-000-060-50-02-00 uses eddy-current sensing technology to convert shaft movement into proportional electrical signals. Therefore, the probe provides direct measurement of relative shaft vibration, radial displacement, and axial position. The 3300 XL 11 mm probe system uses a defined scaling characteristic of 3.94 V/mm (100 mV/mil). Furthermore, the Proximitor Sensor validates the probe gap condition through gap voltage measurement, where approximately -10 VDC represents the normal operating target position for the sensing circuit. The 11 mm sensing tip supports increased measurement range compared with smaller diameter proximity probes. As a result, the system supports rotor dynamics analysis, shaft orbit monitoring, and machinery protection applications requiring continuous displacement feedback. Frequently Asked Questions Q: What components are required to operate the 330709-000-060-50-02-00 probe?A: The probe requires a compatible 3300 XL 11 mm Proximitor Sensor and extension cable to form a complete proximity transducer measurement circuit. Q: What electrical principle does this proximity probe use?A: The probe uses eddy current technology to measure the distance between the probe tip and the conductive shaft target without physical contact. Q: What is the purpose of gap voltage validation in this system?A: Gap voltage validation confirms that the probe operates within the calibrated measurement range and maintains correct electrical distance from the shaft target. Field Installation Guidelines Install the probe using the specified M16 x 1.5 mounting thread and maintain mechanical alignment with the shaft target surface. Adjust the probe position according to the recommended gap voltage range before connecting the monitoring channel. Verify the extension cable length and Proximitor Sensor configuration match the selected probe system. Maintain proper cable routing and avoid installation paths with excessive electromagnetic interference. Connect cable shielding according to the machinery monitoring system grounding practice. Confirm signal polarity, gap voltage, and output scaling before placing the protection channel into service.
$200.00 $100.00
-
Bently Nevada 330709-000-060-50-02-05 | 3300 XL 11 mm Proximity Probe | Bently Nevada
Bently Nevada 330709-000-060-50-02-05 3300 XL 11 mm Proximity Probe Configured for shaft displacement measurement and vibration signal acquisition in the 3300 XL Proximity Transducer System, the Bently Nevada 330709-000-060-50-02-05 (330709 3300 XL 11 mm Proximity Probe) provides direct eddy-current sensing for rotating machinery monitoring circuits. Hardware Specifications Parameter Specification Model 330709-000-060-50-02-05 Brand Bently Nevada Product Series 3300 XL 11 mm Proximity Probe Origin USA Weight Approx. 0.3 kg to 0.5 kg Dimensions 11 mm probe tip diameter; 60 mm case length; 5.0 m total length Operating Temp -51 deg C to +177 deg C Power Consumption Supplied by compatible 3300 XL Proximitor Sensor; probe operates as passive eddy-current sensing element Measurement Principle Eddy-current non-contact displacement measurement Linear Range 4.0 mm (160 mils) Incremental Scale Factor 3.94 V/mm (100 mV/mil) nominal Target Material AISI 4140 steel standard calibration target Thread Type M16 x 1.5 metric thread Probe Tip Material Polyphenylene sulfide (PPS) Case Material AISI 304 stainless steel Cable Type 75 ohm triaxial cable with FEP insulation Connector Type Miniature coaxial ClickLoc connector Agency Approval CSA, ATEX, IECEx hazardous area approvals Eddy-Current Probe Scaling and Rotor Dynamics Monitoring The 330709-000-060-50-02-05 uses an 11 mm eddy-current sensing element to convert shaft position changes into proportional electrical output signals. The 3300 XL system applies probe scaling characteristics through the Proximitor Sensor to maintain displacement measurement accuracy. Furthermore, the probe supports rotor dynamics analysis by providing shaft vibration and axial position data for condition monitoring systems. The measurement circuit evaluates shaft motion, mechanical clearance variation, and dynamic displacement behavior during machine operation. The installation process requires correct probe gap adjustment because the gap voltage directly affects measurement linearity. The standard Bently Nevada setup uses gap voltage validation with -10 VDC targets to confirm the probe operates inside the specified measurement region. Frequently Asked Questions Q: Can the 330709-000-060-50-02-05 operate without a Proximitor Sensor?A: No. The probe requires a compatible 3300 XL Proximitor Sensor and extension cable to form a complete eddy-current transducer system. Q: What type of mechanical movement can this probe measure?A: The probe measures non-contact shaft displacement, including radial vibration and axial position changes in rotating machinery. Q: What installation factors affect measurement accuracy?A: Probe gap setting, target material condition, cable routing, and proper shielding connection directly influence signal stability and measurement performance. Field Installation Guidelines Install the probe with the specified M16 x 1.5 mounting thread and maintain proper mechanical alignment with the monitored shaft surface. Verify the probe tip faces the correct target area and remains free from physical contact during operation. Adjust the probe gap according to the compatible Proximitor Sensor calibration requirements and confirm the gap voltage before commissioning. Route the triaxial cable separately from high-current power conductors to reduce electromagnetic interference. Connect cable shielding according to the system grounding practice defined for the 3300 XL monitoring rack installation. Inspect the ClickLoc connector engagement to ensure a secure electrical connection under machine vibration conditions.
$200.00 $100.00
-
Bently Nevada 330709-000-080-10-02-00 Bently Nevada 3300 XL 11 mm Proximity Probe
Bently Nevada 330709-000-080-10-02-00 3300 XL 11 mm Proximity Probe The Bently Nevada 330709-000-080-10-02-00, also cataloged as the 330709 3300 XL 11 mm Proximity Probe, operates as a dedicated hardware component for non-contact shaft displacement and vibration measurement within the 3300 XL Transducer System. Hardware Specifications Parameter Specification Model 330709-000-080-10-02-00 Brand Bently Nevada Product Type 3300 XL 11 mm Proximity Probe Origin USA Weight 0.2kg Dimensions Case length: 80 mm; Total cable length: 1.0 meter Operating Temp -52 deg C to +177 deg C Power Consumption Supplied by compatible Bently Nevada Proximitor Sensor Probe Tip Material Polyphenylene sulfide (PPS) Probe Case Material AISI 304 Stainless Steel Thread Size M16 x 1.5 Unthreaded Length 0 mm Connector Type Miniature coaxial ClickLoc connector Cable Structure 75 ohm triaxial FEP insulated standard cable without armor Linear Range 4.0 mm (160 mils) Linear Measurement Span Approximately 0.5 mm to 4.5 mm Target Material AISI 4140 steel Incremental Scale Factor 3.94 V/mm (100 mV/mil) Probe DC Resistance 7.2 +/- 0.8 ohm Recommended Target Diameter >= 31 mm Recommended Shaft Diameter >= 152 mm Recommended Case Torque 21.1 N m Maximum Case Torque 63.3 N m Eddy-Current Measurement Scaling and Rotor Dynamics Monitoring The Bently Nevada 330709-000-080-10-02-00 uses eddy-current probe scaling characteristics to convert shaft displacement into proportional electrical output signals. The 3300 XL 11 mm design provides a 4.0 mm linear range with an incremental scale factor of 3.94 V/mm, allowing the connected Proximitor Sensor to process radial vibration, axial position, and phase reference measurements. Furthermore, the probe supports rotor dynamics analysis by providing stable non-contact measurement of rotating shaft movement. The system configuration requires correct mechanical positioning and gap voltage validation. Bently Nevada proximity systems typically verify operating gap conditions near the -10 VDC target range to maintain measurement accuracy across the transducer chain. Frequently Asked Questions Q: What type of measurement does the 330709-000-080-10-02-00 perform?A: The probe measures non-contact shaft displacement using an eddy-current sensing principle. It supports vibration, axial position, and Keyphasor phase reference applications when paired with compatible 3300 XL electronics. Q: Can the probe operate without a Bently Nevada Proximitor Sensor?A: No. The probe requires a compatible Proximitor Sensor to provide excitation, signal conditioning, and output conversion. Q: What installation factors affect measurement performance?A: Probe gap setting, target material condition, shaft diameter, cable routing, and mechanical alignment directly affect measurement stability and signal accuracy. Field Installation Guidelines Install the probe with the specified M16 x 1.5 threaded mounting interface and maintain correct mechanical alignment with the shaft target surface. Verify the probe tip clearance and operating gap before commissioning the monitoring channel. Connect the ClickLoc coaxial connector securely to prevent signal interruption caused by mechanical vibration. Route the triaxial cable away from high-current power conductors, ignition sources, and strong electromagnetic interference areas. Maintain proper cable shielding practices and connect the shield according to the system grounding design. Confirm the Proximitor Sensor receives a valid gap voltage before performing vibration or position calibration. Avoid exceeding the specified case torque limits during mechanical installation.
$200.00 $100.00
-
Bently Nevada 330710-000-060-10-02-00 Bently Nevada 3300 XL 11 mm Proximity Probe
Bently Nevada 330710-000-060-10-02-00 3300 XL 11 mm Proximity Probe The Bently Nevada 330710-000-060-10-02-00, also cataloged as the 330710 3300 XL 11 mm Proximity Probe, operates as a dedicated hardware component for shaft displacement measurement within the Bently Nevada 3300 XL Proximity Transducer System. The probe converts eddy-current sensing signals into vibration and position data for rotor monitoring circuits. Hardware Specifications Parameter Specification Model 330710-000-060-10-02-00 Brand Bently Nevada Product Series 3300 XL 11 mm Proximity Probe Product Type Eddy-current proximity sensor Origin USA Weight 0.2 kg Dimensions Estimated shipping size: 3 x 2.8 x 116 cm Operating Temp Not specified Power Consumption Supplied through compatible Bently Nevada Proximitor Sensor, value not specified Total Length Option 1.0 meter (3.3 feet) Thread Type M16 x 1.5 Probe Construction Armored probe design Cable Type Miniature coaxial ClickLoc connector standard cable Connector Option 02 - Miniature coaxial ClickLoc connector Agency Approval 00 - Not required Measurement Principle Eddy-current non-contact displacement measurement Eddy-Current Measurement and Rotor Dynamics Features The 330710-000-060-10-02-00 uses eddy-current probe scaling to provide proportional displacement signals between the probe tip and the rotating shaft target. The 3300 XL 11 mm probe design supports rotor dynamics analysis by measuring shaft vibration, radial displacement, and mechanical movement. Additionally, the system requires proper gap voltage validation during commissioning. Bently Nevada proximity systems commonly use -10 VDC gap voltage targets as a reference point for probe positioning and signal calibration. Correct probe installation maintains linear measurement performance and prevents incorrect vibration interpretation. The probe construction includes an armored cable configuration that protects the miniature coaxial signal path from mechanical stress. Furthermore, the ClickLoc connector provides a controlled connection interface between the probe assembly and the extension cable or Proximitor Sensor. Frequently Asked Questions Q: What measurement principle does the Bently Nevada 330710 probe use?A: The 330710-000-060-10-02-00 uses eddy-current sensing technology to measure shaft displacement without physical contact between the probe tip and the rotating target. Q: What is the function of the -10 VDC gap voltage reference in installation?A: The -10 VDC gap voltage reference helps technicians verify probe position within the operating range of the eddy-current measurement system. Q: Can the armored cable be replaced with another cable type?A: The probe uses a specified miniature coaxial ClickLoc connector standard cable. Replacement components should match the approved 3300 XL 11 mm system configuration. Field Installation Guidelines Install the probe using the specified M16 x 1.5 mounting thread and maintain proper mechanical alignment with the shaft target. Verify the probe gap voltage before final system commissioning to confirm correct operating position. Route the armored cable away from high-current power conductors to reduce electromagnetic interference. Maintain proper cable shielding and grounding practices according to Bently Nevada installation requirements. Avoid excessive bending or mechanical loading on the miniature coaxial cable section. Confirm compatibility between the probe, extension cable, and Proximitor Sensor before energizing the monitoring loop.
$200.00 $100.00
-
Bently Nevada 330730-040-00-CN Bently Nevada 3300 XL 11 mm Extension Cable
Bently Nevada 330730-040-00-CN 3300 XL 11 mm Extension Cable The Bently Nevada 330730-040-00-CN, also cataloged as the 330730 3300 XL 11 mm Extension Cable, operates as a dedicated signal transmission component for eddy-current displacement measurement within the 3300 XL 11 mm Proximity Transducer System. Hardware Specifications Parameter Specification Model 330730-040-00-CN Brand Bently Nevada (Baker Hughes) Product Type 3300 XL 11 mm Extension Cable System Compatibility 3300 XL 11 mm Proximity Transducer System Origin USA Cable Length 4.0 meters (13.1 feet) Cable Construction 75 Ohm triaxial cable with FEP insulation Armor Type Unarmored standard cable Connector Type Gold-plated brass miniature coaxial ClickLoc connectors Operating Temp -51 deg C to +177 deg C Power Consumption Passive signal transmission component; no external power consumption Target Linear Range 4.0 mm (160 mils) within the 3300 XL 11 mm system System Scale Factor 3.94 V/mm (100 mV/mil) Environmental Protection Moisture-resistant ClickLoc positive-locking connector system Humidity Resistance 100% condensing environment capability Eddy-Current Signal Transmission and Rotor Dynamics The 330730-040-00-CN extension cable maintains the electrical characteristics required for 3300 XL 11 mm eddy-current probe operation. It transfers high-frequency displacement signals between the proximity probe and Proximitor Sensor while preserving the calibrated system response. Furthermore, the cable assembly supports rotor dynamics monitoring by maintaining signal integrity during shaft position and vibration measurement. The matched impedance triaxial construction minimizes measurement deviation across the complete probe-cable-sensor circuit. The 3300 XL 11 mm system uses probe scaling characteristics with a nominal scale factor of 3.94 V/mm. Therefore, the extension cable must remain within the specified system configuration to maintain gap voltage interpretation and displacement output accuracy. Frequently Asked Questions Q: What components connect with the Bently Nevada 330730-040-00-CN cable?A: The cable connects a 3300 XL 11 mm proximity probe to a compatible 3300 XL Proximitor Sensor within the 3300 XL Proximity Transducer System. Q: Does the 330730-040-00-CN cable require external power?A: No. The extension cable is a passive signal transmission component and receives operating excitation through the connected Proximitor Sensor circuit. Q: What installation factors affect measurement accuracy?A: Correct probe-cable matching, proper connector engagement, and controlled cable routing away from high-noise electrical sources help maintain signal performance. Field Installation Guidelines Install the cable according to the 3300 XL 11 mm Proximity Transducer System configuration requirements. Ensure ClickLoc connectors are fully engaged before equipment operation to maintain mechanical locking and environmental sealing. Route the extension cable separately from high-current power conductors to reduce electromagnetic interference. Avoid sharp bending, crushing forces, and mechanical stress on the FEP insulated cable jacket. Maintain proper shield and signal reference practices according to the monitoring system installation documentation. Verify the complete probe, extension cable, and Proximitor Sensor combination before performing shaft position or vibration calibration. Confirm gap voltage values during commissioning to validate correct probe positioning and measurement range.
$200.00 $100.00
-
Bently Nevada Bently Nevada 330730-040-03-00 3300 XL 11 mm Extension Cable
Bently Nevada 330730-040-03-00 3300 XL 11 mm Extension Cable Configured for shaft displacement signal transmission in the Bently Nevada 3300 XL 11 mm Proximity Transducer System, the Bently Nevada 330730-040-03-00 (330730 3300 XL 11 mm Extension Cable) provides direct electrical connection between proximity probes and monitoring instrumentation. Hardware Specifications Parameter Specification Model 330730-040-03-00 Brand Bently Nevada Product Type 3300 XL 11 mm Extension Cable Origin USA Weight 0.14 kg Dimensions 18 x 18 x 1.5 cm estimated shipping size Operating Temp -40 deg C to +85 deg C Storage Temp -52 deg C to +105 deg C Power Consumption Passive cable component, no external power consumption Total Length 4.0 meters (13.1 feet) Cable Configuration Armored cable with connector protector Probe Case Material AISI 304 stainless steel (SST) Output Resistance 50 ohm Connector Type ClickLoc connectors Compatible System Bently Nevada 3300 XL 11 mm Proximity Transducer System Signal Function Vibration, axial position, phase reference, tachometer, and zero speed signal transmission Eddy-Current Signal Scaling and Rotor Dynamics Interface The 330730-040-03-00 extension cable maintains the electrical characteristics required for Bently Nevada eddy-current probe systems. It transfers proportional displacement signals from 3300 XL 11 mm probes to the Proximitor Sensor while preserving probe scaling performance. The cable assembly supports rotor dynamics monitoring functions by maintaining stable impedance characteristics between the probe and monitoring channel. Therefore, the system can process shaft vibration, axial thrust position, and phase reference signals without additional signal conditioning inside the cable assembly. The cable construction includes an armored outer layer and connector protector configuration. This design protects the signal path during mechanical installation near rotating equipment monitoring points. Frequently Asked Questions Q: What probes are compatible with the Bently Nevada 330730-040-03-00 cable?A: The cable is designed for Bently Nevada 3300 XL 11 mm proximity probes and connects through the required ClickLoc connector interface. Q: Does the 330730-040-03-00 extension cable require external power?A: No. The extension cable is a passive signal transmission component and does not consume external electrical power. Q: What measurement signals can this cable transmit in a 3300 XL system?A: The cable supports shaft vibration, axial position, ramp differential expansion, rod position, rod drop, tachometer, zero speed, and Keyphasor phase reference signals. Field Installation Guidelines Install the 330730-040-03-00 cable according to the mechanical requirements of the 3300 XL 11 mm Proximity Transducer System. Route the armored cable away from high-current power conductors, variable frequency drive output cables, and strong electromagnetic interference sources. Maintain proper cable separation to reduce electrical noise coupling. Verify that ClickLoc connectors are fully engaged before system commissioning. Inspect connector surfaces for contamination, mechanical damage, or improper alignment. Connect the cable shield according to the monitoring system grounding practice. Avoid multiple shield grounding points that may create unwanted ground loops. Confirm the probe, extension cable, and Proximitor Sensor combination matches the required system configuration before applying operating power.
$200.00 $100.00
-
Bently Nevada 330851-02-000-060-50-00-CN Bently Nevada 3300 XL 25 mm Proximity Probe
Bently Nevada 330851-02-000-060-50-00-CN 3300 XL 25 mm Eddy Current Proximity Probe Configured for axial displacement and differential expansion measurement in turbine rotor monitoring systems, the Bently Nevada 330851-02-000-060-50-00-CN (330851 3300 XL 25 mm Eddy Current Proximity Probe) provides direct physical signal conversion through eddy-current sensing technology. The probe connects with 3300 XL proximity transducer systems for shaft position and rotor dynamic measurement. Suffix Breakdown & Model Matrix Code Specification 330851 3300 XL 25 mm Eddy Current Proximity Probe 02 Probe case thread option: M30 x 2 metric thread 000 Unthreaded length: 0 mm 060 Probe case length: 60 mm 50 Total system length: 5.0 meters 00 Cable armor option: No armor CN Country/agency approval option for China Hardware Specifications Parameter Specification Model 330851-02-000-060-50-00-CN Brand Bently Nevada Origin USA Weight Not specified in available technical data Dimensions 25 mm probe tip diameter, 60 mm case length Operating Temp Probe tip: -35 deg C to +200 deg C continuous operation Power Consumption Powered by compatible 3300 XL Proximitor Sensor, value depends on system configuration Product Type Eddy Current Proximity Sensors Transducer Type Non-contact eddy-current displacement probe Probe Diameter 25 mm tip diameter Thread Type M30 x 2 metric thread Linear Range 12.7 mm (500 mils) Linear Range Start Approximately 0.63 mm (25 mils) from target Average Scale Factor 0.787 V/mm (20 mV/mil) nominal Deviation from Best Fit Straight Line Less than +/- 0.31 mm (+/- 12 mils) at ambient temperature Target Material AISI 4140 steel standard target Case Material Stainless steel Connector Type ClickLoc coaxial connector with FluidLoc seal protection Eddy-Current Scaling and Rotor Dynamic Measurement The 3300 XL 25 mm probe uses eddy-current sensing to generate proportional displacement signals between the probe tip and conductive target surface. Therefore, the connected Proximitor Sensor converts gap changes into voltage outputs for machinery monitoring applications. The system supports rotor dynamics analysis by providing shaft position and movement data. Additionally, gap voltage validation uses the standard -10 VDC target condition to verify correct probe installation and measurement range before machinery operation. The large 25 mm sensing tip provides a 12.7 mm linear measurement range, which allows monitoring of large rotor axial movement and differential expansion conditions. Frequently Asked Questions Q: What measurement function does the 330851-02-000-060-50-00-CN provide?A: The probe measures non-contact shaft displacement, axial position, and differential expansion through eddy-current sensing technology. Q: Can this probe operate without a separate signal conditioner?A: No. The probe requires a compatible Bently Nevada 3300 XL Proximitor Sensor to provide excitation and convert probe signals into monitoring outputs. Q: What installation verification method applies to this probe system?A: Technicians verify probe gap voltage and confirm the approximate -10 VDC operating target condition during setup. Field Installation Guidelines Install the probe with the specified M30 x 2 mounting thread and maintain correct probe-to-target alignment. The sensing surface must face the conductive target area without mechanical interference. Route the coaxial cable away from high-current power conductors to reduce electrical interference. Maintain proper cable shielding and connect the shield according to the monitoring system grounding practice. Before operation, verify probe gap voltage, mechanical clearance, and cable connection condition. Confirm that the connected 3300 XL Proximitor Sensor receives the correct probe signal before commissioning the machinery monitoring channel.
$200.00 $100.00
-
Bently Nevada Bently Nevada 330854-040-24-00 3300 XL 25 mm Extension Cable
Bently Nevada 330854-040-24-00 3300 XL 25 mm Extension Cable The Bently Nevada 330854-040-24-00, also cataloged as the 330854 3300 XL 25 mm Extension Cable, provides direct signal connection between a 25 mm proximity probe and a Proximitor Sensor within the 3300 XL Transducer System. Hardware Specifications Parameter Specification Model 330854-040-24-00 Brand Bently Nevada Product Type 3300 XL 25 mm Extension Cable Origin USA Weight 0.44 kg Dimensions 10 x 7.5 x 5.2 cm estimated shipping size Operating Temp -35 deg C to +200 deg C Storage Temp -35 deg C to +200 deg C Cable Length 4.0 metres (13.1 feet) Cable Construction High Temperature FluidLoc cable Armor Option High Temperature FluidLoc cable Probe Case Material AISI 304 stainless steel Power Consumption Passive cable assembly, no external power consumption Tariff Code 8537101190 Eddy-Current Signal Transmission and Rotor Dynamics Application The 330854-040-24-00 extension cable transfers eddy-current probe signals between the 3300 XL 25 mm probe and the Proximitor Sensor. Therefore, the cable maintains the electrical characteristics required for shaft displacement measurement and rotor dynamics monitoring. The cable assembly supports stable probe scaling performance by maintaining the impedance and signal path requirements of the 3300 XL proximity system. In addition, the high temperature FluidLoc cable construction allows installation in elevated temperature environments where standard cable jackets are unsuitable. The stainless steel probe case material provides mechanical protection for the connected probe assembly. Furthermore, the cable design maintains signal integrity for vibration, axial position, and differential expansion measurement circuits. Frequently Asked Questions Q: What system components connect with the 330854-040-24-00 cable?A: The cable connects a 3300 XL 25 mm proximity probe to a compatible 3300 XL Proximitor Sensor in the proximity monitoring system. Q: Does the 330854-040-24-00 require external power?A: No. The extension cable is a passive electrical connection component and does not consume external power. Q: What environmental condition does this cable support?A: The cable supports operating and storage temperatures from -35 deg C to +200 deg C with a high temperature FluidLoc cable design. Field Installation Guidelines Install the 330854-040-24-00 extension cable according to the 3300 XL Transducer System installation requirements. Verify that the probe, extension cable, and Proximitor Sensor part numbers are electrically compatible before installation. Route the cable away from high current power conductors to reduce electromagnetic interference. Maintain proper cable separation from variable frequency drive outputs and switching power circuits. Connect cable shielding according to the system grounding practice specified for the monitoring rack and machinery protection system. Avoid sharp bends, mechanical stress, and excessive pulling force during cable routing. Confirm the probe gap voltage after installation to validate correct eddy-current measurement operation.
$200.00 $100.00
-
Bently Nevada Bently Nevada 330854-040-24-05 3300 XL 25 mm Extension Cable
Bently Nevada 330854-040-24-05 3300 XL 25 mm Extension Cable The Bently Nevada 330854-040-24-05, also cataloged as the 330854 3300 XL 25 mm Extension Cable, operates as a dedicated hardware component for probe signal extension within the Bently Nevada 3300 XL 25 mm Proximity Transducer System. Hardware Specifications Parameter Specification Model 330854-040-24-05 Brand Bently Nevada Product Type 3300 XL 25 mm Extension Cable Origin USA Weight 0.16 kg Dimensions 20 x 18 x 2 cm (estimated shipping size) Operating Temp -35 deg C to +200 deg C Power Consumption Passive cable component; no external power consumption Cable Length 4.0 m Cable Type 75 ohm triaxial cable with PFA insulation Cable Construction FluidLoc cable design for moisture and fluid migration prevention Connector Type High-temperature ClickLoc connectors Conductor Material Gold-plated brass / beryllium copper connector pins Minimum Bend Radius 25.4 mm Torque Specification Finger-tight recommended; maximum 0.565 N m System Compatibility 3300 XL 25 mm Proximitor Sensors and 25 mm Proximity Probes Agency Approval Multiple approvals including CSA, ATEX, and IECEx options Eddy-Current Signal Extension and Rotor Dynamics Interface The Bently Nevada 330854-040-24-05 extends the electrical path between the 25 mm eddy-current probe and the 3300 XL Proximitor Sensor. Therefore, the cable maintains probe calibration characteristics required for shaft displacement and differential expansion measurements. The 3300 XL 25 mm system uses controlled cable impedance and defined electrical length to preserve eddy-current probe scaling. Furthermore, the extension cable supports stable gap voltage validation procedures, including typical -10 VDC target checks during probe installation and system verification. The FluidLoc cable structure limits oil and moisture movement through the cable layers. Additionally, the ClickLoc connector design maintains mechanical engagement under vibration conditions found in rotating equipment monitoring applications. Frequently Asked Questions Q: Can the 330854-040-24-05 be used with standard 8 mm or 11 mm proximity probes?A: No. The cable is designed specifically for the Bently Nevada 3300 XL 25 mm Proximity Transducer System and requires compatible 25 mm probes and Proximitor Sensors. Q: Does the extension cable require external power or signal conditioning?A: No. The 330854-040-24-05 is a passive extension cable and receives operating signals through the connected Proximitor Sensor circuit. Q: How should the ClickLoc connectors be installed in field applications?A: Install the connectors by hand tightening first, then apply the specified maximum torque only when required. Avoid excessive force that may damage connector components. Field Installation Guidelines Verify that the total system electrical length matches the configured 3300 XL 25 mm Proximity Transducer System requirements before installation. Route the extension cable away from high-current power cables, switching devices, and sources of electromagnetic interference. Maintain the minimum bend radius during cable installation to prevent mechanical stress on the triaxial structure. Inspect ClickLoc connectors for contamination, moisture, and mechanical damage before connection. Confirm probe gap voltage after installation using the Proximitor Sensor monitoring circuit. A typical verification target is approximately -10 VDC for correct probe positioning. Install cable sections with proper mechanical support to prevent vibration-induced movement near connector interfaces.
$200.00 $100.00
-
Bently Nevada 330854-080-24-CN Bently Nevada 3300 XL 25 mm Extension Cable
Bently Nevada 330854-080-24-CN 3300 XL 25 mm Extension Cable Configured for signal transmission extension in the Bently Nevada 3300 XL 25 mm Proximity Transducer System, the Bently Nevada 330854-080-24-CN (330854 3300 XL 25 mm Extension Cable) provides direct electrical connection between the proximity probe and monitoring instrumentation. Hardware Specifications Parameter Specification Model 330854-080-24-CN Brand Bently Nevada Product Type 3300 XL 25 mm Extension Cable Origin USA Weight 0.16 kg Dimensions 20 x 18 x 2 cm (estimated shipping size) Cable Length 8.0 m (26.2 ft) Cable Type High Temperature FluidLoc cable Operating Temp -35 deg C to +85 deg C (-31 deg F to +185 deg F) Storage Temp -51 deg C to +100 deg C (-60 deg F to +212 deg F) Power Consumption Passive cable component, no external power consumption Tariff Code 8537101190 Eddy-Current Signal Transmission and Mechanical Monitoring Characteristics The Bently Nevada 330854-080-24-CN extension cable maintains the electrical characteristics required for 3300 XL 25 mm proximity probe systems. It transfers eddy-current measurement signals between the probe and the monitoring module while preserving probe calibration parameters. Additionally, the cable construction supports rotor dynamics monitoring applications where stable shaft displacement signals are required. The cable assembly works with the complete proximity transducer chain to maintain gap voltage measurement accuracy and signal integrity. The high temperature FluidLoc cable design provides resistance against fluid ingress and environmental exposure. Furthermore, the cable routing design helps reduce signal disturbance in industrial machinery monitoring installations. Frequently Asked Questions Q: What system does the Bently Nevada 330854-080-24-CN extension cable support?A: The 330854-080-24-CN supports Bently Nevada 3300 XL 25 mm proximity probe systems and provides the cable connection path between the probe and monitoring electronics. Q: Does the 330854-080-24-CN require external power?A: No. The extension cable is a passive component and does not consume electrical power. It transfers probe signals through the transducer circuit. Q: What environmental temperature range does this cable support?A: The operating temperature range is -35 deg C to +85 deg C, while the storage temperature range is -51 deg C to +100 deg C. Field Installation Guidelines Install the extension cable according to the 3300 XL proximity transducer system wiring requirements. Maintain proper cable routing separation from high-current power cables to minimize electrical interference. Connect cable shielding according to the monitoring system grounding specification. Avoid sharp bending or mechanical stress on the cable during installation. Verify connector engagement and cable continuity before placing the monitoring loop into service. Confirm the complete probe, extension cable, and monitor chain operates within the specified signal range.
$200.00 $100.00
-
Bently Nevada Bently Nevada 330876-02-50-00-00 High-Temperature Proximity Probe
Bently Nevada 330876-02-50-00-00 3300 XL 50 mm High-Temperature Proximity Probe The Bently Nevada 330876-02-50-00-00, also cataloged as the 330876 3300 XL 50 mm High-Temperature Proximity Probe, operates as a dedicated hardware component for shaft displacement and vibration measurement within Bently Nevada TSI monitoring systems. Hardware Specifications Parameter Specification Model 330876-02-50-00-00 Brand Bently Nevada Product Type 3300 XL 50 mm High-Temperature Proximity Probe System Type Eddy Current Proximity Transducer Origin USA Tip Diameter 50 mm Linear Range Up to 27.9 mm (1100 mils) Scale Factor 394 mV/mm (10 mV/mil) Target Material AISI 4140 steel target, minimum target surface diameter 102 mm Case Thread M14 x 1.5 threaded case Case Material AISI 304 stainless steel Tip Material Polyphenylene sulfide (PPS) Cable Type High-Temperature FluidLoc cable Cable Length 5.0 meters Armor Unarmored Connector Type Miniature coaxial ClickLoc connector Operating Temp -35 deg C to +200 deg C Short-Term Temperature Limit Up to +250 deg C for transient conditions less than 24 hours Power Consumption Supplied through compatible Bently Nevada proximity driver system; value not specified Eddy-Current Measurement and Rotor Dynamics Characteristics The 330876-02-50-00-00 uses an eddy-current sensing principle to generate proportional displacement signals from conductive targets. Therefore, the probe provides a 394 mV/mm scaling factor for shaft position and vibration measurement applications. The 3300 XL 50 mm design supports differential expansion monitoring by measuring the relative movement between rotating components and stationary machine structures. In addition, the extended linear range allows the probe to monitor large mechanical displacement movements in turbine applications. The probe system requires proper gap voltage validation during commissioning. Bently Nevada proximity systems typically verify probe operation through gap voltage targets around -10 VDC to confirm correct installation position and measurement range. Furthermore, the probe construction supports rotor dynamics analysis by providing continuous displacement feedback for vibration evaluation, thrust position monitoring, and machine protection logic. Frequently Asked Questions Q: What measurement principle does the Bently Nevada 330876-02-50-00-00 use?A: The probe uses an eddy-current sensing element to measure shaft displacement without mechanical contact between the probe tip and the monitored target. Q: Can the 330876-02-50-00-00 operate in high-temperature environments?A: Yes. The probe supports continuous operation from -35 deg C to +200 deg C and allows short-term exposure up to +250 deg C under transient conditions. Q: What cable design is used on this proximity probe?A: The probe uses a 5.0 meter unarmored High-Temperature FluidLoc cable, which limits oil and fluid migration through the cable structure. Field Installation Guidelines Install the probe with the specified M14 x 1.5 threaded case connection and maintain correct mechanical alignment with the monitored shaft target. Before operation, verify the probe gap position using the compatible proximity system monitor. Confirm that the gap voltage remains within the expected operating range, including typical -10 VDC validation targets. Route the FluidLoc cable away from high-current power conductors and strong electromagnetic interference sources. Use proper cable separation practices to reduce signal disturbance. Connect the miniature coaxial ClickLoc connector securely and inspect the connection point for contamination, mechanical stress, or moisture exposure. During commissioning, confirm target material compatibility, probe clearance, and signal scaling before enabling machine protection functions.
$200.00 $100.00
-
Bently Nevada Bently Nevada 330877-080-36-00 3300 XL 50 mm Extension Cable
Bently Nevada 330877-080-36-00 3300 XL 50 mm Extension Cable Configured for proximity signal transmission in the 3300 XL 50 mm Proximity Transducer System, the Bently Nevada 330877-080-36-00 (330877 3300 XL 50 mm Extension Cable) provides direct electrical connection between the proximity probe and Proximitor sensor. Hardware Specifications Parameter Specification Model 330877-080-36-00 Brand Bently Nevada Product Type 3300 XL 50 mm Extension Cable Origin USA Weight 0.94 kg Dimensions 28 x 28 x 3 cm (estimated shipping size) Operating Temp -51 deg C to +200 deg C Storage Temp -51 deg C to +200 deg C Power Consumption Passive cable assembly, no external power consumption Cable Length 8.0 meters (26.2 feet) Cable Type FluidLoc cable Armor and Cable Option FluidLoc cable Agency Approval No approvals Characteristic Impedance 75 Ohm +/- 2% Cable Insulation Material Perfluoroalkoxy (PFA) Shielding Construction Triaxial shielded construction Typical Capacitance 69.9 pF/m (21.3 pF/ft) Application System 3300 XL 50 mm Proximity Transducer System Eddy-Current Signal Transmission and Rotor Dynamics Interface The 330877-080-36-00 extension cable transfers eddy-current proximity signals between the 3300 XL 50 mm probe and the Proximitor sensor. Therefore, it maintains the electrical characteristics required for shaft displacement and vibration measurement circuits. The cable supports Bently Nevada proximity measurement systems that apply probe scaling and gap voltage validation methods. In addition, the triaxial shielded construction reduces external electrical interference and improves signal stability in rotor dynamics monitoring circuits. The FluidLoc cable structure prevents fluid migration along the cable path. Furthermore, the PFA insulation material supports continuous operation across the specified temperature range for rotating machinery monitoring installations. Frequently Asked Questions Q: What equipment does the 330877-080-36-00 cable connect?A: The cable connects a 3300 XL 50 mm proximity probe to a compatible 3300 XL 50 mm Proximitor sensor within the proximity transducer system. Q: Does the 330877-080-36-00 require an external power supply?A: No. The extension cable is a passive signal transmission component and does not consume external electrical power. Q: What shielding method does this extension cable use?A: The cable uses triaxial shielded construction to control electromagnetic interference and maintain proximity signal integrity. Field Installation Guidelines Install the extension cable according to the 3300 XL Proximity Transducer System wiring requirements. Maintain separation between the extension cable and high-current power cables to reduce electromagnetic interference. Connect cable shielding according to the approved system grounding practice for the monitoring rack and sensor circuit. Avoid sharp bending, mechanical stress, and damage to the FluidLoc cable outer structure during installation. Verify probe, extension cable, and Proximitor sensor compatibility before commissioning the vibration monitoring loop. Confirm gap voltage and signal output values during startup to validate correct probe installation and measurement performance.
$200.00 $100.00
Anda telah melihat 96 dari 693 produk
